For years, the field of computer vision was dominated by carefully hand-crafted features. Algorithms like SIFT and HOG were the undisputed champions, forming the backbone of nearly every state-of-the-art object detection system. But by 2012, progress was slowing. Performance on the benchmark PASCAL VOC Challenge had hit a plateau, and it seemed the community was squeezing the last drops of performance from existing methods. A true breakthrough was needed.

Meanwhile, in a seemingly separate corner of machine learning, a revolution was brewing. Deep learning—specifically Convolutional Neural Networks (CNNs)—was making waves. The pivotal moment came in 2012 when a CNN called AlexNet demolished the competition in the ImageNet Large Scale Visual Recognition Challenge (ILSVRC), a task focused on whole-image classification. This raised an electrifying question in computer vision: could the incredible power of these deep networks, trained for classifying entire images, be harnessed for the more complex task of detecting and localizing specific objects within an image?

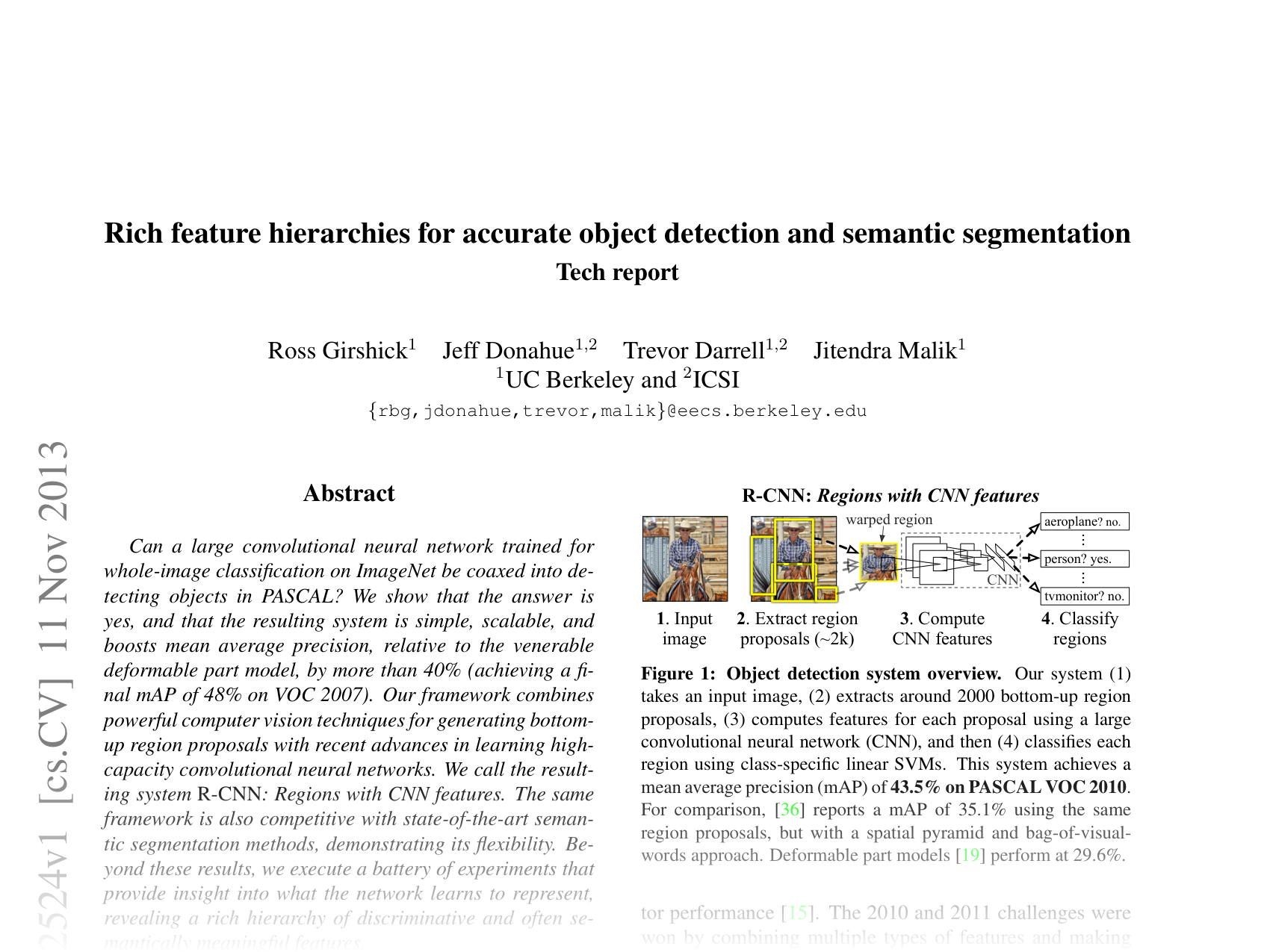

In 2014, a landmark paper titled Rich feature hierarchies for accurate object detection and semantic segmentation provided a resounding answer. The authors introduced R-CNN: Regions with CNN features. This work didn’t just inch the field forward; it triggered a paradigm shift—boosting object detection accuracy by an unprecedented margin and setting the stage for the modern era of computer vision.

In this article, we’ll break down the elegant ideas behind R-CNN, explore how it worked, why it was so effective, and the legacy it left behind.

Before R-CNN: The Sliding Window Problem

Before R-CNN, the dominant paradigm for object detection was the sliding window approach. Systems like the highly-tuned Deformable Part Model (DPM) would slide a detector over the image at different scales and aspect ratios. For each window, they would extract features (typically HOG) and run a classifier.

This worked, but had two big drawbacks:

  1. Hand-crafted Features: HOG features capture gradient structure well, but they are fixed designs—not learned from data. They may not be optimal for representing the rich diversity of object appearances.
  2. Computational Cost: Modern CNNs have millions of parameters and are expensive to compute. Applying a large CNN to every possible window in an image is impractically slow.

The challenge: how to leverage deep CNN features without being bogged down by brute-force inefficiency?

The R-CNN Method: A Three-Module Pipeline

R-CNN elegantly sidestepped the sliding-window problem by using a multi-stage pipeline that was both effective and efficient. First, it narrowed down the number of regions to process, then ran the CNN feature extractor on only those regions.

As shown in Figure 1, the system consisted of three modules:

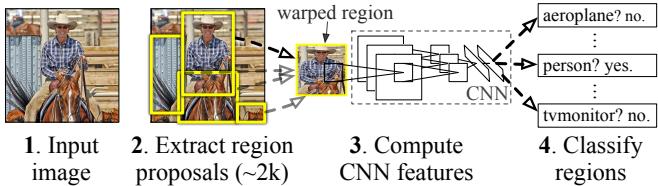

Overview of the R-CNN detection pipeline: (1) input image, (2) extract ~2000 region proposals with selective search, (3) compute CNN features for each, (4) classify with SVMs.

Module 1: Generate Region Proposals

Instead of examining every possible location, R-CNN generates a small set of “candidate” object bounding boxes (~2000 per image). This recognition using regions approach uses Selective Search, which starts with many small superpixel segments and merges them based on color, texture, size, and shape similarity. The result is a diverse set of region proposals at various scales and aspect ratios.

This step is class-agnostic: it doesn’t know whether a box contains a “cat” or “car.” It simply proposes likely object regions. This reduces the number of windows from millions to just a couple thousand—making CNN processing feasible.

Module 2: Extract Features with a CNN

For each proposal, R-CNN extracts a fixed-length feature vector using a CNN similar to AlexNet (already successful on ImageNet). CNNs require fixed-size inputs (e.g. \(224\times224\) pixels), but region proposals have arbitrary sizes.

R-CNN solved this simply: warp each bounding box to \(224\times224\).

Examples of warped region proposals from VOC 2007: aeroplanes, bicycles, birds, and cars, distorted to fit square CNN inputs.

Although this warping distorts shapes, it worked well in practice. Each warped patch is forwarded through the CNN, and features are extracted from the second fully-connected layer (fc7)—yielding a 4096-dimensional, high-level descriptor of the region.

Module 3: Classify Regions with SVMs

With feature vectors computed for all proposals, R-CNN trains a linear SVM per object class (20 in PASCAL VOC). These SVMs determine “class vs. not-class” for each region.

Training: a proposal is positive for a class if its Intersection-over-Union (IoU) with a ground-truth box is ≥ 0.5, otherwise negative. The IoU threshold was tuned carefully, and the choice was surprisingly impactful.

At test time, all regions are scored for each class. Post-processing with Non-Maximum Suppression (NMS) removes redundant, overlapping boxes—retaining the highest-confidence detections.

The Secret Sauce: Transfer Learning and Fine-Tuning

A key to R-CNN’s performance was transfer learning:

  1. Pre-training: The CNN was first trained for classification on the large ImageNet dataset (> 1 million images, 1000 categories). This taught it to recognize a hierarchy of features—from edges and colors to textures and object parts.
  2. Fine-tuning: The CNN was then trained further on PASCAL VOC region proposals, adapting the features to the specific classes and the warped geometry.

This pre-train then fine-tune recipe became a cornerstone of modern computer vision.

Experiments and Results: A New State-of-the-Art

R-CNN was evaluated on the PASCAL VOC 2010–2012 datasets with stunning results.

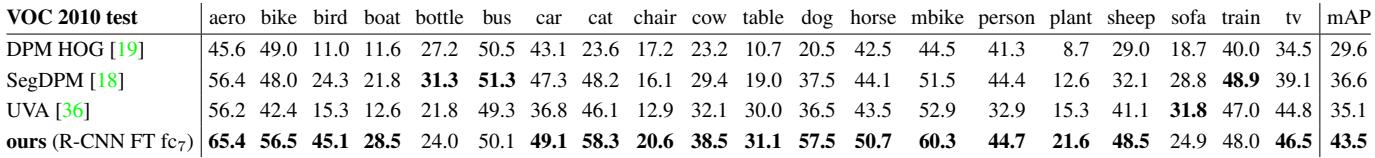

Detection average precision (AP) on VOC 2010 test. R-CNN reaches 43.5% mAP, beating UVA (35.1%) and DPM (29.6%).

On VOC 2010, R-CNN achieved 43.5% mAP—shattering previous records. UVA, which used the same proposals but traditional features, scored 35.1%. DPM managed only 29.6%. R-CNN’s relative improvement over DPM was more than 40%.

Ablation Studies: What Makes R-CNN Tick?

To dissect R-CNN’s success, the authors ran ablation studies.

Performance Layer-by-Layer

They tested features from three layers: pool5 (last convolutional), fc6 (first fully-connected), and fc7 (second fully-connected).

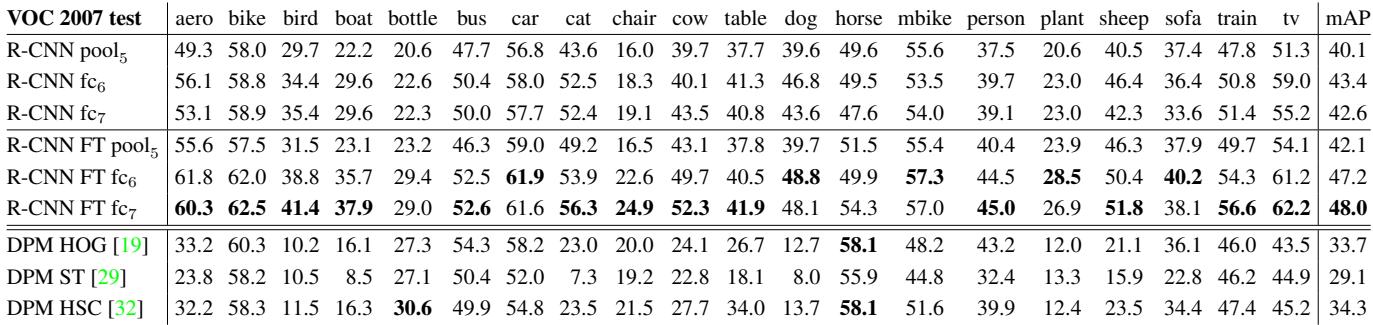

VOC 2007 detection mAP by layer, with and without fine-tuning. Fine-tuning boosts performance, especially for fc layers.

Key findings:

  • Convolutional Power: Even pool5 features (only 6% of parameters) achieved 40.1% mAP without fine-tuning. Most representational strength comes from convolutional layers.
  • Fine-tuning is Crucial: Fine-tuning boosted fc7 from 42.6% to 48.0% mAP. The adaptation step is essential.
  • Learned > Hand-crafted: All R-CNN variants exceeded HOG-based or mid-level feature DPM systems, proving CNN feature hierarchies superior.

Visualizing Learned Features

What do “rich features” look like? The authors visualized individual pool5 neurons by finding patches that strongly activated them.

Top image patches activating six pool5 neurons. Units detect cat faces, animals, diagonal bars, or red blobs.

Some units acted as detectors for semantic concepts (cat faces, people), others responded to textures or colors. This demonstrated the diversity and richness of learned features—from simple patterns to complex, meaningful shapes.

Error Analysis: New Strengths, New Weaknesses

Using an error analysis tool, the authors categorized R-CNN’s false positives and compared them to DPM.

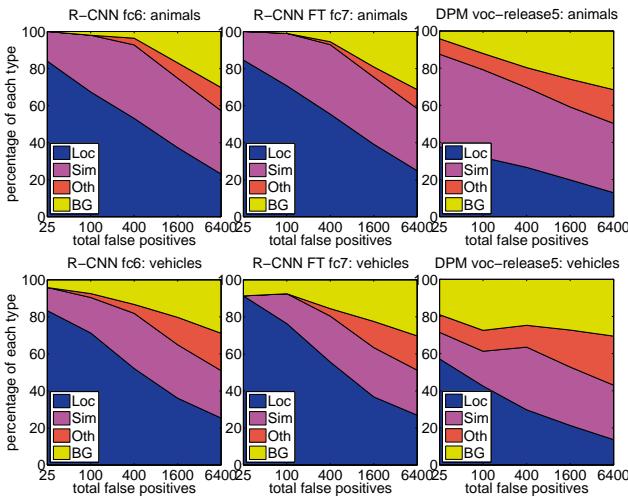

False positive types for R-CNN vs. DPM. R-CNN has more localization (Loc) errors, fewer background (BG) errors.

R-CNN’s dominant error type was poor localization (correct class, wrong bounding box). DPM struggled more with background confusion. CNN features are highly discriminative—rarely mistaking background for objects—but bounding box precision could be improved (addressed in later models like Fast/Faster R-CNN).

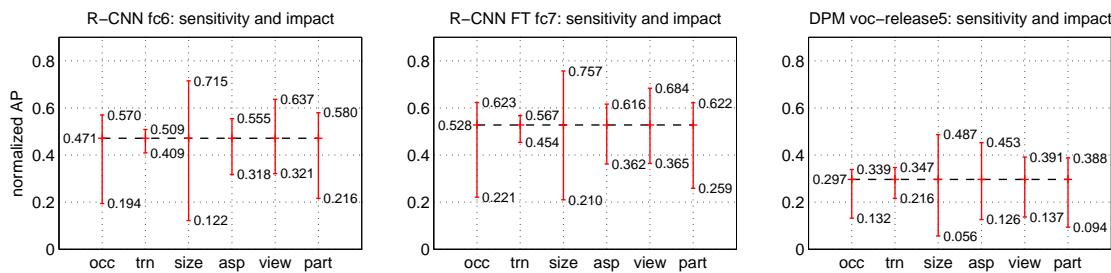

Sensitivity to object characteristics: fine-tuning improves R-CNN’s best and worst subsets for all traits.

Fine-tuning improved robustness across occlusion, truncation, viewpoint changes, and more—not just the weakest cases.

Beyond Detection: R-CNN for Semantic Segmentation

R-CNN’s learned features aren’t just for detection—they’re also powerful for semantic segmentation (pixel-wise classification).

Using CPMC region proposals, the authors tried three strategies:

  • full: CNN features on the rectangle enclosing the region.
  • fg: CNN features on the foreground mask (background filled with mean).
  • full+fg: concatenate both.

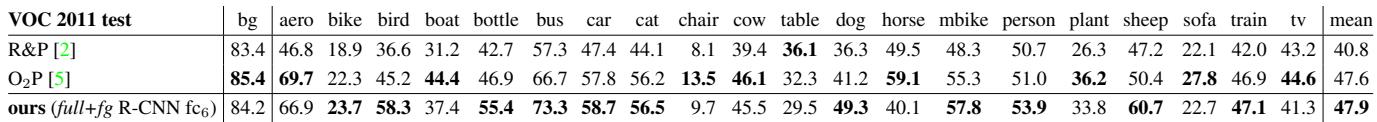

Segmentation accuracy on VOC 2011 test: R-CNN full+fg achieves 47.9% mean accuracy, competitive with O2P.

On VOC 2011, full+fg (fc6) achieved 47.9% mean accuracy—matching the leading O2P method and training much faster. This showed the CNN features’ generality for multiple vision tasks.

Conclusion and Legacy

The R-CNN paper was a watershed moment in computer vision. It proved that deep CNNs, pre-trained on large classification datasets, could deliver state-of-the-art performance on complex detection tasks.

Key takeaways:

  1. A Winning Formula: Class-agnostic region proposals + deep CNN features = revolutionary pipeline.
  2. Power of Transfer Learning: Pre-training + fine-tuning became standard practice.
  3. Learned Features Win: CNN hierarchies far outperform hand-crafted features.

R-CNN wasn’t perfect—the training was multi-stage and slow, and inference wasn’t real-time. But it laid the essential groundwork. It spawned successors (Fast R-CNN, Faster R-CNN, Mask R-CNN) that refined speed, accuracy, and end-to-end training.

Its influence is still felt in nearly every modern object detection system today. R-CNN opened the floodgates—and the era of deep learning–powered vision truly began.
