In 2012, a deep convolutional neural network (CNN) named AlexNet stunned the world by winning the ImageNet Large Scale Visual Recognition Challenge with an error rate almost half that of the runner-up. It was a watershed moment that kicked off the modern deep learning revolution. But while the results were undeniable, these networks were still black boxes—we knew they worked, but not what was happening inside their millions of parameters.

From a scientific perspective, this was unsatisfying. How can we improve something if we don’t understand it? Relying on trial-and-error to build better models is slow and inefficient.

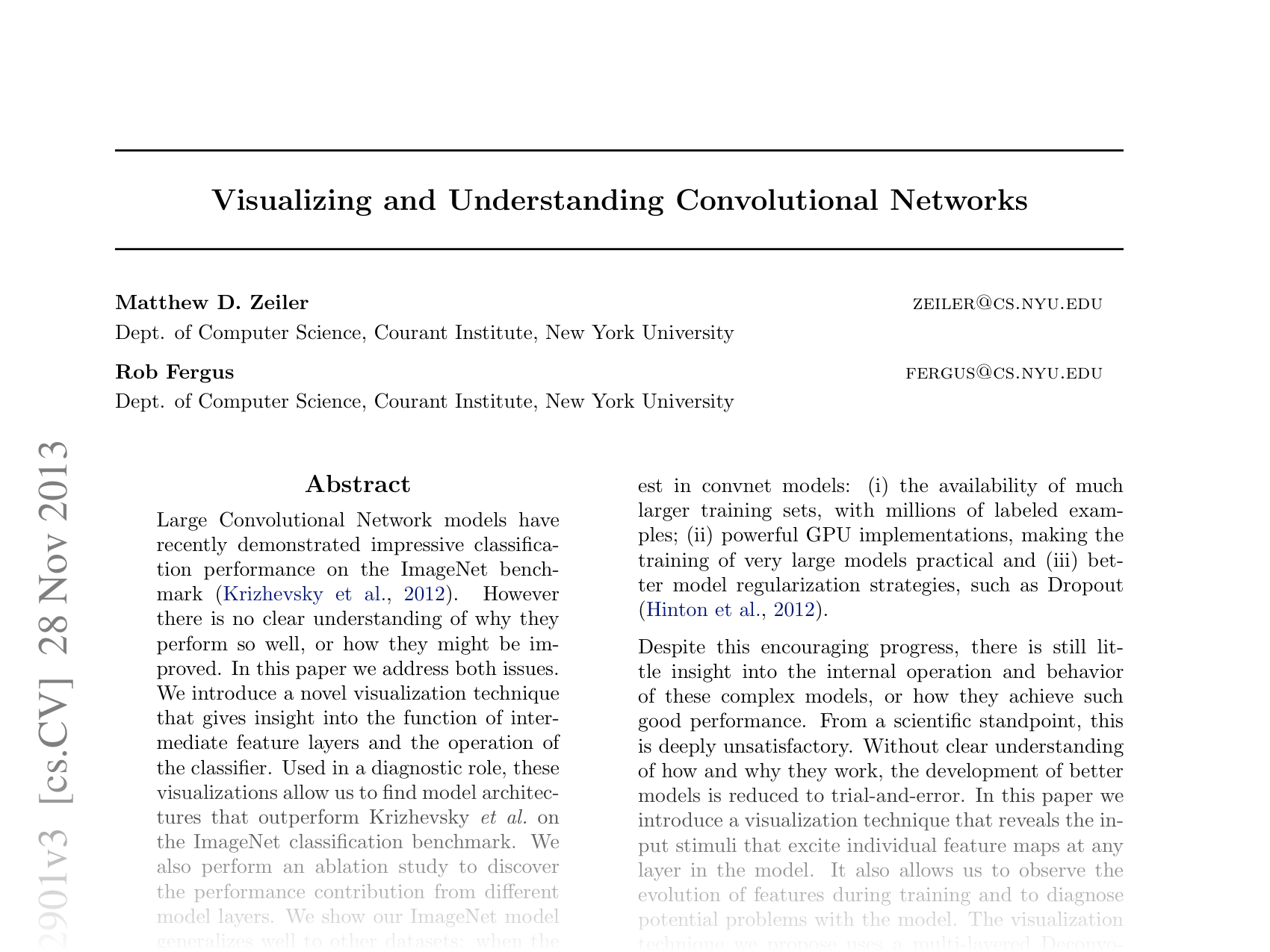

This is the problem Matthew Zeiler and Rob Fergus tackled in their groundbreaking 2014 paper, Visualizing and Understanding Convolutional Networks. They developed a novel technique to peer inside the mind of a CNN, revealing the intricate hierarchy of features it learns. Their work didn’t just produce beautiful and intuitive pictures; it gave us a diagnostic tool to debug and improve the state-of-the-art AlexNet architecture—ultimately setting a new ImageNet record.

In this post, we’ll break down their approach, explore what they learned, and see why this work remains a cornerstone of CNN interpretability.

Background: Peeking into the Convolutional Black Box

Before we open the box, let’s briefly recap what’s inside. A typical CNN for image classification includes:

  1. Convolutional Layers: The workhorses. Each layer has a set of learnable filters that slide across the input image (or the output of the previous layer), detecting patterns like edges, colors, or—in deeper layers—more complex structures like eyes or wheels.
  2. ReLU Activation: \(f(x) = \max(0, x)\) introduces non-linearity, allowing the network to learn complex functions. It clips all negative values to zero.
  3. Pooling Layers: Downsample feature maps to reduce spatial dimensions. The most common is Max Pooling, which picks the largest value in a window, improving robustness to small translations (e.g., a cat shifted a few pixels is still recognized).
  4. Fully Connected Layers: Flattened feature maps are fed into standard neural network layers to combine features.
  5. Softmax Layer: Outputs a probability distribution over all classes; the highest probability is the prediction.

We could visualize the first-layer filters easily—they directly process image pixels—but visualizing something like a 4th-layer feature was much harder. Higher layers operate on abstract feature maps, far removed from raw pixel space.

The Core Innovation: The “Deconvnet”

Zeiler and Fergus’ central innovation was the Deconvolutional Network, or Deconvnet. Don’t be fooled by the name: it’s not training a new model. Instead, it cleverly reverses the operations of a trained CNN to map high-level features back to pixels.

Imagine a trained CNN sees a picture of a dog. A specific neuron in the 5th layer fires strongly. Which part of the image caused that neuron to activate? The Deconvnet can tell us—by tracing that activation backward through the network.

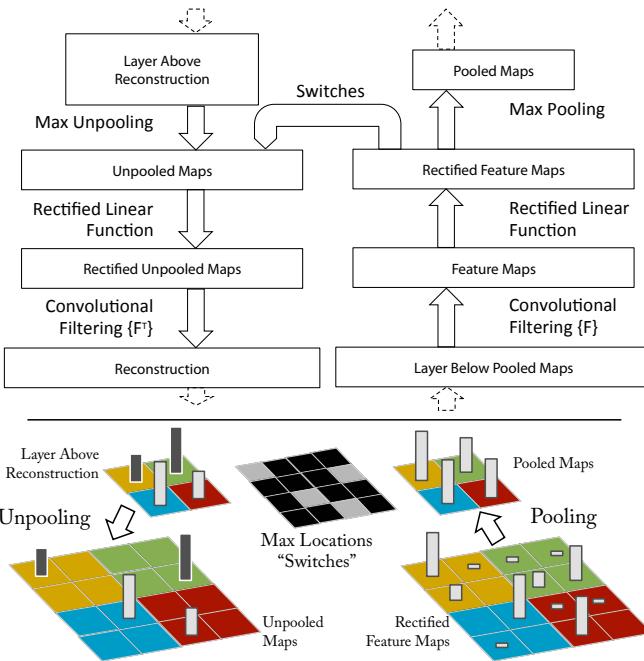

Figure 1 shows the Deconvnet (left) attached to a Convnet (right). The Deconvnet reconstructs the discriminative input pattern for a feature activation by reversing the Convnet’s operations: unpooling, rectifying, and filtering, using “switches” recorded during pooling.

Here’s how the inverse operations work:

  1. Unpooling: Max pooling isn’t invertible—you lose information about where the max came from. The trick is recording “switches” during the forward pass, marking the location of each max. The Deconvnet uses these to place the activation back into its original location during the backward pass, preserving structural detail.
  2. Rectification: Both forward and reverse passes use ReLU to keep feature maps positive—focusing only on the signals that contribute to an activation.
  3. Filtering (Transposed Convolution): The forward convolution transforms features using learned filters. To invert, the Deconvnet applies transposed versions of the same filters (flipped horizontally and vertically) to map activations down to the lower layer.

Layer by layer, these steps reconstruct the discriminative structure within the original image that a feature responds to. The result is not a perfect image patch, but a picture of what the network cares about—edges, textures, shapes—at that activation.

What a CNN Actually Sees

With a Deconvnet attached to their ImageNet-trained CNN, the authors made some extraordinary discoveries.

A Hierarchy of Features

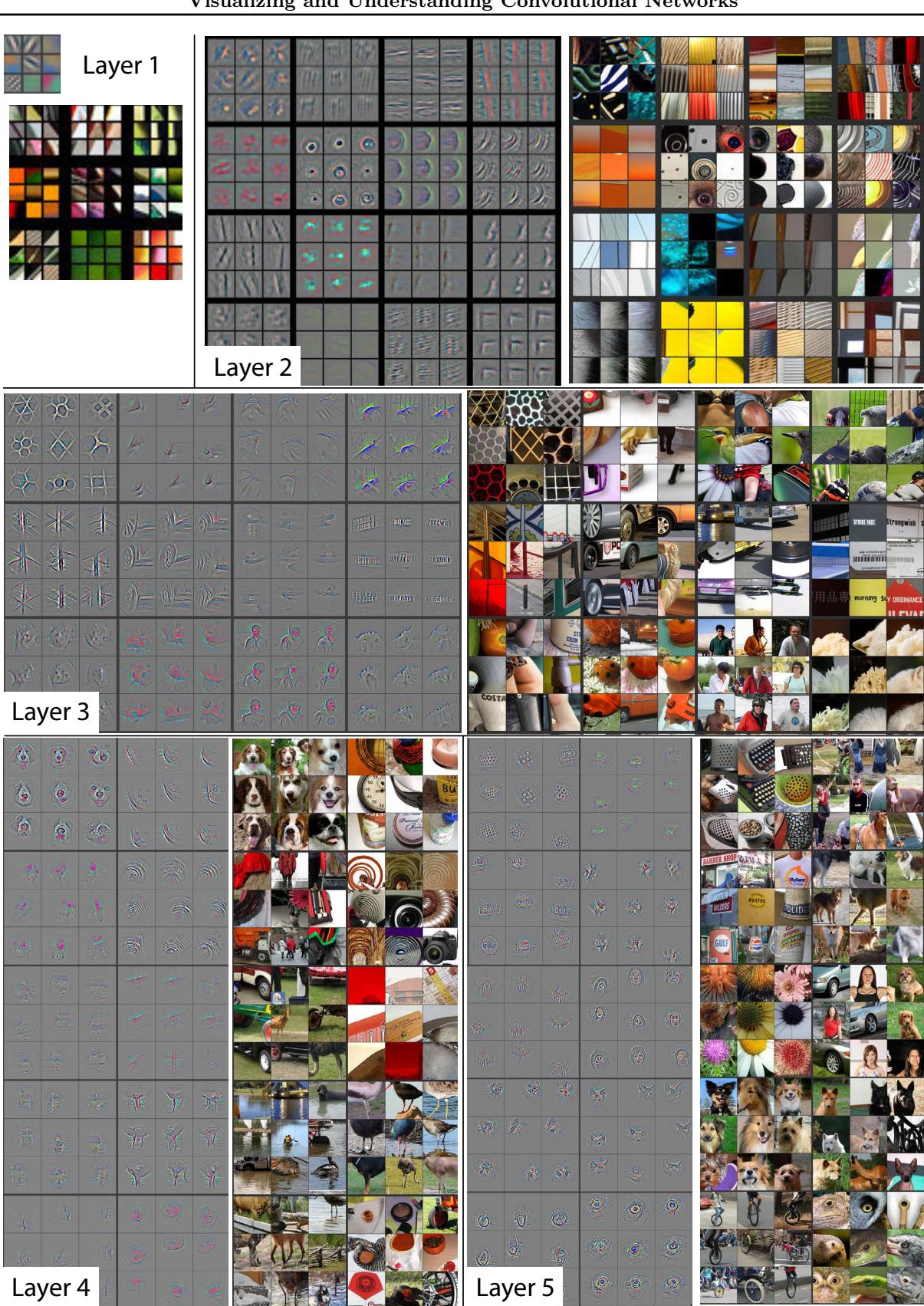

Figure 2 visualizes features from a fully trained model. Layer 2 learns corners/textures, Layer 3 captures patterns like mesh or text, Layer 4 shows class-specific parts (dog faces, bird legs), and Layer 5 responds to whole objects like keyboards and dogs, showing pose invariance.

For each feature map in layers 2–5, they showed the top 9 activations from the validation set, projected down to pixel space. The progression is clear:

  • Layer 2: Corners, edges, and basic color conjunctions.
  • Layer 3: Textures and repeated patterns (mesh, printed text).
  • Layer 4: Class-specific parts—dog snouts, bird legs, car wheels.
  • Layer 5: Whole objects with pose variation—keyboards, full animals.

A striking example: in Layer 5 (row 1, col 2), the input patches look unrelated, but the visualizations reveal the feature consistently activates on grass textures in the background—not the foreground object.

How Features Evolve During Training

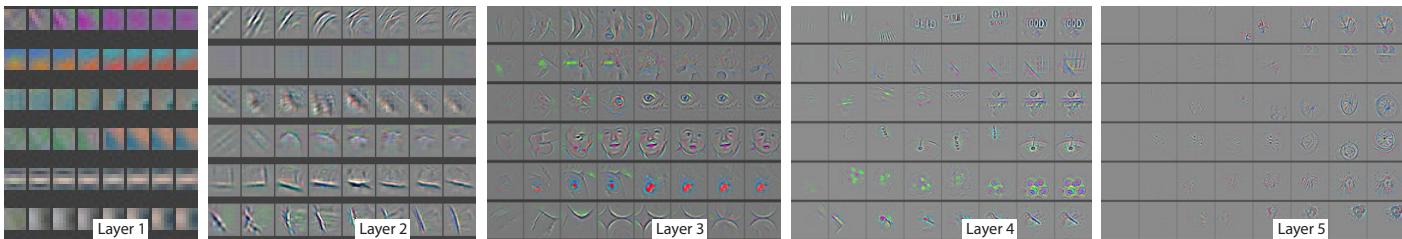

Figure 4 shows feature evolution through training. Lower layers converge quickly (basic edges/textures by epoch 5). Higher layers mature slowly—complex object-part features emerge only after 40–50 epochs.

Lower layers converge in just a few epochs, locking in edge and texture detectors. Upper layers take far longer—40–50 epochs—to develop their rich, class-specific features. Insight for practitioners: don’t stop training too early, as high-level features emerge late.

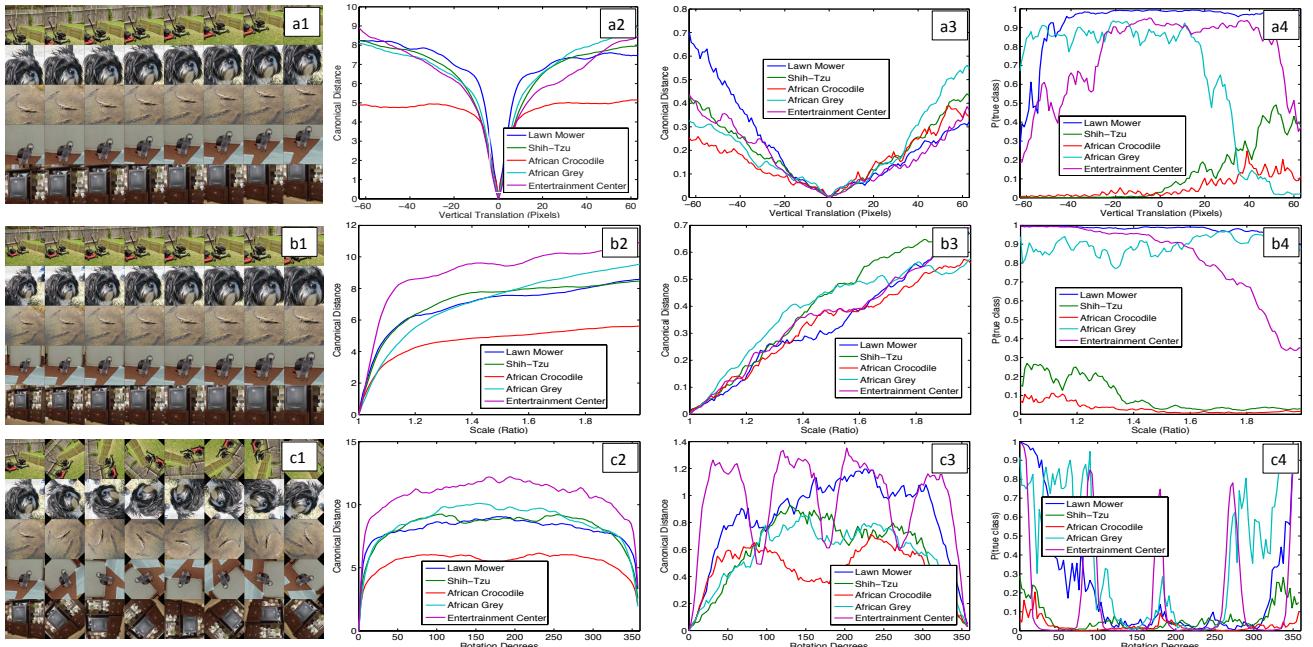

From Insight to Better Architectures

The team analyzed AlexNet using Deconvnets and spotted issues:

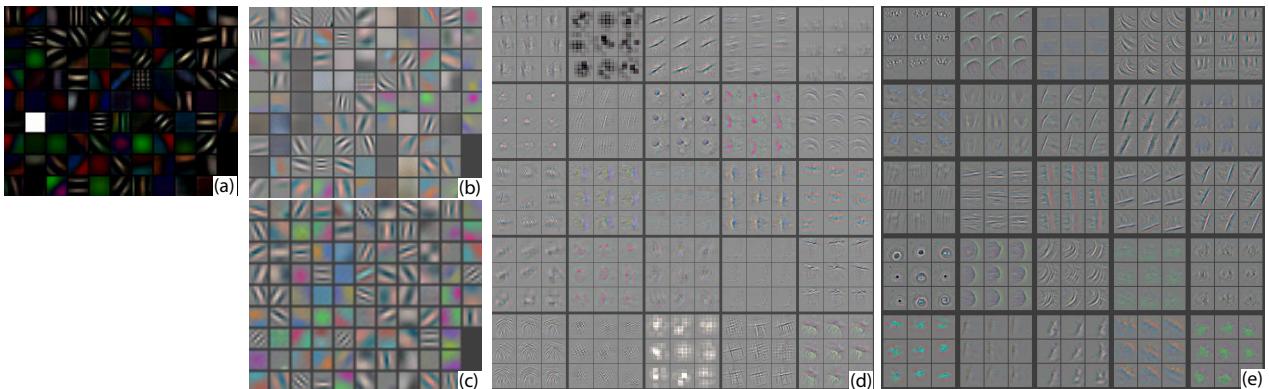

Figure 6 compares AlexNet’s first/second layers (b, d) with improved model (c, e). AlexNet’s large stride caused aliasing artifacts and dead filters. Smaller stride/filter size yields cleaner, more diverse features.

Two problems stood out:

  1. Dead filters in layer 1—many filters inactive or noisy.
  2. Aliasing artifacts in layer 2—repetitive patterns caused by AlexNet’s large stride (4 pixels) in layer 1.

Their fix:

  • Reduce layer 1 filter size from 11×11 to 7×7.
  • Reduce stride in layers 1 & 2 from 4 to 2.

Figure 3 shows the improved 8-layer arch with smaller filters and stride—retaining more input detail, yielding better features.

Result: Cleaner, distinct filters, no aliasing, and significantly better ImageNet performance—top-5 error 14.8%, beating AlexNet.

Is the Model Really Looking at the Object?

Could the network be “cheating” by relying on background context, not the object itself? The authors tested this using occlusion sensitivity:

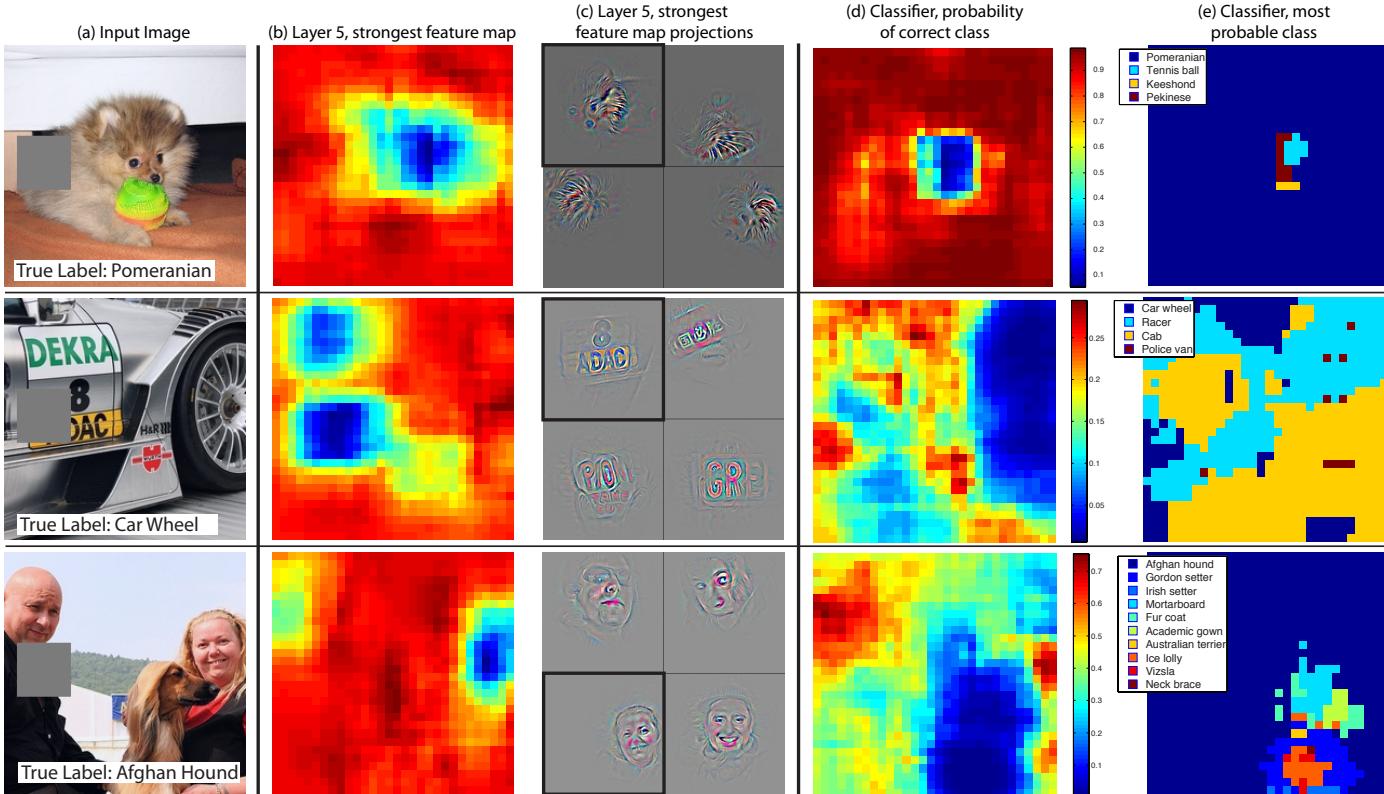

Figure 7 shows occlusion sensitivity. Occluding the object’s key parts causes classifier confidence to drop sharply, proving localization on the object rather than context.

They slid a gray occluder over the image and measured class probability. Confidence plummeted when critical parts (like a dog’s face) were covered. In one example, blocking the face but leaving a ball led the model to predict “tennis ball” instead—showing nuanced object-part reasoning.

Transfer Learning: The Power of Pre-Trained Features

One of the most impactful findings: features learned on ImageNet generalize extremely well to other datasets.

The authors froze convolutional layers (1–7) of their trained ImageNet model and retrained only the final softmax on new datasets.

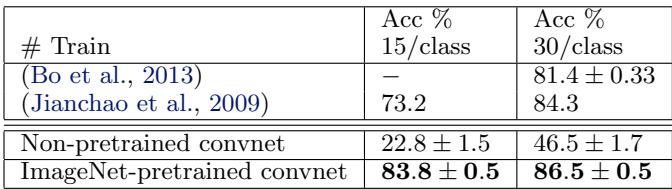

On Caltech-101:

# TrainAcc %
15/class		Acc %
30/class
(Bo et al., 2013)—81.4 ± 0.33
Non-pretrained CNN22.8 ± 1.546.5 ± 1.7
ImageNet-pretrained CNN83.8 ± 0.586.5 ± 0.5

Table: ImageNet-pretrained CNN far outperforms a scratch-trained CNN and previous state-of-the-art on Caltech-101.

On Caltech-256:

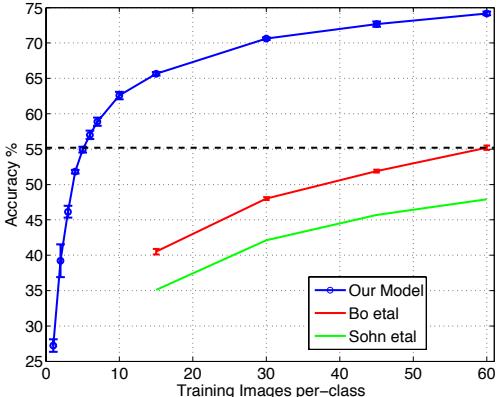

Figure 9 shows ImageNet-pretrained model beating best competitor with 6 training examples/class, versus 60 images/class used by competitor.

With just 6 training images per class, the pre-trained model beat the previous best (which used 60/class). This is an early, powerful demonstration of what’s now standard practice: transfer learning from large datasets to small ones.

Key Takeaways & Lasting Impact

Zeiler and Fergus’ Visualizing and Understanding Convolutional Networks was a landmark in deep learning interpretability, offering the first clear views inside CNNs.

Four lasting lessons:

  1. Deconvnets are powerful visualization tools — mapping abstract features back to pixels shows what a network “sees.”
  2. Visualization is diagnostic — revealing architectural flaws like dead filters or aliasing directly leads to improvements.
  3. CNNs learn hierarchical representations — from edges to textures to object parts to whole objects.
  4. Learned features transfer across tasks — a pre-trained CNN can be a universal feature extractor for many vision problems.

This work inspired successors like CAM and Grad-CAM, and gave researchers confidence that CNNs weren’t learning random, inscrutable patterns—they were building rich, intuitive visual hierarchies.

By opening the black box, Zeiler and Fergus showed us not just how to see what a network sees, but how to make it see better.
