In the early 2010s, deep Convolutional Neural Networks (CNNs) like AlexNet sparked a revolution in computer vision, shattering records in image classification. Yet, amidst this breakthrough, a surprisingly rigid constraint held these powerful models back: they demanded that every single input image be exactly the same size—typically something like 224×224 pixels.

Think about that for a moment. The real world is filled with images of all shapes and sizes. To make them fit, researchers had to resort to crude methods: either cropping a patch from the image—potentially cutting out the main subject—or warping (stretching or squishing) the image, which distorts its geometry. Both approaches risk throwing away valuable information before the network even sees the image.

This fixed-size requirement wasn’t just an inconvenience; it was an artificial limitation that hurt accuracy. Why did it exist, and could we get rid of it?

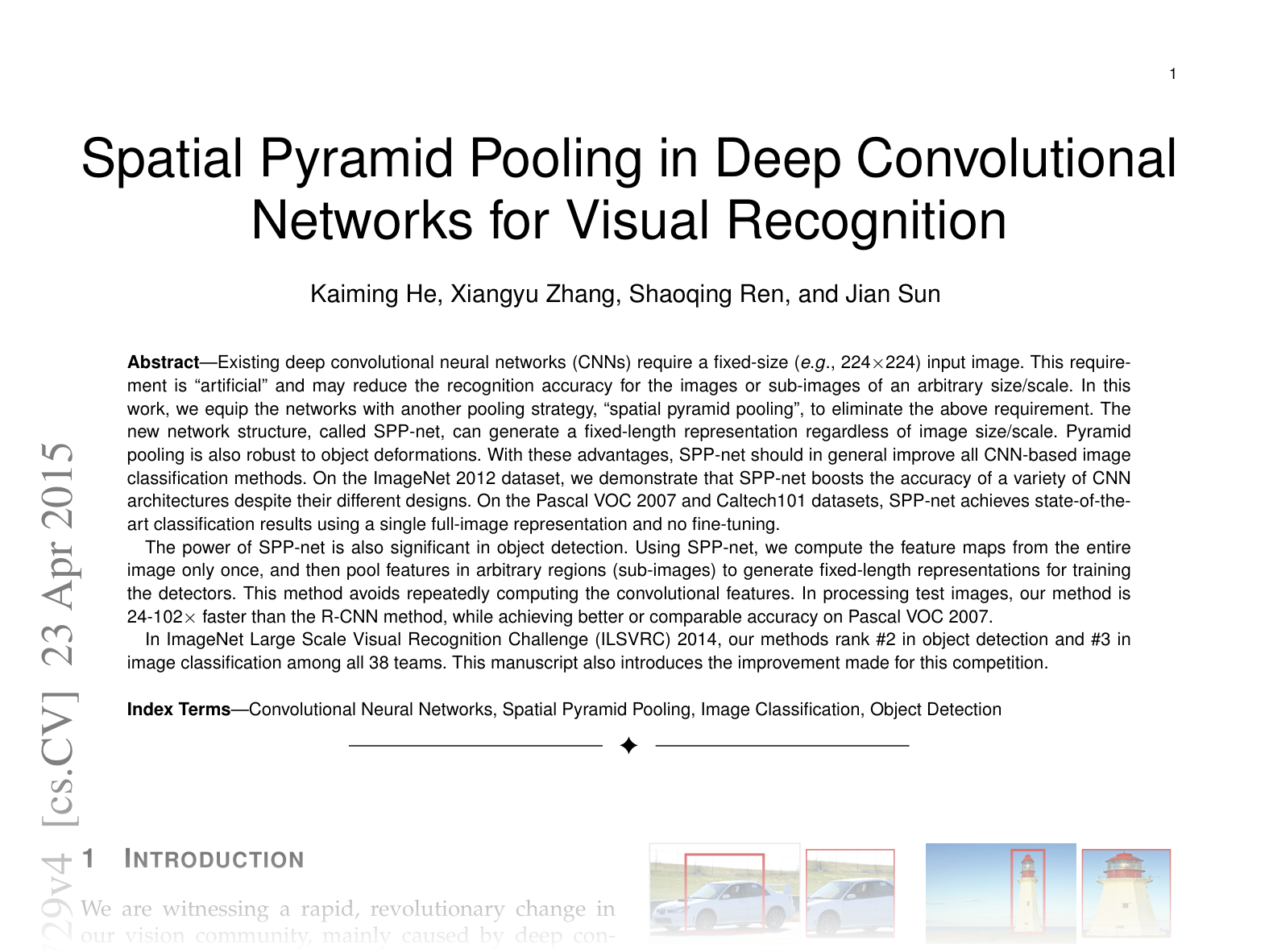

This is the core problem tackled by Kaiming He et al. in their seminal paper, Spatial Pyramid Pooling in Deep Convolutional Networks for Visual Recognition. They introduced a simple yet brilliant modification to the standard CNN architecture, called the SPP-net, which removes the need for a fixed input size, boosts classification accuracy, and dramatically accelerates object detection—by more than 100×. Let’s see how.

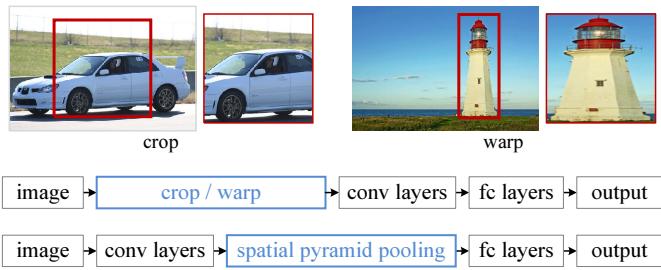

This diagram shows the problem and the solution. Top: Traditional methods either crop or warp images to a fixed size. Bottom: The proposed SPP-net pipeline allows a flexible input size.

The Root of the Problem: Fully-Connected Layers

So, why did CNNs have this fixed-size obsession? To understand this, we need to look at a typical CNN’s anatomy. It’s broadly composed of two parts:

  1. Convolutional Layers: These layers act as feature extractors. They use sliding filters to detect patterns like edges, textures, or shapes. Crucially, they don’t care about the input image’s size. A larger image simply produces a larger feature map—a 2D grid showing where certain features were detected.

  2. Fully-Connected (FC) Layers: These layers come at the end of the network. They act as classifiers, taking the features extracted above to make a final decision (e.g., “this is a cat”). By definition, an FC layer requires a fixed-length vector as input.

That fixed-size demand comes entirely from the FC layers. To satisfy it, the feature map from the last convolutional layer must have a fixed spatial size—forcing the input image itself to be fixed-size from the start.

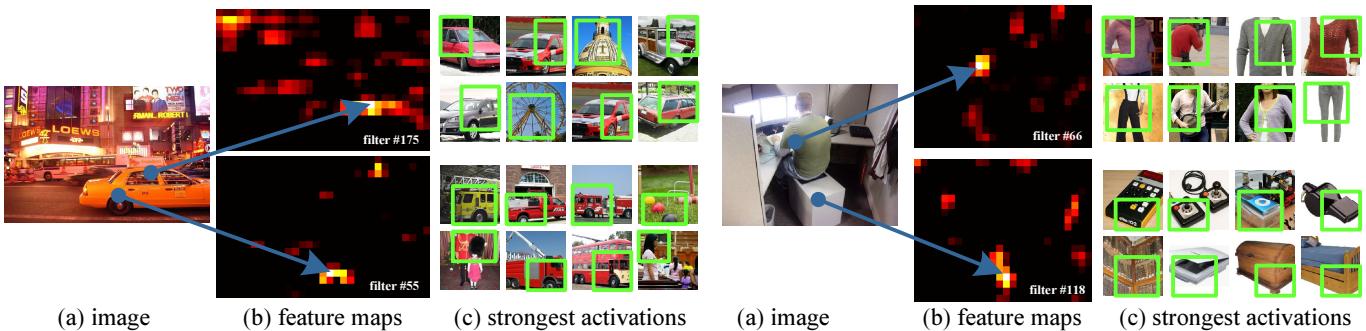

This figure visualizes feature maps from a CNN. Different filters in the conv5 layer activate on specific patterns (like circles or corners) at various locations in the input images.

The authors’ key insight was this: What if we could take a variable-sized feature map and always produce a fixed-length vector from it—before it gets to the FC layer? This would free the convolutional layers to work on images of any size.

The Solution: The Spatial Pyramid Pooling (SPP) Layer

The researchers found their answer in a classic computer vision technique—Spatial Pyramid Matching (SPM)—and adapted it into a new CNN layer called the Spatial Pyramid Pooling layer.

The SPP layer sits between the last convolutional layer and the first FC layer. Its job: take the feature map (any size) and “pool” it into a fixed-length vector.

Here’s how it works:

  1. Input: The SPP layer receives the feature map from the last convolutional layer (e.g., conv5), with k channels (filters) and spatial size w × h—which can vary.

  2. Multi-Level Pooling: The layer pools at multiple levels of spatial granularity, forming a pyramid:

    • Level 1 (Coarse): 1×1 grid – covers the whole feature map. Max pooling produces a k-dim vector (global pooling).
    • Level 2 (Medium): 2×2 grid – divided into 4 bins → 4k values.
    • Level 3 (Fine): 4×4 grid – divided into 16 bins → 16k values.

  3. Concatenation: Outputs from all levels are concatenated → fixed vector length (1 + 4 + 16) × k = 21k.

No matter what w and h were, the output length is always the same. This fixed-length vector can go straight into FC layers.

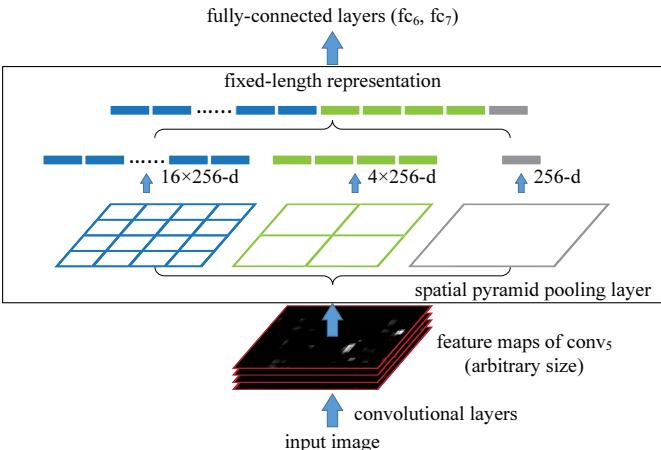

This diagram illustrates the SPP-net architecture. A variable-size feature map from conv5 is fed into the SPP layer with multiple bin levels, producing a fixed-length representation for the fully-connected layers.

Benefits:

  • Handle images of any size or aspect ratio.
  • Multi-level pooling is robust to deformation and layout variations.
  • Extract features at different scales naturally.

Training an SPP-net

In theory, SPP-net trains like any CNN. In practice, early deep learning frameworks were optimized for fixed-size batches. The authors devised a clever workaround.

Single-Size Training

First, they trained on standard fixed-size inputs (e.g., 224×224). For a given input size, the final convolutional map size is known (e.g., 13×13), so they could pre-compute bin sizes for the pyramid using standard pooling layers.

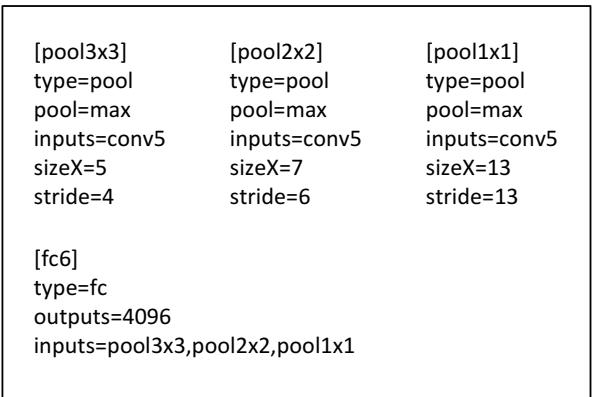

This figure shows an example configuration in cuda-convnet to implement a 3-level pyramid (3×3, 2×2, 1×1) for a 13×13 feature map.

Multi-Size Training

To unlock full flexibility, they used multi-size training:

  • Train one epoch on 224×224 inputs.
  • Next epoch on 180×180 inputs (sharing all weights).

Since the SPP layer always outputs the same length vector, the FC layers need no changes. Alternating input sizes teaches the network scale robustness—one of the first effective ways to train a single CNN with variable-sized inputs.

Experiments and Results: A Clear Winner

The authors tested SPP-net in image classification and object detection.

Image Classification on ImageNet

On ImageNet 2012, SPP-net improved accuracy across several CNN architectures:

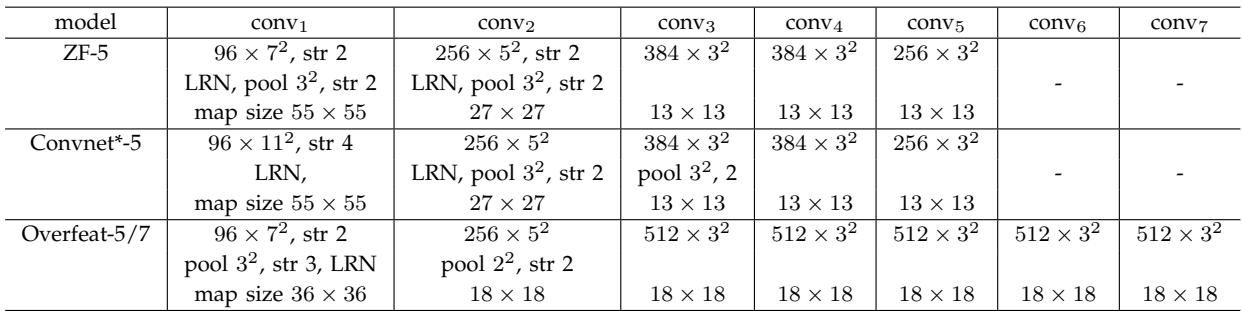

This table outlines different baseline architectures (ZF-5, Convnet*-5, Overfeat-5/7) used for comparison.

Key findings (Table 2):

  1. Multi-level pooling helps: Replacing final pooling with SPP in single-size training reduced errors consistently. Overfeat-7 saw a 1.65% drop in top-1 error.
  2. Multi-size training helps even more: For Overfeat-7, error dropped 2.33% versus baseline.

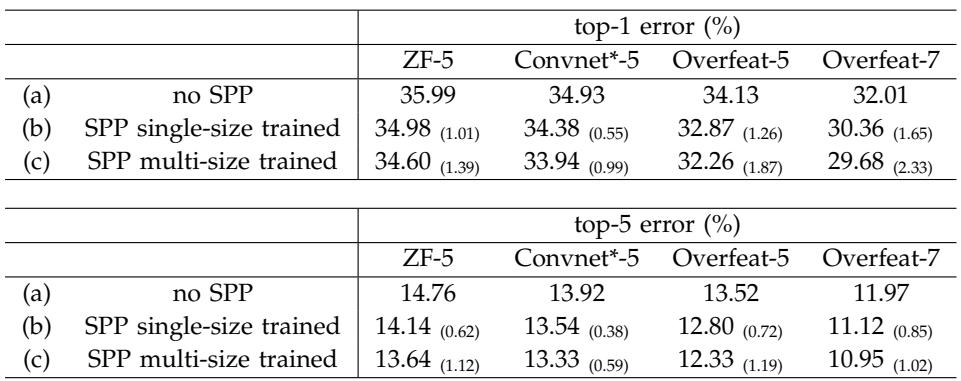

This table compares ImageNet error rates. SPP models consistently outperform ’no SPP’, especially with multi-size training.

Importantly, testing with full-image view (no center crop) gave better accuracy than using a single crop—validating that cropping loses valuable context.

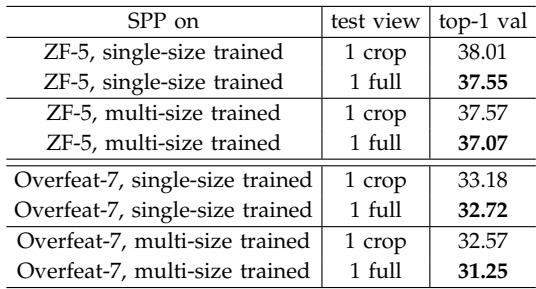

Full-image testing consistently yields lower error rates compared to central cropping.

By combining multi-view and multi-scale testing—efficiently possible via SPP—the authors achieved 9.14% top-5 error (single model) on ImageNet validation, ranking among top entries in ILSVRC 2014.

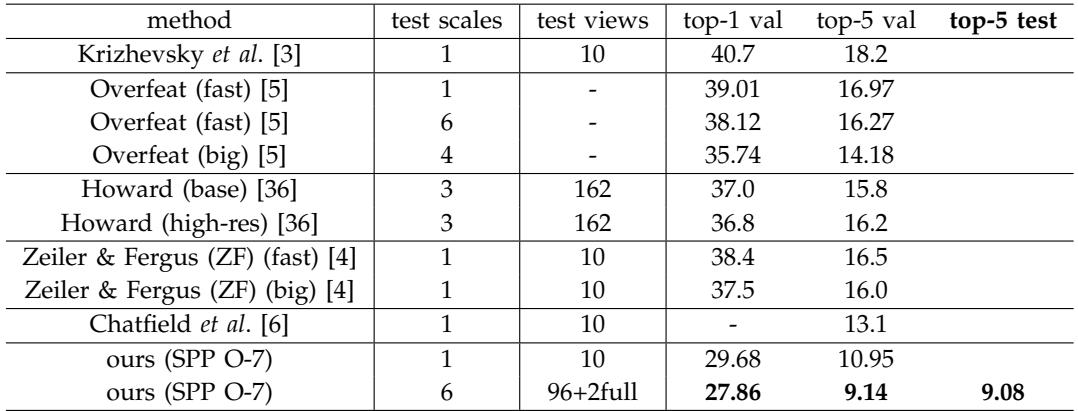

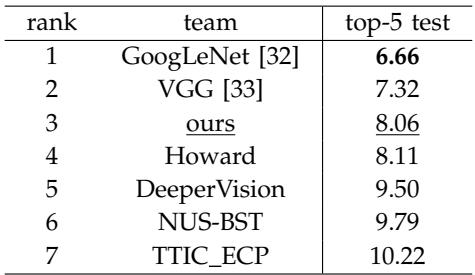

Single-network ImageNet performance. SPP-net achieves top-tier accuracy with 9.14% top-5 validation error. The SPP-net team ranked #3 in ILSVRC 2014 classification challenge.

Similar gains were seen on PASCAL VOC 2007 and Caltech101, even without fine-tuning.

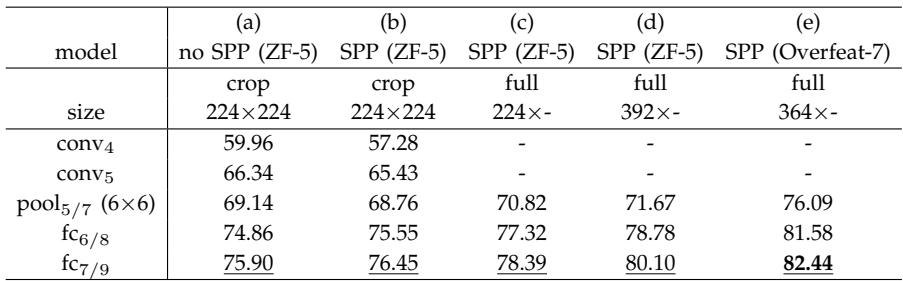

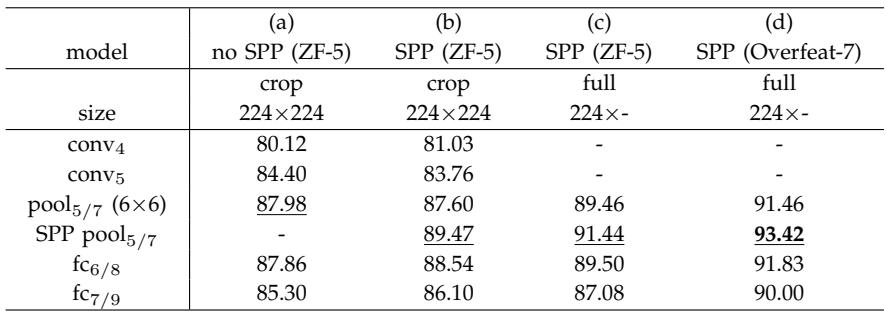

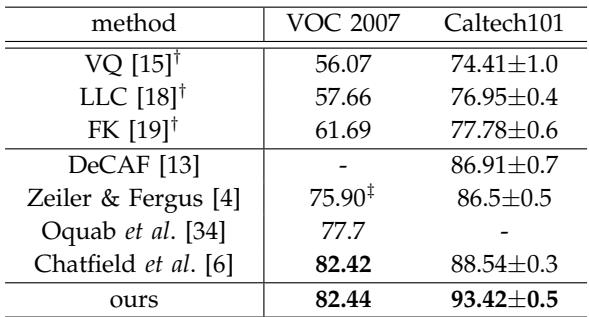

On VOC 2007, SPP-net full-image views (c,d,e) outperform cropped input methods (a,b). On Caltech101, SPP layer features achieved a new record accuracy of 93.42%. Final classification results on VOC 2007 and Caltech101, with SPP-net topping both benchmarks.

The Game Changer: Object Detection

At the time, R-CNN led the pack in detection but was slow: ~2,000 region proposals per image, each warped & processed individually → huge redundant conv calculations → over 40s per image on GPU.

SPP-net revolutionized this:

  1. Run convolutional layers once on the whole image → large feature map.
  2. Project each proposal box to the feature map.
  3. Apply SPP directly on that region → fixed-length vector per proposal.
  4. Classify with FC layers.

Efficient detection pipeline: compute conv map once, pool features from arbitrary candidate windows via SPP.

Speed & Accuracy

SPP-net matched or beat R-CNN’s accuracy but was orders of magnitude faster.

Single-scale SPP-net: 0.142s/image (GPU) vs R-CNN’s 14.46s → 102× speedup.

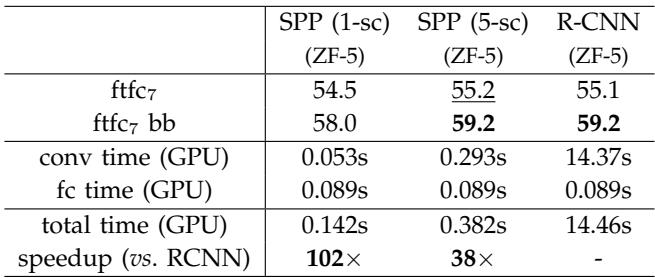

SPP-net vs R-CNN on VOC 2007. With fine-tuning and bbox regression (ftfc7 bb), SPP-net hits 59.2% mAP at 38× faster speed.

Even against a faster R-CNN (AlexNet), SPP-net was still 24–64× faster and more accurate. Paired with fast proposals like EdgeBoxes, the system processed images in 0.5s—making deep learning detection truly real-time.

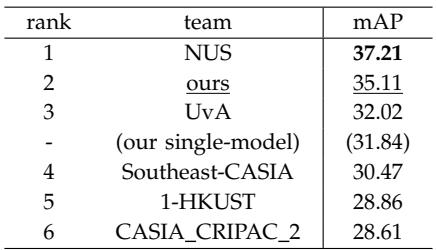

Example VOC 2007 detections from SPP-net, showing high accuracy on diverse scenes. SPP-net ranked #2 in ILSVRC 2014 detection competition.

Conclusion and Lasting Impact

The Spatial Pyramid Pooling network wasn’t a mere tweak—it was a paradigm shift in CNN design. By eliminating the fixed-size input constraint:

  • Flexibility: Handle any image size, shape, or scale.
  • Accuracy: Multi-level pooling and multi-size training improve robustness and performance.
  • Efficiency: For detection, “compute once, pool many” removes redundant computation, giving 100× speedups.

SPP-net’s ideas live on. The concept of pooling from regions of interest on a shared feature map became a foundation of modern detectors. RoI Pooling—essentially single-level SPP—was central to Fast/Faster R-CNN.

SPP-net is a prime example of revisiting fundamentals to unlock breakthroughs—integrating a proven classic idea to solve a bottleneck elegantly, paving the way for today’s fast, flexible, and powerful vision systems.
