Recurrent Neural Networks (RNNs) are the workhorses of sequence modeling. From predicting the next word in a sentence to transcribing speech and translating languages, their ability to process information sequentially has transformed countless modern applications. But like all deep neural networks, they have an Achilles’ heel: overfitting.

When a model overfits, it learns the training data too well—memorizing noise and quirks instead of general patterns. It performs spectacularly on training examples but falters on unseen data. In feedforward networks, the undisputed champion against overfitting is dropout. The idea is simple yet powerful: during training, randomly “turn off” a fraction of neurons to prevent co-dependency, forcing the network to learn more robust, distributed representations.

Naturally, researchers tried applying dropout to RNNs. The results? Disappointing. Standard dropout degraded RNN performance, making them forget sequences instead of generalizing better. It seemed that the feature that gives RNNs their strength—their recurrent, time-dependent memory—was precisely what caused dropout to fail.

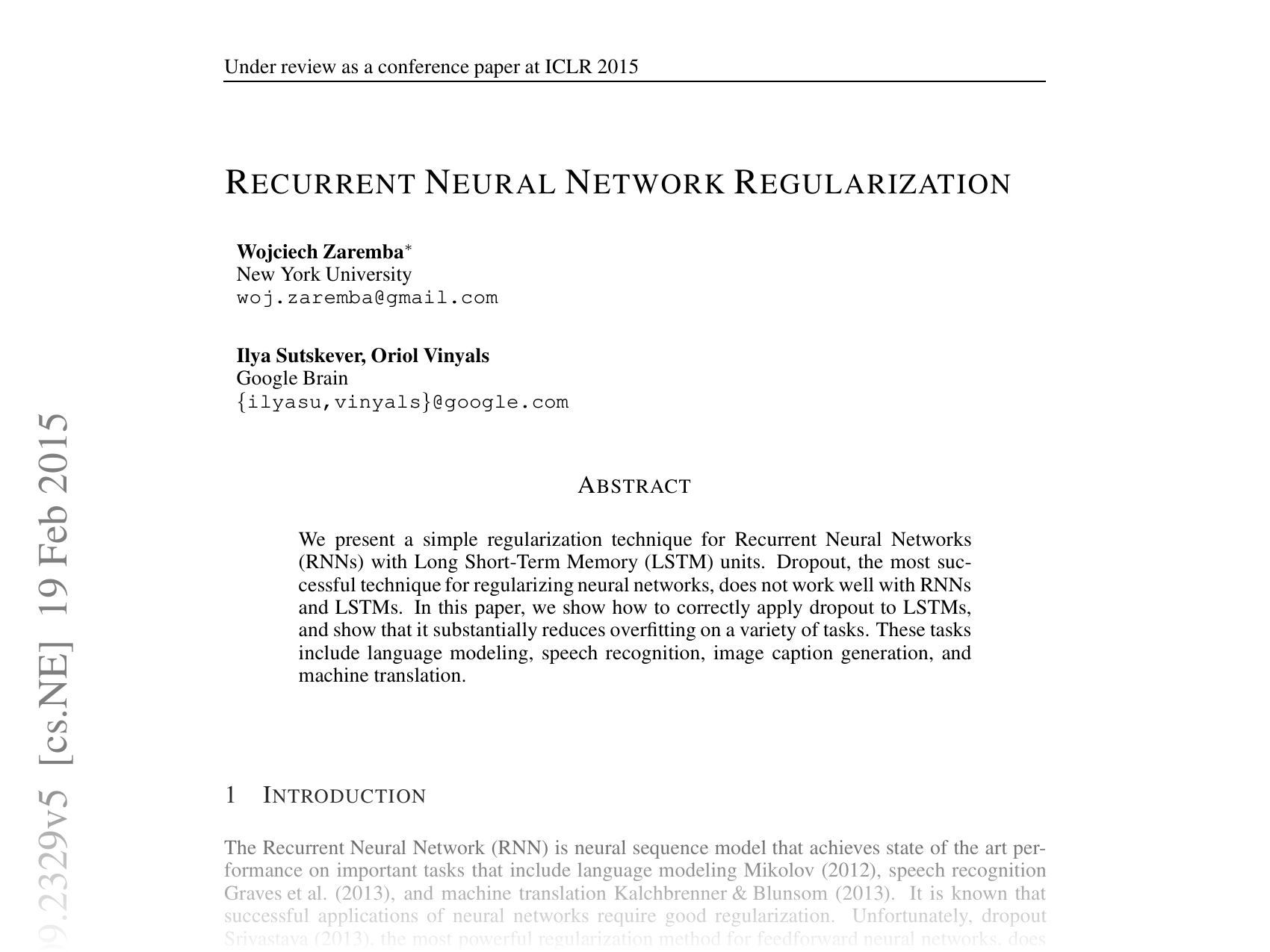

In 2014, Wojciech Zaremba, Ilya Sutskever, and Oriol Vinyals published “Recurrent Neural Network Regularization,” a paper that proposed a brilliantly simple fix. By tweaking how and where dropout is applied within LSTM networks, they showed how to regularize RNNs effectively—unlocking larger, more powerful models and achieving state-of-the-art results across multiple domains. Let’s unpack how this method revolutionized training recurrent models.

Background: RNNs, LSTMs, and the Trouble with Time

Before diving into the solution, it helps to revisit how RNNs and LSTMs work, and why they posed a unique challenge to dropout.

Recurrent Neural Networks (RNNs)

Unlike standard feedforward networks that process inputs independently, RNNs are designed for sequential data like text, audio, or time series. At each timestep, an RNN takes an input (e.g., a word or sound frame) and combines it with its hidden state from the previous timestep. This hidden state serves as memory, allowing the network to carry information across time.

A simple RNN takes the input from the layer below and the hidden state from the previous time step to compute the new hidden state.

Figure 1: An RNN passes information forward in time through its hidden state, allowing it to model temporal dependencies.

Mathematically, the hidden state update is often written as:

The equation for a classic RNN’s hidden state update.

Figure 2: The RNN computes the new hidden state using a nonlinear transformation of its previous state and current input.

Despite its elegance, this simple design encounters a fundamental issue when learning long-term relationships: the vanishing/exploding gradient problem. As gradients propagate backward through many timesteps, they can shrink to near zero or explode uncontrollably, making it hard for the model to learn connections between distant events.

The Memory Problem and LSTMs

To address this, Hochreiter and Schmidhuber introduced the Long Short-Term Memory (LSTM) architecture. LSTMs augment RNNs with a memory cell, \( c_t \), that carries information seamlessly across timesteps. This cell acts like a highway for information, with gates that control what is stored, updated, and output.

An LSTM uses three key gates:

  1. Forget Gate (\( f \)) – Decides what information to remove from the previous cell state.
  2. Input Gate (\( i \)) – Controls what new information to add.
  3. Output Gate (\( o \)) – Determines what part of the cell’s content is exposed as the hidden state.

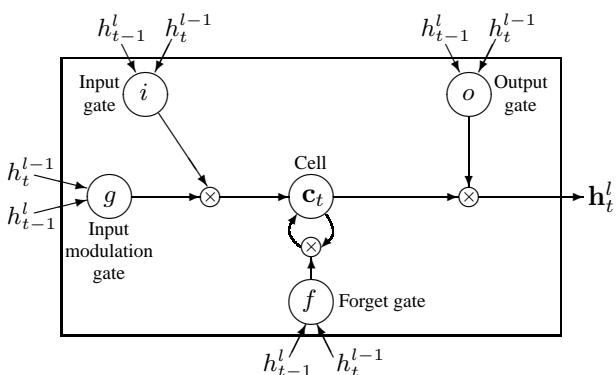

A graphical representation of an LSTM memory cell showing the input, forget, and output gates controlling the cell state.

Figure 3: The LSTM cell architecture. Gates regulate the flow of information into, out of, and within the memory cell.

The LSTM equations can be expressed as:

The core equations governing the LSTM cell, including the calculation of the gates, the cell state update, and the final hidden state.

Figure 4: Mathematical formulation of the LSTM operations, describing how gates update the memory cell and hidden state.

These mechanisms allow LSTMs to preserve information over many timesteps and model long-range dependencies more effectively than simple RNNs.

The Core Method: Regularizing LSTMs the Right Way

So why does dropout fail for RNNs and LSTMs? The issue lies in where the dropout noise is applied.

In a typical RNN layer, we can distinguish two kinds of connections:

  1. Recurrent connections – Carry information across time, from \( h_{t-1}^l \) to \( h_t^l \).
  2. Non-recurrent (vertical) connections – Carry information between layers, from \( h_t^{l-1} \) to \( h_t^l \).

Applying dropout naively to the recurrent connections means randomly erasing parts of the hidden state at every timestep. Imagine trying to remember a story while someone keeps deleting random pieces of your memory—it becomes impossible to retain long-term context. The recurrent noise compounds over time and destroys information flow.

The authors proposed a simple fix:
Apply dropout only to the non-recurrent connections.

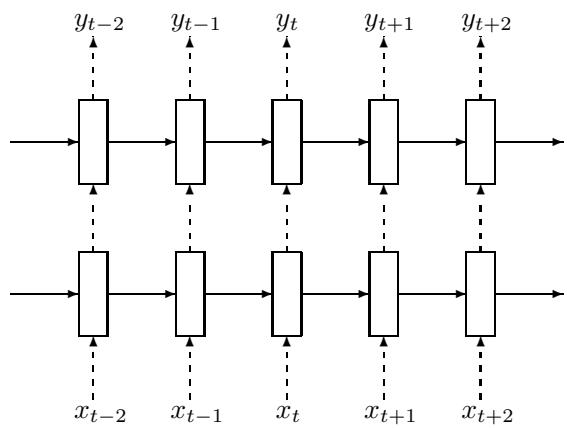

A diagram showing a multi-layer RNN unrolled over time. Dashed arrows between layers indicate where dropout is applied, while solid horizontal arrows for recurrent connections indicate where it is not.

Figure 5: Dropout (dashed arrows) is applied vertically between layers, but not horizontally across time.

Mathematically, the modification is subtle yet powerful. The dropout operator, \( \mathbf{D} \), which zeroes out random components, is applied only to the input from the lower layer, \( h_t^{l-1} \):

The modified LSTM equations, where the dropout operator D is applied only to the h_t^{l-1} term.

Figure 6: Applying dropout only on \( h_t^{l-1} \) regularizes the network without disrupting long-term dependencies.

By leaving the recurrent connection untouched, the model retains its ability to remember long-term sequences, while still enjoying the benefits of dropout regularization between layers.

Visualizing how information propagates helps to see why this works. As shown below, an event occurring at timestep \( t-2 \) can influence predictions at \( t+2 \) by traveling horizontally across time and vertically across network layers. With this dropout scheme, the information is disturbed only \( L+1 \) times (where \( L \) is the number of layers), independent of sequence length.

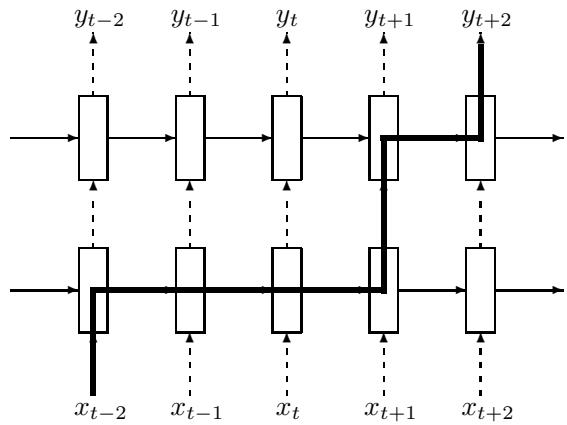

A diagram showing the path of information flow in a deep LSTM. The path moves horizontally across time and vertically across layers.

Figure 7: Information flow through time and layers. Dropout affects the signal only at layer transitions, yielding consistent, controlled regularization.

This smart separation preserves memory integrity while injecting healthy variability into vertical computations—striking the perfect balance between robustness and recall.

Experiments and Results: Putting the Theory to the Test

The authors validated their method across four domains—language modeling, speech recognition, machine translation, and image caption generation—each with rigorous quantitative results.

1. Language Modeling

Language modeling predicts the next word given previous ones. The team tested on the Penn Tree Bank (PTB) dataset using the perplexity metric (lower is better).

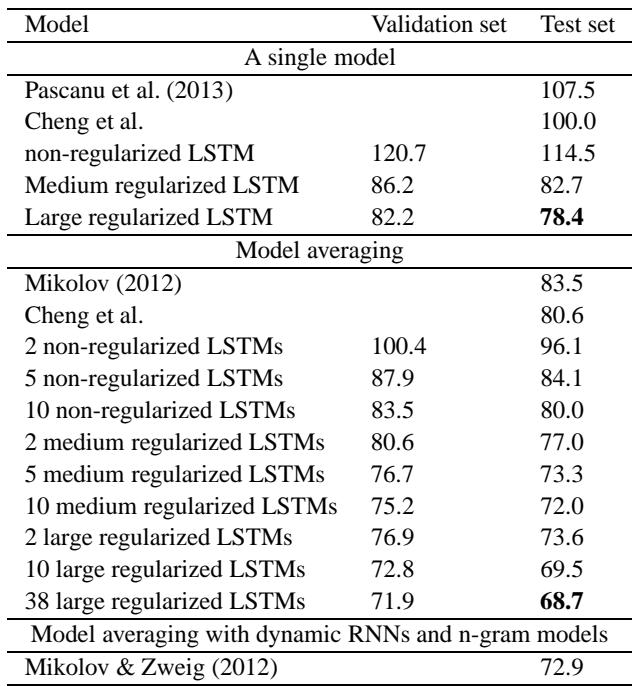

Table showing perplexity results on the Penn Tree Bank dataset for various models. The regularized LSTMs achieve significantly lower perplexity than the non-regularized baseline.

Table 1: Word-level perplexity on the Penn Tree Bank dataset.

A non-regularized LSTM (with just 200 units per layer) achieved a test perplexity of 114.5, constrained by severe overfitting. In contrast, a large regularized LSTM (1500 units per layer, 65% dropout) achieved a dramatically lower 78.4, even when expanded in size.

An ensemble of 38 regularized LSTMs achieved a record perplexity of 68.7, cementing the paper’s method as a new benchmark for language modeling.

2. Speech Recognition

The team evaluated an LSTM’s performance on an internal Icelandic speech dataset, using frame-level accuracy as the metric.

Table showing frame-level accuracy on the Icelandic Speech Dataset. The regularized LSTM shows higher validation accuracy.

Table 2: Frame-level accuracy on an acoustic modeling task.

The regularized model achieved 70.5% validation accuracy, outperforming the non-regularized baseline (68.9%). While the inclusion of dropout reduced training accuracy slightly due to injected noise, it resulted in stronger generalization to unseen utterances—a hallmark of successful regularization.

3. Machine Translation

For English-to-French translation, the researchers trained a multi-layer LSTM as a conditional language model on concatenated source and target sentences.

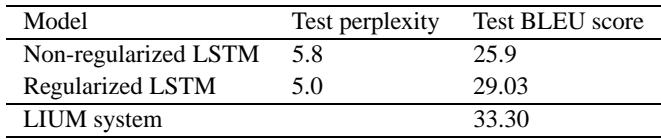

Table showing results on an English to French translation task. The regularized LSTM improves both perplexity and BLEU score.

Table 3: English-to-French translation performance on the WMT'14 dataset.

Regularization again delivered clear gains: the regularized LSTM achieved lower perplexity (5.0 vs. 5.8) and higher BLEU score (29.03 vs. 25.9) compared to the non-regularized version. While still below the best phrase-based systems of the time, this showed dropout could meaningfully improve neural translation quality.

4. Image Caption Generation

Finally, they applied their dropout variant to the Show and Tell image captioning model. This architecture uses a CNN to encode an image and an LSTM to decode a caption.

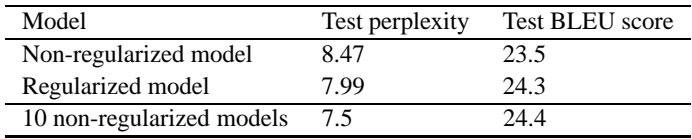

Table showing results on an image caption generation task. The regularized model outperforms the single non-regularized model.

Table 4: Results on the MSCOCO image caption generation task.

The regularized single model achieved better perplexity and BLEU scores than the non-regularized one. Interestingly, its performance approached that of an ensemble of 10 non-regularized models—showing how dropout can yield ensemble-level robustness within a single, efficient network.

Conclusion and Lasting Impact

The insight behind “Recurrent Neural Network Regularization” was deceptively simple but transformative. By recognizing the distinct nature of recurrent versus vertical connections, Zaremba and colleagues defined a principled way to apply dropout without sabotaging memory retention.

The takeaway can be summarized in one sentence:

To regularize RNNs effectively, apply dropout between layers—not between timesteps.

This method allowed LSTMs to scale gracefully to larger architectures, reduced overfitting, and improved generalization across tasks from language modeling to image caption generation. Today, this technique—often referred to as variational dropout—is standard practice in deep learning frameworks and research, serving as a cornerstone of modern sequence modeling.

It’s a perfect example of how a deep understanding of a model’s internal mechanics can lead to an elegantly simple change—with an enormous impact on the way we train neural networks.
