For years, Convolutional Neural Networks (CNNs) have been the undisputed champions of image classification. Give a CNN a picture, and it can tell you with incredible accuracy whether you’re looking at a cat, a dog, or a car.

But what if you want to know where the cat is in the picture—not just a bounding box around it, but its exact outline, pixel by pixel? This is the task of semantic segmentation, and it’s a giant leap from classification’s “what” to a much deeper “what and where.”

Before 2015, solving this problem was a messy affair. The best systems were complex pipelines involving region proposals, superpixels, and post-processing steps like Conditional Random Fields (CRFs). They were slow, cumbersome, and often couldn’t be trained end-to-end.

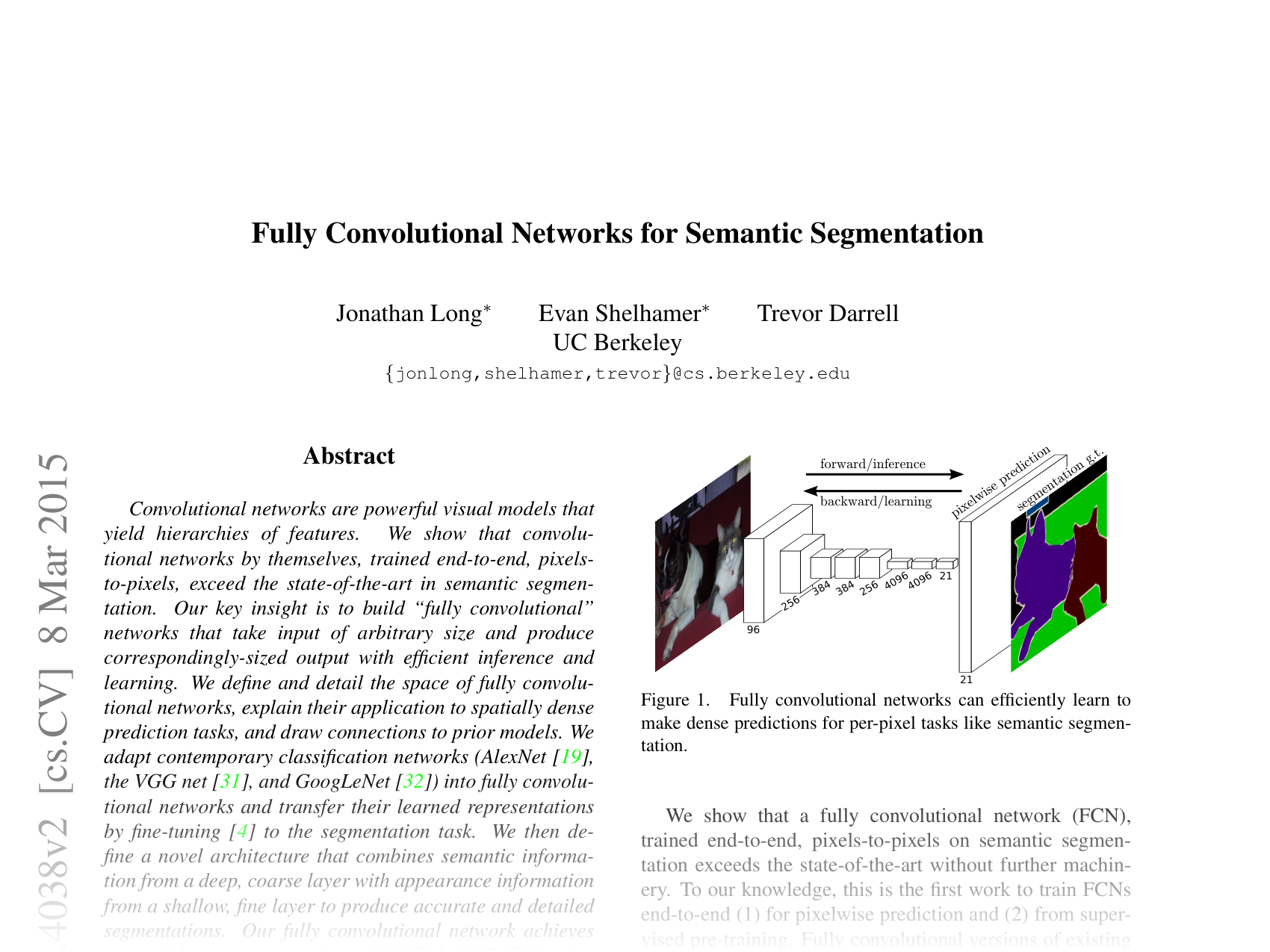

Then, a landmark paper from UC Berkeley — Fully Convolutional Networks for Semantic Segmentation — changed everything.

The authors’ core idea was elegantly simple: what if we could teach a standard classification network to perform dense, pixel-wise prediction directly? They showed how to build fully convolutional networks (FCNs) that could be trained end-to-end, pixels-to-pixels, to produce state-of-the-art segmentation maps.

This work didn’t just inch the field forward; it redefined the entire approach to dense prediction problems.

In this post, we’ll dive deep into this seminal paper, breaking down its three key contributions:

  1. Convolutionalization: Transforming powerful classification networks (like VGG) into flexible networks that output spatial maps instead of single labels.
  2. In-Network Upsampling: A method for taking coarse output and learning to scale it back to detailed, pixel-perfect predictions.
  3. The Skip Architecture: Fusing information from different network depths to resolve the tension between semantics (what) and location (where).

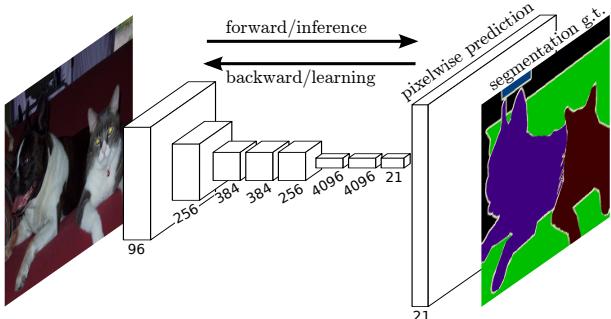

A high-level diagram showing an input image of cats being processed by a Fully Convolutional Network to produce a pixel-wise segmentation map. The network learns to classify each pixel in the image.

From Image Labels to Pixel Labels: The Old Way

To appreciate the elegance of FCNs, let’s first understand the problem they solved.

A typical CNN—like AlexNet or VGG—is designed for classification. It takes a fixed-size image (e.g., 227×227 pixels) through convolutional and pooling layers, extracting increasingly abstract features while shrinking spatial dimensions. At the end, fully connected layers discard spatial information, crunch the features into a vector, and output a probability distribution over classes.

This architecture is great for telling you there’s a “tabby cat” in the image, but terrible at telling you which pixels belong to that cat. Fully connected layers are the main culprit—they throw away the where information.

Before FCNs, the most common way to use CNNs for segmentation was patch-based training:

  1. Extract a small patch from the training image.
  2. Feed it into a standard CNN.
  3. Train the CNN to predict the class of the central pixel.
  4. At inference, slide the CNN over every pixel in the test image, generating predictions.

This worked but was grossly inefficient. The model had to run thousands of times per image, with massive redundant computation as receptive fields for adjacent pixels overlap. Patchwise training also limited global context, as the network only saw local patches.

Other approaches used complex multi-stage pipelines that were not trainable end-to-end. The field was ripe for a simpler, unified approach.

The Core Method: Building a Fully Convolutional Network

The paper’s radical simplification was to adapt existing classification networks to handle arbitrary input sizes and produce output maps in a single forward pass.

1. Convolutionalization: Ditching Fully Connected Layers

The first insight: a fully connected layer is just a convolution with a kernel that covers its entire input region.

A fully connected layer computes a dot product between the input vector and a weight matrix. If we reshape that input vector back into a 2D feature map, this is equivalent to convolving it with filters the size of that map.

By reinterpreting fully connected layers as convolutions, the network becomes completely convolutional. This means:

  • It can process images of any size.
  • Every operation is a sliding-window convolution, producing spatially aligned outputs.
  • Instead of a single class prediction, the network produces a heatmap of class scores over the image.

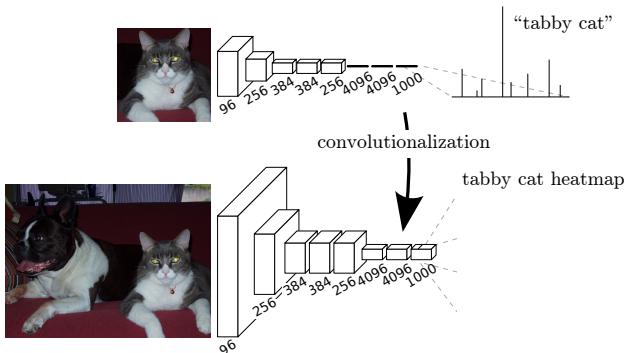

A diagram illustrating the “convolutionalization” process. A standard classification network is transformed into a fully convolutional one, allowing it to output a spatial heatmap for a given class (e.g., “tabby cat”) instead of a single score.

Efficiency Boost:
Instead of running the network for thousands of overlapping patches, it’s run once on the entire image. Shared computation across positions yields huge runtime savings.

The Catch:
Pooling layers aggressively downsample feature maps. For example, VGG16 has a stride of 32, meaning a 500×500 input becomes a coarse 15×15 output map. We need a way to recover full-resolution predictions.

2. Upsampling: From Coarse to Fine

To get dense predictions, we must upsample the coarse output map back to the input resolution.

The most effective method in the paper is in-network upsampling via transposed convolution (often called deconvolution).

Transposed convolutions reverse the spatial transformations of conventional convolutions. With an output stride f, they upsample by factor f.

Like normal convolutions, transposed convolutions have learnable filters, updated through backpropagation. This means the network can learn the best way to upsample coarse maps into fine-grained outputs — far more powerful than fixed bilinear interpolation.

3. Skip Architecture: Fusing “What” and “Where”

Even with upsampling, coarse predictions from deep layers lack fine detail.

Deep layers capture high-level semantics (what), but have poor spatial precision (where). Early layers have fine spatial information, but weak semantics.

To balance the two, the authors propose the skip architecture: combining information from multiple depths. Skip connections link deep, coarse layers with shallower, fine layers, enabling local predictions that respect global structure.

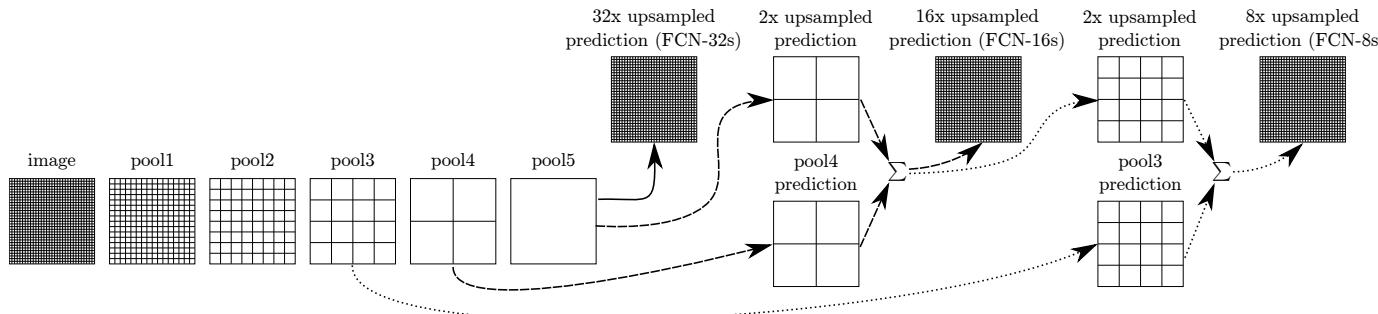

The FCN skip architecture. It shows how predictions from coarse, deep layers (like pool5) are combined with predictions from finer, shallower layers (pool4 and pool3) to produce a progressively more detailed final segmentation map.

FCN Variants:

  • FCN-32s: Predictions from the final layer (stride 32), upsampled in one step ×32. Coarse output.
  • FCN-16s: Final layer predictions upsampled ×2 and fused with predictions from pool4 (stride 16), then upsampled ×16. Sharper output.
  • FCN-8s: Extends FCN-16s by also fusing predictions from pool3 (stride 8), then upsampling ×8. Most detailed output.

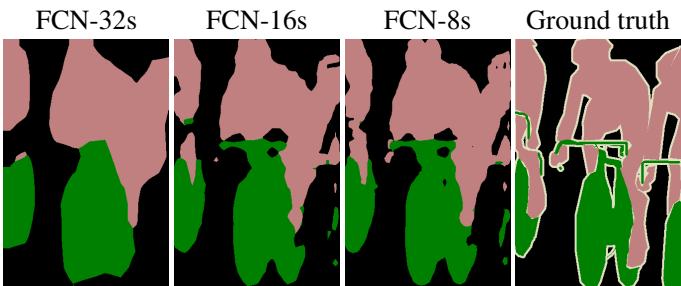

A qualitative comparison of the outputs from FCN-32s, FCN-16s, and FCN-8s. The segmentation of the person on the bicycle becomes progressively sharper and more accurate as finer skip connections are added.

Experiments and Results

Training and Fine-Tuning

A key to FCN performance is transfer learning:

  • Initialize with VGG16 weights pre-trained on ImageNet.
  • Fine-tune all layers for segmentation.

This leverages the rich feature hierarchy from ImageNet and adapts it to dense prediction.

Training on whole images — rather than sampled patches — is not only possible but more efficient. Computation is shared over the image, leading to faster convergence.

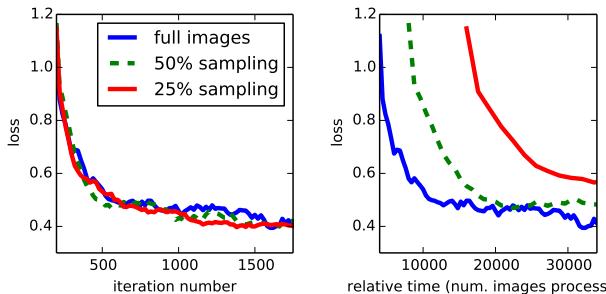

A comparison of training loss versus iterations and time. Training on full images (blue line) is shown to be more time-efficient than patch sampling strategies (green and red lines).

State-of-the-Art Results

On PASCAL VOC 2011 & 2012:

  • FCN-8s achieved a mean Intersection-over-Union (IoU) of 62.2%, a 20% relative improvement over the previous best (SDS).
  • Inference time: 175 ms vs. ~50 seconds for SDS — nearly 300× faster.

Results table for PASCAL VOC 2011 and 2012 test sets. FCN-8s achieves a mean IoU of 62.7 and 62.2, a significant improvement over the previous state-of-the-art SDS, while being orders of magnitude faster.

Qualitative results show FCNs capturing fine details, separating close objects, and handling occlusions better than prior systems.

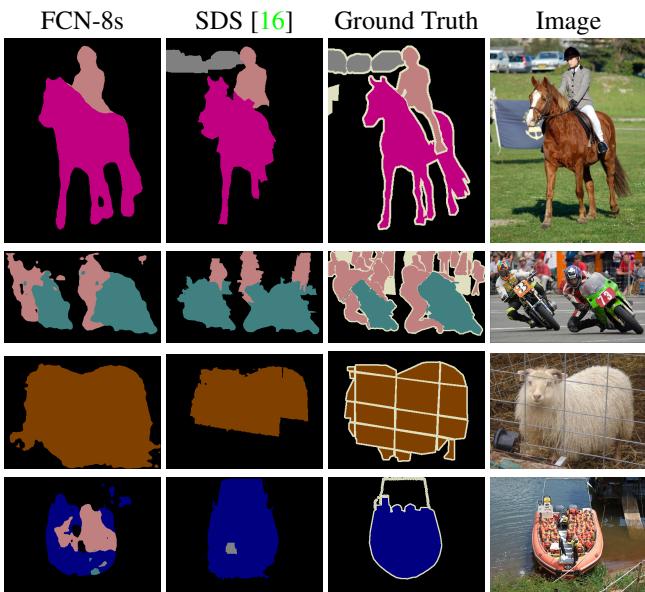

Qualitative comparison of FCN-8s and the previous state-of-the-art, SDS. FCN-8s shows superior detail on the horse’s legs, better separation of the two motorcyclists, and robustness to occluders.

Beyond PASCAL:

  • NYUDv2: Adapted FCNs to RGB-D data, exploring depth embeddings.
  • SIFT Flow: Learned joint semantic and geometric label prediction with two-headed FCNs, matching or surpassing state-of-the-art.

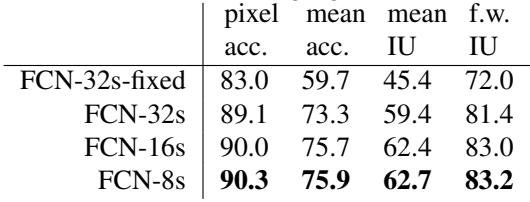

Table showing the performance improvement on PASCAL VOC validation from the baseline FCN-32s to the skip-connection models FCN-16s and FCN-8s. Full fine-tuning is also shown to be crucial.

Conclusion and Legacy

The Fully Convolutional Networks for Semantic Segmentation paper is a modern classic, fundamentally shifting how we approach dense prediction.

Key Lessons:

  • Standard classification CNNs already contain the spatial info needed for dense prediction — “unlock” it by convolutionalizing them.
  • In-network, learnable upsampling (transposed convolution) enables coarse-to-fine prediction without losing semantic context.
  • Skip architectures fuse global semantics with local precision, drastically improving detail.

The FCN concept laid the groundwork for future architectures:

  • U-Net: Symmetric encoder-decoder with extensive skip connections.
  • DeepLab: Atrous convolutions to capture multi-scale context.

In short, FCNs taught us: for complex, structured prediction, build a simple, elegant model and train it end-to-end.
