How can we teach a computer to see like a biologist — not just to recognize that an image contains cells, but to outline the precise boundaries of every single one?
This task, known as image segmentation, is a cornerstone of biomedical research and diagnostics. It automates the analysis of thousands of microscope images, helps track cancer progression, and maps entire neural circuits.

Deep learning models seemed like the perfect tool for this work. Breakthrough architectures such as AlexNet showed that convolutional neural networks (CNNs) could learn powerful visual representations — but they required massive datasets. Training AlexNet involved over a million labeled images.
In biomedical imaging, collecting and annotating even a few hundred examples is often expensive and time-consuming. This data scarcity was a serious roadblock.

In 2015, a team from the University of Freiburg, Germany, released a paper that reshaped biomedical image analysis. Their model, U-Net, showed that state-of-the-art segmentation was possible with very few training samples. It did this through an elegant encoder–decoder design and clever training tactics that have since become standard in segmentation tasks.

Let’s explore what made U-Net such a game-changer.

Before U-Net: The Challenge of Localization

To understand U-Net’s contribution, you need to appreciate the problem it solved.
A standard CNN excels at image classification — passing an image through convolution and pooling layers to output a single label, like "cat" or "dog". Pooling layers reduce spatial resolution while increasing feature abstraction. This makes the network great at recognizing what is present, but blurry on where it is.

For segmentation, spatial localization is critical — we need a class assigned to every pixel.

Early biomedical segmentation tried a sliding-window approach:

  • Crop a small patch around a pixel.
  • Feed it to a classifier to predict the pixel’s label.
  • Slide the window across the image pixel-by-pixel.

It worked, but was painfully slow and computed redundant features for overlapping patches. Worse, there was a trade-off:

  • Small patches offered great localization but poor contextual awareness.
  • Large patches captured more context but blurred precise boundaries.

The next leap was the Fully Convolutional Network (FCN). FCNs replaced dense layers with convolutions, enabling the network to output segmentation maps for inputs of arbitrary size. They used upsampling layers to recover resolution lost during pooling.

FCNs were groundbreaking — but their restored details were coarse. This is where U-Net refined the approach.

The U-Net Architecture

As its name suggests, U-Net’s architecture resembles the letter “U” — a balanced encoder–decoder structure with skip connections that preserve spatial detail.

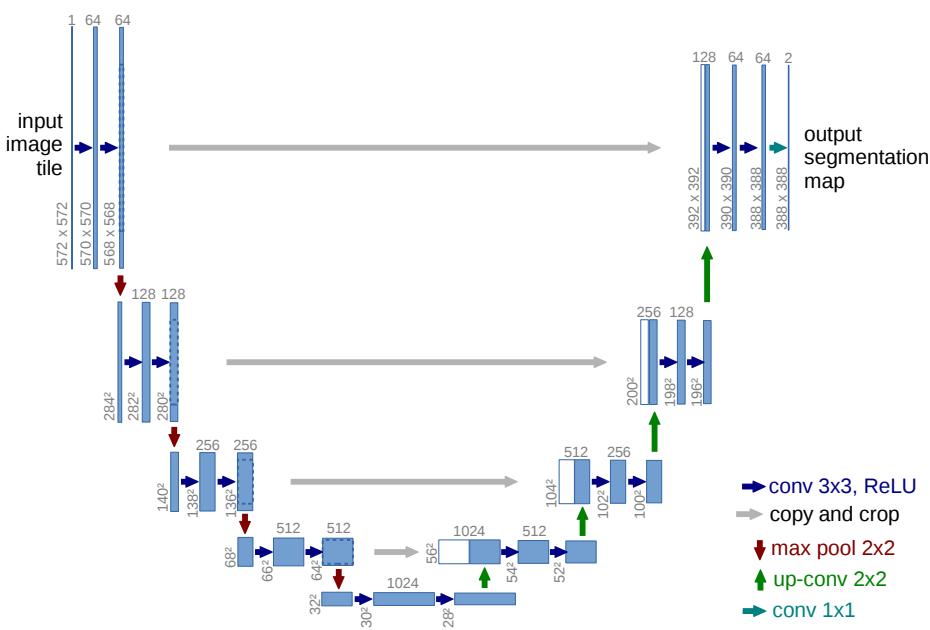

The U-Net architecture: contracting path (encoder) on the left, expansive path (decoder) on the right, connected by skip connections. Blue boxes show feature maps; gray indicates copied feature maps; arrows indicate operations.
Figure 1: U-Net architecture. The encoder captures context; the decoder restores spatial precision. Skip connections bridge corresponding stages for richer detail.

Contracting Path (Encoder)

The encoder works like a conventional CNN:

  1. Two 3×3 convolutions (unpadded), each followed by a ReLU activation.
  2. 2×2 max pooling with stride 2 for downsampling.

At each downsampling step, the number of feature channels doubles: 64 → 128 → 256 → 512.
Lower encoder layers learn simple features (edges, textures); deeper layers capture complex, high-level context.

As spatial resolution decreases, feature depth increases — trading where for what.

Expansive Path (Decoder)

The decoder mirrors the encoder:

  1. Up-convolution (2×2 transposed conv): Upsamples the feature map, doubling width/height and halving channels.
  2. Skip connection: Concatenate with the corresponding encoder feature map (after cropping to account for border losses).
  3. Two 3×3 convolutions with ReLU, refining the merged features.

Skip connections are critical: they directly bring back fine-grained spatial information from the encoder layers to the corresponding decoder layers. Without them, localization suffers.

Finally, a 1×1 convolution outputs the segmentation map with the desired number of classes.

Training U-Net: Strategies for Data-Scarce Environments

Architecture is only half the story. U-Net’s training pipeline was designed for large images and scarce annotations.

Overlap-Tile Strategy for Large Inputs

Microscopy images can exceed GPU memory limits. The solution:

  • Split images into overlapping tiles.
  • Each tile includes extra border context (blue in Figure 2).
  • Only the central region (yellow) is used in output to ensure full-context predictions.
  • For image borders, context is simulated by mirroring.

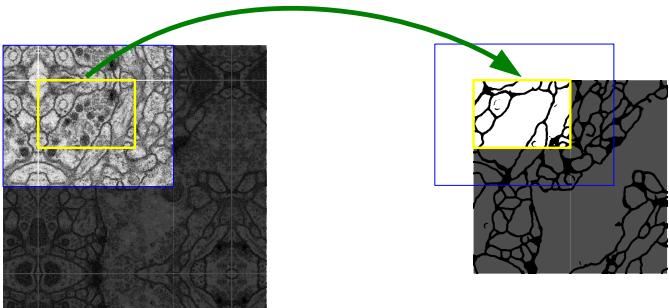

Overlap-tile strategy: prediction for the central yellow square requires larger blue input area for context. Missing border context is inferred via mirroring.
Figure 2: Overlap-tile strategy enables seamless segmentation of large images while respecting GPU limits.

This approach ensures every pixel prediction has access to complete spatial context.

Data Augmentation — The Secret Weapon

With only a few training examples, robust generalization requires aggressive augmentation.

In addition to flips, shifts, and rotations, the authors introduced elastic deformations:

  • Apply smooth, random warps via displacement vectors on a coarse grid.
  • This mimics biological tissue variability.
  • Encourages network robustness to realistic distortions.

The method proved extremely effective — teaching the model to handle variations it had never seen.

Weighted Loss for Touching Objects

In cell segmentation, touching cells are tricky. Borders may be only pixels wide. Errors here mean merged cells — an accuracy disaster.

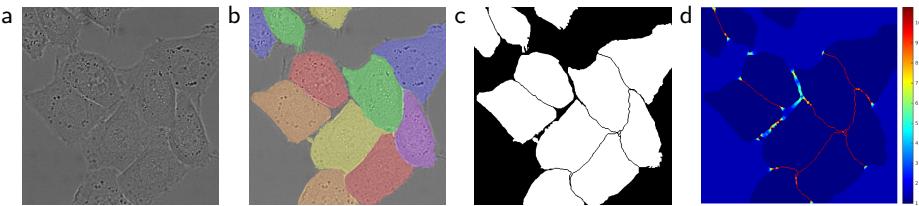

HeLa cells with pixel-wise loss weighting: (a) raw image, (c) target mask, (d) weight map highlighting borders.
Figure 3: Weighted loss maps give extra importance to pixels along cell borders to separate touching cells.

Solution: a weighted cross-entropy loss:

  • Compute weight map \(w(\mathbf{x})\) for each training mask.
  • Balance class frequencies (so background dominance doesn’t skew training).
  • Boost weights for pixels between touching cells using distance transforms:
\[ E = \sum_{\mathbf{x} \in \Omega} w(\mathbf{x}) \log(p_{\ell(\mathbf{x})}(\mathbf{x})) \]\[ w(\mathbf{x}) = w_c(\mathbf{x}) + w_0 \cdot \exp\left(-\frac{(d_1(\mathbf{x}) + d_2(\mathbf{x}))^2}{2\sigma^2}\right) \]

Here, \(d_1\) and \(d_2\) are distances to the nearest and second-nearest cell borders, respectively.

Results: U-Net in Action

The model was tested on two major biomedical segmentation challenges.

1. EM Segmentation Challenge

Task: Segment neuronal structures in electron microscopy images.
Training set: Only 30 images (512×512 pixels).

U-Net achieved:

  • Warping error: 0.000353 — best score at time of publication.
  • Rand error: 0.0382 — outperforming sliding-window CNNs.

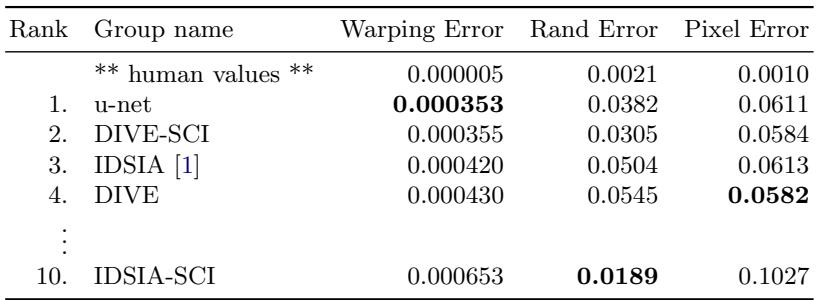

Leaderboard results for EM segmentation challenge, showing U-Net top-ranked for warping error.
Table 1: U-Net achieved the lowest warping error, leading the EM segmentation challenge.

2. ISBI Cell Tracking Challenge

Two datasets:

  1. PhC-U373 (phase contrast microscopy of glioblastoma cells)
    IOU: 92.03% (second-best: 83%).

  2. DIC-HeLa (differential interference contrast microscopy of HeLa cells)
    IOU: 77.56% (second-best: 46%).

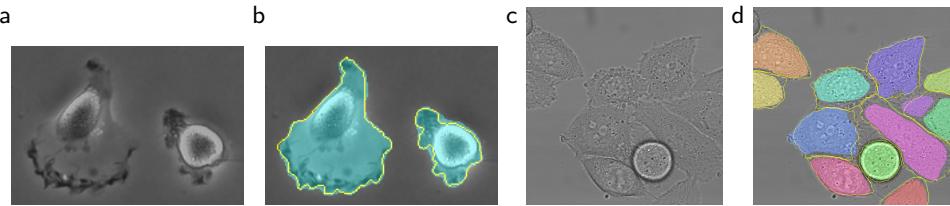

Segmentation results of U-Net: (a, c) input images, (b, d) output masks with near-perfect alignment to ground truth borders.
Figure 4: Qualitative results from ISBI cell tracking challenge datasets.

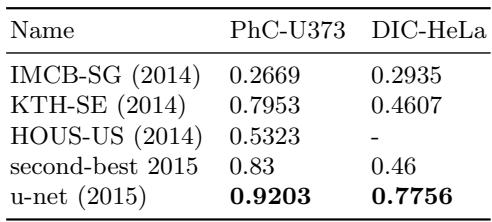

Table of IOU scores: U-Net vs competing methods on both datasets.
Table 2: U-Net’s substantial performance margin over prior methods.

These results validated that U-Net could operate effectively on small datasets, across different imaging modalities, and outperform specialized pipelines without heavy post-processing.

Conclusion & Legacy

Key contributions of U-Net:

  • U-shaped encoder–decoder design capturing both context and fine localization.
  • Skip connections to merge deep and shallow features for rich detail.
  • Elastic deformation augmentation for robust learning on scarce data.
  • Weighted loss mapping to address challenging borders in touching objects.

In doing so, U-Net:

  • Solved a major challenge in biomedical image segmentation.
  • Made deep learning feasible for data-poor scientific fields.
  • Inspired a family of architectures (Res-UNet, UNet++, V-Net) now used from medical imaging to satellite imagery.

The U-Net paper’s blend of elegant architecture and practical training strategy set a lasting standard for semantic segmentation — proving that with the right design, small data can deliver big results.
