Faster R-CNN: The Breakthrough That Made Real-Time Object Detection Possible

Object detection is one of the foundational tasks in computer vision. It’s the capability that allows computers to not just see an image, but to understand what’s in it—locating and identifying every car, person, bird, and coffee mug in a scene. For years, the R-CNN family of models has been at the forefront of this field. Beginning with R-CNN, then evolving into the much faster Fast R-CNN, these models pushed the boundaries of accuracy.

However, they all shared a critical bottleneck. While the neural networks for classifying objects were getting faster and more efficient, they relied on a separate, slow, and often CPU-bound algorithm to first propose potential object locations. This step, called region proposal, could take seconds per image, making true real-time detection infeasible. Imagine a self-driving car that takes two seconds to spot a pedestrian—it’s simply unsafe.

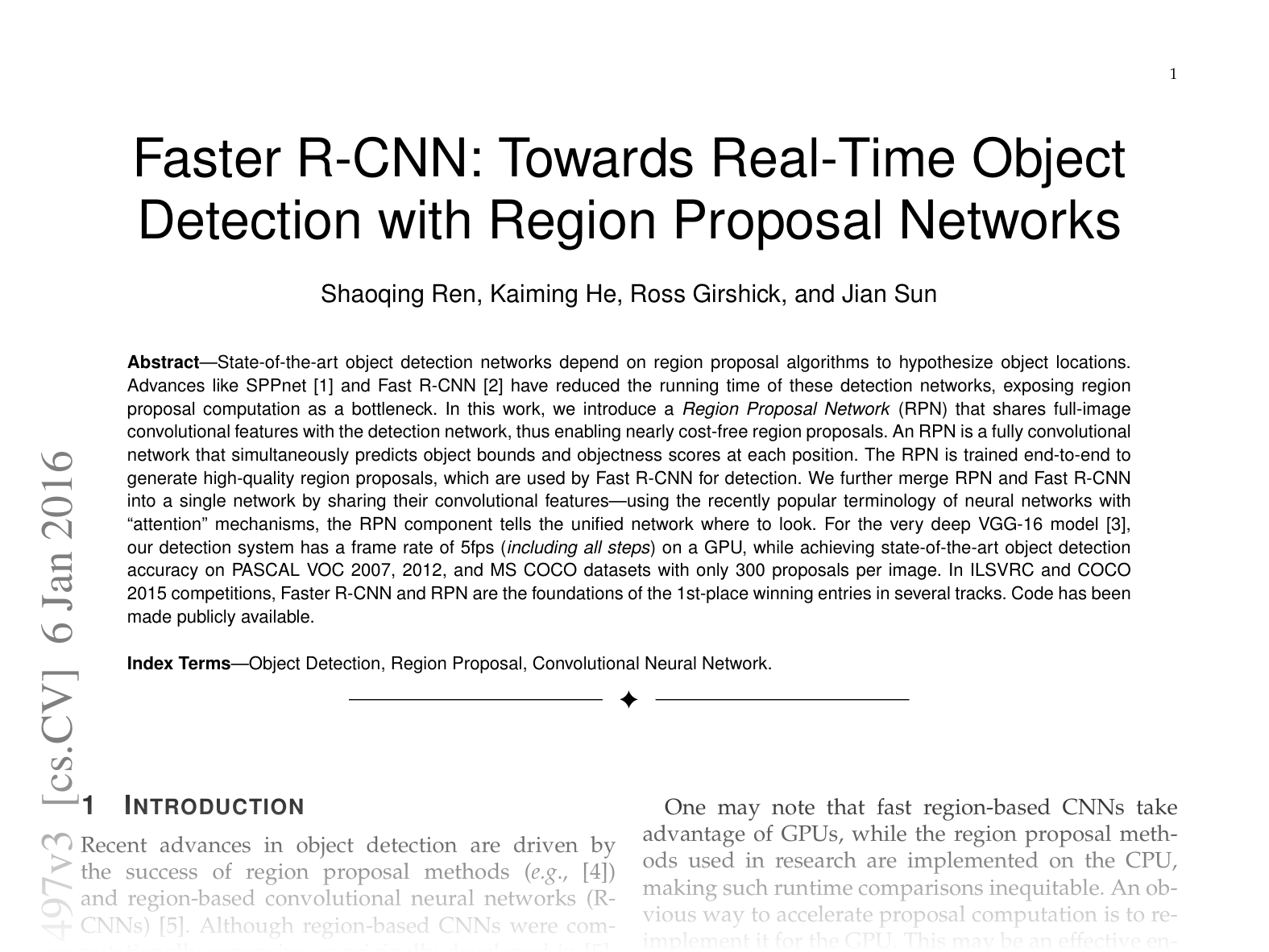

This is the problem that the 2015 paper “Faster R-CNN: Towards Real-Time Object Detection with Region Proposal Networks” set out to solve. The researchers posed a brilliant question: instead of treating region proposal as a separate preprocessing step, what if we could teach a neural network to generate proposals? And what if we could make that proposal network share most of its computational work with the detection network, making the whole process incredibly efficient?

The answer was the Region Proposal Network (RPN)—a small but powerful component that transformed the field. By integrating the RPN directly into the detection pipeline, the authors created a single, unified, end-to-end network for object detection that was not only more accurate but dramatically faster. Let’s unpack how they achieved it.

---

Background: The Road to Real-Time Detection

To appreciate the breakthrough of Faster R-CNN, we need to understand the evolution that led to it:

1. R-CNN (Regions with CNN features):
   The original R-CNN was revolutionary. It used a pre-existing region proposal algorithm, like Selective Search, to generate around 2000 candidate “regions of interest” (RoIs) per image. Each region was warped to a fixed size and passed through a CNN for classification. This method was highly accurate but painfully slow—over 40 seconds per image—because the CNN had to run thousands of times.

2. Fast R-CNN:
   Fast R-CNN streamlined the process. Instead of running the CNN separately for each region, it ran the CNN once on the whole image to produce a shared convolutional feature map. Region proposals were projected onto this feature map, and a new RoI Pooling layer extracted fixed-size features for classification. This “share the convolutions” strategy massively reduced computation, dropping detection time to about 2 seconds per image.

Yet the bottleneck persisted: Selective Search itself was still slow, taking about 2 seconds on the CPU. The detection pipeline still consisted of two separate pieces—a slow, classical algorithm for proposing regions, and a fast deep learning model for detecting objects within them.

---

The Core Idea Behind Faster R-CNN

Faster R-CNN’s key insight was to replace the slow, external region proposal algorithm with a fast, integrated Region Proposal Network. This RPN shares convolutional layers with the object detection network.

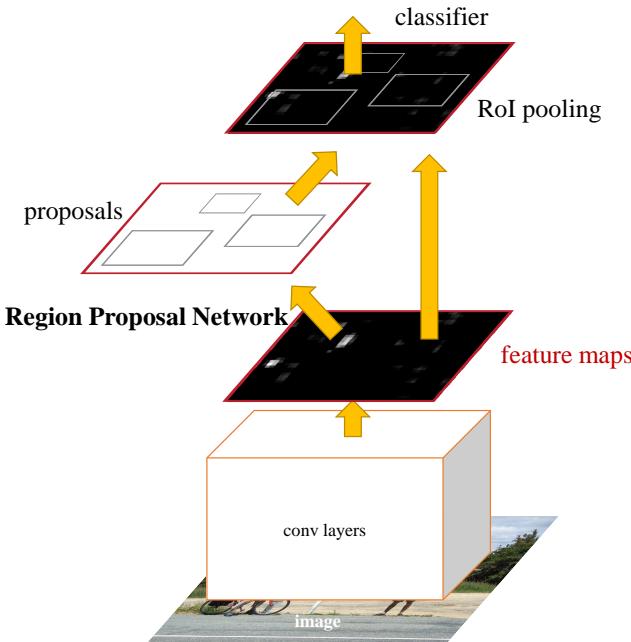

The system is a single, unified network:

The architecture consists of:

1. Region Proposal Network (RPN):
   A deep, fully convolutional network that takes a feature map and outputs rectangular object proposals with “objectness” scores.

2. Fast R-CNN Detector:
   The same detection pipeline as before, but now fed with RPN-generated proposals rather than from an external, hand-crafted algorithm.

Both modules share the same backbone CNN, e.g., the first 13 convolutional layers of VGG-16. The RPN acts like an attention mechanism, telling the detector where to focus.

---

The Region Proposal Network (RPN) in Detail

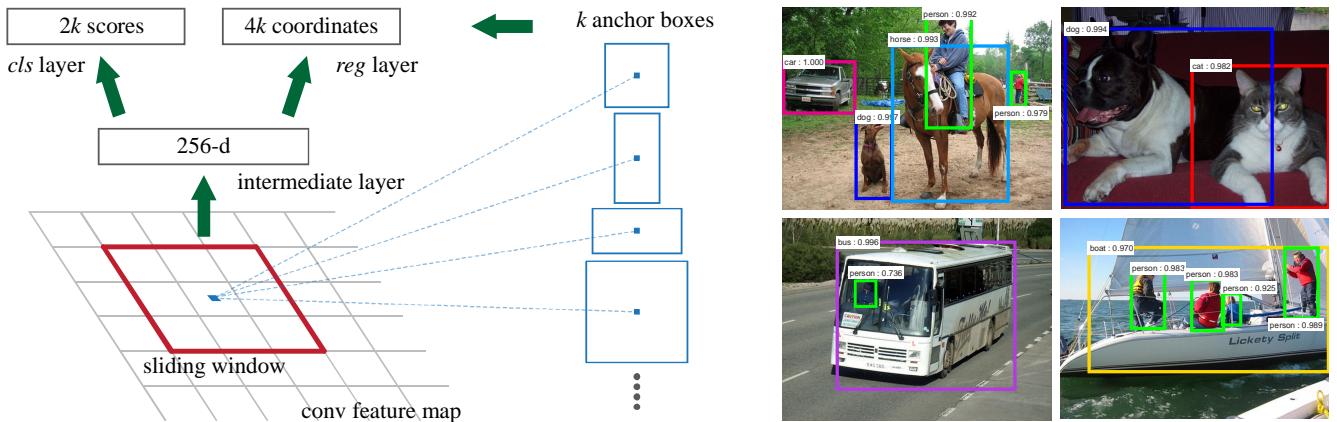

The RPN works by sliding a small network over the convolutional feature map from the backbone CNN. At each location, it evaluates a set of pre-defined reference boxes called anchors.

Step-by-Step:

1. Generate Feature Map:
   Input image → backbone CNN (e.g., VGG-16) → high-level feature map.

2. Sliding Window:
   A small \(3 \times 3\) convolution slides over the feature map.

3. Anchors:
   At each position, the RPN evaluates \(k\) anchors. In the paper, \(k=9\) for 3 scales (e.g., 128², 256², 512² pixels) × 3 aspect ratios (1:1, 1:2, 2:1).

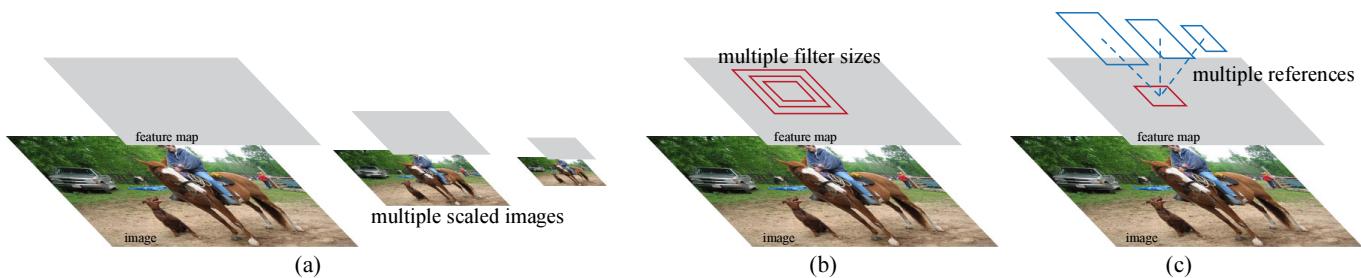

   This “pyramid of anchors” efficiently handles multi-scale objects without costly image pyramids or filter pyramids.

4. Two Output Heads:
   For each anchor:
   • Objectness Score (cls): Binary classification—object vs. background—outputting \(2k\) scores.
   • Bounding Box Regression (reg): Four offsets \((t_x, t_y, t_w, t_h)\) to refine the anchor box position/size.

Thousands of anchors are processed in one forward pass, making RPN extremely fast.

---

Training the RPN: Multi-Task Loss

The RPN is trained to do both classification and regression via a multi-task loss:

\[ L(\{p_i\}, \{t_i\}) = \frac{1}{N_{cls}} \sum_i L_{cls}(p_i, p_i^*) + \lambda \frac{1}{N_{reg}} \sum_i p_i^* L_{reg}(t_i, t_i^*) \]

Where:

• \(p_i\): predicted probability that anchor \(i\) contains an object.
• \(p_i^* \in \{0,1\}\): ground truth label (positive if high IoU with object).
• \(L_{cls}\): classification loss (log loss).
• \(t_i\): predicted box offsets.
• \(t_i^*\): ground-truth offsets relative to anchor.
• \(L_{reg}\): smooth L1 regression loss (only active for \(p_i^*=1\)).
• \(N_{cls}\), \(N_{reg}\), \(\lambda\): normalization and weight parameters.

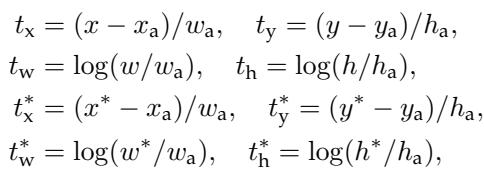

Bounding box regression is parameterized relative to the anchor box:

---

A Unified Network: 4-Step Alternating Training

Training a shared network requires careful coordination of RPN and detector updates. The paper’s pragmatic approach:

1. Train the RPN:
   Initialize with ImageNet weights and train RPN to generate good proposals.

2. Train Fast R-CNN Detector:
   Separate initialization from ImageNet weights, trained on RPN Step 1 proposals.

3. Fine-tune RPN:
   Initialize from Step 2’s detector weights, freeze shared layers, fine-tune RPN-specific layers.

4. Fine-tune Detector:
   Freeze shared layers, fine-tune detector-specific layers using updated RPN proposals.

End result: A unified network with shared backbone tuned for both tasks.

---

Experiments & Results

Speed: Region Proposal Bottleneck Eliminated

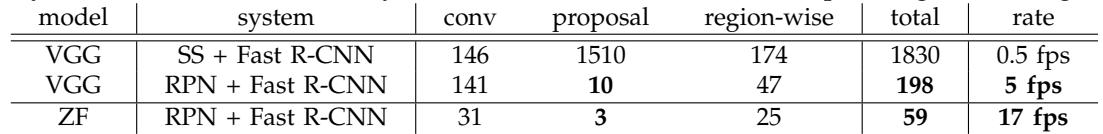

Replacing Selective Search with RPN slashed proposal computation from ~1.5s to 10ms:

• VGG-16 model: total time dropped from 1830ms → 198ms (5 fps).
• ZF model: achieved 17 fps.

---

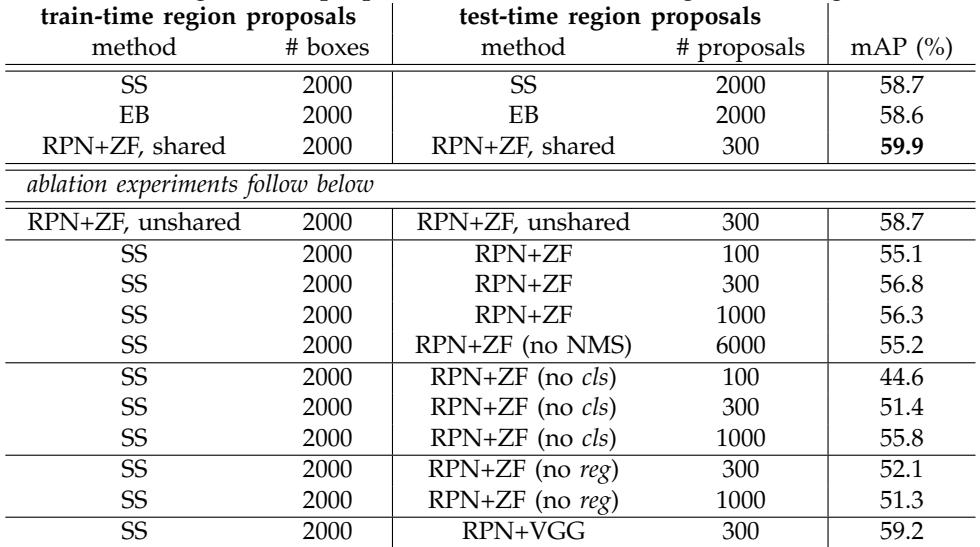

Accuracy: RPN Improves Detection

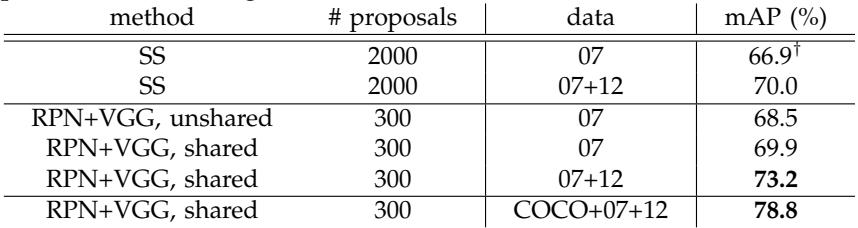

RPN proposals outperform hand-crafted ones on PASCAL VOC 2007:

With VGG-16:

---

Ablation: Why It Works

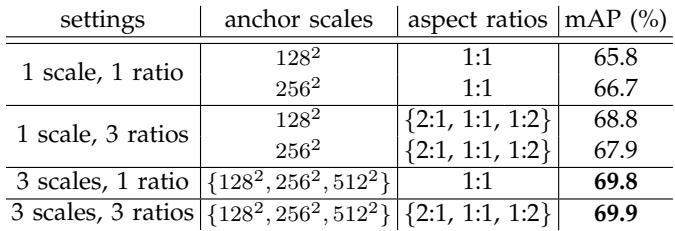

• Anchor Design:
  Using 3 scales × 3 aspect ratios yielded the best mAP (69.9%). Reducing to a single scale/aspect ratio dropped mAP to ~66%.

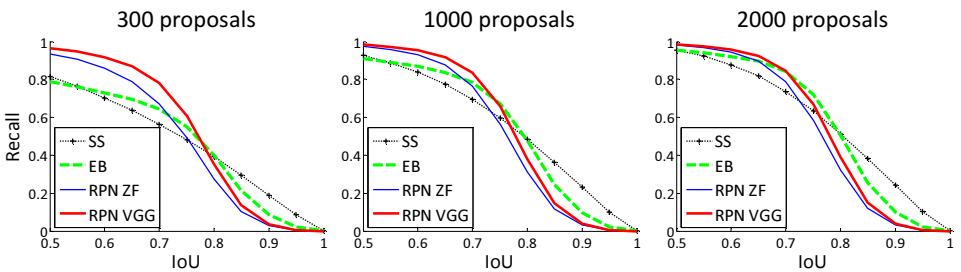

• Proposal Quality:
  High recall maintained even with only 300 proposals per image, far outperforming Selective Search or EdgeBoxes.

---

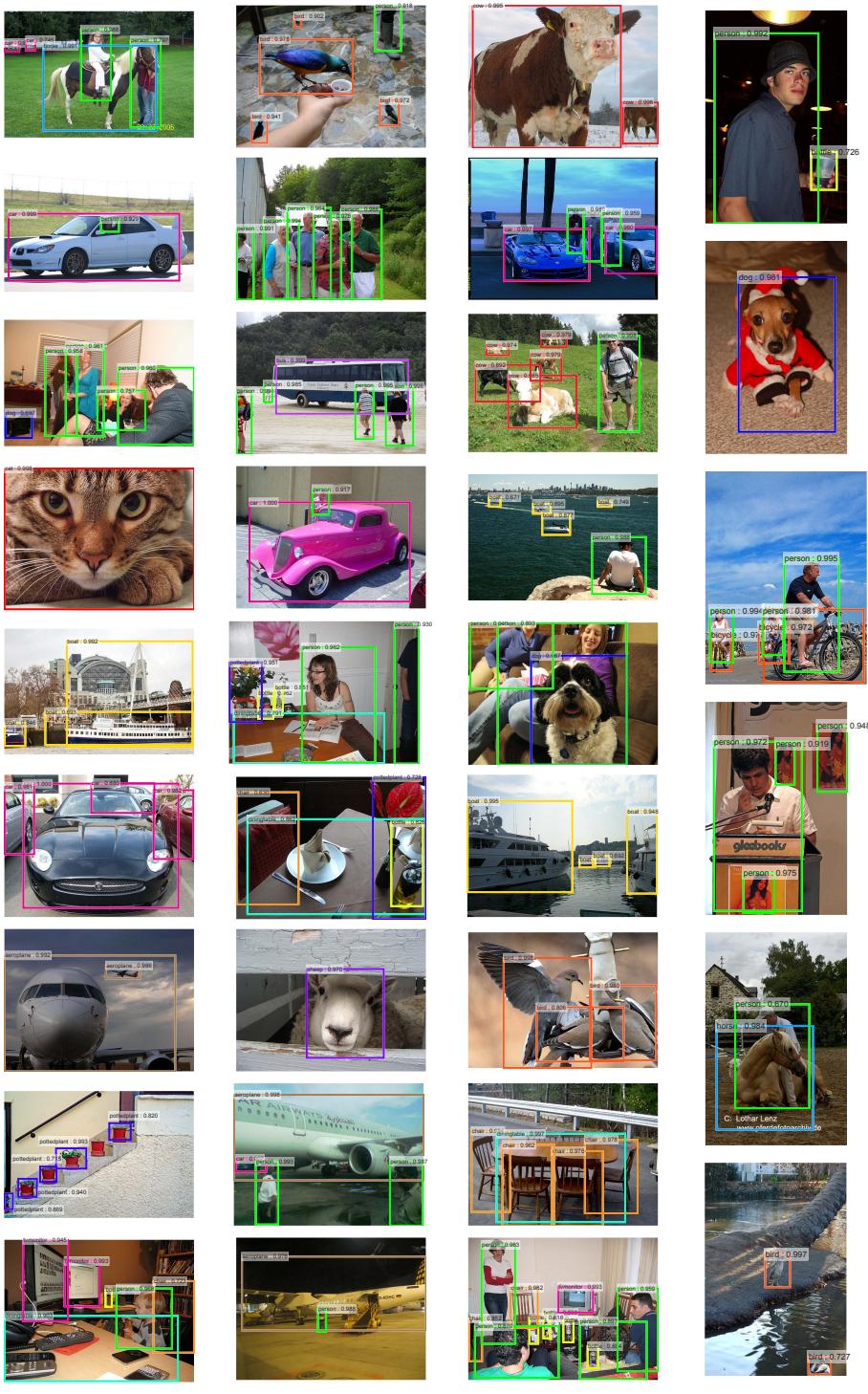

Example Detections

Faster R-CNN detects varied objects in complex scenes at high confidence:

---

Conclusion & Legacy

Faster R-CNN was a landmark in object detection. Introducing the RPN:

1. Unified Pipeline:
   Region proposal + detection consolidated into one deep learning framework.

2. Near Real-Time Speed:
   Shared convolutions made proposals nearly cost-free, enabling ~10× faster inference.

3. Improved Accuracy:
   RPN generated data-driven proposals superior to traditional methods, boosting detection performance.

Its impact was profound: RPN became a fundamental building block in later models (e.g., Mask R-CNN for segmentation). Faster R-CNN didn’t just accelerate detection—it redefined how we design integrated vision systems, paving the way for today’s fast, accurate, end-to-end models.
