When you glance at a photograph, your brain performs a remarkable feat in milliseconds. You don’t just see a collection of pixels—you instantly identify objects, their locations, and their relationships. You notice that a person is walking a dog, a car is parked next to a fire hydrant, or a cat is sleeping on a sofa. For decades, teaching computers to do this with the same speed and accuracy remained a monumental challenge in computer vision.

Early object detection systems were often slow, complex, and cumbersome. They typically involved multi-stage pipelines: first, propose potential regions in an image where an object might be; then run a powerful classifier on each of those thousands of candidate regions; and finally, clean up the overlapping and redundant results. This worked, but it was far from real-time. Imagine a self-driving car needing 40 seconds to recognize a stop sign—it just wouldn’t work.

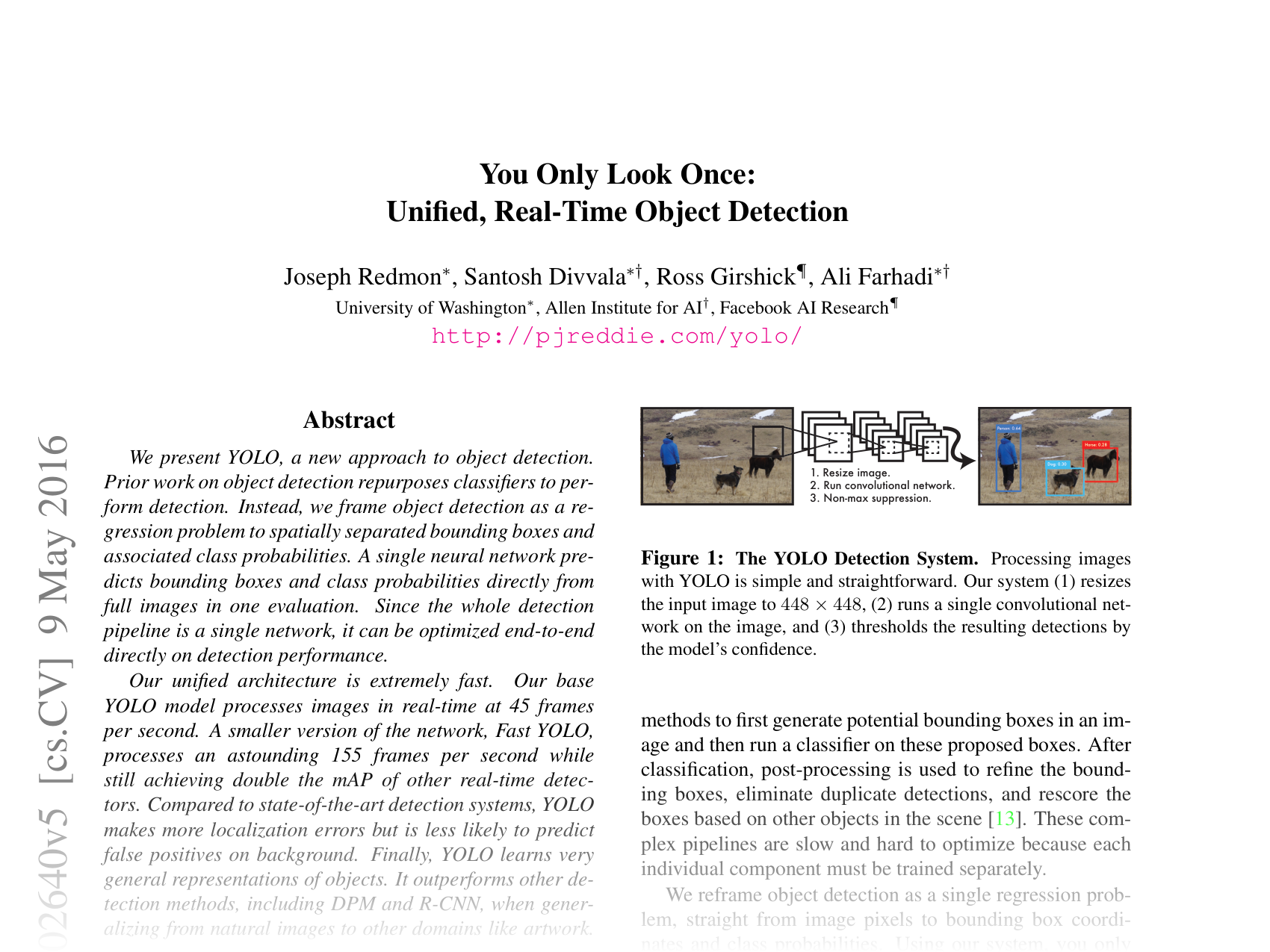

In 2015, the groundbreaking paper “You Only Look Once: Unified, Real-Time Object Detection” changed everything. The researchers proposed a radically different approach: what if we could build a single, elegant neural network that looks at an image just once and tells us what objects are present and where they are? This is the story of YOLO.

YOLO reframed object detection not as a classification problem, but as a single regression problem. It takes an image as input and directly outputs bounding box coordinates and class probabilities. This unified design made it incredibly fast—capable of processing video in real-time—and opened the door to a new generation of object detectors that power countless modern applications.

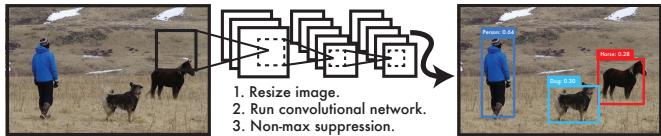

A simple three-step diagram showing the YOLO pipeline: resize image, run a single convolutional network, and then threshold the detections to get final bounding boxes on an image of a person walking two dogs.

In this article, we’ll take a deep dive into the original YOLOv1 paper. We’ll explore how it works, what made it revolutionary, and analyze its unique strengths and weaknesses. Whether you’re a student just starting in computer vision or a practitioner looking to understand the foundations of modern object detection, this post will give you a clear, in-depth look at the model that started it all.

Before YOLO: The Two-Stage Era

To appreciate why YOLO was such a big deal, we first need to understand the object detection landscape at the time. The dominant paradigm was the two-stage detector, most famously represented by the R-CNN family of models.

  1. Region Proposal (Stage 1): These models first used an algorithm like Selective Search to generate thousands of potential bounding boxes (regions of interest) that might contain an object. This step was independent of the main deep learning model and acted as a filter to reduce the search space from the entire image to a manageable set of candidate boxes.
  2. Classification (Stage 2): For each proposed region, the image patch was warped to a fixed size and fed into a convolutional neural network (CNN) to extract features. Finally, a classifier (often an SVM) would determine if the box contained an object and, if so, what class it belonged to. A separate linear model would refine the coordinates of the bounding box.

This pipeline had major drawbacks:

  • It was incredibly slow. Running a CNN on over 2,000 region proposals per image was computationally expensive and took seconds per image, making true real-time applications impossible.
  • It was complex. Each component (region proposal, feature extraction, classification, box refinement) was trained separately. This made optimization disjointed—you couldn’t fine-tune the entire system end-to-end for detection.

Faster R-CNN later improved performance by integrating the region proposal step into the network, but the process was still multi-stage, and real-time detection remained elusive. The world needed a detector that was both accurate and blazingly fast.

The YOLO Philosophy: Detection as a Single Regression Problem

The creators of YOLO threw out the complex pipelines entirely. Their core idea was to build a single convolutional neural network that could simultaneously predict multiple bounding boxes and their class probabilities for an entire image in one pass.

Here’s how it works.

The Grid System

YOLO divides the input image into an \(S \times S\) grid—in YOLOv1, a \(7 \times 7\) grid. Each grid cell is responsible for detecting objects whose centers fall within it.

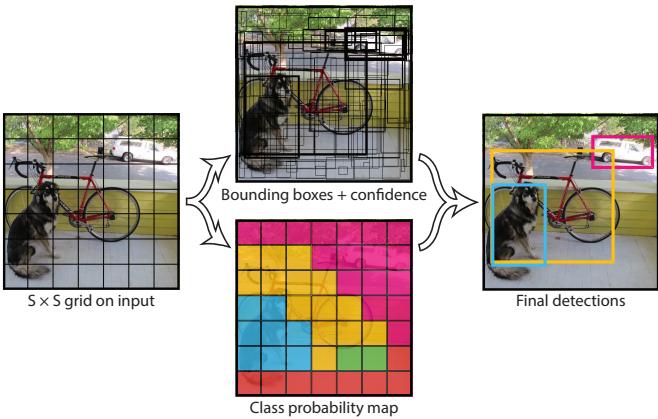

A diagram showing an image being divided into a grid. Each grid cell predicts bounding boxes and class probabilities, which are then combined to produce the final detections.

For each grid cell, the network predicts:

  1. B Bounding Boxes: In the paper, \(B = 2\).
  2. Confidence Scores: For each bounding box, a score reflecting both the probability of an object and the accuracy of the box.
  3. C Class Probabilities: Probabilities for each object class (e.g., 20 classes for Pascal VOC).

The Output Tensor: What Each Grid Cell Predicts

All predictions are encoded in a tensor with dimensions:

\[ S \times S \times (B \times 5 + C) \]

For \(S = 7\), \(B = 2\), and \(C = 20\), this is \(7 \times 7 \times 30\).

Each bounding box is described by 5 values: \((x, y, w, h, \text{confidence})\).

  • \((x, y)\): Bounding box center, relative to the grid cell (values between 0 and 1).
  • \((w, h)\): Width and height relative to the whole image.
  • Confidence: Defined as \(Pr(\text{Object}) \times IOU_{\text{pred}}^{\text{truth}}\).

The model also predicts one set of class probabilities per grid cell, \(Pr(\text{Class}_i | \text{Object})\). This means each cell can only detect one object class, even if it predicts multiple boxes.

From Tensor to Detections

At inference, YOLO computes a class-specific confidence score:

\[ Pr(\text{Class}_i | \text{Object}) \times Pr(\text{Object}) \times IOU_{\text{pred}}^{\text{truth}} = Pr(\text{Class}_i) \times IOU_{\text{pred}}^{\text{truth}} \]

Boxes with scores below a threshold are discarded, and Non-Maximal Suppression (NMS) removes duplicate detections.

Network Architecture

YOLO’s architecture, inspired by GoogLeNet, uses 24 convolutional layers followed by 2 fully connected layers, with \(1 \times 1\) convolutions to reduce depth and \(3 \times 3\) convolutions for feature extraction.

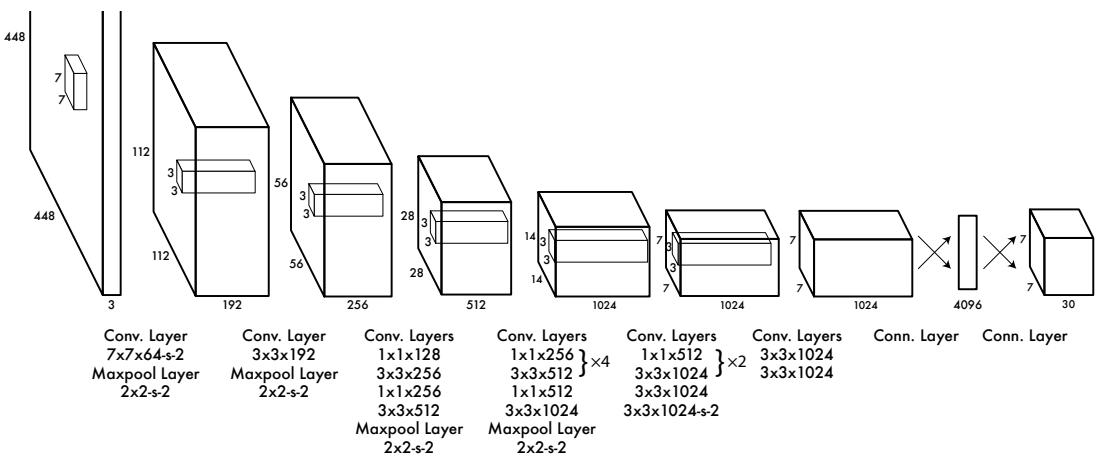

The architecture of the YOLO network, showing convolutional and max-pooling layers that process a 448×448 image down to a 7×7×30 prediction tensor.

The network is first pretrained on ImageNet at \(224 \times 224\), then adapted for detection at \(448 \times 448\) resolution.

The Loss Function

Training YOLO uses a sum-squared error loss with critical weighting factors:

\[ \begin{aligned} &\lambda_{\text{coord}} \sum_{i=0}^{S^2} \sum_{j=0}^{B} \mathbb{1}_{ij}^{\text{obj}} \left[(x_i - \hat{x}_i)^2 + (y_i - \hat{y}_i)^2\right] \\ &+ \lambda_{\text{coord}} \sum_{i=0}^{S^2} \sum_{j=0}^{B} \mathbb{1}_{ij}^{\text{obj}} \left[(\sqrt{w_i} - \sqrt{\hat{w}_i})^2 + (\sqrt{h_i} - \sqrt{\hat{h}_i})^2\right] \\ &+ \sum_{i=0}^{S^2} \sum_{j=0}^{B} \mathbb{1}_{ij}^{\text{obj}} \left(C_i - \hat{C}_i\right)^2 \\ &+ \lambda_{\text{noobj}} \sum_{i=0}^{S^2} \sum_{j=0}^{B} \mathbb{1}_{ij}^{\text{noobj}} \left(C_i - \hat{C}_i\right)^2 \\ &+ \sum_{i=0}^{S^2} \mathbb{1}_{i}^{\text{obj}} \sum_{c \in \text{classes}} \left(p_i(c) - \hat{p}_i(c)\right)^2 \end{aligned} \]

Key points:

  • Extra weight (\(\lambda_{\text{coord}}\)) for box coordinates.
  • Down-weight confidence loss for background boxes (\(\lambda_{\text{noobj}} = 0.5\)).
  • Predict square roots of width/height to reduce impact of large-box errors.

Experiments and Results

Real-Time Speed

YOLO’s headline feature was speed: 45 FPS for the base model, 155 FPS for Fast YOLO.

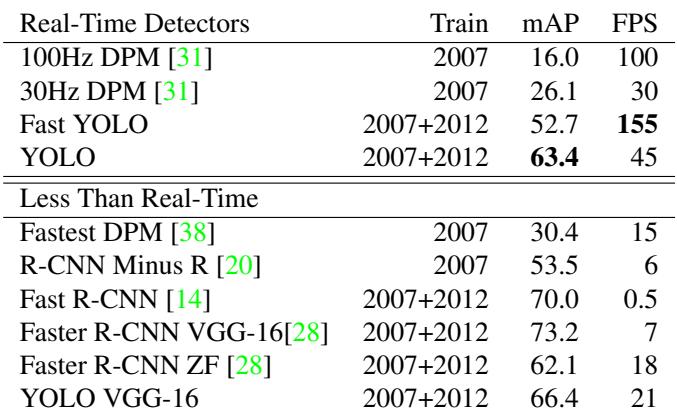

A table comparing mAP and FPS for real-time detectors. YOLO and Fast YOLO dominate in speed.

Compared to Fast R-CNN (0.5 FPS) or Faster R-CNN (7–18 FPS), YOLO delivered true real-time performance.

Error Profile

YOLO’s accuracy lagged behind state-of-the-art two-stage detectors. Error analysis versus Fast R-CNN revealed:

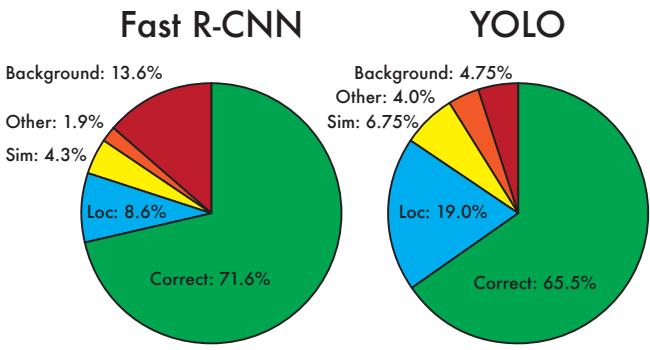

Pie charts comparing error types for Fast R-CNN and YOLO.

  • YOLO: More localization errors (struggles with exact box placement, especially small objects).
  • Fast R-CNN: Many more false positives on background.

YOLO’s global view gives it context missing from R-CNN, reducing false positives. This complementary error profile led to combining YOLO with Fast R-CNN.

Combining Detectors

By using YOLO to filter Fast R-CNN’s background detections, mAP increased by 3.2% on VOC 2007.

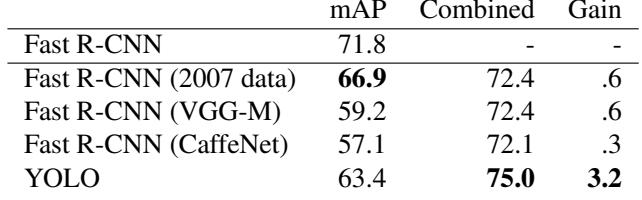

A table showing the mAP gain from combining Fast R-CNN with YOLO.

Generalization: People in Artwork

YOLO’s ability to generalize was tested on artwork datasets—very different from its training images.

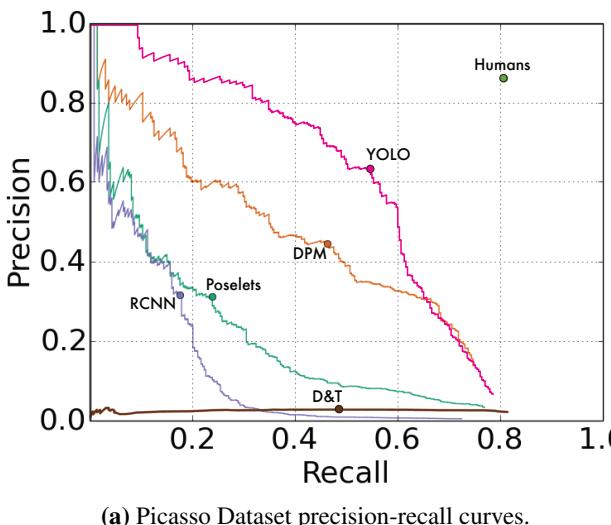

Precision-recall curve and table showing YOLO generalizing far better than R-CNN on artwork.

While R-CNN performance collapsed, YOLO’s degraded far less. The authors attribute this to YOLO learning shape and spatial relationships rather than just texture.

A collage showing YOLO detecting objects in paintings and photos.

Limitations of YOLOv1

For all its strengths, YOLOv1 had clear limitations:

  • Small Objects: Struggles with groups of small objects due to grid constraints.
  • Localization: Bounding boxes less precise than two-stage methods.
  • Unusual Aspect Ratios: Difficulty with objects in unfamiliar shapes or proportions.

Conclusion: A Paradigm Shift

YOLOv1 was more than another detector—it changed the way researchers thought about the problem. By reframing object detection as a single, unified regression task, YOLO eliminated slow multi-stage pipelines and made end-to-end real-time detection possible.

Its core innovations—the grid system, unified architecture, and global reasoning—were revolutionary. While it didn’t match the very top accuracies of its day, its speed and generalizability inspired the modern wave of single-stage detectors that continue pushing computer vision forward.

YOLO taught computers to truly “look once” and understand the world—fast.
