In the world of deep learning, there was once a powerful and seductive mantra: “just add more layers.” For a time, this seemed to be the primary path to success. AlexNet gave way to the much deeper VGGNet, and with each added layer, performance on benchmarks like ImageNet climbed higher. But this progress came at a steep price—astronomical computational costs and ballooning parameter counts. Training these behemoths required massive GPU clusters, and deploying them on resource-constrained devices like smartphones was nearly impossible.

This is where Google’s Inception architecture first made its mark. The original GoogLeNet (Inception-v1) was a radical departure, proving that state-of-the-art results could be achieved with a model that was both smaller and faster than its contemporaries. But how do you improve on a design that’s already built for efficiency? Simply making it bigger—doubling the number of filters—squares the computational cost, eroding the very advantage you started with.

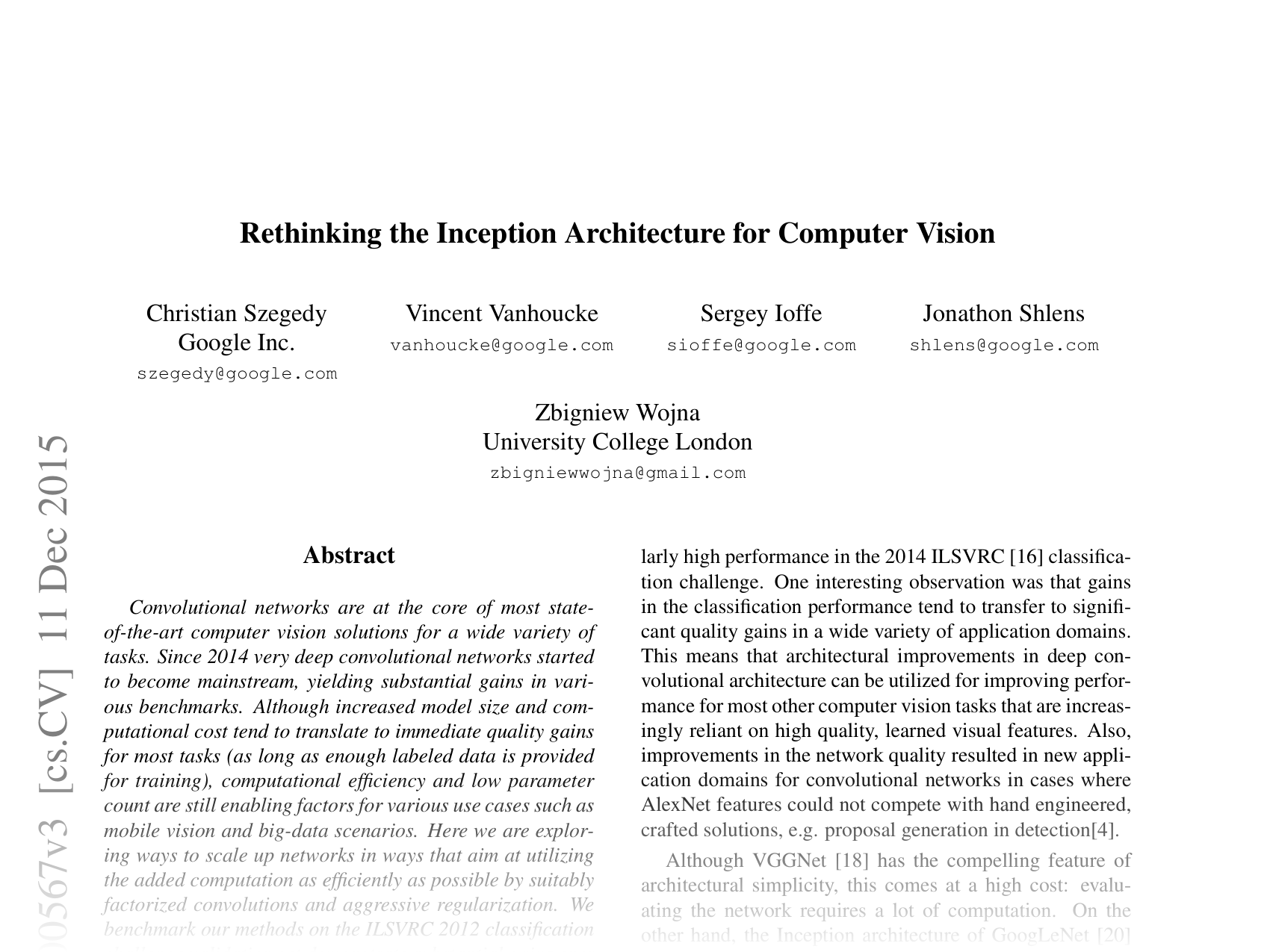

This is the challenge tackled in the paper “Rethinking the Inception Architecture for Computer Vision.” The researchers didn’t just propose a new model; they laid out a set of elegant design principles for scaling convolutional neural networks effectively. This work introduced the models we now know as Inception-v2 and Inception-v3—a masterclass in making networks smarter, not just bigger. It’s about utilizing every computation as efficiently as possible through clever factorization and aggressive regularization. Let’s dive in and see how they did it.

Background: The Original Inception Idea

Before we explore the new ideas, let’s recap the magic of the original Inception module.

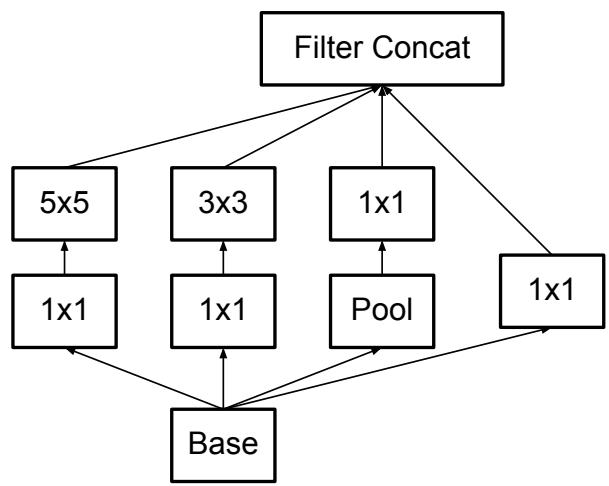

The original Inception-v1 module from GoogLeNet, which processes inputs through multiple parallel branches of different filter sizes and concatenates the results.

Figure 4. The original Inception module as described in [20], using 1×1 convolutions to reduce dimensionality before larger convolutions.

Its core insight was to perform multiple different-sized convolutions (1×1, 3×3, 5×5) and a pooling operation in parallel, then concatenate their outputs. This allowed the network to capture features at multiple scales simultaneously.

The secret sauce for efficiency was the heavy use of 1×1 convolutions as “bottleneck” layers to reduce the number of channels before the expensive 3×3 and 5×5 convolutions. This dramatically cut down computational cost while preserving rich features.

Four Principles for Better Network Design

The authors distilled their large-scale experimentation into four guiding principles for efficient, powerful convolutional networks:

  1. Avoid Representational Bottlenecks
    Don’t compress feature maps too aggressively—especially early in the network. The representation size should decrease gently toward the output.

  2. Higher-Dimensional Representations are Easier to Process
    Increasing the number of filters allows for more disentangled, specialized features, and can speed up training.

  3. Perform Spatial Aggregation on Lower-Dimensional Embeddings
    Reduce depth with a 1×1 convolution before a larger convolution. Due to pixel correlation, this dimensional reduction preserves most information while improving efficiency.

  4. Balance Width and Depth
    For a given computational budget, increasing both depth and width in tandem yields better performance than focusing on just one.

Armed with these principles, the researchers set out to systematically improve the Inception architecture.

Smarter Convolutions and Modules

The paper introduces three architectural innovations that put these principles into action.

1. Factorizing Large Convolutions

Convolutions with large spatial filters (5×5, 7×7) are expensive. For instance, a 5×5 convolution is roughly 2.78 times more expensive than a 3×3 convolution with the same number of filters.

The authors propose replacing one large convolution with a stack of smaller ones. A 5×5 receptive field can be achieved by stacking two 3×3 convolution layers.

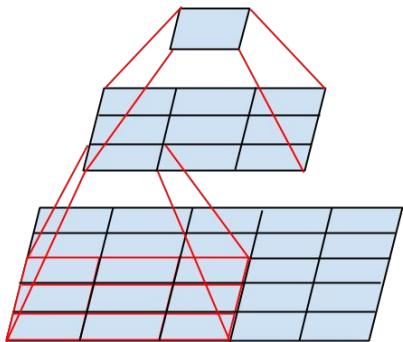

A conceptual diagram showing how a 5×5 convolution can be replaced by a small two-layer network.

Figure 1. The mini-network concept that replaces a single 5×5 convolution with two stacked 3×3 convolutions.

This factorization retains the same receptive field but reduces computation by 28%. It leads to an updated Inception module:

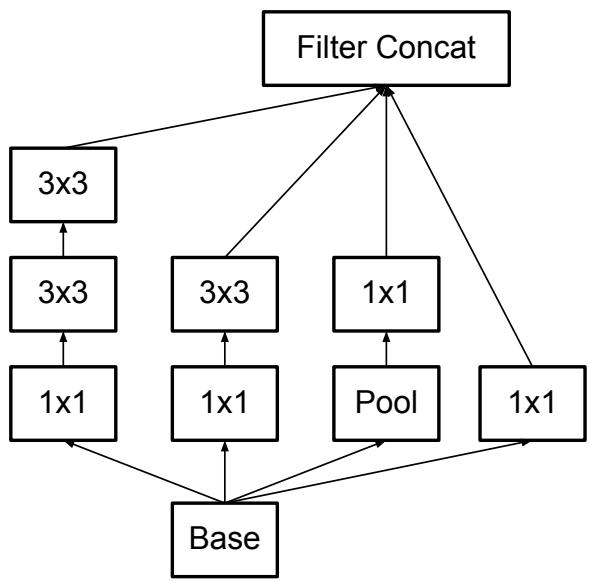

The new Inception module where the 5×5 convolution branch is replaced by two consecutive 3×3 convolutions.

Figure 5. The updated Inception module, replacing the 5×5 convolution with two 3×3 convolutions.

The team tested using a linear activation in the first 3×3 layer. However, experiments showed that ReLU activations in both layers consistently performed better.

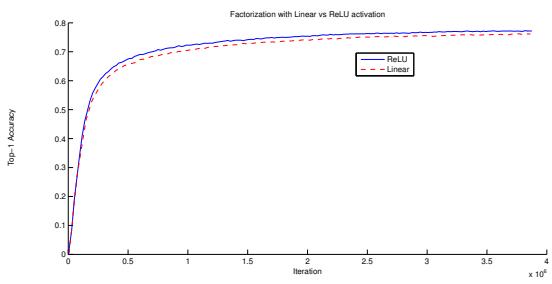

A graph comparing the performance of factorization with a linear layer versus two ReLU layers. The ReLU version achieves higher accuracy.

Figure 2. Using ReLU activations in both factorized layers (blue) outperforms using a linear + ReLU combo (red).

2. Spatial Factorization into Asymmetric Convolutions

The factorization idea extends further: replace a 3×3 convolution with a 3×1 followed by a 1×3 convolution.

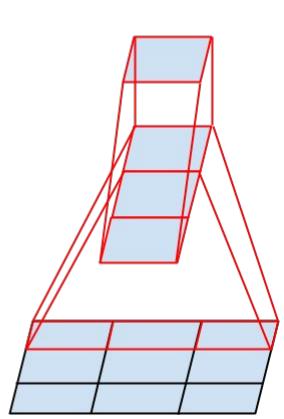

A diagram showing how a 3×3 convolution can be replaced by a 3×1 convolution followed by a 1×3 convolution.

Figure 3. Replacing a 3×3 convolution with asymmetric 3×1 and 1×3 convolutions.

This asymmetric factorization maintains a 3×3 receptive field but reduces computation by 33%. It was most effective in the middle layers, on 12×12 to 20×20 feature maps. Larger n×n convolutions were also factorized—for example, 1×7 followed by 7×1—leading to an optimized module:

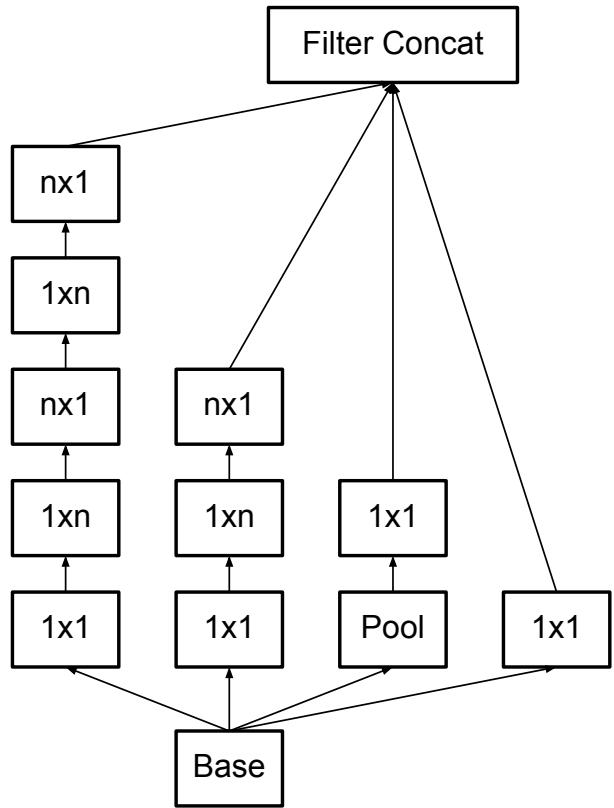

An Inception module using factorized n×n convolutions, with branches containing 1×n and n×1 layers.

Figure 6. Inception module using asymmetric convolutions, e.g., 1×7 followed by 7×1.

3. Efficient Grid Size Reduction

Reducing grid size (e.g., 35×35 → 17×17) while increasing channels can cause bottlenecks if done with pooling alone, or be costly if done with strided convolutions.

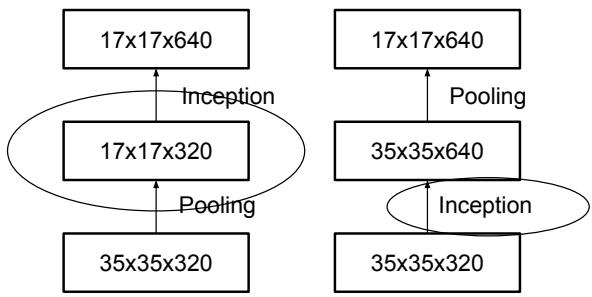

A comparison of two ways to reduce grid size: pooling (left) creates a bottleneck; strided convolution (right) is expensive.

Figure 9. Two traditional methods for grid size reduction.

To solve this, the authors designed a module with two parallel branches: one pooling, one strided convolution. Their outputs are concatenated, maintaining high-dimensionality without excessive cost:

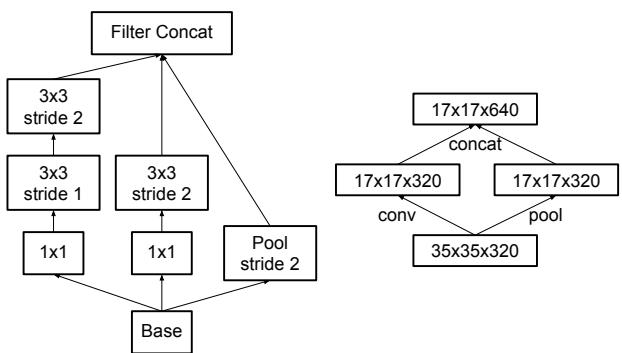

A diagram of the efficient grid reduction module, which uses parallel pooling and strided convolution branches that are concatenated.

Figure 10. Efficient grid reduction module that avoids bottlenecks by combining pooled and strided convolution paths.

Rethinking the Role of Auxiliary Classifiers

GoogLeNet used auxiliary classifiers—small side heads attached mid-network—to improve gradient flow. But in experiments, these didn’t help early convergence. Instead, they acted as regularizers, improving final accuracy when combined with techniques like batch normalization or dropout.

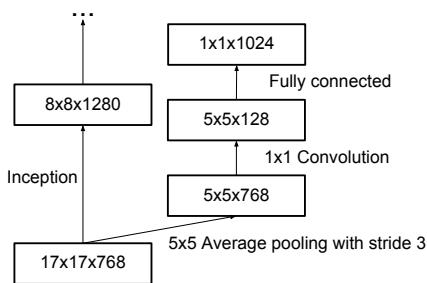

The structure of the auxiliary classifier, which branches off an intermediate layer to provide an additional regularization signal during training.

Figure 8. Auxiliary classifier. Adding Batch Normalization gave a modest but consistent boost in accuracy.

Inception-v2 and the Power of Label Smoothing

Combining factorized convolutions, asymmetric convolutions, and efficient grid reduction produced Inception-v2. It’s 42 layers deep but only 2.5× the computational cost of the original GoogLeNet, and far more efficient than VGGNet.

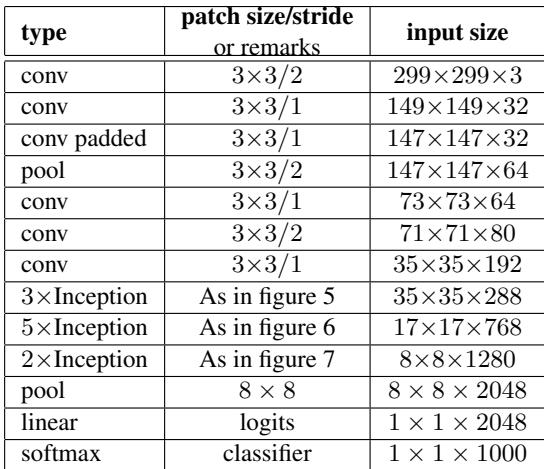

A table outlining the complete architecture of the proposed Inception-v2 network, layer by layer.

Table 1. Outline of the proposed Inception-v2 architecture.

The team then added a final regularization technique—Label Smoothing—leading to Inception-v3.

With standard one-hot labels, models become overconfident, pushing the correct class’s logit infinitely higher than others. Label Smoothing softens the targets:

\[ q'(k) = (1 - \epsilon)\delta_{k,y} + \frac{\epsilon}{K} \]

For example, in a 1000-class problem with \(\epsilon = 0.1\), the correct class’s target is 0.9, and all others are 0.0001. This prevents overconfidence and improved both top-1 and top-5 accuracy by about 0.2%.

Experiments and State-of-the-Art Results

The researchers measured the impact of each contribution. Results show clear cumulative improvement:

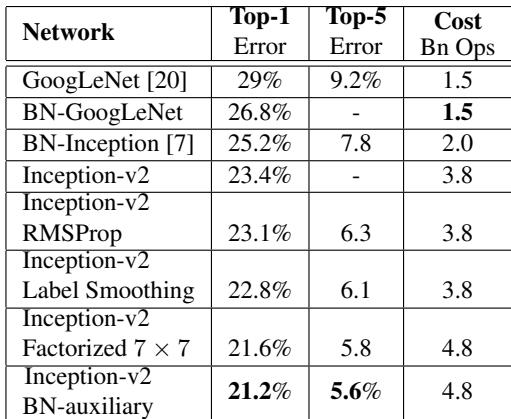

A table showing the cumulative performance gains from each new technique, from the baseline Inception-v2 to the final Inception-v3 model.

Table 3. Cumulative effect of each improvement; the “BN-auxiliary” model is Inception-v3.

The final Inception-v3 achieved 21.2% top-1 error and 5.6% top-5 error (single crop)—a new state-of-the-art at the time.

An ensemble of four Inception-v3 models with multi-crop evaluation reached 3.58% top-5 error on the ILSVRC 2012 validation set, nearly halving the error of the original GoogLeNet ensemble.

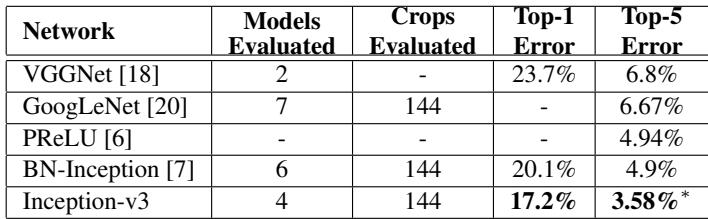

A table comparing ensemble performance of Inception-v3 against top models like VGGNet, GoogLeNet, and BN-Inception.

Table 5. Ensemble results: Inception-v3 significantly outperforms previous state-of-the-art models.

They also showed that, with adjusted strides, high accuracy is achievable even on low-resolution input—important for detecting small objects:

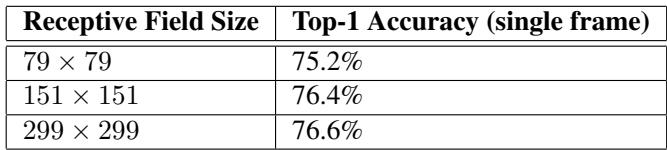

A table showing that with equal computational cost, networks on lower-res inputs can perform close to high-res ones.

Table 2. Performance on various input resolutions with constant computational cost.

Conclusion and Lasting Impact

“Rethinking the Inception Architecture” is more than a paper about a new model. It provides a new way to think about network design—arguing that deep learning progress should come from principled, intelligent architecture rather than brute-force scaling.

Key takeaways:

  1. Factorization is Key — Break large convolutions into smaller, stacked, or asymmetric ones to cut cost without losing expressiveness.
  2. Efficiency and Performance Can Coexist — Smart design choices beat sheer size in delivering state-of-the-art results at lower cost.
  3. Regularization Beyond Dropout — Techniques like auxiliary classifiers (as regularizers) and Label Smoothing improve generalization in large models.

These techniques, especially convolution factorization, laid the groundwork for many of today’s efficient architectures, including MobileNets and EfficientNets. This work marked a pivotal shift in computer vision—from a race for depth to a quest for intelligent, efficient design.
