Beyond the Slice: How V-Net Revolutionized 3D Medical Image Segmentation

Imagine a radiologist meticulously scrolling through hundreds of MRI slices, trying to trace the exact boundary of a tumor or an organ. This process, known as segmentation, is fundamental to medical diagnosis, treatment planning, and research. It’s also incredibly time-consuming, tedious, and subject to human error. For years, computer scientists have sought to automate this task, but the complexity of 3D medical data—like MRIs and CT scans—has been a major hurdle.

Early deep learning models made great strides but often treated 3D volumes as just a stack of 2D images. By looking at each slice individually, they missed the crucial depth and spatial context that connects them. It’s like trying to understand a sculpture by looking at flat photographs rather than walking around it.

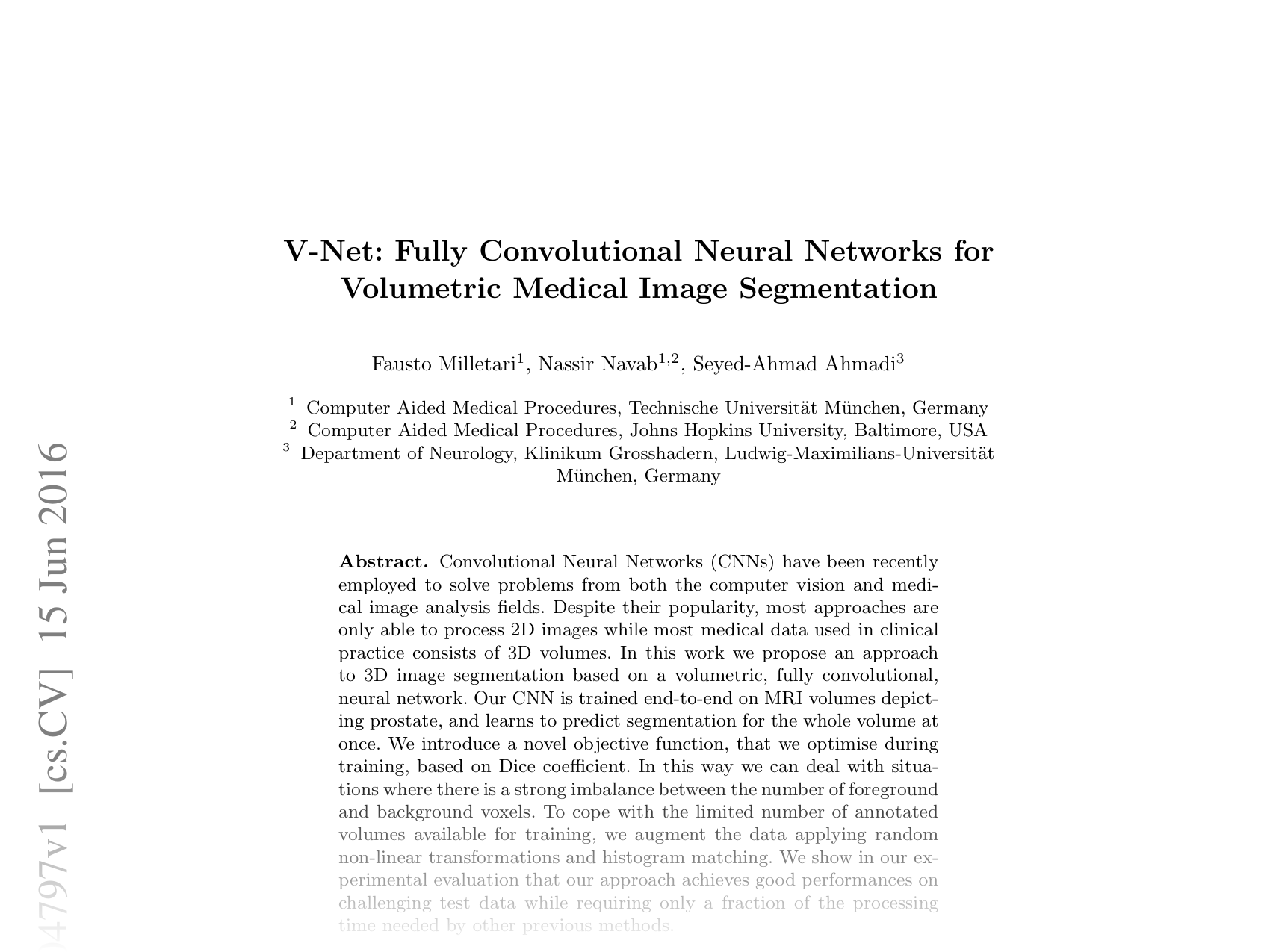

This is the challenge that the 2016 paper, “V-Net: Fully Convolutional Neural Networks for Volumetric Medical Image Segmentation”, tackled head-on. The researchers proposed a new deep learning architecture designed from the ground up to process entire 3D volumes at once. They introduced V-Net, a model that not only “sees” in 3D but also cleverly addresses one of the most persistent problems in medical segmentation: the massive imbalance between a tiny organ and its vast background.

In this article, we’ll take a deep dive into the V-Net architecture—how it processes volumetric data, why its novel Dice loss function was a game-changer, and how it set a new standard for medical image analysis.

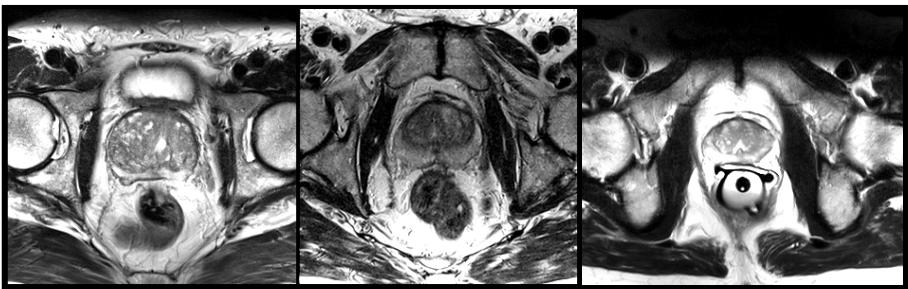

Figure 1. Example slices from MRI volumes depicting the prostate from the PROMISE 2012 dataset.

From 2D Slices to 3D Volumes

Before V-Net, many deep learning approaches for medical segmentation were adaptations of models designed for 2D photographs. A popular technique was to feed a Convolutional Neural Network (CNN) individual 2D slices from an MRI or CT scan. The network would produce a 2D segmentation for each slice, and these would be stacked back together to form a 3D volume.

While functional, this approach sacrifices 3D spatial context. The network never fully learns the continuous, volumetric shape of an organ. This often leads to jagged, inconsistent segmentations, especially when subtle changes occur across slices.

Another approach was patch-based classification, where the network analyzes a small 3D patch (e.g., \(27 \times 27 \times 27\) voxels) and classifies the central voxel. Segmenting an entire volume required repeating this process for every voxel, resulting in enormous computational redundancy and slow runtimes.

The key innovation V-Net builds upon is the Fully Convolutional Network (FCN). FCNs (and their successor U-Net) employ an elegant encoder-decoder design, where:

• The encoder downsamples the image to capture high-level contextual features.
• The decoder upsamples it to recover full resolution for precise segmentation.

Crucially, FCNs and U-Net introduced skip connections, which feed detailed features from the encoder directly into the decoder to recover fine spatial details.

V-Net adapts these principles to the third dimension, enabling true volumetric processing.

The Core Method: Inside the V-Net Architecture

At its heart, V-Net is a symmetric encoder-decoder network with a “V” shape. It takes a 3D medical volume as input and outputs a 3D segmentation of the same size, labeling each voxel as foreground (organ) or background.

Let’s break down the architecture using the schematic from the paper.

Figure 2. Network architecture of V-Net in Caffe, performing volumetric convolutions. Orange arrows show forward propagation; horizontal connections indicate skip connections.

The Contracting Path (Encoder)

The encoder’s role is to analyze the input volume and extract a rich, hierarchical set of features, compressing spatial dimensions while increasing the number of channels.

1. Volumetric Convolutions: V-Net uses 3D kernels of size \(5 \times 5 \times 5\), sliding across the volume in three dimensions. This allows the network to capture true 3D structures and textures.

2. Downsampling with Strided Convolutions: Rather than max-pooling, V-Net employs convolutions with a stride of 2, using \(2 \times 2 \times 2\) kernels. As shown in Figure 3, this halves resolution while learning a parametric transformation, preserving more information and reducing training memory footprint.

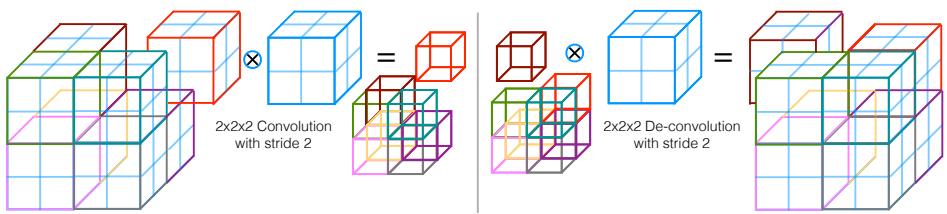

Figure 3. Strided convolutions reduce data size; transposed convolutions (deconvolutions) restore resolution.

3. Residual Connections: Borrowed from ResNet, residual connections within each stage add the input directly to the output. This improves gradient flow, accelerates convergence, and supports deeper architectures.

As features progress down the contracting path, their resolution decreases, but the receptive field grows—meaning each feature “sees” more of the original volume.

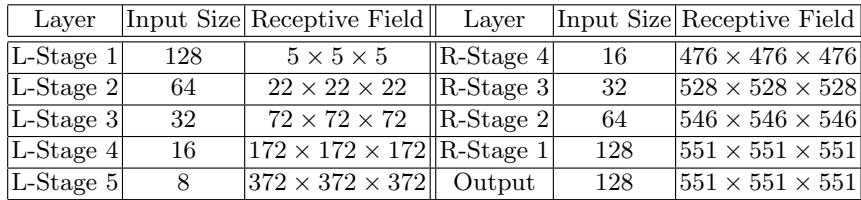

Table 1. Receptive fields at each stage of V-Net. The deepest layers capture the entire input volume.

The Expanding Path (Decoder)

The decoder expands the compressed feature representation back into a full-resolution segmentation map.

1. Upsampling with Deconvolutions: V-Net uses transposed convolutions to learn how to increase resolution, essentially reversing strided convolution operations.

2. Skip Connections: Detailed feature maps from the encoder stages are forwarded directly to corresponding decoder stages. This fusion guarantees both global coherence and local boundary precision.

3. Final Output: A \(1 \times 1 \times 1\) convolution maps features to two channels (foreground and background probabilities). A voxel-wise softmax then outputs the final probability masks.

The Secret Sauce: Dice Loss

Training segmentation networks for medical images requires handling class imbalance. In prostate MRI scans, the organ may occupy less than 1% of the voxels. With cross-entropy loss, a model that labels everything as “background” could still claim >99% accuracy, failing to segment the organ entirely.

To address this, V-Net introduced a differentiable loss based on the Dice coefficient:

Where:

• \(p_i\) = predicted probability for voxel \(i\)
• \(g_i\) = ground truth (0 or 1)

The Dice score ranges from 0 (no overlap) to 1 (perfect overlap). By maximizing Dice (or minimizing \(1 - D\)), the network is explicitly rewarded for correctly identifying every foreground voxel, regardless of size, without manual weighting.

This innovation elegantly avoids class imbalance pitfalls and has since become standard for medical segmentation.

Putting V-Net to the Test

The researchers evaluated V-Net on the PROMISE 2012 dataset, a benchmark for prostate MRI segmentation.

Data Augmentation

With only 50 training volumes, augmentation was essential:

• Random Non-linear Deformations: Using B-spline fields, the training volumes were elastically warped, simulating anatomical variability.
• Histogram Matching: Image intensities were adjusted to mimic differences across MRI scanners and protocols.

Augmentations were applied on-the-fly each iteration to avoid massive storage requirements.

Results and Analysis

V-Net was tested on 30 unseen volumes. The results were impressive.

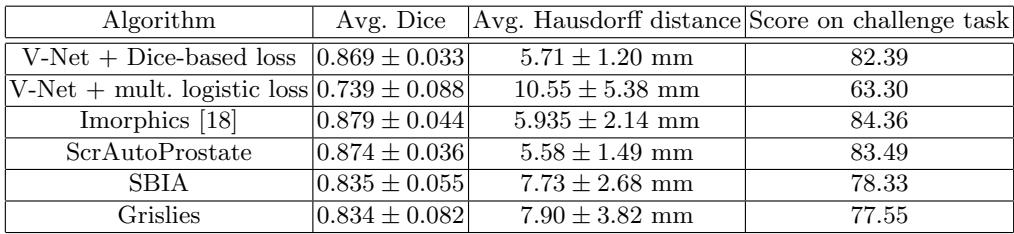

Table 2. Comparison of methods. V-Net with Dice loss is highly competitive, outperforming its own weighted cross-entropy variant.

V-Net with Dice loss achieved an average Dice score of 0.869, placing it among the top methods, and decisively ahead of the same architecture trained with weighted cross-entropy (\(0.739\)).

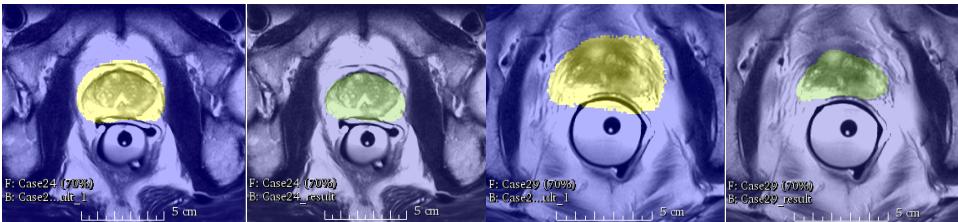

Figure 6. Dice loss delivers more complete and accurate segmentations compared to weighted cross-entropy.

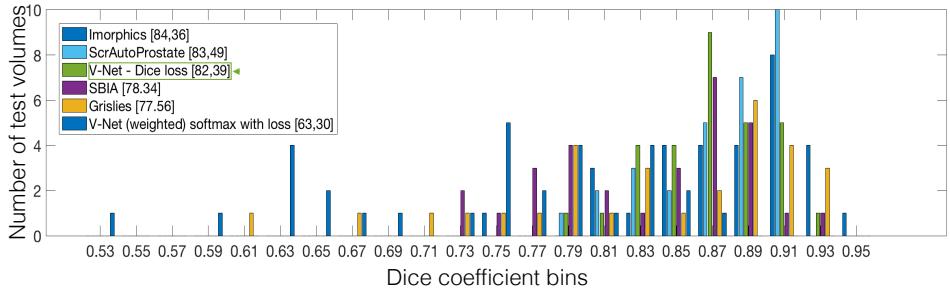

Figure 5. V-Net with Dice loss consistently produces high Dice scores (>0.87) across test cases.

Test-time performance was exceptional: about 1 second to segment an entire 3D MRI volume.

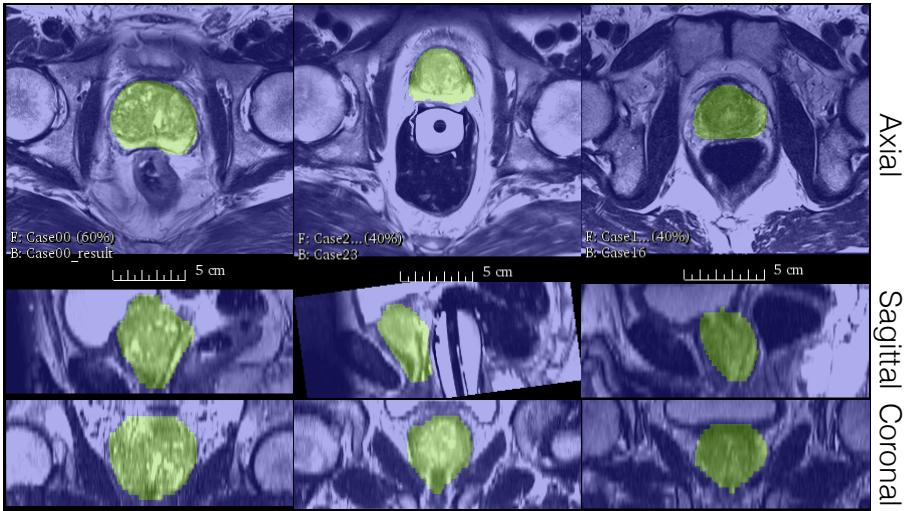

Figure 4. V-Net delivers accurate, volumetric segmentations across diverse patient cases.

Conclusion and Lasting Impact

The V-Net paper marked a turning point in medical image analysis by presenting a fast, accurate, end-to-end solution for volumetric segmentation. Its key contributions include:

1. True Volumetric Processing: Fully 3D convolutional architecture, moving beyond slice-by-slice and patch-based methods.
2. Residual Learning in Segmentation: Enhanced convergence and deeper representational power through residual connections.
3. Dice Loss: A direct, differentiable optimization of Dice coefficient to handle severe class imbalance.

Alongside U-Net, V-Net laid the foundation for a new generation of deep learning tools in medicine. By tailoring architectures and losses to the unique challenges of medical data, it accelerated progress toward AI systems that can support clinicians, improve efficiency, and enable breakthroughs in research.

V-Net remains a reference design for volumetric segmentation, influencing countless models that followed. It’s a prime example of how respecting domain-specific data constraints can lead to transformative innovation in AI for healthcare.
