Object detection has long been a cornerstone task in computer vision. We need models that can not only tell us what is in an image, but also where it is. For years, progress meant a trade-off: you could choose a model that was highly accurate or one fast enough for real-time applications—but rarely both. And even the best detectors were limited to a small vocabulary, trained on datasets with a few dozen or at most a few hundred object categories.

What if we could break that trade-off? Build a detector that is state-of-the-art in both speed and accuracy? And push beyond the limited vocabulary of typical detection datasets to recognize thousands of different objects?

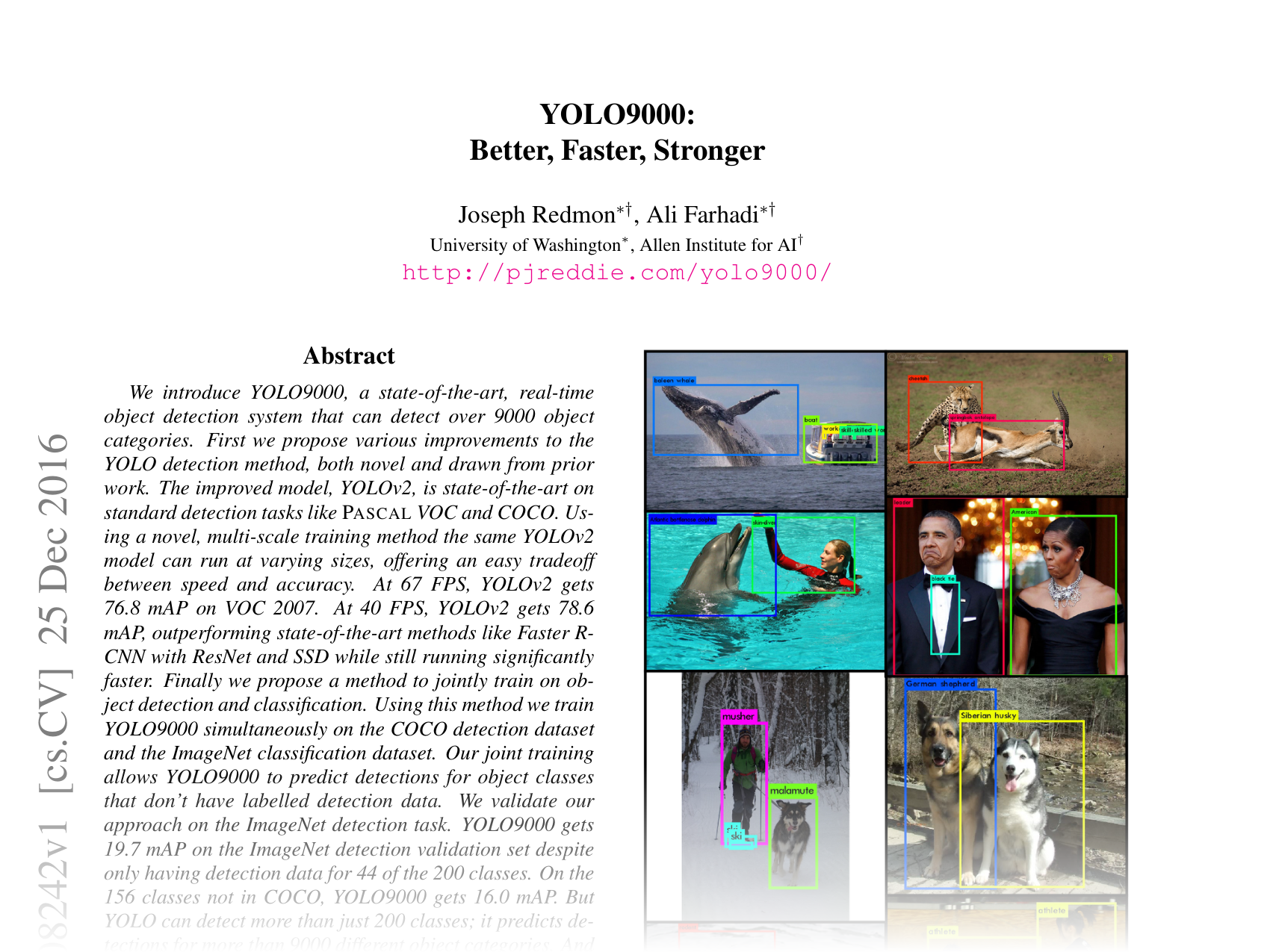

This is the ambitious goal tackled in YOLO9000: Better, Faster, Stronger by Joseph Redmon and Ali Farhadi. The work introduces not one, but two models:

  • YOLOv2, a significantly improved version of the original YOLO that set new standards for real-time detection.
  • YOLO9000, a groundbreaking framework that leverages massive classification datasets to detect over 9000 object categories.

Let’s unpack how the authors made their detector better, faster, and ultimately, much stronger.

A collage of images showing YOLO9000 detecting a wide variety of objects, including whales, cheetahs, dogs, sharks, food items, and people, all labeled with colored bounding boxes.

The Starting Point: Why YOLO Needed an Upgrade

The original YOLO (You Only Look Once) was a breakthrough: it framed object detection as a single regression problem—from image pixels directly to bounding box coordinates and class probabilities—making it incredibly fast. But compared to two-stage detectors like Faster R-CNN, YOLO suffered from more localization errors (bounding boxes weren’t as tight) and lower recall (missed more objects).

The journey to YOLO9000 began with systematically addressing these weaknesses to create a superior baseline: YOLOv2. The approach wasn’t to reinvent the wheel, but to layer in a series of proven and novel techniques to boost performance without sacrificing speed.

Better: The Path from YOLO to YOLOv2

Redmon and Farhadi provide a clear roadmap of incremental improvements turning the original YOLO into YOLOv2. Each step offered a measurable boost in Mean Average Precision (mAP), the standard metric for detection accuracy.

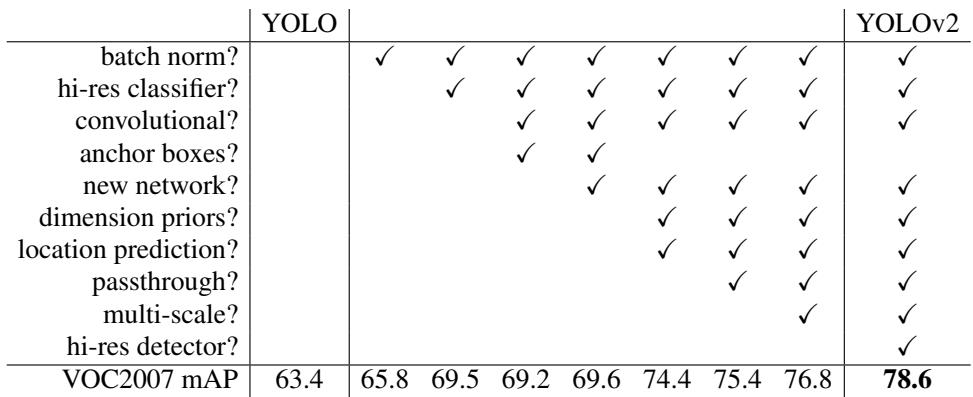

A table showing the incremental improvements from YOLO to YOLOv2 and the corresponding increase in mAP on VOC 2007.

1. Batch Normalization

Adding batch normalization to all convolutional layers improved mAP by over 2%. Batch norm stabilizes training, speeds convergence, and acts as a regularizer—allowing the removal of dropout, which YOLO previously used to prevent overfitting.

2. High-Resolution Classifier

Most detectors start from a backbone network pre-trained on ImageNet with 224×224 images. Original YOLO jumped straight from 224px pre-training to 448×448 detection training, forcing the network to simultaneously learn detection and adapt to higher resolution.

YOLOv2 adds an intermediate step: fine-tuning the classifier for 10 epochs on 448×448 ImageNet images before detection training. This almost 4% mAP improvement came from giving filters time to adapt to higher-resolution inputs.

3. Convolutional with Anchor Boxes

Borrowing from Faster R-CNN, YOLOv2 replaces fully connected bbox predictors with a fully convolutional approach that predicts offsets relative to pre-defined anchor boxes. This change reframes localization into adjusting an anchor to fit the object—a simpler learning task than direct coordinate regression.

Initially mAP dipped slightly, but recall jumped from 81% to 88%—meaning the detector was finding more objects, even if not perfectly localized yet.

4. Dimension Clusters: Smarter Anchors

Hand-picked anchors aren’t optimal. YOLOv2 uses k-means clustering on training-set bounding box dimensions, with a custom IOU-based distance metric:

\[ d(\text{box}, \text{centroid}) = 1 - \text{IOU}(\text{box}, \text{centroid}) \]

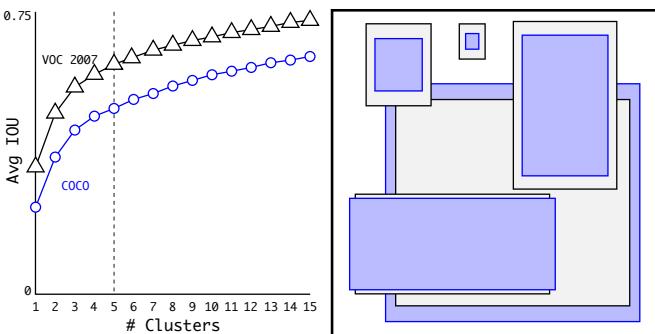

Average IOU vs. number of clusters, and visualizations of cluster centroids for VOC and COCO datasets.

Using \(k = 5\) provides a good trade-off between complexity and recall.

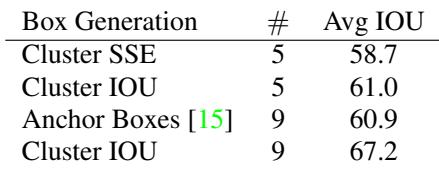

Table comparing average IOU of different box generation methods.

With just 5 clustered priors, YOLOv2 achieved better average IOU than 9 hand-picked anchors used in Faster R-CNN.

5. Direct Location Prediction

Anchor boxes from Faster R-CNN use unconstrained offsets, leading to instability—boxes could shift far from their responsible grid cell.

YOLOv2 constrains prediction by parameterizing center coordinates relative to the cell, using a sigmoid to bound values between 0 and 1. This makes training more stable and easier for the network to learn.

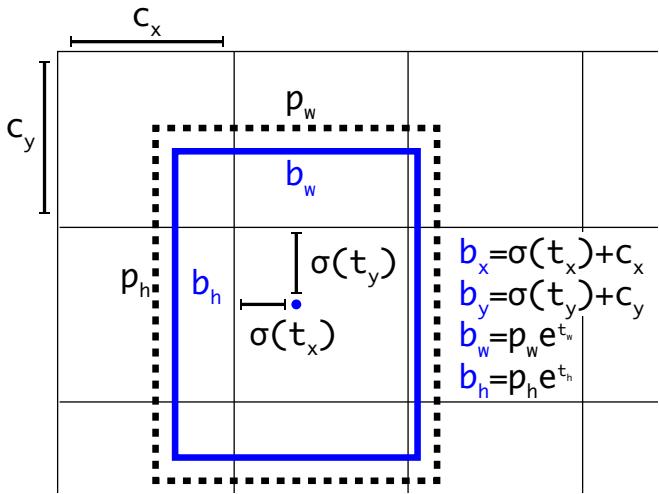

Diagram illustrating YOLOv2’s bounding box coordinate prediction relative to a grid cell with dimension priors.

Combining dimension clusters with direct location prediction improved mAP by nearly 5%.

6. Fine-Grained Features for Small Objects

YOLOv2’s 13×13 final feature map works well for large objects but is coarse for small ones. A “passthrough” layer brings in 26×26 earlier-layer features, reshaped and concatenated with final features, giving better localization for small objects (+1% mAP).

7. Multi-Scale Training

Being fully convolutional, YOLOv2 can process arbitrary image sizes. Every 10 batches during training, input dimensions are randomly switched between 320×320 and 608×608 (multiples of 32).

This forces scale robustness and allows trade-offs at inference: the same trained model can run smaller inputs for high speed or larger inputs for top accuracy.

Faster: The Darknet-19 Backbone

Detection speed comes down largely to the backbone. VGG-16, used in many detectors, demands over 30 billion FLOPs per pass at 224×224 resolution.

YOLOv2 instead introduces Darknet-19:

  • 19 convolutional layers, 5 max-pooling layers
  • Mostly 3×3 filters (VGG style), with 1×1 filters for compression (Network-in-Network style)
  • Batch normalization for stability
  • Global average pooling before classification

Efficient at just 5.58 billion FLOPs, yet achieves 76.5% top-1 accuracy on ImageNet at 448×448.

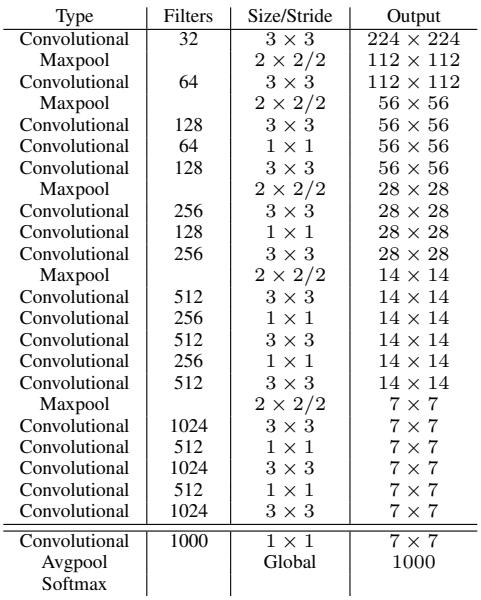

Architecture table of the Darknet-19 network.

This lean architecture is a core reason YOLOv2 maintains real-time speeds.

YOLOv2 Results: Speed + Accuracy

YOLOv2 is both faster and more accurate than prior detectors.

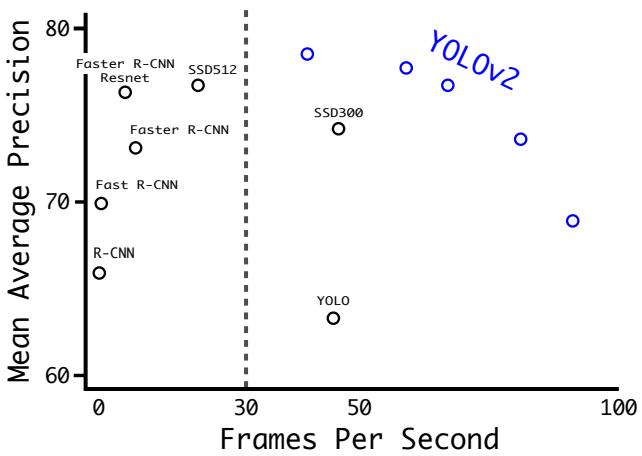

Scatter plot comparing object detection models: FPS vs. mAP, with YOLOv2 in the top-right (fastest & most accurate).

At high resolution, YOLOv2 beats Faster R-CNN + ResNet and SSD512 in accuracy, while running significantly faster. At lower resolutions, it exceeds 90 FPS with mAP comparable to Fast R-CNN.

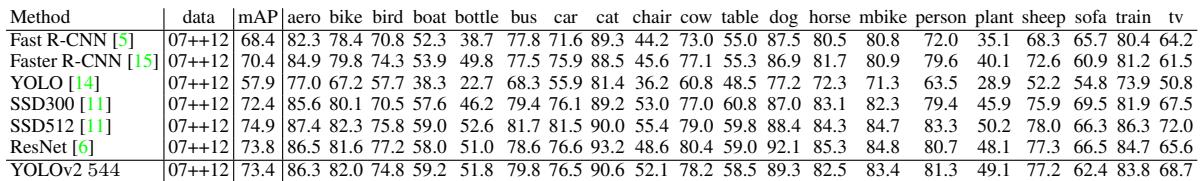

PASCAL VOC 2012 results comparing YOLOv2 to other frameworks—on par with SOTA but vastly faster.

Stronger: The Leap to YOLO9000

Detection datasets like COCO have ~80 categories, while classification datasets like ImageNet have tens of thousands. Drawing bounding boxes is far more expensive than providing class tags.

YOLO9000 bridges this gap: it jointly trains on detection data (COCO) and massive classification data (ImageNet), learning localization from detection images and expanding its vocabulary from classification images.

The Challenge: Merging Datasets

A softmax over all classes assumes mutual exclusivity—problematic for merging COCO’s “dog” with ImageNet’s “Norfolk terrier” or “Siberian husky.”

The Solution: WordTree

Using WordNet’s language hierarchy, the authors construct WordTree: a simplified tree of visual concepts.

  • At each node, predict conditional probabilities over its children.
  • To get the probability of “Norfolk terrier,” multiply down the path from root:
\[ P("Norfolk terrier") = P("Norfolk terrier" | "terrier") \times P("terrier" | "hunting dog") \times \dots \times P("animal" | "physical\ object") \]

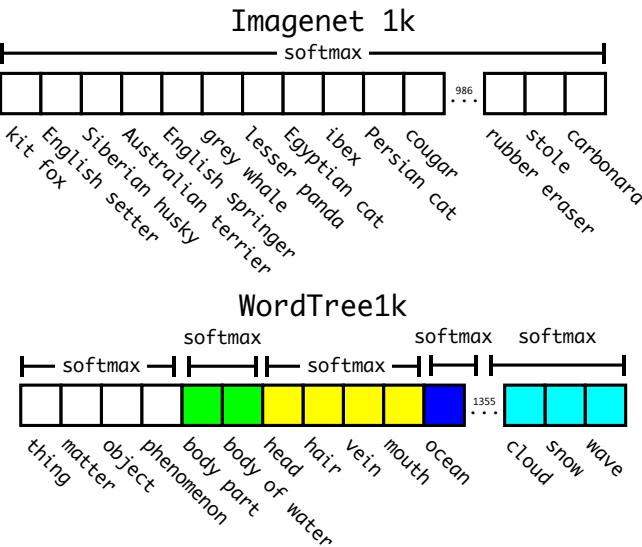

Flat 1k-class softmax vs. hierarchical WordTree softmax.

Merging COCO + ImageNet

Mapping each dataset’s labels to WordTree nodes unifies them.

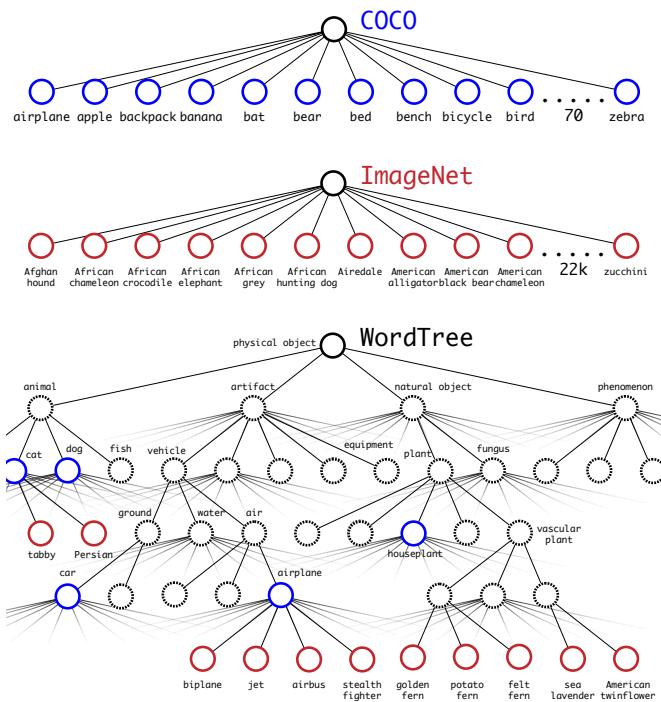

Diagram showing COCO and ImageNet label spaces merged into the unified WordTree hierarchy.

Joint Training

  • Detection images: backpropagate full YOLOv2 detection loss (localization + objectness + classification).
  • Classification images: find the predicted box with highest probability for that label, backpropagate classification loss along its WordTree path, and modest objectness loss (assume ~0.3 IOU match).

The final YOLO9000 model trains on COCO + top 9000 ImageNet classes, detecting 9418 categories.

YOLO9000 in Action

Evaluated on ImageNet detection:

  • Of 200 classes, only 44 overlapped with COCO detection data.
  • For the remaining 156 classes, YOLO9000 never saw a single bounding box label—only classification data.

Results:

  • 19.7 mAP overall
  • 16.0 mAP on categories with zero detection supervision.

It excelled at new animal species (shared objectness with COCO’s animals) but struggled with clothing/equipment absent in COCO’s labeled boxes.

Conclusion: A New Paradigm for Detection

YOLO9000: Better, Faster, Stronger lives up to its name:

  • Better: Methodical improvements yielded YOLOv2, more accurate than prior state-of-the-art.
  • Faster: Darknet-19 and single-shot architecture delivered unmatched speed/accuracy trade-offs.
  • Stronger: WordTree-enabled joint training pushed detection to over 9000 categories—a leap in scope.

This work is more than an algorithmic update—it’s a proof of concept for fusing heterogeneous datasets into unified, general-purpose vision systems. The joint training concept and hierarchical label unification point forward to a new generation of large-scale detectors, capable of learning from disparate data sources to model the visual world more comprehensively.
