Computer vision has made incredible strides in teaching machines to see. We’ve gone from simply classifying an entire image (“this is a cat”) to detecting individual objects within it (“here is a cat, and here is a dog”). But what if we need more detail? What if, instead of just drawing a box around the cat, we wanted to know the exact pixels that belong to the cat?

This is the challenge of instance segmentation—a task that combines two fundamental problems:

  1. Object Detection: Drawing a bounding box around every single object instance.
  2. Semantic Segmentation: Classifying every single pixel in the image into a category (e.g., “cat,” “dog,” “sky”).

Instance segmentation does both: it finds every object and traces its specific outline, pixel by pixel. Imagine a self-driving car that needs to distinguish not just that there are pedestrians, but the precise shape and location of each individual person to navigate safely. That’s where instance segmentation becomes critical.

For a long time, achieving high-quality instance segmentation required complex, multi-stage pipelines that were often slow and inaccurate—especially when objects overlapped. Then, in 2017, researchers at Facebook AI Research (FAIR) introduced Mask R-CNN. It was a deceptively simple, flexible, and powerful framework that not only set a new state-of-the-art but also became a foundational model for a huge range of computer vision tasks.

In this article, we’ll take a deep dive into the Mask R-CNN paper. We’ll explore how it works, why it’s so effective, and how a single, clever fix to a subtle problem unlocked a new level of performance in understanding the visual world.

A Quick Recap: The Shoulders of Giants (Faster R-CNN)

To understand Mask R-CNN, we first need to understand its predecessor, Faster R-CNN, which was the dominant framework for object detection at the time. Faster R-CNN streamlined object detection into an elegant two-stage process.

Stage 1: Region Proposal Network (RPN)
The first stage doesn’t try to classify objects. Its only job is to look at the image and propose a list of bounding boxes that might contain an object. It scans the image with a sliding window and generates thousands of “Region of Interest” (RoI) candidates.

Stage 2: The Fast R-CNN Detector
The second stage takes the proposed RoIs from the RPN and, for each one, performs two tasks:

  1. Classification — Determine the class of the object inside the RoI (e.g., “person,” “car,” or “background”).
  2. Bounding Box Regression — Refine the coordinates of the bounding box to fit the object more snugly.

This two-stage approach was highly effective. But it was designed to output boxes, not pixel-perfect masks. The core challenge for the Mask R-CNN authors was to extend this powerful framework to handle segmentation.

The Core Idea: Adding a Mask Branch

The central insight of Mask R-CNN is beautifully simple: if Faster R-CNN can have two branches in its second stage (one for classification, one for box regression), why not add a third for predicting segmentation masks?

Mask R-CNN adopts the exact same first stage as Faster R-CNN (the RPN). In the second stage, it runs the classification and bounding box regression branches in parallel, just like before. But it adds a new, third branch that takes each RoI and outputs a binary mask for the object inside.

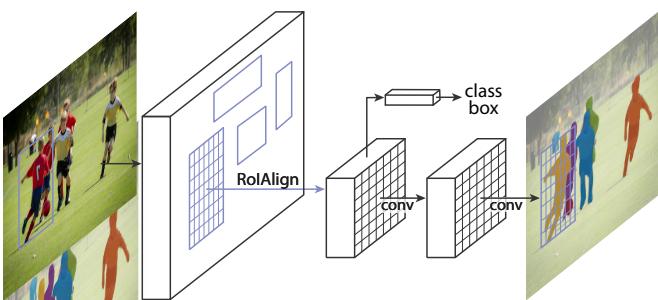

Figure 1 shows the overall architecture of Mask R-CNN. It extends Faster R-CNN by adding a parallel branch for predicting segmentation masks.

Figure 1: The Mask R-CNN framework for instance segmentation. A third branch predicts a mask in parallel with classification and bounding box regression.

As shown in Figure 1, the architecture is a natural extension of Faster R-CNN. The new mask branch is a small Fully Convolutional Network (FCN) applied to each RoI. Using an FCN is a key design choice: convolution preserves spatial information, making FCNs perfect for segmentation, which requires pixel-level detail.

For each RoI, the mask branch generates an \( m \times m \) mask for each class (e.g., if there are 80 classes, it outputs 80 masks). This leads to another important design decision.

Decoupling Mask and Class Prediction

You might think the model should predict one mask and then decide which class it belongs to. Instead, the authors found it was much more effective to decouple these tasks.

The model predicts a mask for every class independently, using a per-pixel sigmoid activation—so masks don’t compete across classes. Meanwhile, the classification branch predicts a single class label for the RoI (e.g., “person”). During inference, the model simply selects the mask corresponding to the predicted class.

This decoupling simplifies training: once the box branch decides the RoI is a “person,” the mask branch needs only to answer “which pixels in this box belong to the person?” without worrying about other categories.

Training is defined by a simple multi-task loss:

\[ L = L_{cls} + L_{box} + L_{mask} \]

The mask loss \( L_{mask} \) is the average binary cross-entropy across the pixels of the correct-class mask, and it’s only calculated for positive RoIs.

The Secret Sauce: Fixing Misalignment with RoIAlign

While adding a mask branch seems intuitive, making it work well revealed a subtle flaw in Faster R-CNN: spatial misalignment.

The culprit is RoIPool. Its job is to take a rectangular RoI (with floating-point coordinates) and extract a fixed-size feature map from it (e.g., \( 7 \times 7 \)). RoIPool does this by rounding coordinates to the nearest feature map grid point—both for the RoI boundaries and for the bins inside it.

That rounding causes small shifts between the RoI and the pooled features. Classification can shrug off this imprecision, but mask prediction—which demands pixel accuracy—cannot.

The authors’ answer: RoIAlign.

Here’s how RoIAlign differs:

  1. Keep floating-point RoI coordinates without rounding.
  2. Divide the RoI into bins of the target size (\( 7 \times 7 \), etc.).
  3. Assign exact sampling points in each bin (e.g., four points).
  4. Use bilinear interpolation to compute feature values at those points from the nearest neighbors in the feature map.
  5. Aggregate sampled values (by average or max).

Figure 3 illustrates how RoIAlign works. It avoids rounding and uses bilinear interpolation to compute features precisely at sample points.

Figure 3: RoIAlign preserves exact spatial alignment by using bilinear interpolation rather than quantization.

This minor but crucial change ensures features are perfectly aligned with RoIs—unlocking high-quality mask prediction.

Flexible Backbones and Heads

To show Mask R-CNN’s flexibility, the authors tested it with different backbones, from ResNet to the multi-scale Feature Pyramid Network (FPN), which is excellent for detecting objects at different sizes.

They also adapted the “head” architectures (the per-RoI classifiers, regressors, and mask predictors) for each backbone.

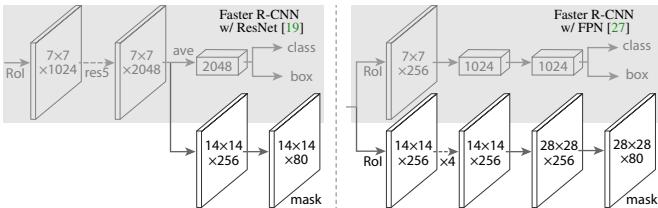

Figure 4 shows the head architectures for two different backbones. A mask branch is added to existing Faster R-CNN heads.

Figure 4: Head architectures for ResNet-C4 (left) and FPN backbones (right), with added mask prediction branches.

Experiments: Setting a New Benchmark

The authors evaluated Mask R-CNN on the COCO dataset—a gold standard for object recognition. The results were outstanding.

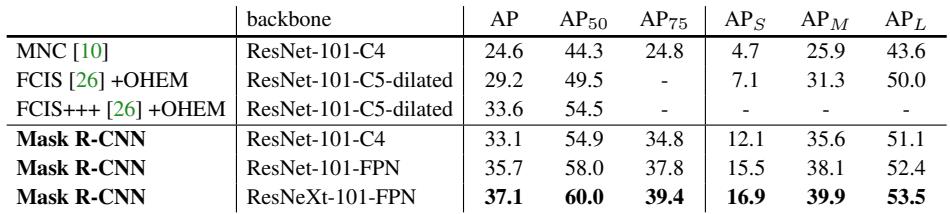

Table 1 shows the main instance segmentation results on the COCO test set. Mask R-CNN surpasses all previous state-of-the-art models.

Table 1: Mask R-CNN significantly outperforms previous instance segmentation methods, including highly-engineered competition winners.

Visually, its outputs are clean and precise, even in crowded scenes.

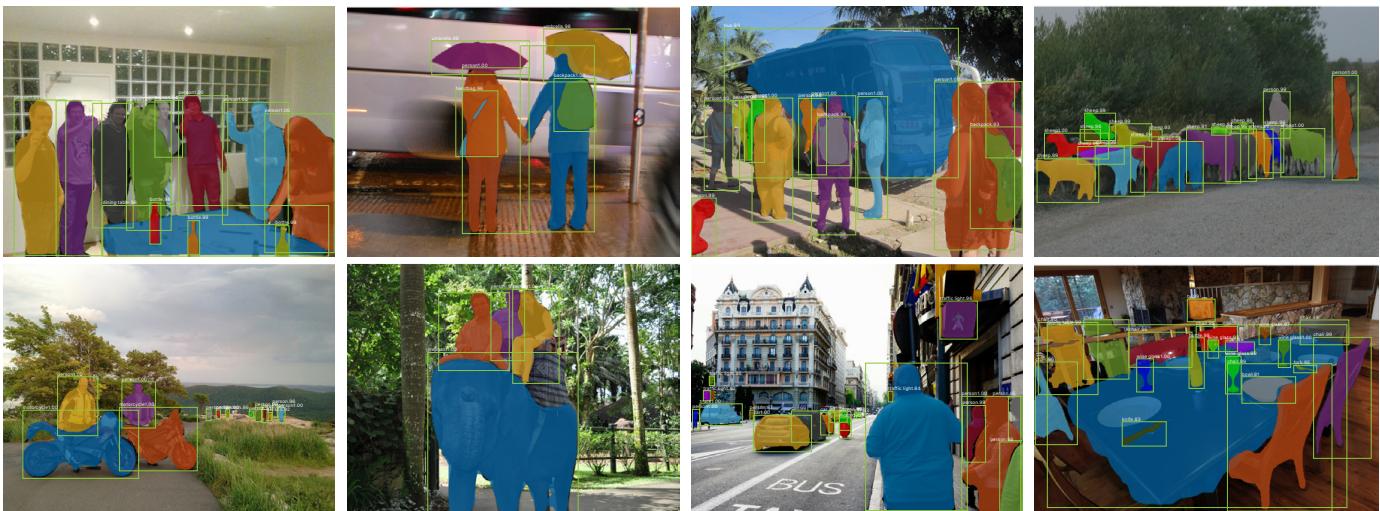

Figure 2 showcases Mask R-CNN’s results on the COCO test set.

Figure 2: Mask R-CNN precisely segments multiple objects in diverse, complex scenarios.

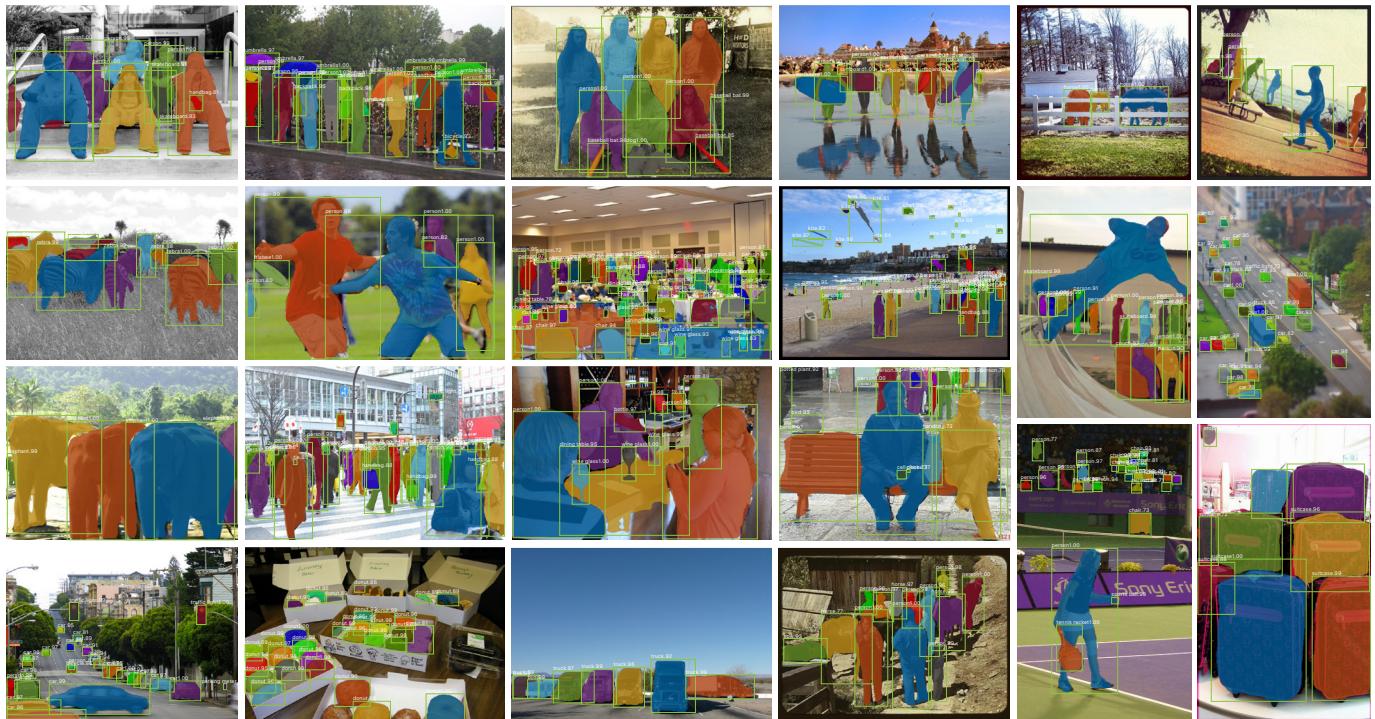

Figure 5 shows more examples of Mask R-CNN’s outputs.

Figure 5: More examples on COCO test images, demonstrating consistent, high-quality segmentation.

Overlap? No Problem

One key strength of Mask R-CNN’s “instance-first” design is handling overlapping object instances—where segmentation-first methods often fail.

Figure 6 compares FCIS and Mask R-CNN.

Figure 6: FCIS+++ (top) produces artifacts on overlapping objects; Mask R-CNN (bottom) separates them cleanly.

Ablation Studies: Proof of Design

The researchers systematically tested each component, confirming their intuition.

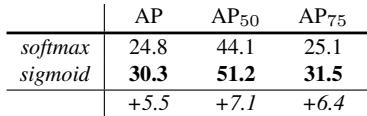

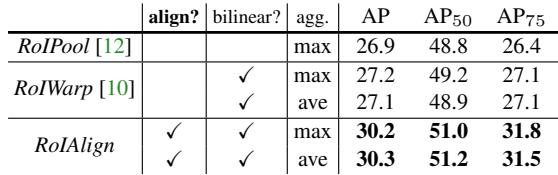

Table 2 summarizes key ablation experiments.

Table 2: Ablations show the impact of alignment, mask/class decoupling, and mask representation.

Key findings:

  • RoIAlign is Critical — Switching from RoIPool to RoIAlign improved AP by ~3 points and AP\(_{75}\) (strict masks) by ~5 points.
  • Decoupling Helps — Independent, per-class binary masks outperform multi-class softmax masks by 5.5 AP points.
  • FCN Mask Heads Win — Fully Convolutional mask heads beat MLP heads by 2.1 AP points.

Bonus: Better Object Detection

Surprisingly, Mask R-CNN also improved bounding box detection. Adding the mask branch (multi-task learning) yields better feature representation—even when the mask output isn’t used.

Table 3 compares object detection performance.

Table 3: Mask R-CNN beats all prior single-model object detectors on COCO when evaluating bounding boxes only.

Beyond Segmentation: Human Pose Estimation

The team applied Mask R-CNN to human pose estimation—finding body keypoints (e.g., elbows, knees). They modeled each keypoint as a tiny one-pixel “mask.”

Figure 7 shows pose estimation results.

Figure 7: Keypoint detection results with Mask R-CNN. The same model predicts both person masks and keypoints.

This simple change achieved state-of-the-art on COCO keypoint detection.

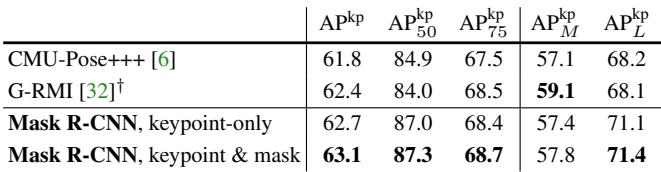

Table 4 shows keypoint detection results.

Table 4: Mask R-CNN outperforms the 2016 competition winner with a much simpler pipeline.

For keypoints—a localization-sensitive task—RoIAlign again proved essential, boosting accuracy by 4.4 AP points over RoIPool.

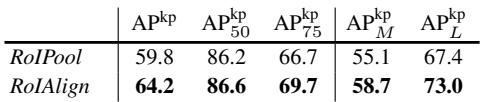

Table 6 quantifies RoIAlign’s impact on keypoint detection.

Table 6: RoIAlign yields major gains for pixel-precise keypoint detection.

Conclusion: Simplicity, Flexibility, and Legacy

Mask R-CNN stands as a landmark in computer vision. Its impact comes not from complex new machinery, but from:

  1. A Simple, Parallel Design — Adding a mask branch to Faster R-CNN for instance segmentation.
  2. Decoupling Tasks — Separating classification from mask generation improves both.
  3. Pixel Alignment — RoIAlign fixes a subtle misalignment flaw, enabling precision in masks, boxes, and keypoints.

By addressing a critical detail, Mask R-CNN achieved state-of-the-art results and created a fast, accurate, and widely-adopted framework—fueling countless applications and future innovations in vision.

It’s a powerful reminder: sometimes, the biggest breakthroughs come from getting the details just right.
