In the world of Natural Language Processing (NLP), some research moments feel like earthquakes. They don’t just shift the ground—they reshape the entire landscape. The 2017 paper “Attention Is All You Need” was one such moment. It introduced an architecture that has since become the foundation for nearly every state-of-the-art NLP model, from GPT-3 to BERT. That architecture is the Transformer.

Before the Transformer, the go-to models for sequence tasks like machine translation were Recurrent Neural Networks (RNNs), particularly LSTMs and GRUs. These models process text sequentially, word by word, maintaining a hidden state that carries information from the past. While this sequential nature is intuitive, it is also their greatest weakness: it makes them slow to train and notoriously difficult to parallelize. Capturing dependencies between words far apart in a sentence becomes increasingly challenging as sequence length grows.

The researchers behind Attention Is All You Need asked a radical question: What if we got rid of recurrence entirely and built a model based solely on attention? The result was the Transformer—a model faster to train, more parallelizable, and capable of achieving new state-of-the-art performance in machine translation.

In this article, we’ll dive deep into this seminal paper, breaking down the Transformer architecture piece by piece. We’ll cover how it works, why it’s effective, and how it paved the way for the modern era of NLP.

Background: From Recurrence to Attention

To understand why the Transformer was so revolutionary, we need to look at the state of the art before it arrived. Most top-performing models for tasks like machine translation used an encoder-decoder architecture:

  1. Encoder: Reads the input sentence (e.g., German) and compresses it into a continuous representation—often called a context vector.
  2. Decoder: Takes this context vector and generates the output sentence (e.g., English), one word at a time.

Traditionally, both encoder and decoder were built using RNNs. The encoder processed the input step-by-step, and its final hidden state became the context vector. The decoder then relied on this single vector to generate the output.

This design has a major bottleneck: the model must squeeze the entire meaning of the input sentence into a single, fixed-size vector. This is particularly limiting for long sentences.

In 2014, the attention mechanism was introduced to alleviate this constraint. Instead of relying on a single context vector, attention allowed the decoder to “look back” at the outputs of the encoder for each generated word, focusing dynamically on the most relevant parts of the input. This was a huge leap forward, but the sequential nature of RNNs remained a bottleneck.

The Transformer’s key innovation was showing that you could build a high-performance encoder-decoder model using only attention—no recurrence at all.

The Transformer Architecture: A Bird’s-Eye View

The Transformer retains the encoder-decoder framework: the encoder processes the input sequence into a set of contextual representations, and the decoder uses these representations to generate the output.

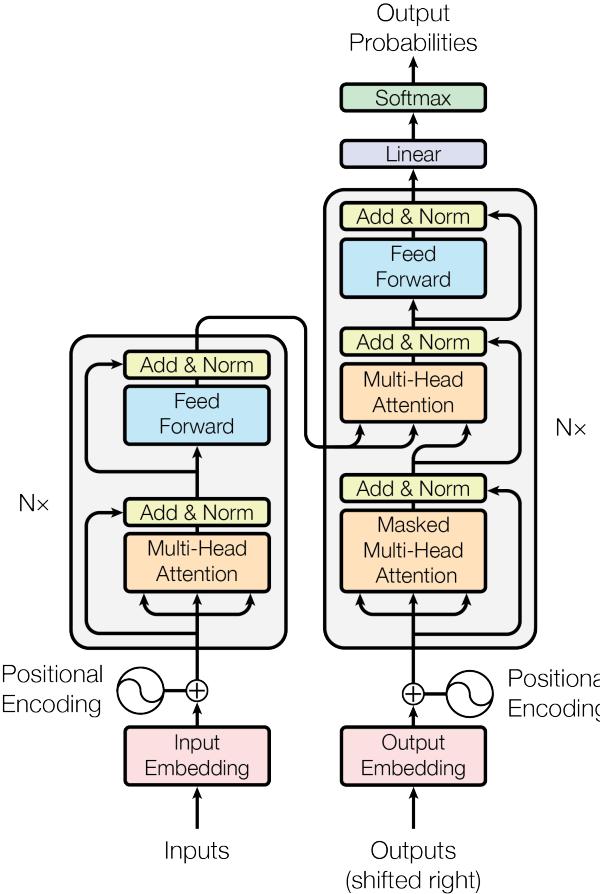

The Transformer model architecture, showing the encoder stack on the left and the decoder stack on the right. Both stacks consist of N=6 layers.

Figure 1: The Transformer architecture. Both the encoder and decoder are stacks of \(N=6\) identical layers.

Each stack in the original model consists of six identical layers. Inside these layers lies the Scaled Dot-Product Attention mechanism—the heart of the Transformer.

The Heart of the Machine: Scaled Dot-Product Attention

An attention mechanism calculates a weighted sum of a set of values (\(V\)), where the weights are determined by the similarity between a query (\(Q\)) and a set of keys (\(K\)).

Components:

  • Query (\(Q\)) — what we’re looking for.
  • Key (\(K\)) — labels indexing the values.
  • Value (\(V\)) — the actual information associated with each key.

The Scaled Dot-Product Attention mechanism (left panel of Figure 2) operates in four steps:

  1. Score Calculation: Compute the dot product between \(Q\) and each \(K\). This measures the match between the query and each key.
  2. Scaling: Divide scores by \(\sqrt{d_k}\), where \(d_k\) is the dimensionality of the keys. This prevents overly large values that could push the softmax into regions with small gradients.
  3. Weight Calculation: Apply softmax to the scaled scores to get attention weights (probabilities summing to 1).
  4. Output Computation: Multiply weights by the value vectors \(V\) and sum to get the output.

Mathematically:

Equation for Scaled Dot-Product Attention.

Equation 1: \(\operatorname{Attention}(Q, K, V) = \operatorname{softmax}\left(\frac{QK^T}{\sqrt{d_k}}\right)V\)

More is Better: Multi-Head Attention

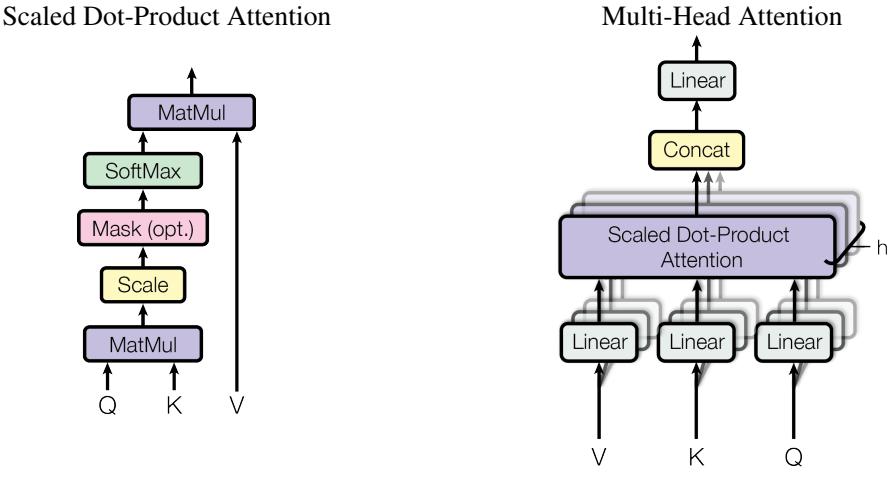

Diagrams of Scaled Dot-Product Attention (left) and Multi-Head Attention (right). Multi-Head Attention runs several Scaled Dot-Product Attention mechanisms in parallel and combines their results.

Figure 2: (Left) Scaled Dot-Product Attention. (Right) Multi-Head Attention consists of multiple attention heads operating in parallel.

Instead of using a single attention mechanism, the Transformer uses Multi-Head Attention, running several (here, \(h=8\)) scaled dot-product attentions in parallel:

  1. Linearly project \(Q\), \(K\), and \(V\) into \(h\) different subspaces via learned weight matrices.
  2. Perform scaled dot-product attention independently in each head.
  3. Concatenate the results of all heads.
  4. Pass through another linear layer to produce the final output.

Mathematically:

Equation for Multi-Head Attention.

Equation 2: \(\text{MultiHead}(Q,K,V) = \text{Concat}(head_1, \dots, head_h)W^O\),
where \(head_i = Attention(QW_i^Q, KW_i^K, VW_i^V)\).

Multi-head attention allows the model to learn and focus on different types of relationships between words simultaneously—syntax, semantics, and more.

Putting the Blocks Together

Encoder Layers

Each encoder layer has:

  1. Multi-head self-attention: \(Q\), \(K\), and \(V\) come from the same source—the previous layer’s output.
  2. Feed-forward network (FFN): Applied to each position independently.

Self-attention in the encoder lets each position attend to all other positions in the input sentence.

Decoder Layers

Each decoder layer has:

  1. Masked multi-head self-attention: Prevents attending to future positions.
  2. Encoder-decoder attention: \(Q\) comes from the previous decoder layer; \(K\) and \(V\) come from the encoder output.
  3. Feed-forward network.

The encoder-decoder attention enables the decoder to consult the encoder output when predicting each token.

Residual Connections & Layer Normalization

Each sub-layer is wrapped with a residual connection and followed by layer normalization:

\[ \text{LayerNorm}(x + \text{Sublayer}(x)) \]

Residual connections help train deep networks by mitigating vanishing gradients; layer normalization stabilizes training.

Feed-Forward Network

The FFN in each layer has two linear transformations with a ReLU activation in between:

Equation for the Position-wise Feed-Forward Network.

Equation 3: \(FFN(x) = \max(0, xW_1 + b_1)W_2 + b_2\)

The Missing Piece: Positional Encoding

Self-attention is inherently order-agnostic. To incorporate sequence order, the Transformer adds positional encodings to the input embeddings. These encodings use sine and cosine functions at varying frequencies:

Equations for the sinusoidal positional encodings.

Equation 4:
\(PE_{(pos,2i)} = \sin\left(\frac{pos}{10000^{2i/d_{\text{model}}}}\right)\)
\(PE_{(pos,2i+1)} = \cos\left(\frac{pos}{10000^{2i/d_{\text{model}}}}\right)\)

These functions give unique encodings to each position and allow the model to potentially generalize to sequence lengths unseen during training.

Why Self-Attention?

Why replace RNNs with self-attention? Key advantages are summarized in Table 1:

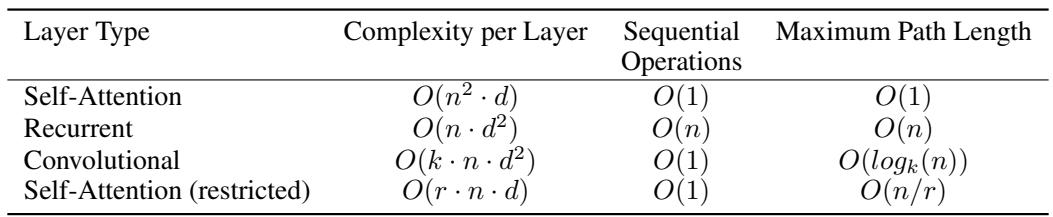

Table comparing Self-Attention, Recurrent, and Convolutional layers on complexity, sequential operations, and maximum path length.

Table 1: Comparison of layer types in terms of complexity, sequential operations, and path length.

  1. Computational complexity: Self-attention is faster than recurrence for sequences where \(n < d\).
  2. Parallelization: RNNs require \(O(n)\) sequential steps; self-attention can process all positions in parallel (\(O(1)\) sequential steps).
  3. Dependency path length: Self-attention links any two positions in a single step, making long-range dependencies easier to learn.

Experiments and Results

The Transformer was tested primarily on machine translation.

Training Details

Datasets:

  • English-German: WMT 2014 (4.5M sentence pairs, 37K BPE vocabulary).
  • English-French: WMT 2014 (36M sentence pairs, 32K word-piece vocabulary).

They used the Adam optimizer with a custom learning rate schedule:

The learning rate schedule equation used for training the Transformer.

Equation 5: Learning rate increases linearly for 4000 steps and decays proportionally to \(1/\sqrt{\text{step}}\).

Smashing the State of the Art

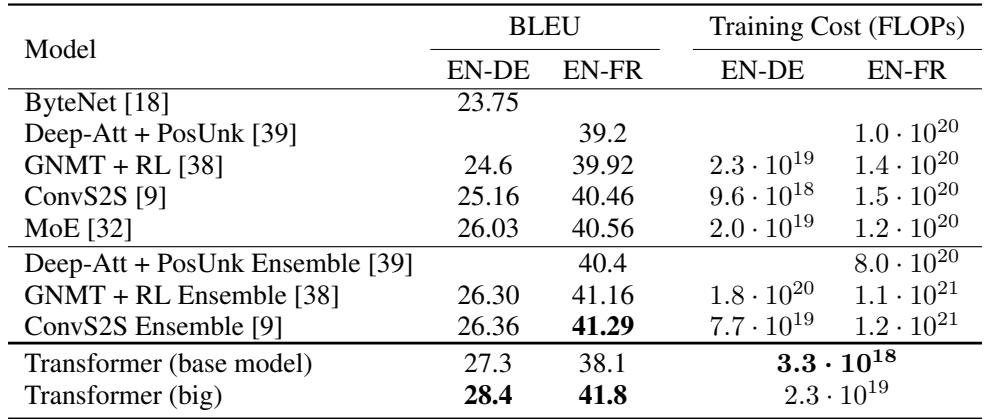

Table showing the Transformer’s BLEU scores and training costs compared to previous state-of-the-art models.

Table 2: BLEU scores and training costs for various models.

The big Transformer achieved 28.4 BLEU on English-German—over 2 BLEU points higher than the previous best models, at a fraction of the training cost. On English-French, it achieved 41.8 BLEU, setting a new single-model state-of-the-art.

Model Variations

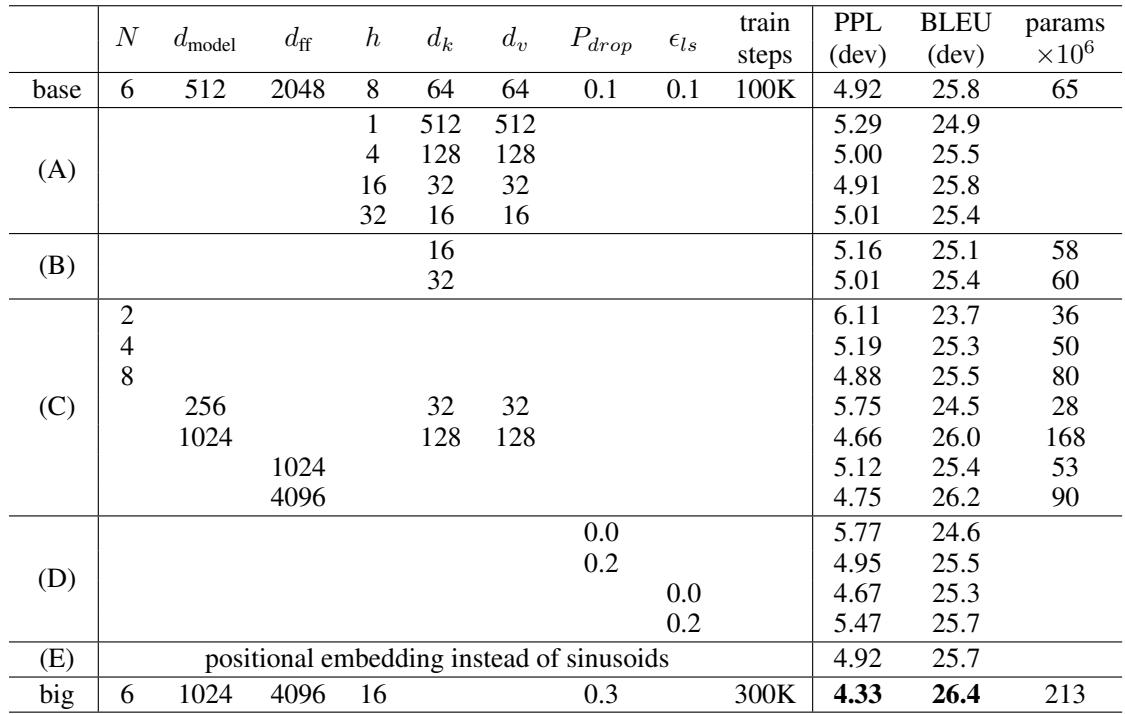

Table showing the performance of different variations of the Transformer architecture.

Table 3: Ablation studies on Transformer architecture variants.

Key findings:

  • Attention heads (A): Multiple heads are essential; too many degrade performance.
  • Model size (C): Larger models yield better results.
  • Regularization (D): Dropout effectively prevents overfitting.
  • Positional encoding (E): Sinusoidal encoding performs on par with learned embeddings.

Generalizing to Other Tasks

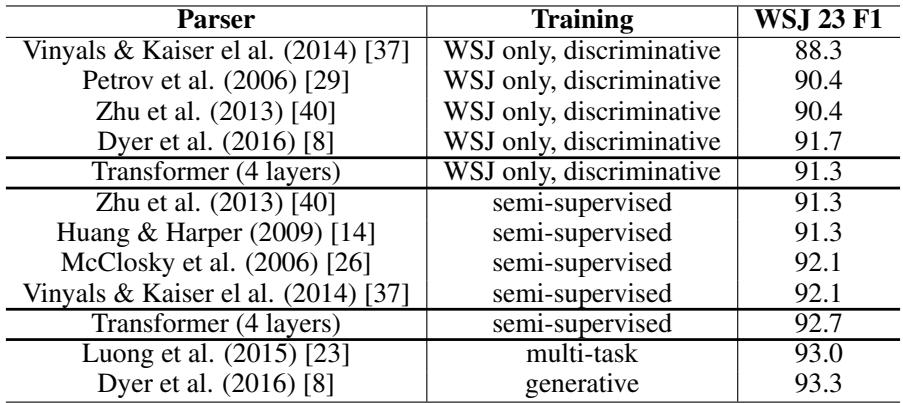

Table showing the Transformer’s F1 score on English constituency parsing compared to other models.

Table 4: Transformer performance on English constituency parsing.

Applied to English constituency parsing, the Transformer performed impressively, outperforming most previous models even without extensive task-specific tuning.

Peeking Inside: Interpreting Attention

One advantage of attention-based models is interpretability. Visualizing attention weights reveals what the model focuses on.

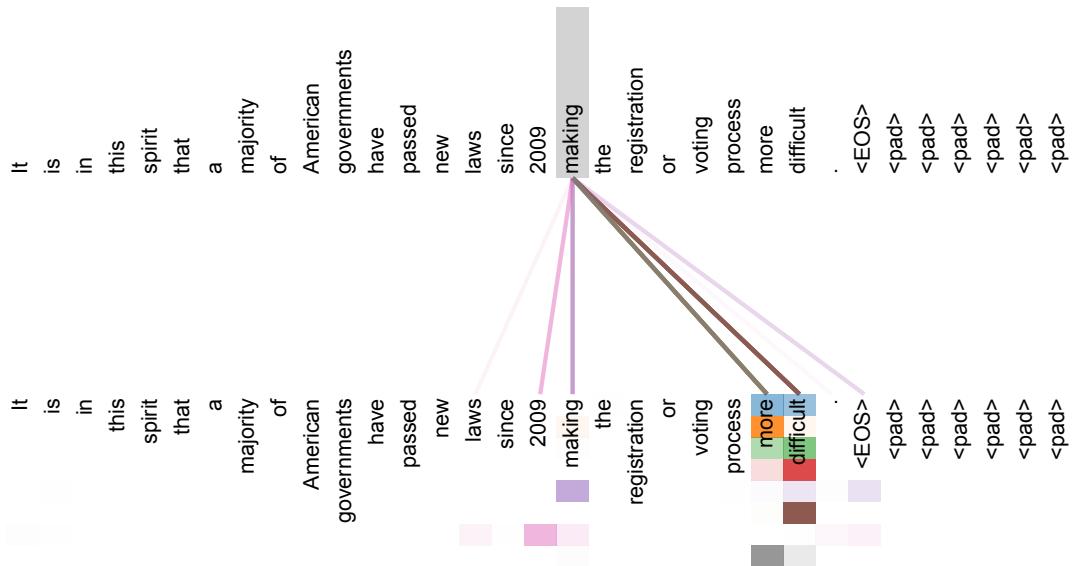

Visualization of attention heads focusing on long-distance dependencies for the word ‘making’.

Figure 3: Encoder self-attention (layer 5 of 6) attending from “making” to “more difficult”, capturing a long-range dependency.

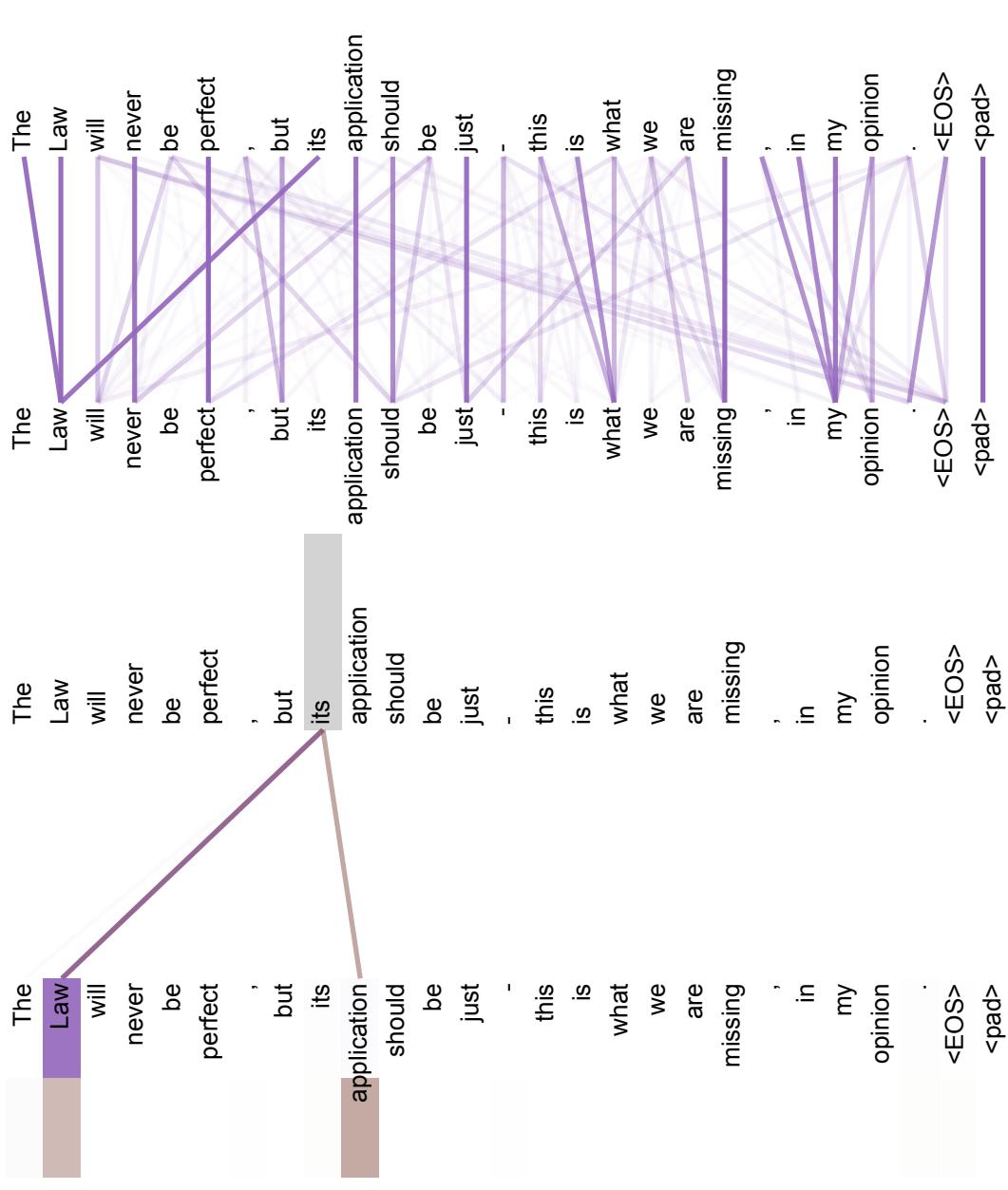

Visualization of attention heads apparently involved in anaphora resolution for the word ‘its’.

Figure 4: Encoder-decoder attention (layer 5 of 6) resolving “its” to “The Law”.

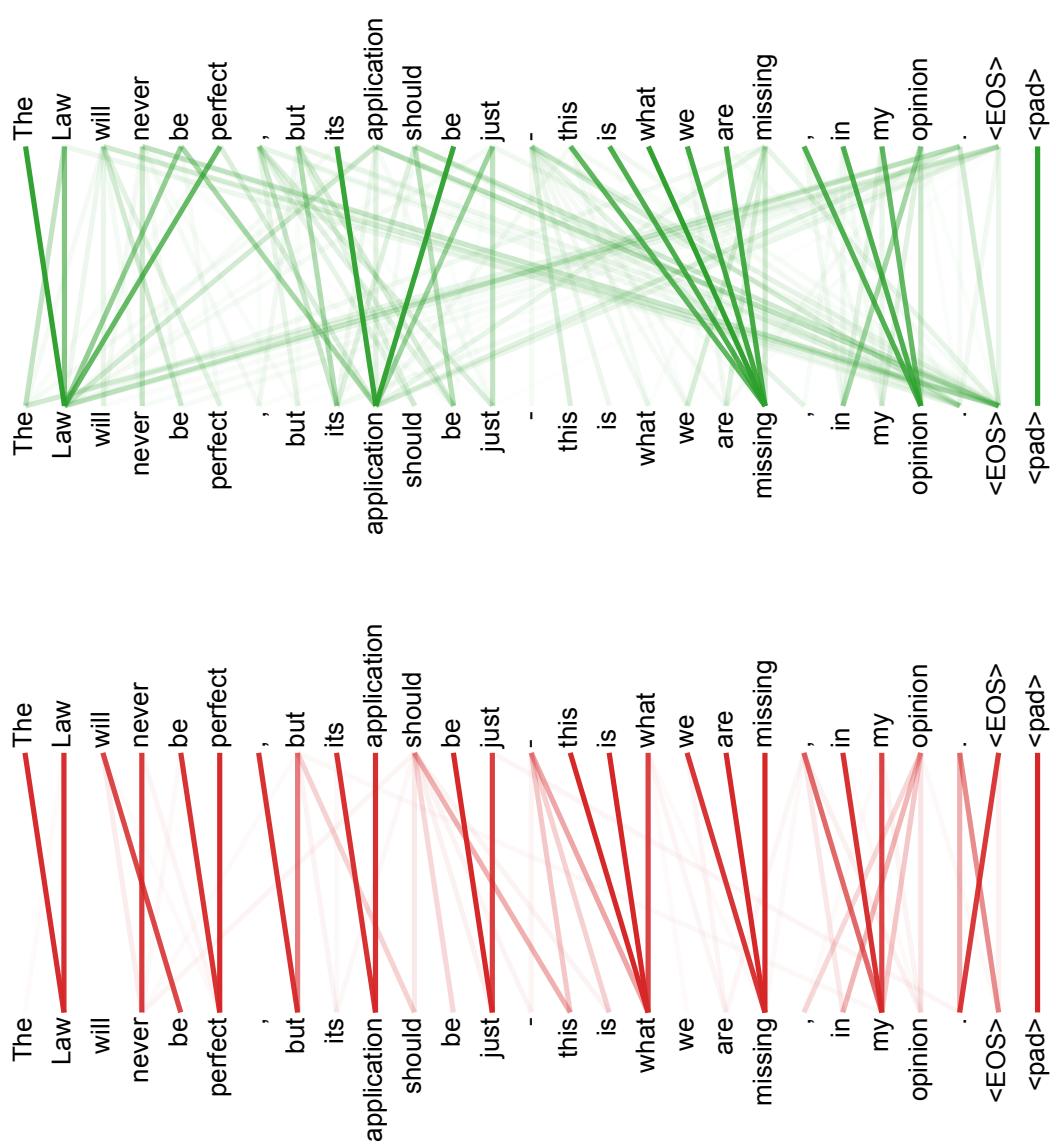

Visualization of two different attention heads capturing sentence structure.

Figure 5: Different heads learning distinct structural patterns in sentences.

These examples show that attention heads often align with linguistically meaningful relationships—syntax, semantics, coreference—demonstrating the model’s ability to organize information hierarchically.

Conclusion and Legacy

The Attention Is All You Need paper was a watershed moment in NLP. By showing that an architecture built entirely on attention could outperform recurrent and convolutional models—while being far more parallelizable—it opened new frontiers. Key takeaways:

  • Self-attention is powerful: It effectively models complex word relationships.
  • Parallelization is key: Removing recurrence allows vastly faster training.
  • General-purpose design: Its success on varied tasks points to broad applicability.

Today, the Transformer is everywhere: powering GPT, BERT, T5, and countless other models that have transformed language AI. Rarely does a single paper have such enduring impact—but this one truly rewrote the rules.
