In the world of computer vision, the You Only Look Once (YOLO) family of models is legendary. Known for its blistering speed, YOLO redefined real-time object detection by framing it as a single regression problem. But the journey didn’t stop at one great idea. Following the success of YOLO and YOLOv2, the creators returned with a new iteration: YOLOv3.

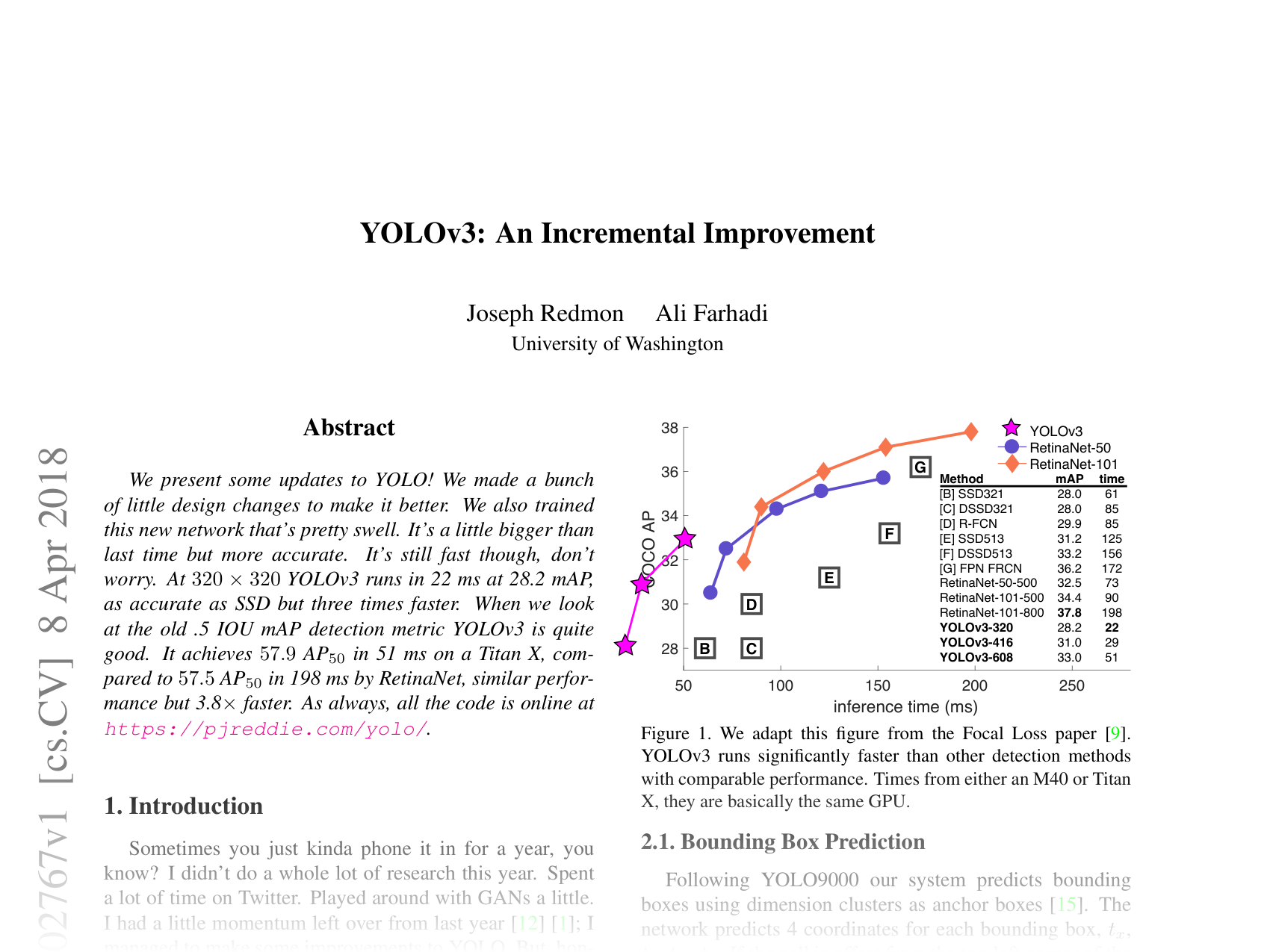

The 2018 paper YOLOv3: An Incremental Improvement is famous not just for its technical contributions but for its refreshingly candid and humorous tone. The authors don’t claim a massive breakthrough—instead, they present a series of thoughtful, practical updates that collectively create a significantly better detector. It’s a masterclass in engineering and the power of incremental progress.

This article will break down the key improvements in YOLOv3, from its powerful new backbone network to its clever multi-scale detection strategy. We’ll explore how these changes make YOLOv3 not only faster but also more accurate and versatile than its predecessors.

A Quick Refresher: The YOLO Philosophy

Before diving into YOLOv3, let’s recall what makes YOLO special.

Traditional object detectors, like the R-CNN family, use a two-stage process:

  1. Propose potential regions of interest in an image.
  2. Classify each proposed region.

This approach is accurate but can be slow.

YOLO, on the other hand, is a one-stage detector. It takes an entire image, passes it through a single convolutional neural network, and predicts bounding boxes and class probabilities for all objects at once. This unified architecture is the secret to its incredible speed.

YOLOv3 builds on this foundation, incorporating several state-of-the-art techniques to push the performance envelope even further.

The Core Upgrades: What Makes YOLOv3 Tick?

YOLOv3 is essentially a collection of good ideas from other researchers combined with a better network architecture. Let’s unpack the three most significant changes.

1. The Backbone: Darknet-53

At the heart of any great object detector is a powerful feature extractor. For YOLOv3, the authors designed Darknet-53—a 53-layer convolutional network that is deeper and more efficient than its predecessor Darknet-19 (used in YOLOv2).

Darknet-53 blends the simplicity of Darknet-19 with residual (shortcut) connections, a technique popularized by ResNet. Residual connections help combat the vanishing gradient problem by allowing information to bypass certain layers, making very deep networks easier to train.

The table below (from the paper) outlines the architecture in detail—composed of alternating \(1 \times 1\) and \(3 \times 3\) convolutions interspersed with residual blocks.

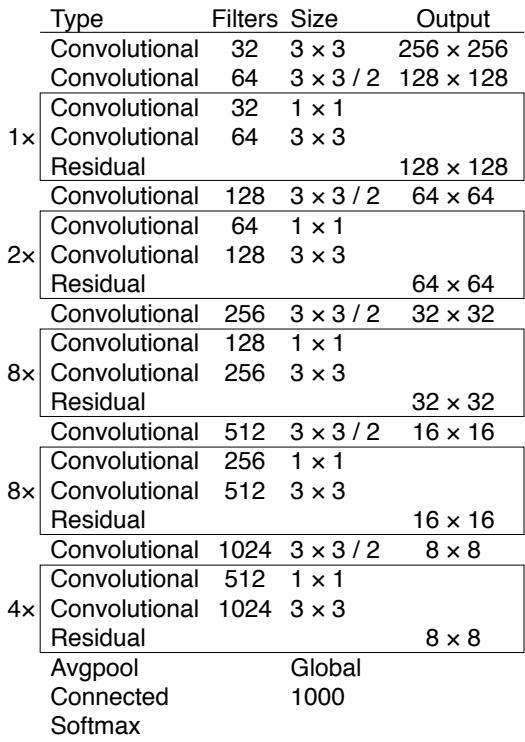

The architecture of the Darknet-53 feature extractor, showing a deep stack of convolutional and residual layers.

How does Darknet-53 compare to other backbones like ResNet-101 or ResNet-152? The answer: extremely well.

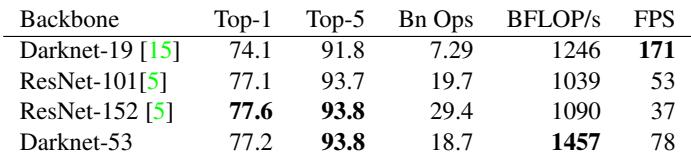

A table comparing the performance of different backbone networks. Darknet-53 achieves accuracy comparable to ResNet-101 and ResNet-152 but is 1.5x to 2x faster.

Darknet-53 matches the classification accuracy of ResNet-101 and ResNet-152 while being significantly faster (1.5× to 2× the FPS) and performing fewer floating-point operations. It’s also the most efficient in terms of GPU utilization, providing an ideal backbone for real-time object detection.

2. Predictions Across Multiple Scales

One of YOLO’s historic weaknesses was small-object detection. YOLOv3 tackles this head-on by making predictions at three different scales, an idea inspired by Feature Pyramid Networks (FPNs).

Here’s the pipeline in action:

  1. Large objects: Predictions are made on coarse feature maps (e.g., \(13 \times 13\) for a \(416 \times 416\) input).
  2. Medium objects: A higher-resolution map is created by upsampling a deeper feature map by 2× and concatenating it with a shallower feature map. This merges fine-grained details with semantic richness before making predictions (e.g., \(26 \times 26\) grid).
  3. Small objects: The process repeats to yield an even larger grid (e.g., \(52 \times 52\)), ideal for small-object detection.

Each scale predicts 3 bounding boxes determined by running k-means clustering over the dataset’s bounding box dimensions. This results in 9 total anchor box priors, evenly divided across the scales.

3. Bounding Box and Class Prediction Refinements

Bounding Box Prediction
For each bounding box, YOLOv3 predicts offsets \((t_x, t_y, t_w, t_h)\) relative to its grid cell and anchor box prior. The final box coordinates are:

\[ b_x = \sigma(t_x) + c_x \]

\[ b_y = \sigma(t_y) + c_y \]

\[ b_w = p_w e^{t_w} \]

\[ b_h = p_h e^{t_h} \]

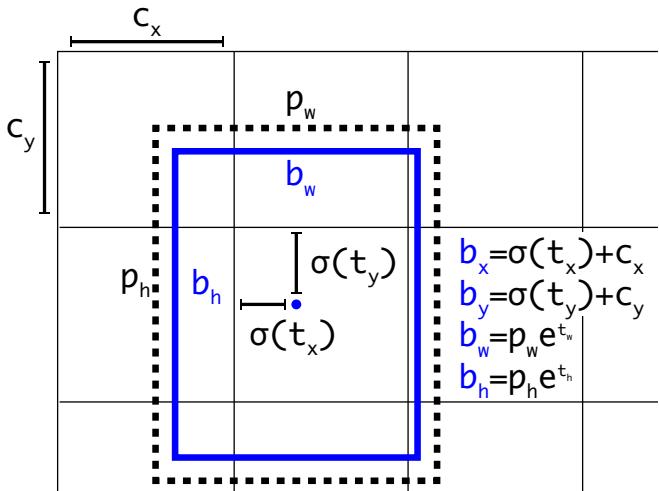

A diagram illustrating how YOLOv3 predicts bounding box coordinates relative to a grid cell and a prior box.

Where:

  • \((c_x, c_y)\): grid-cell offset.
  • \(\sigma(t_x)\), \(\sigma(t_y)\): sigmoid outputs ensuring the predicted center stays within its grid cell.
  • \((p_w, p_h)\): anchor box dimensions.
  • \(t_w, t_h\): learned scale factors applied to priors.

An objectness score is also predicted via logistic regression, indicating confidence that the box contains an object.

Multi-Label Class Prediction
Instead of a softmax over classes, YOLOv3 uses independent logistic classifiers for each class, trained with binary cross-entropy loss. This allows overlapping labels (e.g., “Woman” and “Person” simultaneously), making YOLOv3 better suited for complex, multi-label datasets like Open Images.

How Does It Perform?

The authors evaluated YOLOv3 on the COCO dataset. Let’s start with the modern COCO mAP metric (averaging IOU thresholds from 0.5 to 0.95):

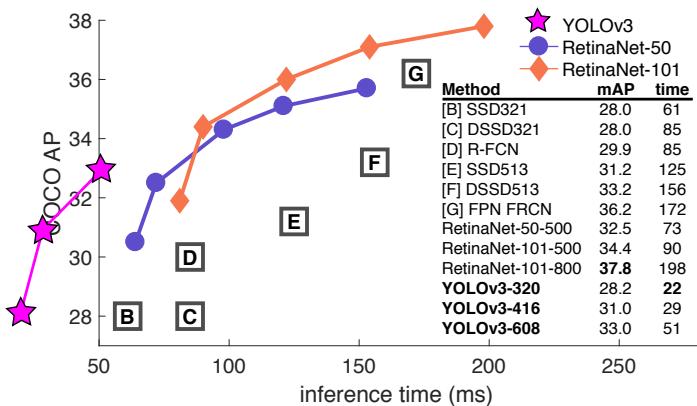

A plot comparing the performance of YOLOv3 against other detectors on the COCO dataset. YOLOv3 is significantly faster than models with similar mAP.

At \(320 \times 320\) resolution, YOLOv3 hits 28.2 mAP in just 22 ms, matching SSD’s accuracy but at three times the speed. While it doesn’t reach RetinaNet’s mAP heights, it exists in an entirely different speed regime.

Next, consider the older metric: AP50 (mAP at IOU = 0.5).

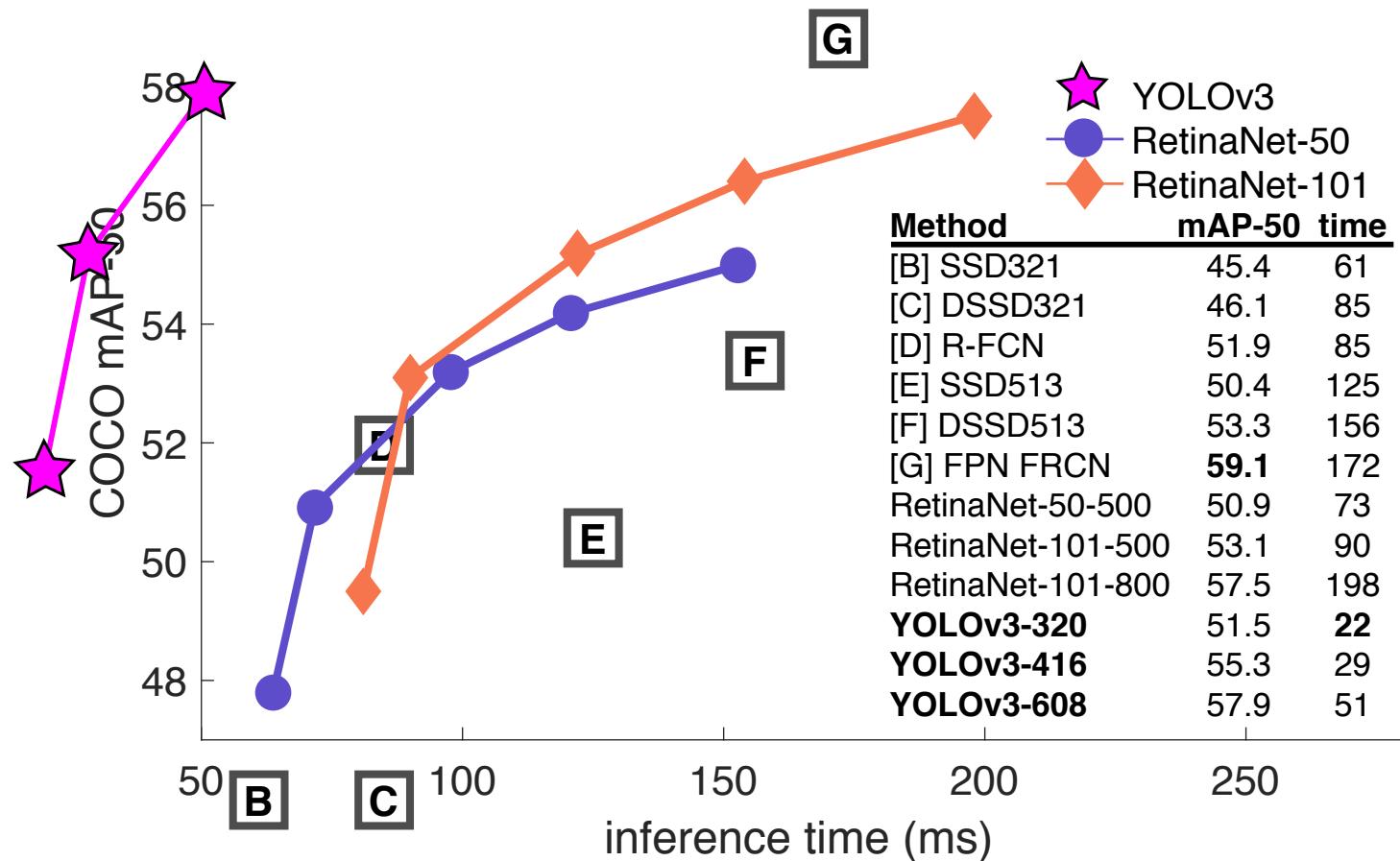

A speed/accuracy tradeoff plot on the AP at .5 IOU metric. YOLOv3 is very high and to the left, indicating it is both fast and accurate.

YOLOv3 shines here—57.9 AP50, essentially matching RetinaNet’s 57.5 AP50 but 3.8× faster. This shows YOLOv3’s prowess at producing “good enough” bounding boxes quickly, making it ideal for applications where speed dominates.

Finally, the full comparison table:

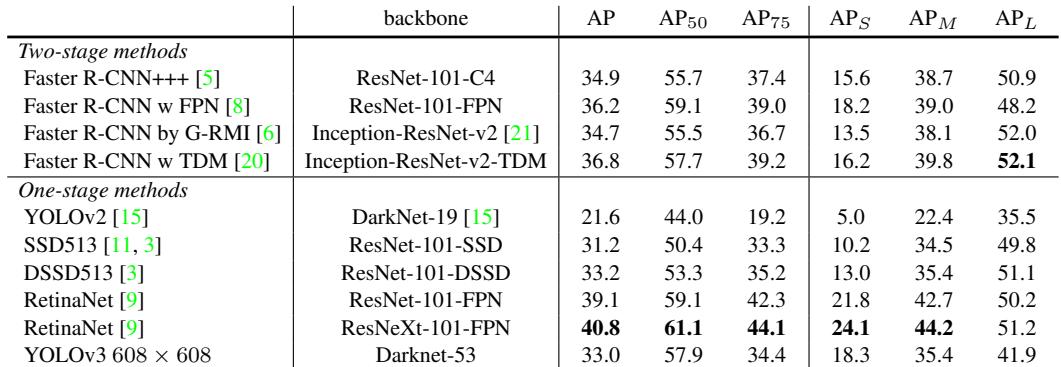

A table comparing YOLOv3’s performance on the COCO test set with other one-stage and two-stage detectors.

YOLOv3’s high APS (small object) score underscores the effectiveness of its multi-scale approach. Its results against both one-stage and two-stage methods make it a highly competitive option.

Learning from Failure: What Didn’t Work

An often-overlooked gem in the paper is the candid list of experiments that failed:

  • Alternate anchor box offsets using linear activations destabilized training.
  • Linear x,y predictions instead of logistic activation dropped mAP by several points.
  • Focal Loss, aimed at class imbalance, reduced mAP by 2 points—possibly because YOLOv3’s decoupled objectness and class predictions already address focal loss’s intended benefits.
  • Dual IOU thresholds (like Faster R-CNN) did not yield better results.

These admissions are a reminder that improvement in machine learning often comes from knowing what not to change.

Conclusion: Beyond the Metrics

YOLOv3 is a testament to smart engineering:

  • Faster backbone (Darknet-53).
  • Multi-scale predictions for robustness.
  • Flexible multi-label class predictions.

It cemented YOLO’s role as the go-to for real-time object detection, with competitive accuracy across industry and academia.

The paper closes with broader reflections: questioning the community’s overreliance on certain metrics, and urging consideration of the societal impact of computer vision technology. These human elements elevate YOLOv3 beyond pure technical achievement.

Ultimately, YOLOv3 isn’t a revolutionary leap—it’s a practical, powerful toolkit enabling countless real-world applications, from tracking wildlife to autonomous navigation.

Its lesson: Incremental improvement, layered with insight, can move an entire field forward.
