Deep learning models are notoriously data-hungry. The more high-quality, labeled data you can feed them, the better they perform. But what happens when you can’t just collect more data? You get creative.

For years, the go-to technique has been data augmentation: taking your existing images and creating new, slightly modified versions—flipping them, rotating them, shifting colors—to expand your dataset for free.

This approach works wonders. It teaches the model what features are truly important and which are just artifacts of a specific image. A cat is still a cat whether it’s on the left or right side of the frame. This concept of invariance—knowing which changes don’t alter the label—is key to building robust models.

However, there’s a catch. The standard set of augmentations—random crops, horizontal flips, and color jitters—is largely a one-size-fits-all solution, painstakingly tuned by hand over years of experimentation. What works for a dataset of natural images like CIFAR-10 might be completely wrong for a dataset of handwritten digits like MNIST. (Flipping a “6” upside down makes it a “9”!) Manually crafting augmentations is time-consuming, dataset-specific, and rarely optimal.

This raises a fascinating question: Instead of relying on human intuition, could we have an algorithm learn the best possible data augmentation strategy for a given dataset?

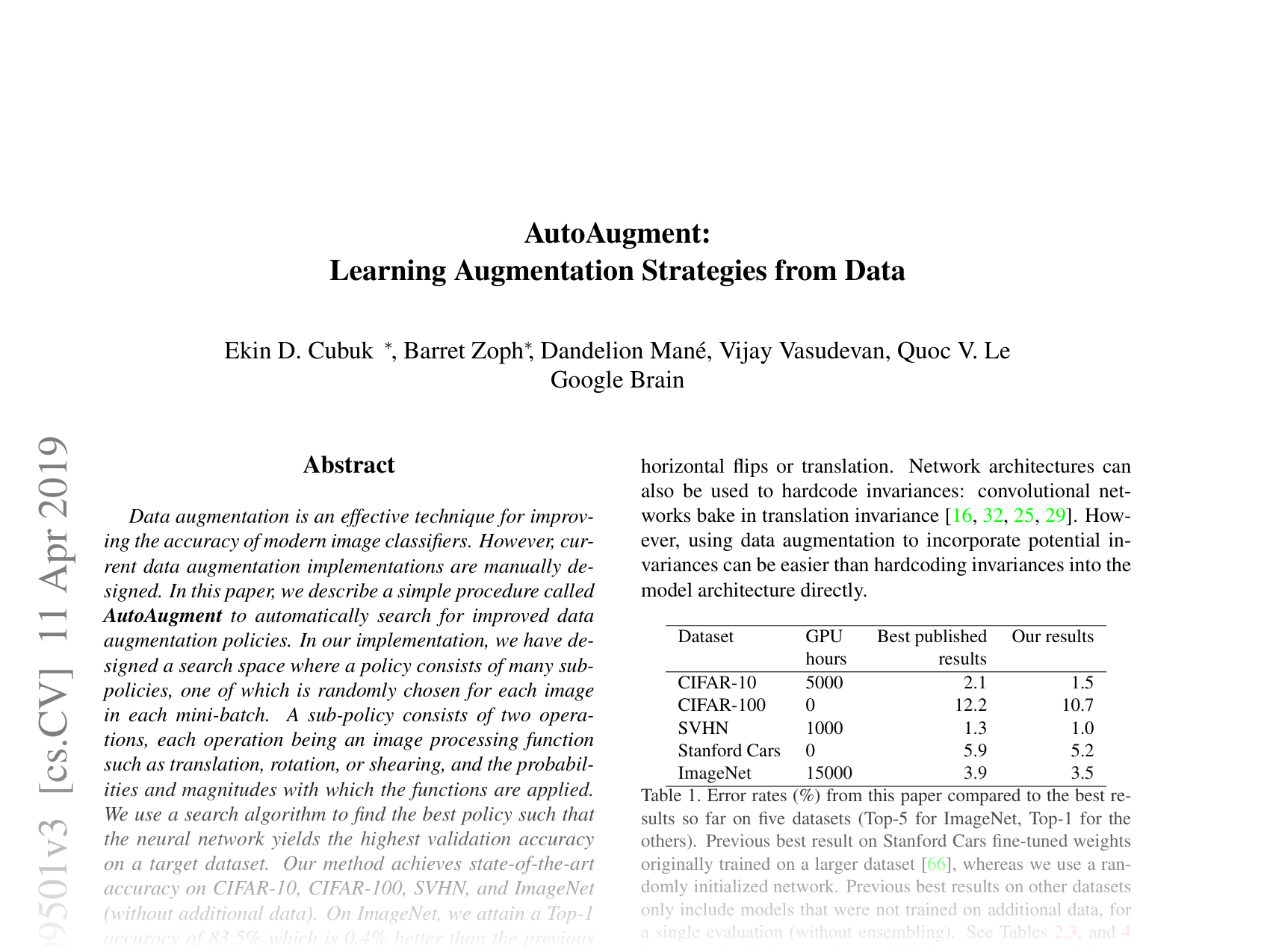

A team of Google Brain researchers answered that question in their paper, “AutoAugment: Learning Augmentation Strategies from Data.” They developed a method that automatically searches for optimal augmentations, leading to state-of-the-art results on top computer vision benchmarks, including CIFAR-10, SVHN, and ImageNet.

In this article, we’ll explore how AutoAugment works, examine the surprisingly effective (and sometimes strange) augmentation strategies it discovers, and look ahead to a future where every part of the machine learning pipeline can be automated.

The Problem with Hand-Crafted Augmentation

Before diving into AutoAugment’s solution, let’s break down why hand-crafted augmentation is a hard problem. When designing an augmentation pipeline by hand, you must decide:

  1. Which operations should I use? (Rotation, shearing, color shifts, contrast changes…?)
  2. In what order should I apply them? (Does rotating then shearing have a different effect than shearing then rotating?)
  3. How strongly should I apply them? (Rotate by 5° or 25°?)
  4. With what probability should I apply them? (Should I rotate every image, or only 30% of them?)

Answering these for one dataset involves tedious trial and error. The rise of AutoML, which has automated the design of network architectures, suggests we can do better. If architectures can be learned, why not augmentation policies?

How AutoAugment Works: Searching for the Perfect Policy

At its core, AutoAugment frames the hunt for the best augmentation strategy as a search problem. There are two main components: a search algorithm that proposes candidate strategies, and a search space that defines what’s possible.

The overall process, illustrated below, runs in a reinforcement learning loop:

  1. A controller (an RNN) samples an augmentation policy.
  2. A child model (a standard neural net) is trained on data augmented using this policy.
  3. The child model’s validation accuracy is measured — this is the reward.
  4. The reward is fed back to update the controller, making good policies more likely to be sampled in future.

This loop repeats thousands of times, gradually improving the policies.

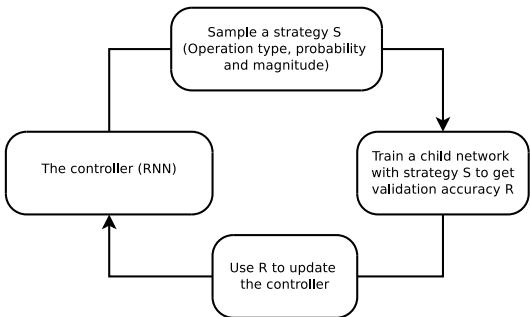

A high-level overview of the AutoAugment framework. A controller RNN samples a policy, which is used to train a child network. The resulting validation accuracy is fed back as a reward to improve the controller.

Figure 1. Overview of AutoAugment’s reinforcement learning loop. The controller samples a policy, trains a child network, evaluates its accuracy, and uses that reward to improve future policies.

The Search Space: Defining an Augmentation “Policy”

The search space is richly structured. A final policy consists of 25 sub-policies. During training, one of these sub-policies is chosen at random for each image in a batch.

A sub-policy has two operations applied in sequence (e.g., rotate then solarize). Each operation has two parameters:

  1. Probability — how often it is applied (0% to 100%).
  2. Magnitude — how strong the operation is (e.g., degrees of rotation, discretized into 10 levels).

The choice of operations spans 16 transformations from the Python Imaging Library (PIL), plus two advanced techniques (Cutout and SamplePairing):

  • Geometric: ShearX/Y, TranslateX/Y, Rotate
  • Color-based: AutoContrast, Invert, Equalize, Solarize, Posterize, Contrast, Color, Brightness, Sharpness
  • Other: Cutout, SamplePairing

Example sub-policy:

  • ShearX with 90% probability, magnitude 7
  • Followed by Invert with 20% probability, magnitude 3

The total search space is colossal. Finding one two-operation sub-policy:

\[ (16 \times 10 \times 11)^2 \text{ possibilities} \]

Five sub-policies:

\[ (16 \times 10 \times 11)^{10} \approx 2.9 \times 10^{32} \text{ possibilities} \]

This demands a smart search algorithm.

The Search Algorithm: RL-Driven Controller

The researchers used an RNN controller to explore the search space. It sequentially predicts all components of a policy: operation type, probability, magnitude for each slot in all 5 sub-policies.

Training uses Proximal Policy Optimization (PPO) — a policy gradient method. High-reward policies get stronger weight so they’re sampled more; poor policies become less likely.

After ~15,000 sampled policies, the best 5 are collected. Their sub-policies are combined into a robust final policy with 25 sub-policies, used to train large models from scratch.

Experiments and Results: Did It Work?

AutoAugment was tested on CIFAR-10, CIFAR-100, SVHN, and ImageNet.

Because full-scale searches would be too costly on large datasets, the search was conducted on reduced subsets (e.g., 4,000 images for CIFAR-10), then applied to full datasets.

CIFAR-10 and CIFAR-100

Standard CIFAR-10 augmentation includes flips, padding/cropping, and sometimes Cutout. AutoAugment was applied in addition.

Results were striking. Across architectures, AutoAugment delivered gains, with PyramidNet+ShakeDrop reaching 1.5% error — beating the previous best of 2.1%.

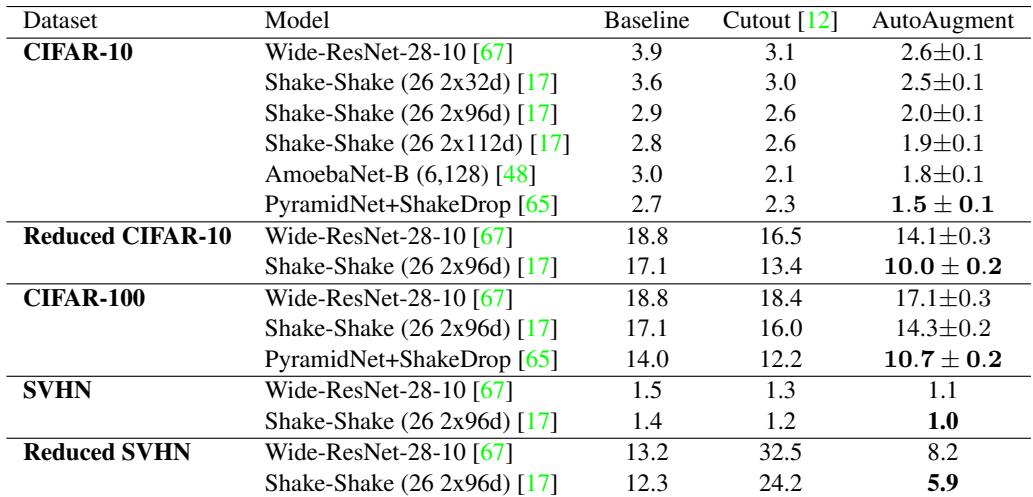

Test error rates on CIFAR and SVHN datasets. AutoAugment consistently improves upon the baseline and Cutout across all models and datasets, setting new state-of-the-art records.

Figure 2. AutoAugment’s improvements over baseline and Cutout on CIFAR and SVHN. Lower is better.

For CIFAR-10, the learned policy favored color-based transforms (Equalize, AutoContrast, Color) over geometric ones, rarely using Invert.

SVHN (Street View House Numbers)

SVHN images differ greatly from CIFAR-10. AutoAugment’s SVHN policy was dominated by geometric operations (ShearX/Y, Rotate) and the color-agnostic Invert.

This fits intuition — house numbers are often skewed or rotated; their color is irrelevant.

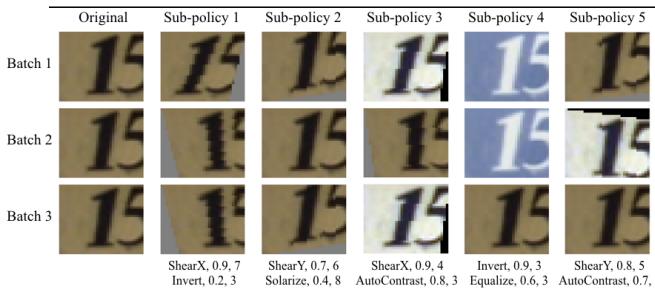

An example of a 5-sub-policy strategy found for the SVHN dataset. Note the prevalence of geometric transformations like Shear and color-agnostic operations like Invert, which are well-suited for this dataset.

Figure 3. One successful SVHN policy with strong geometric augmentation and inversion.

This produced a state-of-the-art error rate of 1.0%.

ImageNet: The Ultimate Benchmark

On reduced ImageNet (120 classes, 6,000 images), the learned policy was color-focused with frequent Rotate.

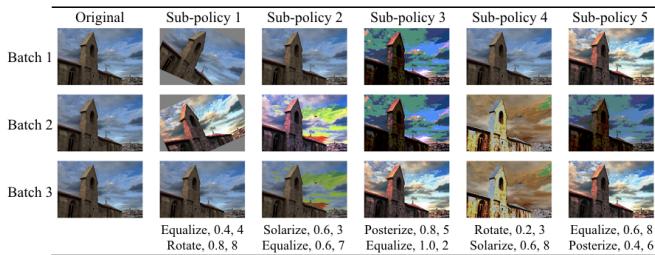

One of the successful 5-sub-policy strategies found on a reduced version of ImageNet. The policy heavily favors color and contrast adjustments.

Figure 4. A top-performing reduced ImageNet policy. Strong emphasis on color transformations and some rotation.

Applied to full ImageNet, it boosted ResNet-50’s Top-1 accuracy by +1.3% and pushed AmoebaNet-C to a record 83.5% Top-1.

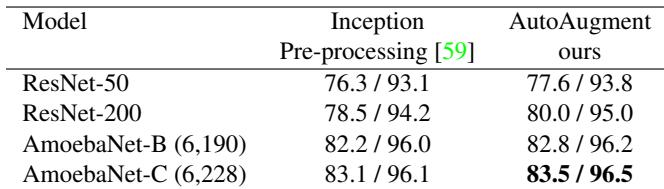

Top-1 and Top-5 accuracy on the ImageNet validation set. AutoAugment provides a consistent boost over the standard Inception pre-processing for all tested architectures.

Figure 5. AutoAugment vs. Inception-style preprocessing. Gains across multiple strong architectures.

Transferability: Policies That Travel Well

Running the search is expensive. Can a learned policy transfer? The team applied the ImageNet-learned policy to five smaller fine-grained visual classification datasets (e.g., Stanford Cars, Oxford Flowers) with no changes.

Results were remarkable: error rates dropped on every dataset. On Stanford Cars, AutoAugment achieved 5.2% error — lower than previous bests that used pre-trained ImageNet weights.

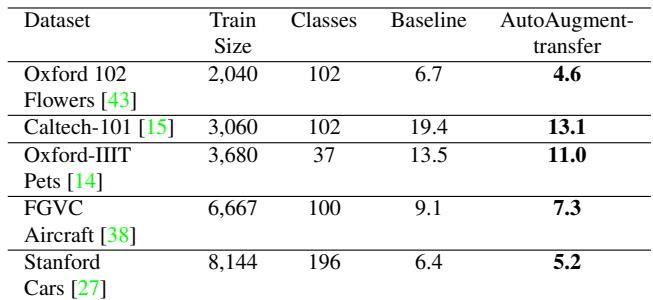

Test error rates on five fine-grained classification datasets. The “AutoAugment-transfer” column shows the results of using the policy learned on ImageNet, demonstrating strong transferability and performance gains.

Figure 6. AutoAugment-transfer results: applying the ImageNet policy directly to other datasets yields significant gains.

This suggests the ImageNet policy captures augmentations broadly useful for natural images. Practitioners can adopt it off-the-shelf for a free boost.

Ablations: Does the Search Really Matter?

Could random augmentations perform just as well? The team tested:

  • Random Policies: Sampling randomly improved over baseline but was worse than AutoAugment (3.0% error vs. 2.6% on CIFAR-10).
  • Random Parameters: Randomizing the probabilities/magnitudes of the learned policy reduced performance, showing these parameters are meaningfully tuned.

More sub-policies generally improved performance, plateauing around 20–40.

A plot showing that as the number of sub-policies increases, the validation error on CIFAR-10 decreases, before plateauing. This confirms the benefit of having a diverse set of augmentations.

Figure 7. Effect of sub-policy count: diversity improves validation accuracy up to a point.

Conclusion: Automating Data Augmentation

AutoAugment is a leap forward in AutoML, making augmentation design a learnable, optimizable process.

Key takeaways:

  1. Automation Works: Learned augmentation policies outperform human-designed ones.
  2. Dataset-Specific Strategies: AutoAugment discovers augmentations tailored to each dataset.
  3. Transferability: Policies from large, diverse datasets can boost performance elsewhere.
  4. Data Matters: Data processing is as critical as model architecture.

By making augmentation a learnable component, AutoAugment set new records and opened the door to automating more of the ML pipeline. This is an exciting step toward models that learn how they should learn.
