The world of Natural Language Processing (NLP) has entered an era of giant models. From GPT-2 to BERT and beyond, one trend is crystal clear: the bigger the model, the better the performance. These massive transformers can generate coherent articles, answer complex questions, and parse language with unprecedented nuance.

But this capability comes at a steep engineering cost. These models have billions—and increasingly, trillions—of parameters. How can such colossal networks fit into the memory of a single GPU?

Spoiler: They can’t.

Training these behemoths requires sophisticated parallelization techniques that literally split the model across many GPUs. While frameworks like Google’s GPipe or Mesh-TensorFlow provide model-parallel solutions, they often demand significant code rewrites or custom compilers.

Enter Megatron-LM, from NVIDIA researchers — a surprisingly simple, efficient way to train massive Transformer models via intra-layer model parallelism. Implementable directly in PyTorch with just a few targeted changes, it enabled training of an 8.3 billion parameter GPT-2 and revealed a key architectural tweak that lets BERT-style models scale gracefully.

In this article, we’ll unpack:

  • The challenge of training giant models within GPU memory constraints.
  • Megatron-LM’s elegant intra-layer model parallelism technique.
  • How it achieves near-linear scaling and state-of-the-art accuracy.
  • A subtle but critical fix that unlocks large-scale BERT training.

Whether you’re a student, researcher, or industry practitioner, you’ll leave with a clear picture of one of the foundational techniques powering today’s largest language models.

The Problem: GPUs Have Memory Limits

At the core of modern NLP are Transformer architectures. You’ve likely heard of the stars:

  • BERT: an encoder-only transformer adept at understanding contextual meaning.
  • GPT-2: a decoder-only transformer skilled at text generation.

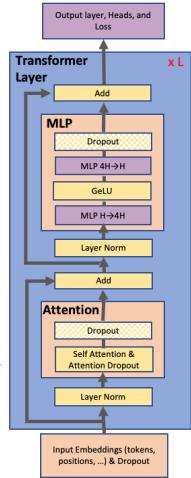

A diagram showing the standard Transformer architecture, with repeating layers of Self-Attention and MLP blocks, surrounded by residual connections and layer normalization.

Figure 2. Transformer architecture used in Megatron-LM. Each layer alternates between self-attention and MLP blocks, wrapped with residual connections and layer normalization.

Transformers are stacks of identical layers, each containing:

  1. A Self-Attention block.
  2. A Multi-Layer Perceptron (MLP) block.

Increasing the number of layers and their width (hidden size) causes the parameter count to explode.

The most common scaling method is data parallelism: load the entire model onto multiple GPUs, split the batch across them, then average gradients. Effective—but bounded. The model must fit in a single GPU’s memory, which fails when parameter counts reach into the billions.

Model parallelism sidesteps this by splitting a single model across GPUs. There are two broad flavors:

  1. Inter-layer (Pipeline) Parallelism: Different layers live on different GPUs. Pipeline approaches like GPipe can be efficient but often suffer from “pipeline bubbles,” periods of idle GPU time.
  2. Intra-layer Parallelism: Split computations within each layer across GPUs. This is Megatron-LM’s focus — and its magic.

Megatron-LM’s insight: exploit the mathematical structure of Transformer components for simple, high-efficiency intra-layer parallelism.

The Core Method: Slicing Transformer Layers

Each Transformer layer has an MLP block and a Self-Attention block. Megatron-LM parallelizes both cleanly.

Parallelizing the MLP Block

The MLP block applies:

\[ Y = \operatorname{GeLU}(XA) \tag{1} \]

followed by

\[ Z = YB \]

where \(X\) is input, \(A\) and \(B\) are weight matrices, and GeLU is a non-linear activation.

If you split \(A\) row-wise across GPUs, you must sum the results before applying GeLU — introducing a costly synchronization step mid-block. Instead, Megatron-LM splits \(A\) column-wise:

\[ [Y_1, Y_2] = [\operatorname{GeLU}(XA_1), \operatorname{GeLU}(XA_2)] \tag{3} \]

Each GPU computes its slice independently—no communication yet.

For the second GEMM, \(B\) is split row-wise. Each GPU multiplies its local \(Y_i\) with \(B_i\), then an all-reduce combines results after this multiplication.

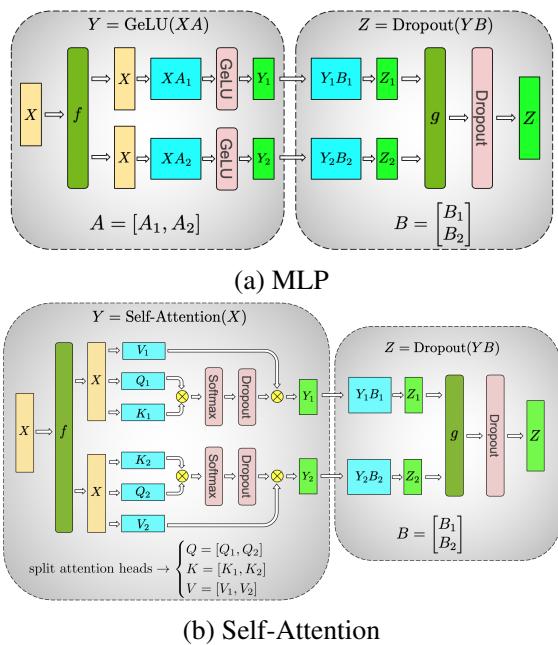

Diagrams showing how MLP and Self-Attention blocks are parallelized. The MLP block splits GEMM A by columns and B by rows. The Self-Attention block splits the Q, K, V projections by attention heads.

Figure 3. Megatron-LM parallelization strategy: column-parallel then row-parallel splits for the MLP; attention heads split across GPUs for self-attention.

This approach requires only one all-reduce in forward and one in backward pass for the MLP. Implemented in PyTorch via two custom autograd functions:

  • g: all-reduce during forward, identity during backward.
  • f: identity during forward, all-reduce during backward.

Parallelizing the Self-Attention Block

Multi-head attention is naturally parallelizable: each head computes Q, K, V projections independently. Megatron-LM assigns subsets of heads to different GPUs. The projection matrices are split column-wise across GPUs; attention scores per head are computed locally.

The final linear projection after self-attention is split row-wise, followed by a single all-reduce.

Communication Budget per Layer

With both MLP and self-attention parallelized, each Transformer layer needs only four communication ops:

  • 2 all-reduces in forward pass.
  • 2 all-reduces in backward pass.

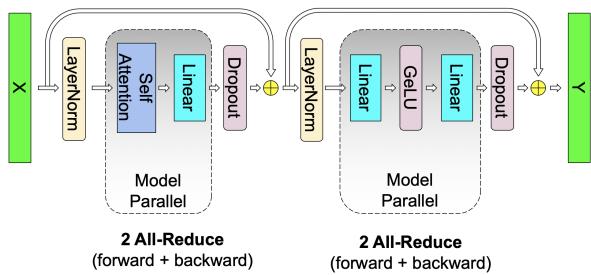

A diagram showing the two model-parallel blocks in a Transformer layer, each requiring 2 All-Reduce operations for the forward and backward passes combined.

Figure 4. Communication operations in a model-parallel Transformer layer.

They also parallelize the (potentially massive) embedding layer using similar column-wise splits.

Combining with Data Parallelism

Intra-layer model parallelism meshes seamlessly with data parallelism. For example, with 512 GPUs:

  • Group into 64 “model-parallel groups” of 8 GPUs each.
  • Each group holds one shard of the model.
  • The 64 groups process different minibatches — standard data parallelism.

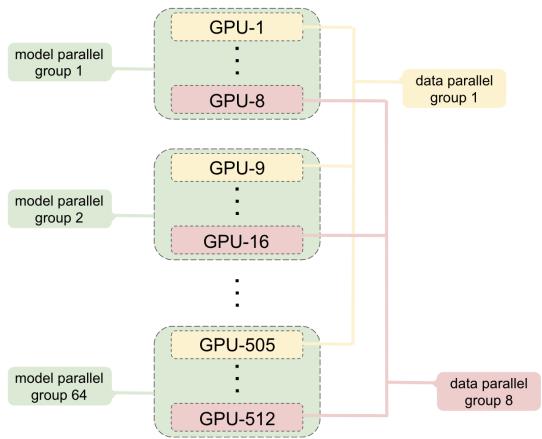

A schematic showing how GPUs are grouped for hybrid model and data parallelism. Vertical groups handle model parallelism, while horizontal groups handle data parallelism.

Figure 8. Hybrid scheme: vertical groups run model-parallel shards, horizontal groups run data-parallel replicas.

This hybrid parallelism enables scaling to hundreds or thousands of GPUs.

Experiments and Results: Proof of Efficiency

Does it scale? Yes — impressively.

Scaling Performance

The team tested GPT-2 configurations from 1.2B (fits on one GPU) to 8.3B parameters (needs 8 GPUs model-parallel).

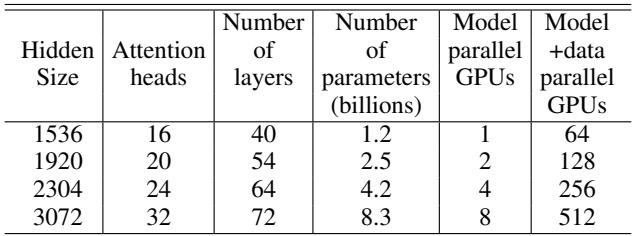

A table showing the configurations of the models used for the scaling studies, ranging from 1.2B to 8.3B parameters.

Table 1. Parameters for scaling studies. Larger models require more model-parallel GPUs.

On 512 GPUs using hybrid parallelism, they sustained 15.1 PetaFLOPs.

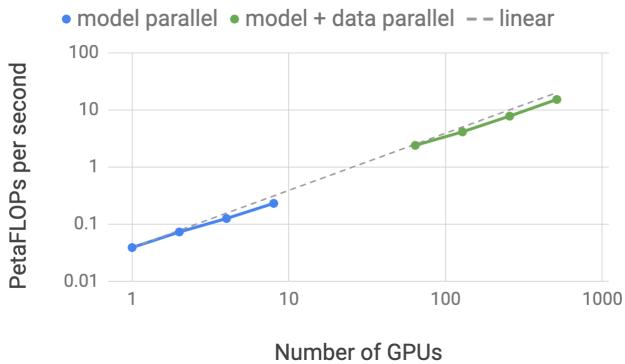

A log-log plot showing PetaFLOPs vs. the number of GPUs. Both model parallel and model+data parallel approaches show near-linear scaling.

Figure 1. Near-linear weak scaling as GPUs increase. Green: model+data parallelism; blue: model parallelism.

Their single-GPU baseline hit 39 TFLOPs (30% of theoretical peak). Scaling to 512 GPUs achieved 76% efficiency — remarkably low communication loss.

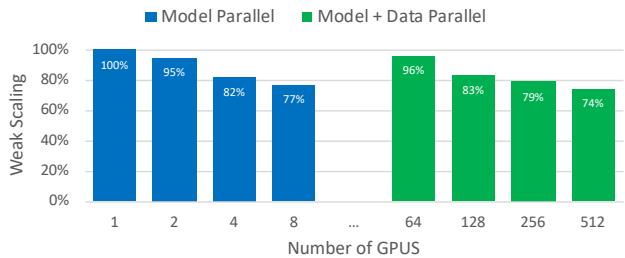

A bar chart showing the weak scaling efficiency for model parallel and model+data parallel setups, both achieving high efficiency as the number of GPUs increases.

Figure 5. Weak scaling efficiency for model-parallel and hybrid setups.

Scaling Accuracy: GPT-2

The team trained GPT-2 models of:

  • 355M parameters
  • 2.5B parameters
  • 8.3B parameters

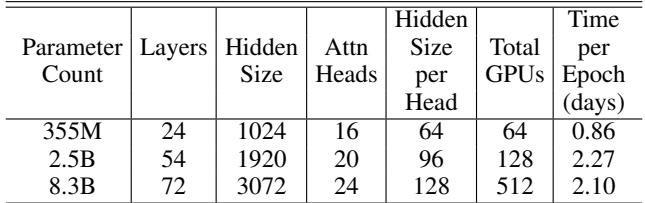

A table showing the configurations for the three GPT-2 models trained for the language modeling experiments.

Table 2. GPT-2 model configurations.

Larger models converged faster and to lower perplexity:

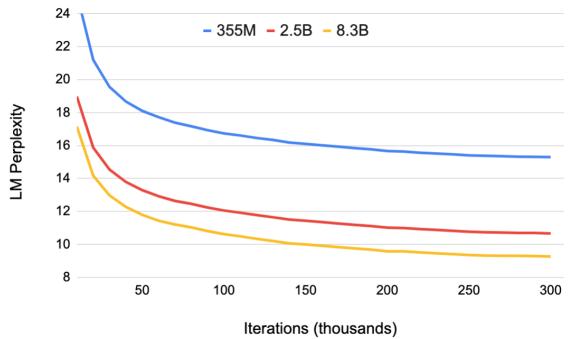

A line chart showing that larger GPT-2 models (2.5B and 8.3B) converge faster and to a lower validation perplexity than the smaller 355M model.

Figure 6. Validation perplexity vs. iterations: bigger models learn faster.

Zero-shot benchmarks confirmed state-of-the-art:

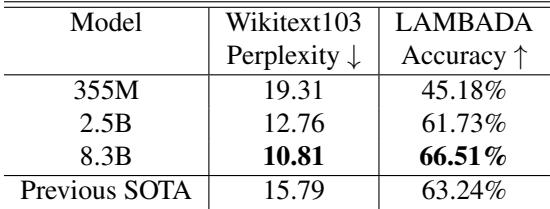

A table of zero-shot results showing the 8.3B parameter model achieving SOTA perplexity on WikiText103 and accuracy on LAMBADA.

Table 3. SOTA results: 8.3B parameters beats prior models on WikiText103 and LAMBADA.

The BERT Breakthrough: A Subtle but Crucial Change

Scaling BERT beyond 336M parameters had been problematic — instability and degraded performance blocked progress.

Megatron-LM found the culprit: layer normalization placement.

In standard BERT, layer norm comes after residual connections (Figure 7a). Moving layer norm to the start of each block, before self-attention and MLP (Figure 7b), stabilized training dramatically.

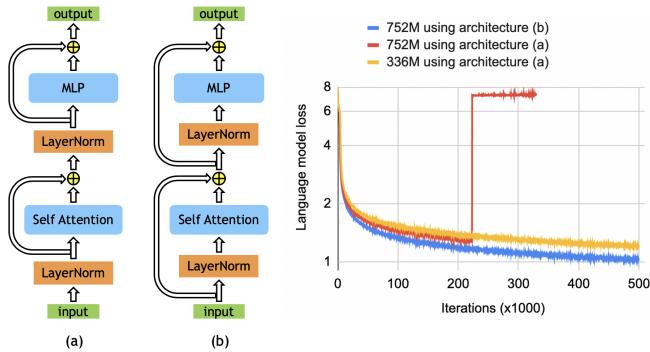

A diagram comparing the original BERT architecture (a) with the modified, more stable architecture (b), alongside a graph showing the improved training loss for the modified architecture on larger models.

Figure 7. Left: original vs. modified BERT block order. Right: improved loss curves for larger models using the modification.

With this fix, they trained BERT up to 3.9B parameters:

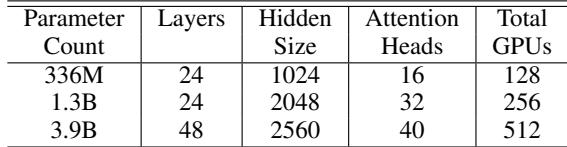

A table of BERT model configurations, scaling from 336M to 3.9B parameters.

Table 4. Megatron-BERT configurations.

Performance improved consistently across downstream tasks:

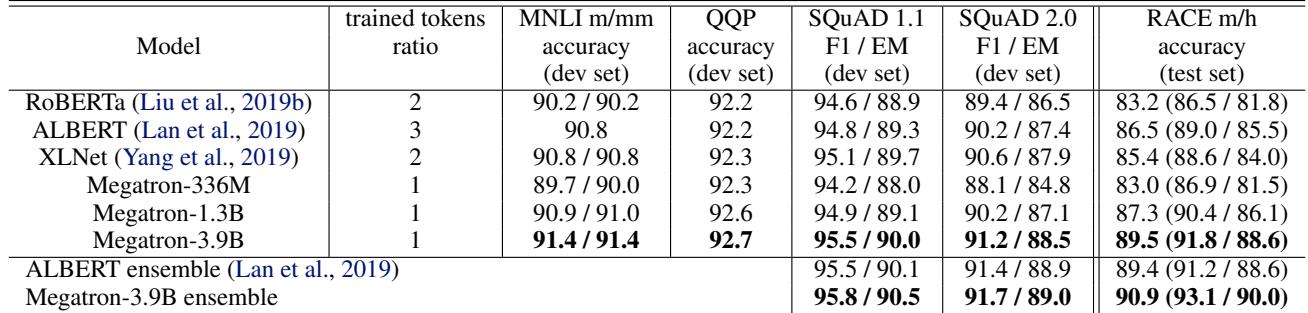

A table showing that as the Megatron-BERT model size increases, performance on downstream tasks like MNLI, QQP, SQuAD, and RACE consistently improves, with the 3.9B model achieving SOTA results.

Table 5. Larger Megatron-BERT models outperform smaller ones; 3.9B achieves SOTA on RACE.

Conclusion and Takeaways

The Megatron-LM paper is a milestone in efficient large-scale model training. With a few targeted changes, the authors built a scalable, elegant intra-layer model parallelism framework entirely within PyTorch.

Key takeaways:

  1. Intra-layer model parallelism is powerful: Column-wise then row-wise GEMM splitting minimizes communication, enabling massive scaling.
  2. Simplicity matters: No new compiler or extensive code rewrites — just clever engineering.
  3. Architecture can unlock scale: The layer norm tweak for BERT shows how small changes can resolve major scaling issues.
  4. Open source accelerates progress: Megatron-LM’s release empowers researchers to train their own massive models.

Megatron-LM’s techniques have since underpinned even larger models, like the 530B parameter Megatron-Turing NLG, and influenced many parallel training systems. It’s a testament to how deep architectural understanding can drive breakthrough systems performance.
