Neural Architecture Search (NAS) has transformed the way we design deep learning models. Instead of relying solely on human intuition and years of experience, NAS algorithms can automatically discover powerful and efficient network architectures — often surpassing their hand-crafted predecessors. This paradigm shift has sparked an explosion of new NAS methods, spanning reinforcement learning, evolutionary strategies, and differentiable optimization.

But this rapid progress comes with a hidden cost: a crisis of comparability.

Imagine a track competition where each athlete sprints on a different track, under different weather, and with different gear. How could you truly decide who’s the fastest? This is the current state of NAS research. Each new algorithm is often tested on different datasets, with different search spaces, and varying training protocols. As a result, it’s difficult to discern whether a method is inherently better or simply benefited from a more favorable experimental setup.

Researchers have started creating standardized benchmarks to address this issue. The first major step was NAS-Bench-101, but it had limitations that prevented many modern algorithms from being directly evaluated. Enter NAS-Bench-201, the subject of today’s deep dive — a versatile benchmark built to level the playing field for nearly any NAS algorithm.

NAS-Bench-201 defines a fixed search space of over 15,000 architectures, with pre-computed performance on three datasets. This allows researchers to skip redundant GPU-intensive training and concentrate on what matters most: the search algorithm itself.

Let’s break down how NAS-Bench-201 works, what we can learn from it, and why it’s a crucial step toward more reproducible and efficient AI research.

Background: The Quest for a Standardized NAS Arena

Modern NAS methods often follow a cell-based approach. Instead of designing an entire large network, the NAS algorithm searches for the optimal cell — a small but flexible computational block — which is then stacked repeatedly to construct the full model. This approach focuses the search problem from “What should the whole network look like?” to “What’s the best building block?”

NAS-Bench-201 adopts this paradigm, defining a search space that’s challenging enough to be meaningful but small enough to allow exhaustive training and evaluation of every architecture. This produces a massive “lookup table” where a NAS algorithm can propose an architecture and instantly get its true, fully trained performance — no GPU training required.

The Core of NAS-Bench-201

NAS-Bench-201 is more than a dataset — it’s an ecosystem with four main components:

  1. A well-defined search space
  2. Multiple datasets with standardized splits
  3. Pre-computed training and evaluation metrics
  4. Rich diagnostic information for deeper analysis

1. The Search Space: A Universe of 15,625 Architectures

Every architecture shares the same high-level macro skeleton. As shown in the top part of Figure 1, the skeleton has three stages, each stacking five identical cells. A residual block connects each stage, reducing spatial resolution and increasing channel depth.

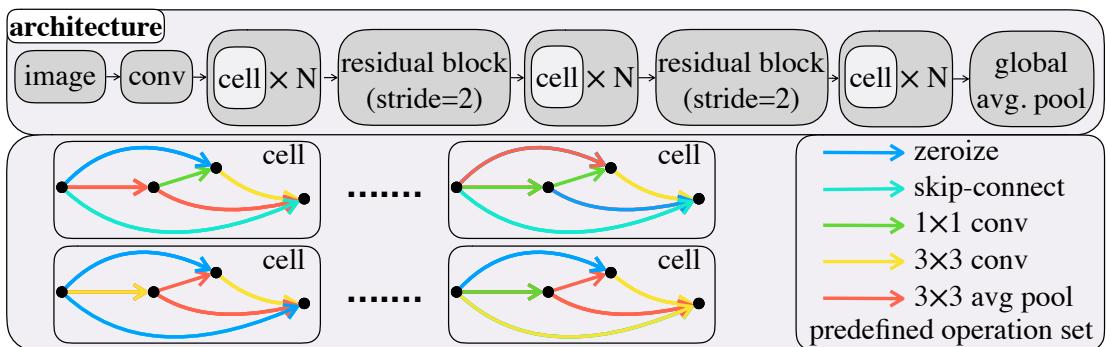

Figure 1: The macro skeleton (top) shows how cells are stacked to form the network. The search space involves finding the best cell structure (bottom-left), where each edge uses an operation from a predefined set (bottom-right).

Figure 1: Top: Macro skeleton of each architecture candidate. Bottom-left: Example neural cell with four nodes. Each cell is a DAG, where each edge gets an operation from a predefined set (Bottom-right).

The searched cell (Figure 1, bottom) is a Directed Acyclic Graph (DAG) with four nodes. Importantly, NAS-Bench-201 places operations on edges, unlike some earlier benchmarks that put them on nodes. This better aligns with popular differentiable NAS methods like DARTS.

There are six possible directed edges in a four-node graph. Each edge can choose one of five operations:

  1. Zeroize: Remove the connection.
  2. Skip Connection: Identity mapping (like in ResNet).
  3. 1×1 Convolution
  4. 3×3 Convolution
  5. 3×3 Average Pooling

With 6 edges and 5 choices each, the total possible cell structures is:

\[ 5^6 = 15{,}625 \]

This search space is algorithm-agnostic — no hard constraints (like a maximum edge limit) that might block certain algorithms. The “Zeroize” operation adds flexibility, enabling sparse or dense connectivity.

2. The Datasets: Standardized for Fair Comparison

Every architecture has been trained on three image classification datasets:

  • CIFAR-10: 10 classes; 25k images for training, 25k for validation.
  • CIFAR-100: Same images but split into 100 fine-grained classes.
  • ImageNet-16-120: Down-sampled ImageNet to 16×16 pixels, with 120 classes — a computationally efficient but challenging dataset.

Crucially, the benchmark defines fixed training, validation, and test splits. This ensures every NAS algorithm uses identical data in each phase, eliminating a major source of bias.

3. The Performance Data: A Giant Lookup Table

The heart of NAS-Bench-201 is exhaustive training of all 15,625 architectures — multiple runs per architecture, across all three datasets.

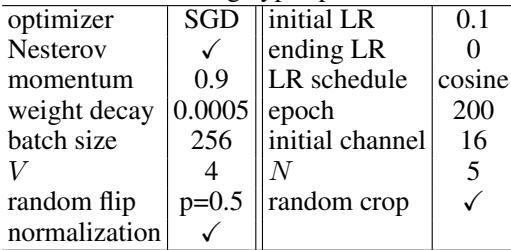

Table 1: The standardized set of hyperparameters used to train every architecture in the benchmark.

Table 1: Standardized training hyperparameters ensure comparability between architectures.

A single fixed hyperparameter set was used, including a cosine learning rate schedule over 200 epochs. When you query an architecture’s performance, you’re truly comparing apples to apples.

The benchmark’s API exposes a rich collection of metrics.

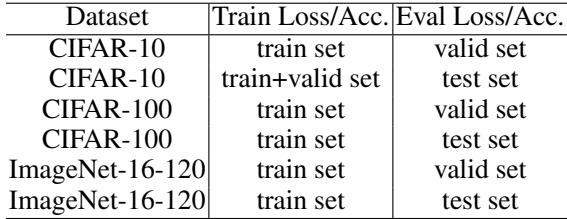

Table 2: Researchers can instantly query a model’s train/validation/test performance for any dataset.

Table 2: Supported metrics for instant lookup, covering train, validation, and test sets across datasets.

Researchers can run their NAS algorithm and, for any proposed architecture, instantly retrieve its final trained accuracy — reducing evaluation from days to milliseconds.

4. Diagnostic Information: Beyond Final Accuracy

NAS-Bench-201 also supplies additional data:

  • Computational Costs: Parameters, FLOPs, and real-world GPU latency.
  • Per-Epoch Training Metrics: Loss and accuracy for every epoch — useful for studying convergence, stability, and overfitting.
  • Saved Model Weights: Trained parameters for all architectures, enabling research into parameter transfer and improved sharing strategies.

How NAS-Bench-201 Improves on NAS-Bench-101

NAS-Bench-201 builds directly upon NAS-Bench-101’s success but removes key obstacles.

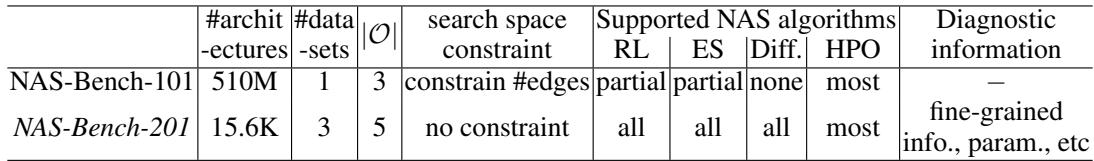

Table 3: Side-by-side comparison of NAS-Bench-101 and NAS-Bench-201.

Table 3: Compared to NAS-Bench-101, NAS-Bench-201 supports more NAS algorithms, more datasets, and richer diagnostic data.

NAS-Bench-101 limited architectures via a max-edge constraint, which excluded many modern approaches, especially with parameter sharing. NAS-Bench-201 removes this barrier, supports three datasets, and offers far more analysis potential.

Analyzing the Search Space: Insights from 15,625 Architectures

With exhaustive performance data, the authors draw key conclusions.

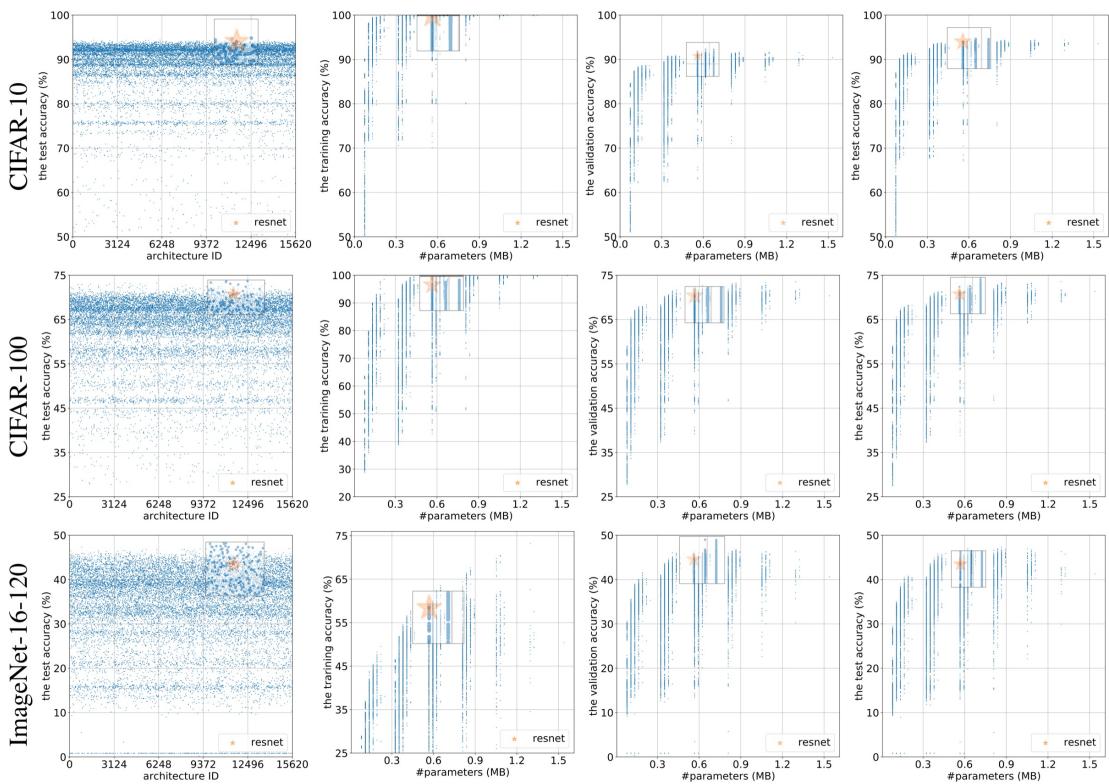

Figure 2: Accuracy vs parameter counts for all models. Topology matters as much as size.

Figure 2: Training, validation, and test accuracy vs. parameters for each architecture. Orange star marks ResNet.

  1. More parameters generally mean higher accuracy.
  2. Wide vertical spread at fixed parameter counts shows topology matters enormously.
  3. Standard ResNet performs well, but many NAS-discovered architectures surpass it.

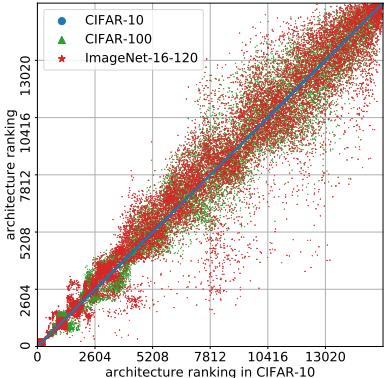

Figure 3: Correlation of rankings across datasets.

Figure 3: Architecture rankings in CIFAR-10 (x-axis) vs. CIFAR-100/ImageNet-16-120 (y-axis). Tight correlation bands show strong transferability.

Well-performing architectures on CIFAR-10 often succeed on other datasets.

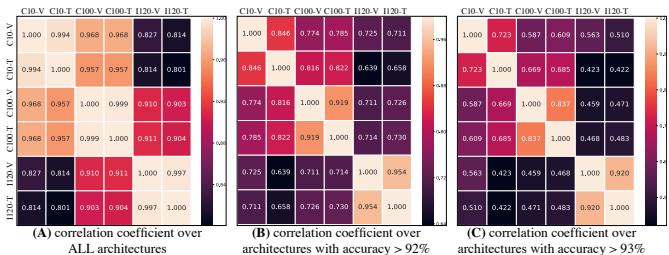

Figure 4: Correlation heatmaps within and across datasets.

Figure 4: Strong validation→test correlation within datasets; weaker across datasets.

However, transfer isn’t perfect — emphasizing the need for transfer-aware NAS.

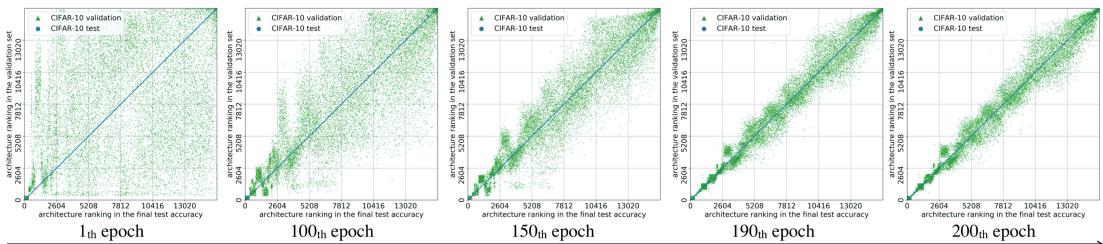

Figure 5: Architecture ranking stability over epochs.

Figure 5: Rankings stabilize over training.

Early rankings are unstable, but later epochs yield reliable indicators — guiding early-stopping strategies.

Benchmarking NAS Algorithms

The authors tested 10 recent NAS algorithms — from random search to differentiable methods.

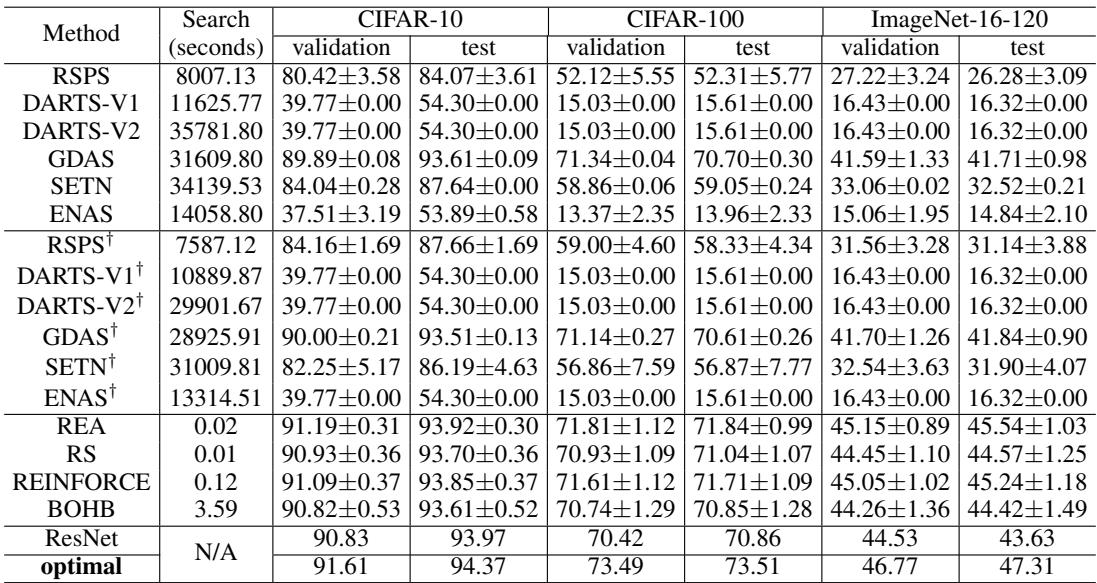

Table 5: Performance and search times for 10 NAS algorithms.

Table 5: Search time for non-parameter-sharing methods drops to seconds using NAS-Bench-201.

Key insights:

  • Without parameter sharing, search drops from days to seconds.
  • Simpler methods like REA, RS, and REINFORCE often outperform complex differentiable NAS in this search space.
  • Differentiable methods (e.g., DARTS) can collapse into degenerate architectures like all skip-connections.

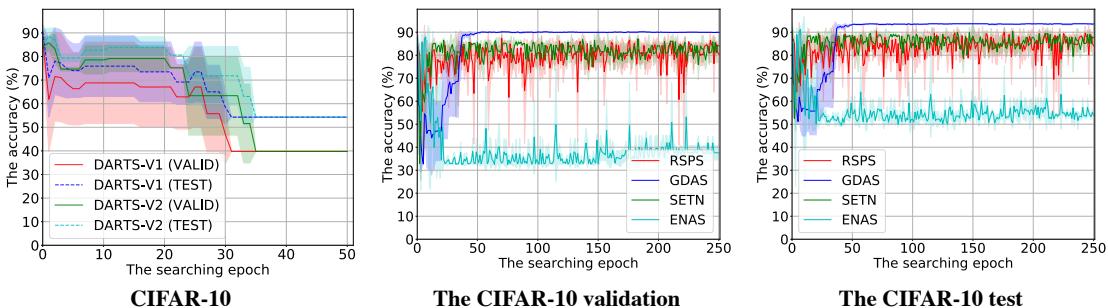

Figure 7: Instability in differentiable NAS (BN running estimates).

Figure 7: BN layers with running estimates cause instability; DARTS quickly degenerates.

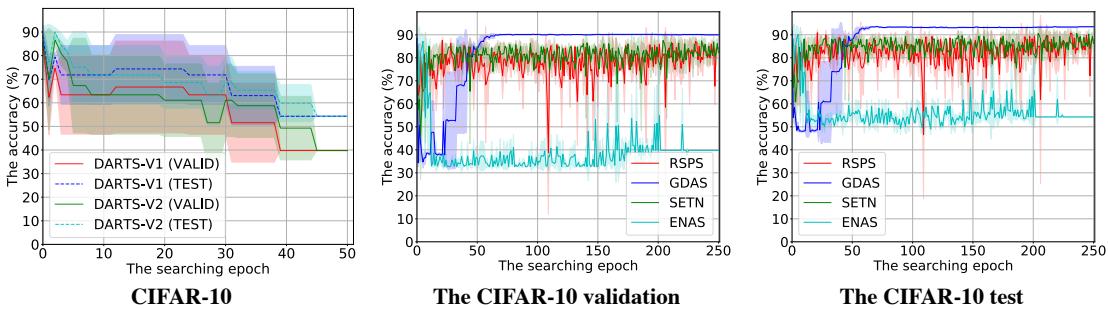

Figure 8: Stability improves with BN batch statistics.

Figure 8: Using batch statistics improves stability in some methods.

BN handling dramatically affects differentiable NAS performance.

Conclusion: A More Principled Path for NAS

NAS-Bench-201 is a milestone for NAS research:

Reproducibility: Fixed search space & standardized protocol solve the comparability crisis.
Efficiency: Pre-computation slashes evaluation time, enabling broader participation.
Insight: Rich data enables deeper understanding of NAS behavior, transferability, and algorithm dynamics.

Limitations: All architectures use the same hyperparameters, though individual architectures may benefit from specialized training. The search space, while large, is still finite.

Despite these, NAS-Bench-201 empowers the community to focus on science over hype, fostering fair, reproducible, and resource-efficient progress in NAS.

It’s not just a dataset — it’s truly a fair playground where the best ideas can shine.
