Cracking the Code of One-Shot NAS: A Deep Dive into the NAS-Bench-1Shot1 Benchmark

Introduction: The Promise and Peril of Automated AI

Neural Architecture Search (NAS) is one of the most exciting frontiers in machine learning. Imagine an algorithm that can automatically design the perfect neural network for your specific task, potentially outperforming architectures crafted by world-class human experts. This is the promise of NAS.

Early successes proved that NAS could discover state-of-the-art models for image classification and other tasks — but at a staggering cost. The search often required thousands of GPU-days of computation, making it a luxury only accessible to a few large tech companies.

To democratize NAS, researchers developed a clever solution: one-shot NAS. Instead of training thousands of individual architectures from scratch, you train a single massive supermodel that contains every possible architecture in the search space, all sharing weights. The search process then becomes a matter of efficiently finding the best path through this pretrained supermodel. This innovation reduced the cost of NAS from months to days — or even hours — leading to a Cambrian explosion of new methods.

However, with rapid progress came new problems. One-shot methods are complex, sensitive to hyperparameters, and often hard to reproduce. When a new paper claims state-of-the-art results, how do we know the improvement is due to a genuinely better search algorithm, as opposed to a different search space, lucky hyperparameter choice, or quirks in the training pipeline? Comparing these methods fairly has become a major challenge.

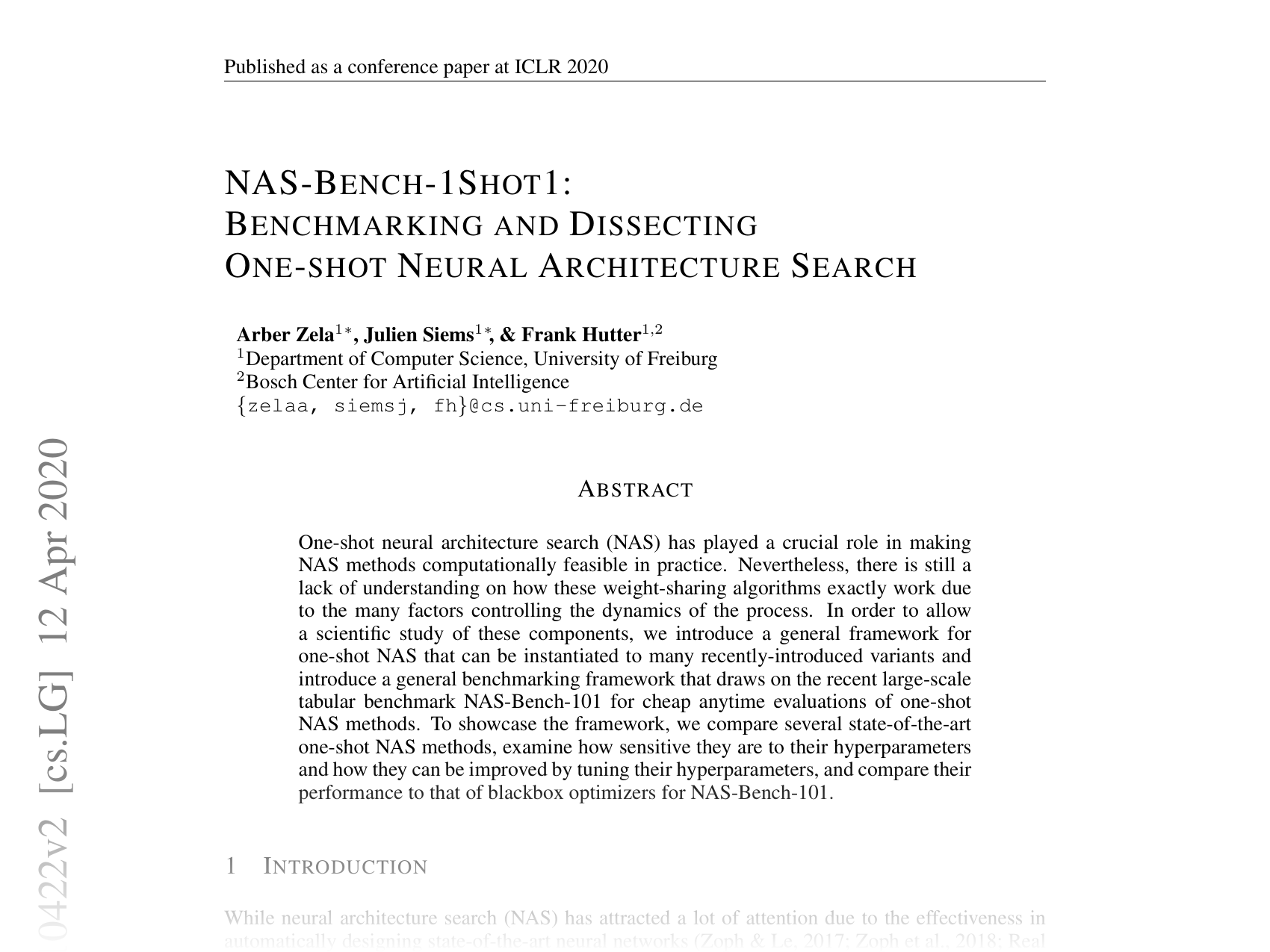

This is where “NAS-Bench-1Shot1: Benchmarking and Dissecting One-shot Neural Architecture Search” comes in. The researchers introduce a groundbreaking framework that enables cheap, fair, reproducible benchmarking of one-shot NAS methods by ingeniously bridging the gap between one-shot NAS and the widely-used tabular benchmark NAS-Bench-101. This opens the door to a deeper, more scientific understanding of how these powerful algorithms truly work.

Background: The Tools of the Trade

Before we dive into NAS-Bench-1Shot1, we need to understand two core ingredients: NAS-Bench-101 and the one-shot paradigm.

NAS-Bench-101: A Look-Up Table for Neural Networks

Imagine having an encyclopedia that records the final performance of every possible neural network within a specific constrained search space. Testing a new NAS algorithm wouldn’t require weeks of training models — you’d simply propose an architecture and instantly look up its true, final accuracy.

That’s NAS-Bench-101. Created by Google researchers, it’s a dataset containing 423,624 unique architectures, each fully trained and evaluated on the CIFAR-10 dataset multiple times. Generating the dataset consumed months of TPU time, but the result is a priceless resource. It allows researchers to run NAS experiments on a laptop, compare methods fairly, and remove confounding factors like differences in training pipelines.

The catch? NAS-Bench-101 was designed for discrete NAS algorithms — methods that propose one complete architecture at a time. It was widely thought unsuitable for one-shot methods, which operate in a continuous, weight-sharing supermodel.

The One-Shot Paradigm: Training All Models at Once

The central idea behind one-shot NAS is weight sharing. Every potential architecture is viewed as a subgraph within a larger, encompassing graph — the one-shot model or supergraph.

For example, a given node in the graph may choose between:

• 3×3 convolution
• 1×1 convolution
• 3×3 max-pooling

In a one-shot model, all operations are present, and their outputs are combined in a weighted sum. The search algorithm learns the optimal weights, effectively carving out the best-performing subgraph. Since subgraphs share underlying weights, training one implicitly updates parts of many others. This makes one-shot NAS far more efficient than training each architecture separately.

The challenge is that the architecture representation during search (continuous weights over operations and connections) differs fundamentally from the discrete architecture evaluated after search. This mismatch made discrete benchmarks like NAS-Bench-101 seemingly incompatible — until now.

The Core Method: Bridging the Gap with NAS-Bench-1Shot1

The key contribution of NAS-Bench-1Shot1 is a new approach enabling one-shot NAS algorithms to use NAS-Bench-101 data for evaluation.

The central idea? Build a one-shot search space in which every possible discretized architecture exists in NAS-Bench-101. This ensures the efficiency of one-shot search while allowing the researcher to query the pre-computed, ground-truth performance of discovered architectures.

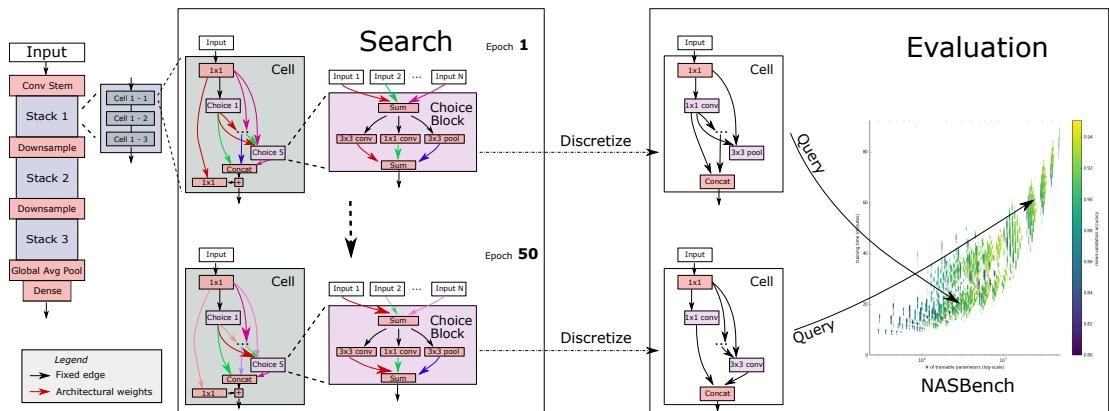

Figure 1: NAS-Bench-1Shot1 links the one-shot search process with cheap, exact evaluation by ensuring all discoverable architectures are part of NAS-Bench-101.

Designing a Compatible Search Space

The authors carefully mirror NAS-Bench-101’s representation:

1. Macro-Architecture
   The overall network structure matches NAS-Bench-101 — stacked “cells” separated by pooling layers.

2. Cell-Level Topology
   Each cell is a directed acyclic graph (DAG) using a choice block motif. Each choice block contains all operations from NAS-Bench-101 (3×3 conv, 1×1 conv, 3×3 max-pool).
   The search involves learning three architectural weight types:

   • \(\alpha^{i,j}\): Edge weights from previous node \(i\) to choice block \(j\), controlling connectivity.
   • \(\beta^{o}\): Weights on operations inside a choice block, controlling operation selection.
   • \(\gamma^{j,k}\): Edge weights from choice block \(j\) to the cell output \(k\).

The output of a choice block \(j\) is a weighted sum over all operations, normalized via softmax — the Mixed Operation used in DARTS:

Weighted combination of operations inside a choice block. The highest-weighted operation is retained after search.

Defining the Search Spaces

By restricting incoming edges per node to match NAS-Bench-101’s total edge count, the authors created three search spaces of increasing size:

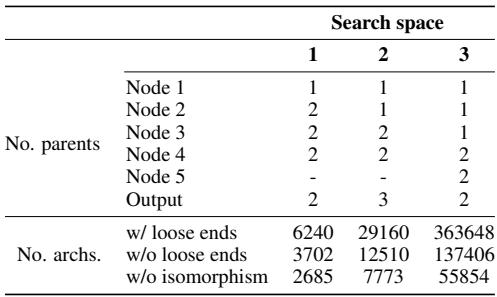

Table 1: Characteristics of the three NAS-Bench-1Shot1 search spaces. Search Space 3 is the largest, with 360k+ architectures.

These varying sizes allow testing algorithm scalability and robustness.

The “Free” Evaluation Procedure

Evaluation now becomes simple:

1. Run the Search — train any one-shot NAS method (DARTS, GDAS, etc.) on one of the search spaces.
2. Discretize the Architecture — for each choice block, select the top \(\beta\) operation; for each node, pick the top \(\alpha\) edges.
3. Query NAS-Bench-101 — since every architecture is in NAS-Bench-101, instantly retrieve its test accuracy, validation accuracy, and training time.

This lets researchers track the true performance trajectory of a one-shot search without retraining from scratch.

Key Experiments and Insights

Using NAS-Bench-1Shot1, the authors performed a systematic comparison and analysis of popular one-shot NAS methods.

A Fair Fight: Comparing Popular Methods

Five prominent methods were reimplemented in a unified codebase: DARTS, GDAS, PC-DARTS, ENAS, and Random Search with Weight Sharing (Random WS).

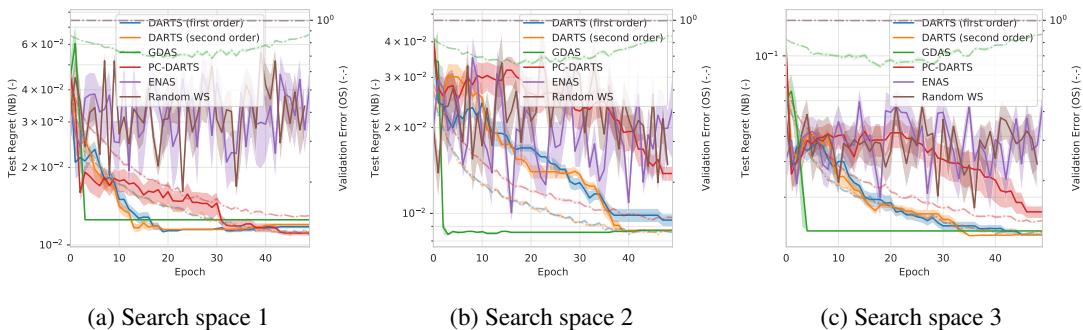

Figure 2: Solid lines = true test performance via NAS-Bench-101; dashed lines = one-shot model validation error.

Observations:

• Performance ranking varies by search space. PC-DARTS dominates Space 1, while GDAS leads in Spaces 2 & 3.
• One-shot validation error is a deceptive proxy. For PC-DARTS, validation error drops smoothly while true test performance worsens before recovering.
• ENAS & Random WS lag. Poor performance across all spaces hints at a deeper issue.

The Correlation Crisis

ENAS and Random WS assume that one-shot model performance predicts final standalone performance. The authors tested this by computing Spearman correlation between one-shot validation error and NAS-Bench-101 test error for thousands of architectures.

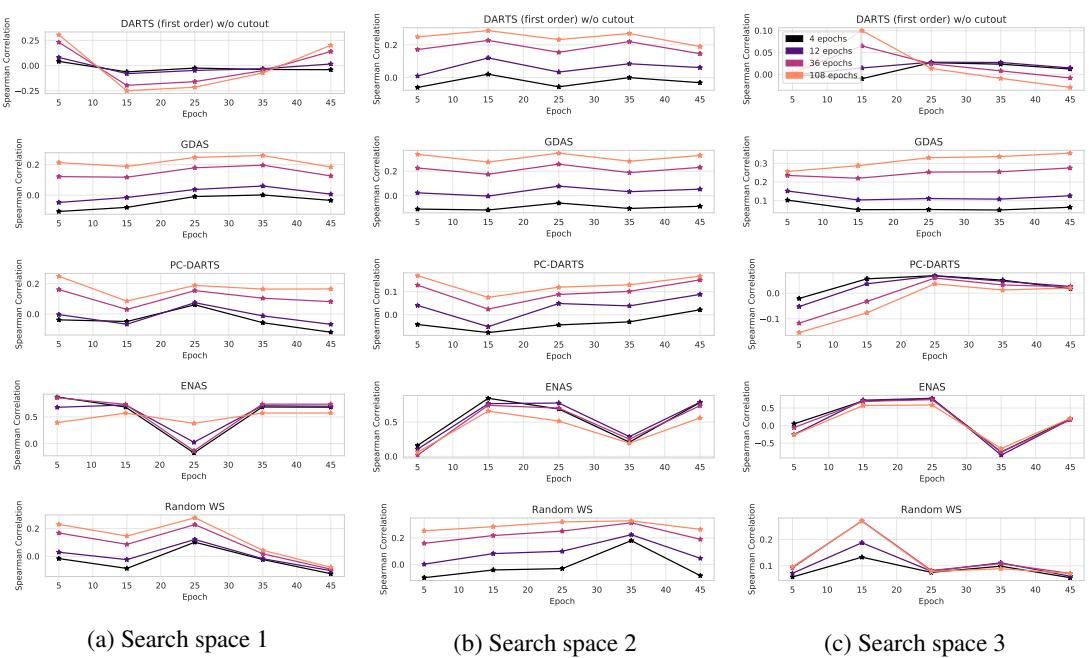

Figure 3: Weak or near-zero correlation for most methods — a critical flaw in assumptions.

Key finding: correlations hover near zero (between -0.25 and 0.3), meaning the one-shot model’s ranking of architectures is almost random. This explains ENAS and Random WS failures — they select final architectures based on noisy signals.

Brittleness Under Hyperparameter Changes

One-shot methods are sensitive to hyperparameters. The authors studied the effect of weight decay (\(L_2\) regularization):

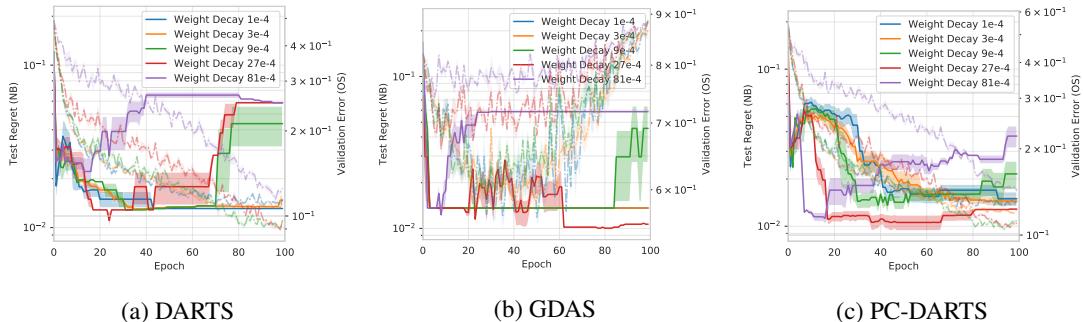

Figure 4: The “best” weight decay varies by method; a poor choice can cause architectural overfitting.

Insights:

• Certain settings cause architectural overfitting — one-shot validation improves while true test accuracy worsens.
• Optimal values differ sharply between methods — no universal best setting.

Tuning the Search Process with BOHB

Thanks to NAS-Bench-1Shot1’s instant evaluations, the authors used BOHB (Bayesian Optimization + Hyperband) to tune NAS hyperparameters for DARTS, GDAS, and PC-DARTS.

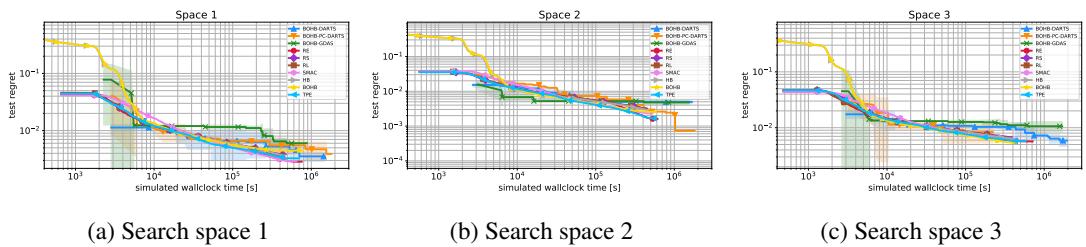

Figure 5: BOHB-tuned one-shot methods often beat strong discrete NAS optimizers.

Results:

• Tuned methods (BOHB-DARTS, BOHB-GDAS, BOHB-PC-DARTS) vastly outperform defaults.
• Tuned one-shot methods can beat top discrete NAS optimizers in the same search spaces.
• Shows that method performance hinges heavily on hyperparameter optimization.

Conclusion and Future Implications

NAS-Bench-1Shot1 is more than a benchmark — it’s a microscope for examining one-shot NAS.

Key takeaways:

1. One-shot performance is a poor proxy for final performance. Relying on it for final selection is risky.
2. One-shot methods are brittle. Hyperparameter sensitivity and architectural overfitting are significant issues.
3. Proper tuning unlocks full potential. With the right settings, one-shot NAS can outperform the best discrete NAS methods.

By mapping one-shot search spaces directly into NAS-Bench-101, the authors have enabled deep, reproducible analysis without massive computational costs. This framework empowers the community to dissect algorithms, debug ideas, and understand when weight sharing works — and when it fails.

With their open-source release, the authors invite researchers everywhere to join in refining and extending one-shot NAS toward robust, truly automated machine learning.
