Have you ever zoomed in on a photo only to find a blurry, pixelated mess? The quest to transform that low-resolution (LR) image into a sharp, high-resolution (HR) masterpiece is the central challenge of Single Image Super-Resolution (SISR). This technology has wide-reaching applications—from enhancing medical scans for better diagnoses to clarifying surveillance footage for security purposes.

For years, deep learning models have led the way in SISR, learning to map LR images to HR outputs. A major breakthrough came with the introduction of Non-Local Attention (NLA). The idea was deceptively simple: to reconstruct a patch of an image (for example, a brick in a wall), a model could look for visually similar bricks elsewhere in the image and borrow their detail. This allowed models to leverage an image’s internal correlations and textures globally, far beyond their local receptive fields.

However, NLA has two major weaknesses:

  1. Quadratic computational complexity: Comparing every pixel to every other pixel grows costly very quickly as image size increases.
  2. Noise aggregation: NLA assigns weight to all pixels—including irrelevant ones—which can introduce artifacts and reduce reconstruction quality.

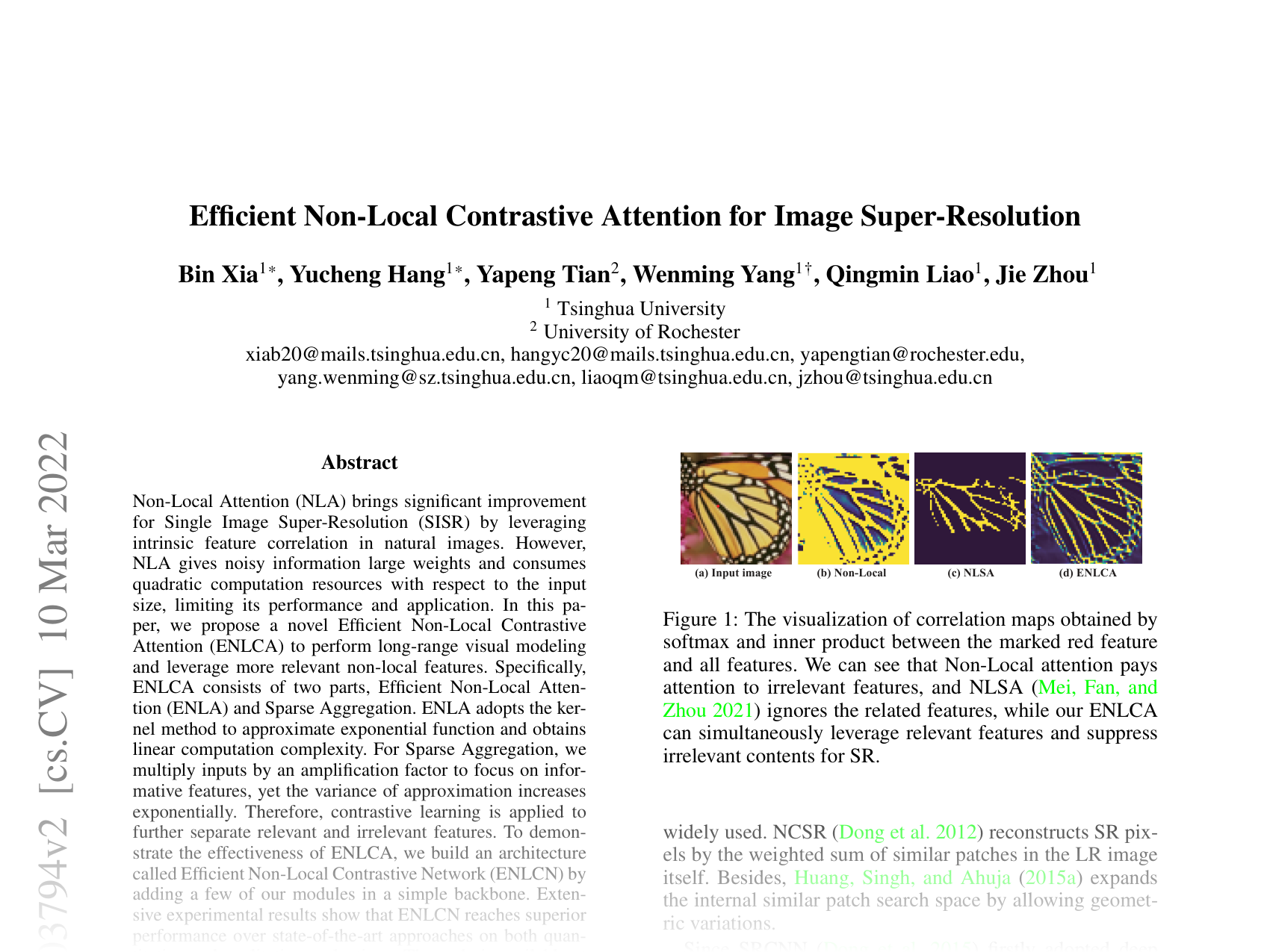

This is where the 2022 paper “Efficient Non-Local Contrastive Attention for Image Super-Resolution” offers a game-changing approach. The authors present Efficient Non-Local Contrastive Attention (ENLCA), a method that is both fast and precise, tackling NLA’s efficiency and noise problems head-on.

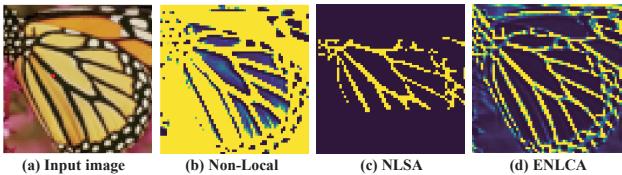

The visualization of correlation maps for different attention mechanisms on a butterfly wing. Non-Local attention is diffuse, NLSA misses some features, while ENLCA focuses on the relevant vein patterns.

Figure 1: Standard NLA (b) spreads its focus across irrelevant areas. NLSA (c) is more selective but misses important patterns. ENLCA (d) accurately locks onto the key vein structures in the butterfly’s wing.

In this article, we’ll break down ENLCA’s core components—how it achieves linear complexity, how it enforces sparse attention, and how it uses contrastive learning to further sharpen focus.

Background: Power and Pitfalls of Non-Local Attention

Think of restoring a painting. To fix a patch of faded blue sky, you wouldn’t just look at the pixels next to it—you’d find other areas of blue sky in the artwork for reference.

NLA works the same way. For each pixel or feature location \(i\) (Query), it compares against every other location \(j\) (Keys), calculating similarity scores. These scores determine weights that are used to form a weighted sum of all features (Values), allowing the model to integrate information from across the entire image.

Formally:

\[ \boldsymbol{Y}_i = \sum_{j=1}^{N} \frac{\exp\left( \boldsymbol{Q}_i^{T} \boldsymbol{K}_j \right)}{\sum_{\hat{j}=1}^{N} \exp\left( \boldsymbol{Q}_i^{T} \boldsymbol{K}_{\hat{j}}\right)} \boldsymbol{V}_j \]

Where:

\[ \boldsymbol{Q} = \theta(\boldsymbol{X}), \quad \boldsymbol{K} = \delta(\boldsymbol{X}), \quad \boldsymbol{V} = \psi(\boldsymbol{X}) \]

Why NLA Struggles

  1. Quadratic Complexity: Building an \(N \times N\) similarity matrix means cost explodes as \(N\) grows. Doubling image width and height quadruples \(N\), increasing cost by 16×.
  2. Noise Aggregation: The softmax assigns non-zero weights to all features—even irrelevant ones—bringing unwanted noise into the reconstruction.

Previous work like Non-Local Sparse Attention (NLSA) used hashing to reduce cost, but this risks missing crucial correlations. ENLCA was designed to solve both limitations.

ENLCA in Two Acts

ENLCA’s design has two key stages:

  1. Efficient Non-Local Attention (ENLA) to reduce complexity.
  2. Sparse Aggregation with contrastive learning to filter noise.

Part 1: Efficient Non-Local Attention (ENLA)

ENLA addresses the quadratic complexity problem. Standard NLA requires forming the huge \(N \times N\) matrix of \( \exp(\boldsymbol{Q}^T \boldsymbol{K})\). ENLA instead approximates this term using kernel methods—specifically, random Fourier feature approximations of the exponential kernel.

The key result:

\[ K(\boldsymbol{Q}_i, \boldsymbol{K}_j) = \exp\left( \boldsymbol{Q}_i^{T} \boldsymbol{K}_j \right) \approx \phi(\boldsymbol{Q}_i)^{T} \phi(\boldsymbol{K}_j) \]

Here, \(\phi(\cdot)\) uses a Gaussian random projection to transform features into a new space, allowing the computation order to be rearranged thanks to the associative property of matrix multiplication. This means we avoid ever explicitly computing the full \(N \times N\) attention matrix.

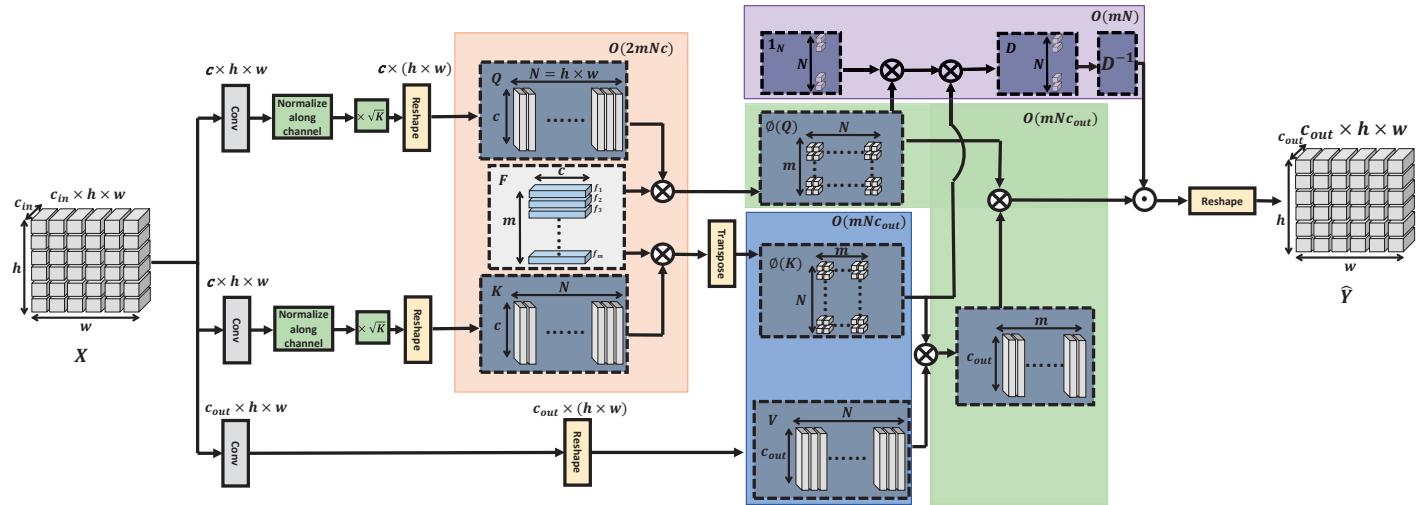

The architecture of the Efficient Non-Local Attention (ENLA) module.

Figure 2: ENLA architecture. By computing \(\phi(K)V\) first and then multiplying by \(\phi(Q)\), the quadratic bottleneck is removed, bringing cost down to linear in \(N\).

The approximated attention output:

\[ \hat{Y} = D^{-1} \left( \phi(Q)^{\top} \left( \phi(K) V^{\top} \right) \right) \]

\[ \boldsymbol{D} = \operatorname{diag}\left[ \phi(\boldsymbol{Q})^{\top} \left( \phi(\boldsymbol{K}) \boldsymbol{1}_N \right) \right] \]

With ENLA, computation drops from \(O(N^2)\) to \(O(N)\), enabling global attention on much larger images.

Part 2: Sparse Aggregation + Contrastive Learning

Even efficient attention can still aggregate irrelevant features. ENLCA enforces sparsity using two steps:

Step 1: Amplification Factor \(k\)

Scale the vectors:

\[ \boldsymbol{Q} = \sqrt{k} \frac{\theta(\boldsymbol{X})}{\|\theta(\boldsymbol{X})\|}, \quad \boldsymbol{K} = \sqrt{k} \frac{\delta(\boldsymbol{X})}{\|\delta(\boldsymbol{X})\|} \]

This boosts similarities between truly related features and suppresses weaker, irrelevant ones—driving the attention weights toward a sparse distribution.

However, increasing \(k\) also increases the variance of the kernel approximation exponentially:

\[ \operatorname{Var}\left(\phi(\boldsymbol{Q}_i)^{T}\phi(\boldsymbol{K}_j)\right) = \frac{1}{m}K^2(\boldsymbol{Q}_i, \boldsymbol{K}_j) \left( \exp(\|\boldsymbol{Q}_i + \boldsymbol{K}_j\|^{2}) - 1 \right) \]

So while \(k\) helps, too large a value destabilizes the approximation.

Step 2: Contrastive Learning

To better distinguish relevant from irrelevant features without pushing \(k\) too high, ENLCA integrates contrastive learning.

For each query \(Q_i\):

  1. Compute normalized dot-product similarity with all keys \(K_j\):
    \[ T_{i,j} = k \frac{\boldsymbol{Q}_i^{\top}}{\|\boldsymbol{Q}_i\|} \frac{\boldsymbol{K}_j}{\|\boldsymbol{K}_j\|} \]
  2. Sort similarities descending:
    \[ T'_i = \operatorname{sort}(T_i, \text{Descending}) \]
  3. Treat the top \(n_1\%\) as positives (relevant) and a slice from \(n_2\%\) as negatives (irrelevant).
  4. Apply a custom contrastive loss to pull positives closer and push negatives further apart.

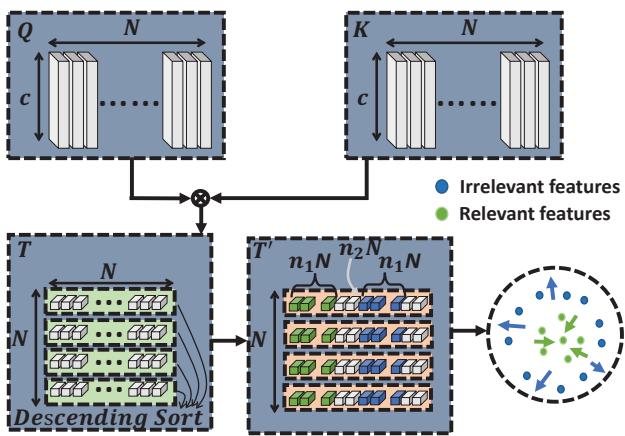

The contrastive learning scheme.

Figure 4: Green = relevant features (positives), blue = irrelevant features (negatives). Contrastive loss increases separation in feature space, aiding sparsity.

Final loss:

\[ \mathcal{L} = \mathcal{L}_{rec} + \lambda_{cl} \mathcal{L}_{cl} \]

ENLCN: Putting It Together

The authors embedded five ENLCA modules into a standard EDSR backbone (32 residual blocks), forming the Efficient Non-Local Contrastive Network (ENLCN).

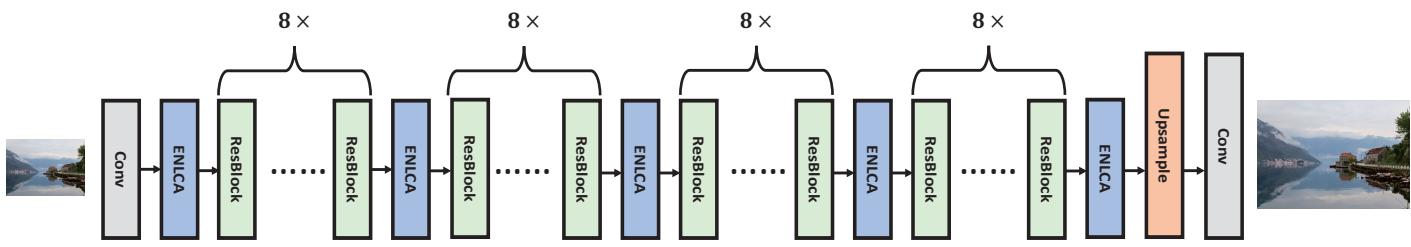

ENLCN network architecture.

Figure 3: ENLCN inserts ENLCA modules after every eight residual blocks in the EDSR network.

Results: Efficiency Meets Accuracy

Quantitative Performance

Against 13 state-of-the-art algorithms, ENLCN dominates benchmarks at ×2 and ×4 upscales.

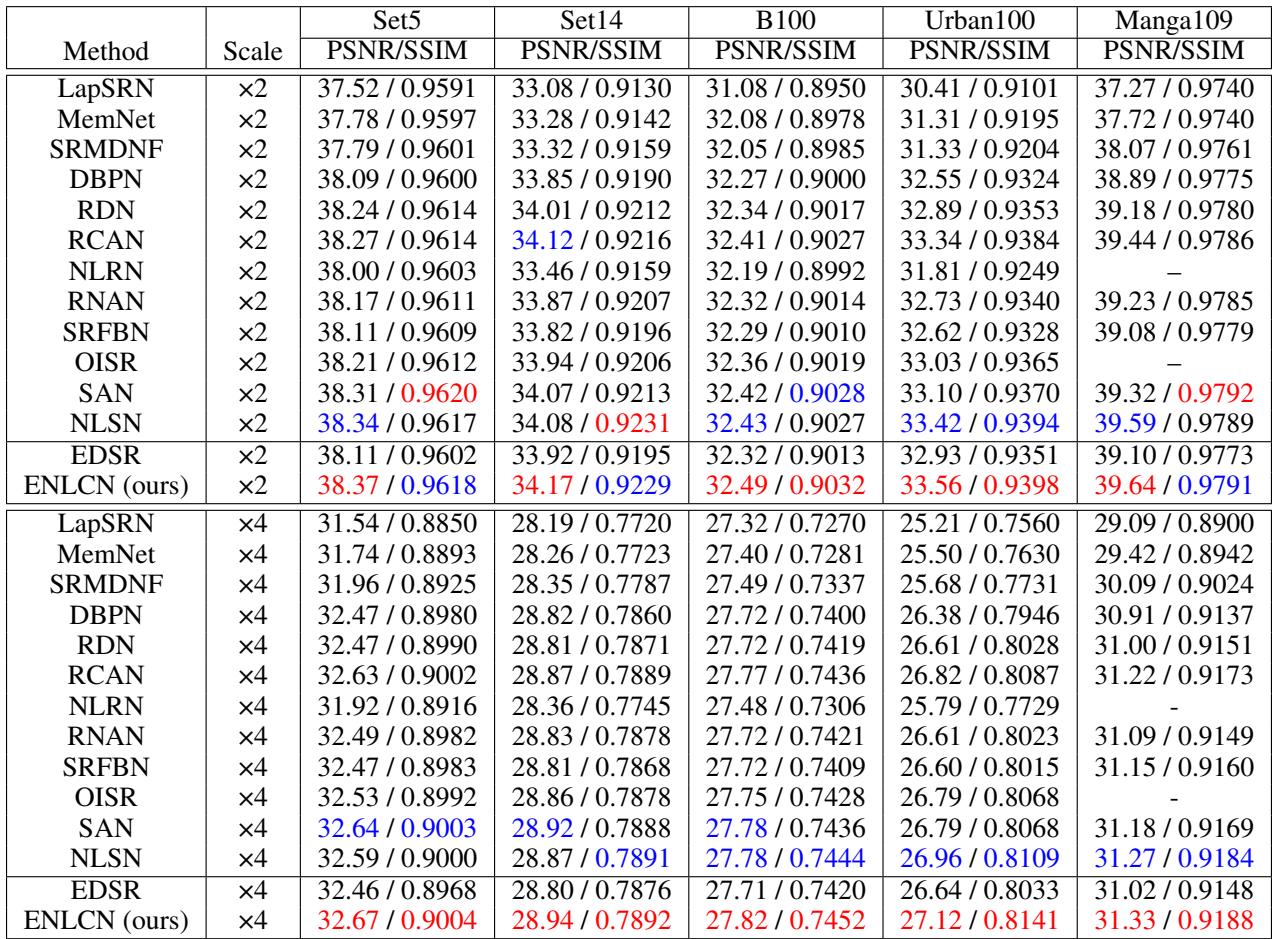

Table of quantitative results.

Table 1: ENLCN consistently delivers the best or second-best PSNR/SSIM across datasets.

Qualitative Performance

On Urban100, ENLCN produces sharper, more natural textures.

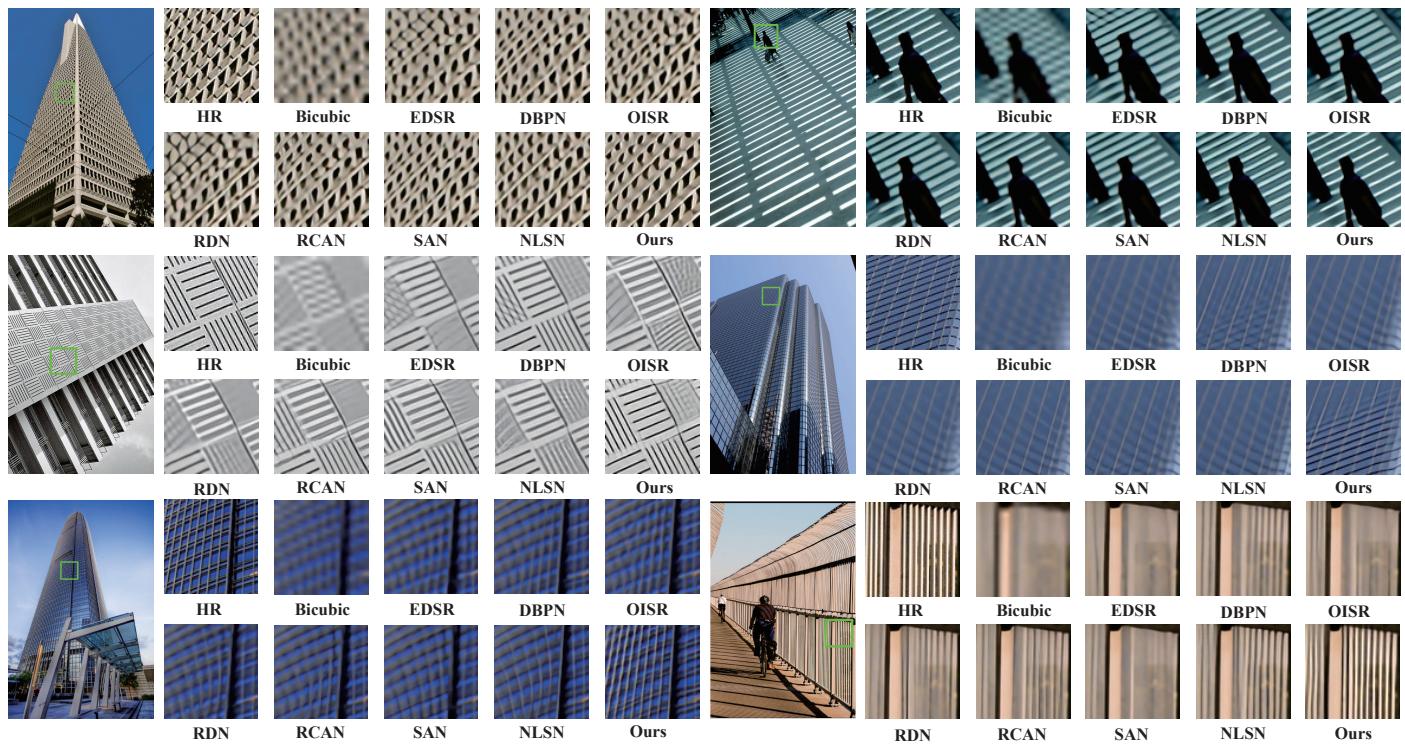

Visual comparison of SR results on building images from Urban100.

Figure 5: ENLCN better reconstructs fine structures like window grills and facades.

Ablation Insights

To verify each design choice, the authors ran targeted ablation studies.

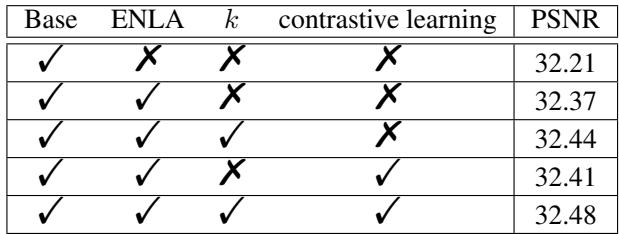

Ablation study table.

Table 2: Each component boosts performance; ENLA alone gives +0.16 dB, and full ENLCA reaches +0.27 dB over baseline.

Finding the Optimal \(k\)

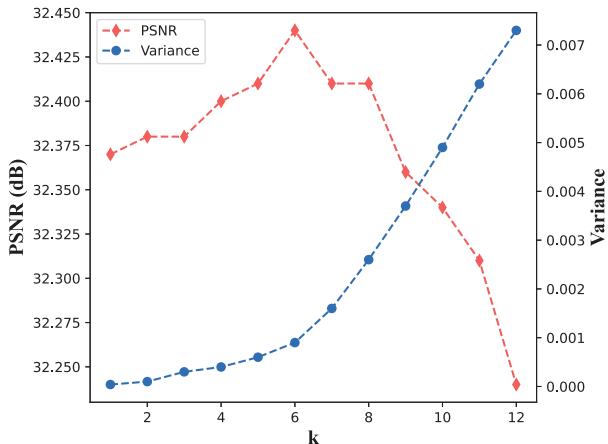

Amplification factor trade-off graph.

Figure 6: PSNR peaks at \(k=6\), where sparsity is strong but variance remains manageable.

Visualizing Sparse Aggregation

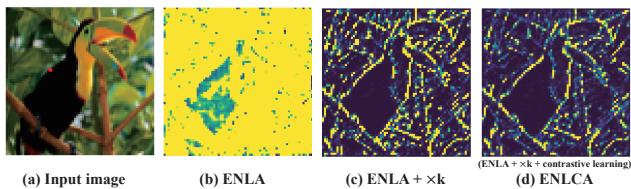

Attention map evolution with k and contrastive learning.

Figure 7: Amplification factor \(k\) sharpens focus; contrastive learning refines separation of relevant vs. irrelevant regions.

Efficiency Gains

ENLCA is not only more accurate—it’s vastly more efficient.

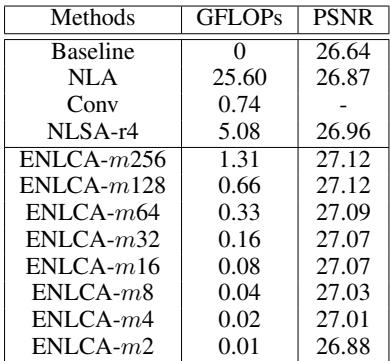

Efficiency table: GFLOPs vs PSNR.

Table 4: ENLCA-m128 delivers top accuracy at 0.66 GFLOPs—matching convolution cost while outperforming NLA and NLSA.

Conclusion: Sharper Vision, Smarter Focus

The Efficient Non-Local Contrastive Attention framework elegantly solves the dual problems of NLA: computational inefficiency and noisy aggregation. By combining:

  • Kernel-based approximation (linear complexity),
  • Sparse aggregation via amplification factor (focus),
  • Contrastive learning (refined separation),

ENLCA achieves state-of-the-art super-resolution with speed and precision.

Beyond SISR, ENLCA’s principles—efficient global attention and content-driven sparsity—could transform other domains like video analysis, medical imaging, and any task needing smart long-range feature modeling. Sometimes, the key to seeing the bigger picture is knowing exactly which pixels matter most.
