Rethinking Neural Network Design: A Deep Dive into Gradient Path Analysis

When designing deep neural networks, we usually focus on how data flows forward through the model. We stack layers, implement complex feature fusion mechanisms, and add attention modules to transform an input into the desired output. This traditional “data path” perspective has brought us powerful architectures like ResNet, DenseNet, and Transformers.

But what if this forward-focused view is only half the story? What if the key to building more efficient and more powerful networks is to examine how information flows backward?

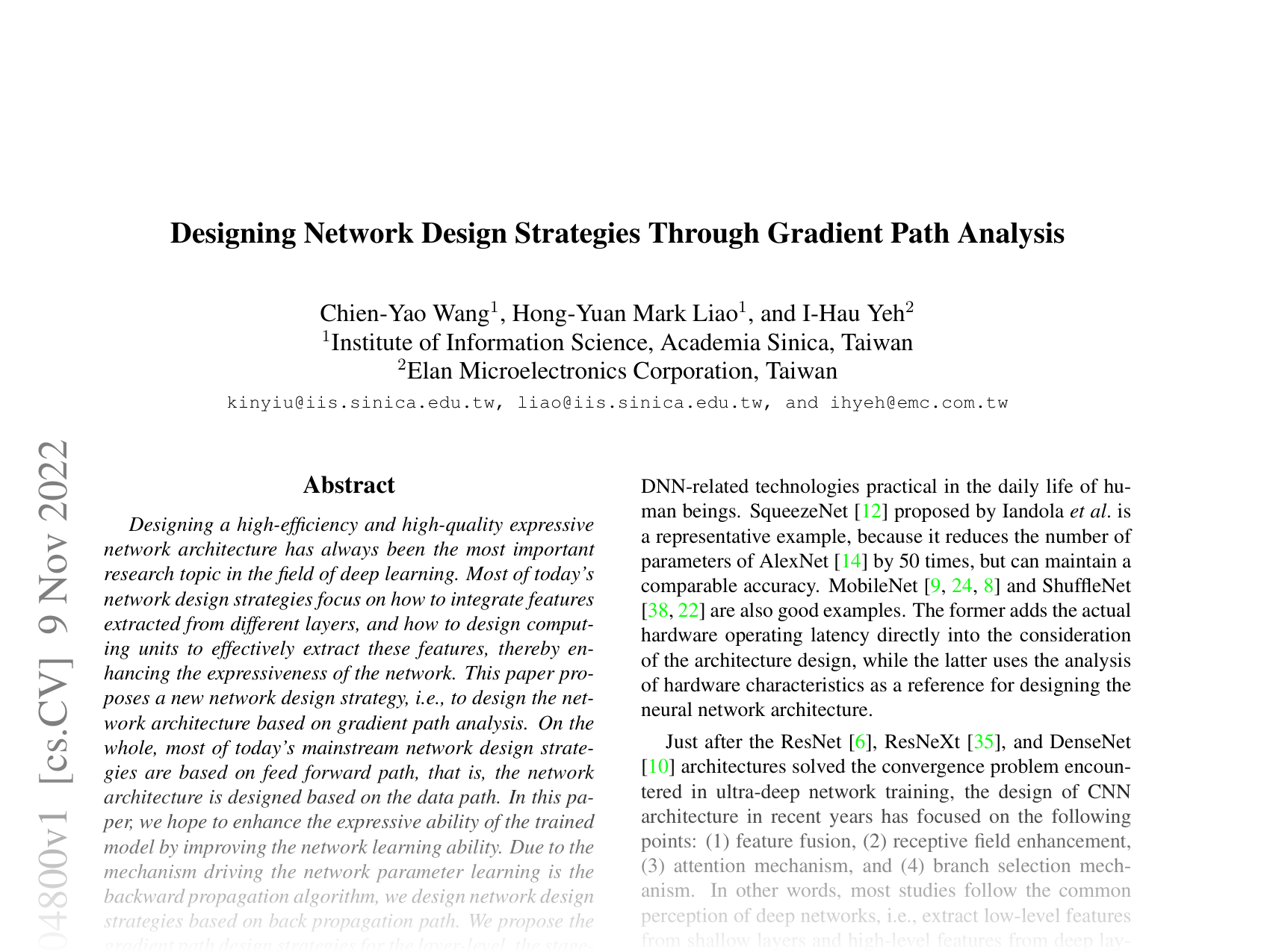

A recent research paper, Designing Network Design Strategies Through Gradient Path Analysis, proposes exactly this paradigm shift. The authors argue that because networks learn through backpropagation—sending error signals (gradients) backward from the output to update weights—we should design architectures that actively optimize how these gradients propagate. Instead of only focusing on the data path, they introduce a powerful new way to think about design: gradient path design.

In this post, we’ll break down their ideas. We’ll explore why the gradient path matters and walk through the three novel architectures introduced in the paper:

1. Partial Residual Network (PRN): A layer-level strategy to increase the variety of learning signals for each layer.
2. Cross Stage Partial Network (CSPNet): A stage-level strategy to make gradient flow more efficient while boosting inference speed.
3. Efficient Layer Aggregation Network (ELAN): A network-level strategy for scaling to extreme depths without losing learnability.

By the end, you’ll see networks not just as computational pipelines, but as optimized learning systems.

A Tale of Two Paths: Data vs. Gradients

The authors begin by challenging a common deep learning assumption: shallow layers learn “low-level” features like edges and textures, while deeper layers learn “high-level” concepts like objects and scenes. Prior work suggests that what a layer learns depends not just on its position in the network, but on the training objectives and gradient signals it receives.

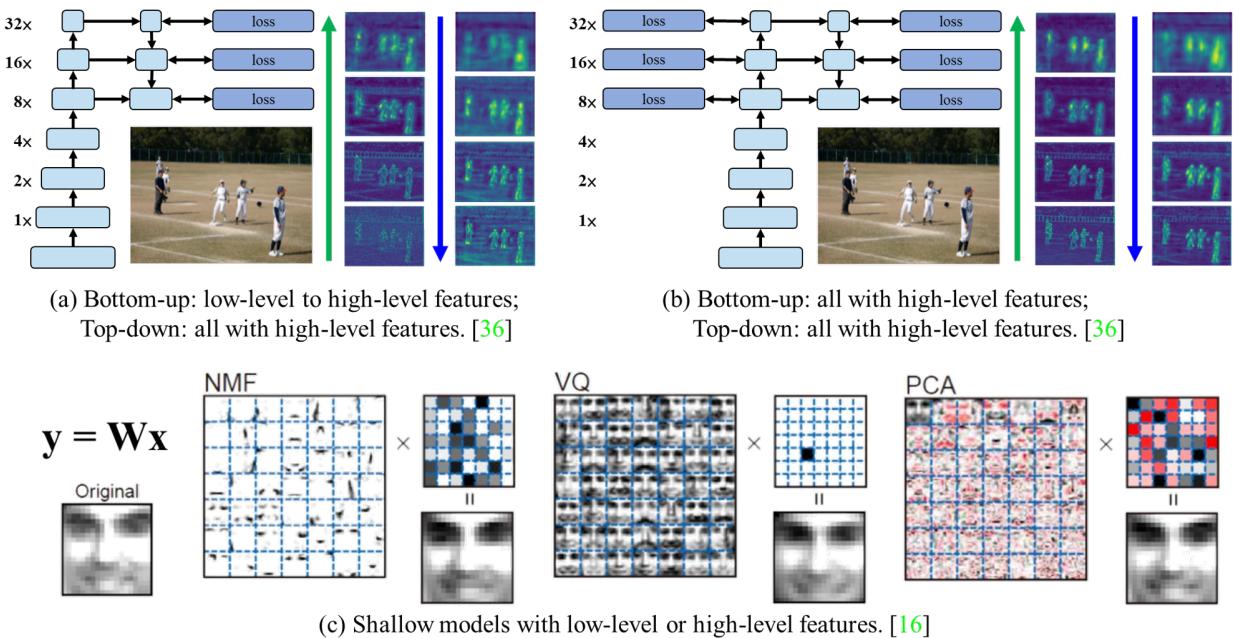

Figure 1: Both shallow and deep layers can learn high-level features if guided by the right objectives.

This leads them to draw a central distinction:

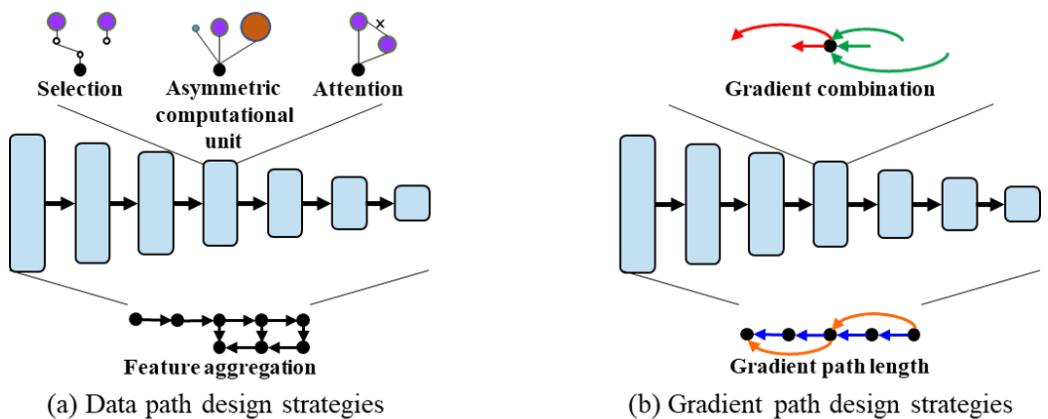

Figure 2: The two main network design strategies.

Data Path Design (Figure 2a) focuses on the forward pass, crafting modules for:

• Feature Extraction: e.g., asymmetric convolutions or multi-scale filters.
• Feature Selection: e.g., attention mechanisms or dynamic convolutions.
• Feature Fusion: e.g., combining feature maps from different layers as in Feature Pyramid Networks.

This approach is intuitive and effective, but can result in complex, resource-heavy models. Sometimes, more complexity can even hurt performance.

Gradient Path Design (Figure 2b) flips the focus to the backward pass. The goal is to ensure that during backpropagation:

• Gradients propagate efficiently to all parameters,
• Weights receive diverse learning signals, and
• Training remains stable, enabling high accuracy with smaller, faster models.

Level 1: Layer-Level Design – Partial Residual Networks (PRN)

The simplest way to apply gradient path thinking is to a single layer. The authors aim to maximize the variety of gradient signals—what they call gradient combinations—that reach each layer’s weights.

Two key components define a gradient combination:

1. Gradient Source: Which layer(s) the gradient originally came from.
2. Gradient Timestamp: How long it took (in layers) for the gradient to arrive. Shorter paths carry stronger signals from the loss.

To enrich these, the authors introduce the Partial Residual Network (PRN). A PRN starts with a ResNet block but modifies its skip connection with a mask.

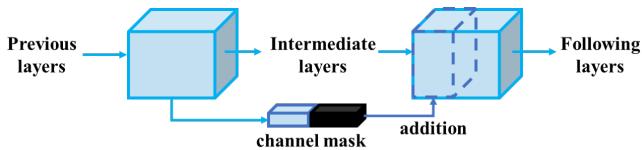

Figure 3: Masked residual layer — only some channels in the residual connection are passed through.

In a standard residual block, the block’s output is added to the entire input feature map. In PRN, only a subset of channels in the skip connection are added, while the rest are blocked.

This small change causes large differences in how gradients flow backward:

• Some channels receive gradients through the computational block (longer, transformed paths).
• Others receive them via the shortcut (shorter, direct paths).

The result: more diverse gradient sources and timestamps, making each layer’s parameters learn from richer information.

Level 2: Stage-Level Design – Cross Stage Partial Networks (CSPNet)

After proving the concept at the layer level, the authors scale it up to an entire stage (a group of layers). The result: Cross Stage Partial Networks (CSPNet).

CSPNet uses a “split and merge” trick to maximize gradient diversity while keeping computation low.

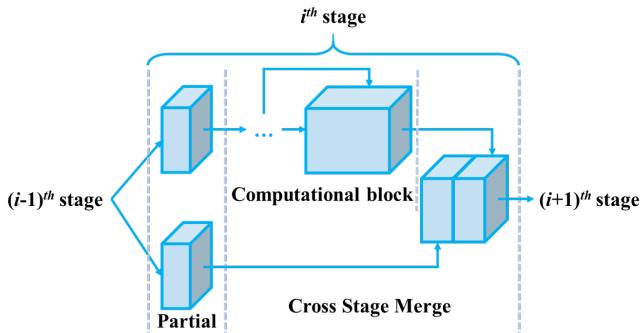

Figure 4: Cross Stage Partial (CSP) — splitting features to create different gradient flows.

The process:

1. Split the input feature map into two halves along the channel dimension.
2. Process one half through the stage’s main computational blocks (e.g., ResNet layers).
3. Bypass the other half directly to the stage output.
4. Merge the two halves at the end.

Why is this powerful?

• The bypass path gives fast, direct gradients, while the processed path gives transformed, delayed gradients.
• This significantly boosts the diversity of gradient combinations, improving learning ability.
• Computational savings: only half the channels go through heavy computations, reducing FLOPs, memory traffic, and parameters.

The authors also explore fusion strategies to merge the two streams and reduce redundant gradients.

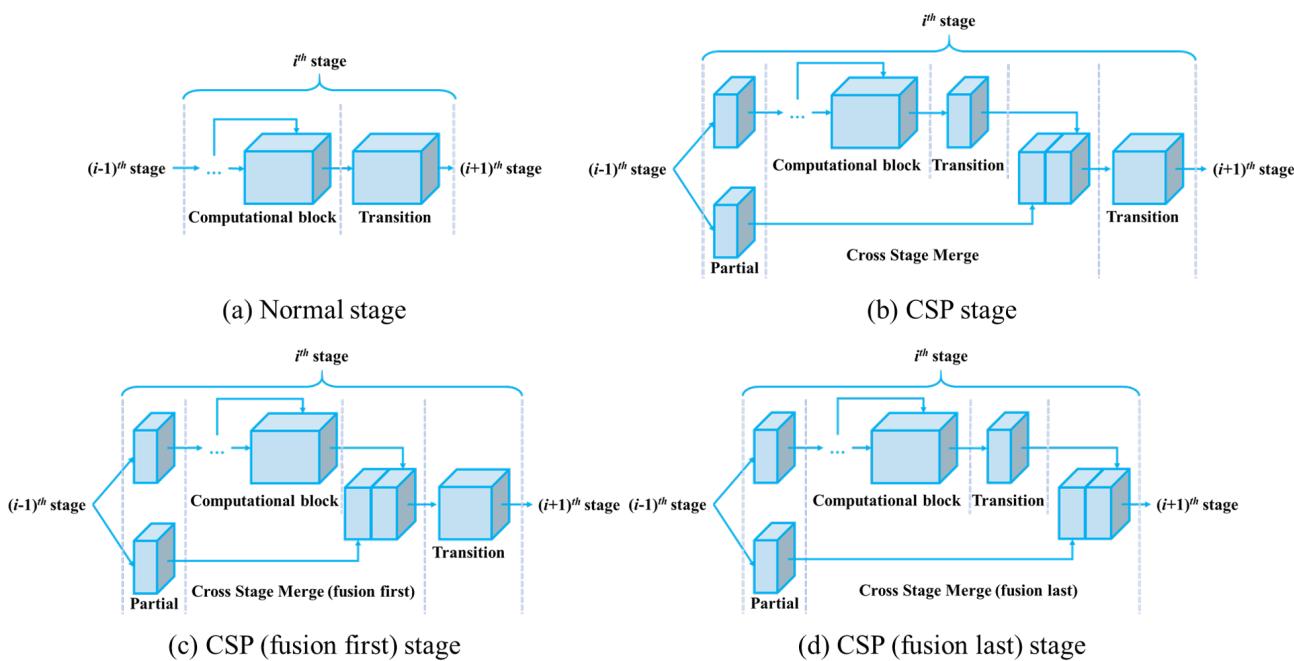

Figure 5: Different ways to implement CSP connections (fusion at different points).

Level 3: Network-Level Design – Efficient Layer Aggregation Networks (ELAN)

Scaling networks deeper often runs into diminishing returns or even degraded accuracy because the shortest gradient paths for some layers get too long, cutting them off from strong learning signals.

Efficient Layer Aggregation Networks (ELAN) address this by carefully managing gradient path lengths across the whole network, enabling deep models that train effectively.

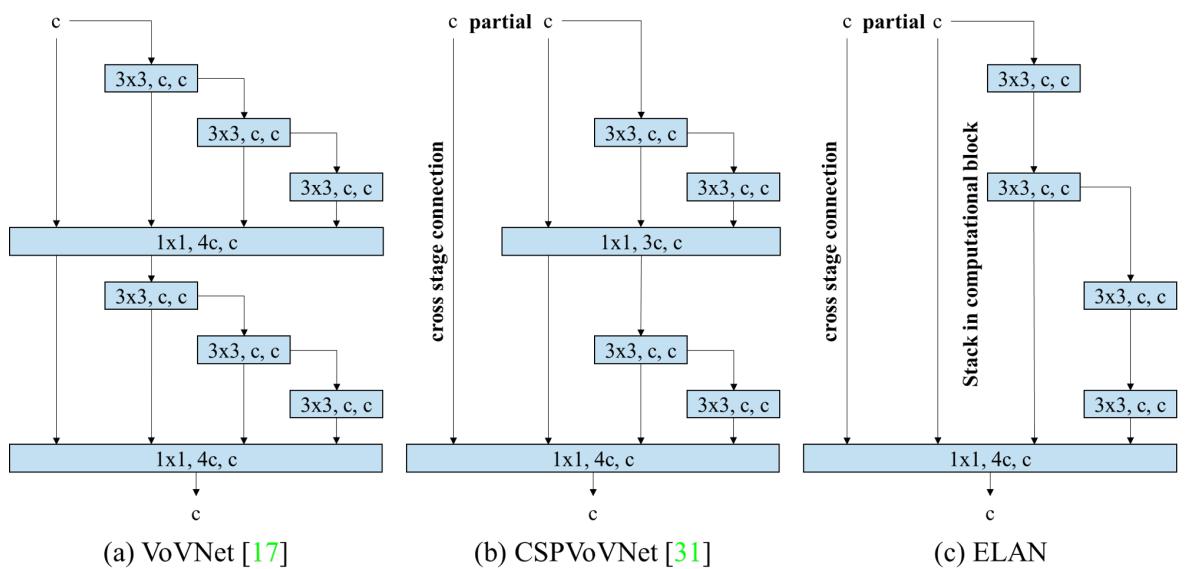

Figure 6: ELAN’s stacked computational blocks keep shortest gradient paths short, even in deep networks.

In many networks (e.g., VoVNet), every block ends with a transition layer, which lengthens the shortest gradient path when stacking multiple blocks. ELAN’s stack in computational block approach:

• Places multiple computational units within a block before any transition layer.
• This ensures the shortest gradient paths remain short even as the network deepens.

Why It Works: Gradient Analysis

Metrics Beyond Path Length

Traditional metrics like shortest gradient path length or number of aggregated features don’t fully explain performance. For example, DenseNet has very short paths but huge parameter counts.

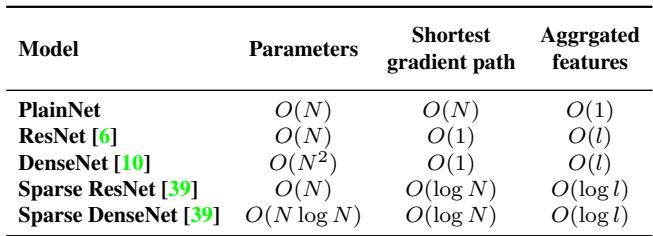

Table 1: Simple path metrics alone don’t predict accuracy.

Instead, the authors focus on:

• Gradient Timestamps — when gradients arrive during backpropagation.
• Gradient Sources — which layers those gradients came from.

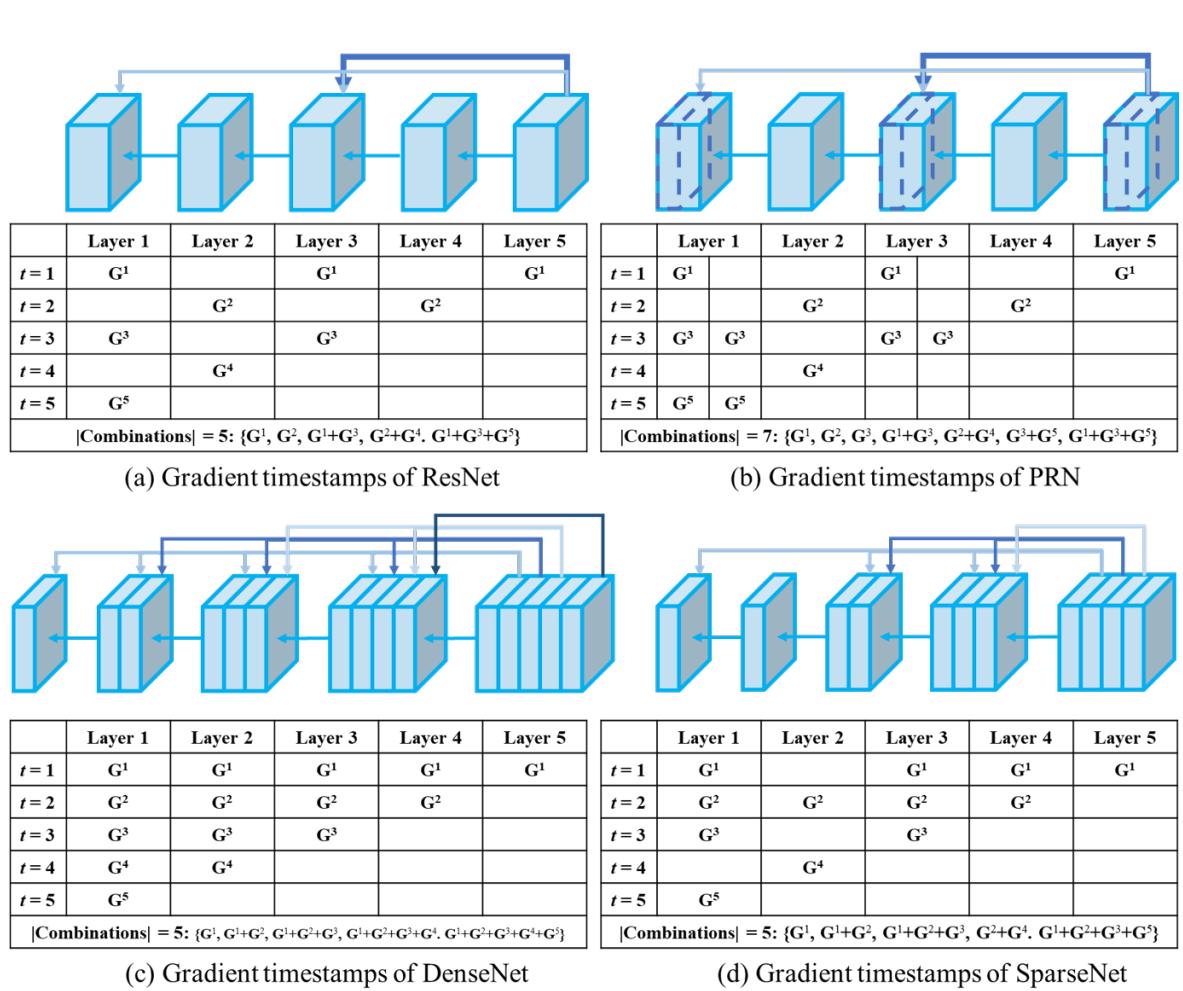

Figure 7: PRN’s masked residuals create more diverse gradient timestamps.

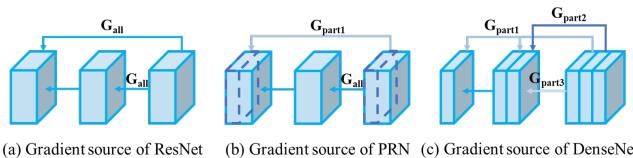

Figure 8: PRN also diversifies the source of gradient signals.

Stop-Gradient Experiments

To prove the importance of short paths, they run an ablation on a ResNet-style model by forcibly “blocking” gradients:

1. Stop gradient in the main path — forces gradients to flow only through the short skip.
2. Stop gradient in the skip connection — forces gradients to take the long computational path.

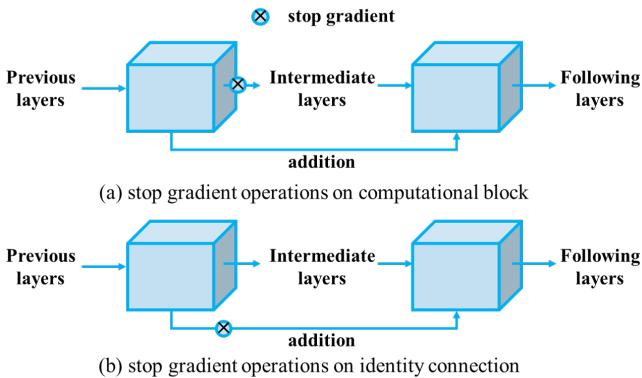

Figure 9: Two stop-gradient configurations.

The results are dramatic. Blocking the skip (making all paths long) hurts accuracy badly — confirming that short gradient routes are essential for deep networks.

Experimental Results

Experiments on the MS COCO dataset for object detection and instance segmentation validate each level of the proposed strategy.

Layer-Level: PRN

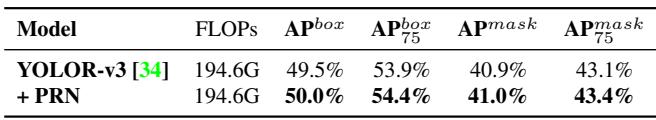

Table 5: PRN improves detection accuracy by 0.5% AP without extra compute.

Stage-Level: CSPNet

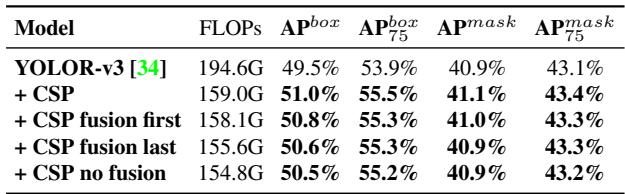

Table 6: CSPNet reduces FLOPs by 22% while improving accuracy by 1.5% AP.

Network-Level: ELAN

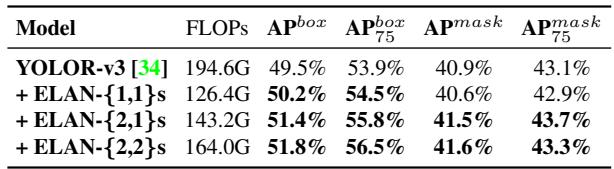

Table 7: ELAN boosts accuracy and reduces computation cost.

Final Comparison

When compared to strong baselines like YOLOv5, gradient path-designed models — especially ELAN — show the best trade-off of accuracy, parameters, and computation.

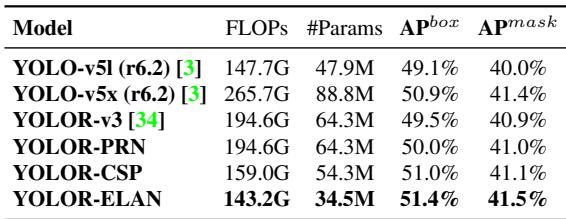

Table 8: Gradient path-designed architectures outperform equally sized or larger baselines.

Conclusion: Designing for Learning, Not Just Computation

This research reframes network design. Instead of only engineering the forward data path, we can achieve substantial gains by optimizing the backward gradient path — the mechanism by which networks learn.

The three architectures presented — PRN, CSPNet, and ELAN — show how gradient path design works at different scales:

• Layer-level: Enrich learning signals.
• Stage-level: Diversify gradients while saving computation.
• Network-level: Maintain effective training signals in very deep models.

The broader lesson? We may not need ever more complex computational units. By rethinking how we wire existing components to optimize learning dynamics, we can make neural networks faster, leaner, and more powerful.

In deep learning, the journey backward is just as important as the journey forward.
