When you look at a photograph of a car, you don’t just see a flat, two-dimensional collection of pixels. Your brain, drawing on a lifetime of experience, instantly constructs a mental model of a three-dimensional object. You can effortlessly imagine what that car looks like from the side, from the back, or from above, even if you’ve never seen that specific model before.

This ability to infer 3D structure from a single 2D view is a cornerstone of human perception. For artificial intelligence, however, it’s a monumental challenge. Traditionally, creating 3D models from images required multiple photographs from different angles, specialized depth-sensing cameras, or vast, expensive datasets of 3D models for training. These methods are powerful but limited; they don’t scale well and often fail on objects they haven’t been explicitly trained on.

What if an AI could learn this skill the way we do—by observing the world? A recent paper from researchers at Columbia University and the Toyota Research Institute, titled Zero-1-to-3: Zero-shot One Image to 3D Object, introduces a groundbreaking approach that does just that. They have found a way to tap into the vast, hidden knowledge of 3D geometry buried within large-scale image diffusion models like Stable Diffusion, teaching them to generate novel views of an object from a single, ordinary picture. The results, as you can see below, are stunning.

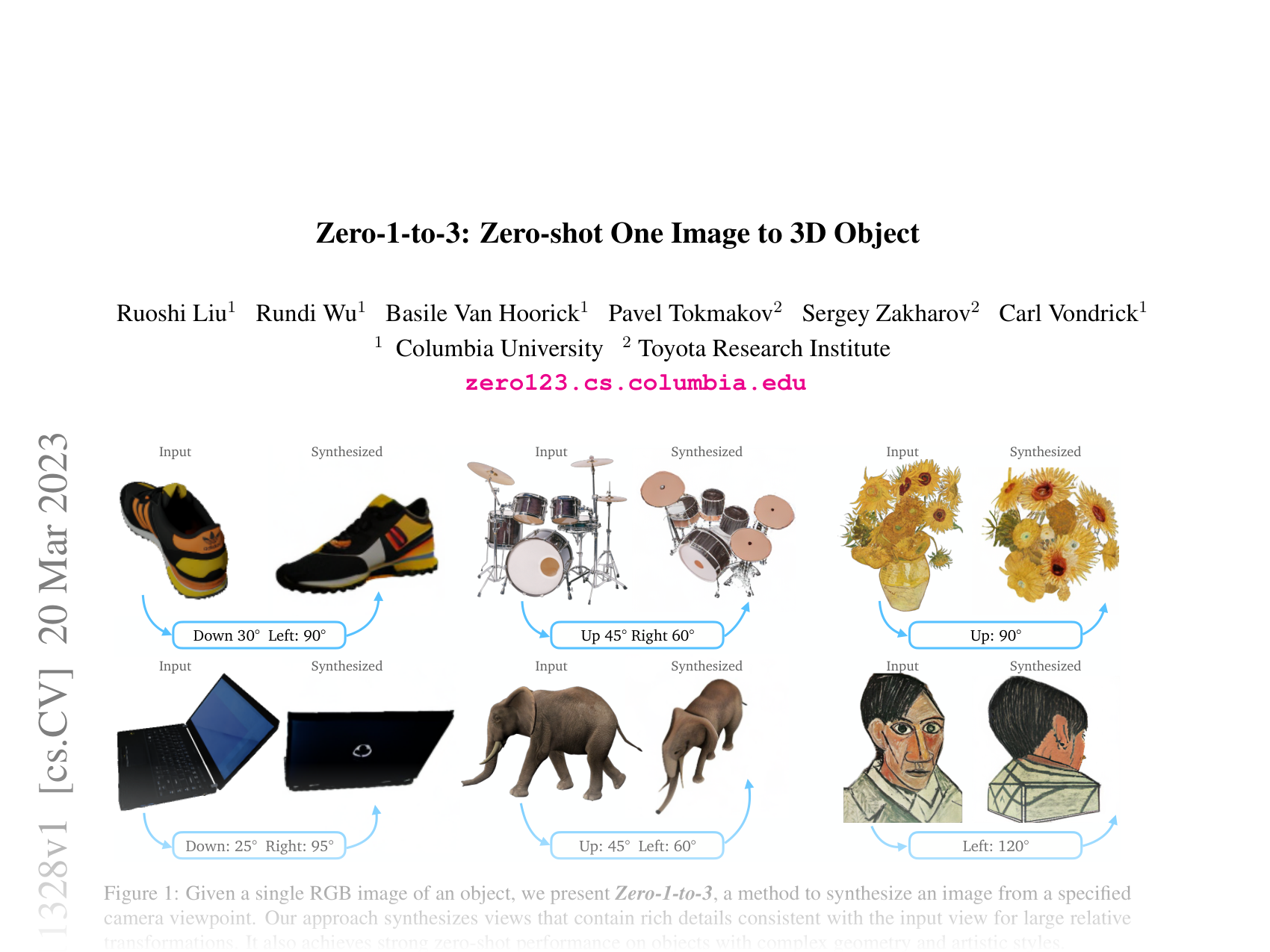

A grid showing six examples of Zero-1-to-3’s capability. For each example, an input image is shown on the left, and a synthesized image from a new viewpoint is shown on the right. Objects include shoes, a drum kit, sunflowers, a laptop, elephants, and a portrait.

Figure 1: Given a single RGB image of an object, Zero-1-to-3 can synthesize views with consistent details even for large viewpoint transformations.

In this article, we’ll dive deep into how Zero-1-to-3 works. We’ll explore the intuition behind leveraging 2D image models for 3D tasks, break down the core method for controlling camera viewpoints, and examine the impressive results that push the state of the art in single-view 3D reconstruction.

The Hidden 3D World of 2D Models

The magic behind modern AI image generators like DALL-E 2 and Stable Diffusion lies in their massive training datasets. These models are trained on billions of images scraped from the internet—a staggering diversity capturing countless objects, scenes, and styles. In learning to generate 2D images, they also implicitly learn rules about our 3D world. They’ve seen cats from every side, cars in countless angles, and chairs lit in every possible condition.

The problem is that this rich 3D knowledge remains implicit. You can ask Stable Diffusion to generate “a photo of a chair”, but you can’t ask it to show “the back view of that specific chair you just made.” The model’s understanding of viewpoint is embedded, not controllable.

Moreover, these models inherit biases from their training data. Ask them for a chair, and they usually produce a front-facing version in a canonical pose—because that’s how most chairs are pictured online.

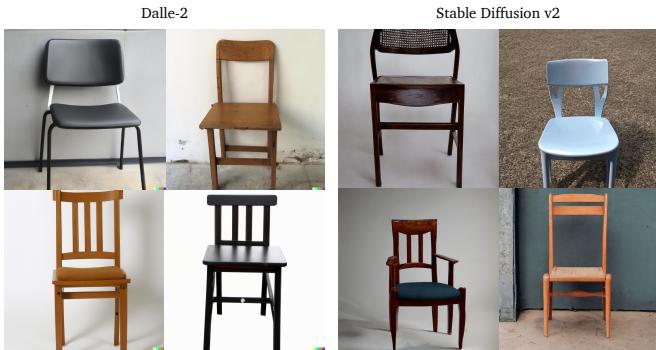

A comparison between DALL-E 2 and Stable Diffusion v2 showing generated images for the prompt “a chair”. Most chairs are in a standard, forward-facing view, illustrating viewpoint bias.

Figure 2: Viewpoint bias in text-to-image models. Most generated chairs face forward.

This viewpoint bias shows that while the models contain diverse view information, they lack mechanisms for controlling it. Novel view synthesis requires:

  1. Making the model’s implicit 3D knowledge explicit and controllable.
  2. Overcoming biases toward canonical poses to generate arbitrary angles.

Zero-1-to-3 tackles both.

The Core Method: Teaching an Old Model New Tricks

Rather than building a 3D system from scratch, the researchers fine-tuned an existing, powerful 2D diffusion model—Stable Diffusion—to gain viewpoint control.

The goal is to learn a function:

\[ \hat{x}_{R,T} = f(x, R, T) \]

Here, \(x\) is an input image, \(R\) is a relative rotation, \(T\) is a relative translation, and \(\hat{x}_{R,T}\) is the generated image from that viewpoint.

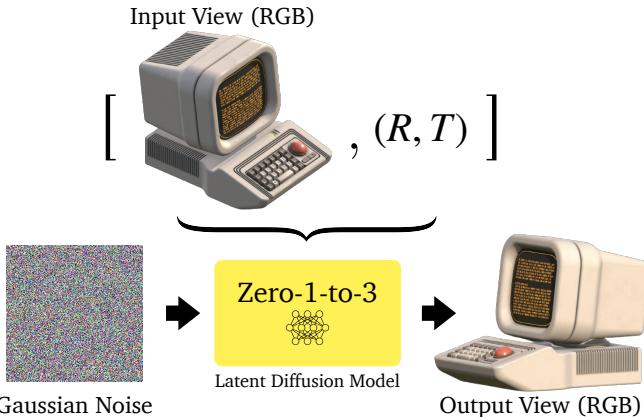

Diagram of Zero-1-to-3’s process: input RGB image + relative viewpoint transform → Latent Diffusion Model → output RGB image from new viewpoint.

Figure 3: Zero-1-to-3 uses a viewpoint-conditioned latent diffusion architecture, taking both the input view and relative camera transformation as conditions.

Fine-Tuning on Synthetic Data

Instead of retraining everything, Zero-1-to-3 fine-tunes Stable Diffusion—preserving its knowledge while adding viewpoint control.

For training data, the authors used Objaverse: an open-source set of over 800K high-quality 3D models. They rendered each model from multiple known camera positions, producing pairs: an input image, an output image, and the corresponding \((R, T)\) transformation.

The fine-tuning objective trains the model to denoise a noisy image into the correct output view given:

  1. The original image.
  2. The desired viewpoint change.

Mathematically:

\[ \min_{\theta} \mathbb{E}_{z \sim \mathcal{E}(x), t, \epsilon \sim \mathcal{N}(0, 1)} \|\epsilon - \epsilon_{\theta}(z_t, t, c(x, R, T))\|_2^2 \]

In plain terms: Given this starting picture and camera move, produce the clean final image.

Hybrid Conditioning: Semantics + Details

They used a two-stream conditioning design:

  1. High-Level Semantics: A CLIP embedding of the input, plus pose data (\(R, T\)), forms a “posed CLIP” embedding fed to the U-Net via cross-attention, guiding the structure.
  2. Low-Level Details: The input image’s latent is concatenated directly with the noisy image during denoising to retain identity, texture, and fine details.

This ensures Zero-1-to-3 recovers occluded parts faithfully while keeping the character of the object intact.

From Novel Views to Full 3D Reconstruction

Synthesizing 2D novel views is impressive—but many applications want the full 3D model.

Zero-1-to-3 can guide 3D reconstruction using a method inspired by Score Jacobian Chaining (SJC). The process works like an iterative optimization loop:

  1. Initialize a 3D representation (e.g., a neural radiance field).
  2. Render the representation from a random viewpoint.
  3. Consult Zero-1-to-3: “Does this rendering look plausible for that view?”
  4. Update the 3D scene using gradients from Zero-1-to-3’s feedback.
  5. Repeat with many viewpoint samples.

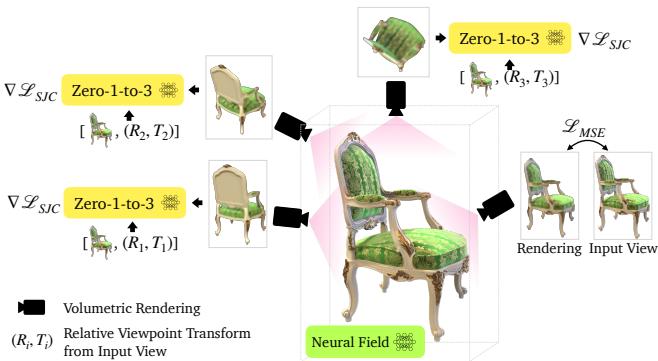

An illustration of 3D reconstruction: random viewpoints render into a neural field and are updated via Zero-1-to-3 supervision.

Figure 4: Zero-1-to-3 can supervise a neural field for single-image 3D reconstruction, guiding it with learned multi-view priors.

Over iterations, the 3D model is sculpted until its renderings are coherent from all angles.

Putting Zero-1-to-3 to the Test

The authors evaluated Zero-1-to-3 in zero-shot settings on:

  • Google Scanned Objects (GSO): High-quality household item scans.
  • RTMV: Complex multi-object synthetic scenes.

Astonishing Novel View Synthesis

Qualitative results show Zero-1-to-3 creating sharper, more consistent views than baseline methods, including for large view changes.

Qualitative comparison on GSO: Zero-1-to-3’s outputs are sharper and more accurate than baselines.

Figure 5: Novel view synthesis on GSO. Our outputs preserve fine detail compared to baselines.

Comparison on RTMV: Zero-1-to-3 maintains fidelity under large viewpoint changes.

Figure 6: Novel view synthesis on RTMV. Complex scenes remain consistent in our model’s views.

Quantitative metrics like PSNR, SSIM (higher better) and LPIPS, FID (lower better) confirm large margins over baselines.

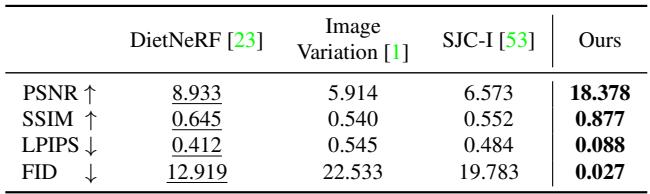

Quantitative table for novel view synthesis on GSO with our method winning all metrics.

Table 1: Zero-1-to-3 outperforms DietNeRF, Image Variations, and SJC-I on GSO.

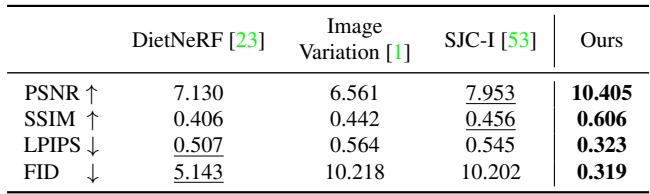

Quantitative table for novel view synthesis on RTMV, showing our method’s superior metrics.

Table 2: Even on out-of-distribution RTMV data, our model leads.

It also handles real-world photos from phones with diverse materials and shapes:

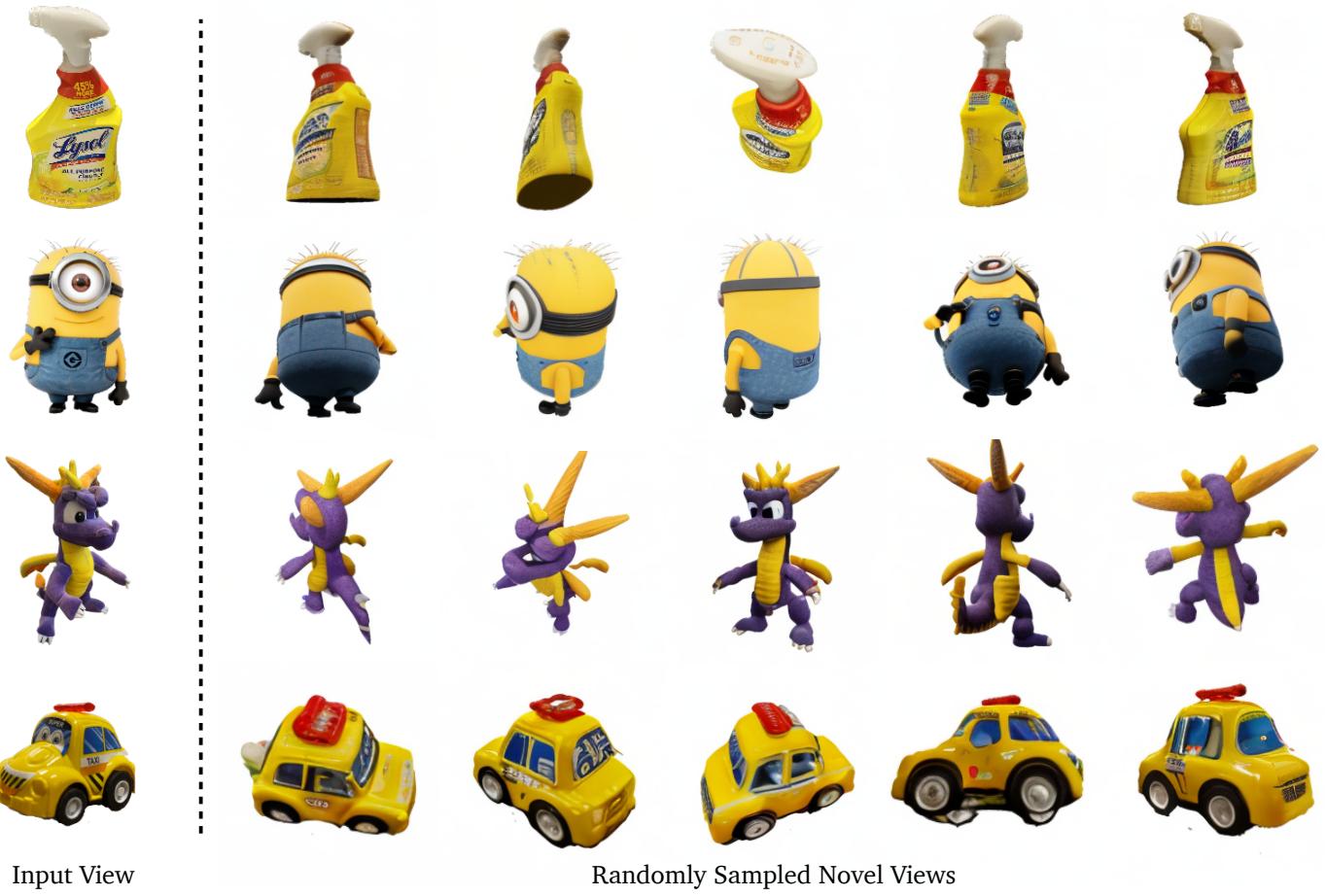

Novel view synthesis on real-world inputs (spray bottle, toys, figurines). Multiple plausible views are generated.

Figure 7: Robust performance on in-the-wild images without cherry-picking.

And critically, it can generate multiple plausible completions for occluded areas:

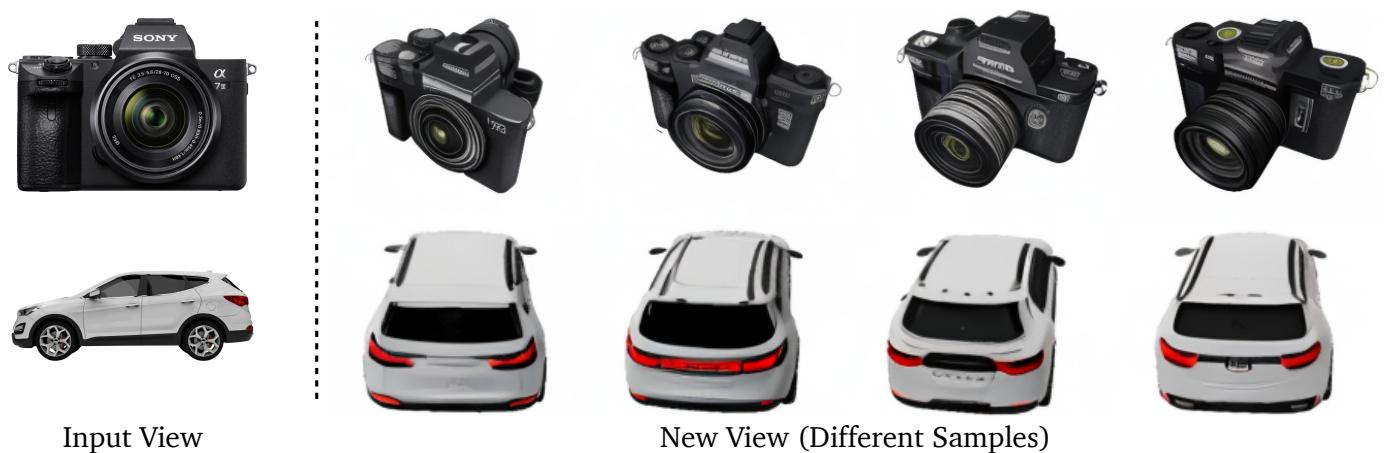

Multiple different plausible back views of a camera given only the front view.

Figure 8: Zero-1-to-3 captures ambiguity by producing diverse, high-quality variations.

State-of-the-Art 3D Reconstruction

For complete 3D meshes, Zero-1-to-3’s outputs are more complete and accurate—especially for occluded geometry.

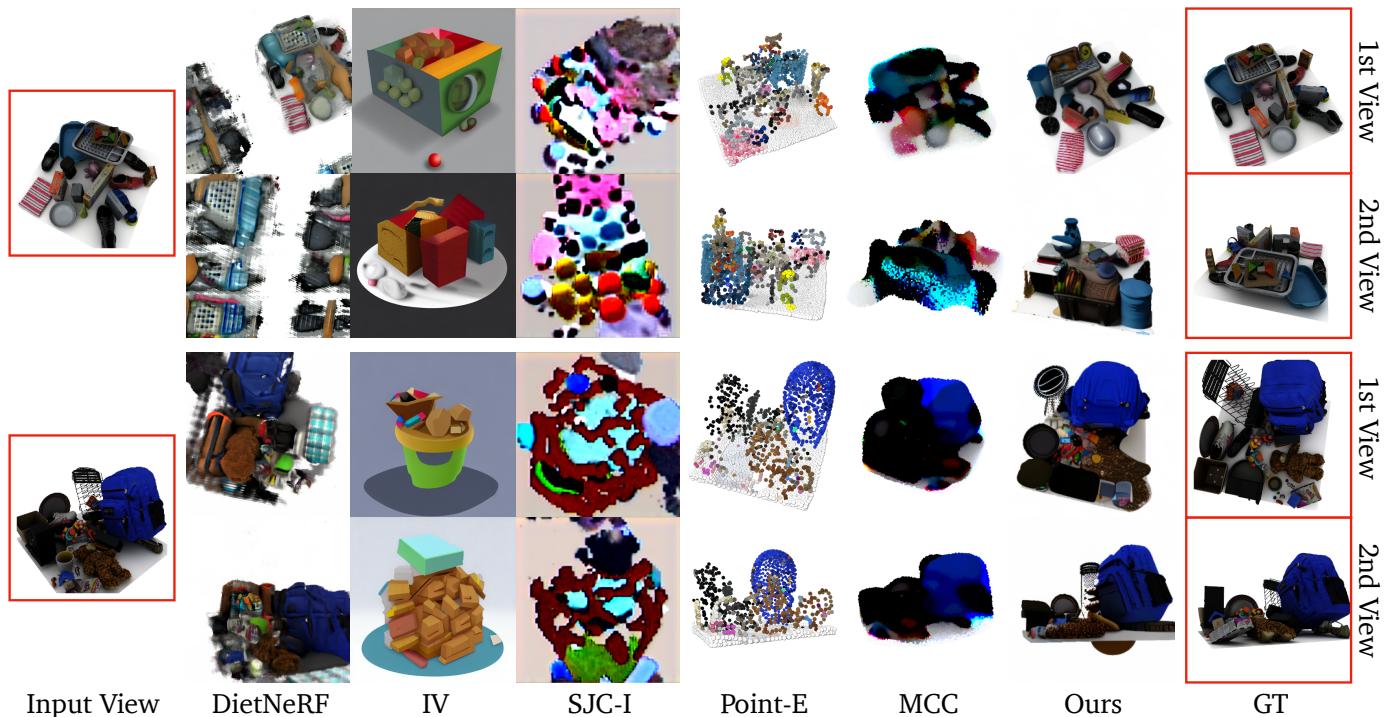

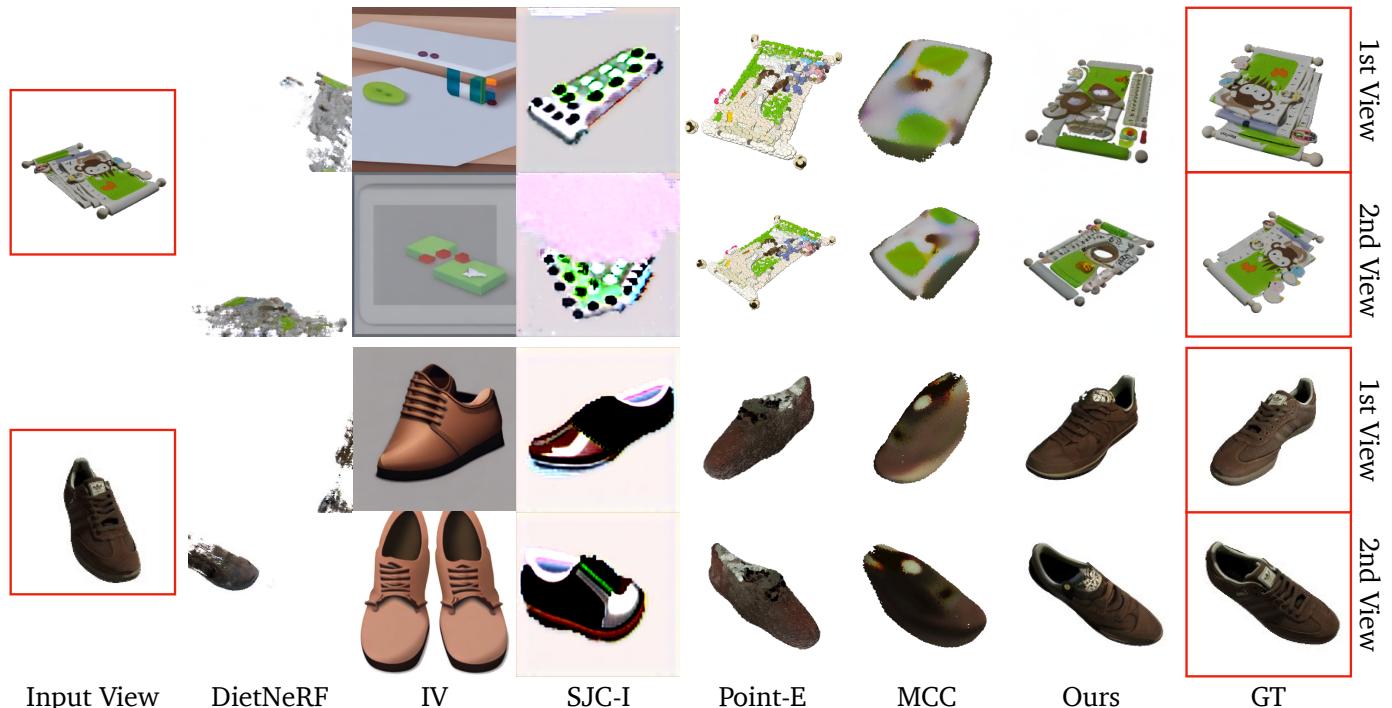

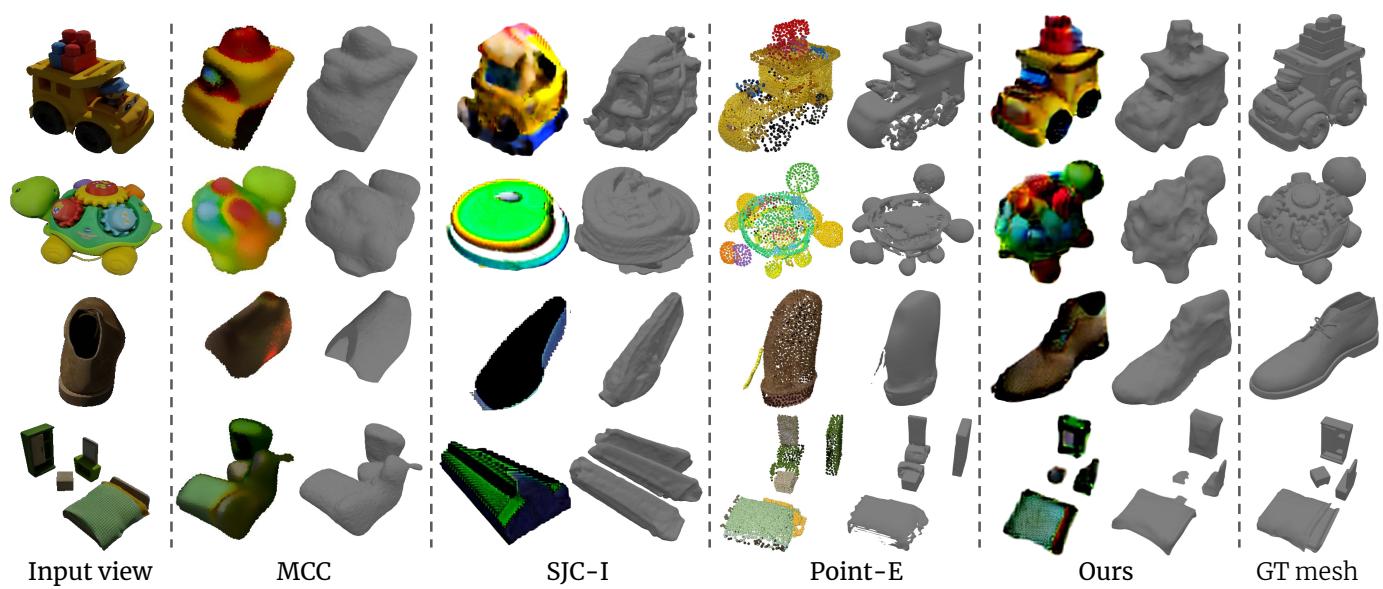

Qualitative 3D reconstruction comparison: our results are closer to ground truth than MCC, SJC-I, or Point-E.

Figure 9: High-fidelity reconstructions with better volume completeness.

Metrics like Chamfer Distance (lower better) and volumetric IoU (higher better) confirm significant gains:

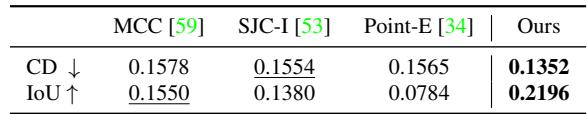

3D reconstruction results on GSO: our method achieves best CD and far superior IoU.

Table 3: Large IoU increase shows better 3D volume matching.

3D reconstruction results on RTMV: despite complexity, our method is best.

Table 4: Best CD/IoU on cluttered RTMV scenes.

Creative Workflows: Text → Image → 3D

Zero-1-to-3 can be chained with text-to-image systems like DALL-E 2, forming a text-to-3D pipeline. Type a description, generate an image, feed to Zero-1-to-3, and explore it from all angles—turning text prompts into usable 3D assets.

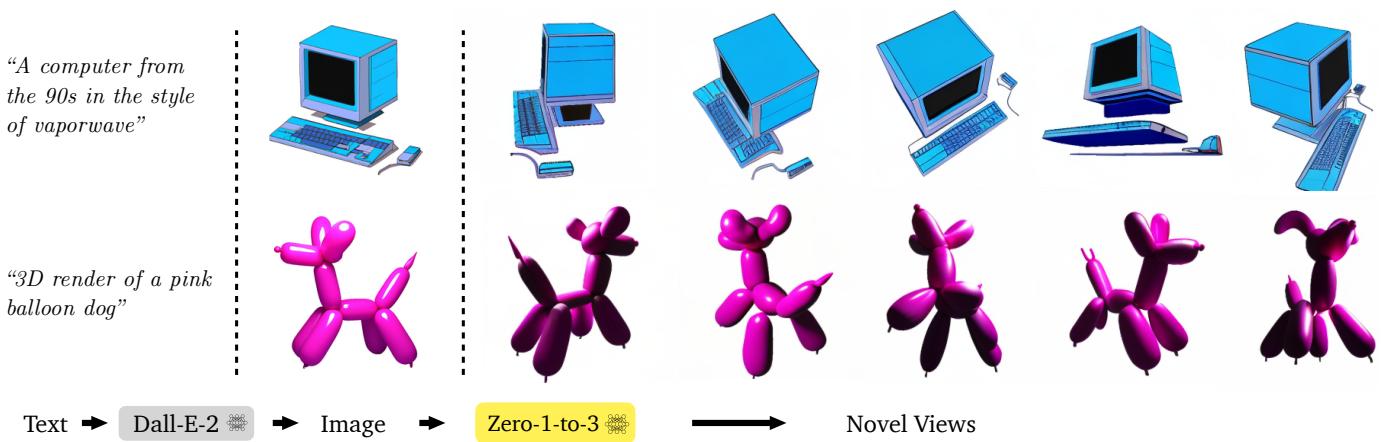

Text-to-Image-to-3D pipeline: prompts → DALL-E 2 image → Zero-1-to-3 novel views.

Figure 10: Preserving composition and lighting from AI-generated images in new views.

Conclusion and Future Implications

Zero-1-to-3 is a landmark in single-view 3D understanding. It proves that massive 2D diffusion models, trained on internet-scale data, hold coherent 3D priors.

By fine-tuning with synthetic paired-image data and adding camera viewpoint controls, the researchers unlocked this hidden skill—creating a state-of-the-art tool for novel view synthesis and 3D reconstruction. Its zero-shot ability spans everyday objects, artworks, and AI-generated images.

The future possibilities are vast:

  • Extending from single objects to full complex scenes.
  • Applying to dynamic videos with moving objects and occlusions.
  • Controlling other factors—lighting, materials, shading—to construct full virtual worlds.

Zero-1-to-3 marks a decisive step toward an age where the boundary between 2D and 3D creation blurs—bringing AI imagination closer to human-like perception.
