Large Language Models (LLMs) are rapidly evolving, and one of the most exciting frontiers is the expansion of their context windows. Imagine an AI that can read an entire novel, a full codebase, or a lengthy financial report in one go, and then answer your questions with full awareness of that entire content. This is the promise of long-context LLMs—but training them poses a formidable technical challenge.

The key culprit? The self-attention mechanism, the core of Transformer architectures, whose memory usage scales quadratically with sequence length.

A few years ago, the introduction of FlashAttention was a game-changer. FlashAttention cleverly restructured the attention computation on a single GPU to reduce peak memory usage from quadratic to linear, enabling much longer sequences. But there’s a hitch: when sequences grow so large that they exceed even a single GPU’s memory capacity, FlashAttention alone isn’t enough. The solution must be distributed across multiple GPUs—but doing so efficiently is far from trivial.

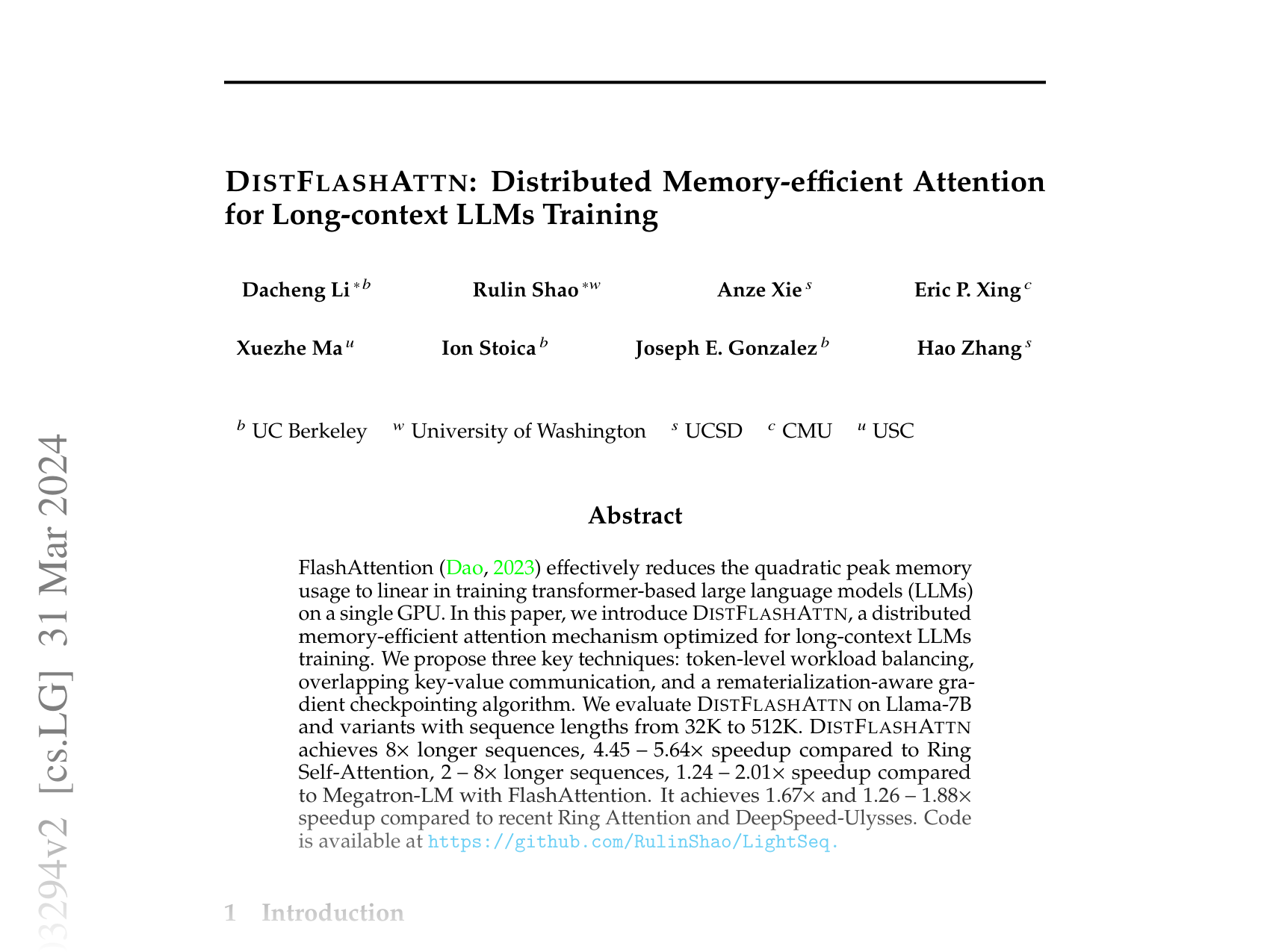

This is where DISTFLASHATTN comes in. In their paper, DISTFLASHATTN: Distributed Memory-efficient Attention for Long-context LLMs Training, the authors extend FlashAttention’s efficiency to the distributed setting, enabling training on sequences up to 8× longer and achieving up to 2.01× speedups over strong baselines. This blog will break down the problem, the proposed solution, and the three clever optimizations that make DISTFLASHATTN possible.

Background: The Memory Bottleneck

Let’s revisit why self-attention is memory-intensive. Standard self-attention calculates scores for every pair of tokens in a sequence, resulting in an \( N \times N \) attention matrix for a sequence length \( N \). Storing this massive matrix drives the classic \( O(N^2) \) memory complexity.

FlashAttention solves this on a single GPU by computing attention block-wise:

  • It loads small blocks of Query (Q), Key (K), and Value (V) from slow but large High Bandwidth Memory (HBM) into fast but small on-chip SRAM.
  • It performs attention calculations on that block.
  • It writes the results back to HBM—without ever materializing the full attention matrix.

This works beautifully—until sequences grow too long for one GPU’s memory.

To go beyond, we can use sequence parallelism: split the sequence into chunks and place each chunk on a different GPU. But there’s a complication—tokens still need to attend to all earlier tokens, even those stored on other GPUs. This demands careful data movement and scheduling to avoid inefficiency.

The Core Idea of DISTFLASHATTN

DISTFLASHATTN’s goal is to bring the IO-aware benefits of FlashAttention to the distributed world while using sequence parallelism.

Here’s the basic setup:

  • We split a sequence of \( N \) tokens evenly across \( P \) GPUs.
  • Worker \( p \) stores its local chunk: Queries \( \mathbf{q}_p \), Keys \( \mathbf{k}_p \), Values \( \mathbf{v}_p \).
  • For causal language modeling, worker \( p \) must compute: \[ \mathbf{o}_p = \mathrm{Softmax}\left( \frac{\mathbf{q}_p[\mathbf{k}_1, ..., \mathbf{k}_p]^T}{\sqrt{d}} \right) [\mathbf{v}_1, ..., \mathbf{v}_p] \]

The naïve way: gather all needed K and V chunks from other workers into one GPU and run FlashAttention locally. The problem? This requires storing all keys and values for the full sequence, defeating the memory savings.

Instead, DISTFLASHATTN leverages FlashAttention’s block-wise computation:

  • Worker \( p \) first computes attention on its local chunk.
  • It then fetches only the next needed K–V chunk from a remote worker, computes partial attention results, updates local softmax statistics, and discards the chunk.
  • This repeats until all relevant earlier tokens have been processed.
  • At no point does it store more than one extra chunk in memory.

This is efficient—but still leaves three major performance bottlenecks.

Optimization 1: Balancing the Causal Workload

Causal attention means each token attends only to prior tokens (\( j \le i \)). Distributed across GPUs, this creates workload imbalance:

  • Worker 1 (earliest tokens) only processes its local chunk.
  • Worker 8 must process its own chunk plus all seven prior chunks.

Early workers finish quickly and sit idle—leading to large “compute bubbles” and up to 50% GPU idle time in large setups.

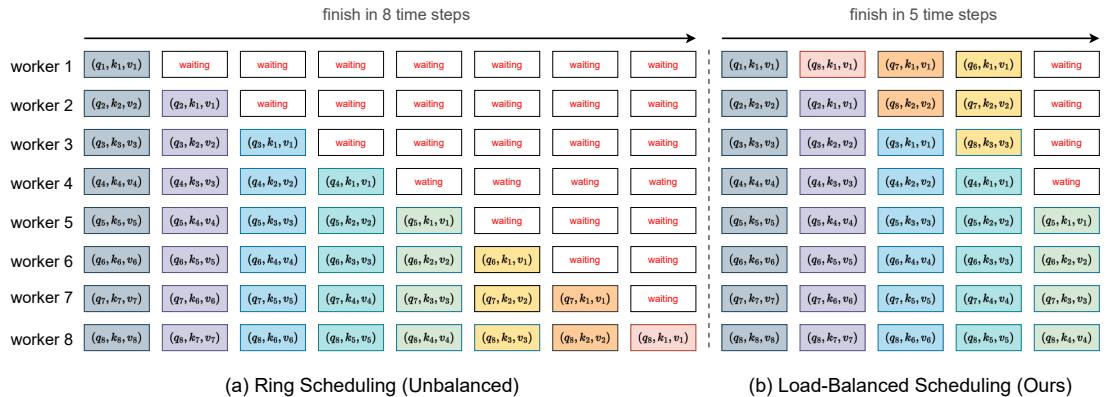

Figure 1 shows two scheduling diagrams for 8 workers. On the left, ‘Ring Scheduling (Unbalanced)’ shows that workers with earlier tokens (e.g., worker 1) finish work in one timestep and then wait, while worker 8 is busy for all 8 timesteps. On the right, ‘Load-Balanced Scheduling (Ours)’ shows a schedule where idle workers help busy workers, reducing the steps needed from 8 to 5.

DISTFLASHATTN’s solution: load-balanced scheduling.

Idle workers help busy ones by computing partial attention results for them:

  • Example: Worker 1 finishes early.
  • Instead of waiting, it fetches a query chunk from busy Worker 8 and a key–value chunk from another required worker.
  • It computes part of Worker 8’s attention output and sends it back for integration.

This redistributes work to eliminate idle periods. In theory, idle time fraction becomes:

\[ X = \begin{cases} 0, & \text{P odd} \\ \frac{1}{2P}, & \text{P even} \end{cases} \]

As \( P \) increases, this approaches zero, giving nearly perfect GPU utilization.

Optimization 2: Overlapping Communication and Computation

Even with balanced workload, there’s overhead from communication: workers must fetch remote K–V chunks over NVLink or network before computing.

If computation waits for data arrival, we get a latency bubble.

DISTFLASHATTN overlaps these steps:

  • While computing on chunk \( r \), initiate fetching of chunk \( r+1 \).
  • GPUs use separate streams: one for compute, one for P2P data transfer.

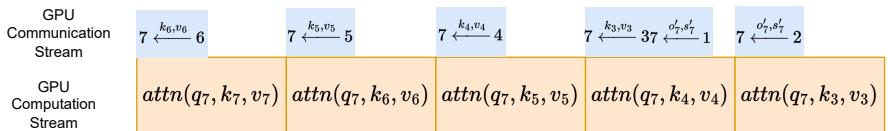

Figure 2 illustrates overlapping communication and computation for Worker 7. The top row (GPU Communication Stream) shows that while computing attn(q7, k6, v6), it is already fetching (k5, v5) from Worker 5. This hides communication latency entirely.

By the time computation finishes on the current chunk, the next chunk is already in memory. This effectively hides communication latency inside computation time, cutting end-to-end runtimes significantly.

Optimization 3: Smarter Gradient Checkpointing

Gradient checkpointing trades compute for memory savings:

  1. Store only certain activations (“checkpoints”).
  2. During backward pass, recompute missing activations from the last checkpoint.

Libraries like HuggingFace place checkpoints at Transformer layer boundaries. During recomputation, the FlashAttention forward pass gets fully rerun, and the FlashAttention backward kernel internally recomputes parts of forward again. This is redundant.

DISTFLASHATTN’s rematerialization-aware checkpointing shifts the checkpoint boundary:

  • Save the output of FlashAttention.
  • During backward:
    • Use this directly for FlashAttention’s backward computation (no forward recomputation).
    • Use it as the starting point to recompute subsequent modules (e.g., FFN).

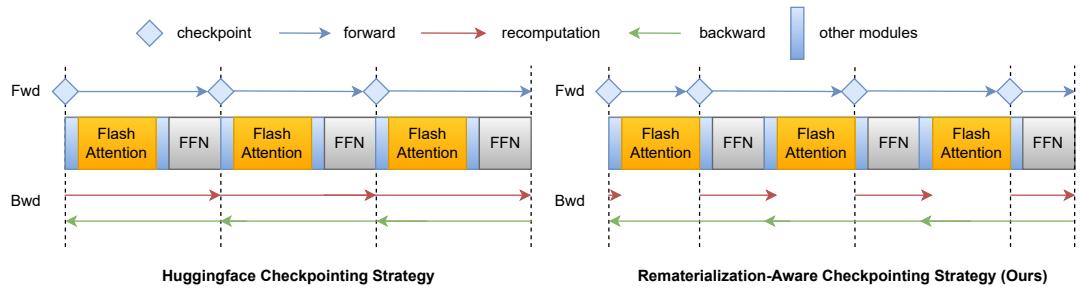

Figure 3 compares the HuggingFace checkpointing with Rematerialization-Aware. In the HuggingFace scheme, Flash Attention’s forward is recomputed during backward. In the new scheme, this is avoided, saving one forward pass per layer.

Since attention dominates forward time for long sequences, this yields up to 1.31× speedup, with identical numerical results.

Results: Extending Limits of Long-Context Training

The authors benchmarked DISTFLASHATTN against:

  • Megatron-LM (with FlashAttention)
  • Ring Self-Attention (RSA)
  • Ring Attention
  • DeepSpeed-Ulysses

DISTFLASHATTN’s wins include:

  • Speed: Up to 2.01× faster than Megatron-LM on irregular-head models like LLaMA-33H.
  • Flexibility: Handles arbitrary attention head counts without dummy-padding (avoiding computation waste).
  • Capacity: Supports 2–8× longer sequences for models with fewer heads.

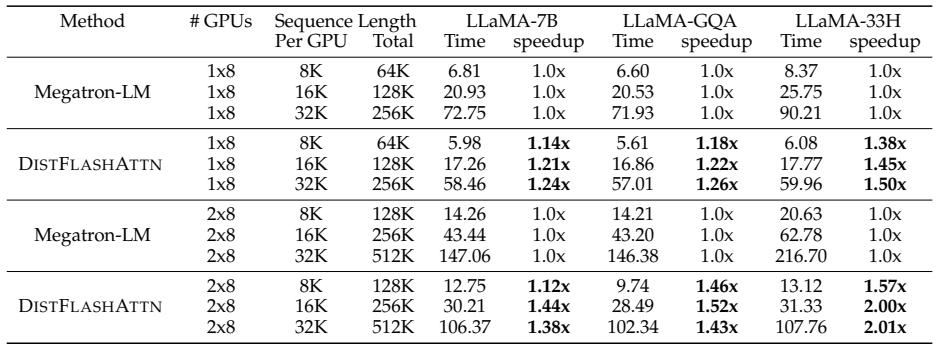

Table 1 shows per-iteration times for LLaMA models. DISTFLASHATTN consistently outperforms Megatron-LM, with speedups up to 2.01× on irregular head counts.

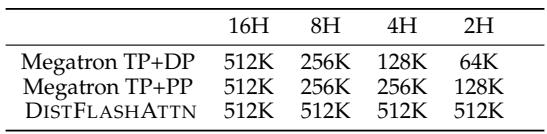

Table 2 shows maximum sequence lengths per GPU on low-head-count models. DISTFLASHATTN supports 512K sequences, versus drastically lower limits in Megatron-LM.

Against DeepSpeed-Ulysses:

  • Up to 1.88× speedup on irregular heads.
  • Avoids head-count partitioning issues inherent to tensor parallelism.

Against RSA:

  • Supports >8× longer sequences.
  • 4.45×–5.64× faster at RSA’s max sequence length.

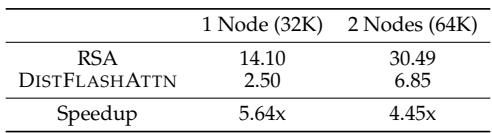

Table 3 compares max sequence length and time for RSA vs DISTFLASHATTN. DISTFLASHATTN exceeds 256K tokens on one node and is much faster at RSA’s limits.

Ablation Studies: Proving Each Optimization’s Worth

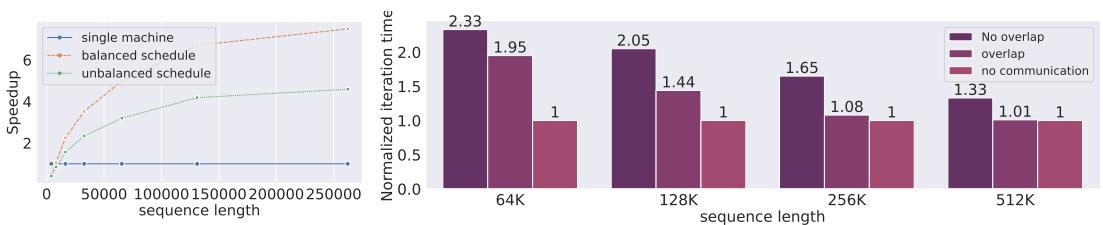

Figure 4 left plot shows balanced schedule reaching ~7.5× speedup vs single GPU, unbalanced stalls at ~4.5×. Right plot shows overlapping reducing iteration time close to zero-communication ideal.

  • Load Balancing: Speedup jumps from 4.5× to 7.5× vs single GPU FlashAttention as sequence length grows.
  • Communication Overlap: Communication overhead drops dramatically, approaching ideal no-communication performance.
  • Checkpointing: Up to 1.31× faster on long sequences simply by moving the checkpoint position.

Key Takeaways

Training LLMs on ultra-long contexts is critical for many emerging AI applications. DISTFLASHATTN makes it viable by:

  1. Balancing workloads in causal sequence parallel setups for near-perfect GPU utilization.
  2. Hiding communication latency via overlapping compute and data transfer.
  3. Optimizing checkpoint placement to avoid redundant computation in memory-efficient kernels.

These strategies together enable training 8× longer sequences with up to 2× speedups over strong baselines like Megatron-LM.

As context lengths continue to grow, techniques like those in DISTFLASHATTN will be essential tools in the system engineer’s arsenal—pushing the boundaries of what our models can understand in a single forward pass.
