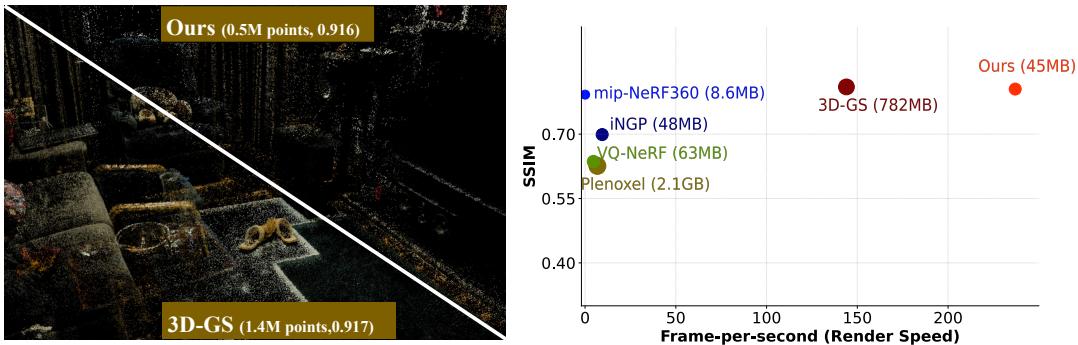

A comparison showing LightGaussian achieves a 15× storage reduction and a significant FPS boost over the original 3D Gaussian Splatting, with comparable visual quality.

Figure 1: LightGaussian compresses large-scale 3D Gaussian Splatting scenes from 782 MB to 45 MB, while increasing rendering speed from 144 FPS to 237 FPS, with negligible loss in visual fidelity.

Imagine creating a stunning, photorealistic 3D replica of a real-world scene that you can explore in real time. This is the promise of novel view synthesis—the art of generating unseen perspectives of a scene from a set of input images. Among the latest breakthroughs in this field, 3D Gaussian Splatting (3D-GS) has redefined the balance between speed and quality, enabling breathtaking, realistic scenes at interactive frame rates.

But there’s a catch: the models are enormous. A single complex scene can easily exceed a gigabyte of storage. This data bloat makes storing, sharing, and deploying these experiences challenging—especially on devices with limited capacity or bandwidth. Managing millions of Gaussians also slows rendering.

The question is: can we slim down such massive 3D scenes without sacrificing beauty or speed? Researchers from the University of Texas at Austin and Xiamen University have achieved exactly that with LightGaussian—a compression framework that shrinks 3D-GS models by an average of 15× while increasing rendering speed by over 60%, with only imperceptible quality loss.

In this post, we’ll unpack how LightGaussian works: a clever three-stage pipeline of pruning, knowledge distillation, and adaptive quantization that transforms bloated 3D assets into lightweight, efficient powerhouses.

Background: The Rise—and Weight—of 3D Gaussian Splatting

Before diving into LightGaussian, let’s look at the foundation: 3D Gaussian Splatting.

For years, Neural Radiance Fields (NeRFs) set the bar in novel view synthesis, modeling scenes via neural networks for unmatched quality—but their slow rendering (seconds per frame) limited real-time use.

3D-GS took a different path: instead of implicitly modeling a scene in a network, it represents it explicitly with millions of tiny 3D “Gaussians.” Think of each Gaussian as a translucent, colored 3D blob defined by:

  • Position (\(X\)): its location in 3D space.
  • Scale (\(S\)): its size along three axes.
  • Rotation (\(R\)): its orientation.
  • Opacity (\(\alpha\)): its transparency level.
  • Color (SH): determined by Spherical Harmonics coefficients, allowing view-dependent color changes.

To render, the system “splats” these Gaussians onto the 2D image plane, blending contributions from overlapping points according to:

\[ C = \sum_{i \in N} c_i\, \alpha_i \prod_{j=1}^{i-1} (1 - \alpha_j) \]

This yields high-fidelity images in real time. However, to capture fine details, 3D-GS densifies an initial sparse point cloud (from Structure-from-Motion) into millions of Gaussians—introducing redundancy and massive disk sizes. For example, the Bicycle scene in Mip-NeRF 360 can reach 1.4 GB.

LightGaussian’s goal is to keep the magic of 3D-GS but strip away its excess.

The LightGaussian Method: A Three-Stage Pipeline for Leaner 3D

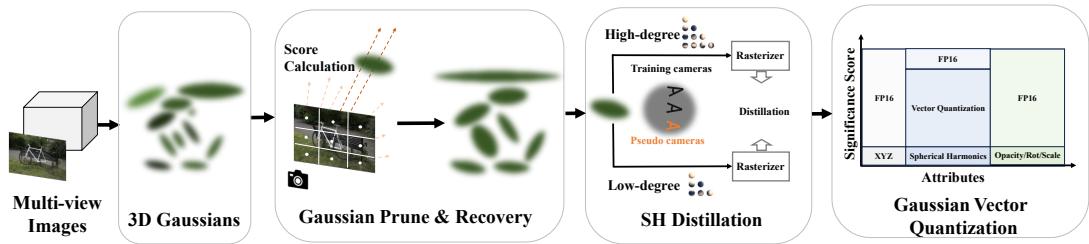

The LightGaussian pipeline: Gaussian Pruning & Recovery, SH Distillation, and Gaussian Vector Quantization.

Figure 2: LightGaussian starts from a trained 3D-GS model, then (1) prunes redundant Gaussians, (2) distills high-degree SHs into compact low-degree SHs, and (3) applies vector quantization to store low-significance Gaussians more efficiently.

LightGaussian’s compression process unfolds in three synergistic steps:

  1. Gaussian Prune & Recovery: Remove the least significant Gaussians without losing detail.
  2. SH Distillation: Simplify the color model while retaining complex lighting cues.
  3. Gaussian Vector Quantization (VQ): Store certain Gaussian attributes using a compact codebook for maximum space savings.

Step 1: Smart Pruning with a Global Significance Score

The simplest way to reduce a model’s size is to cut Gaussians—but how do we choose which ones? A naive method might prune low-opacity points, assuming near-transparency means low importance.

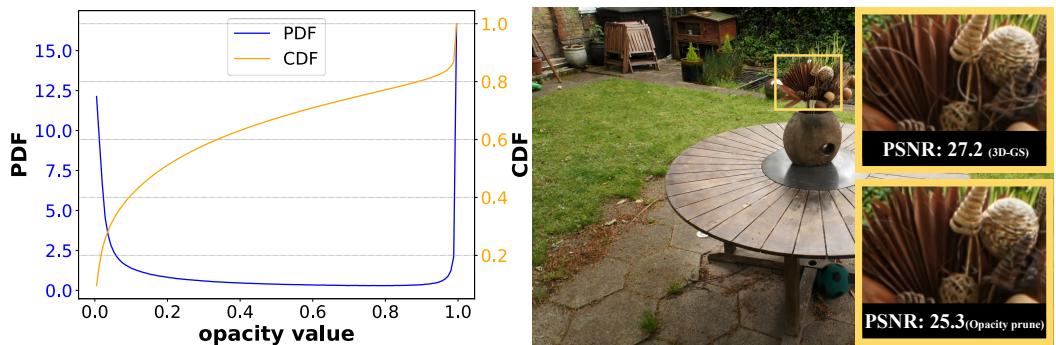

Opacity-based pruning fails: many low-opacity Gaussians still carry fine details. Removing them harms quality (PSNR drops).

Figure 3: Simple opacity-based pruning removes important fine-detail Gaussians, degrading quality.

Opacity alone can be misleading: even faint Gaussians may encode critical scene geometry. To solve this, the researchers designed a Global Significance (GS) score:

\[ GS_{j} = \sum_{i=1}^{MHW} \mathbb{1}\!\big(G(X_j), r_i\big) \cdot \sigma_j \cdot T \cdot \gamma(\Sigma_j) \]

Where:

  • \(\mathbb{1}\!\big(\cdot\big)\) indicates whether Gaussian \(j\) contributes to ray \(r_i\) across all training images (the “hit count”).
  • \(\sigma_j\): Gaussian’s opacity.
  • \(T\): Transmittance, accounting for occlusion by other points along the ray.
  • \(\gamma(\Sigma_j)\): Gaussian’s normalized volume, keeping large background Gaussians from dominating.

Gaussians are ranked by GS score; the lowest are pruned. To fill “holes” left by pruning, Recovery (Co-adaptation) fine-tunes the survivors over ~5,000 iterations to restore scene fidelity.

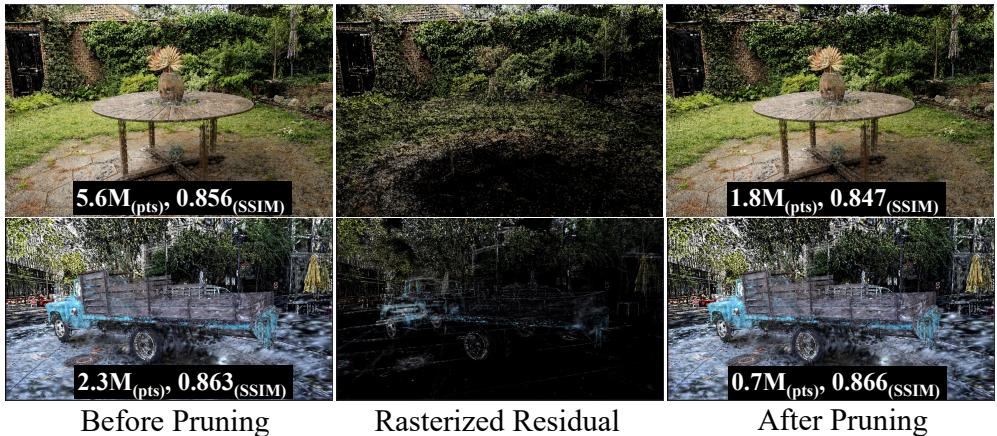

Pruning process visualization: the middle shows removed points (most redundant), and the right shows the compressed model maintaining quality.

Figure 5: Visualization of pruned Gaussians. The compressed scene retains high SSIM despite removing millions of points.

Step 2: Distilling Color Information via Low-Degree SHs

Even after pruning, most data per Gaussian—81.3%—comes from SH coefficients (e.g., 48 floats for degree 3). Lowering SH degree (e.g., to degree 2) cuts storage drastically but risks losing specular highlights.

LightGaussian overcomes this with Knowledge Distillation:

  • Treat the original high-degree SH model as the teacher.
  • Train a reduced-degree SH model as the student.
  • Use an L2 pixel-wise loss between teacher and student outputs.

To improve learning, the authors add pseudo-view augmentation: synthetic camera positions slightly perturbed from training views, ensuring the student captures complex lighting from varied angles.

\[ \mathcal{L}_{\text{distill}} = \frac{1}{HW} \sum_{i=1}^{HW} \left\| C_{\text{teacher}}(r_i) - C_{\text{student}}(r_i) \right\|_2^2 \]

Step 3: Significance-Aware Vector Quantization

The final step squeezes remaining SH data with Vector Quantization—representing vectors using indices into a small codebook (cluster centers), lowering storage.

LightGaussian applies VQ only to SHs and only for the least significant 60% of Gaussians (by GS score). Critical Gaussians keep full-precision float16 SHs; all other attributes (position, scale, rotation, opacity) are stored directly to prevent accuracy loss.

This significance-aware VQ achieves high compression with minimal visual impact.

Results: Light and Fast

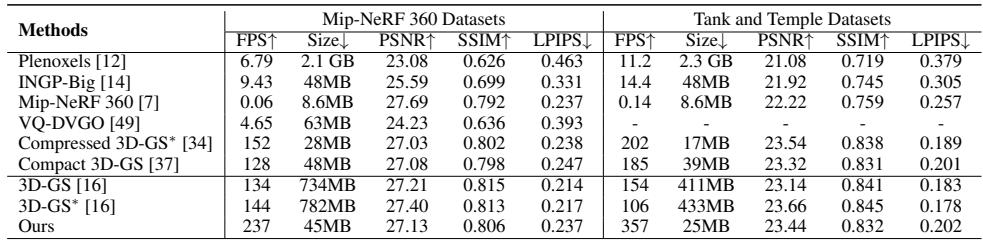

Quantitative comparison of LightGaussian against other methods.

Table 1: LightGaussian strikes the best balance between speed, size, and quality across large-scale datasets.

On Mip-NeRF 360:

  • Size drops from 782 MB → 45 MB (17× smaller).
  • FPS rises from 144 → 237.
  • SSIM barely changes (0.813 → 0.806).

On Tanks & Temples:

  • Size drops from 433 MB → 25 MB.
  • FPS more than triples.

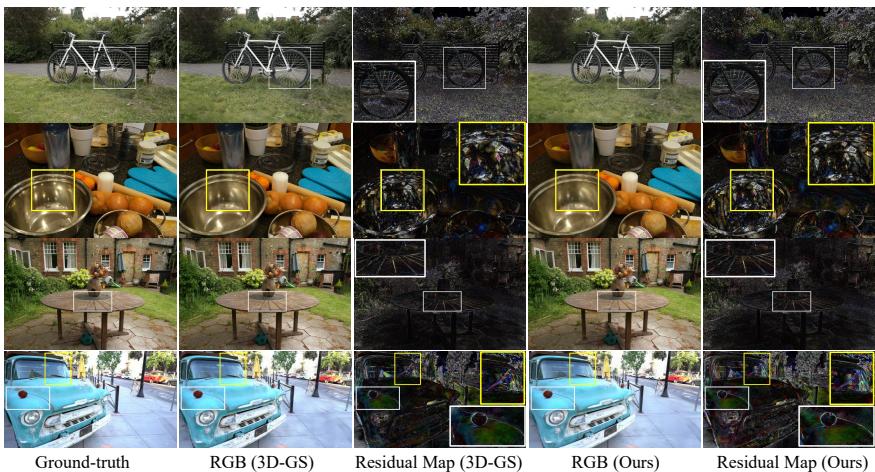

Qualitative comparison with residual maps showing near-identical outputs.

Figure 4: Residual maps between LightGaussian and original 3D-GS show negligible differences.

Qualitatively, specular reflections and fine geometry are preserved. Even pixel-level residual maps reveal minimal discrepancies.

Ablation Insights: Every Stage Matters

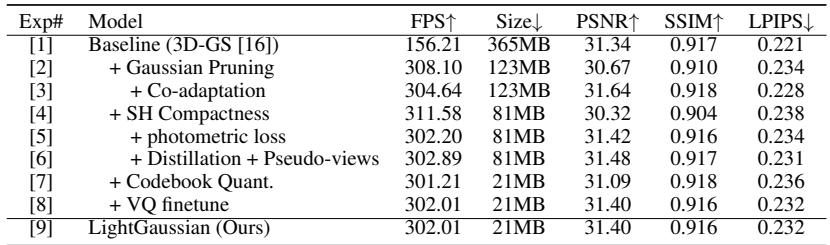

Ablation study showing cumulative benefits of pruning recovery, SH distillation, and VQ.

Table 2: Removing any stage reduces quality or compression effectiveness.

Key takeaways:

  • Pruning + recovery restores quality lost by pruning alone.
  • Distillation + pseudo-views retain high visual quality despite SH reduction.
  • Selective VQ yields the smallest models while preserving fidelity.

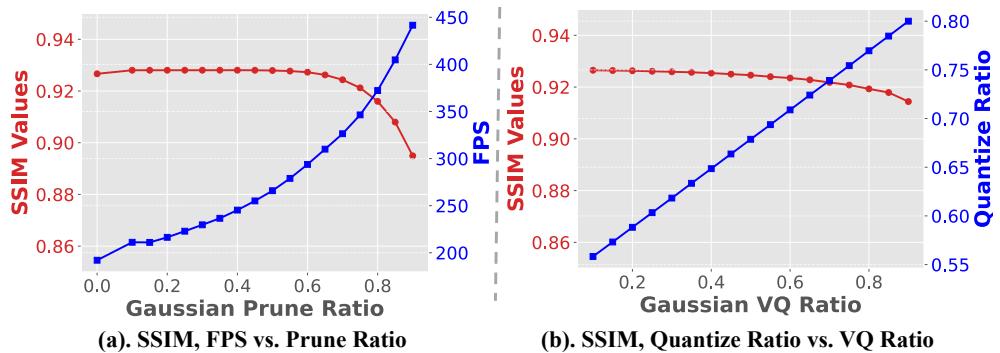

Compression vs. quality trade-off curves.

Figure 6: Quality remains high until pruning surpasses ~70% or VQ affects >65% of Gaussians.

Broader Impact

LightGaussian’s combination of structured pruning, view-wise distillation, and targeted quantization enables:

  • High-fidelity 3D scenes at a fraction of the size.
  • Real-time rendering speeds for large environments.
  • Broader use of photorealistic 3D on resource-limited platforms.

Its pruning technique also generalizes to other Gaussian-based methods (e.g., Scaffold-GS), making it a versatile optimization tool for point-based 3D formats.

Conclusion

LightGaussian is a milestone in efficient 3D content creation:

  • 15× average compression.
  • 1.6× speedup.
  • Negligible quality loss.

By thoughtfully reducing redundancy at multiple levels, LightGaussian redefines practical large-scale novel view synthesis. It opens the door to portable, interactive, photorealistic 3D worlds—from AR apps to digital twins—that are not just stunning, but light and fast.
