The world of 3D graphics has been on a wild ride. For years, we’ve chased the dream of creating digital scenes so realistic they’re indistinguishable from reality. A major leap forward came with Neural Radiance Fields (NeRF), which could generate stunningly photorealistic views from a handful of photos. But NeRF had a catch: it was incredibly slow.

Then, in 2023, 3D Gaussian Splatting burst onto the scene and changed everything. It offered NeRF-like quality at blazing-fast, real-time speeds. Suddenly, high-fidelity 3D rendering was possible for interactive applications. However, this new technique had an Achilles’ heel: shiny, reflective surfaces. Polished metal, glossy plastic, glazed ceramics—these would often look flat, blurry, or just plain wrong. The simple color modeling of Gaussian Splatting couldn’t capture the complex, view-dependent dance of light on reflective surfaces.

This is the exact problem tackled by the paper GaussianShader: 3D Gaussian Splatting with Shading Functions for Reflective Surfaces. The question was: can we combine the speed of Gaussian Splatting with a sophisticated shading model to render beautiful, realistic reflections, without sacrificing performance?

The answer is a resounding yes. GaussianShader integrates a simplified but powerful shading function directly into the Gaussian Splatting framework. As seen in Figure 1, it dramatically improves rendering quality on reflective objects compared to the original method, while remaining orders of magnitude faster to train than existing reflection-aware approaches like Ref-NeRF.

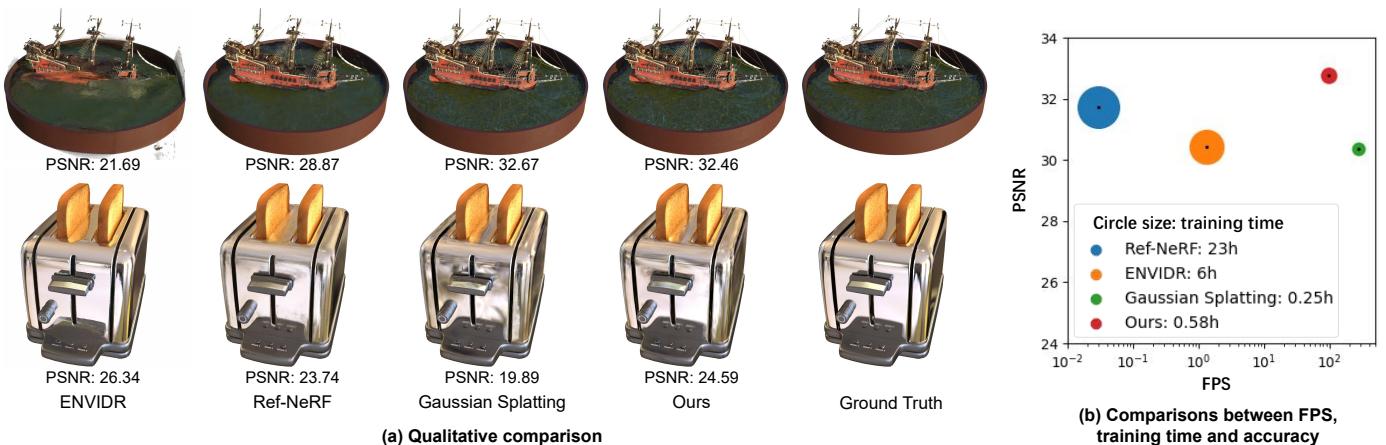

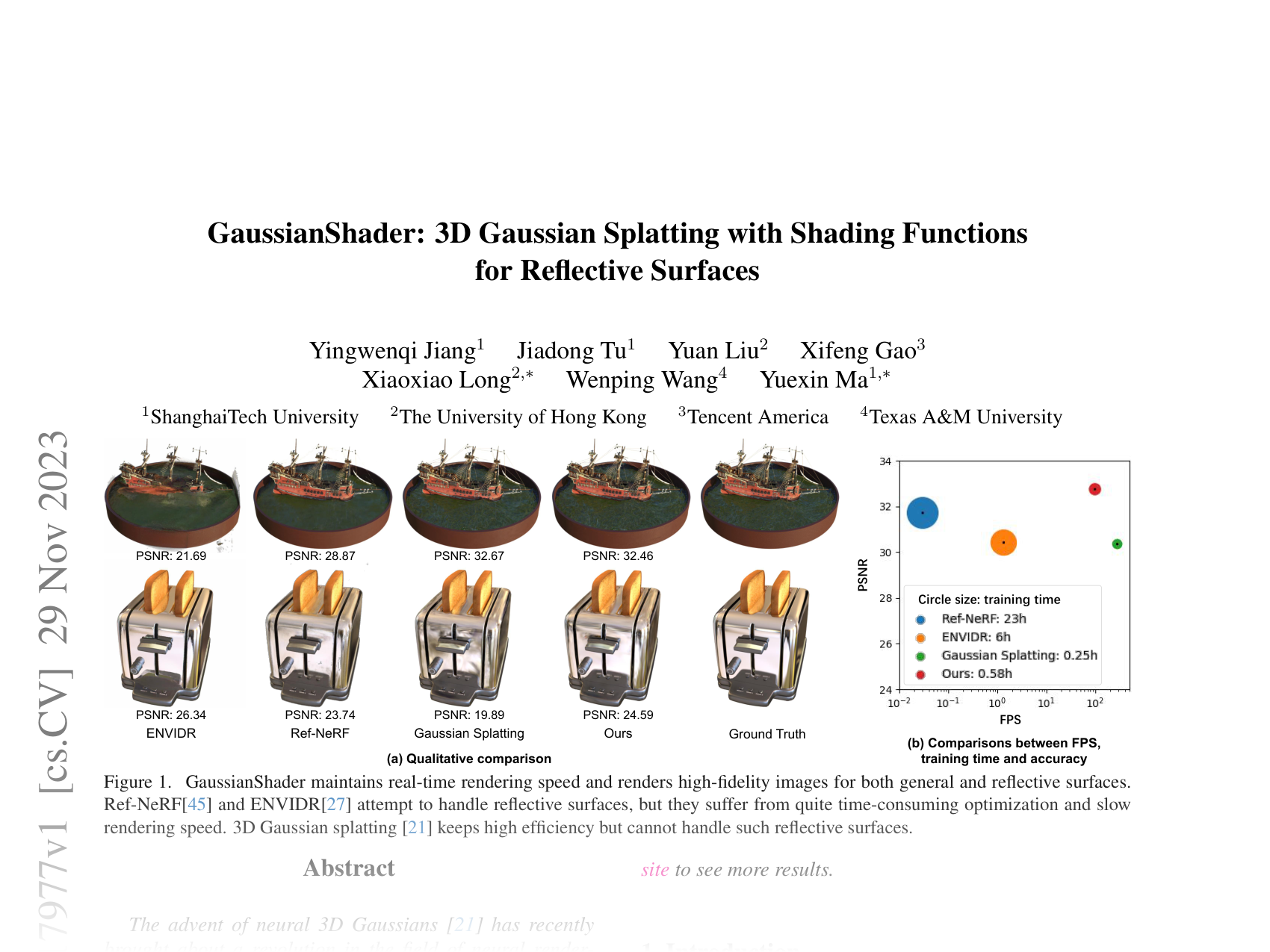

Qualitative and quantitative comparisons show GaussianShader’s advantage in rendering quality and efficiency.

Figure 1. GaussianShader achieves high-fidelity results on reflective surfaces (a) while maintaining a strong balance of speed and accuracy compared to other methods (b).

In this article, we’ll explore how GaussianShader works—how it extends 3D Gaussians with material properties, solves the tricky problem of estimating surface normals in a point cloud, and blends these innovations into a system that balances realism with real-time speed.

From NeRF to Gaussian Splatting: The Foundation

To appreciate GaussianShader’s contribution, let’s recap the technology it builds upon.

Neural Radiance Fields (NeRF) represent a scene as a neural network mapping 3D coordinates and viewing directions to color and density. By sampling this network millions of times along rays from the camera, NeRF can produce richly detailed images—at the cost of extreme computation.

3D Gaussian Splatting switched to an explicit, discrete representation: millions of tiny, semi-transparent 3D ellipsoids (Gaussians), each defined by:

  • Position (\(p\)): Its location in 3D space.
  • Covariance (\(\Sigma\)): Shape and orientation.
  • Opacity (\(\alpha\)): Transparency.
  • Color (\(c\)): Appearance, often using Spherical Harmonics (SH) for basic view-dependent effects.

To render, 3D Gaussians are projected onto the image plane as 2D ellipses, sorted by depth, and blended:

\[ \mathbf{C} = \sum_{i \in N} \mathbf{c}_i \alpha_i \prod_{j=1}^{i-1} (1 - \alpha_j) \]

Equation 1. Alpha blending for 2D Gaussian splats.

Training uses a simple color loss:

\[ \mathcal{L}_{\mathrm{color}} = \lVert \mathbf{C} - \mathbf{C}_{\mathrm{gt}} \rVert^2 \]

Equation 2. Color loss comparing rendered to ground truth images.

The result is an extremely fast pipeline—but its color model lacks the sophistication to produce sharp, view-dependent highlights on reflective surfaces. Enter GaussianShader.

The Core Idea: Giving Gaussians a Shader

GaussianShader replaces the static color model with a physically motivated shading function that calculates a Gaussian’s color based on:

  • Material properties (diffuse color, specular tint, roughness)
  • Surface normals
  • Lighting environment
  • Viewing direction

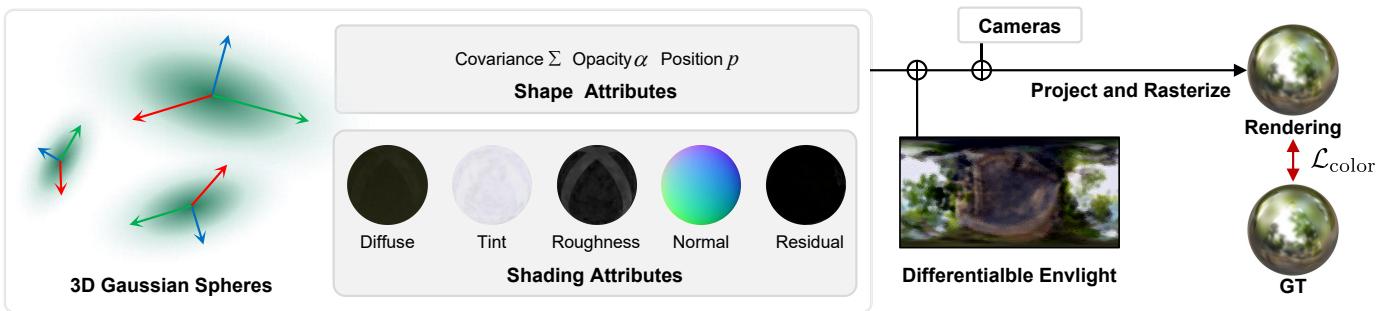

The GaussianShader pipeline, which augments 3D Gaussians with shading attributes and an environment light map.

Figure 2. GaussianShader augments shape attributes with shading attributes and a differentiable environment light, enabling realistic, view-dependent rendering.

1. A Simplified Shading Function

Solving the full rendering equation is expensive. GaussianShader uses an efficient approximation:

\[ \mathbf{c}(\omega_o) = \gamma\big(\mathbf{c}_d + \mathbf{s} \odot L_s(\omega_o, \mathbf{n}, \rho) + \mathbf{c}_r(\omega_o)\big) \]

Equation 3. GaussianShader’s shading function.

Where:

  1. Diffuse color (\(c_d\)) – the base, view-independent surface color.
  2. Specular term (\(s \odot L_s\)) – direct reflections tinted by material color \(s\), dependent on view \((\omega_o)\), normal \(n\), and roughness \(\rho\).
  3. Residual color (\(c_r\)) – a SH-parameterized “catch-all” for complex, indirect effects (e.g., global illumination, scattering).

2. Calculating Specular Light

The specular component \(L_s\) integrates environment light over a hemisphere, weighted by the Normal Distribution Function \(D\):

\[ L_s(\omega_o, \mathbf{n}, \rho) = \int_{\Omega} L(\omega_i)\, D(\mathbf{r}, \rho)\, (\omega_i \cdot \mathbf{n}) \, d\omega_i \]

Equation 4. Direct specular light integral.

With \(\mathbf{r}\) as the mirror reflection direction and \(\rho\) controlling lobe size:

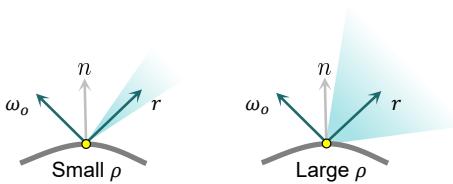

The effect of roughness on the specular lobe, controlled by the Normal Distribution Function.

Figure 3. Smooth surfaces (small \(\rho\)) yield tight specular highlights; rough surfaces (large \(\rho\)) scatter reflections more broadly.

GaussianShader accelerates this by pre-filtering the environment map into mipmaps for varying directions and roughness.

3. Estimating Normals: The Hard Problem

Accurate normals are critical for shading, but Gaussians have no continuous surface to differentiate. GaussianShader’s solution:

Step 1: Shortest Axis Insight

As training progresses, Gaussians flatten to align with real surfaces.

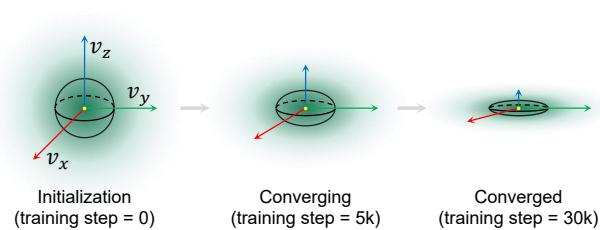

During optimization, 3D Gaussians flatten to align with object surfaces.

Figure 4. Optimization flattens Gaussians, with the shortest axis aligning to surface normals.

The shortest axis \(\mathbf{v}\) serves as a good initial normal guess.

Step 2: Learning Residuals

A small correction vector \(\Delta \mathbf{n}\) refines \(\mathbf{v}\):

\[ \mathbf{n} = \begin{cases} \mathbf{v} + \Delta \mathbf{n}_1 & \text{if } \omega_o \cdot \mathbf{v} > 0, \\ -(\mathbf{v} + \Delta \mathbf{n}_2) & \text{otherwise} \end{cases} \]

Equation 5. Final normal calculation with residuals and directional disambiguation.

Regularization keeps \(\Delta \mathbf{n}\) small:

\[ \mathcal{L}_{\mathrm{reg}} = \lVert \Delta \mathbf{n} \rVert^2 \]

Equation 6. Residual regularization loss.

Step 3: Enforcing Consistency

To ensure local smoothness without costly neighbor searches, GaussianShader compares:

  • Rendered normal map (\(\bar{\mathbf{n}}\)) – from predicted normals.
  • Depth-gradient normal map (\(\hat{\mathbf{n}}\)) – derived via image gradients on the rendered depth map.
\[ \mathcal{L}_{\mathrm{normal}} = \lVert \bar{\mathbf{n}} - \hat{\mathbf{n}} \rVert^2 \]

Equation 7. Normal-geometry consistency loss.

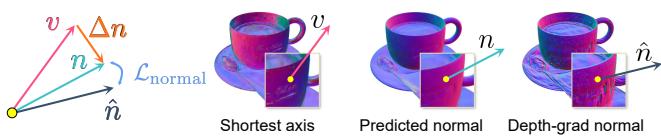

Visualization of the different vectors involved in normal estimation and the consistency loss.

Figure 5. The consistency loss aligns predicted normals with normals derived from depth gradients, ensuring geometric coherence.

4. Final Training Objective

To sharpen surfaces, a sparsity loss pushes Gaussians toward fully opaque or transparent:

\[ \mathcal{L}_{\mathrm{sparse}} = \frac{1}{|\alpha|} \sum_{\alpha_i} \big[ \log(\alpha_i) + \log(1 - \alpha_i) \big] \]

Equation 8. Sparsity loss.

The total objective:

\[ \mathcal{L} = \mathcal{L}_{\mathrm{color}} + \lambda_n \mathcal{L}_{\mathrm{normal}} + \lambda_s \mathcal{L}_{\mathrm{sparse}} + \lambda_r \mathcal{L}_{\mathrm{reg}} \]

Equation 9. Full training loss.

Experiments and Results

General Scenes

On the NeRF Synthetic dataset, GaussianShader matches original Gaussian Splatting’s quality—proving that the added shading model does not harm performance where high-end reflection modeling isn’t needed.

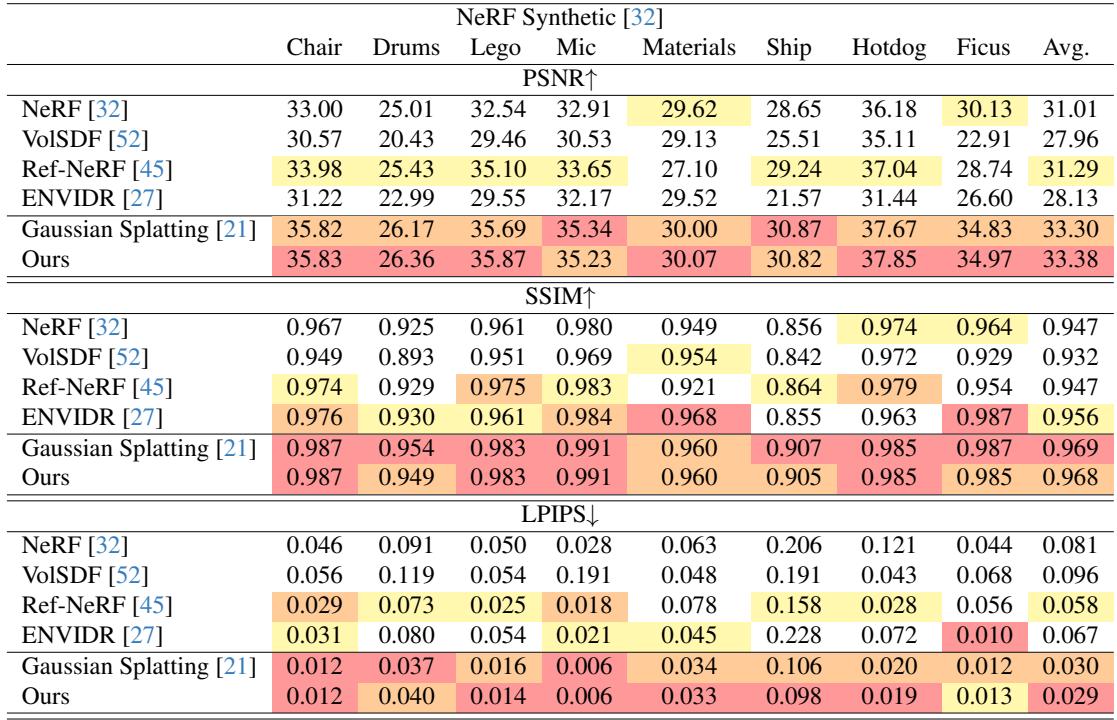

Quantitative results on the NeRF Synthetic dataset.

Table 1. GaussianShader maintains parity with Gaussian Splatting on diffuse, general scenes.

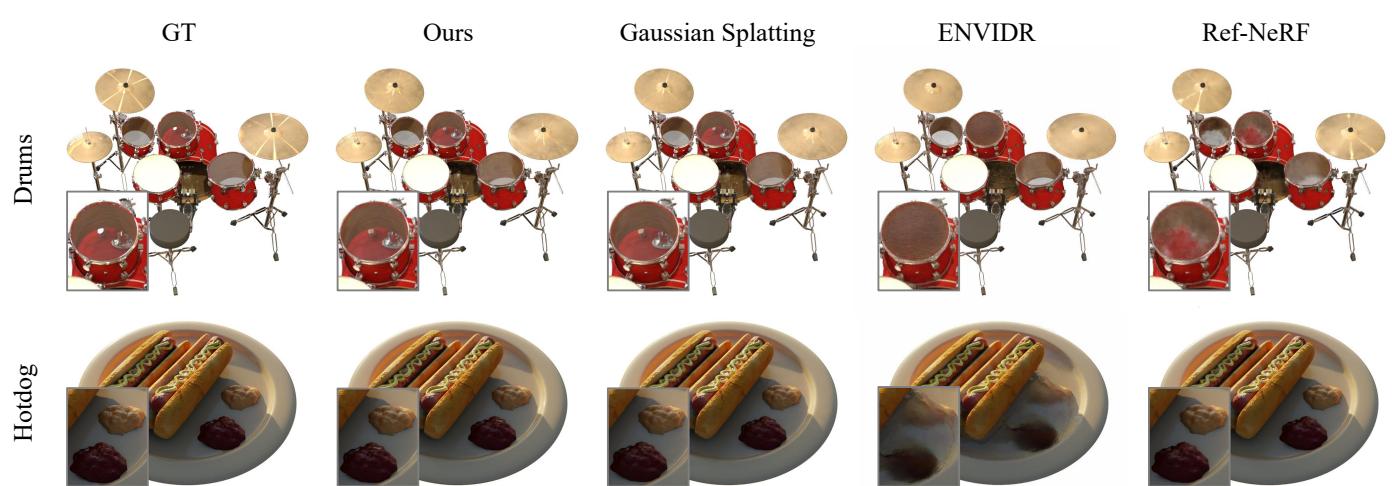

Qualitative results on the NeRF Synthetic dataset.

Figure 8. Comparable output quality on the NeRF Synthetic dataset.

Reflective Scenes

On Shiny Blender and Glossy Synthetic, rich in metallic/glossy objects, GaussianShader clearly outperforms.

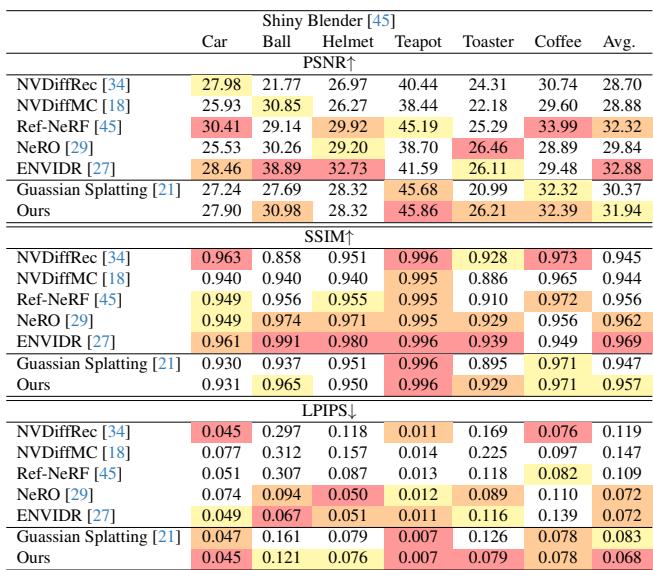

Quantitative results on the Shiny Blender dataset.

Table 2. GaussianShader improves PSNR by 1.57 dB over Gaussian Splatting.

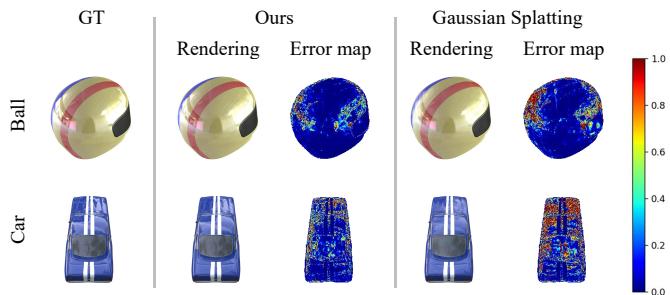

Qualitative comparison on the Shiny Blender dataset.

Figure 7. Clear, sharp specular reflections on the car and ball versus blurry highlights in Gaussian Splatting; error maps confirm improvements.

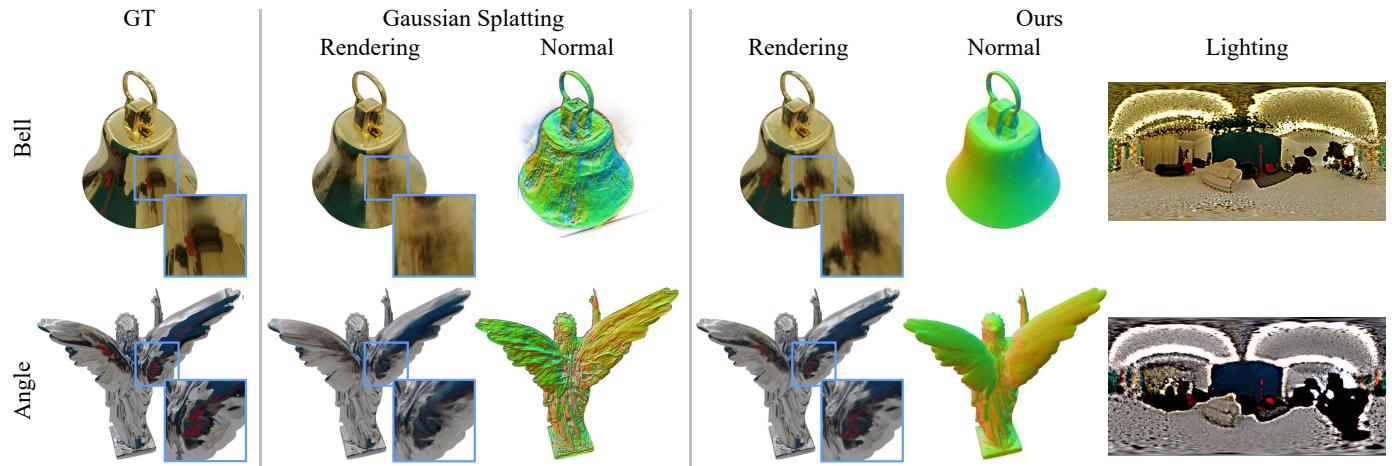

Comparison of rendered objects, normals, and lighting.

Figure 6. Better rendering and accurate normal + lighting maps on the Glossy dataset.

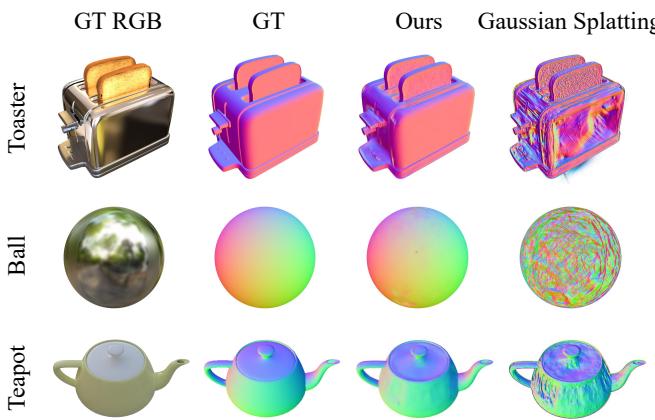

Visual comparison of estimated normals.

Figure 9. Cleaner, more accurate normals—key to correct reflections.

Speed and Scalability

Critically, GaussianShader retains real-time capability:

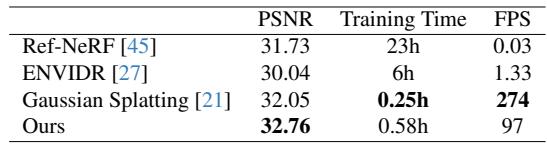

Comparison of performance metrics across different methods.

Table 3. Best quality with ~0.58 h training time and 97 FPS rendering, versus 6–23 h and 0.03–1.33 FPS for reflection-optimized MLP methods.

It scales to complex outdoor scenes, as shown in Tanks and Temples:

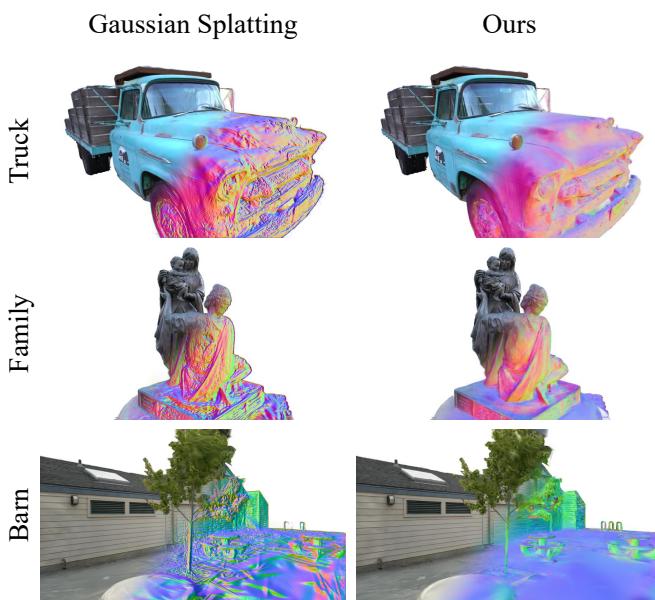

Qualitative comparison on the Tanks and Temples dataset.

Figure 10. Smoother, more plausible surfaces in large-scale scenes compared to Gaussian Splatting.

Conclusion: A Brighter, Shinier Future

GaussianShader advances real-time photorealistic rendering by integrating a simplified but expressive shading model with Gaussian Splatting. Its novel normal estimation—combining shortest-axis heuristics, learned residuals, and a geometry-consistency loss—enables physically-based shading in a discrete point-based representation.

The result is the best of both worlds:

  • Correct rendering of complex, view-dependent effects like metallic reflections and glossy highlights.
  • Preservation of Gaussian Splatting’s efficiency and interactive speeds.

This work pushes the boundaries for immersive, realistic experiences in gaming, VR, and beyond—making shiny, reflective scenes no longer a performance-killing bottleneck, but a real-time reality.
