From Photos to 3D Models: A Simpler Path Forward

Creating a detailed 3D model from a collection of regular photos has long been considered one of the ultimate goals in computer vision. For decades, the standard approach has been a complex, multi-stage pipeline: first Structure-from-Motion (SfM) to estimate camera parameters and sparse geometry, followed by Multi-View Stereo (MVS) to produce dense surface models.

This traditional pipeline is a monumental achievement, underpinning applications from Google Maps’ 3D view to cultural heritage preservation, robotics navigation, and autonomous driving. But it’s also fragile — each step depends on the success of the previous one, and an error at any point can cascade through the pipeline, causing the final reconstruction to fail. Calibration must be precise, the number of views sufficient, motion variations adequate, and surfaces well-textured — otherwise, reconstructions can collapse.

What if we could bypass all those stages entirely? Imagine feeding a handful of photos — without any information about the cameras — into a single, unified model and getting an accurate 3D model in return.

That’s the promise of DUSt3R, a groundbreaking approach that radically simplifies 3D reconstruction. This single model can take an unconstrained collection of images and directly output dense 3D reconstructions — along with camera poses, depth maps, and pixel correspondences — all at once. It eliminates the brittle sequential dependencies of traditional methods and sets new state-of-the-art results for several fundamental 3D vision tasks.

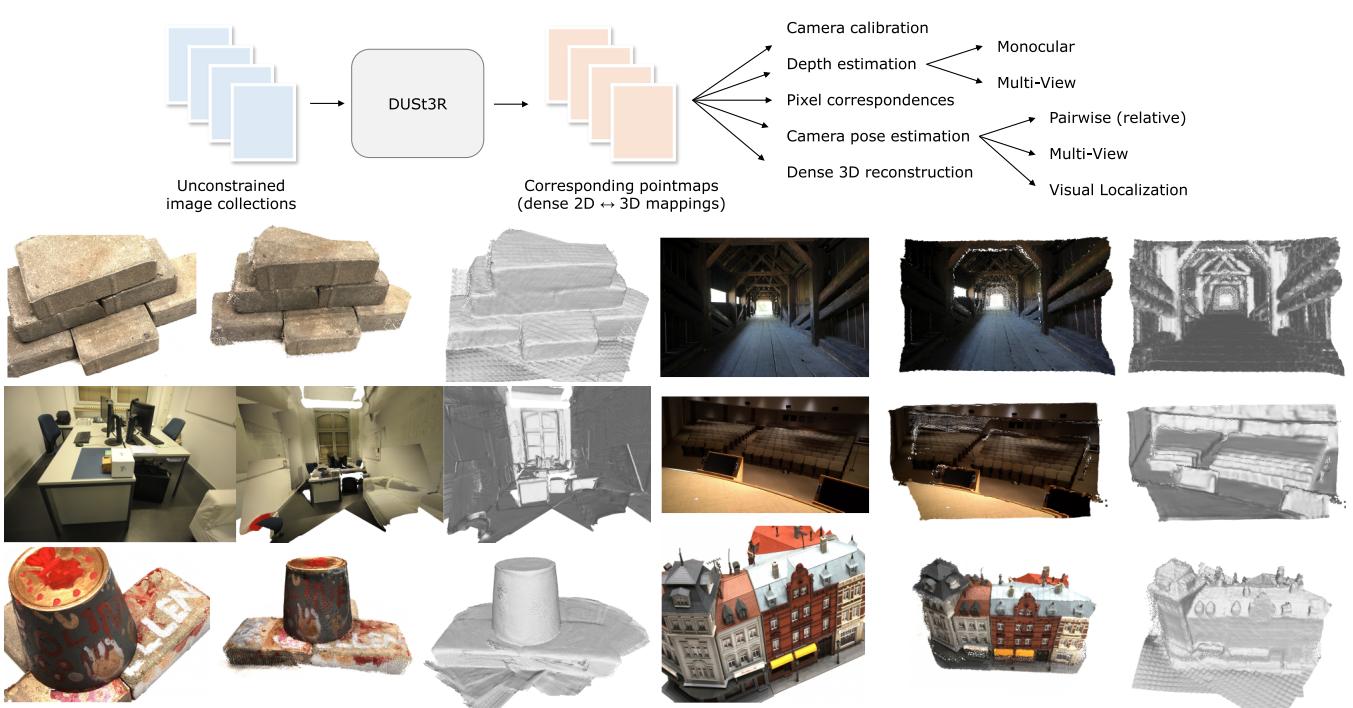

An overview of the DUSt3R pipeline, showing how it takes unconstrained collections of images and produces corresponding pointmaps, which can then be used for camera calibration, depth estimation, and dense 3D reconstruction.

Figure 1: The DUSt3R pipeline. Given a set of images with unknown camera parameters, DUSt3R outputs consistent 3D reconstructions and can derive all geometric quantities traditionally difficult to estimate.

To appreciate why DUSt3R is such a leap forward, let’s briefly revisit the conventional pipeline:

  1. Feature Matching: Detect distinctive keypoints in each image and match them across views to establish correspondences for the same physical points in the scene.
  2. Structure-from-Motion (SfM): Use these matches to simultaneously solve for camera intrinsics (focal length, principal point) and extrinsics (position, orientation), while estimating sparse 3D coordinates of keypoints.
  3. Bundle Adjustment (BA): Refine all cameras and 3D points together by minimizing reprojection error across all views.
  4. Multi-View Stereo (MVS): Using the optimized camera poses, establish dense correspondences for every pixel to reconstruct continuous surfaces.

Despite decades of refinement, this pipeline’s sequential nature remains its Achilles’ heel: bad matches yield bad poses, which produce faulty dense reconstructions. Furthermore, later steps rarely feed back information to improve earlier ones, leaving cameras and scene geometry as independent problem domains.

Most modern systems attempt partial improvements — bolstering feature matching or neuralizing parts of MVS — but the core chain of dependent steps remains. DUSt3R discards this chain completely.

DUSt3R’s Paradigm Shift: Predicting Pointmaps

The heart of DUSt3R is its pointmap representation — a dense mapping from each pixel in an image to a 3D point in a common scene coordinate frame.

What is a Pointmap?

A depth map gives a distance \( z \) for each pixel. A pointmap goes further: for each pixel coordinate \((i, j)\), it stores the full 3D location \( X_{i,j} = (x, y, z) \) of the point in the scene that that pixel observes.

Critically, DUSt3R predicts two pointmaps for a pair of input images \((I^1, I^2)\):

  • \( X^{1,1} \): Pointmap of image \(I^1\) in \(I^1\)’s own coordinates
  • \( X^{2,1} \): Pointmap of image \(I^2\), also expressed in \(I^1\)’s coordinates

This shared-frame design forces the network to learn the relative rotation and translation between cameras directly in its representation. There is no separate “pose estimation” step — geometry alignment is intrinsic to the output.

Architecture: Two Views in Conversation

DUSt3R’s architecture builds on the Vision Transformer (ViT), designed for dense visual understanding.

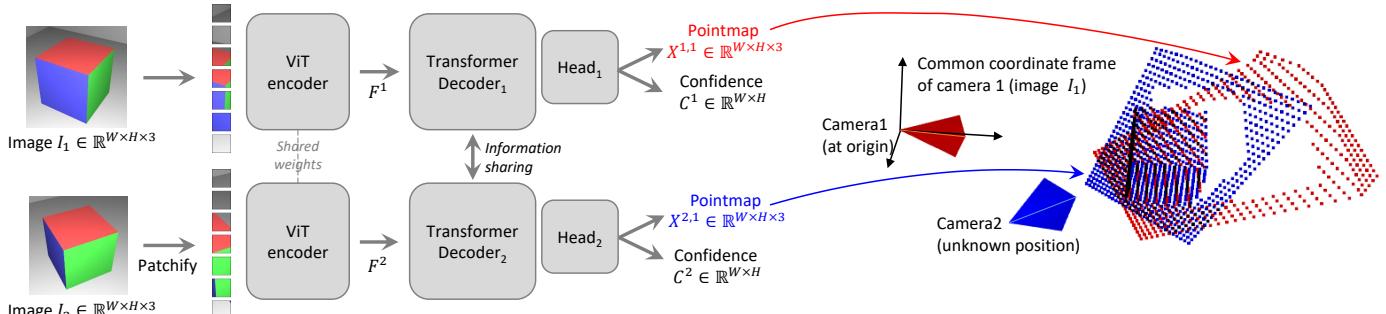

The architecture of the DUSt3R network: Two images are processed by a shared ViT encoder; the resulting tokens go through decoders that exchange information via cross-attention, producing aligned pointmaps.

Figure 2: DUSt3R’s architecture. Cross-attention in the decoder allows continuous information exchange between views, aligning outputs into a shared 3D space.

Key components:

  1. Siamese ViT Encoder: Both images pass through the same ViT encoder (shared weights). This ensures feature extraction happens in a unified embedding space.
  2. Cross-Attention Decoder: Tokens from one view attend to tokens from the other view and vice versa, enabling the network to infer geometric relationships.
  3. Regression Heads: Separate heads for each view regress pointmaps \(X^{1,1}\), \(X^{2,1}\) and confidence maps \(C\). Confidence maps indicate pixels where the network is most certain — invaluable for filtering out unreliable points (reflections, occlusions, sky regions).

Training: A Straightforward 3D Regression Loss

The network trains with a simple Euclidean distance loss between predicted and ground-truth 3D points:

\[ \ell_{\text{regr}}(v,i) = \left\| \frac{1}{z} X_i^{v,1} - \frac{1}{\bar{z}} \bar{X}_i^{v,1} \right\| \]

Here \( z \) and \( \bar{z} \) normalize scale to account for the inherent ambiguity in absolute scene size from two views.

Confidence-weighted loss further refines training:

\[ \mathcal{L}_{\text{conf}} = \sum_{v \in \{1,2\}} \sum_{i} C_i^{v,1} \,\ell_{\text{regr}}(v,i) - \alpha \log C_i^{v,1} \]

This approach rewards accurate high-confidence predictions and penalizes overconfidence in incorrect regions.

By training on 8.5M diverse image pairs (from datasets like Habitat, MegaDepth, ScanNet++), DUSt3R learns broad geometric priors applicable to indoor, outdoor, synthetic, and real-world scenes.

From Pointmaps to Full Geometry

Once DUSt3R predicts pointmaps:

  • Feature Matching: Nearest-neighbor search in 3D between pointmaps yields pixel correspondences directly.
  • Camera Intrinsics: Optimizing projection of pointmap points back to the image plane estimates focal length and principal point.
  • Relative Pose: Aligning pointmaps with Procrustes analysis or PnP-RANSAC recovers relative extrinsic parameters.

This means DUSt3R can effortlessly derive all the quantities traditional pipelines labor separately to compute.

Beyond Pairs: Global Multi-View Alignment

While DUSt3R is fundamentally pairwise, the authors extend it to whole image sets via fast 3D alignment:

  1. Graph Building: Images are nodes; edges link pairs with significant overlap.
  2. Pairwise DUSt3R Predictions: Run DUSt3R on all edges.
  3. Global Optimization: Solve for rotation (\(R\)), translation (\(t\)), and scale factors (\(\sigma\)) aligning all pointmaps into a single consistent global model.
\[ \chi^{*} = \underset{\chi, P, \sigma}{\operatorname{arg\,min}} \sum_{e \in \mathcal{E}} \sum_{v \in e} \sum_{i} C_{i}^{v, e} \| \chi_{i}^{v} - \sigma_{e} P_{e} X_{i}^{v, e} \| \]

This works directly in 3D — faster and often more stable than bundle adjustment’s 2D reprojection optimization.

An example of a pairwise reconstruction (left) and a multi-view reconstruction after global alignment (right).

Figure 3: Pairwise result (left) vs. multi-view global alignment (right).

Benchmarks: DUSt3R’s Across-the-Board Strengths

Multi-view Pose Estimation:
On CO3Dv2 and RealEstate10K, DUSt3R with global alignment surpasses previous state-of-the-art, including learning-based and geometry-based baselines.

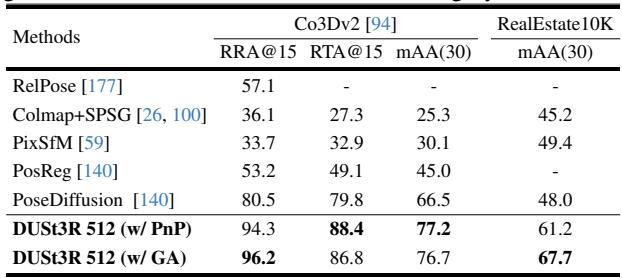

Table comparing multi-view pose estimation. DUSt3R with GA tops scores.

Table 1: DUSt3R achieves the highest scores on both benchmarks.

Monocular & Multi-view Depth Estimation:
For monocular depth, DUSt3R simply processes \((I, I)\). Even in zero-shot mode, it matches or outperforms supervised systems across diverse datasets. For multi-view stereo depth, DUSt3R attains state-of-the-art on ETH3D and strong performance across DTU, Tanks and Temples, and ScanNet — without using known camera poses.

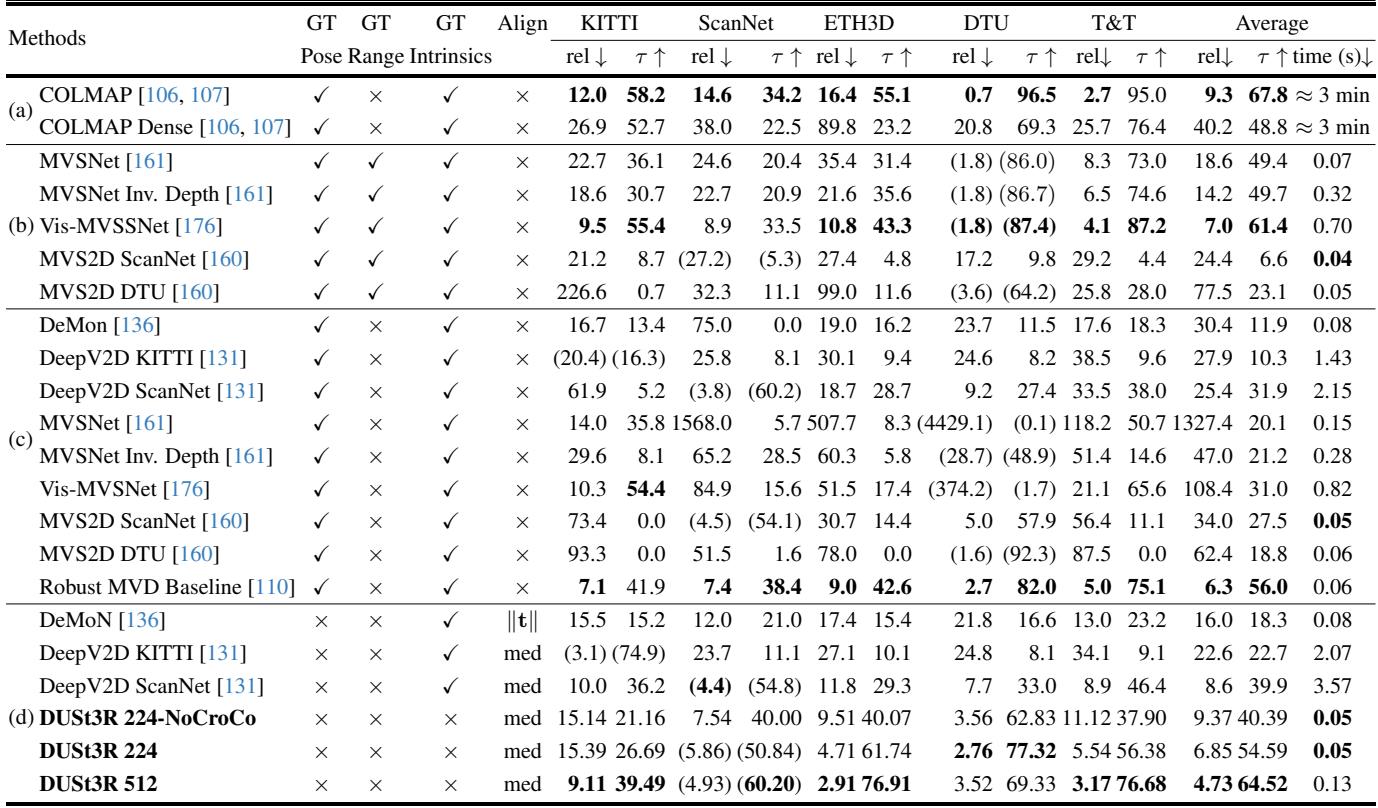

Multi-view depth evaluation table. DUSt3R matches state-of-the-art without GT poses.

Table 2: Multi-view depth performance. DUSt3R is the only leading method without requiring GT camera poses.

Qualitative Reconstructions:
DUSt3R’s visual results are equally compelling:

  • Handles extreme viewpoint changes, focal length differences with ease.
  • Successfully reconstructs from pairs of images showing nearly opposite sides of an object — even with minimal overlap.

Two-image 3D reconstruction of the Brandenburg Gate.

Figure 4: Detailed reconstruction of Brandenburg Gate from just two unconstrained images.

3D reconstructions from opposite viewpoints for various objects.

Figure 5: DUSt3R reconstructs objects from minimal-overlap views, demonstrating learned geometric priors.

For DTU benchmark, while it doesn’t surpass specialized, camera-parameter-fed methods, its plug-and-play applicability makes it highly practical for uncontrolled real-world scenarios.

Conclusion: A New Foundation for 3D Vision

DUSt3R represents a paradigm shift:

  • No Camera Info Needed: Works on unconstrained image sets without any intrinsics or poses.
  • Unified Model: One network solves dense reconstruction, depth estimation, pose estimation, and feature matching with state-of-the-art results.
  • Pointmaps Power: Encodes multi-view geometry in a shared coordinate frame, implicitly learning scene structure.
  • Robust “In-the-Wild” Performance: Handles wide baselines, few images, and challenging capture conditions.

Rather than solving brittle, sequential sub-problems, DUSt3R demonstrates the power of training a single, large-scale model to learn the structure of our 3D world directly from visual data. It doesn’t just make geometric 3D vision easy — it changes the way we think about building 3D from images.
