Graphs are everywhere. From the social networks that connect us, to the knowledge bases that power search engines, to the molecular structures that define medicines — these networks of nodes and edges are a fundamental way we represent complex information.

For years, specialized models like Graph Neural Networks (GNNs) have been the go-to tool for analyzing graphs. They are powerful, but often require deep expertise to design and tune for each specific task. They are far from user-friendly.

Enter Large Language Models (LLMs). With their ability to understand and generate human language, researchers have begun exploring whether LLMs can also tackle graph problems. The typical approach? Describe the graph in text — “Node A is connected to Node B,” and so on — and feed this description to an LLM.

This works to an extent, but misses a key aspect of how humans understand graphs: we look at them. A visual rendering of a graph can make cycles, clusters, and paths immediately apparent — patterns that are tedious or even opaque when described purely in text.

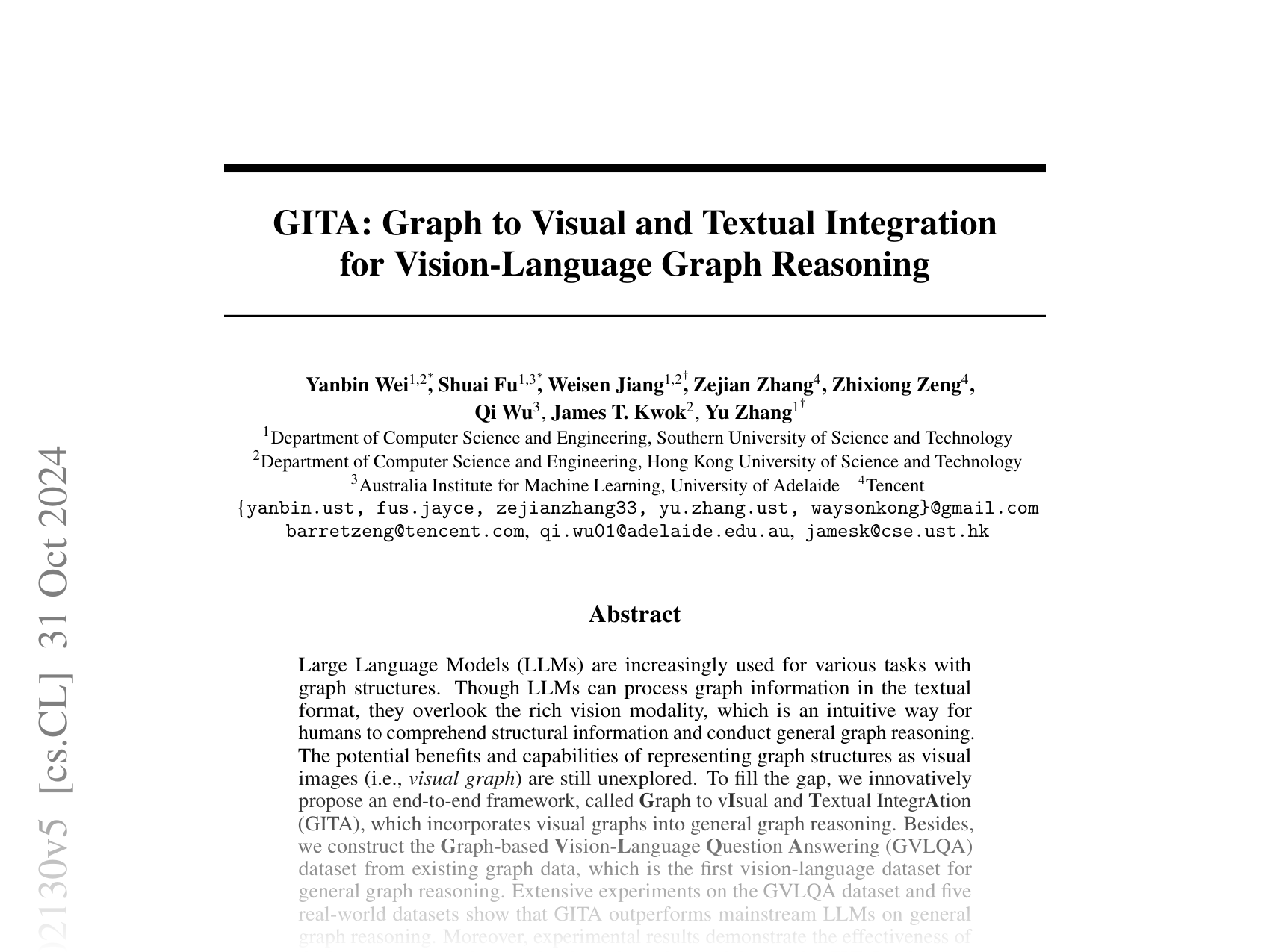

That gap is exactly what a new research paper, GITA: Graph to Visual and Textual Integration for Vision-Language Graph Reasoning, addresses. The authors pose a simple but profound question:

Can we improve an AI’s graph reasoning ability by letting it see graphs as images as well as read them in text form?

Their answer is a resounding yes. They introduce GITA — an end-to-end framework that integrates the visual structure of graphs with textual descriptions to unlock new graph reasoning capabilities in Vision-Language Models (VLMs).

In this article, we’ll dive deep into the GITA framework, explore the benchmark dataset it inspired, and unpack the experiments that show why adding a visual dimension to graph reasoning is a game-changer.

From GNNs to LLMs on Graphs

Before dissecting GITA, let’s set the stage.

Traditional graph reasoning models like GNNs work by “message passing” — nodes exchange information along edges, iteratively updating their internal representations based on the graph’s connectivity. GNNs excel at tasks like link prediction or node classification, but they are often rigid. A GNN built for social network analysis can’t be simply repurposed for molecular biology without significant redesign.

LLMs offer more flexibility. By representing graph data as text, a single model can handle diverse reasoning tasks with minimal architecture changes. Broadly, existing LLM-based approaches for graphs fall into two categories:

  1. Graph-to-Text: Converting a graph’s nodes and edges into natural language or structured sentences, then appending the problem prompt.
  2. Graph-to-Token: Encoding the graph as a sequence of specialized tokens that the LLM can process directly.

While promising, both approaches ignore the intuitive power of visual representations. This is where GITA steps in — leveraging Vision-Language Models such as GPT-4V and LLaVA that can process and reason over both images and text.

The GITA Framework: Four Components in Harmony

GITA is not a single monolithic model, but a systematic pipeline for integrating visual graphs into reasoning workflows. It comprises four modules working together:

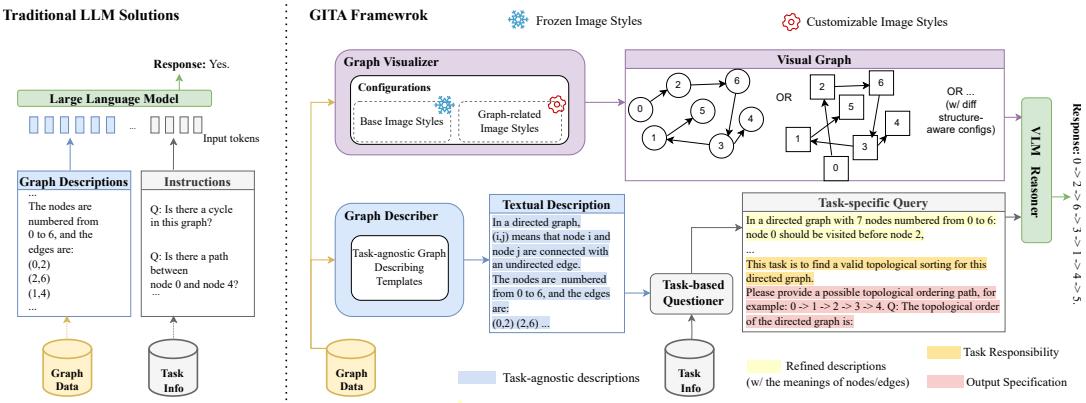

The GITA framework (right) generates both a visual graph and a textual query to feed into a Vision-Language Model, compared to traditional LLM solutions (left) which only use text.

Figure 1: The architecture of the GITA framework compared to a typical text-only LLM solution.

1. Graph Visualizer

The Graph Visualizer transforms a graph’s abstract structure into a visual graph image.

It strikes a balance between consistency (uniform background color, resolution, etc.) and variety (graph-specific style changes). Four aspects can vary to improve model robustness:

  • Layout: Node arrangement (circular, spring-based, random grids)
  • Node Shapes: Circles, squares, triangles, etc.
  • Node Outline Styles: Solid, dotted, dashed
  • Edge Thickness: Thicker or thinner lines for visual differentiation

Formally:

\[ I_G = V(G, \Gamma, \Delta) \]


Where \(I_G\) is the visual graph image, \(G\) is the graph structure, \(\Gamma\) are fixed basic styles, and \(\Delta\) are customizable graph style parameters.

For large graphs, the visualizer applies k-hop subgraph sampling, showing only a local neighborhood of interest to keep images clear and manageable.

2. Graph Describer

While the visualizer produces the image, the Graph Describer generates a task-agnostic textual description using structured templates.

Example:

“In an undirected graph, the nodes are numbered from 0 to 6, and the edges are: (0,2), (2,6), (1,4)…”

This process is:

\[ D_G = D(G, P) \]


Where \(P\) is the template chosen to match the graph’s properties (directed/undirected, weighted/unweighted, etc.).

3. Questioner

The generic description is refined into a task-specific query by the Questioner. This step enriches the graph description with:

  • Context: What do nodes/edges mean in this scenario?
  • Task Responsibility: What problem needs solving?
  • Output Specification: How should the answer be returned?

Formally:

\[ Q_G^T = Q(T, D_G) \]

There are two modes:

  • Manual Templates: Best for well-defined tasks needing precision (e.g. topological sort, shortest path).
  • LLM-Agent Bootstrapping: Flexible for dynamic or novel tasks; an LLM generates queries based on context.

4. VLM Reasoner

The Vision-Language Model Reasoner (e.g., LLaVA, GPT-4V) takes in both \(I_G\) (visual graph) and \(Q_G^T\) (task-specific query), and outputs the answer \(A\) in natural language.

\[ A = R(I_G, Q_G^T) \]

Training uses standard language modeling objectives, aligning visual features with text embeddings to predict the correct answer sequence.

GVLQA: The Benchmark for Vision-Enhanced Graph Reasoning

To evaluate GITA and inspire future research, the authors built GVLQA — Graph-based Vision-Language Question Answering dataset.

It contains 526,000 instances, each with:

  1. A visual graph image
  2. A textual query
  3. A ground-truth answer

GVLQA covers seven representative graph reasoning tasks:

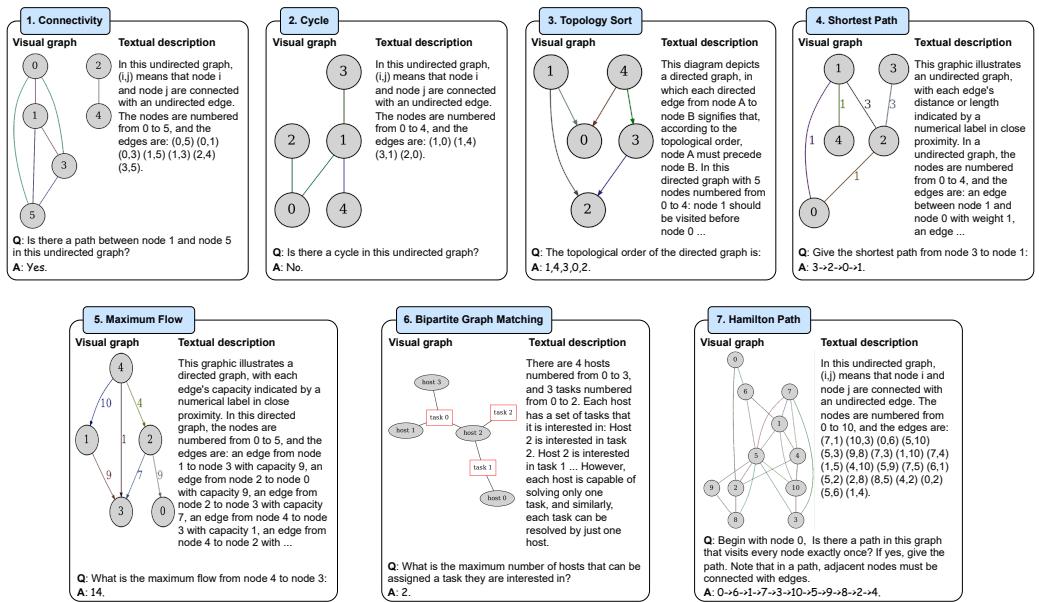

An overview of the seven graph reasoning tasks included in the GVLQA-BASE dataset, showing a sample visual graph and textual question for each.

Figure 6: Seven graph reasoning tasks featured in GVLQA-BASE.

  1. Connectivity: Are two nodes connected?
  2. Cycle Detection: Does the graph contain a cycle?
  3. Topological Sort: Produce a valid node ordering in a DAG.
  4. Shortest Path: Between two nodes, considering weights.
  5. Maximum Flow: Compute flow from source to sink.
  6. Bipartite Graph Matching: Find the largest set of edges without shared nodes.
  7. Hamiltonian Path: Path visiting every node exactly once.

GVLQA is divided into five subsets:

  • GVLQA-BASE: Uniform styling
  • Four augmentation variants: GVLQA-AUGLY (layout), GVLQA-AUGNS (node shape), GVLQA-AUGNO (node outline), GVLQA-AUGET (edge thickness)

These augmentations enable focused studies on how visual style impacts reasoning performance.

Does Seeing Help? Experimental Findings

The researchers extensively evaluated GITA against LLM baselines and even specialized GNNs. The results were clear: Vision boosts reasoning.

GITA vs. LLMs on GVLQA

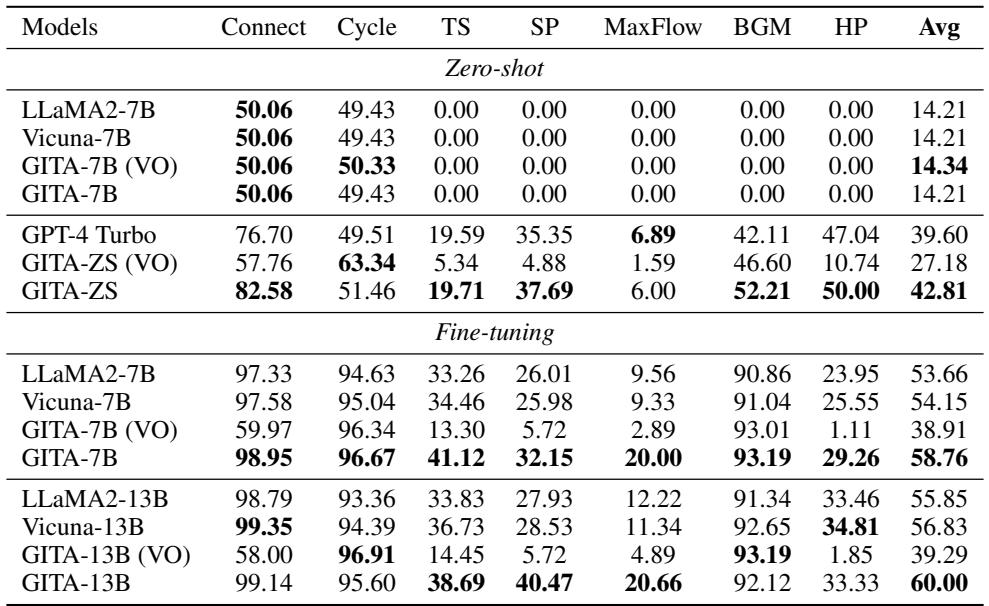

Table showing GITA’s accuracy on the GVLQA-BASE dataset compared to other LLMs.

Table 1: Accuracy (%) comparisons on GVLQA-BASE.

Key observations:

  1. GITA Outperforms Text-Only Models: Both 7B and 13B versions of GITA surpassed LLaMA2, Vicuna, and GPT-4 Turbo on average when trained/fine-tuned.
  2. Open-Source Models Lack Innate Graph Skills: In zero-shot settings, open-source LLMs often guessed randomly on binary tasks.
  3. Vision Complements Text: Vision-only GITA excelled at cycle detection and bipartite matching, while text was better at sequential, weight-dependent tasks like shortest path.

Case in point:

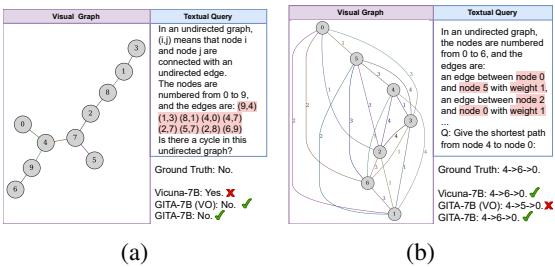

A case study comparing vision (a) and text (b).

Figure 2: (a) Vision-only easily spots no cycle; text misjudges. (b) Visual layout misleads shortest path; text has correct weight info.

The Power of Layout Augmentation

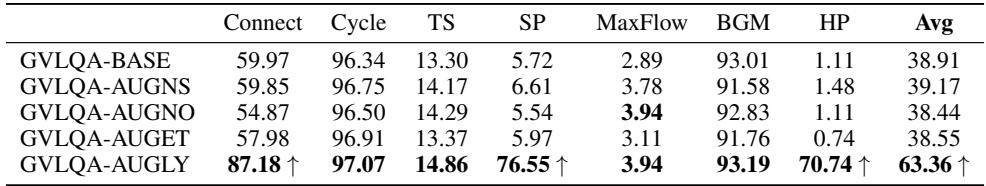

Table showing layout augmentation’s impact on performance.

Table 2: Accuracy (%) across GVLQA subsets using GITA-7B (VO).

Layout augmentation stands out. Training on varied layouts boosted vision-only GITA’s accuracy from 38.9% to 63.4%, with spectacular gains in Shortest Path (5.7% → 76.6%) and Hamiltonian Path (1.1% → 70.7%).

This shows layout variation teaches the model to see the underlying topology rather than memorizing a fixed visual pattern.

Real-World Dataset Performance

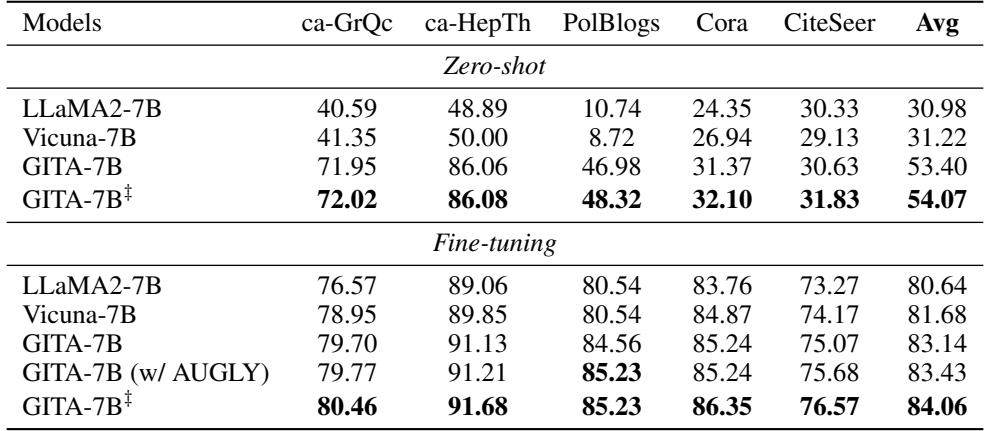

Table showing GITA’s superior performance on datasets like ca-GrQc and Cora.

Table 3: Accuracy (%) on real-world datasets.

GITA beat text-only LLMs on five graph datasets for link prediction and node classification. Pre-training on GVLQA further improved scores, underscoring its utility as a foundational dataset.

GITA vs. GNNs

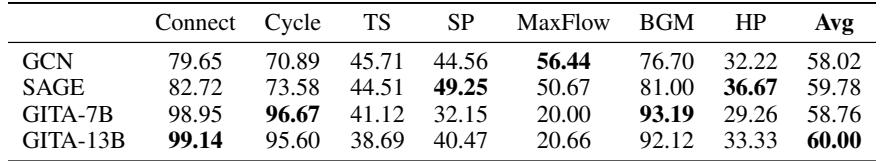

Table comparing GITA and dedicated GNNs.

Table 4: Accuracy (%) comparisons between dedicated GNNs and GITA.

GITA-13B slightly outperformed GCN and GraphSAGE on average, excelling at visually intuitive tasks like Connectivity, Cycle, and Matching. GNNs remained better on weight-intensive tasks (Shortest Path, Max Flow) and scale more efficiently.

Conclusion: A New Paradigm for Graph Reasoning

The GITA paper makes a compelling case for multimodal graph reasoning. By enabling Vision-Language Models to “see” graphs alongside textual descriptions, GITA unlocks capabilities that text alone struggles to match.

Key takeaways:

  1. Vision is a powerful, underutilized modality for graph reasoning.
  2. Visual and textual information complement each other, each excelling in different task types.
  3. Layout augmentation is critical to generalizing from visual graph data.

This work opens promising avenues:

  • Smarter subgraph sampling for massive graphs
  • Full-model fine-tuning to align visual and textual encoders
  • Richer, more varied visual graph datasets

With frameworks like GITA and resources like GVLQA, AI systems can move closer to human-like, multimodal fluency in understanding and reasoning over complex relational data.
