Creating 3D content for games, virtual reality, and films has traditionally been a labor-intensive process, requiring skilled artists and hours of meticulous work.

But what if you could generate a highly detailed 3D model from a single image or a line of text in mere seconds? This is the promise of generative AI for 3D — a rapidly evolving field that’s seen explosive growth.

Early methods were revolutionary but slow, often taking minutes or even hours to optimize a single 3D asset. More recent feed-forward models brought generation time down to seconds, but at a cost: lower resolution and less geometric detail. The core challenge has been balancing speed and quality. Can we have both?

A new paper, Large Multi-View Gaussian Model (LGM), proposes exactly that. This novel approach can produce high-resolution, richly detailed 3D models in about 5 seconds, avoiding the bottlenecks of previous methods thanks to two key innovations:

  1. An efficient, expressive 3D representation: 3D Gaussian Splatting
  2. A high-throughput, asymmetric U-Net backbone to generate it

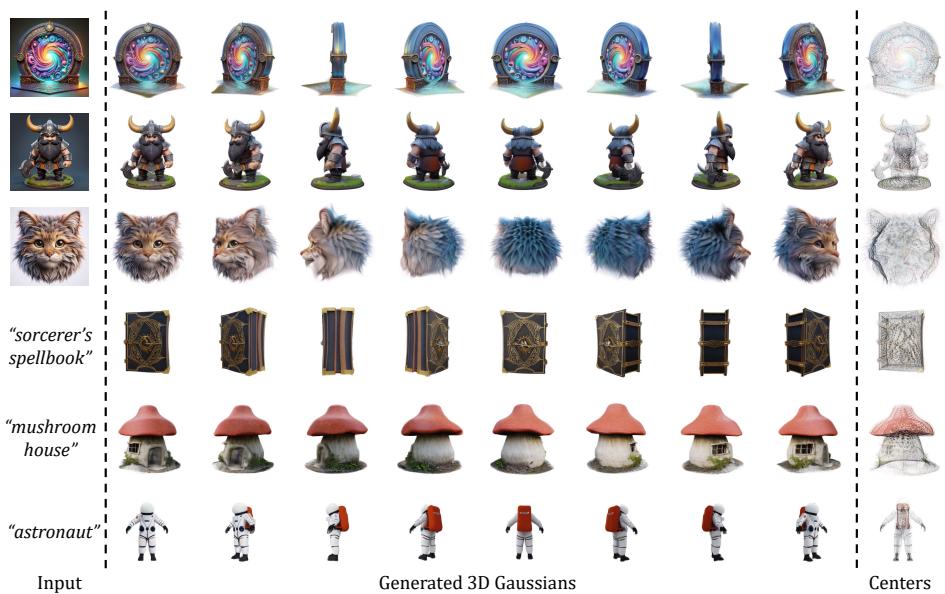

A gallery showing various 3D models generated by LGM from different inputs, including a portal, a dwarf, a cat head, and a mushroom house. The figure demonstrates the high-resolution output from single images or text.

Fig. 1: LGM generates high-resolution, detailed 3D Gaussians from text prompts or single-view images in ~5 seconds.

In this article, we’ll unpack the LGM paper — exploring the limitations of prior work, the architecture and training strategies that make LGM so effective, and the impressive results that set a new standard for fast, high-fidelity 3D content creation.

The Quest for Fast, High-Quality 3D Generation

Before diving into LGM’s design, let’s briefly review the two dominant approaches in 3D generation:

1. Optimization-Based Methods (Slow but Detailed)

These methods, often using Score Distillation Sampling (SDS), act like patient sculptors. They start with a random 3D shape and iteratively refine it, guided by a powerful 2D image diffusion model (like Stable Diffusion).

The 2D model “views” the 3D shape from different angles and suggests changes to better match the text prompt. This can yield stunning detail and creativity (e.g., DreamFusion, Magic3D), but typically requires minutes to hours for a single object.

2. Feed-Forward Models (Fast but Limited Detail)

To overcome speed constraints, feed-forward models learn a direct mapping from an input (like a single image) to a 3D representation via large-scale training. For example, Large Reconstruction Model (LRM) predicts a triplane NeRF from one image.

While fast, these methods are bound by the low-resolution training limits of triplane representations and heavy transformer-based backbones. The result: blurry textures, flat geometry, and poor detail on unseen views (like the back).

LGM’s Insight:
The authors identified two bottlenecks:
(1) Inefficient representation (triplanes)
(2) Heavy computation (transformers)

Their solution: replace both with Gaussian Splatting and a lean asymmetric U-Net.

The LGM Framework: A Two-Step Powerhouse

At its core, LGM is a multi-view reconstruction model. Instead of guessing the full 3D shape from one ambiguous view, it uses a set of four consistent multi-view images to assemble the object.

The inference pipeline unfolds in two steps, as shown below:

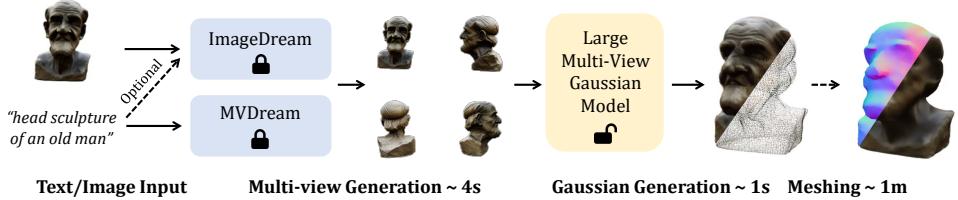

The pipeline of LGM, showing how a text or image input is first fed into a multi-view generation model (like MVDream or ImageDream) to produce four views. These views are then passed to LGM to generate 3D Gaussians, which can optionally be converted into a mesh.

Fig. 2: At inference time, LGM uses off-the-shelf multi-view diffusion models for image or text input to create four orthogonal views, then reconstructs high-resolution 3D Gaussians. Mesh extraction is optional.

Step 1: Multi-View Generation (~4s)

LGM leverages state-of-the-art multi-view diffusion models:

  • MVDream for text-to-3D
  • ImageDream for image-to-3D

Provide a prompt like “head sculpture of an old man” or a single image, and these models generate four orthogonal viewpoints (front, right, back, left).

Step 2: Gaussian Generation (~1s)

These four images, along with their camera pose metadata, feed into LGM’s asymmetric U-Net, which outputs thousands of 3D Gaussians representing the full object.

The Core Engine: Asymmetric U-Net for 3D Gaussians

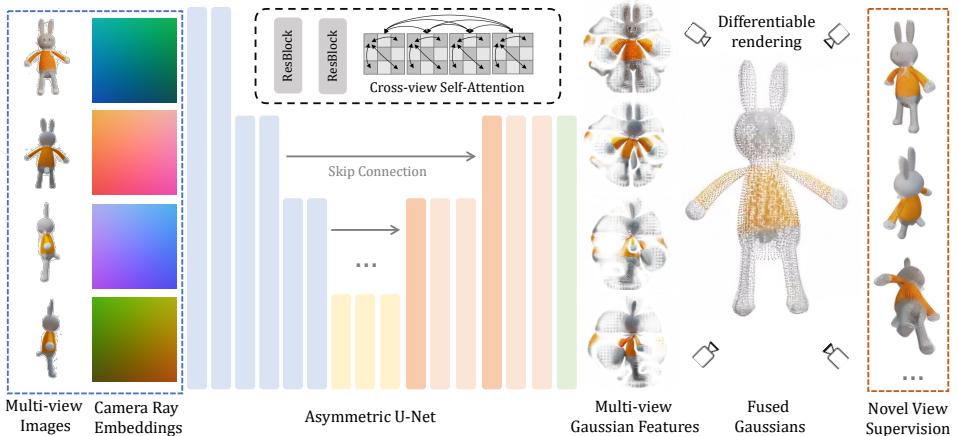

The architecture of LGM’s asymmetric U-Net. It takes four images with camera ray embeddings as input, processes them through down-sampling and up-sampling blocks with cross-view self-attention, and outputs multi-view Gaussian features that are fused into a final 3D model.

Fig. 3: LGM’s U-Net uses cross-view self-attention to fuse features from four input images into coherent 3D Gaussians.

Key Innovations:

  1. Enhanced Input Features:
    Each pixel includes RGB colors plus Plücker ray embeddings (ray origin × direction, direction).

    \[ \mathbf f _ { i } = \{ \mathbf c _ { i }, \mathbf o _ { i } \times \mathbf d _ { i }, \mathbf d _ { i } \} \]

  2. Encoder-Decoder Backbone:
    A standard U-Net structure captures high-level features via down-sampling, then reconstructs detail via up-sampling with skip connections.

  3. Cross-View Self-Attention:
    Deep-layer self-attention over concatenated features from all four views builds consistent, aligned geometry.

  4. Asymmetric Output:
    Inputs at \(256 \times 256\) produce outputs at \(128 \times 128\).
    Each output pixel maps to one Gaussian, with 14 channels defining position, scale, rotation, opacity, and color. All Gaussians are fused into the final 3D object.

Training for Real-World Robustness

Since training uses perfect multi-view renders from Objaverse, but inference uses diffusion-generated views with imperfections, domain gap is an issue.

Two augmentation strategies address this:

  1. Grid Distortion
    Randomly warp non-front views to mimic multi-view inconsistencies.

  2. Orbital Camera Jitter
    Randomly rotate the last three camera poses to simulate pose inaccuracies.

These techniques force LGM to learn the true 3D structure instead of overfitting to clean inputs.

Beyond Gaussians: Usable Meshes

Most 3D workflows need polygonal meshes, but direct Gaussian-to-mesh conversion can yield poor surfaces.

LGM’s mesh extraction pipeline:

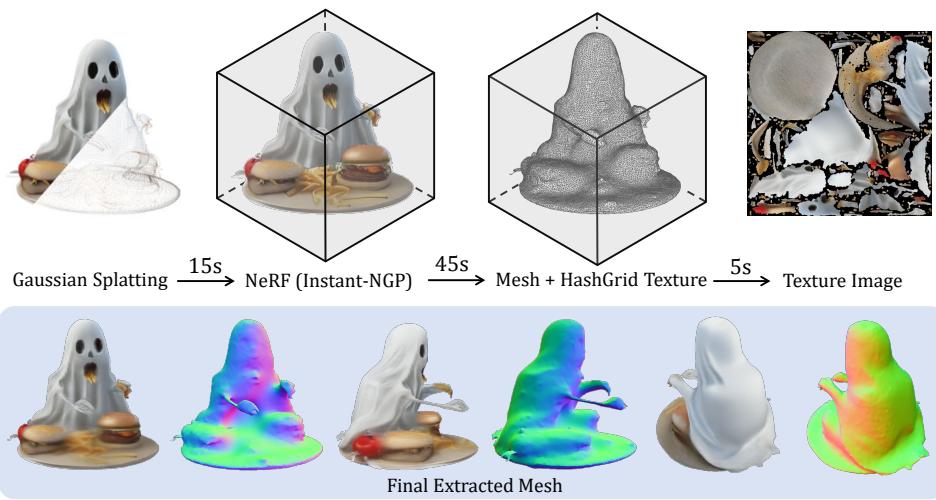

The mesh extraction pipeline, which converts 3D Gaussians into a NeRF, then extracts a coarse mesh using Marching Cubes, refines the mesh and its texture, and finally bakes the texture into an image.

Fig. 4: LGM converts Gaussians into a smooth, textured mesh via an intermediate NeRF stage.

  1. Render images from Gaussians (pseudo ground truth)
  2. Train a compact NeRF (Instant-NGP) on those renders
  3. Extract a coarse mesh with Marching Cubes
  4. Refine geometry & appearance in parallel
  5. Bake textures to produce a final UV-mapped mesh

This conversion takes ~1 minute and produces game-ready assets.

Results: Speed Meets Fidelity

Image-to-3D Comparisons

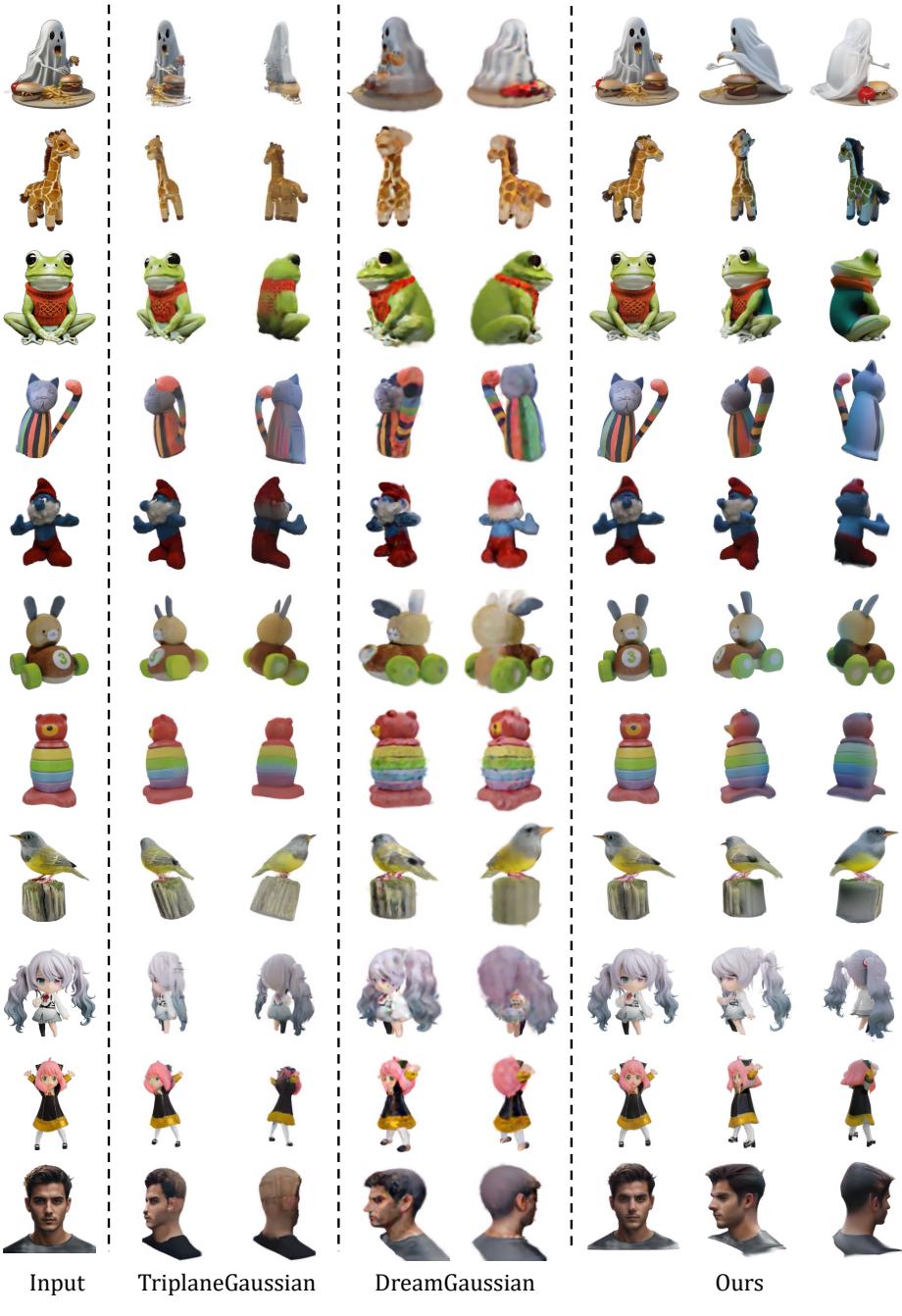

Side-by-side comparison of 3D models generated from single images. LGM’s outputs are shown to have better visual quality and detail compared to TriplaneGaussian and DreamGaussian.

Fig. 5: LGM achieves higher fidelity and preserves input content better than competing Gaussian-based methods.

Compared to LRM, LGM’s multi-view setup eliminates “blurry backs”:

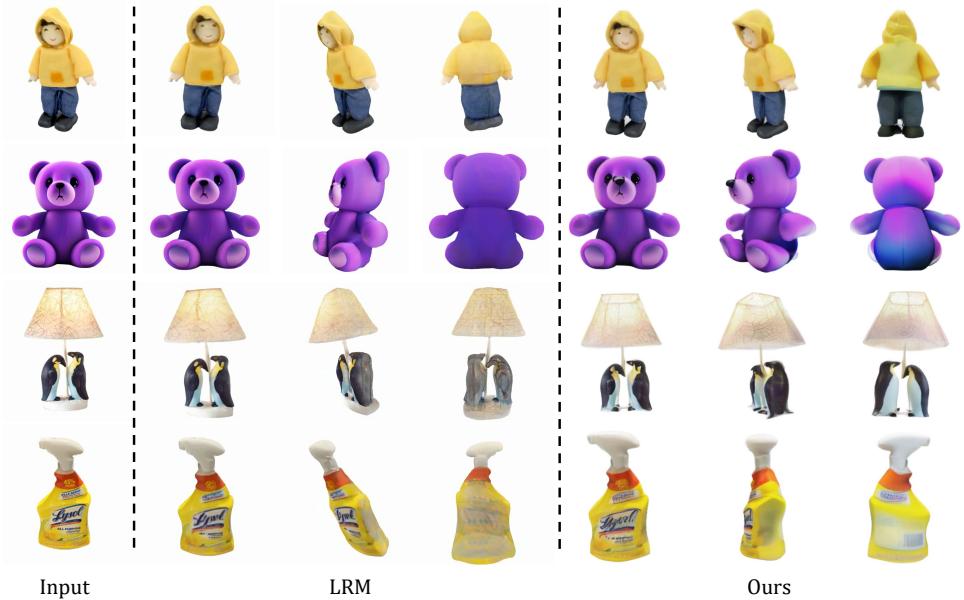

Comparison with LRM. LGM’s results show improved detail and geometry on unseen views, avoiding the blurry backs common in single-view reconstruction models.

Fig. 6: Four-view input enables LGM to reconstruct detailed geometry across all angles, unlike single-view approaches.

Text-to-3D & Diversity

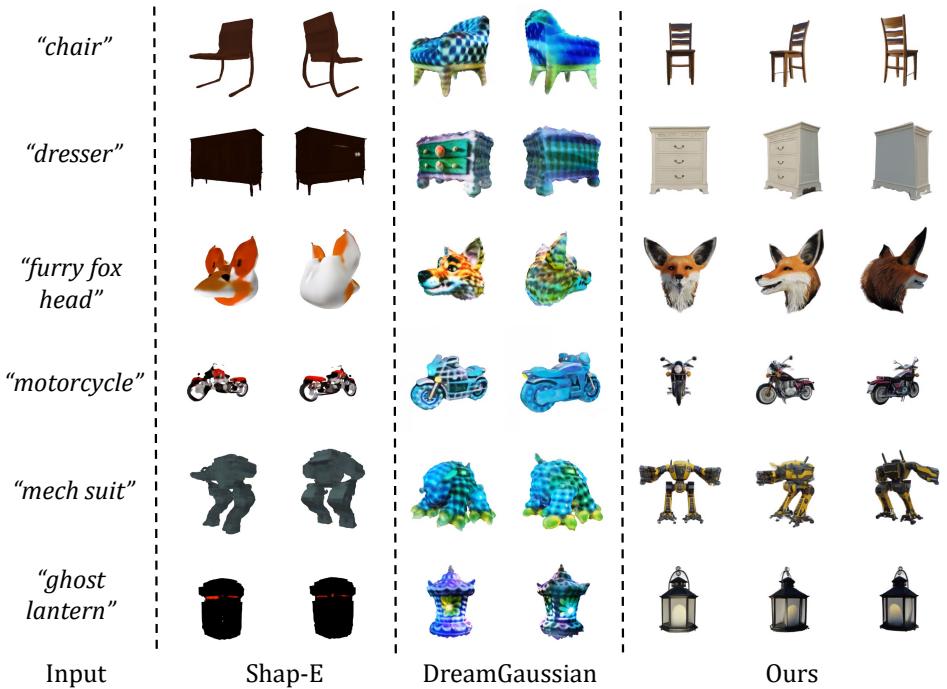

Text-to-3D comparison showing that LGM generates models with better text alignment and visual quality than Shap-E and DreamGaussian.

Fig. 7: LGM better aligns with text prompts and avoids the “multi-front” problem.

Thanks to diffusion in Step 1, LGM maintains output diversity:

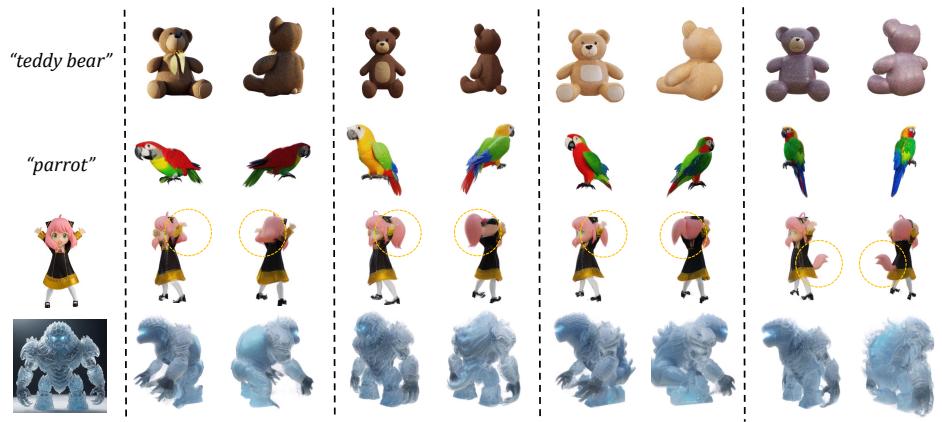

A gallery demonstrating the diversity of LGM’s generation. For prompts like “teddy bear” or “parrot,” the model can produce a wide range of different styles, colors, and poses.

Fig. 8: Varying random seeds produces diverse styles, colors, and poses from the same prompt.

Quantitative Evaluation

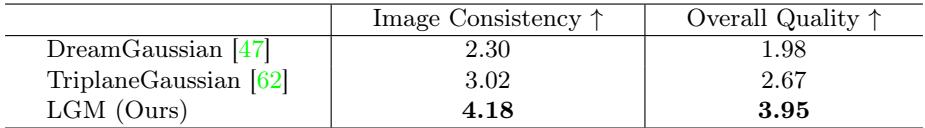

Table showing the results of a user study where LGM was strongly preferred over DreamGaussian and TriplaneGaussian for image-to-3D tasks.

Table 1: User study scores (1–5 scale) show LGM leading in image consistency and overall quality.

Ablation Studies

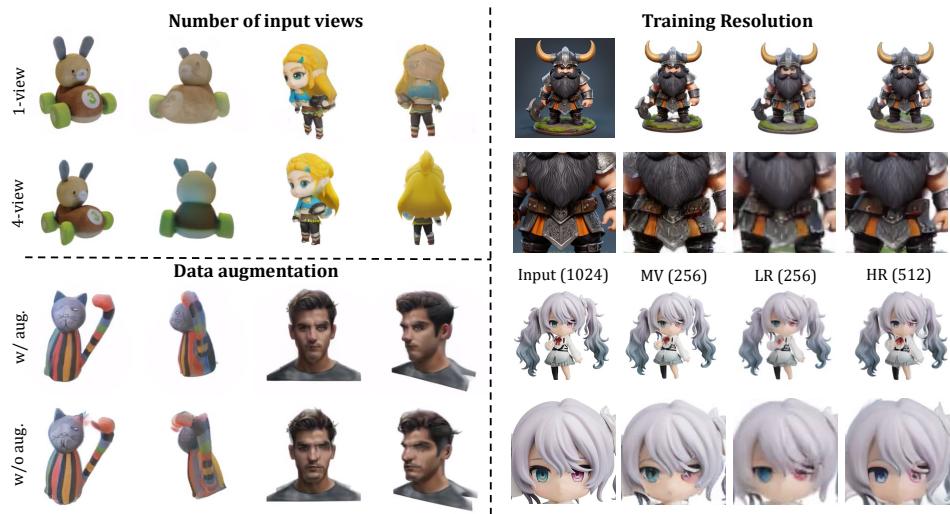

Ablation study results showing the importance of using 4 input views, applying data augmentation, and training at a high resolution for achieving the best results.

Fig. 9: 4-view input, data augmentation, and high-res training each contribute significantly to performance.

Key findings:

  • 4 Views: Critical for accurate back-side reconstruction
  • Augmentation: Essential for clean geometry in the presence of domain gap
  • High Resolution: \(512\times512\) captures finer details than low-res models

Limitations & Future Directions

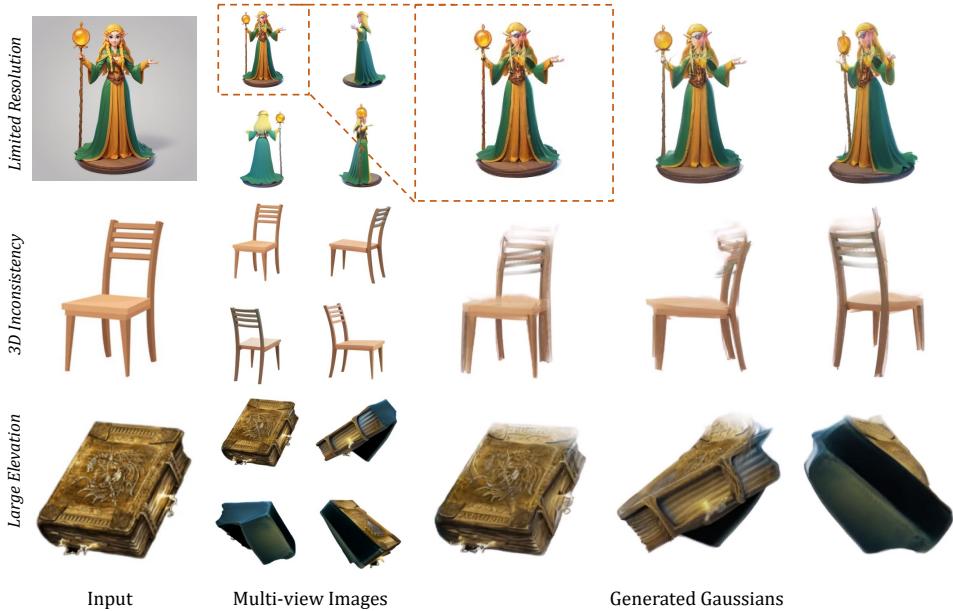

Visualization of LGM’s failure cases, which are primarily caused by issues in the initial multi-view generation step, such as limited resolution, 3D inconsistency, or handling of large elevation angles.

Fig. 11: Failure cases mostly originate in imperfect multi-view generation inputs.

Current constraints:

  • 3D Inconsistencies from multi-view diffusion models create floaters/artifacts
  • Input Resolution limited to \(256\times256\)
  • Elevation Angle failures in some source views

The modular design ensures that as multi-view diffusion improves, LGM’s results will automatically benefit.

Conclusion

LGM marks a milestone in generative 3D content creation by solving the long-standing speed-vs-quality trade-off.

Key Takeaways:

  1. Efficient Representation: Gaussian Splatting for expressiveness and rendering speed
  2. High-Throughput Backbone: Asymmetric U-Net with cross-view attention
  3. Robust Pipeline: Augmentation strategies plus a practical mesh extraction method

The result: high-resolution, detailed 3D assets from text or a single image in just 5 seconds — ready for games, VR, and creative applications.

As underlying generative models advance, frameworks like LGM point toward a future where high-quality 3D creation is just a prompt away.
