Creating a digital 3D replica of a real-world scene from a small set of photographs is one of the long-standing goals in computer vision and graphics. This capability—often referred to as novel view synthesis or 3D reconstruction—powers technologies ranging from virtual reality experiences and cinematic visual effects to digital twins and architectural visualization.

For years, methods like Neural Radiance Fields (NeRF) have delivered breathtaking photorealistic results. But there’s a catch: they typically require dozens, sometimes hundreds, of images of a scene and can be painfully slow to train and render. Recently, 3D Gaussian Splatting (3DGS) emerged, enabling real-time rendering speeds with comparable quality. Yet, these approaches still rely on dense input imagery.

But what happens if you only have a few shots—maybe just two or three views? This sparse view case is notoriously tricky. With so little data, the 3D structure is highly ambiguous, making it difficult for models to reconstruct scenes faithfully.

This is the challenge tackled in the paper “MVSplat: Efficient 3D Gaussian Splatting from Sparse Multi-View Images”. The researchers present MVSplat, a method that builds high-quality 3D scenes from as few as two images—at remarkable speed and efficiency. As the comparison below shows, MVSplat not only renders better-looking images but also produces a cleaner, more accurate underlying 3D geometry, while being ten times smaller and over twice as fast as its leading competitor.

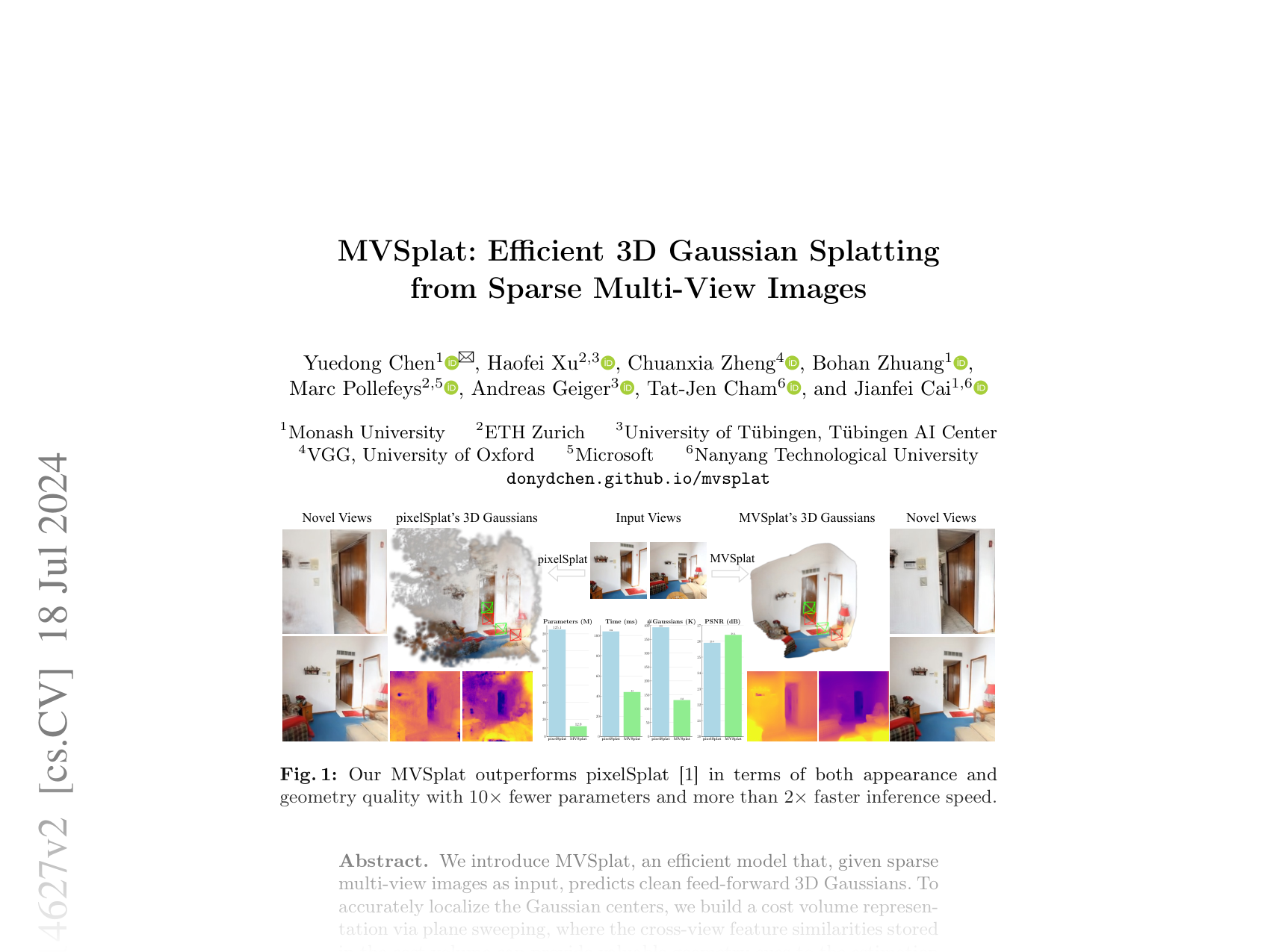

A comparison showing MVSplat’s superior novel view synthesis, cleaner 3D Gaussians, and better performance metrics compared to the pixelSplat method.

Fig. 1: MVSplat delivers superior appearance and geometry quality compared to pixelSplat, with 10× fewer parameters and more than 2× faster inference.

In this article, we’ll explore the ideas behind MVSplat—particularly how it sidesteps common pitfalls in sparse-view reconstruction by reintroducing a powerful concept from classical computer vision: the cost volume. You’ll see how marrying geometry-first thinking with modern deep learning leads to state-of-the-art 3D reconstruction.

Background: The Road to Real-Time 3D

To appreciate MVSplat’s innovations, let’s briefly trace the evolution of neural scene representation.

NeRF: The Photorealism Revolution

Neural Radiance Fields (NeRF) represent a scene as a continuous function—a small MLP that takes a 3D coordinate \((x, y, z)\) and viewing direction \((\theta, \phi)\) as inputs, outputting the color and density at that point. To render an image, rays from the camera are marched through each pixel, sampling many points along the ray and integrating the color and density outputs.

Results are stunning, but the process is slow and data-hungry. Rendering requires evaluating the network for thousands of points per frame, and NeRF models degrade on very sparse input sets—yielding blurry or distorted views.

3D Gaussian Splatting: Real-Time Rendering

3DGS replaces NeRF’s implicit representation with an explicit one—millions of tiny, colored, semi-transparent 3D “blobs” defined by position, shape, color, and opacity. Rendering uses fast rasterization: project Gaussians into the image plane and blend them onto pixels. The result is real-time performance and high visual quality.

The Sparse-View Challenge

Even with 3DGS, sparse-input reconstruction is ill-posed. Fewer views mean more ambiguity. Feed-forward approaches like pixelSplat attempt to directly regress Gaussian parameters from image features, but estimating precise geometry from features alone is extremely hard, often leading to noisy, “floating” Gaussians in space.

MVSplat’s authors recognized the limitations of guessing geometry purely from learned features. Instead, they bring back explicit geometric reasoning from Multi-View Stereo.

MVSplat: A Geometry-First Approach

MVSplat shifts the problem from directly predicting 3D properties to one of feature matching. The design builds geometry first, then derives full Gaussian parameters. The method unfolds as a pipeline, shown below.

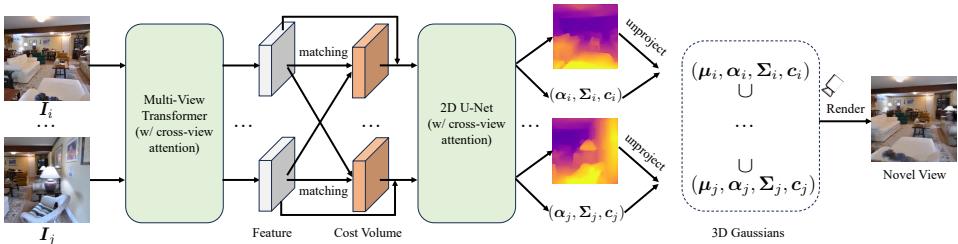

The MVSplat architecture, showing how input views are processed through a Transformer, used to build a cost volume, refined by a U-Net, and finally unprojected to form 3D Gaussians for rendering.

Fig. 2: Overview of MVSplat’s pipeline. Input images pass through multi-view feature extraction, cost volume construction, U-Net refinement, depth estimation, and Gaussian parameter prediction, culminating in novel-view rendering.

The function \(f_{\boldsymbol{\theta}}\) maps \(K\) input images with known camera poses to \(H \times W \times K\) 3D Gaussians:

\[ f_{\boldsymbol{\theta}}: \{( \mathbf{I}^{i}, \mathbf{P}^{i} )\}_{i=1}^K \mapsto \{( \boldsymbol{\mu}_j, \alpha_j, \boldsymbol{\Sigma}_j, \boldsymbol{c}_j )\}_{j=1}^{H \times W \times K} \]

Step 1: Multi-View Feature Extraction

MVSplat begins with a CNN backbone followed by a multi-view Transformer with cross-view attention—enabling features from each image to incorporate information from all others.

Step 2: Cost Volume Construction

Here’s the core innovation. MVSplat uses the classical cost volume, built via plane sweeping, to supply explicit depth cues:

  1. Depth Hypotheses: Sample \(D\) candidate depths across the view frustum.
  2. Warp Features: Project features from source view \(j\) into reference view \(i\) for each depth \(d_m\): \[ \boldsymbol{F}_{d_m}^{j \to i} = \mathcal{W}\left(\boldsymbol{F}^j, \boldsymbol{P}^i, \boldsymbol{P}^j, d_m\right) \]
  3. Measure Similarity: Compare warped and original features at each pixel: \[ \boldsymbol{C}_{d_m}^{i} = \frac{\boldsymbol{F}^{i} \cdot \boldsymbol{F}_{d_m}^{j \to i}}{\sqrt{C}} \]
  4. Stack Results: Produce a 3D tensor \((H/4 \times W/4 \times D)\) of per-depth similarity scores: \[ \boldsymbol{C}^{i} = [\boldsymbol{C}^{i}_{d_{1}}, \dots, \boldsymbol{C}^{i}_{d_{D}}] \]

This cost volume encodes geometry as matching likelihoods over depths—providing a clear prior for surface localization.

Step 3: Cost Volume Refinement

Raw cost volumes can be noisy in textureless or occluded regions. MVSplat refines them with a lightweight 2D U-Net that integrates cross-view attention to let volumes from different views agree on depth hypotheses:

\[ \tilde{C}^i = C^i + \Delta C^i \]

Step 4: Depth Estimation

A softmax over depth candidates yields a probability distribution per pixel. The expected depth is computed by weighting candidates accordingly:

\[ \boldsymbol{V}^i = \operatorname{softmax}(\hat{\boldsymbol{C}}^i)\,\boldsymbol{G} \]

An optional second U-Net does depth refinement.

Step 5: Full Gaussian Parameter Prediction

From the estimated depth maps:

  • Centers (\(\mu\)): Unproject depths into 3D point clouds and merge across views.
  • Opacity (\(\alpha\)): Derived from matching confidence.
  • Covariance (\(\Sigma\)) and Color (\(c\)): Predicted from image features and refined cost volumes, using spherical harmonics for color representation.

Training uses only a photometric loss matching rendered and ground-truth images.

MVSplat in Action

MVSplat was benchmarked on large datasets including RealEstate10K (indoor scenes) and ACID (outdoor scenes).

Quality and Efficiency

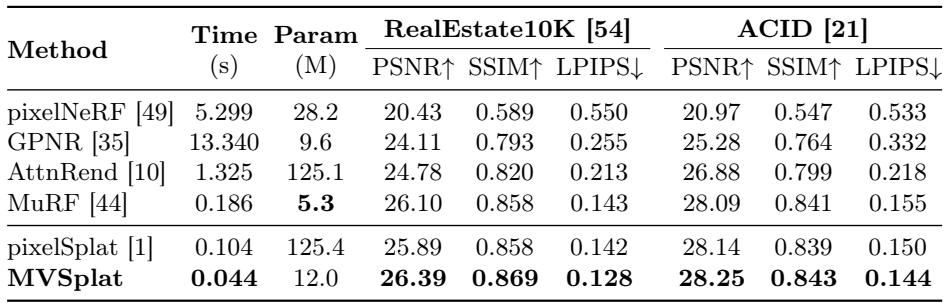

Table 1 shows MVSplat achieving the highest scores in PSNR, SSIM, and LPIPS on both RealEstate10K and ACID datasets, while also having the fastest inference time and a much smaller model size compared to pixelSplat.

Table 1: MVSplat achieves top PSNR, SSIM, LPIPS scores while being fastest with the smallest model size.

It runs at 22 FPS (0.044s per inference), more than twice as fast as pixelSplat. The model has only 12M parameters—10× smaller than pixelSplat’s 125.4M.

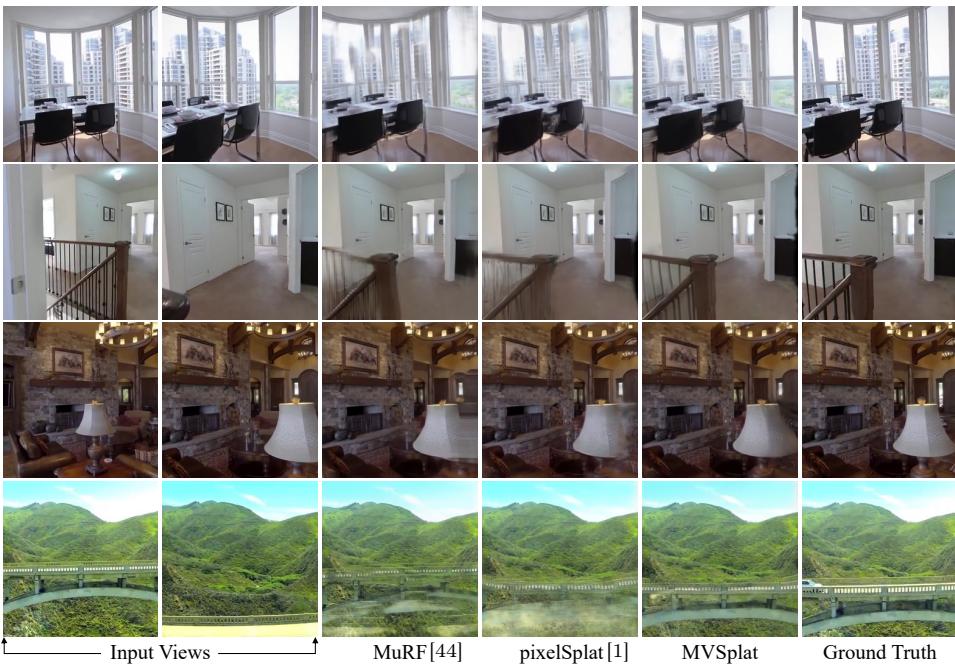

Qualitative comparisons show MVSplat producing much clearer and more accurate novel views than MuRF and pixelSplat, especially in complex areas like window frames, stairs, and distant objects.

Fig. 3: MVSplat captures fine detail and complex regions where others falter.

Geometry Advantage

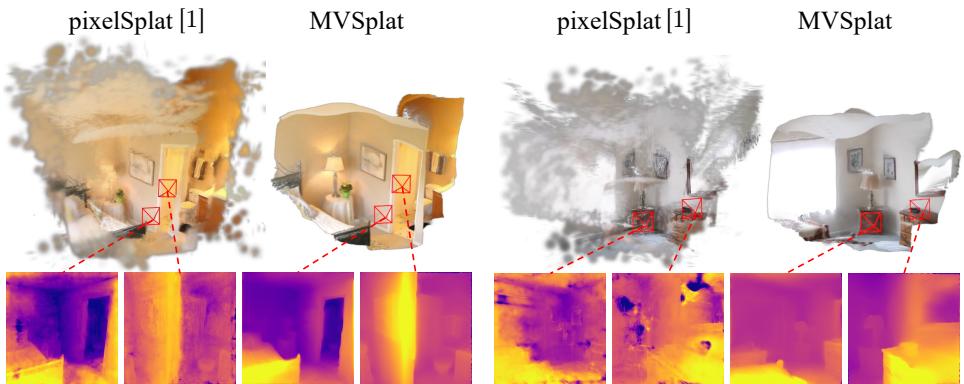

A side-by-side visualization of the 3D Gaussians and depth maps. MVSplat’s reconstruction is clean and structured, while pixelSplat’s is filled with noisy, floating artifacts.

Fig. 4: MVSplat outputs clean, coherent 3D Gaussians without extra fine-tuning, unlike pixelSplat.

Even without depth-regularization fine-tuning, MVSplat’s geometry is free of floating artifacts—a direct payoff from its cost volume design.

Generalization Strength

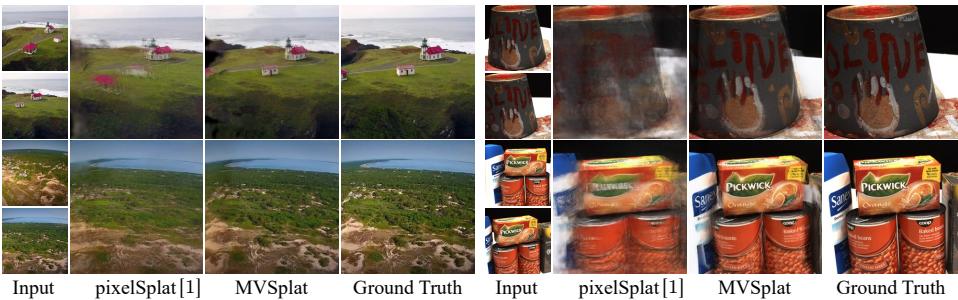

Cross-dataset generalization tests show MVSplat producing high-quality results on outdoor and object scenes even when trained only on indoor scenes, while pixelSplat’s quality degrades significantly.

Fig. 5: MVSplat generalizes well across datasets thanks to its feature-similarity-driven design.

By using relative feature similarity rather than absolute values, MVSplat maintains high quality even when transferring to very different domains like ACID and DTU.

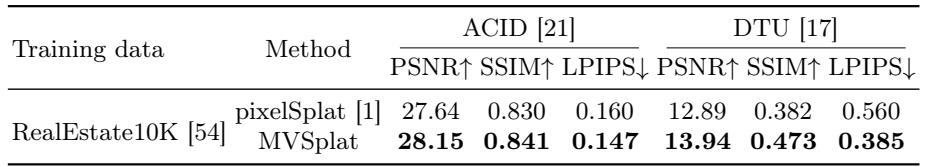

Table 2 quantifies the cross-dataset generalization results, showing MVSplat significantly outperforming pixelSplat when transferring from the RE10K dataset to the ACID and DTU datasets.

Table 2: Cross-domain tests show MVSplat sustaining quality while pixelSplat drops sharply.

Ablation Insights

The ablation study results, both quantitative (Table 3) and qualitative (Figure 6), demonstrate the critical importance of each component in the MVSplat architecture.

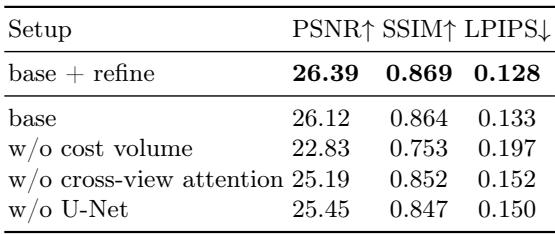

Table 3: Removing the cost volume leads to the largest performance collapse.

Key findings:

  • No Cost Volume: Geometry fails entirely—core component.
  • No Cross-View Attention: Notable performance drop, highlighting importance of inter-view information.
  • No U-Net Refinement: Quality suffers in single-view-only regions.

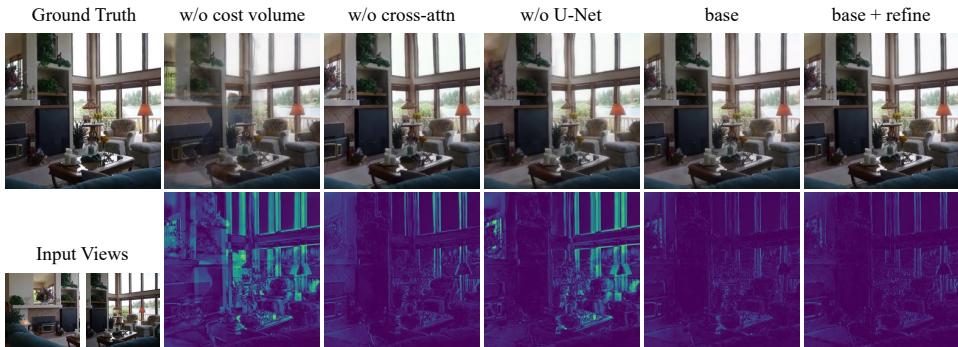

Visual results from the ablation study. Removing the cost volume results in a catastrophic failure, while removing the U-Net or cross-attention leads to more subtle but significant degradation in quality.

Fig. 6: Visual ablations confirm cost volume as the cornerstone, with U-Net and cross-attention providing important quality boosts.

Conclusion and Outlook

MVSplat demonstrates that for sparse-view 3D reconstruction, a geometry-first approach grounded in explicit correspondence matching outperforms direct regression from features. Its cost volume supplies potent geometric priors, enabling smaller, faster, and more robust models with superior quality.

While challenges remain—handling transparent or reflective surfaces, for example—MVSplat’s success suggests a promising direction: hybrid models that integrate classical geometric reasoning with modern learning. This work moves us closer to a world where capturing a high-fidelity 3D model is as easy as snapping a few photos with your phone.
