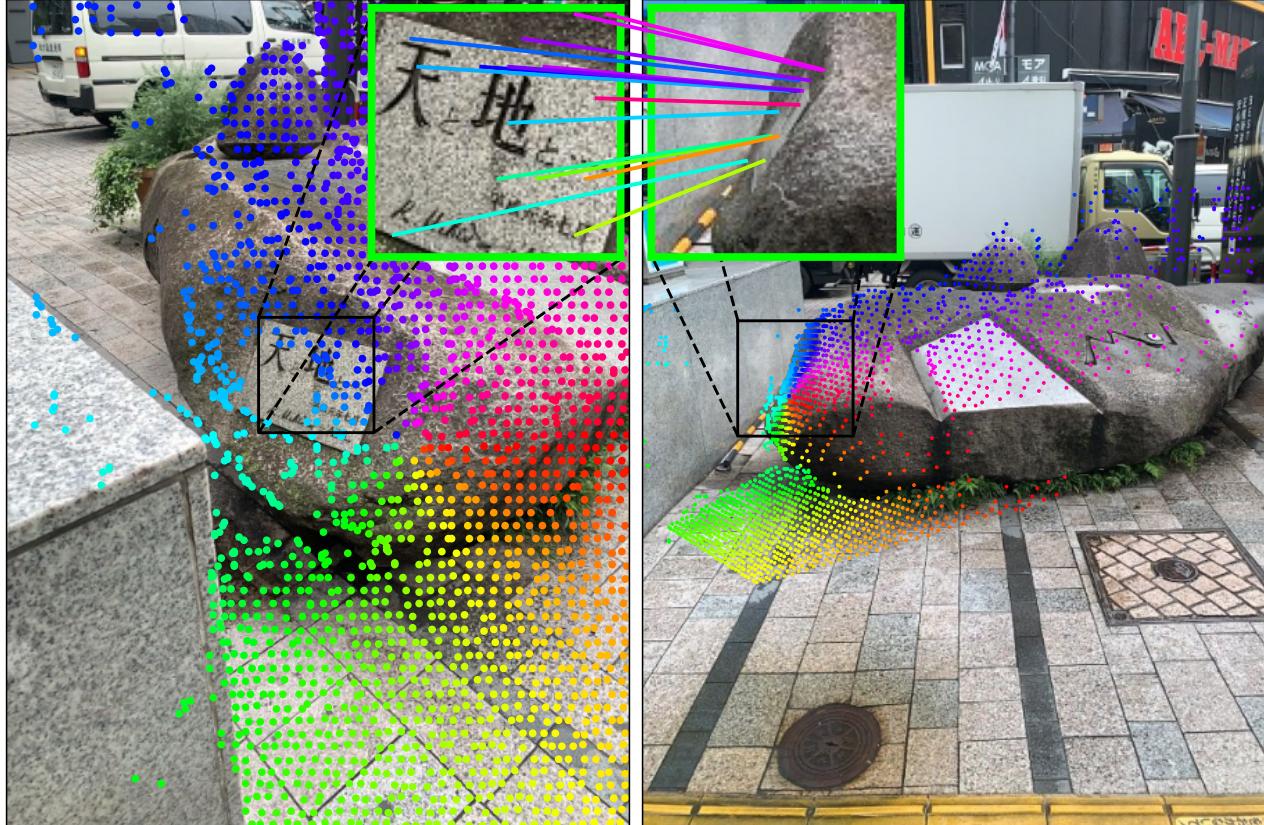

Dense correspondences found by MASt3R between two images of a street scene with extreme viewpoint change.

Figure 1: MASt3R predicts dense pixel correspondences even under extreme viewpoint shifts, enabling precise camera calibration, pose estimation, and 3D reconstruction.

Image matching is one of the unsung heroes of computer vision. It’s the fundamental building block behind a huge range of applications—from the photogrammetry used to create 3D models in movies and video games, to navigation systems in self-driving cars and robots. The task sounds simple: given two images of the same scene, figure out which pixels in one correspond to which pixels in the other.

For decades, the standard approach has been to treat this as a purely 2D problem. You detect “keypoints” in both images, describe the local region around each, and then play a game of feature-space connect-the-dots. This works beautifully when images are similar, but give it two pictures of the same building from opposite sides, and the system quickly falls apart. The visual world just changes too much.

But what if we’ve been looking at it from the wrong perspective? A pair of matching pixels aren’t merely similar-looking patches—they are two different views of exactly the same point in 3D space. This simple but profound insight is at the heart of a groundbreaking paper from NAVER LABS Europe. The researchers propose that to truly master 2D image matching, we must ground it in 3D.

Their method, called MASt3R (Matching And Stereo 3D Reconstruction), builds upon a powerful 3D reconstruction model and teaches it to become a world-class image matcher. In doing so, it leaps far ahead of the current state-of-the-art—achieving an unprecedented 30% absolute improvement on one of the toughest localization benchmarks in the field.

In this post, we’ll dive deep into MASt3R: how it rethinks matching, the clever architecture that makes it possible, and the stunning results that prove the power of thinking in 3D.

The Journey to 3D-Aware Matching

Before we appreciate MASt3R’s innovation, let’s quickly revisit the lineage of image matching.

The Classic Pipeline: Detect, Describe, Match

The traditional paradigm—exemplified by methods like SIFT—follows a three-step process:

  1. Detect: Find a sparse set of salient, repeatable keypoints (e.g., corners) in each image.
  2. Describe: For each keypoint, create a compact numerical descriptor designed to be invariant to changes in rotation, lighting, and scale.
  3. Match: Compare descriptors from one image to those in the other, typically via nearest-neighbor search.

This pipeline is fast and precise for similar viewpoints. But it focuses only on local patches, ignoring the global geometric context. It falters in repetitive regions (skyscraper windows), low-texture areas (white walls), and under severe viewpoint shifts.

More recent methods like SuperGlue improve the matching step by reasoning globally with graph neural networks—but the detection and description remain fundamentally local.

The Dense Revolution: Matching Everything

Detector-free methods like LoFTR bypass the keypoint selection step. Using Transformers to process the whole image, they produce dense correspondences across all pixels. This makes them more robust to textureless regions and repetitive patterns, achieving new highs on difficult benchmarks.

However, they still frame the problem as 2D-to-2D matching—leaving out the true 3D geometry.

The Paradigm Shift: DUSt3R

Enter DUSt3R, a model built for 3D reconstruction rather than matching. Given two uncalibrated images, it predicts a pointmap—associating every pixel with a 3D coordinate in space.

This solves camera calibration and scene reconstruction simultaneously. Matches naturally emerge: if pixel i in image 1 and pixel j in image 2 map to the same 3D point, they are a correspondence.

DUSt3R’s 3D-guided matches are astonishingly robust to extreme viewpoint changes—outperforming many dedicated 2D matchers on the brutal Map-free localization benchmark. The lesson is clear: understanding 3D geometry is a powerful tool for finding 2D correspondences.

Inside MASt3R: The Best of Both Worlds

MASt3R builds directly on DUSt3R’s foundation, but augments it with a dedicated high-precision matching head. The result: a single network that jointly performs 3D reconstruction and dense feature matching.

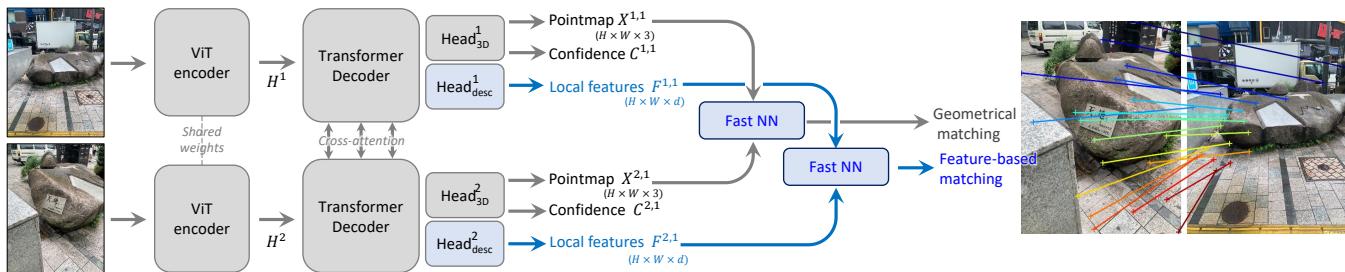

Overview of the MASt3R architecture. Two input images are processed by a shared encoder and a cross-attentive decoder. The network then has two heads: one for regressing 3D pointmaps (the DUSt3R part) and a new one for producing dense local feature descriptors.

Figure 2: MASt3R architecture. Shared ViT encoders feed into a cross-attentive decoder. Outputs go to both a 3D regression head and a dense descriptor head.

The 3D Head: Geometric Grounding

This is DUSt3R’s original head. For each pixel, it regresses:

  • Pointmap (\(X\)): The 3D location in a shared camera coordinate system.
  • Confidence map (\(C\)): How certain the model is about that pixel’s 3D prediction.

Training uses a confidence-weighted regression loss, encouraging predicted points to be close to the ground truth, while letting the model self-weight uncertain predictions. Crucially, MASt3R uses metric scale when possible—essential for real-world localization.

\[ \mathcal{L}_{\text{conf}} = \sum_{\nu \in \{1,2\}} \sum_{i \in \mathcal{V}^\nu} C_i^\nu \ell_{\text{regr}}(\nu, i) - \alpha \log C_i^\nu \]

The Matching Head: Unlocking Precision

3D pointmaps yield robust coarse matches, but regression can be noisy at the pixel level. MASt3R’s additional matching head produces dense local feature descriptors \(D^1\) and \(D^2\), giving each pixel a \(d\)-dimensional vector.

Training uses a contrastive InfoNCE loss:

For a ground-truth match \((i,j)\), the descriptor \(D_i^1\) must be far more similar to \(D_j^2\) than to any other pixel’s descriptor in image 2.

[ \mathcal{L}{\text{match}} = -\sum{(i,j)\in\hat{\mathcal{M}}} \log \frac{s_{\tau}(i,j)}{\sum_{k\in\mathcal{P}^1} s_{\tau}(k,j)}

  • \log \frac{s_{\tau}(i,j)}{\sum_{k\in\mathcal{P}^2} s_{\tau}(i,k)} ]

The final objective combines both losses:

\[ \mathcal{L}_{\text{total}} = \mathcal{L}_{\text{conf}} + \beta\mathcal{L}_{\text{match}} \]

This dual training lets MASt3R use global geometric context for robustness and feature discrimination for fine detail.

Efficient Matching at Scale

Dense feature maps are rich but massive—hundreds of thousands of pixel descriptors per image. Naively finding reciprocal nearest neighbors is quadratic in cost and prohibitively slow. MASt3R solves this with two key innovations.

Fast Reciprocal Matching

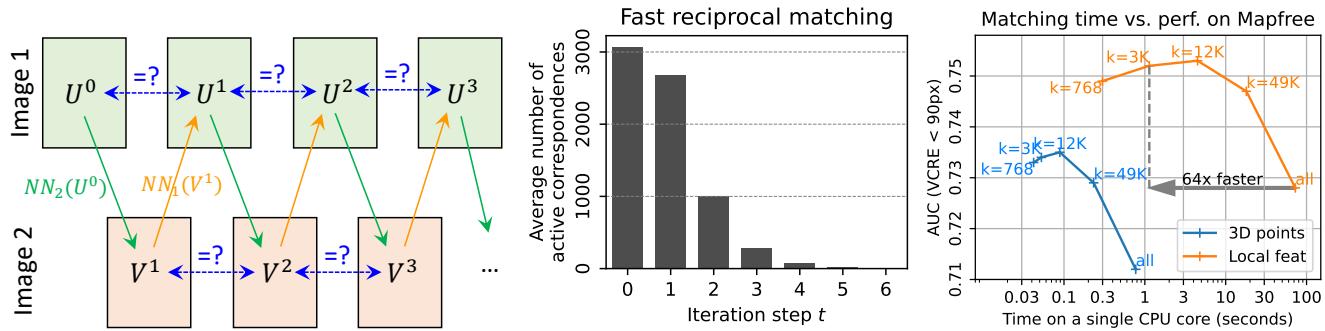

Illustration of the Fast Reciprocal Matching algorithm. It starts with a sparse set of points and iteratively finds nearest neighbors back and forth, quickly converging to a set of reciprocal matches. The plots show that this method is orders of magnitude faster and surprisingly improves performance.

Figure 3: Fast reciprocal matching starts with sparse points and iteratively finds mutual NN pairs, converging rapidly. It’s 64× faster and even boosts accuracy.

Instead of comparing all pixels, start with a sparse set of \(k\) points in image 1:

  1. Find each point’s nearest neighbor in image 2.
  2. Map those back to image 1’s nearest neighbors.
  3. If a point returns to its origin, we’ve found a mutual match—remove it from the active set.
  4. Iterate until convergence.

This reduces complexity to \(O(kWH)\), 64× faster in practice. Surprisingly, it improves accuracy: the algorithm naturally favors large “convergence basins,” yielding more uniform match distributions across the images—improving pose estimation downstream.

Coarse-to-Fine Matching

Transformers like MASt3R operate at fixed input resolutions (e.g., 512px max side). Direct matching on larger images requires downscaling, losing detail.

The solution:

  1. Coarse pass: Match downscaled full images.
  2. Focus: Identify high-res regions containing coarse matches.
  3. Fine pass: Run MASt3R on overlapping crops of these regions at full resolution.
  4. Merge: Combine refined matches into original coordinates.

This achieves high-res accuracy without the cost of full-image processing.

Results: MASt3R in Action

Map-free Localization

The Map-free relocalization benchmark demands estimating the metric camera pose relative to a single reference image—often with viewpoint changes exceeding \(180^\circ\).

Ablation study (Fig. 4, Table 1):

  • MASt3R outperforms DUSt3R across the board.
  • Learned descriptors beat direct 3D point matching.
  • Joint 3D + matching loss training is crucial.
  • Using MASt3R’s own predicted metric depth unlocks top scores.

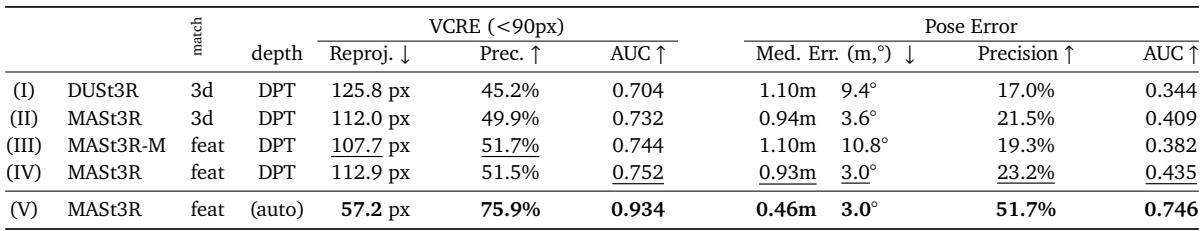

Ablation study results on the Map-free validation set, showing the benefits of MASt3R’s components.

Figure 4: Ablations confirm each core design choice improves performance.

Against state-of-the-art methods, MASt3R scores 93.3% AUC, vs. LoFTR’s 63.4%. Median translation error drops to 36 cm from ~2 m.

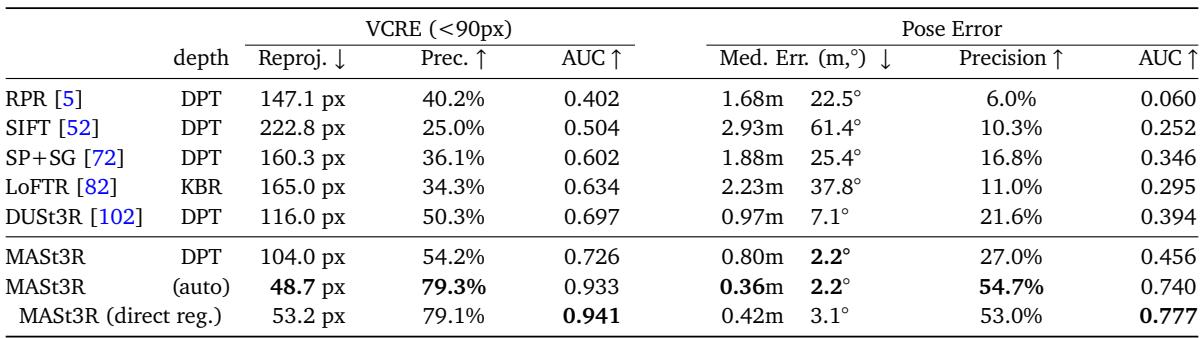

Comparison with state-of-the-art methods on the Map-free test set. MASt3R achieves a massive improvement.

Figure 5: Map-free test set results—MASt3R achieves a 30% absolute AUC gain.

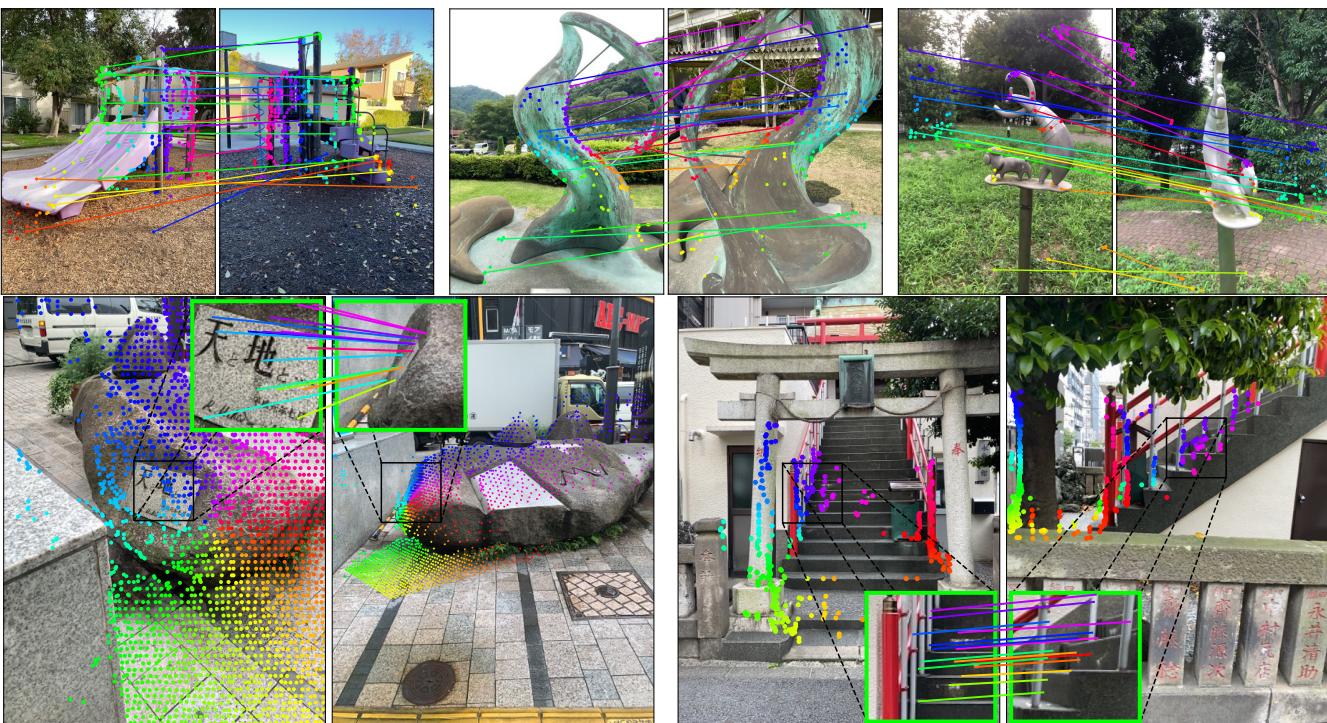

Qualitative examples from the Map-free dataset, showing MASt3R’s ability to find correspondences despite extreme viewpoint and appearance changes.

Figure 6: Despite drastic viewpoint/appearance changes, MASt3R finds reliable correspondences.

Versatility Across Tasks

  • Relative Pose Estimation: On CO3D and RealEstate10K, MASt3R matches or surpasses multi-view methods, despite only using two views.
  • Visual Localization: On Aachen Day-Night and InLoc, MASt3R achieves state-of-the-art results, especially indoors, and remains strong even with just one retrieved database image.
  • Multi-View Stereo (MVS): Triangulating MASt3R’s dense matches yields high-quality DTU reconstructions in a zero-shot setting—outperforming domain-trained competitors.

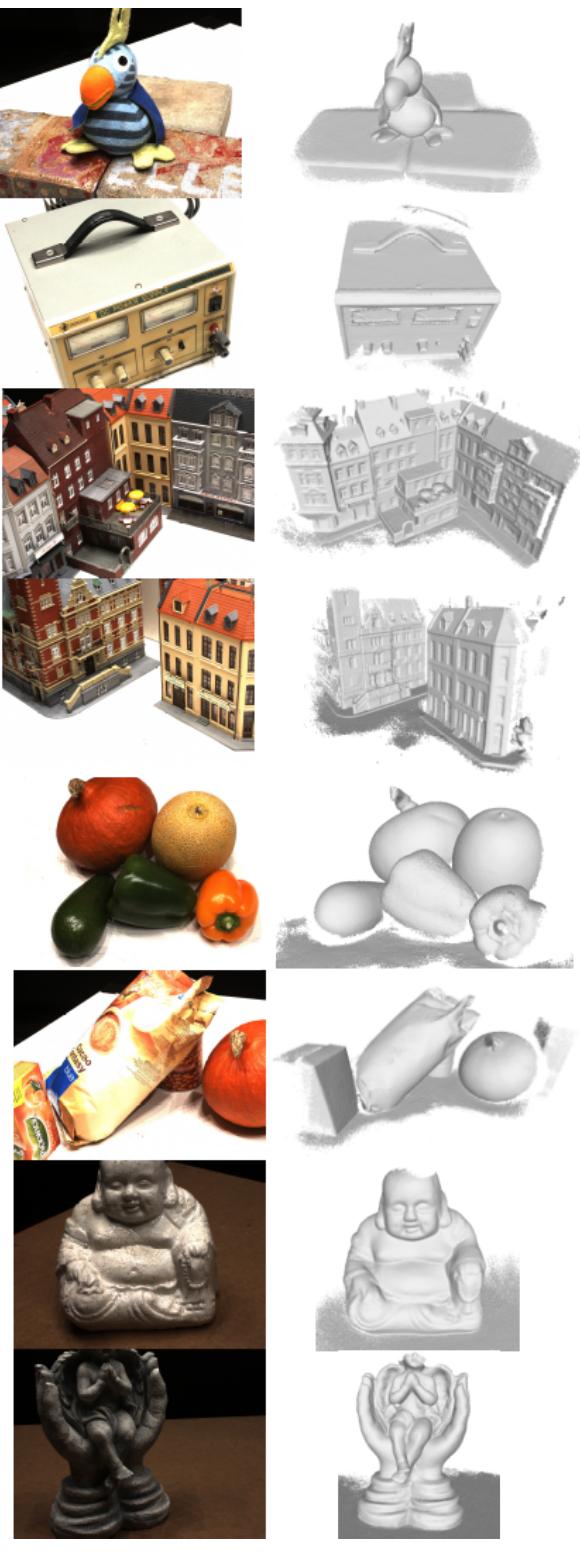

Qualitative examples of dense 3D reconstructions on the DTU dataset, achieved simply by triangulating MASt3R’s matches.

Figure 7: DTU dense reconstructions from MASt3R matches—no calibration, no domain finetuning.

Conclusion: A New Foundation for 3D Vision

MASt3R isn’t just incremental—it’s transformative. By grounding the inherently 3D nature of pixel correspondences, it achieves unprecedented robustness and precision.

Key takeaways:

  1. 3D is the key to solving 2D. Understanding geometry overcomes extreme viewpoint and appearance shifts.
  2. Hybrid design wins. Geometric robustness from 3D point regression, plus fine-grained precision via learned descriptors.
  3. Efficiency enables practicality. Fast Reciprocal Matching and Coarse-to-Fine strategies turn a complex model into a usable tool.

By rewriting the state-of-the-art on some of the hardest vision benchmarks, MASt3R sets a compelling new direction: to truly understand the 2D world of images, we must embrace the 3D reality they depict.
