Introduction: The Challenge of Seeing the Whole Picture

In medical diagnostics, clarity is everything. Medical image segmentation—the process of outlining organs, tissues, or cells in medical imagery—is central to understanding disease progression and guiding surgical decisions. Over the past decade, Convolutional Neural Networks (CNNs), particularly the famed U-Net architecture, have been instrumental in achieving precise segmentation across numerous applications.

Yet despite their success, CNNs have a key limitation: they “see” the world through small, localized windows known as kernels. That makes them excellent at capturing fine textures but poor at understanding the global structure of images—the large-scale relationships between distant regions. Imagine trying to comprehend a whole-body CT scan through a magnifying glass. You’d see details beautifully, but miss how organs connect.

Researchers turned to Transformers, architectures built for modeling long-range dependencies using global attention mechanisms. While effective, their quadratic computational cost makes them impractical for large 3D scans. Is there a way to combine CNNs’ detailed view and Transformers’ global understanding without the performance bottleneck—and make the model capable of adapting on its own?

That’s the question the authors of TTT-UNet: Enhancing U-Net with Test-Time Training Layers for Biomedical Image Segmentation set out to answer. Their solution, TTT-UNet, introduces Test-Time Training (TTT) layers that let the model fine-tune its parameters during inference. The result is a segmentation network that learns on the fly, handling unseen cases with remarkable accuracy and flexibility.

Background: From U-Net to Adaptive Intelligence

U-Net: The Segmentation Workhorse

U-Net revolutionized biomedical segmentation with its symmetric encoder-decoder structure. The encoder condenses the image to capture semantic meaning while the decoder reconstructs the segmentation map. Skip connections transmit fine-grained details directly between corresponding layers, ensuring precise boundaries.

Despite its success, U-Net’s convolutional operations remain inherently local. Even with skip connections, long-range relationships—how distant regions influence each other—are difficult to model.

Transformers and Mamba: Modeling Global Context Efficiently

Transformers introduced attention mechanisms that capture global relationships across the entire image. Integrated models like TransUNet and Swin-UNETR brought this innovation to medical imaging, delivering impressive results but at high computational cost.

In contrast, State-Space Models (SSMs) such as Mamba offer a more efficient way to capture long-range dependencies with linear complexity. U-Mamba extended this idea into biomedical imaging, enhancing sequence modeling while remaining computationally practical. However, SSMs’ fixed hidden states restrict adaptability—limiting their ability to represent complex anatomical variability.

Test-Time Training: Beyond “Train Once, Predict Forever”

Test-Time Training (TTT) is a paradigm shift. Instead of freezing model parameters after initial training, a TTT-enabled model continues to learn during inference through self-supervised mini-updates. Each new test image serves as its own learning opportunity—letting the model adapt to specific patterns, noise, or anatomical variations. This self-adjusting behavior makes TTT-based architectures particularly resilient in clinical scenarios where data diversity is vast.

Inside TTT-UNet: How Adaptation Happens

The TTT-UNet architecture combines U-Net’s robust feature extraction with TTT’s ability to adapt dynamically at test time.

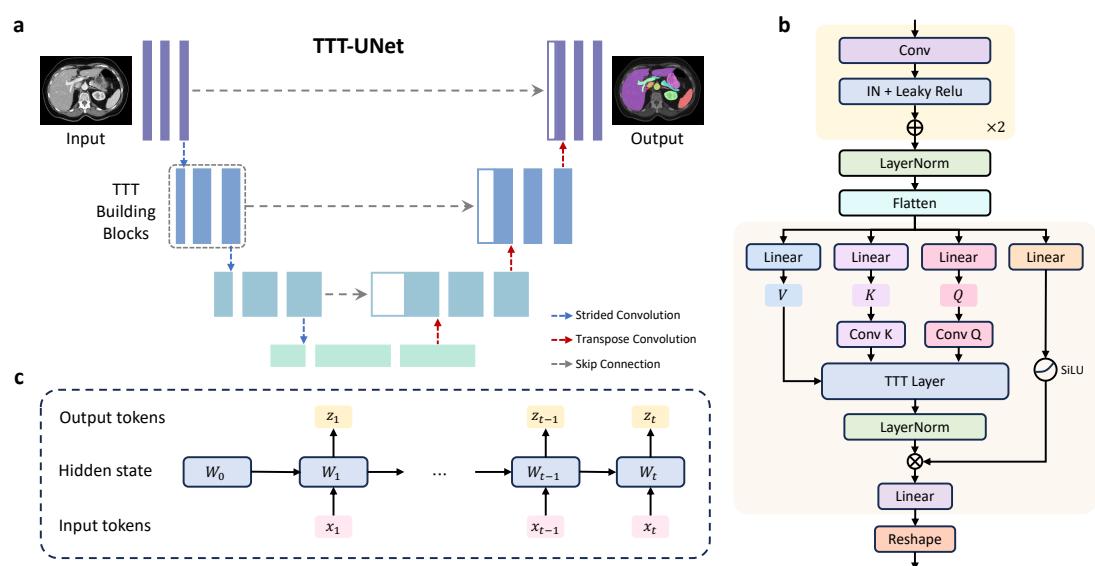

Figure 1 shows the overall architecture of TTT-UNet, the structure of a TTT Building Block, and the mechanism of a TTT Layer.

Figure 1. Overall structure of TTT-UNet, with detailed diagrams of the TTT Building Block and the TTT Layer mechanism.

1. The TTT Layer: Turning Hidden States into Learners

Traditional sequence models, such as RNNs, compress past information into a fixed hidden state \(h_t\):

\[ h_t = \sigma(\theta_h h_{t-1} + \theta_x x_t) \]

This hidden state stores limited context, which often fails on long sequences. TTT layers redefine this mechanism by treating the hidden state itself as a trainable model with weights \(W_t\):

\[ W_t = W_{t-1} - \eta \nabla \ell(W_{t-1}; x_t) \]

Here, the layer performs a gradient update at test time using a self-supervised loss function \(\ell\), dynamically adapting its parameters to each new input.

A simple reconstruction loss might use a corrupted version of the input \(\tilde{x}_t\):

\[ \ell(W; x_t) = \|f(\tilde{x}_t; W) - x_t\|^2 \]

But TTT-UNet employs a more advanced multi-view approach. It creates three learnable projections—training view (\(K = \theta_K x_t\)), label view (\(V = \theta_V x_t\)), and test view (\(Q = \theta_Q x_t\))—to make learning richer and more nuanced:

\[ \ell(W; x_t) = \|f(\theta_K x_t; W) - \theta_V x_t\|^2 \]

After updating its internal parameters \(W_t\), the layer produces an output token:

\[ z_t = f(\theta_Q x_t; W_t) \]

This adaptive process, visualized in Figure 1(c), transforms each hidden state into a mini learning algorithm—enabling TTT-UNet to refine understanding in real time.

2. The TTT Building Block: Embedding Adaptation into U-Net

The TTT Building Block integrates these adaptive layers within U-Net’s encoder.

  1. Feature extraction: Input features pass through two Residual blocks, each consisting of Convolution → Instance Normalization → Leaky ReLU.
  2. Normalization & flattening: Features are normalized via Layer Normalization and reshaped for linear processing.
  3. Multi-view projections: Linear branches generate the Value (V), Key (K), and Query (Q) representations.
  4. Adaptive update: The V, K, and Q streams enter the TTT layer for self-supervised updates.
  5. Feature fusion: A parallel branch applies a SiLU activation, then merges outputs using an element-wise Hadamard product.
  6. Reconstruction: The result is passed through a linear layer and reshaped for the decoder.

These blocks inject adaptability directly into the encoder, allowing TTT-UNet to adjust feature extraction based on each individual input image.

3. Encoder-Decoder and Variants

TTT-UNet maintains the encoder-decoder symmetry fundamental to U-Net:

  • The encoder is enhanced with TTT Building Blocks for dynamic feature learning.
  • The decoder uses standard transposed convolutions and skip connections to reconstruct high-resolution segmentation maps.

Two variants were tested:

  • TTT-UNet_Bot: TTT layers applied only in the bottleneck.
  • TTT-UNet_Enc: TTT layers applied throughout the encoder for broader adaptability.

Experiments: How Well Does It Work?

The model was evaluated on four diverse biomedical datasets, spanning both 2D and 3D segmentation tasks.

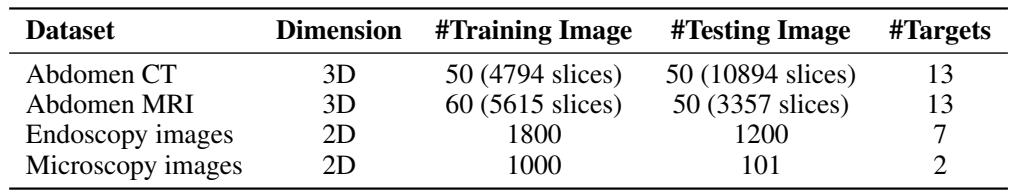

Table 1 summarizes the datasets used, covering 2D and 3D images from CT, MRI, endoscopy, and microscopy.

Table 1. Diverse medical imaging datasets used in evaluation, including abdominal CT/MRI, endoscopy, and microscopy.

These datasets cover:

  • Abdomen CT & MRI: 13 abdominal organs across 3D scans.
  • Endoscopy: 7 different surgical instruments in video frames.
  • Microscopy: 2D cell segmentation under high noise and variability.

Baseline comparisons included nnU-Net, SegResNet, UNETR, SwinUNETR, and U-Mamba—representing leading architectures across CNNs, Transformers, and State-Space Models.

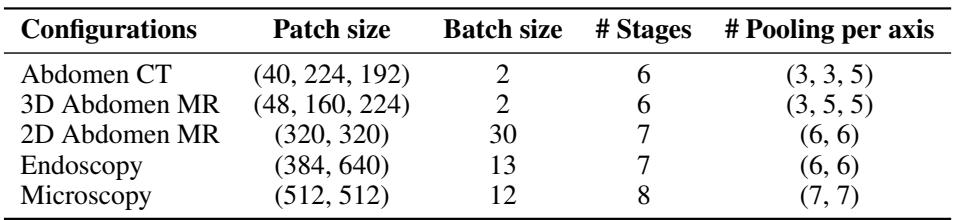

Table 2 shows the specific configurations used for each dataset, demonstrating a tailored approach for optimal performance.

Table 2. Dataset-specific configuration settings ensuring fair and optimized comparisons.

Quantitative Results: The Numbers Behind Adaptability

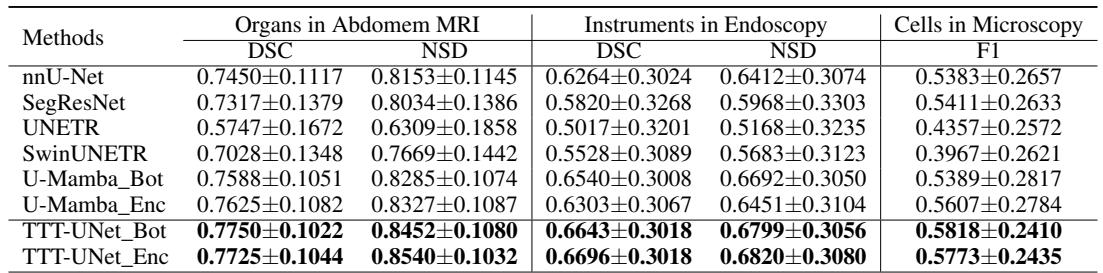

Table 3 shows the performance on 2D segmentation tasks. TTT-UNet variants consistently outperform other models across all three datasets.

Table 3. Performance on 2D tasks (MRI organs, endoscopy instruments, and microscopy cells). TTT-UNet variants achieve top performance across all metrics.

Across 2D segmentation tasks, both TTT-UNet_Bot and TTT-UNet_Enc consistently led in Dice Similarity Coefficient (DSC), Normalized Surface Distance (NSD), and F1 scores. This indicates that TTT-UNet excels at both broad anatomical structures and minute object segmentation—demonstrating exceptional versatility.

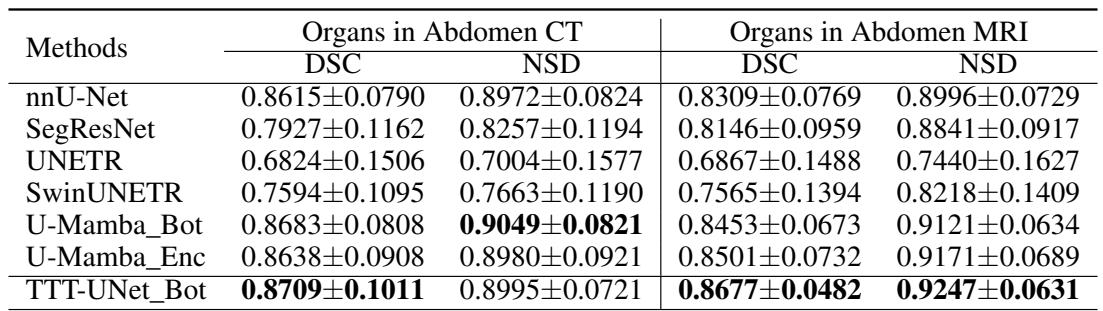

Table 4 presents the 3D organ segmentation results, where TTT-UNet_Bot achieves the top performance on both CT and MRI datasets.

Table 4. Results of 3D segmentation (Abdomen CT and MRI). TTT-UNet_Bot achieves highest accuracy and lowest variance, showing stable, reliable segmentation.

In 3D segmentation, TTT-UNet_Bot achieved the highest DSC scores on both CT and MRI datasets, surpassing U-Mamba and Transformer-based baselines. The low standard deviation in results highlights consistent performance across variable patient data—a crucial trait for clinical reliability.

Qualitative Results: Visualizing Precision and Adaptation

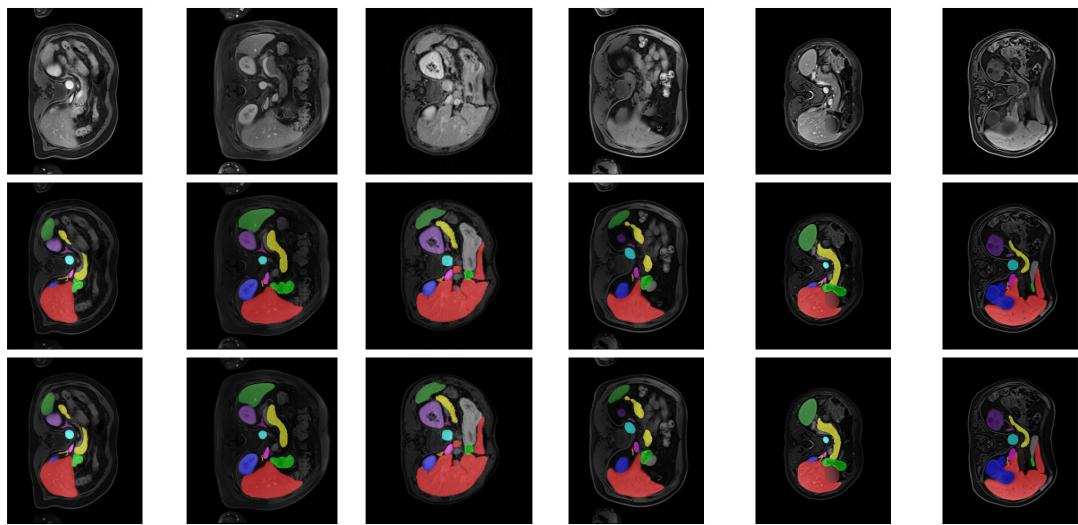

Figure 2 provides a visual comparison of TTT-UNet’s predictions on Abdomen MRI scans against the original images and ground truth labels.

Figure 2. Segmentation results on Abdomen MRI scans. TTT-UNet predictions closely match the ground truth, accurately delineating organ boundaries.

TTT-UNet’s predictions align closely with ground-truth labels, especially in regions of high anatomical variability. Its ability to adapt during inference results in smoother, more precise boundaries.

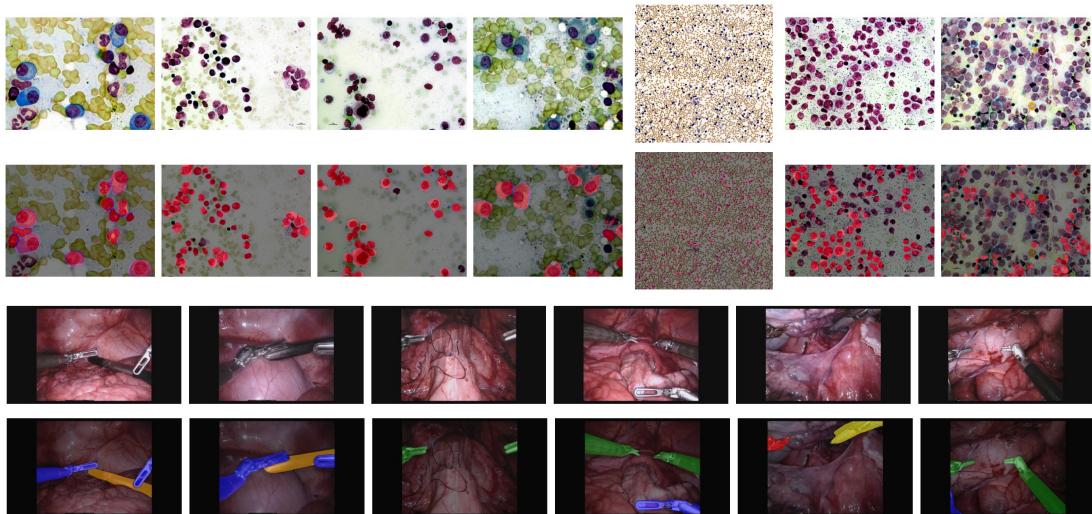

Figure 3 displays TTT-UNet’s segmentation results on challenging microscopy and endoscopy images.

Figure 3. Visualization of TTT-UNet results for microscopy and endoscopy. The model handles both fine cellular details and complex surgical instrument segmentation with notable accuracy.

On microscopy and endoscopy tasks, the model effectively captures fine cellular boundaries and intricate instrument shapes, handling noise and occlusion gracefully.

Conclusion: Toward Smarter, Adaptive Medical AI

TTT-UNet redefines what segmentation models can do. By merging the proven structure of U-Net with dynamically adaptive Test-Time Training layers, it offers the best of both worlds—accuracy and flexibility.

This paradigm enables segmentation models that learn during inference, bridging gaps between varied imaging modalities and patient anatomies. Whether handling the subtle contours of cells or vast organ structures in 3D scans, TTT-UNet delivers top-tier performance with remarkable consistency.

While test-time training introduces additional computational work, its gains in robustness and precision make it a compelling strategy for clinical applications, where mis-segmentation can have significant consequences. Future optimization of TTT layers could make this adaptability even more efficient.

In essence, TTT-UNet represents a leap toward intelligent medical AI systems—models that don’t just see, but learn to see better each time they encounter new data.
