AlphaGateau: Training Chess Engines Faster and Smarter with Graphs

In 2017, the artificial intelligence community was mesmerized by AlphaZero. Developed by DeepMind, this single algorithm taught itself to play Go, Shogi, and Chess at a superhuman level—starting from nothing but the rules. It was a monumental achievement, demonstrating the raw power of deep reinforcement learning (RL). Yet behind the triumph was a significant limitation: AlphaZero and similar models are resource-intensive and structurally inflexible.

These algorithms perceive a game board as a 2D grid of pixels, much like an image, and use Convolutional Neural Networks (CNNs) to process it—the same technology that powers modern image recognition. While effective, this design has drawbacks. A CNN trained to play Go on a 19×19 board cannot seamlessly play on a smaller 13×13 board; the architecture itself is hard-wired to a specific input size. This rigidity forces researchers to retrain models from scratch every time the game, or even just the board size, changes.

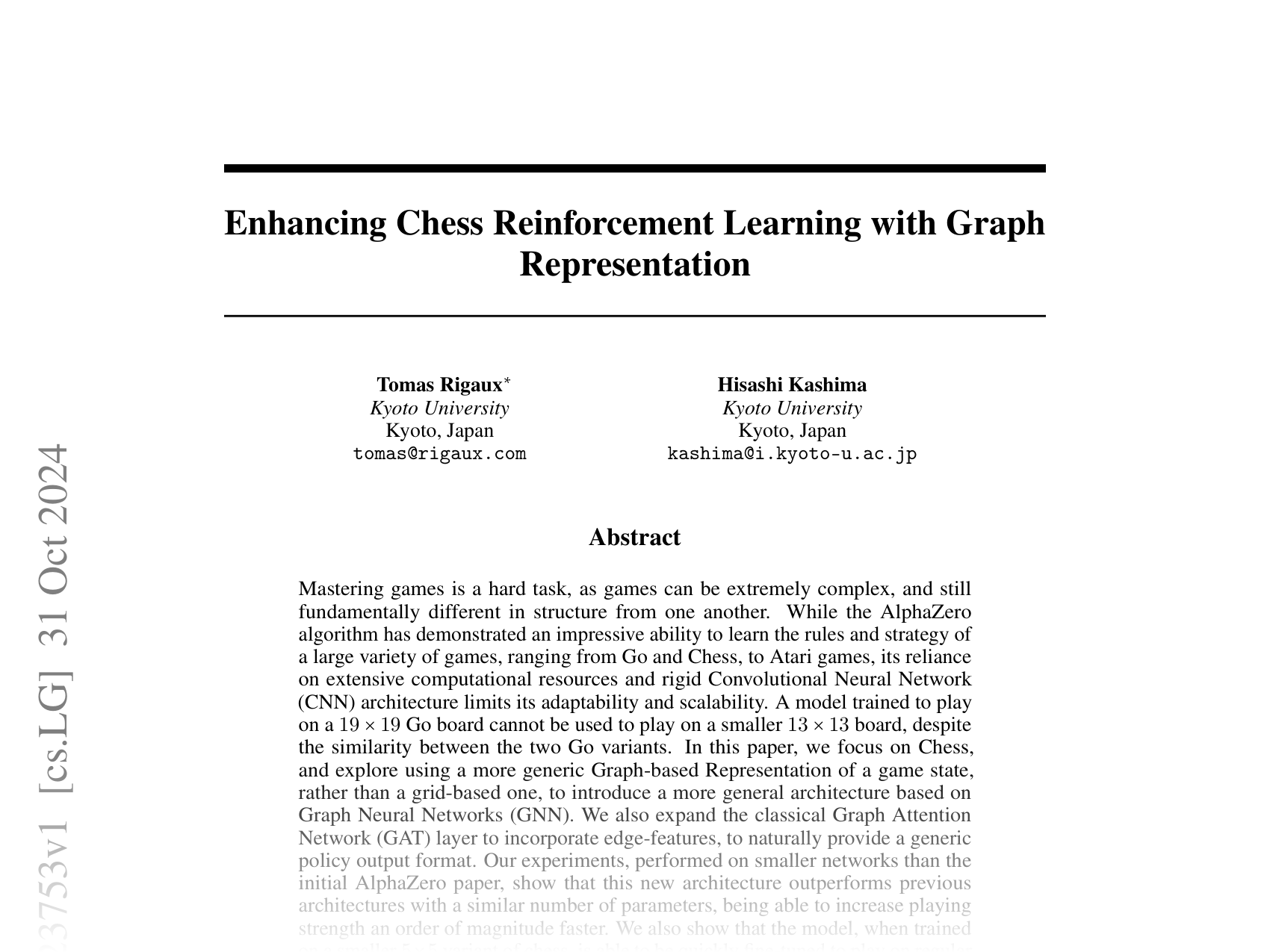

But what if we rethought how an AI “sees” the game? Chess isn’t just a static grid; it’s a dynamic network of interactions—pieces move, threaten, and support each other across distances. These relationships naturally form a graph. This observation forms the foundation of a fascinating research paper from Kyoto University: “Enhancing Chess Reinforcement Learning with Graph Representation.”

The authors propose a new architecture called AlphaGateau, which replaces the rigid grid-based CNN of AlphaZero with a flexible, expressive Graph Neural Network (GNN). The result? A system that learns chess an order of magnitude faster and can even generalize—adapting lessons learned on a small 5×5 board to play competitively on a full 8×8 board.

This article explores how AlphaGateau reimagines deep reinforcement learning for games. We’ll unpack how chess can be represented as a graph, explain the novel GATEAU layer that powers the network, and review the experimental results that make this such an exciting breakthrough.

Background: AlphaZero and Its Limitations

To appreciate AlphaGateau’s innovation, we need to understand what makes AlphaZero so powerful—and where it falls short.

At its core, AlphaZero operates through a tight feedback loop between two components:

1. Monte Carlo Tree Search (MCTS):
   This algorithm explores the tree of potential future moves for each board position, estimating which moves lead to favorable outcomes.

2. A Deep Neural Network:
   Given a board state \(s\), the network outputs two key predictions:

   • A value \(v(s)\): estimating the chance of winning from that position, ranging between -1 (loss) and +1 (win).
   • A policy \(\pi(s, \cdot)\): a probability distribution over legal moves, highlighting those most likely to succeed.

Together, these components create a self-play learning loop:

• MCTS uses the network’s “intuition” to guide its search.
• After improving the policy through simulations, MCTS produces training data—(position, improved policy, final result).
• This data retrains the neural network, which improves its intuition, further strengthening MCTS next round.

This synergy drives AlphaZero’s learning process. However, its CNN-based board representation is inherently rigid. Each square on the board becomes a pixel channel in a 2D grid—perfect for local spatial patterns, but chess relies on non-local interactions. A bishop influences diagonals spanning the entire board; a knight’s “L” move defies simple locality. CNNs struggle to capture these long-range and relational dynamics.

Even worse, CNNs depend on fixed input sizes. A different board dimension—or even a new game—requires redesigning and retraining the entire network.

The Core Idea: Representing Chess as a Graph

The AlphaGateau project asks a transformative question:
What if we represent the board as a graph instead of a grid?

In this new setup:

• Nodes represent chessboard squares. (64 for 8×8, 25 for 5×5.)
• Edges represent legal moves, directed from a source square to a destination square.

Changing the board size simply changes the number of nodes and edges; the underlying network can handle these variations without architectural changes.

This flexibility makes the model scalable across game versions.

Node and Edge Features

Each graph element carries rich information about the current game state.

Node features encode what’s happening on each square—piece type, repetition history, castling rights, move count, and even summaries of the last seven moves for temporal context.

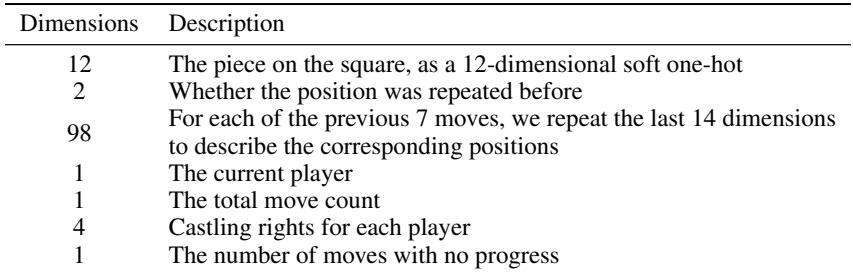

Table 1: Node feature vectors capture both local and global information relevant to each square in the position.

Edge features go further, describing each potential move itself. For instance, whether the move is legal, its direction (e.g., “up two, left one”), whether it leads to promotion, and which piece types can perform it. This encoding gives the model an explicit understanding of move mechanics, something CNN-based designs cannot easily represent.

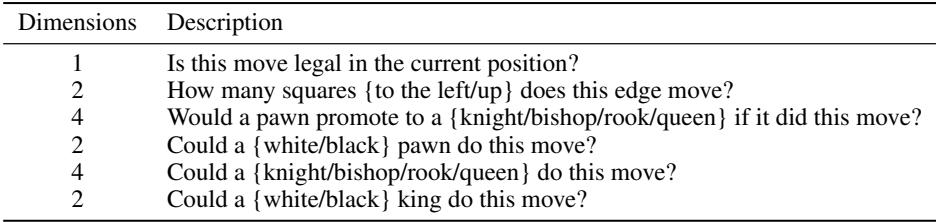

Table 2: Edge features describe available moves and their properties, forming the basis for a flexible move-based policy.

This representation works seamlessly for multiple variants, such as standard 8×8 chess and the smaller Gardner 5×5 minichess.

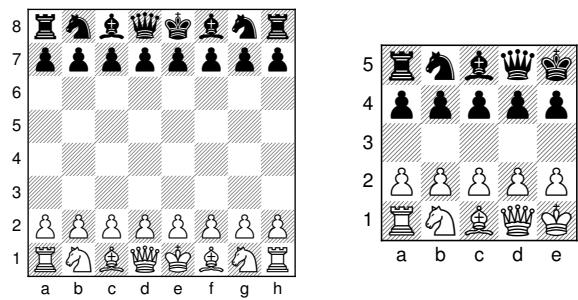

Figure 1: Chess setups on 8×8 (left) and 5×5 (right) boards. The same graph-based model can handle both without retraining architectural components.

Introducing GATEAU: A New Kind of Graph Layer

Representing chess as a graph requires more than clever engineering—it demands a new way to think about message passing. Standard GNNs primarily focus on updating node features, often neglecting edge information. But in games like chess, moves (edges) carry critical context.

The authors introduce GATEAU — Graph Attention neTwork with Edge features from Attention weight Updates — an elegant extension of the Graph Attention Network (GAT) that simultaneously updates both nodes and edges.

How Standard GAT Works

GAT computes attention weights between pairs of connected nodes. For nodes \(i\) and \(j\):

These coefficients determine how much information node \(j\) should contribute to node \(i\)’s update.

The GATEAU Innovation

GATEAU expands this interaction to include edge features explicitly.

1. Update Edge Features:
   The edge between nodes \(i\) and \(j\) gets updated using the source node, the destination node, and its own prior state:

   The GATEAU layer enriches each edge with information from both connected nodes.

2. Calculate Attention Using Edge Features:
   Attention weights are now derived directly from these enriched edge features:

   The attention mechanism becomes edge-aware, factoring in details like promotions or legality.

3. Update Node Features with Edge Context:
   Finally, node features are updated by blending neighbor node and edge information:

   Information from moves (edges) now flows back into the perception of positions (nodes).

This bidirectional exchange between nodes and edges leads to a richer representation of the entire chess position.

The AlphaGateau Architecture

With GATEAU as the foundation, the complete AlphaGateau system mirrors AlphaZero’s design, reimagined for graph data.

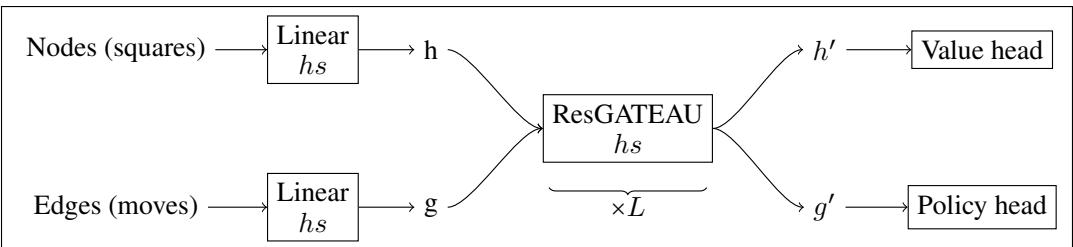

Figure 2: The AlphaGateau architecture processes square (node) and move (edge) features together through stacked residual GATEAU blocks.

How It Works

1. Input Embedding:
   Graphs of nodes and edges enter through simple linear layers that project raw features into dense embeddings.

2. Residual GATEAU Stack (ResGATEAU):
   The main body consists of multiple ResGATEAU blocks—pairs of GATEAU layers with shortcut (“residual”) connections, aiding stability and depth, just like the residual blocks in ResNet.

3. Dual Output Heads:

   • Value Head: Aggregates node features using attention pooling to estimate board evaluation.
   • Policy Head: Processes edge features directly, outputting logits for each possible move. This edge-to-action mapping is both straightforward and adaptable across board sizes.

Figure 4: The Value head (top) pools node features to evaluate the position, while the Policy head (bottom) computes move probabilities directly from edge features.

Through this architecture, the model gains flexibility and expressive power without proportionally increasing computational cost.

Experiments: Testing AlphaGateau’s Strength

The researchers conducted two main experiments comparing AlphaGateau against a scaled-down AlphaZero model with comparable parameter counts.

Experiment 1: Learning Speed from Scratch

Both models were trained from scratch on standard 8×8 chess. The difference in learning speed was dramatic:

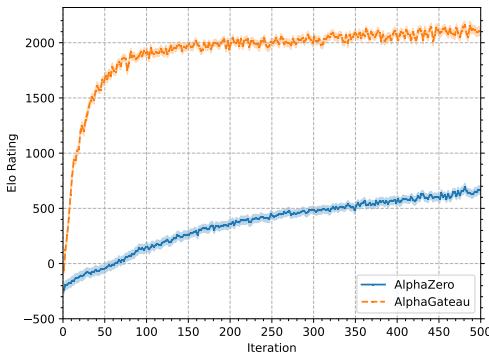

Figure 5: Performance growth on 8×8 chess. AlphaGateau (orange) learns roughly ten times faster than AlphaZero (blue).

After 500 iterations:

• The AlphaZero baseline reached \(667 \pm 38\) Elo.
• AlphaGateau surged to \(2105 \pm 42\) Elo, hitting expert-level strength in just ~50 iterations.

The graph-based representation enables the agent to absorb the essence of chess far more efficiently, exploiting relational patterns inaccessible to grid-based CNNs.

Experiment 2: Generalization and Fine-Tuning

In the second experiment, the authors explored transfer learning. They first trained a deeper AlphaGateau model (10 layers) solely on 5×5 minichess and then fine-tuned it for standard 8×8 play.

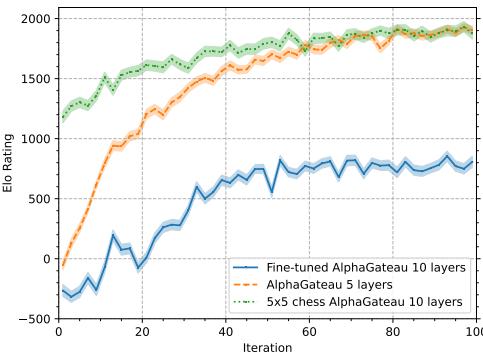

Figure 6: Generalization results. The model trained on 5×5 chess transfers learned knowledge effectively when fine-tuned on 8×8.

Findings:

1. Zero-shot transfer:
   While trained only on 5×5 chess, the model already achieved ~800 Elo when evaluated on 8×8 gameplay—without ever seeing an 8×8 position.
   This shows it learned abstract chess concepts (e.g., control, development) that generalize across board sizes.

2. Efficient fine-tuning:
   When training switched to 8×8, performance jumped to 1200 Elo almost immediately and later reached \(1876 \pm 47\), comparable to models that trained entirely on 8×8 but with far less time and compute.

This ability to scale knowledge from simple to complex versions of a game is a profound step toward versatile game-playing AI.

Conclusion: Why AlphaGateau Matters

The Kyoto University team’s Enhancing Chess Reinforcement Learning with Graph Representation introduces a paradigm shift:

• From grids to graphs: Capturing relationships among pieces directly rather than through local pixel patterns.
• From rigid CNNs to adaptable GNNs: Enabling flexible input sizes and move structures.
• From isolated training to cross-generalization: Allowing skills learned on small, simple boards to transfer to standard or larger versions.

By reimagining the core representation of games, AlphaGateau not only accelerates learning but promotes generality—a crucial step in moving toward unified agents capable of mastering many games.

The authors note that deeper experiments (40-layer models) and broader applications—such as Shogi or multi-player graph-based games like Risk—remain promising directions.

AlphaGateau is more than a faster chess engine; it’s a blueprint for a more universal learner.
By teaching AI to reason in terms of connections and interactions, rather than coordinates, we move toward systems that are not just stronger—but smarter.
