YOLOv12: The First Attention-Powered Real-Time Detector That Breaks the CNN Monopoly

For over a decade, the world of real-time object detection has been dominated by one family of models: YOLO (You Only Look Once). From self-driving cars to retail analytics, YOLO’s remarkable balance of speed and accuracy has made it the go-to solution for detecting objects in high-speed, practical applications. Progress within the YOLO ecosystem has been fueled by continual innovation—but nearly all architectural advances have revolved around Convolutional Neural Networks (CNNs).

Meanwhile, in other areas of computer vision and natural language processing, another architecture has been transforming the landscape: the Transformer, driven by the attention mechanism. Transformers have proven exceptional at modeling complex, long-range dependencies in data. The question is: why hasn’t there been a truly attention-based YOLO—until now?

The main reason is speed. Self-attention, for all its modeling power, is computationally expensive. Its complexity grows quadratically with input size, and its memory access patterns are inefficient. In a framework like YOLO, where every millisecond matters, this has been a deal-breaker.

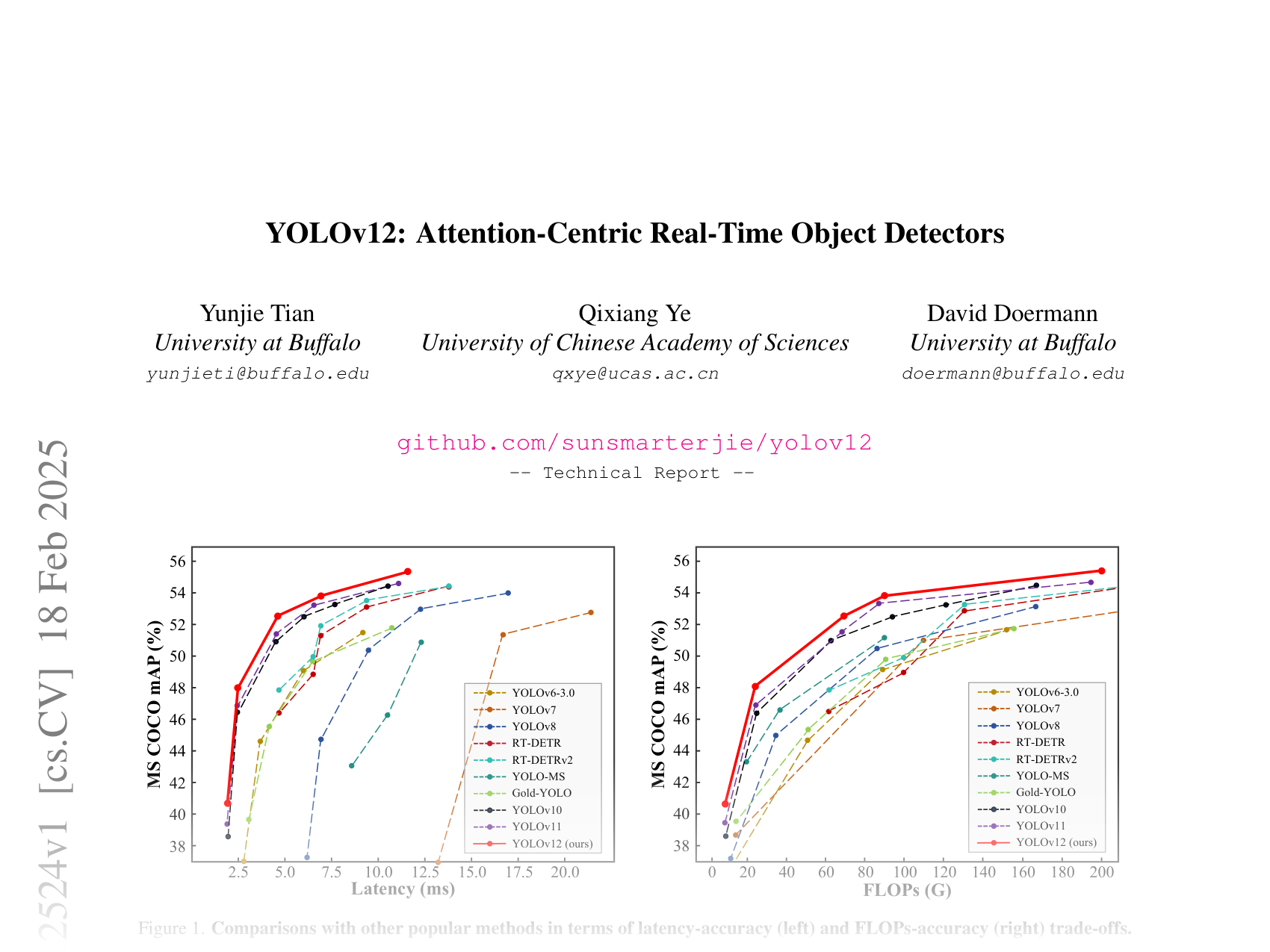

A groundbreaking paper, “YOLOv12: Attention-Centric Real-Time Object Detectors”, challenges this assumption. The authors present a YOLO framework built around attention that matches—and often exceeds—the speed of its CNN-based predecessors. This work breaks the CNN monopoly, paving the way for a new generation of faster and more accurate real-time detectors.

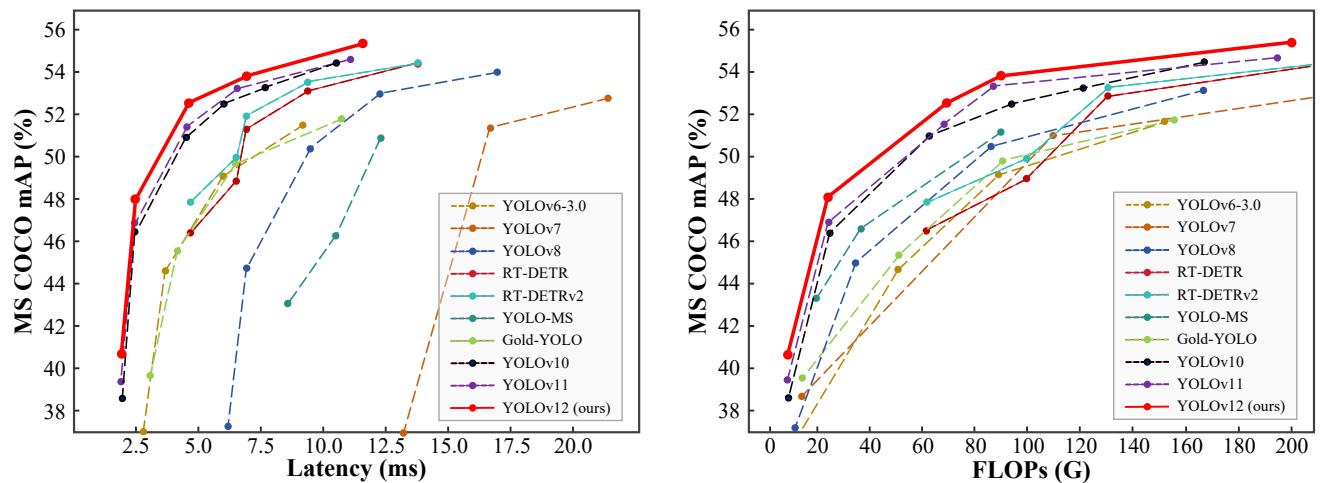

As seen in Figure 1, YOLOv12 sets a new state-of-the-art across model sizes, delivering higher accuracy for a given latency or computational budget. For example, the smallest model, YOLOv12-N, achieves 40.6% mAP on COCO with a latency of just 1.64 ms per image on a T4 GPU—2.1% higher mAP than YOLOv10-N at a comparable speed.

The Attention Bottleneck: Why Transformers Are Slow

To understand YOLOv12’s innovations, we need to unpack why traditional attention is often too slow for real-time detection:

1. Quadratic Computational Complexity
   In self-attention, each token interacts with every other token. For an input sequence length \(L\) and feature dimension \(d\), this results in complexity of \(\mathcal{O}(L^2d)\). High-resolution images imply large \(L\), making attention prohibitively expensive.
   CNNs, by contrast, operate at \(\mathcal{O}(kLd)\), where kernel size \(k\) is small, giving them an inherent efficiency advantage.

2. Inefficient Memory Access
   Large intermediate maps (e.g., \(QK^\top\)) must be moved between fast on-chip SRAM and slower High Bandwidth Memory (HBM) during computation. This I/O overhead significantly increases runtime, even if FLOPs are manageable. Methods like FlashAttention improve memory access efficiency, but complexity remains an issue.

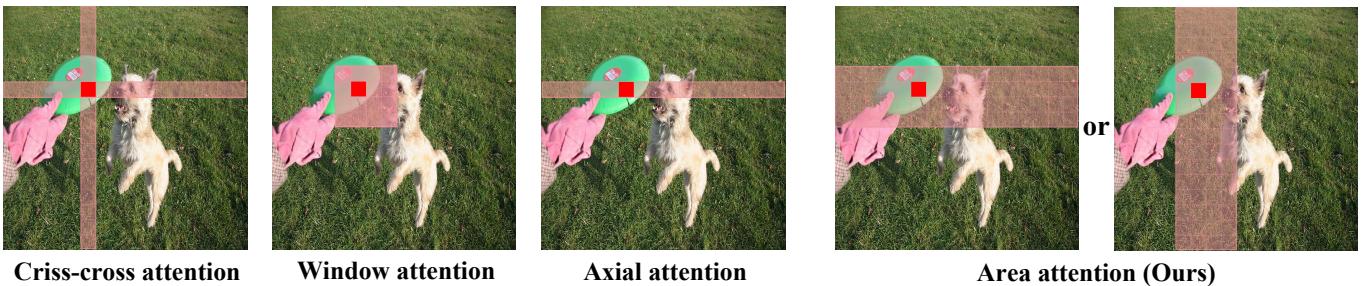

Earlier “efficient” transformers—like Swin Transformer’s shifted windows or axial attention—mitigated costs but introduced complexity or reduced receptive field. YOLOv12 required a solution that was both simple and fast.

The Core Method: A Fast, Attention-Centric YOLO

YOLOv12 introduces three key innovations to overcome attention’s bottleneck:

1. Area Attention (A2): Simple, Fast, Effective

The heart of YOLOv12 is Area Attention (A2)—a minimal yet effective attention strategy. Instead of complex window shifting or overlapping schemes, A2 simply splits the feature map into a handful of large horizontal or vertical areas. Attention is computed only within each area.

Key advantages:

• Simplicity & Speed: Area division uses a basic reshape operation, avoiding costly computation.
• Large Receptive Fields: Even with four areas, each covers a wide portion of the scene, maintaining strong contextual understanding.
• Reduced Complexity: Sequence length is effectively reduced within each area, slashing computational costs while preserving accuracy.

This structure slightly limits global dependencies but delivers massive speed gains—perfect for real-time YOLO.

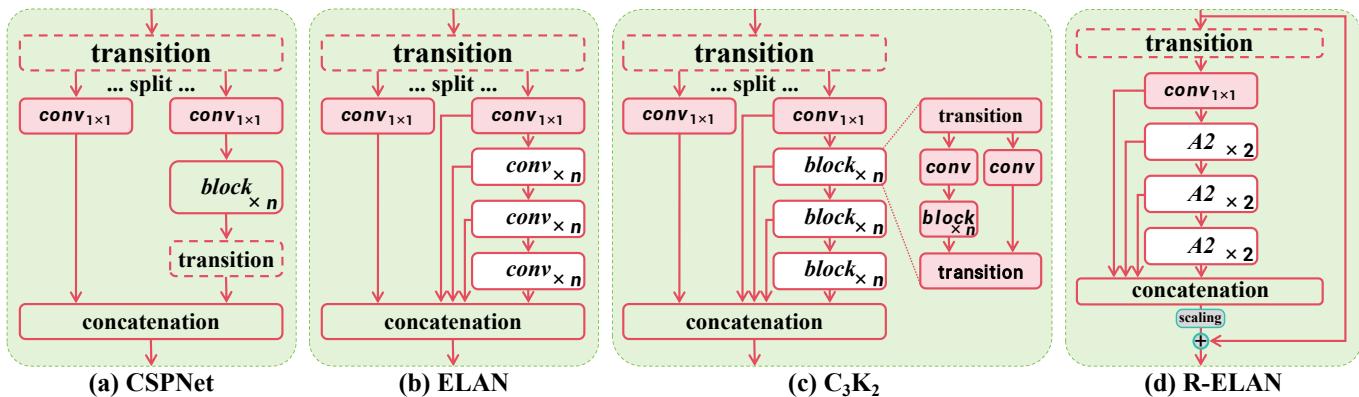

2. Residual Efficient Layer Aggregation Networks (R-ELAN)

Merely swapping in attention blocks isn’t enough. Using ELAN (introduced in YOLOv7) for deep attention-based backbones led to instability for large models—either failing to converge or producing erratic results.

YOLOv12 solves this with R-ELAN.

Two critical upgrades:

1. Block-Level Residual Connections
   A skip path from input to output, scaled by a factor (default 0.01), stabilizes training. This idea is similar to LayerScaling in deep Vision Transformers and ensures robust gradient flow.

2. Redesigned Aggregation Path
   Instead of splitting and partially processing the input, R-ELAN uses a bottleneck structure: a transition layer adjusts channels, processes through sequential blocks, and concatenates efficiently. This lowers parameter/memory use without sacrificing fusion power.

3. Architectural Optimizations for YOLO

Beyond A2 and R-ELAN, YOLOv12 incorporates several smart adjustments:

• FlashAttention: Tackles the memory bottleneck head-on.
• Removed Positional Encodings: Surprisingly, dropping them speeds up inference without hurting performance.
• Position Perceiver: A lightweight \(7\times 7\) depthwise separable convolution applied to the value tensor inside attention, restoring spatial awareness.
• Optimized MLP Ratios: Standard Transformer MLP ratios (~4.0) are wasteful here. YOLOv12 uses smaller ratios (1.2 or 2.0), reallocating compute toward Area Attention.

Experiments & Results

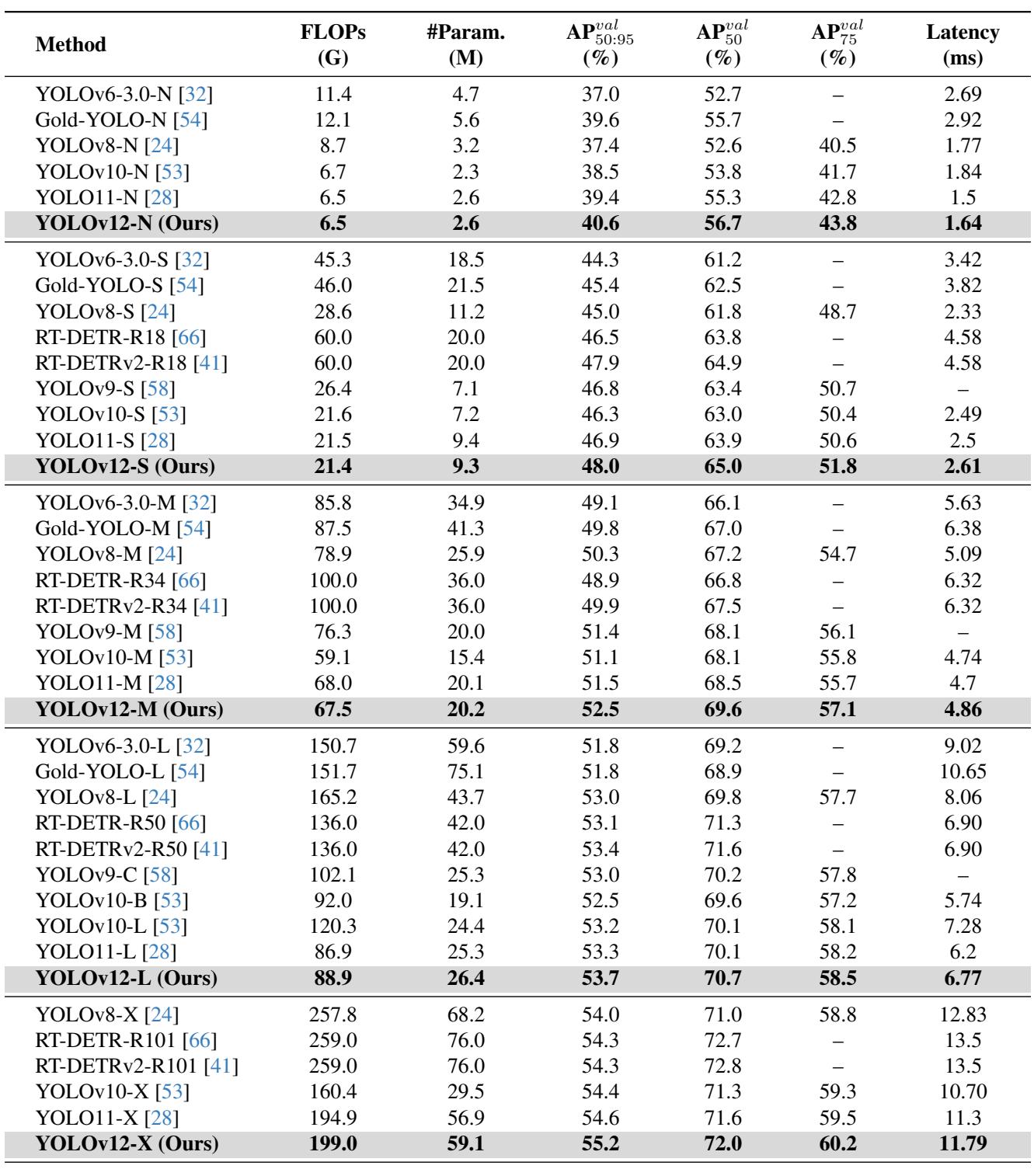

The team tested YOLOv12 on MS-COCO 2017, benchmarked against popular real-time detectors.

Highlights:

• YOLOv12-S: 48.0% mAP, beating YOLOv11-S by 1.1% and RT-DETR-R18 by 1.5%, with 42% faster latency and only 36% of RT-DETR’s computation.
• YOLOv12-L: +0.4% mAP over YOLOv11-L with similar resource usage.
• YOLOv12-X: 55.2% mAP, +0.6% over YOLOv11-X, faster than RT-DETR-R101.

Ablation Studies: Why It Works

To verify each innovation’s contribution, the authors ran controlled ablations.

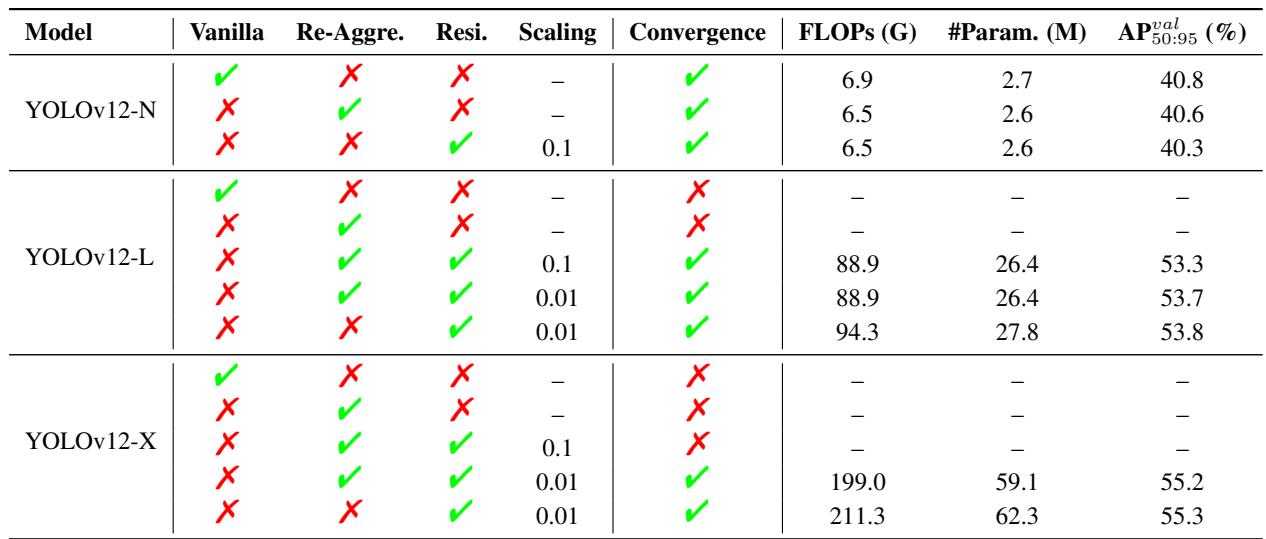

R-ELAN Stability:
Without residuals, large-scale models failed to converge. The redesigned aggregation reduced FLOPs while maintaining accuracy.

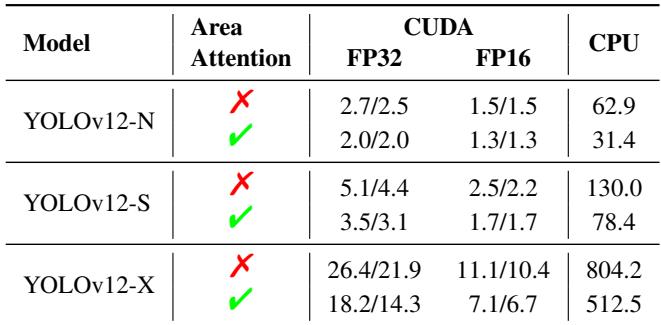

Area Attention Speed Gains:
Enabled (✓) A2 consistently reduced GPU/CPU latency versus standard attention (×), across scales.

Diagnostic studies showed:

• Conv+BN outperformed Linear+LN in attention block efficiency.
• Preserving YOLO’s hierarchical design was vital—plain transformer stacks lagged.
• FlashAttention shaved ~0.3–0.4 ms off inference without drawbacks.

Visualizing the Gains

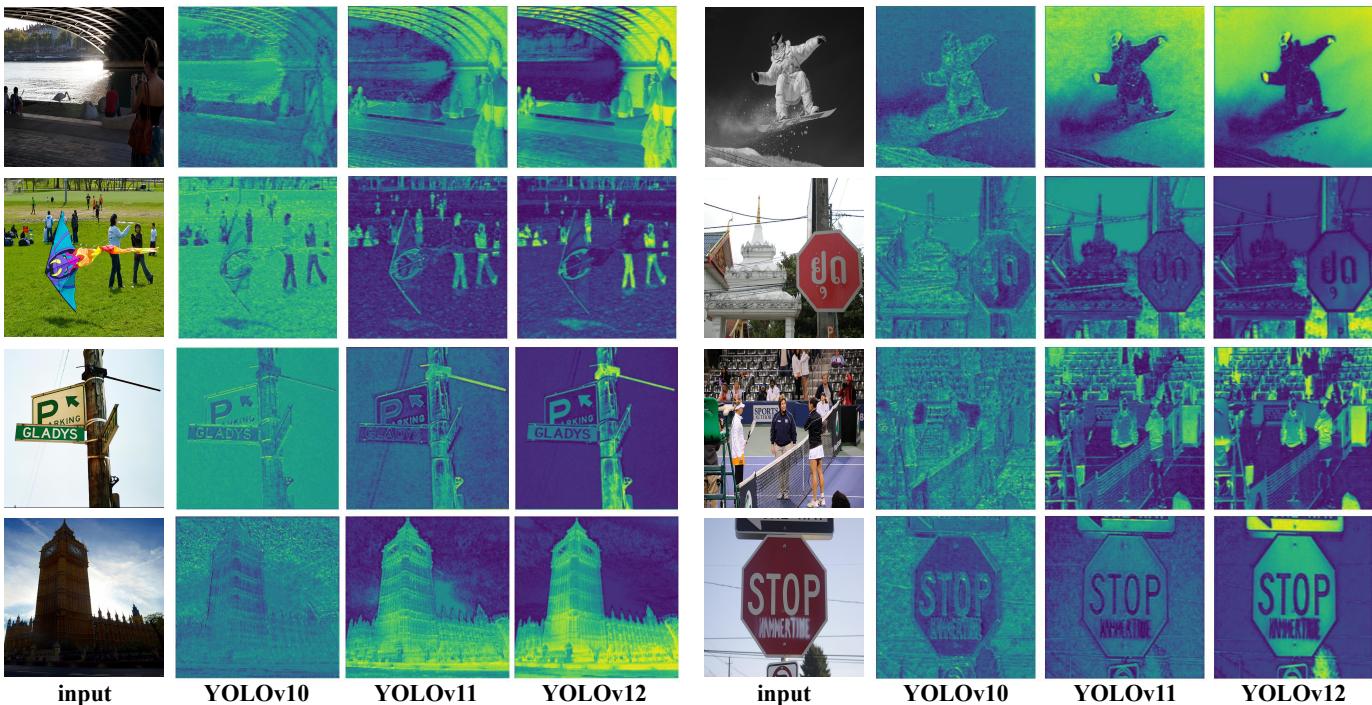

Numbers are powerful—but visuals make it clearer. The authors compared heatmaps from YOLOv10, YOLOv11, and YOLOv12.

YOLOv12 attention maps display sharper object boundaries and precise foreground separation from background. The authors credit Area Attention’s larger receptive field, enabling better scene understanding.

Conclusion: A New Era Begins

YOLOv12 is not just iterative—it’s a paradigm shift in real-time detection. By re-engineering attention for speed, the authors break CNNs’ dominance in YOLO.

Key Takeaways:

• Attention can be fast: Innovations like Area Attention make high-speed attention viable.
• Stability is critical: Deep attention backbones demand architectures like R-ELAN for training reliability.
• Design synergy matters: YOLOv12’s success is the result of major innovations and fine-tuned adjustments working together.

This marks the beginning of attention-centric YOLO models. The reign of pure CNN YOLOs is ending—YOLOv12 is leading the change.
