From the chassis of our cars to the skeletons of our skyscrapers, steel is the unsung hero of the modern world.
But not all steel is created equal. The quest for stronger yet more ductile materials has driven the development of Advanced High-Strength Steels (AHSSs).
The secret to their remarkable performance often lies in a microscopic, lightning-fast rearrangement known as the Martensitic Transformation (MT).

This process is like a rapid, disciplined dance of atoms, reshaping from one crystal structure to another without diffusion or change in composition.
The result is martensite—an exceptionally hard and strong phase that strengthens many AHSSs. For materials scientists, controlling this transformation is the key to designing next-generation alloys.

However, the precise mechanisms—especially in complex steels containing multiple alloying elements like manganese (Mn), silicon (Si), and carbon (C)—have remained elusive.
How do these atoms, individually and collectively, influence the choreography of MT?

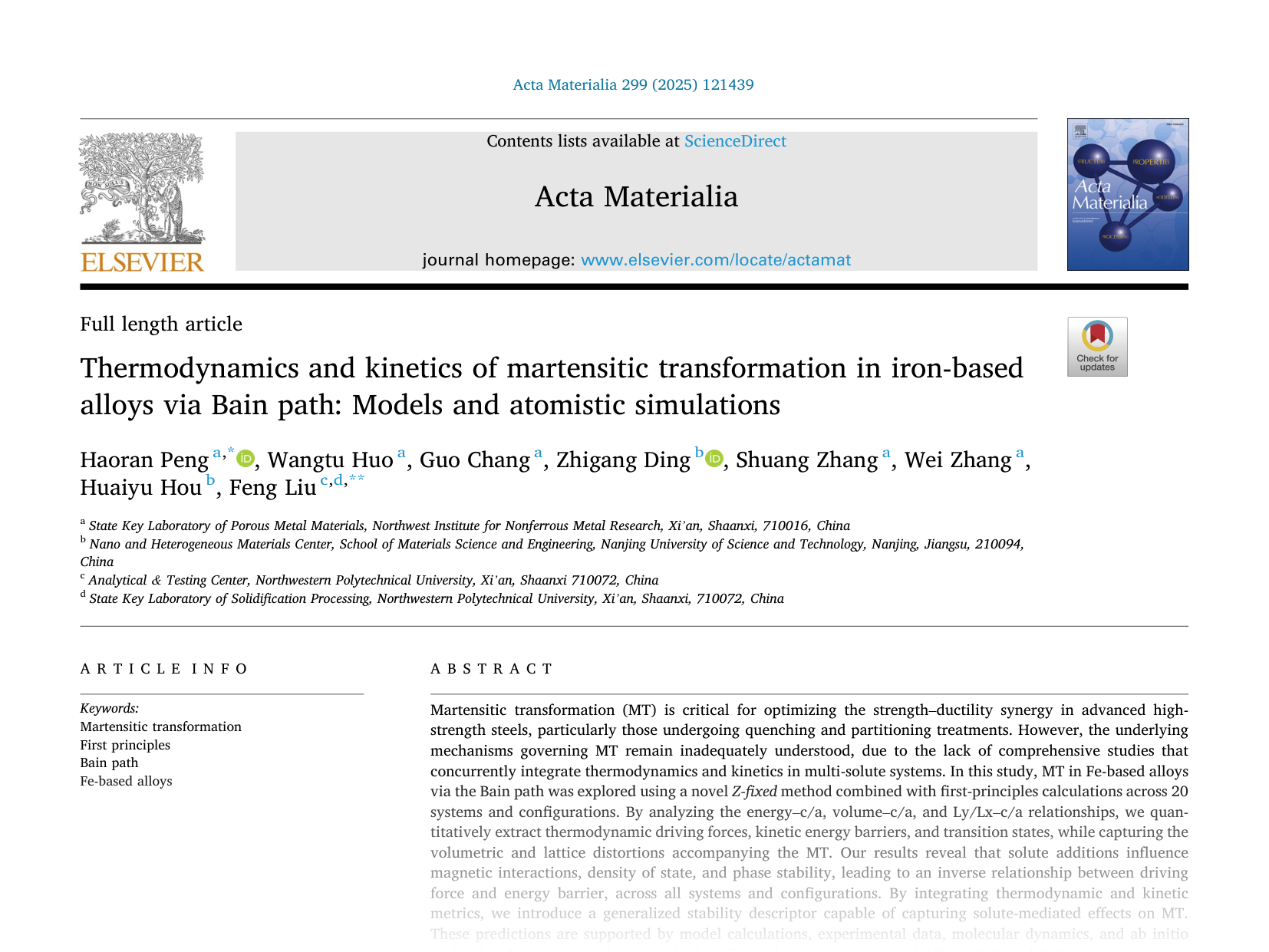

A recent paper in Acta Materialia tackles this question head-on. The researchers combine advanced quantum mechanical simulations, large-scale atomic modeling, and phenomenological theory to peel back the layers of this transformation.
They reveal not just the atom-by-atom pathway but also introduce a new predictive metric—generalized stability—with direct implications for steel design.


The Three Pillars of Martensitic Transformation

Understanding MT requires grasping three interconnected aspects: crystallography, thermodynamics, and kinetics.

  1. Crystallography (The Path):
    In steel, MT typically proceeds from a face-centered cubic (fcc) structure (austenite) to a body-centered cubic (bcc) or body-centered tetragonal (bct) structure (martensite).
    The most accepted crystallographic model is the Bain path—a homogeneous deformation where one axis contracts, and the other two expand in a coordinated manner.

  2. Thermodynamics (The “Why”):
    Transformation occurs because the martensite phase has lower energy than austenite.
    The energy difference, \(\Delta E\), is the driving force: the stronger the driving force, the more the system “wants” to transform.

  3. Kinetics (The “How Fast”):
    Even with a strong driving force, the energy barrier \(Q\) determines how fast—or whether—the transformation happens.
    A high barrier can block transformation despite favorable thermodynamics.

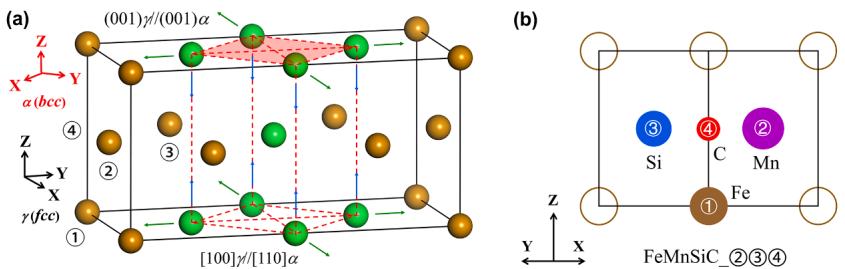

Figure 1. (a) A schematic showing the martensitic transformation along the Bain path, where an fcc-like lattice (brown spheres) transforms into a bcc-like lattice (green spheres). The sites for solute atoms are labeled ①, ②, ③, and ④. (b) An example configuration, FeMnSiC_②③④, shows Mn, Si, and C atoms at specific positions.

MT happens at speeds approaching 1000 m/s, making direct atomic-scale observation nearly impossible.
That’s why simulation methods—especially ones that avoid oversimplifications—are crucial.
This study introduces a more flexible DFT approach to capture real volumetric and lattice distortions during MT.


A Multi-Scale Computational Toolkit

To unravel MT, the authors use a three-pronged computational approach:

1. First-Principles Calculations & the Z-Fixed Method

Using Density Functional Theory (DFT), the authors simulate MT for pure Fe and 20 alloy variations containing Mn, Si, and C.
Their Z-fixed method fixes the cell length along one axis (Z) while letting X and Y—and atomic positions—relax freely.
This captures subtle changes in lattice shape and volume induced by MT, especially in alloyed systems, far better than traditional fixed-volume or fixed-shape methods.

2. Molecular Dynamics (MD) & Ab Initio MD (AIMD)

While DFT captures the static energy landscape (\(\Delta E\) and \(Q\)), MD simulates the motion of atoms over time.
The authors model both perfect single crystals and polycrystals to study the effects of grain boundaries (GBs).

AIMD adds further realism by calculating forces from DFT on-the-fly, enabling temperature-dependent studies at 300 K.

3. Phenomenological Model

To connect atomic models to macroscopic kinetics, they use:

\[ f = 1 - \left[1 - \nu m q n_v^{0} \frac{\Delta E - \Delta E_0}{kT} \exp\left(-\frac{Q}{kT}\right) (t - \tau)(1 - \xi)\right]^{\frac{1}{1 - \xi}} \]

Here, \(f\) is the martensite volume fraction over time, based on DFT-calculated \(\Delta E\) and \(Q\).
This equation bridges quantum mechanics with real-world transformation kinetics.


Results: Deconstructing Alloying Effects

Pure Iron — The Baseline

Figure 2 shows that MT in pure Fe involves both structural and magnetic changes.
The initial fcc-like phase is stable in a double-layered antiferromagnetic (AFMD) state, while the final bcc phase is ferromagnetic (FM).
The shift from AFMD to FM occurs around \(c/a \approx 1.33\).

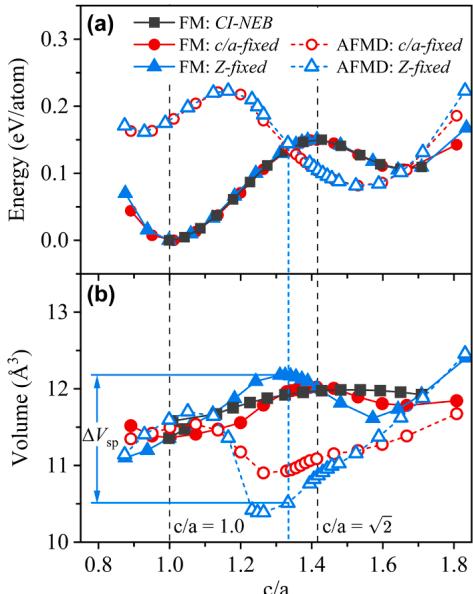

Figure 2. The Bain transition in pure Fe. (a) Energy vs. c/a ratio, (b) Average atomic volume vs. c/a ratio. The Z-fixed method (blue curves) captures a larger abrupt volume change (\\(\\Delta V_{sp}\\)) at the magnetic shift point compared to previous methods.

The Z-fixed method captures a much larger \(\Delta V_{sp}\) at the shift, reflecting more realistic lattice physics.


One-Solute Systems

Figure 3 shows clear, element-specific tendencies:

  • Mn: Lowers initial fcc energy → decreases driving force & increases barrier → stabilizes austenite.
  • Si & C: Raise initial fcc energy → increase driving force & lower barrier → destabilize austenite.

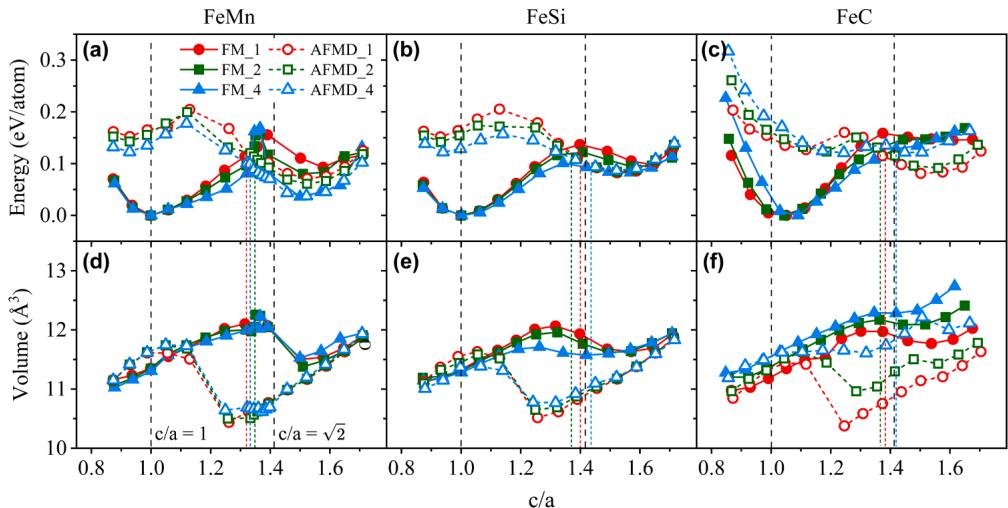

Figure 3. Energy vs. c/a (top) and Volume vs. c/a (bottom) for FeMn, FeSi, and FeC one-solute systems.


Two- & Three-Solute Systems

The complexity increases when solutes combine:

  • Some Mn+Si configurations stabilize FM states entirely along the Bain path, enabling MT without magnetic transitions (Figure 4).
  • Strong solute-solute interactions cause notable lattice symmetry reductions, seen in Ly/Lx deviations.

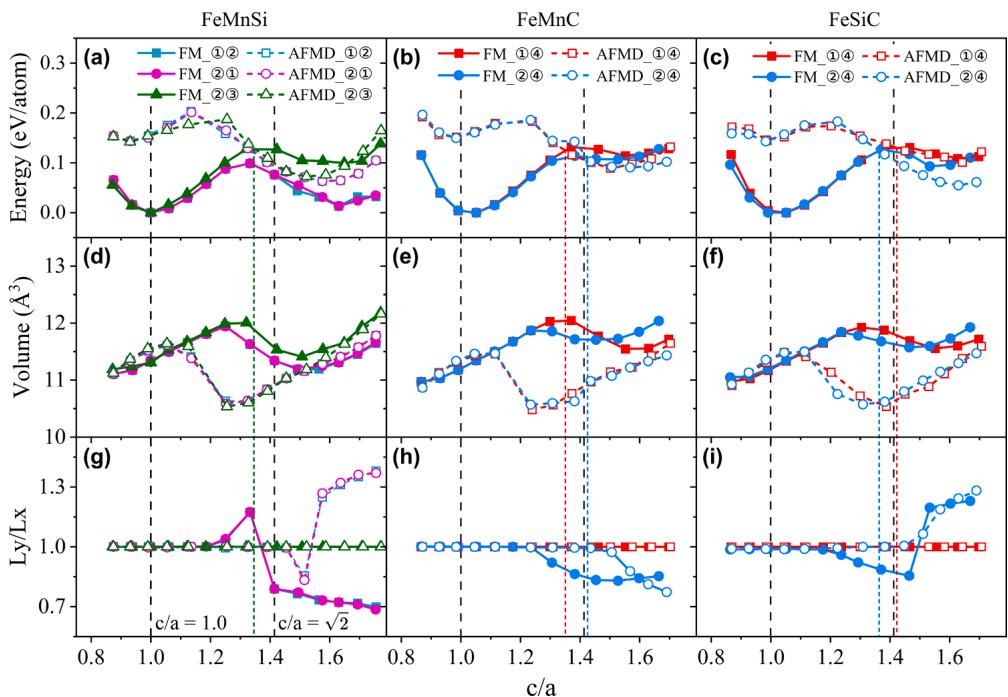

Figure 4. Bain transformation in two-solute systems (FeMnSi, FeMnC, FeSiC): energy (a–c), volume (d–f), lattice distortion (g–i).

In FeMnSiC (Figure 5), specific Mn–Si–C arrangements produce highly stabilized fcc structures and pronounced lattice distortion.

Figure 5. Bain transformation in FeMnSiC: energy, volume, and lattice distortion plots; projections show shape changes at initial, transition, and final states.


Dynamics in Action: MD & AIMD

Single-Crystal MD

In FeMnSiC models (Figure 6), MT initiates with nucleation of small bcc clusters that grow until completion.
Pure Fe, FeSi, and FeC transform abruptly over a narrow strain window.
FeMn and FeMnSiC transform slowly over a much broader strain range—visual proof of Mn’s stabilizing effect.

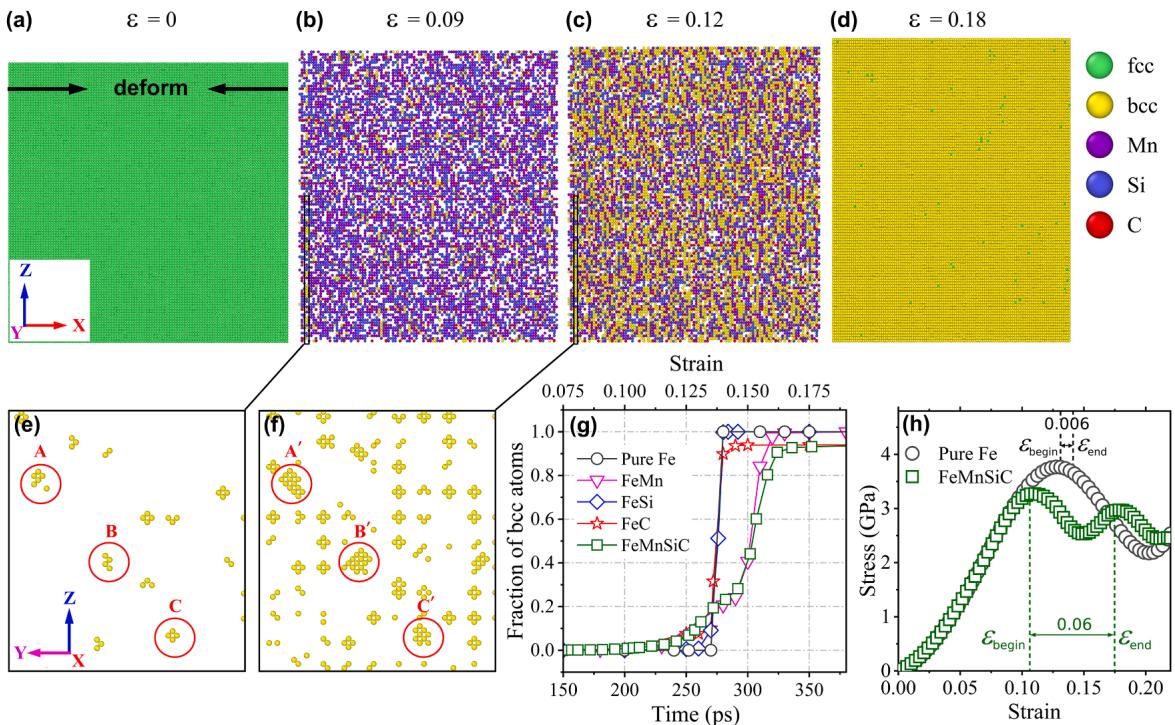

Figure 6. MD simulation in FeMnSiC single crystal: microstructure evolution (a–d) and fraction of bcc atoms vs. strain (g) showing transformation retardation by Mn and Mn–Si–C.


Polycrystalline MD

Grain boundaries act as nucleation sites and barriers.
Transformation proceeds stepwise, grain by grain (Figure 7), even more sluggishly than in single crystals.

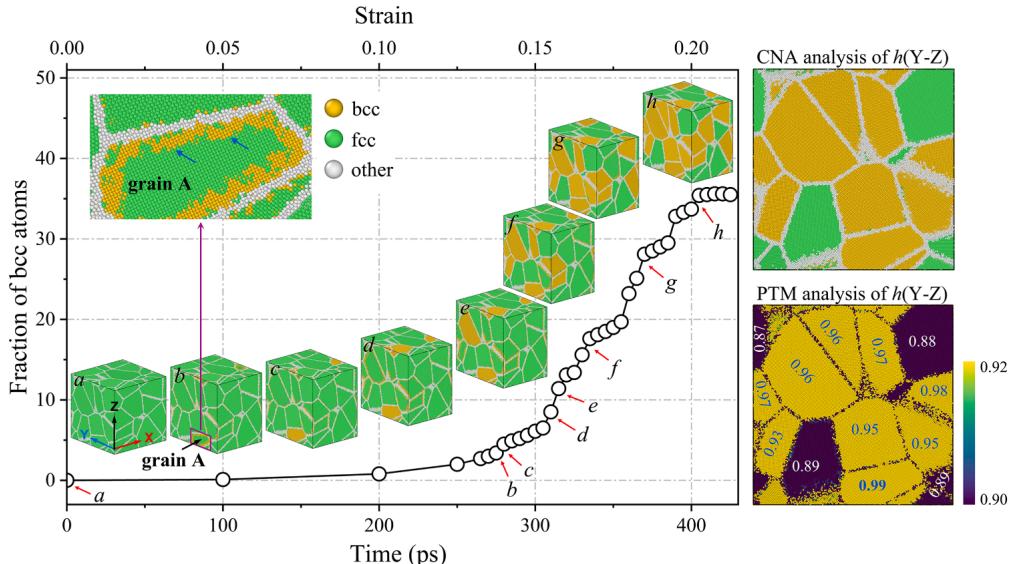

Figure 7. MD in polycrystalline Fe: stepwise transformation at GBs visualized in sequential snapshots.


AIMD at 300 K

At room temperature, pure Fe, FeSi, and FeC complete MT within ~1 ps.
FeMn and FeMnSiC show zero transformation over 10–20 ps — total stabilization by Mn and Mn–Si–C.

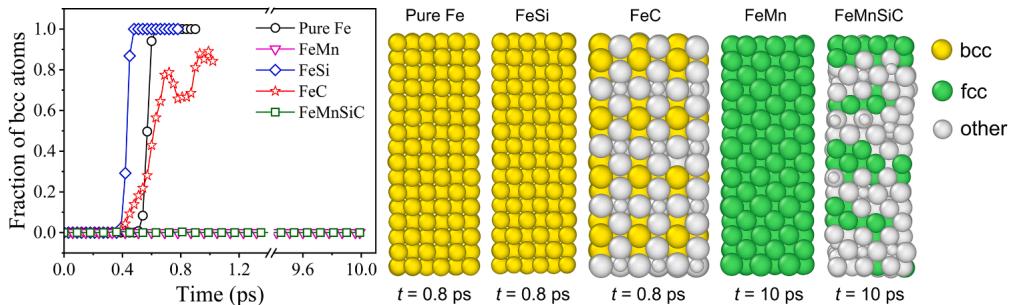

Figure 9. AIMD at 300 K: transformation fractions over time & final atomic structures per alloy.


Bridging Theory and Practice

The phenomenological model reproduces MD/AIMD results (Figure 10) using only DFT-derived \(\Delta E\) and \(Q\).

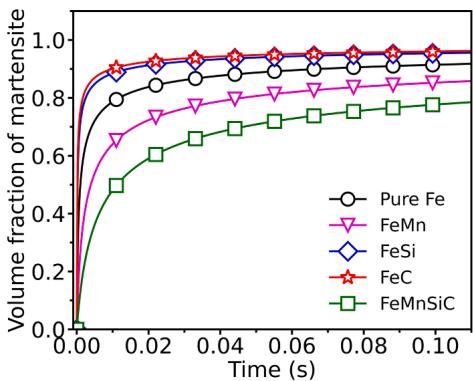

Figure 10. Modeled martensite fraction vs. time matches simulation kinetics.

Experimental Martensite start temperatures (\(M_s\)) show the same stability trend:
Pure Fe > FeC > FeMn > FeMnSiC (Figure 11).

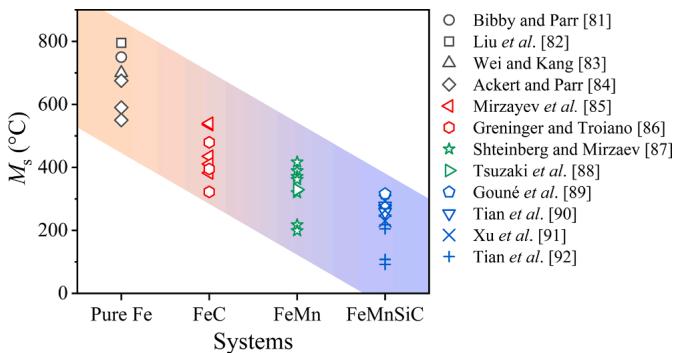

Figure 11. Compilation of experimental \\(M_s\\) values for different alloys confirms simulation trends.


Why Alloying Works: Electronic & Magnetic Insights

Magnetic Moments

Fe magnetic moments in FM states remain similar with/without solutes.
In AFMD states, Mn–Si–C combinations drastically reduce Fe magnetic moments near the shift point, lowering transformation driving forces.


Density of States (DOS)

Figure 13 reveals: narrower TDOS peaks at the Fermi level → greater stability.

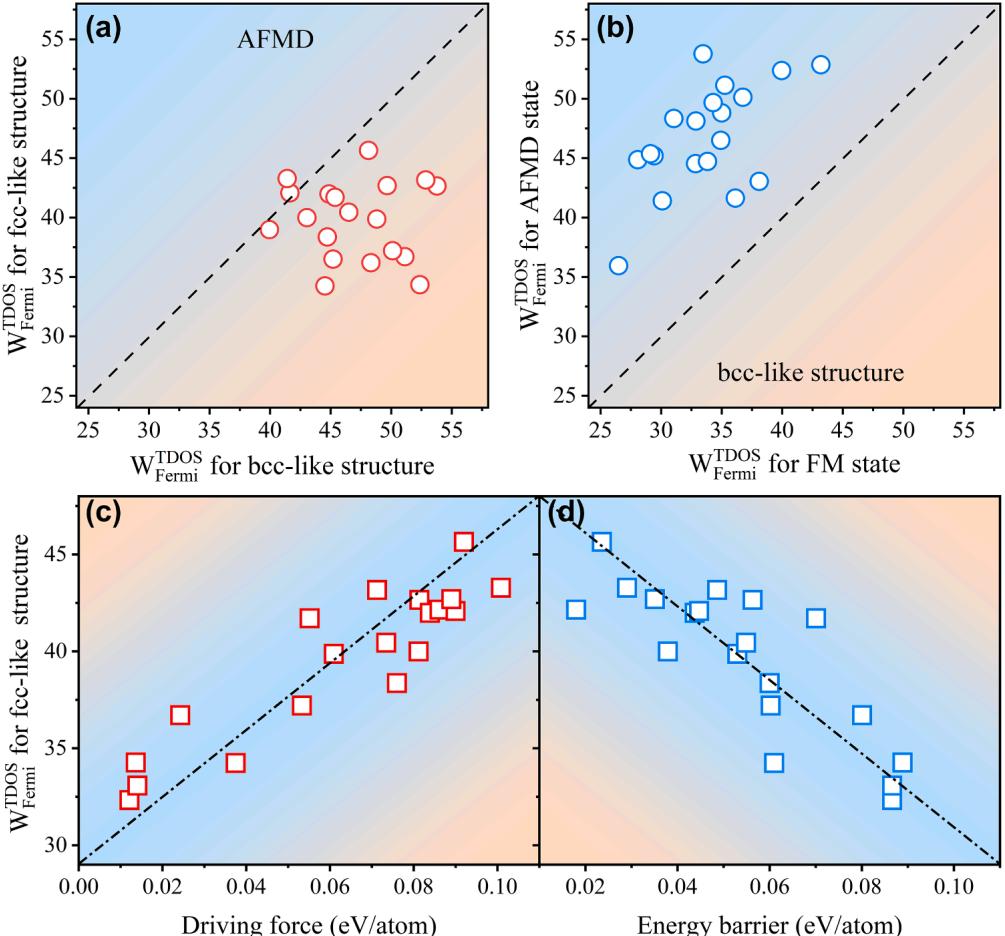

Figure 13. TDOS width analysis: narrower peaks correspond to lower driving forces & higher barriers.

Thus, initial-state TDOS width predicts \(\Delta E\) and \(Q\), linking electronic structure to transformation kinetics.


The Inverse Relationship & Generalized Stability

Across 20 systems/configurations, there is an inverse relation between \(\Delta E\) and \(Q\) (Figure 14d):
High driving force → low barrier, and vice versa.

To capture both effects, the authors define Generalized Stability (GS):

\[ \Delta = \frac{Q}{Q^{*}} - \frac{\Delta E}{\Delta E^{*}} \]

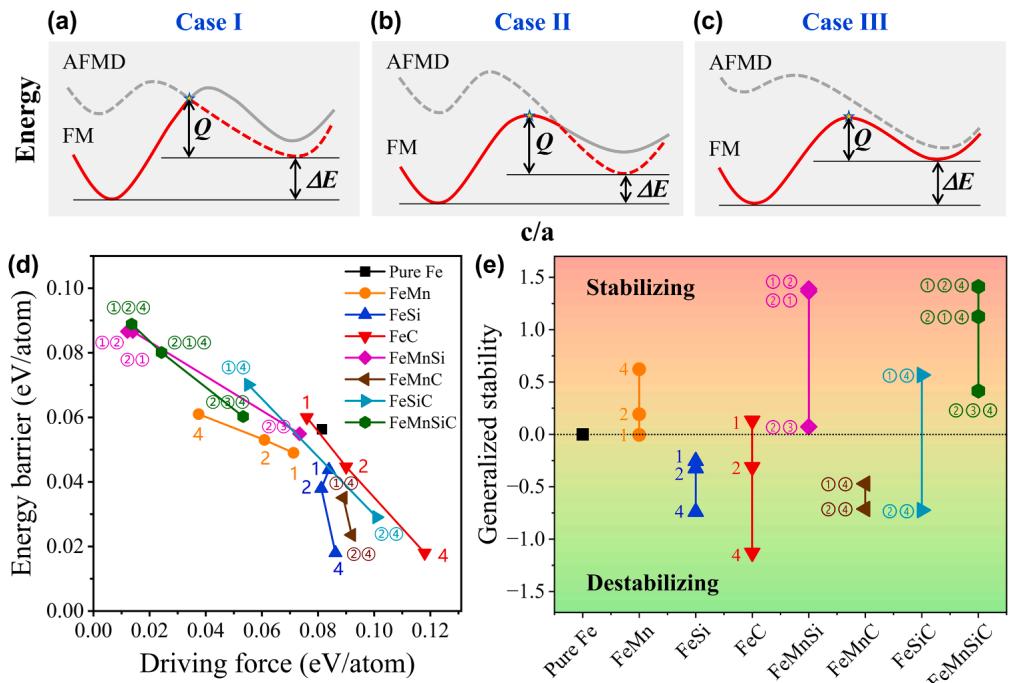

Figure 14. Thermodynamics & kinetics correlation, and GS plotting for all alloys studied.

GS > 0: Solute stabilizes austenite (suppresses MT).
GS < 0: Solute destabilizes (promotes MT).
Mn has GS > 0, Si and C < 0, Mn–Si–C highest GS.


Conclusions & Implications

Key Takeaways:

  1. MT couples structural and magnetic changes.
  2. Alloying alters MT by modifying electronic structure, adjusting \(\Delta E\) and \(Q\).
  3. Mn stabilizes austenite; Si and C destabilize it.
  4. Inverse relationship exists between driving force & barrier.
  5. GS unifies thermo-kinetic effects, enabling predictive alloy design.

Implication:
By controlling solute species, concentration, and interactions, engineers can tune GS to produce steels with optimized microstructures.
This advances AHSS development with dual-phase nanostructures featuring exceptional strength–ductility synergy.

A perfect illustration of how atom-level understanding drives real-world materials innovation.
