AlphaFold: How AI Cracked Biology's 50-Year Protein Folding Challenge

For over 50 years, scientists have been grappling with one of the grandest challenges in biology: the protein folding problem. Proteins are the microscopic workhorses of life, responsible for everything from digesting your food to fighting off viruses. Their function is dictated by their intricate three-dimensional shapes.

The challenge? To predict this 3D structure solely from a protein’s one-dimensional sequence of amino acids.

Solving this would be revolutionary. While billions of protein sequences have been catalogued, determining their structures experimentally—using techniques like X-ray crystallography or cryo-electron microscopy—requires painstaking work that can take months or even years. This has created a vast “structure gap” in our biological knowledge.

Historically, researchers tackled the problem from two main angles:

• Physics-based simulations, which model the molecular forces governing folding — powerful in theory, but computationally explosive.
• Bioinformatics approaches, which look for evolutionary clues in related protein sequences — informative, but often inadequate for novel proteins lacking structural relatives.

Both approaches made progress, but neither achieved the atomic-level accuracy needed for applications like drug design.

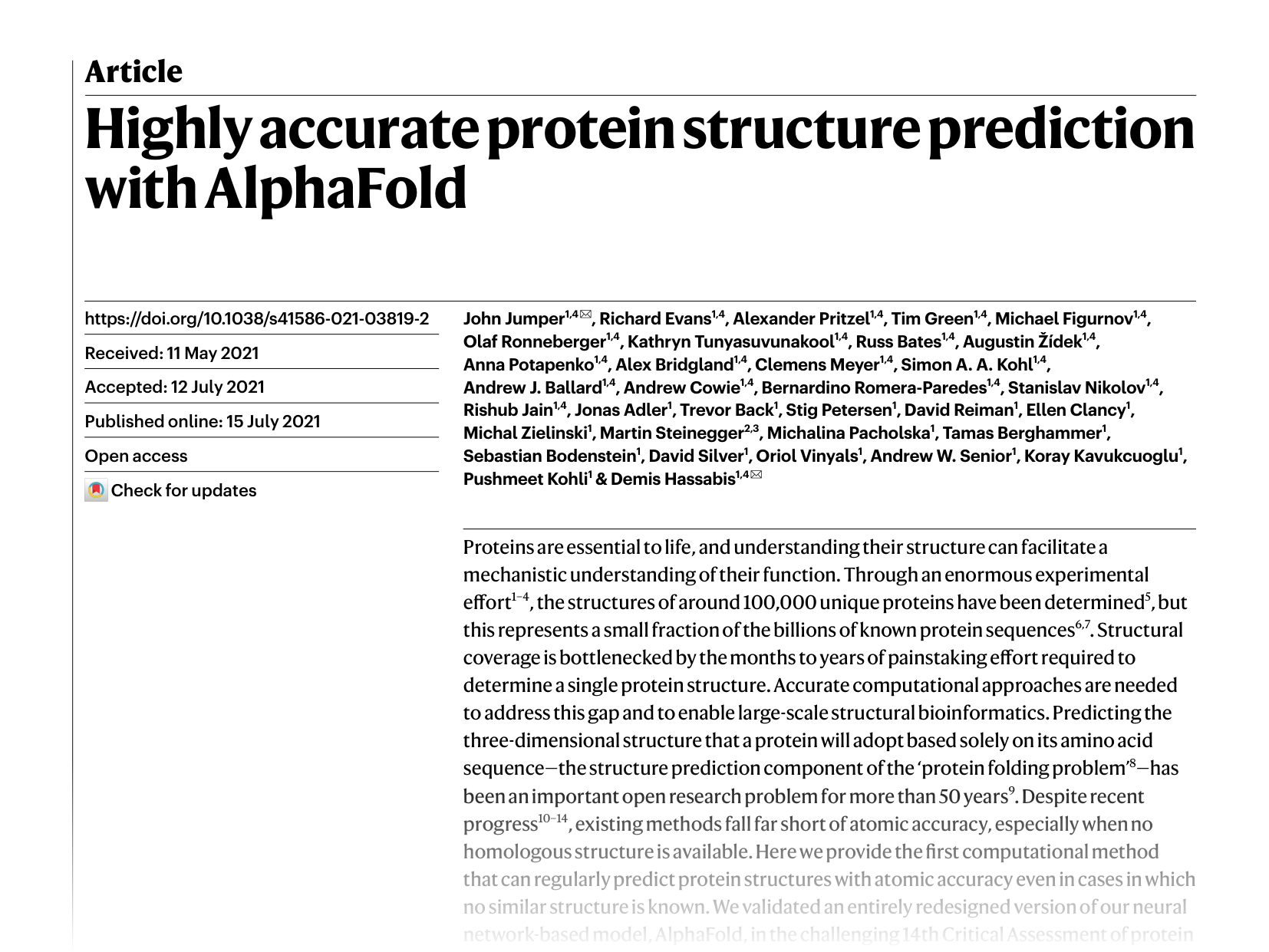

In 2021, DeepMind published a landmark paper titled “Highly accurate protein structure prediction with AlphaFold”. The team introduced AlphaFold, a deep learning system capable of predicting protein structures with unprecedented, near-experimental accuracy. In the 14th Critical Assessment of protein Structure Prediction (CASP14)—the biennial “Olympics” of the field—AlphaFold didn’t just win; it left competitors far behind.

This article explains the core ideas behind that breakthrough.

The AlphaFold Revolution: Results First

Before diving into how AlphaFold works, let’s appreciate what it achieved.

At CASP14, the standard metric for accuracy was the Global Distance Test (GDT), which scores predictions from 0 to 100. Scores above 90 are considered competitive with experimental methods. AlphaFold achieved a median score of 92.4 GDT across all targets.

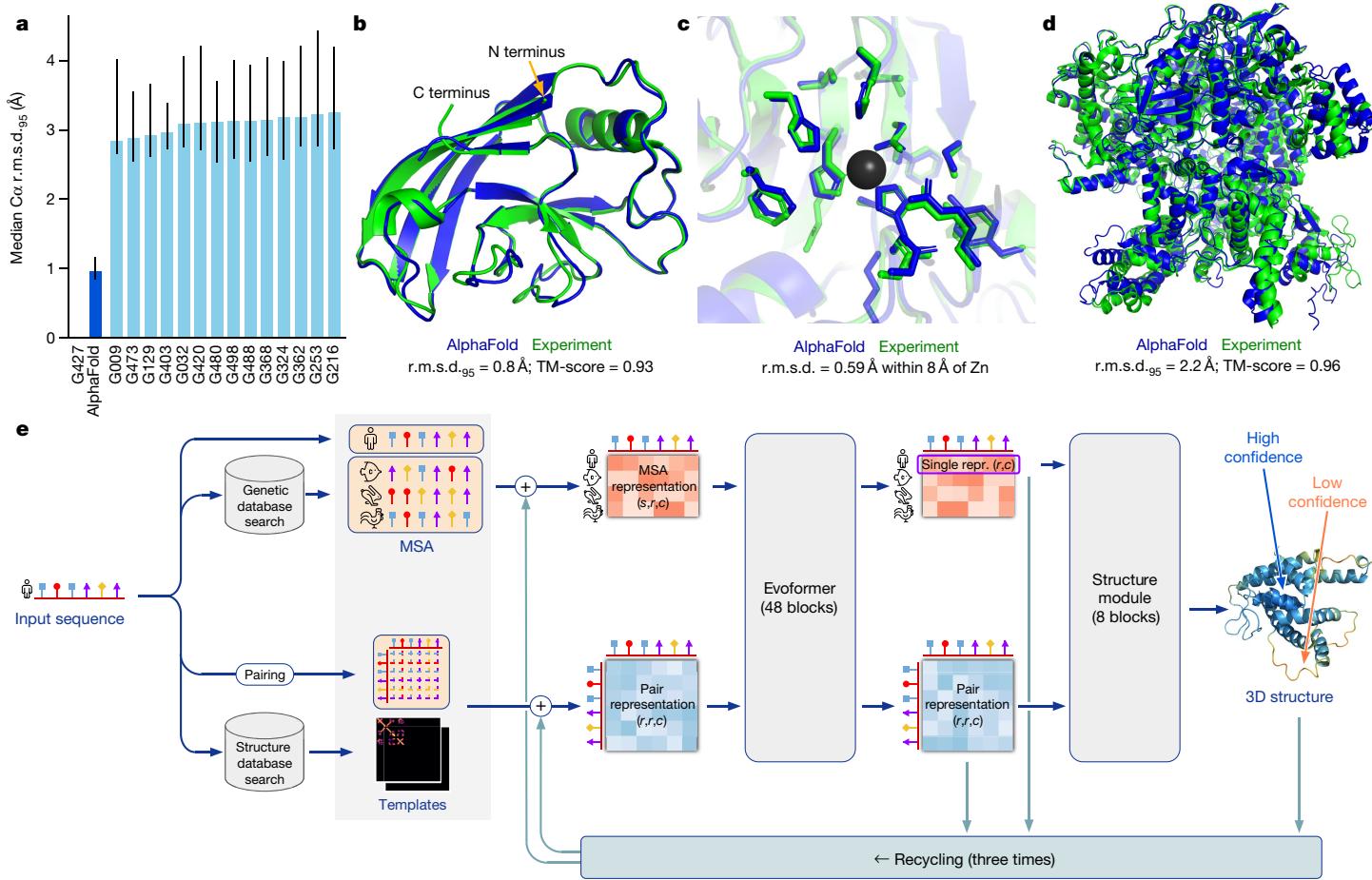

Figure 1: AlphaFold’s groundbreaking performance at CASP14. The bar chart (a) reveals the massive gap in accuracy between AlphaFold and the next-best methods. AlphaFold could accurately predict the structure of small domains (b), complex active sites (c), and even very large proteins (d). The overall system architecture is summarized in (e).

As shown in Figure 1a, AlphaFold was in a league of its own. Its median backbone accuracy was 0.96 Å—less than the width of a carbon atom. This precision means that for the majority of proteins, computational predictions are as useful as experimentally determined structures.

And this wasn’t a one-off. The team validated AlphaFold on a large set of newly published protein structures outside its training data, with the results holding up remarkably well. Importantly, AlphaFold also produces self-assessed confidence scores for each prediction, called the predicted Local Distance Difference Test (pLDDT). As shown below, when AlphaFold reports high confidence, predictions are almost always correct.

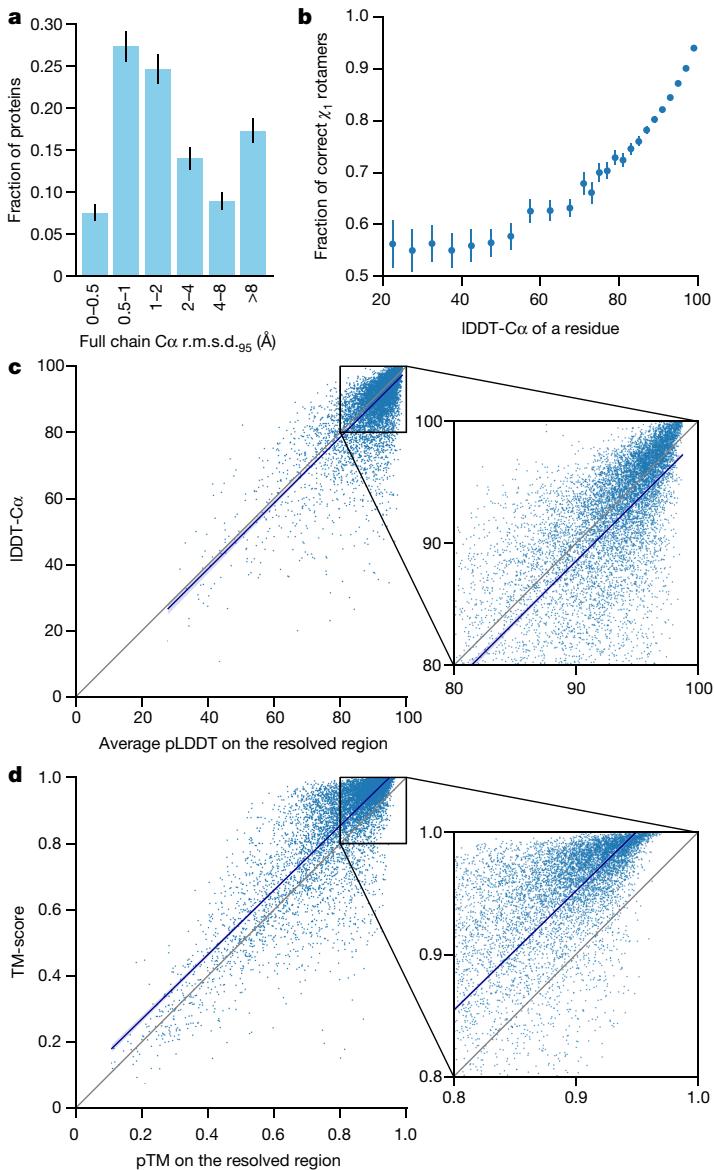

Figure 2: Validation of AlphaFold’s accuracy and confidence scores. The model consistently produces high-accuracy predictions (a, b), and its confidence measures (c, d) correlate strongly with actual structural accuracy.

The Core Method: An End-to-End Structure Generator

At its heart, AlphaFold is a neural network that takes a protein sequence and outputs the 3D coordinates of its atoms—directly. No molecular dynamics simulations. No hardcoded physics.

It learns these structural rules from the vast repository of known protein structures.

AlphaFold’s architecture (Figure 1e) has two main stages:

1. The Evoformer: A deep trunk network that processes evolutionary and spatial information.
2. The Structure Module: A specialized head that transforms processed features into explicit 3D geometry.

A key theme running through AlphaFold is iterative refinement:
The network generates an initial structure, feeds it back into itself (“recycling”), and improves the prediction over successive rounds.

The Evoformer: Fusing Evolution and Geometry

The Evoformer learns by reasoning about amino acid relationships in two intertwined representations:

1. MSA Representation: Derived from a Multiple Sequence Alignment (MSA) of related proteins. Comparing sequences reveals co-evolution patterns: amino acids that mutate together tend to be spatially close.
2. Pair Representation: A matrix capturing relationships between every residue pair—effectively, a graph whose nodes are residues and edges carry geometric information.

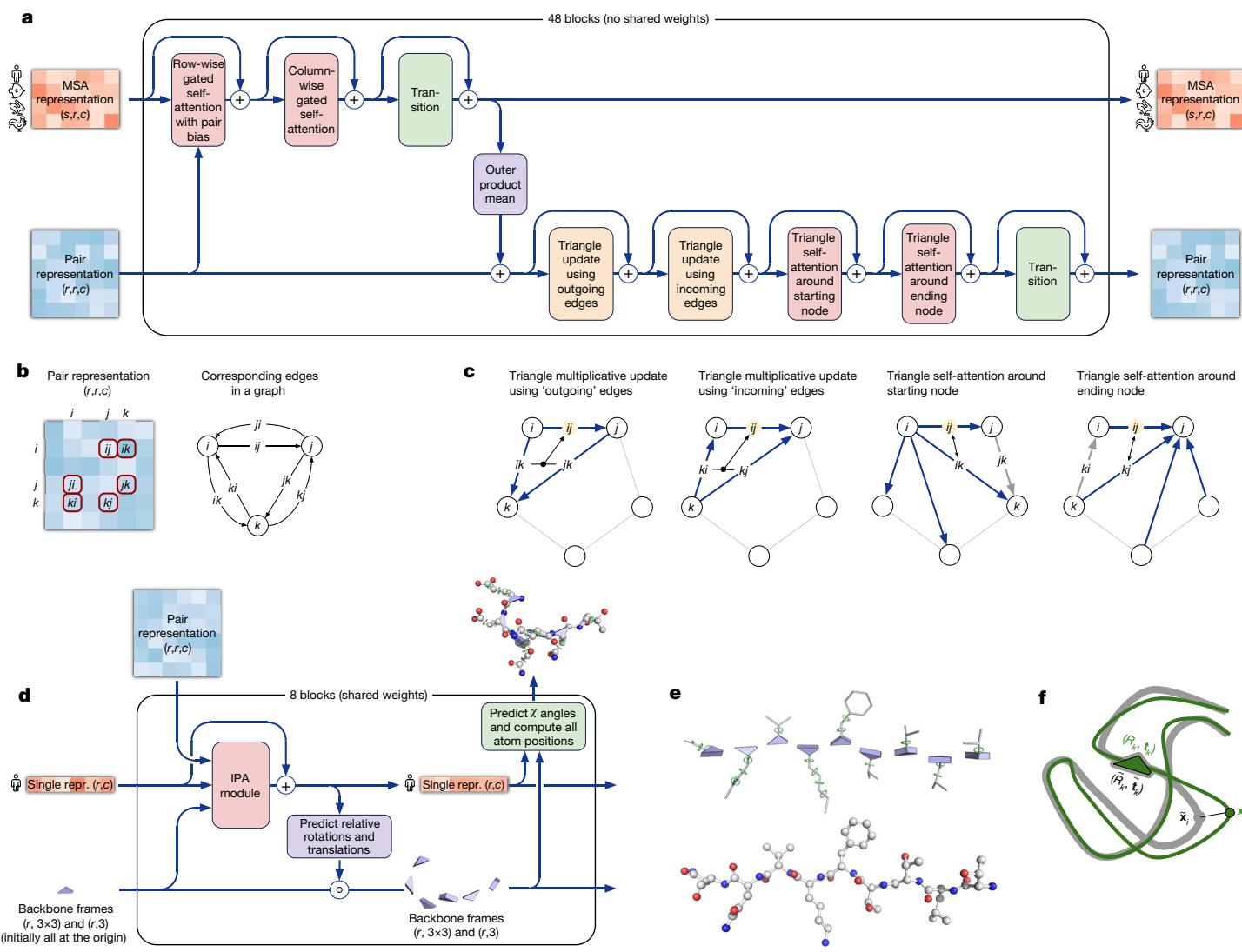

Figure 3: Architectural innovations in AlphaFold. The Evoformer (a) enables bidirectional information flow between evolutionary (MSA) and geometric (Pair) data. Triangle updates (c) enforce physical plausibility. The Structure Module (d) assembles the final 3D structure.

Over 48 Evoformer blocks, information continually flows between MSA and pair representations, allowing AlphaFold to reason simultaneously about evolutionary history and geometric constraints.

A crucial innovation is the triangle update mechanism (Figure 3c). If residue A is near B, and B is near C, then A and C’s distance is constrained. AlphaFold explicitly enforces such constraints through triangle multiplicative updates and triangle self-attention, ensuring the learned geometry matches physical reality.

The Structure Module: From Abstract Features to Atomic Coordinates

After the Evoformer produces refined representations, the Structure Module (Figure 3d) constructs the actual 3D structure.

To avoid bottlenecks from chain connectivity, it uses a “residue gas” approach (Figure 3e): initially treating each residue as an independent rigid body with its own position and orientation. This allows simultaneous placement of all residues before final geometry constraints are applied.

The Structure Module’s centerpiece is Invariant Point Attention (IPA)—an attention mechanism tailored for 3D data. IPA is equivariant to rotations and translations: rotating the input produces an identically rotated output. This built-in physical symmetry is crucial for accurate modeling.

Residue positions and orientations are iteratively updated, gradually converging to a coherent folded protein.

For training, AlphaFold uses the Frame-Aligned Point Error (FAPE) loss (Figure 3f), which measures atom position errors in each residue’s local frame rather than globally. This ensures local atomic geometry is correct, complementing global accuracy measures.

Clever Training for Unprecedented Accuracy

Architecture alone did not yield AlphaFold’s breakthrough. Several sophisticated training strategies were key:

• Recycling: Rerunning the network multiple times, each time refining the previous output.
• Self-Distillation (Noisy Student):
  1. Train an initial model.
  2. Use it to predict structures for ~350,000 new protein sequences.
  3. Filter for high-confidence predictions.
  4. Retrain a new model on both real and pseudo-labeled structures.
     This vastly expanded the effective training set.
• Masked MSA Loss: Inspired by BERT in NLP, the model learns to reconstruct masked amino acids in the MSA—deepening its understanding of evolutionary constraints.

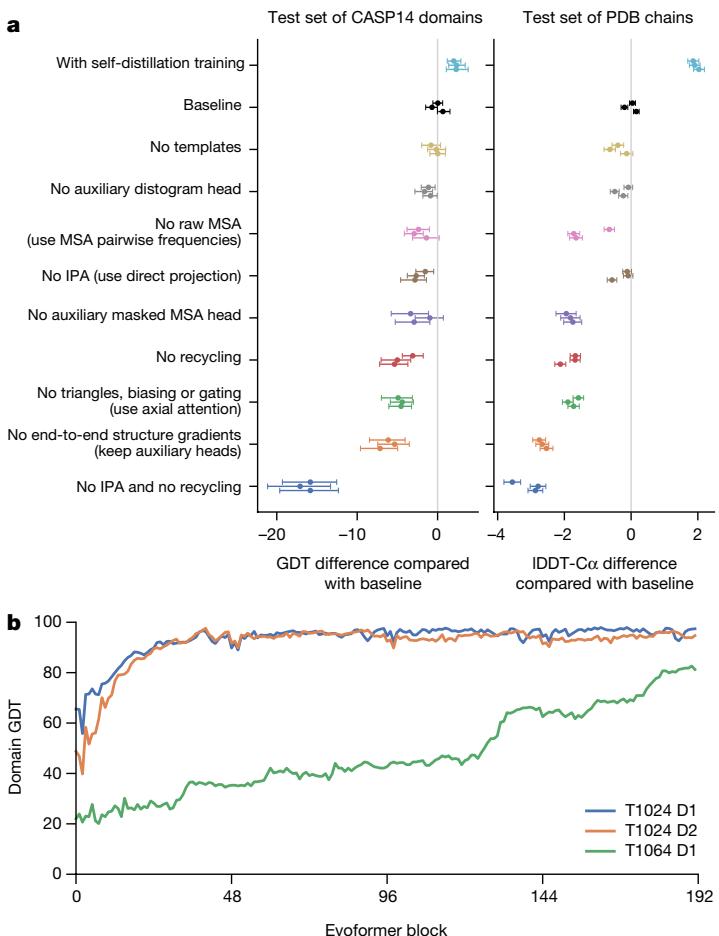

Figure 4: The importance of AlphaFold’s components. Ablations (a) show each innovation contributes significantly to accuracy. Trajectories (b) reveal the stepwise refinement of structural hypotheses across the network.

As Figure 4b illustrates, some proteins reach correct folds early; more complex targets require deeper “thinking,” with structure rearrangements over many layers before convergence.

Limitations and the Road Ahead

Despite its accuracy, AlphaFold is not infallible.

• Dependence on MSA depth: With fewer sequences in the MSA (shallow MSAs), accuracy drops sharply. Below ~30 effective sequences, predictions become unreliable.
• Multi-chain complexes: AlphaFold was trained on single chains and can struggle with structures determined largely by interactions between distinct proteins.
  (This has since been addressed by AlphaFold-Multimer.)
• Dynamic proteins: AlphaFold predicts a static structure, missing flexibility or disorder found in many proteins.

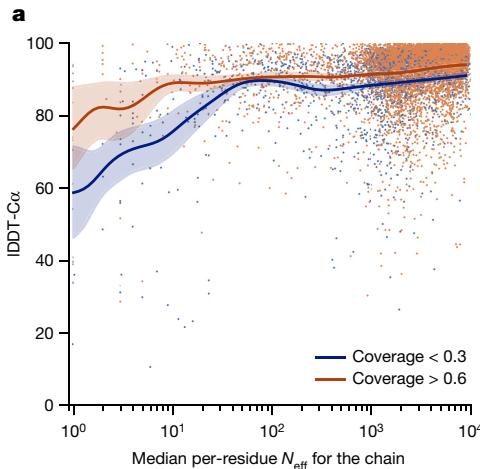

Figure 5: The importance of evolutionary signals. Accuracy correlates strongly with MSA depth (a). Nonetheless, AlphaFold can solve difficult cases like the intertwined trimer in (b), where prediction (blue) matches experiment (green).

Conclusion: A New Era for Biology

AlphaFold is a landmark achievement in both AI and structural biology. By integrating evolutionary insight, attention-based geometric reasoning, and iterative self-improvement, it has solved a 50-year-old challenge.

For the first time, a computational model can routinely deliver atomic accuracy predictions. The implications are sweeping: from accelerating drug discovery and enzyme engineering to enabling deep mechanistic insights into life’s molecular machinery.

Since its debut, AlphaFold has predicted the structures of nearly every known protein, powering a free public database and democratizing structural biology.

It is not an exaggeration to say: AlphaFold has opened a new chapter in our ability to understand, and perhaps to design, the machinery of life.
