In the world of computer vision, object detection — the task of identifying and localizing objects within an image — is a core challenge for systems that need to interpret visual data.

Before 2015, the leading deep learning methods for object detection were accurate but notoriously slow and cumbersome. They involved complex, multi-stage training pipelines that were difficult to optimize and painfully slow to run. This all changed with the introduction of the Fast R-CNN paper by Ross Girshick.

Fast R-CNN was not merely an incremental improvement; it was a leap forward. It proposed a streamlined, elegant architecture that was not only more accurate, but also orders of magnitude faster to train and test. This work unified the complex steps of object detection into a single, end-to-end trainable model, paving the way for the near real-time detectors we use today.

In this post, we’ll explore the Fast R-CNN paper, break down its core innovations, and understand why it rapidly became a cornerstone of modern object detection.


Limitations of its Predecessors: R-CNN and SPPnet

To appreciate the innovations in Fast R-CNN, we first need to understand the pain points of the models that came before it.

1. R-CNN: Accurate but Slow

The original Region-based Convolutional Neural Network (R-CNN) was a breakthrough, successfully applying deep learning to object detection and achieving then state-of-the-art results.

Its pipeline looked like this:

  1. Propose Regions: Use an algorithm like Selective Search to generate ~2,000 candidate object locations (“regions of interest” or RoIs) for each image.
  2. Extract Features: For each of these 2,000 regions, warp the image patch to a fixed size (e.g., 227×227) and feed it through a pre-trained convolutional neural network (ConvNet) to extract a feature vector.
  3. Classify Regions: Train separate linear Support Vector Machines (SVMs) to classify these feature vectors into object categories (e.g., “cat,” “dog,” “car”) or “background.”
  4. Refine Bounding Boxes: Train additional linear regression models to refine the bounding boxes.

This design had three major drawbacks:

  • Extremely slow inference: Running a ConvNet 2,000 times per image was a computational bottleneck. Test time could be up to 47 seconds per image!
  • Complex, multi-stage training: ConvNet → SVMs → bounding-box regressors, all trained separately — meaning the pipeline was not jointly optimized.
  • Huge storage demand: Features for every region from every image had to be cached to disk, often consuming hundreds of gigabytes.

2. SPPnet: Computing Once

Spatial Pyramid Pooling networks (SPPnet) identified the key bottleneck in R-CNN: repeated ConvNet computation.

Its strategy was:

  1. Run the ConvNet once on the entire input image to produce a shared feature map.
  2. For each proposed region, use a “Spatial Pyramid Pooling” layer to extract a fixed-length feature vector from the corresponding part of the feature map.
  3. Pass this vector into classifier and regressor layers.

This approach sped up testing by 10–100×. However, SPPnet still had:

  • A multi-stage training process (feature caching, SVMs, bounding-box regressors).
  • Frozen early convolutional layers before the SPP layer during fine-tuning — preventing adaptation of low-level features for detection tasks. This was especially limiting for very deep networks.

The Core Idea of Fast R-CNN: A Unified Architecture

Fast R-CNN took the strengths of both R-CNN and SPPnet, removed their weaknesses, and combined them into a single architecture trained end-to-end.

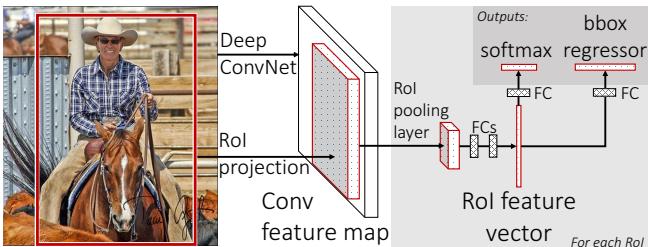

The Fast R-CNN architecture takes an entire image and a set of object proposals as input. A ConvNet processes the image once to create a feature map. The RoI pooling layer extracts a fixed-size feature vector for each proposal. These vectors are fed into fully connected layers that branch into two outputs: a softmax classifier and a bounding-box regressor.

Pipeline:

  1. Input: The network takes the full image and a set of object proposals.
  2. Feature extraction: Pass the image through a deep ConvNet (e.g., VGG16) to produce a shared convolutional feature map — done once per image.
  3. RoI pooling: For each proposal, extract a fixed-size feature map (e.g., 7×7) via the RoI Pooling layer.
  4. Fully connected layers: Flatten and feed into FC layers.
  5. Outputs: Two sibling layers:
    • Softmax classifier: Predicts probabilities over K object classes + a “background” class.
    • Bounding-box regressor: Outputs four values per class to refine bounding box coordinates.

RoI Pooling Layer: The Differentiable Key

The Region of Interest (RoI) Pooling layer takes any-sized rectangular region from the ConvNet’s feature map and converts it into a fixed-size feature map (e.g., 7×7) by dividing into an H×W grid and max pooling within each cell.

By making this operation fully differentiable, gradients can flow from the detection loss back through all network layers, enabling fine-tuning of all layers — solving SPPnet’s major limitation.


Multi-Task Loss: Classification + Localization

Instead of separate training stages, Fast R-CNN simultaneously trains classification and bounding-box regression via a single multi-task loss:

\[ L(p, u, t^{u}, v) = L_{cls}(p, u) + \lambda [u \ge 1] L_{loc}(t^{u}, v) \]
  • \(L_{cls}(p, u) = -\log p_u\): log loss for the true class \(u\).
  • \(L_{loc}\): localization loss, applied only if \(u \geq 1\) (Iverson bracket).
  • For localization loss, Smooth L1 is used:
\[ \operatorname{smooth}_{L_1}(x) = \begin{cases} 0.5x^{2} & |x| < 1 \\ |x| - 0.5 & \text{otherwise} \end{cases} \]

Smooth L1 is more robust to outliers and prevents gradient explosion compared to L2.


Efficient Training: Hierarchical Sampling

Fast R-CNN builds mini-batches by:

  1. Sampling \(N\) images (e.g., \(N=2\)).
  2. Sampling \(R/N\) RoIs from each image (e.g., 64 RoIs per image for \(R=128\)).

This lets RoIs share computation in forward/backward passes, making training ~64× faster than the per-RoI training in R-CNN/SPPnet.


Experiments and Results: Faster and More Accurate

Speed Gains

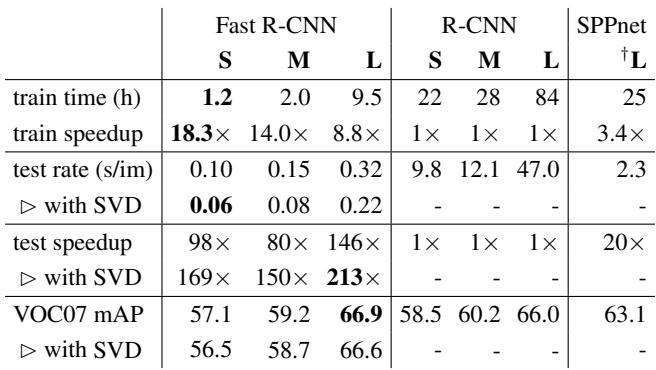

A table comparing the training time, test rate, and mAP for Fast R-CNN, R-CNN, and SPPnet across three different model sizes (S, M, L). Fast R-CNN is significantly faster in both training and testing.

With VGG16:

  • Training: 9.5h vs. R-CNN’s 84h (9× faster).
  • Testing: 0.22s/image vs. R-CNN’s 47s (213× faster).
  • Compared to SPPnet: 3× faster to train, 10× faster to test.

Accuracy

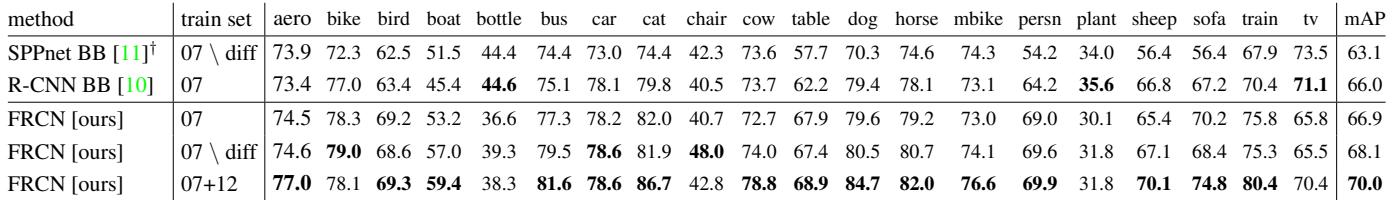

Table showing detection average precision on the VOC 2007 test set. Fast R-CNN (FRCN) achieves a higher mAP than both SPPnet and R-CNN using the same VGG16 backbone.

  • VOC 2007: mAP = 66.9% (R-CNN: 66.0%, SPPnet: 63.1%).

Also competitive or superior on VOC 2010 and VOC 2012:

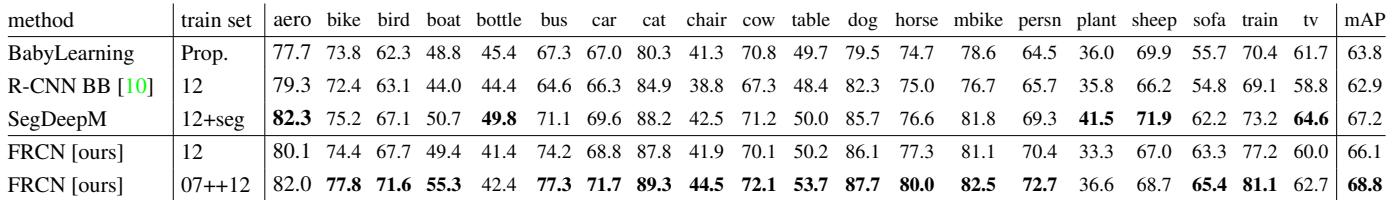

Table of results for the VOC 2010 test set, showing Fast R-CNN achieving a competitive mAP of 66.1% and 68.8% with extra training data. Table of results for the VOC 2012 test set, where Fast R-CNN achieves a state-of-the-art mAP of 65.7% and 68.4% with extra training data.


Key Ablations: Why It Works

1. Fine-tuning Conv Layers Matters

Freezing Conv layers like SPPnet drops mAP from 66.9% to 61.4%.

A table showing the effect of fine-tuning different layers of the VGG16 network. Fine-tuning more layers (from conv3_1 up) leads to a significant mAP improvement over fine-tuning only the fully connected layers.


2. Multi-Task Training Improves Accuracy

Joint classification + localization training improves mAP vs. stage-wise training.

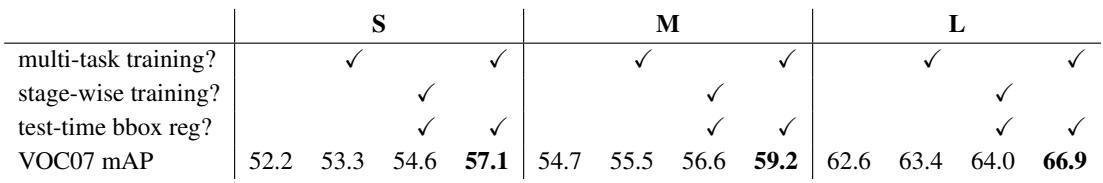

A table comparing multi-task training to stage-wise training. The multi-task approach consistently yields higher mAP across all three network models.


3. Softmax vs. SVMs

Softmax performs as well or slightly better than post-hoc SVMs — eliminating an unnecessary training stage.

A table comparing the performance of Fast R-CNN using its built-in softmax classifier versus training separate SVMs. Softmax achieves slightly better mAP, eliminating the need for a separate training stage.


Extra Speed with Truncated SVD

Detection with many RoIs spends ~45% of time in FC layers. Compressing them via Truncated SVD speeds up inference by >30% with minimal mAP drop (66.9% → 66.6%).

\[ W \approx U\Sigma_t V^T \]

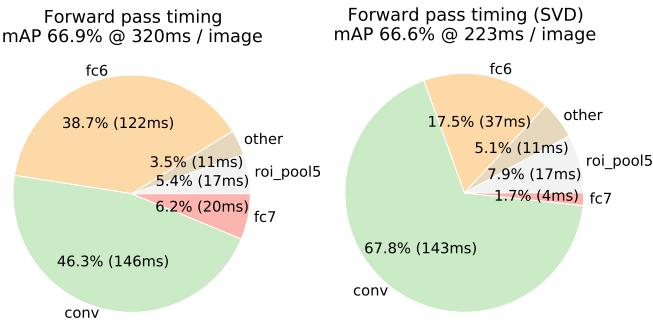

A pie chart comparison showing the time distribution of a forward pass in VGG16 before and after applying Truncated SVD. SVD dramatically reduces the time spent in the fully connected layers (fc6, fc7), lowering total inference time from 320ms to 223ms.


Conclusion: Lasting Impact

Fast R-CNN fundamentally changed object detection by:

  • Unifying feature extraction, classification, and bounding-box regression in one network.
  • Accelerating training/testing by orders of magnitude.
  • Enabling full fine-tuning of deep networks for higher accuracy.

Its concepts — shared convolutional features, RoI pooling, and multi-task training — became foundational in detector design. It directly inspired Faster R-CNN, which integrated region proposals into the network for real-time performance.

Fast R-CNN stands as a model of elegant problem-solving: identify bottlenecks, remove complexity, and allow the model to learn all useful features end-to-end. It remains essential reading for anyone exploring the evolution of modern computer vision.
