In the world of machine learning, classification is a fundamental task. From identifying spam emails to diagnosing diseases from medical images, we constantly seek to teach computers how to distinguish between categories. Over the decades, researchers have developed a range of algorithms for this—from simple linear models to multilayered neural networks.

In 1995, Corinna Cortes and Vladimir Vapnik introduced a new and powerful approach: the Support-Vector Network (now widely known as the Support-Vector Machine, or SVM). Their work did more than add another tool to the classification toolbox—it brought together geometric insight and mathematical rigor into a method that remains highly influential today.

What if, instead of finding any boundary that separates two classes, we could find the single best boundary—one that is most likely to generalize to new data? And what if we could make that boundary flex into complex shapes using a mathematical shortcut that avoids computational overload? This is the core of the SVM.

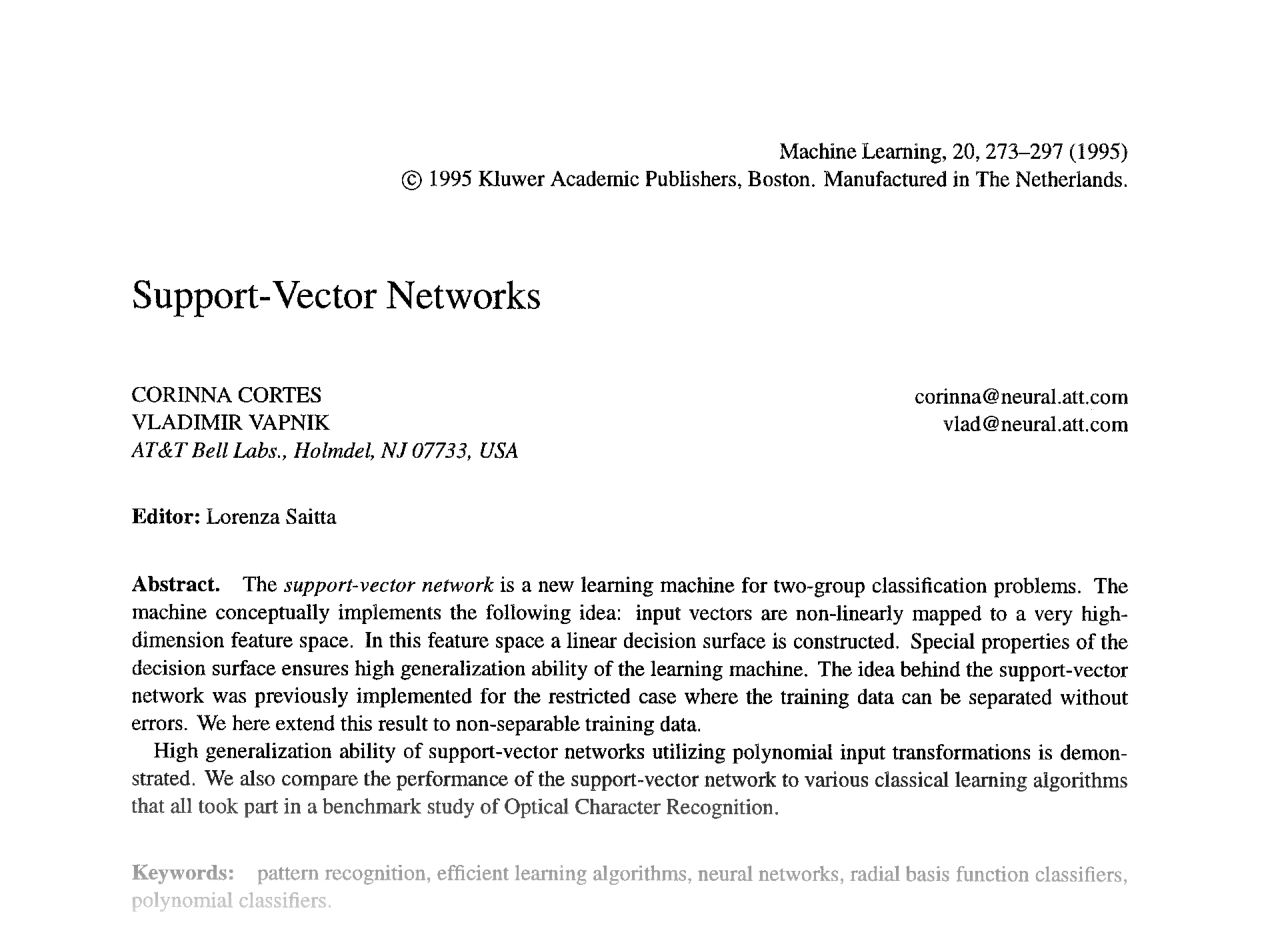

In this article, we will unpack their seminal paper, “Support-Vector Networks,” focusing on the three concepts that make the algorithm so effective:

  1. Optimal hyperplanes
  2. Soft margins
  3. The kernel trick

We’ll see how these ideas produce a machine that achieves high accuracy and resists overfitting—even when operating in unimaginably high-dimensional spaces.

From Straight Lines to Tangled Boundaries: A Brief History of Classifiers

Efforts toward automated classification predate modern computing. In the 1930s, R.A. Fisher developed a statistical method to find a linear discriminant for distinguishing between two populations. For decades afterward, most classification research revolved around constructing linear decision surfaces—flat planes (or straight lines in 2D) separating different classes.

By the 1960s, the perceptron and early neural networks entered the scene. These models could learn non-linear boundaries by combining multiple linear separators. A basic feed-forward perceptron, like the one below, builds complex shapes by layering simple computations.

A simple feed-forward perceptron with multiple layers. This illustrates how neural networks create complex decision functions by combining simpler ones.

Figure 1. A simple feed-forward perceptron with 8 input units, 2 layers of hidden units, and 1 output unit. The gray-shading of the vector entries reflects their numeric value.

While powerful, early neural networks faced limitations: training could be unstable, and models required careful tuning to avoid overfitting. SVMs approached the problem differently—by projecting data into a high-dimensional space and finding a boundary that maximizes the separation between classes.

A Three-Step Recipe for a Powerful Classifier

The support-vector framework is built on three innovations: optimal hyperplanes, soft margins, and the kernel trick.

1. Optimal Hyperplanes: Maximizing the Margin

If two classes are linearly separable, there are infinitely many separating hyperplanes. Which one should we choose? SVMs select the one with the maximum margin—the widest possible gap between the two classes.

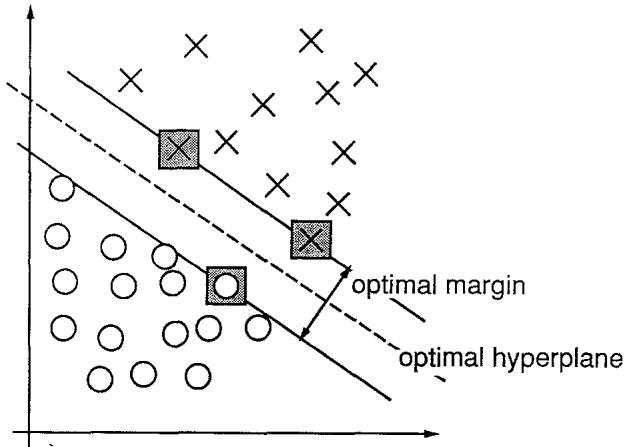

A 2D scatter plot showing two classes (circles and X’s) separated by a hyperplane. The margin is the space between the dashed lines, and the support vectors are the points on the margin.

Figure 2. An example of a separable problem in a 2 dimensional space. The support vectors, marked with grey squares, define the margin of largest separation between the two classes.

The data points lying precisely on the margin boundaries are called support vectors. These are the only points that influence the boundary’s position—removing other points won’t change it.

Mathematically, the optimal hyperplane \(\mathbf{w} \cdot \mathbf{x} + b = 0\) is found by solving:

\[ \min_{\mathbf{w}, b} \ \frac{1}{2} \|\mathbf{w}\|^2 \quad \text{s.t.} \quad y_i(\mathbf{w} \cdot \mathbf{x}_i + b) \ge 1 \]

The solution expresses \(\mathbf{w}\) as:

\[ \mathbf{w}_0 = \sum_{\text{support vectors}} \alpha_i y_i \mathbf{x}_i \]

Only the support vectors have non-zero \(\alpha_i\) coefficients, making SVMs efficient and less prone to overfitting.

2. Soft Margins: Handling Imperfect Data

Pure maximal-margin classifiers require perfect linear separability—rare in real-world data.

The soft margin extension allows margin violations, using slack variables \(\xi_i \ge 0\):

  • \(\xi_i = 0\): correctly classified, outside the margin.
  • \(0 < \xi_i \le 1\): inside the margin, correctly classified.
  • \(\xi_i > 1\): misclassified.

The optimization now balances two objectives:

  1. Maximize the margin (\(\|\mathbf{w}\|^2\) small)
  2. Penalize violations (\(\sum \xi_i\) small)

Controlled by the hyperparameter C:

  • Large C → fewer violations, potentially narrower margins (risk of overfitting).
  • Small C → more tolerance for violations, wider margins (better generalization).

This formulation makes SVMs robust to noisy, overlapping datasets.

3. The Kernel Trick: Non-Linearity Made Simple

What if the data isn’t linearly separable in its original form—say it lies in concentric circles? One solution: map it into a higher-dimensional feature space where a linear separator exists.

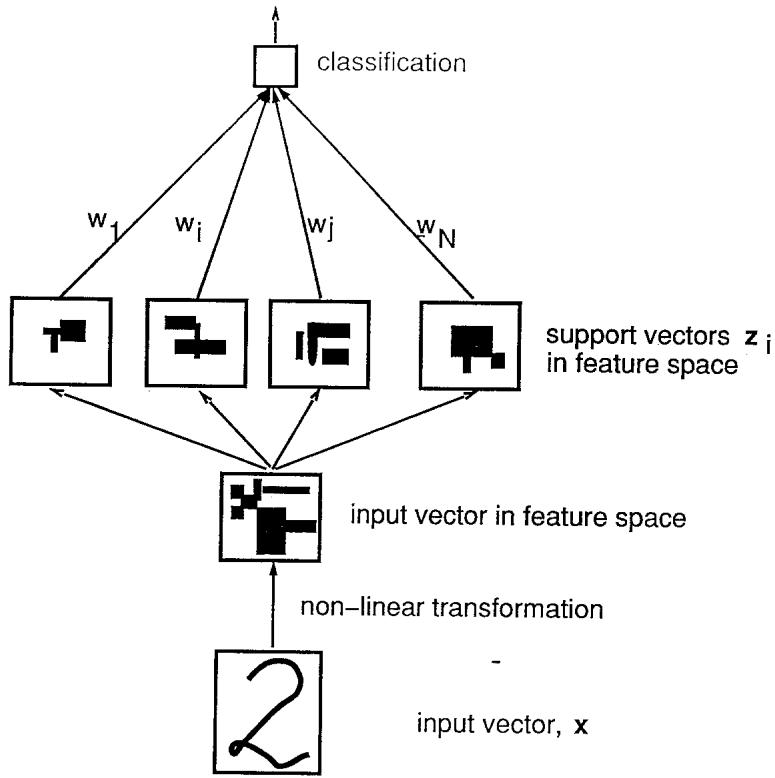

A conceptual diagram showing an input vector x being transformed into a high-dimensional feature space, where an optimal hyperplane performs the classification.

Figure 3. Classification by a support-vector network. Conceptually, the pattern is first transformed into a high-dimensional feature space where an optimal hyperplane is constructed.

Explicitly computing such mappings can be impossible when the resulting space has billions of dimensions. But notice that in the SVM’s decision function, the mapping \(\phi(\cdot)\) appears only inside dot products:

\[ f(\mathbf{x}) = \operatorname{sign}\left( \sum_{\text{support vectors}} \alpha_i y_i \, \phi(\mathbf{x}_i) \cdot \phi(\mathbf{x}) + b \right) \]

The kernel trick replaces this dot product \(\phi(\mathbf{u}) \cdot \phi(\mathbf{v})\) with a kernel function \(K(\mathbf{u}, \mathbf{v})\) computed in the original space:

\[ K(\mathbf{u}, \mathbf{v}) = (\mathbf{u} \cdot \mathbf{v} + 1)^d \quad \text{(Polynomial kernel)} \]

This allows us to work as if we were in the high-dimensional space—without explicitly computing coordinates.

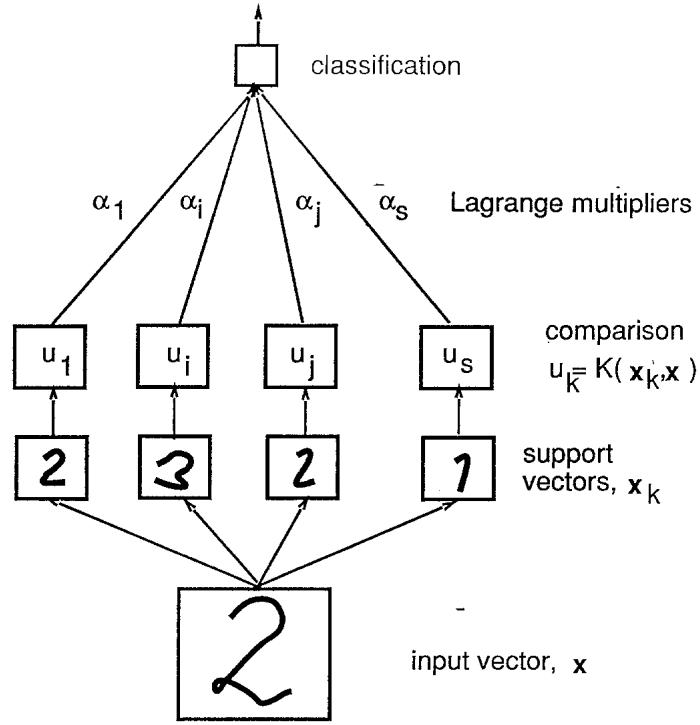

A diagram showing how the kernel trick works. Instead of mapping to a feature space, the input vector x is directly compared to the support vectors using a kernel function K(x_k, x).

Figure 4. Classification of an unknown pattern by a support-vector network. The pattern is compared to support vectors in the input space via the kernel function. A linear function of these results determines the output.

By changing the kernel, we can model many shapes:

  • Polynomial: \(K(\mathbf{u}, \mathbf{v}) = (\mathbf{u} \cdot \mathbf{v} + 1)^d\)
  • Radial Basis Function (RBF): \(K(\mathbf{u}, \mathbf{v}) = \exp(-\gamma\|\mathbf{u} - \mathbf{v}\|^2)\)

Proof in Practice: Experiments and Results

Non-Linear Boundaries in Synthetic Data

With a degree-2 polynomial kernel, SVMs can separate intricate shapes. Figure 5 shows two examples—support vectors are marked with double circles, and errors with crosses.

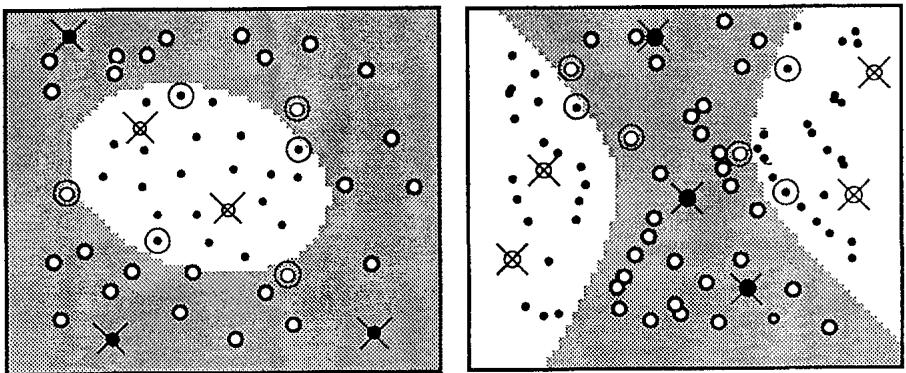

Two examples of non-linear decision boundaries found by an SVM with a polynomial kernel. Support vectors are marked with double circles and errors with a cross.

Figure 5. Examples of decision boundaries using a polynomial kernel with \(d = 2\).

USPS Handwritten Digit Recognition

The US Postal Service (USPS) dataset contains 7,300 training and 2,000 test images of \(16 \times 16\) pixel digits.

Examples of handwritten digits from the US Postal Service database.

Figure 6. Sample digit patterns from the USPS database.

Polynomial kernels from degree 1 to 7 were tested. Results:

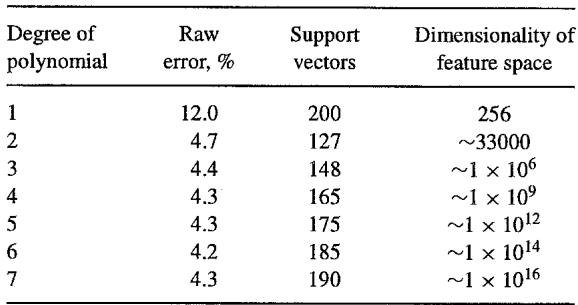

Table showing the performance of polynomial SVMs of different degrees on the USPS dataset. It highlights the error rate, number of support vectors, and dimensionality of the feature space.

Table 2. Results for polynomial SVMs of various degrees.

Key points:

  • Error falls from 12.0% (degree 1) to ~4.2% (degree ≥ 6).
  • Feature space dimensionality explodes (degree 7 → \(10^{16}\) dimensions).
  • Support vector count grows only modestly (from ~127 to 190), showing complexity depends on support vectors, not dimensionality.

NIST Benchmark

On the larger NIST dataset (60,000 training, 10,000 test), the authors tried a 4th-degree polynomial SVM—no preprocessing, no domain-specific tuning.

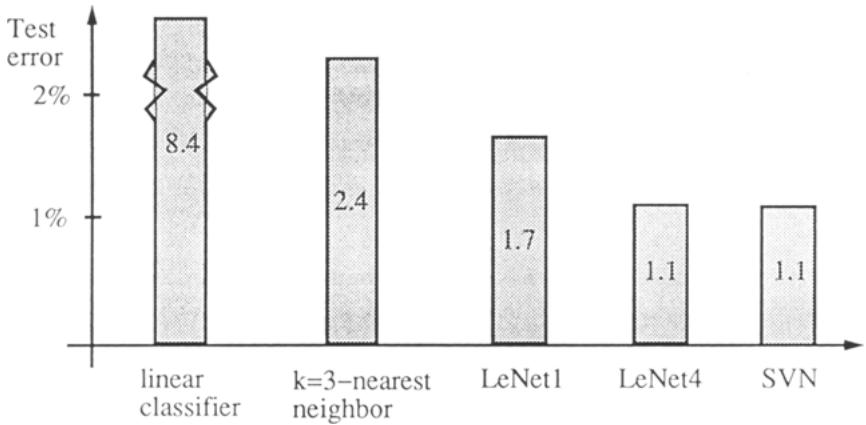

A bar chart comparing the test error rates of different classifiers on the NIST benchmark. The SVM achieves a top result of 1.1%.

Figure 9. NIST benchmark results comparing SVM against other classifiers.

The SVM matched LeNet4’s performance at 1.1% error, despite the latter being a hand-crafted convolutional network for digit recognition. Impressively, the SVM required no knowledge of image geometry, meaning it could perform equally well even if the pixels were permuted randomly.

Conclusion: A Landmark in Machine Learning

The “Support-Vector Networks” paper unified:

  1. Optimal Hyperplanes: maximizing margin for robust generalization.
  2. Soft Margins: introducing a flexible error-margin trade-off for real-world data.
  3. Kernel Trick: enabling complex, non-linear boundaries without direct computation in massive feature spaces.

The result is a classifier that is accurate, efficient, and theoretically grounded. Training is a convex optimization problem, ensuring a unique global solution and avoiding the pitfalls of local minima.

SVMs marked a shift in machine learning, inspiring kernel methods and influencing decades of research. Even in the deep learning era, SVMs remain a key tool—valued for their versatility, mathematical elegance, and capacity to perform exceptionally in high-dimensional tasks.
