The world is facing a monumental waste problem. As cities expand and populations grow, so does the trash we produce. Projections suggest global waste could swell by 70%, reaching an astonishing 3.4 billion tons by 2050.

At the heart of managing this crisis lies a deceptively simple task: sorting waste. Effective sorting is the first crucial step toward recycling, conserving resources, and sustaining a circular economy.

But sorting isn’t easy. Traditional methods rely heavily on manual labor—slow, expensive, error-prone, and inadequate for the scale and complexity of today’s waste streams. This is where artificial intelligence (AI) —and specifically deep learning—has shown promise. Convolutional Neural Networks (CNNs) can classify waste images automatically, but they struggle with the messy reality of real-world trash: varied lighting conditions, visually similar materials, and imbalanced categories.

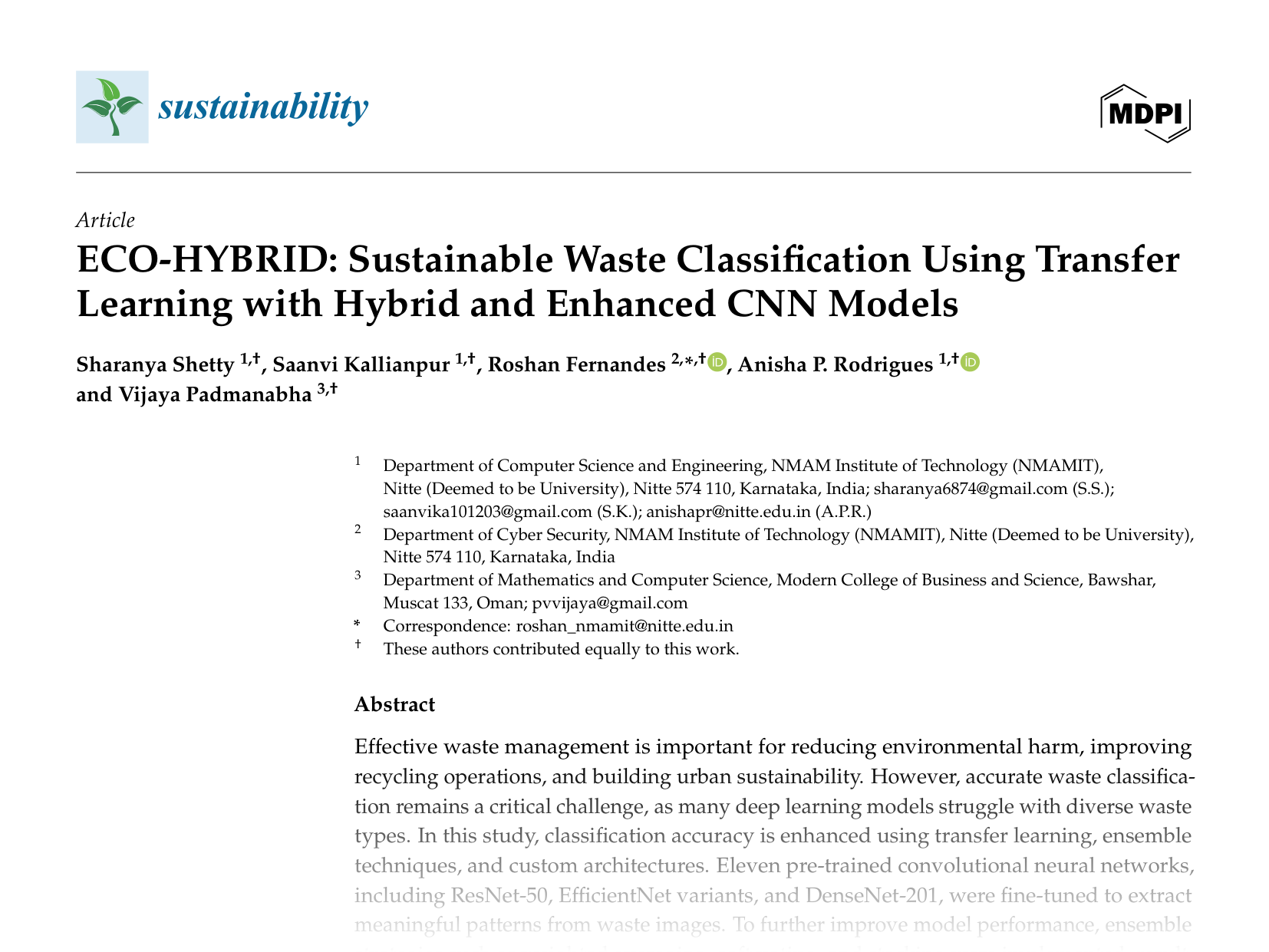

A recent research paper, “ECO-HYBRID: Sustainable Waste Classification Using Transfer Learning with Hybrid and Enhanced CNN Models”, addresses these challenges with a comprehensive framework. The authors benchmark existing models, design new efficient architectures, and combine the best-performing ones into hybrid and ensemble systems—achieving state-of-the-art accuracy.

The Big Picture: A Framework for Smart Sorting

Before diving into the models, let’s understand the overall workflow. The researchers developed a systematic pipeline (Figure 1) that takes raw waste images and outputs accurate classifications.

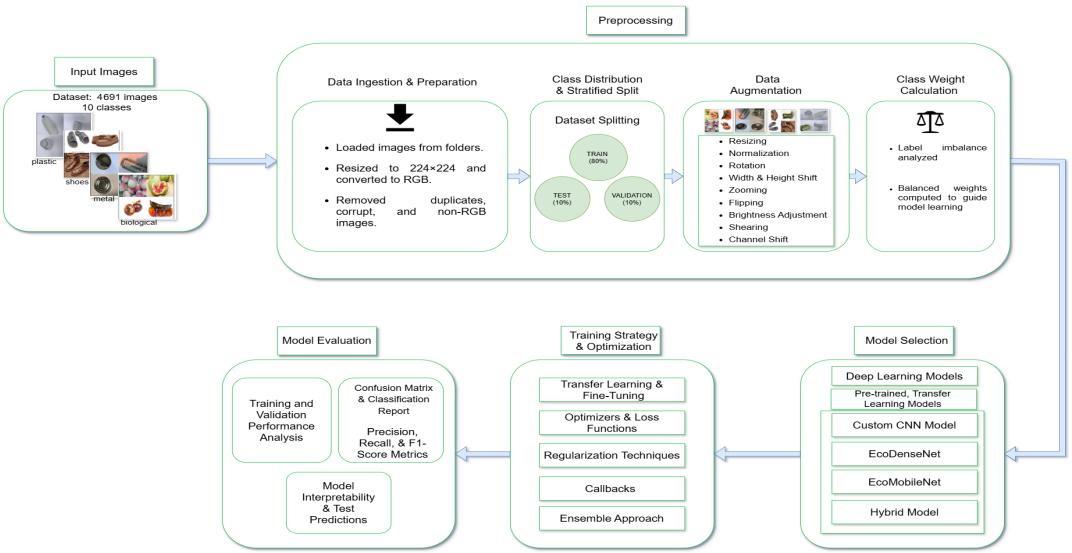

Figure 1 shows the end-to-end pipeline for the waste classification system. It starts with input images, moves through preprocessing (ingestion, splitting, augmentation, class weighting), then to model selection (transfer learning, custom models, hybrid models), training, and finally evaluation.

The process begins by collecting and preparing the data—cleaning, resizing, and augmenting images to build a robust dataset. Next, multiple models are trained and evaluated, from a simple custom CNN to powerful pre-trained networks and innovative hybrid architectures. Finally, models are tested for accuracy, precision, recall, and robustness.

Building the Foundation: The Dataset

No machine learning model is better than the data it’s trained on. The researchers compiled 4,691 images covering ten waste categories, combining a popular public dataset with a custom-curated set to include underrepresented types such as batteries, clothes, and shoes.

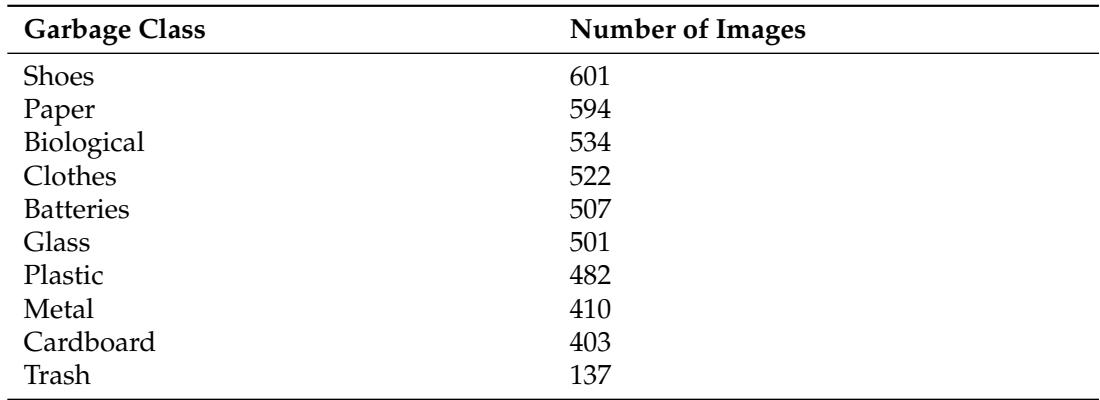

Table 2 shows the distribution of images across the 10 waste categories, such as shoes (601), paper (594), and trash (137).

As shown in Table 2, the dataset is imbalanced—some classes, like shoes, have far more samples than trash. This imbalance can bias models toward more frequent classes. To counteract this, the authors used class weights during training, forcing the model to pay more attention to underrepresented categories.

Figure 2 shows samples from each category, illustrating the challenges: distinguishing between crumpled paper and cardboard, or different types of plastic, is not trivial.

Figure 2 displays sample images from each of the ten waste categories, including plastic, glass, battery, paper, biological, clothes, trash, cardboard, shoes, and metal.

Preprocessing Steps:

  1. Cleaning: Removed corrupted or grayscale images.
  2. Resizing: Standardized all images to 224×224 pixels.
  3. Splitting: Divided data into training (80%), validation (10%), and testing (10%).
  4. Augmentation: Applied random transformations (rotation, flips, zooms, brightness shifts) to improve generalization and reduce overfitting.

From Simple to Sophisticated: The Models

The core of the research was building and testing different classification models, starting with a basic CNN and scaling up to cutting-edge hybrid and custom architectures.

1. Baseline: A Custom CNN

The initial experiment used a straightforward CNN, shown in Figure 3. It has four convolutional layers, each followed by pooling, culminating in dense layers for classification.

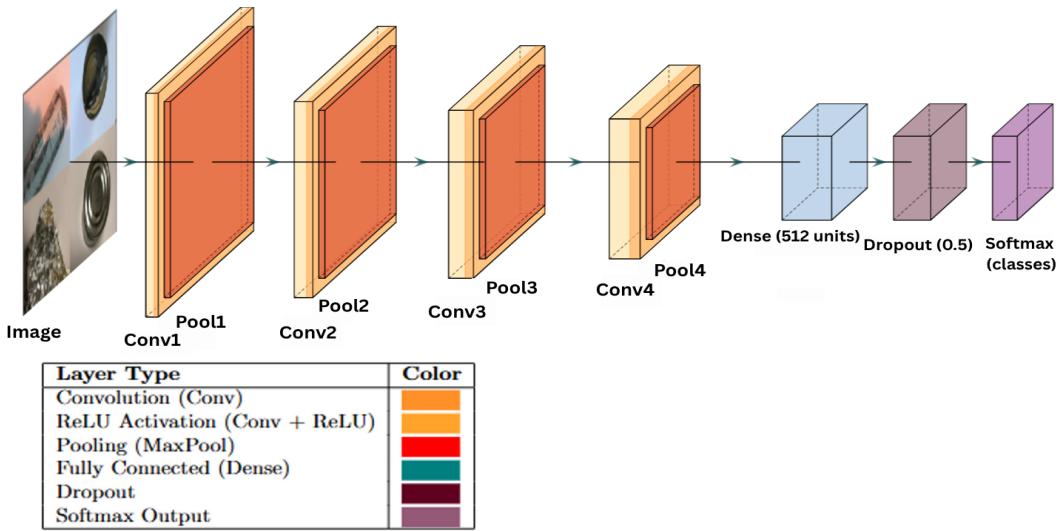

Figure 3 illustrates the architecture of a custom CNN, with four convolutional/pooling blocks followed by dense, dropout, and softmax layers.

This baseline achieved 85.96% accuracy on the test set, respectable but insufficient for real deployment. Lower recall on certain classes indicated difficulty with overlapping features. Learning curves (Figure 9a) revealed overfitting—performance on training data exceeded validation data significantly.

2. Transfer Learning: Standing on Giants’ Shoulders

Instead of training from scratch, the team used transfer learning with 11 state-of-the-art CNN architectures (ResNet50, DenseNet, EfficientNet variants, etc.), pre-trained on ImageNet.

Transfer learning reuses learned feature detectors—edges, shapes, textures—by freezing early network layers and fine-tuning deeper layers on the waste dataset:

\[ (\mathcal{D}_S, \mathcal{T}_S) \to (\mathcal{D}_T, \mathcal{T}_T) \]

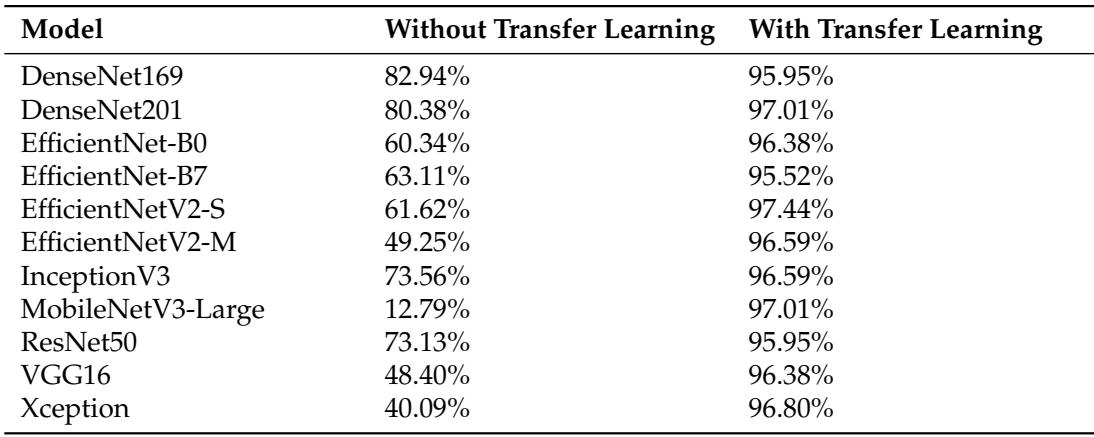

The impact was dramatic. Table 5 shows transfer learning models far outperform models trained from scratch. For instance, MobileNetV3-Large jumped from 12.79% to 97.01% accuracy.

Table 5 compares the test accuracy of 11 models trained with and without transfer learning. The ‘With Transfer Learning’ column shows accuracies consistently above 95%, while the ‘Without’ column shows much lower and more varied results.

3. Hybrid Model: Stronger Together

The top performers—ResNet50, EfficientNetV2-M, and DenseNet201—were combined into a hybrid architecture (Figure 4). Each model processed the input independently, then their intermediate features were fused using weighted averaging:

\[ F(x_i) = 0.3 f_{\text{ResNet50}}(x_i) + 0.4 f_{\text{EfficientNetV2-M}}(x_i) + 0.3 f_{\text{DenseNet201}}(x_i) \]

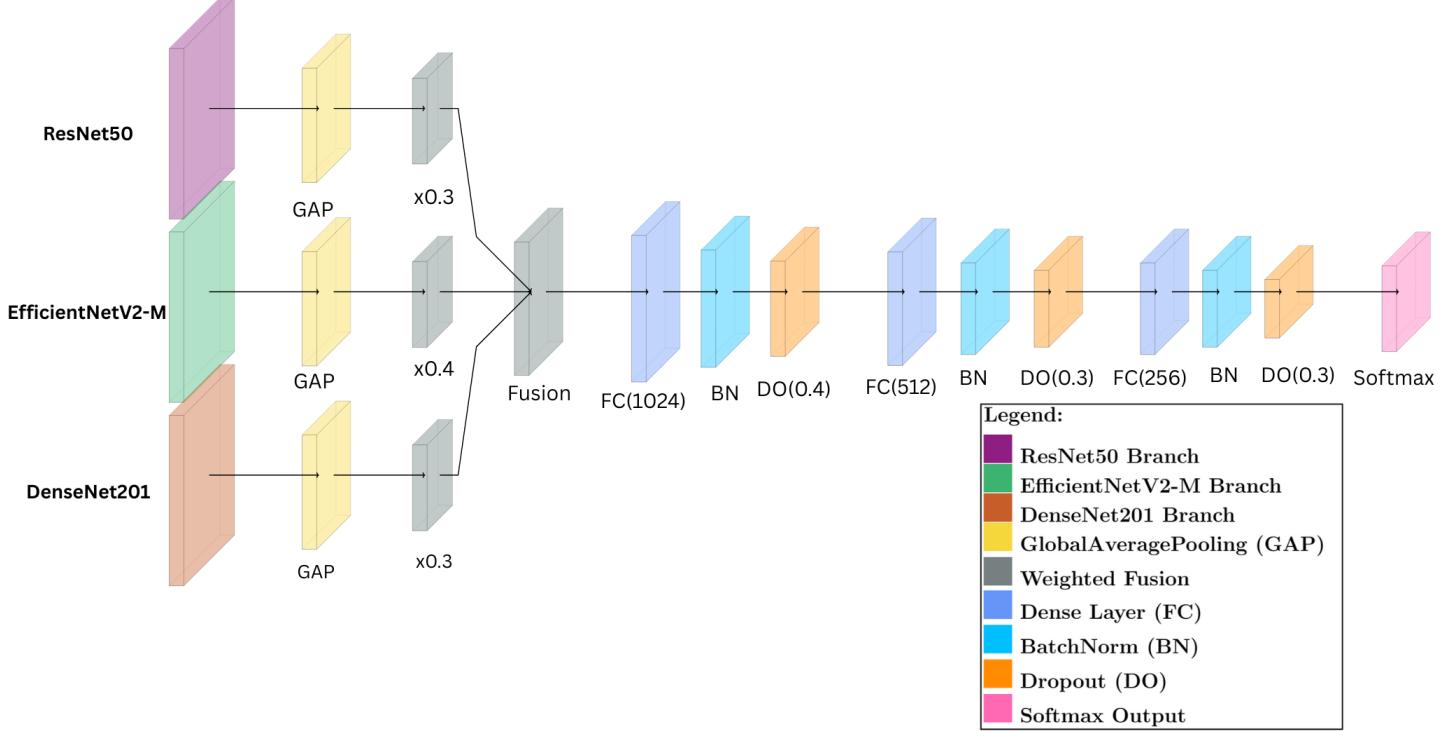

Figure 4 shows the proposed hybrid architecture. Three parallel backbones extract features, combined in a weighted fusion module, then passed through dense layers for final classification.

This richer feature set allowed the hybrid to achieve 98.08% accuracy.

4. EcoMobileNet & EcoDenseNet: Custom-Built for the Task

Real-world applications require efficiency alongside accuracy. The team designed two custom models:

EcoMobileNet: Based on MobileNetV3-Large, it adds Squeeze-and-Excitation (SE) blocks to focus on important channels and replaces ReLU with Mish activation for smoother optimization. Lightweight with only 3.49M parameters, ideal for mobile/edge deployment.

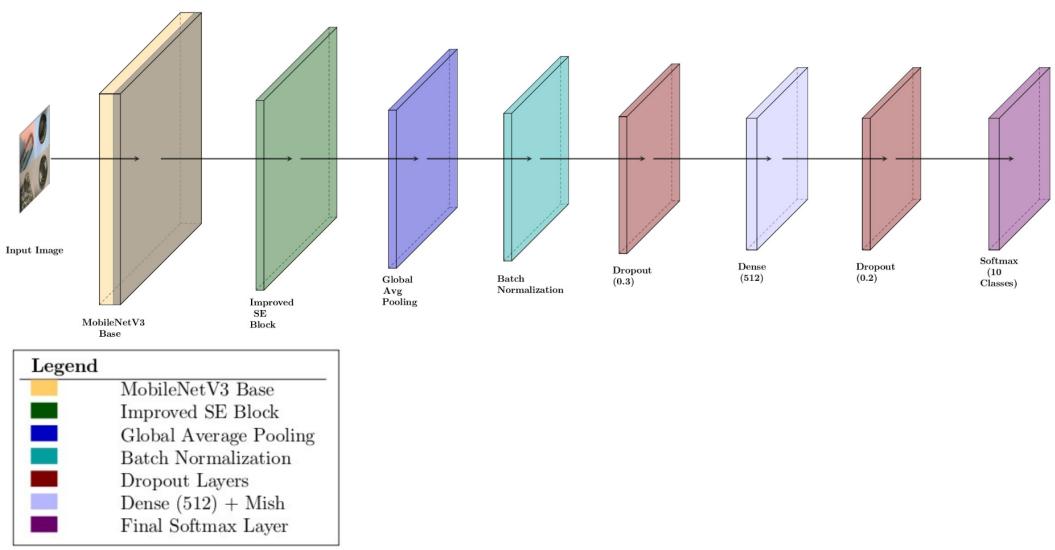

Figure 5 shows the architecture of EcoMobileNet. It uses a MobileNetV3 base, an improved SE block, and dense layers with Mish activation before the final softmax output.

EcoDenseNet: Enhances DenseNet201 with SE blocks and Convolutional Block Attention Modules (CBAM)—attention across spatial and channel dimensions—and Mish activation, improving fine-grained classification.

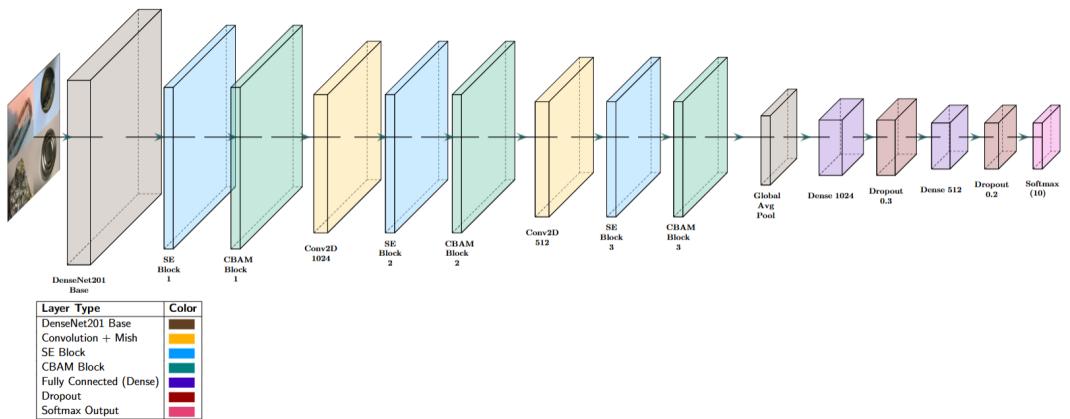

Figure 6 shows the architecture of EcoDenseNet. It features a DenseNet-201 base enhanced with SE and CBAM attention blocks, dense layers, and a softmax output.

Both models use a custom PolyFocal loss to handle class imbalance more effectively.

5. Ensemble Stacking: The Ultimate Classifier

Ensembling combines multiple models’ predictions. Simple methods like soft voting improve results, but stacking works best here. Predictions from DenseNet201 and EfficientNetV2-M were fed into a logistic regression meta-learner, which learned optimal combination rules.

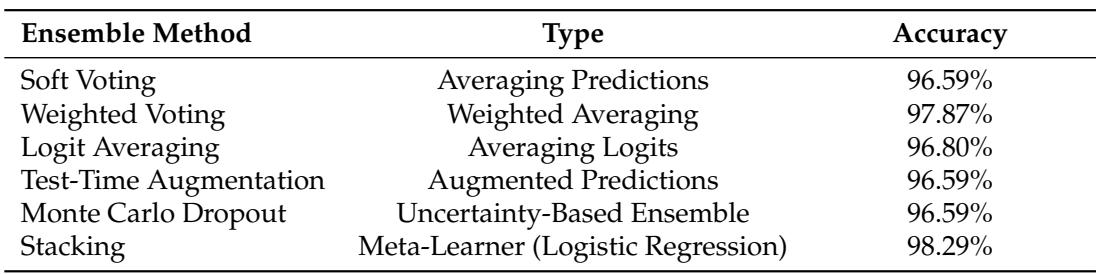

Table 6 shows the performance of different ensemble methods. Stacking achieved the highest accuracy of 98.29%.

The stacking ensemble achieved an impressive 98.29% accuracy.

Results: State-of-the-Art Performance

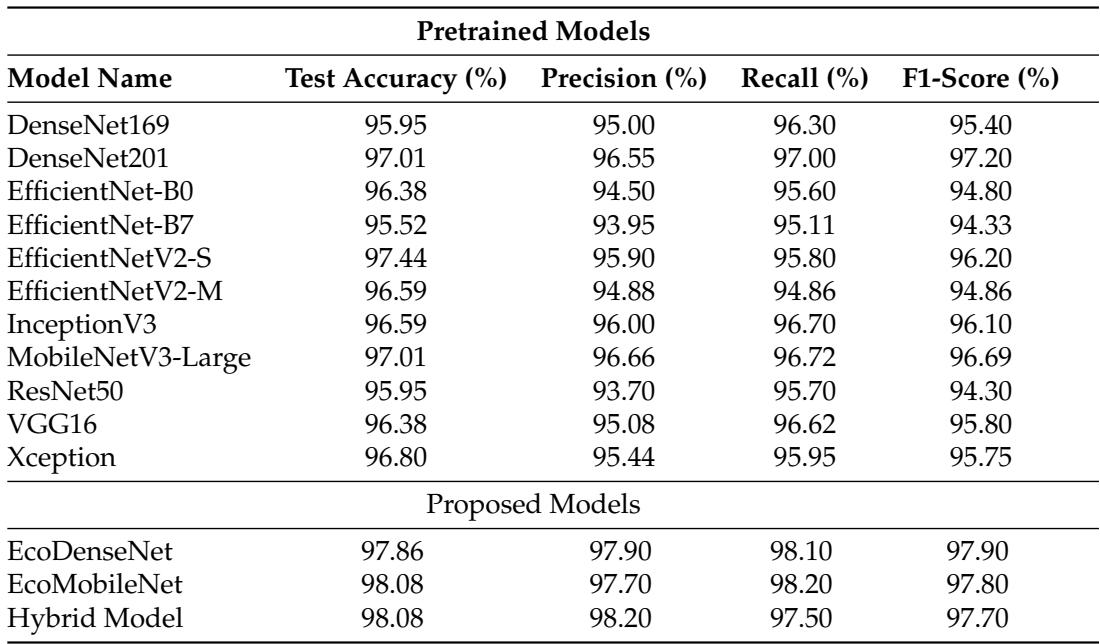

Table 7 compares all models. While transfer learning models performed well (>95%), proposed architectures surpassed them.
EcoMobileNet and the Hybrid Model both achieved 98.08%, while the Stacking Ensemble reached 98.29%.

Table 7 compares performance metrics of models. Proposed models outperform others in accuracy, precision, recall, and F1-scores.

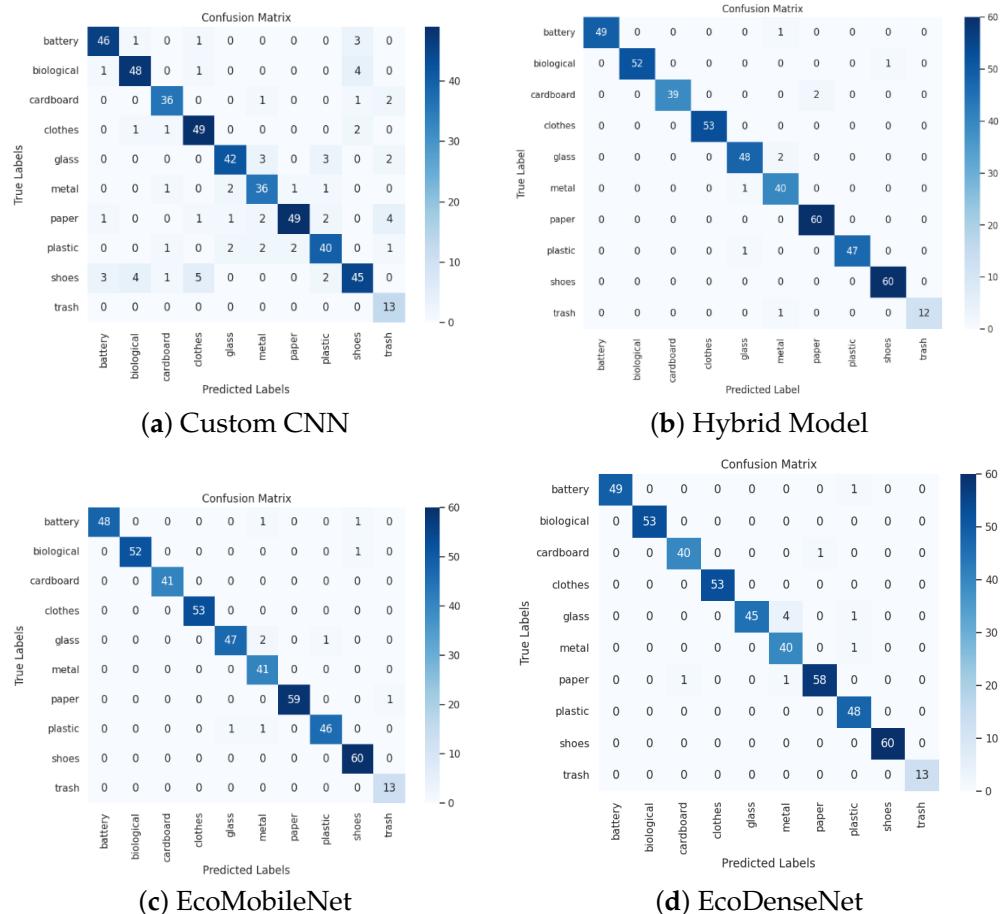

Confusion matrices (Figure 8) visualize predictions—dark diagonals indicate correct classifications. Proposed models have cleaner diagonals than the baseline CNN.

Figure 8 displays confusion matrices for four models, with proposed models showing fewer off-diagonal errors compared to the Custom CNN.

Ablation Study: Proving the Enhancements

To validate architectures, components were systematically removed. Table 8 shows accuracy drops when omitting elements like SE blocks, CBAM, Mish activation, or PolyFocal loss.

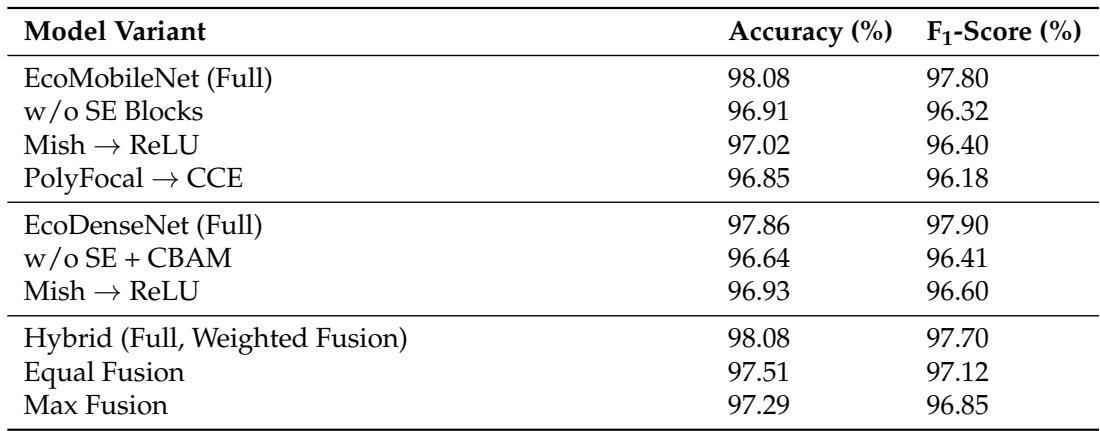

Table 8 shows the ablation results. Removal of components consistently lowers performance, proving their importance.

Real-World Readiness: Generalization & Efficiency

The models were tested on TrashNet without retraining. EcoMobileNet led with 94.65% accuracy, proving robust generalization.

Table 13 shows cross-dataset evaluation on TrashNet. EcoMobileNet performs best, demonstrating strong generalization.

Deployment metrics (Table 9) show EcoMobileNet is smallest and fastest, the Hybrid is largest but most accurate, EcoDenseNet balances both.

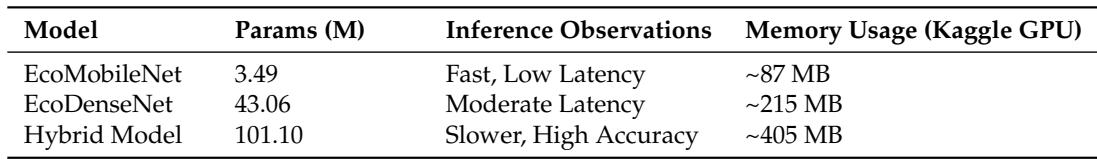

Table 9 shows deployment characteristics; EcoMobileNet is lightweight and fast, Hybrid is heavy but accurate, EcoDenseNet is moderate.

Conclusion & Implications

This research delivers a powerful blueprint for accurate, efficient waste classification:

  1. Transfer learning is essential, delivering huge performance gains over scratch training.
  2. Hybrid and ensemble models significantly improve robustness and accuracy—the stacking ensemble hit 98.29%.
  3. Lightweight custom models like EcoMobileNet achieve top-tier accuracy while remaining deployable on devices.
  4. Attention mechanisms and modern activations (SE, CBAM, Mish) boost feature selectivity and learning stability.

A 3% accuracy improvement (from 95% to 98%) in a facility processing 100,000 items/day means 3,000 more items sorted correctly each day—over 135 tonnes annually rescued from landfills.

The ECO-HYBRID framework shows that with thoughtful engineering, deep learning can transform waste management, supporting a more sustainable future. Next steps include real-world deployment, further edge optimization, and expanding recognition to more material types and categories.
