In the world of computer vision, Convolutional Neural Networks (CNNs) have been the undisputed champions for years. Give a CNN enough labeled images of cats and dogs, and it will learn to tell them apart with superhuman accuracy. This is supervised learning, and it has powered modern AI applications from photo tagging to medical imaging.

But what happens when you don’t have labels? The internet is overflowing with billions of images, but only a tiny fraction are neatly categorized. This is the challenge of unsupervised learning: can a model learn meaningful, reusable knowledge about the visual world from a massive, messy pile of unlabeled data?

For years, progress in unsupervised learning lagged behind its supervised counterpart. Then, in 2014, the machine learning world was introduced to Generative Adversarial Networks (GANs)—a clever framework that pits two neural networks against each other in an imaginative duel. The idea was brilliant, but the execution was tricky: early GANs were notoriously unstable, often producing noisy, nonsensical results.

Enter the pivotal 2015 paper “Unsupervised Representation Learning with Deep Convolutional Generative Adversarial Networks” by Radford, Metz, and Chintala. The authors introduced a specific class of GANs—DCGANs—along with a set of architectural guidelines that finally made deep convolutional GANs stable to train. The results were stunning. DCGANs produced dramatically more realistic images, and even more impressively, the model learned rich, hierarchical representations of objects, scenes, and textures—all without a single label.

In this article, we’ll break down the DCGAN paper: how it works, why it was a breakthrough, and what it taught us about the hidden structure of neural networks.

Background: A Quick GAN Refresher

Before diving into DCGANs, let’s revisit the basic structure of a Generative Adversarial Network:

  1. The Generator (G): Think of this as the artist. Its job is to create fake data that looks real. It starts with a random noise vector (called a latent vector, \( z \)) and transforms it into a plausible image.
  2. The Discriminator (D): The detective. Its job is to distinguish between real images from the training dataset and fake images created by the Generator.

Training is a zero-sum game:

  • The Generator tries to fool the Discriminator by producing realistic fakes.
  • The Discriminator tries to avoid being fooled.

Both networks learn in tandem. As the Discriminator improves, the Generator must produce higher-quality fakes to keep up, resulting in increasingly realistic outputs.

The challenge? While GANs worked well on small, simple datasets, scaling them up to deep convolutional architectures capable of producing high-resolution images often led to unstable training and failed models.

The DCGAN Recipe: Architectural Guidelines for Stability

The DCGAN paper didn’t introduce a brand new algorithm; instead, the authors discovered a recipe—a specific set of architectural rules—that dramatically improved stability when training deep convolutional GANs.

1. Replace Pooling Layers with Strided Convolutions

Traditional CNNs often use pooling layers (like MaxPooling) to reduce spatial dimensions. DCGANs replace these with learned strided convolutions:

  • In the Discriminator, pooling layers are swapped out for strided convolutions to downsample in a learned way.
  • In the Generator, fractional-strided convolutions (a.k.a. transposed convolutions) are used to upsample from the latent vector to the final image.

This gives the network full control over how spatial information is scaled, leading to richer representations.

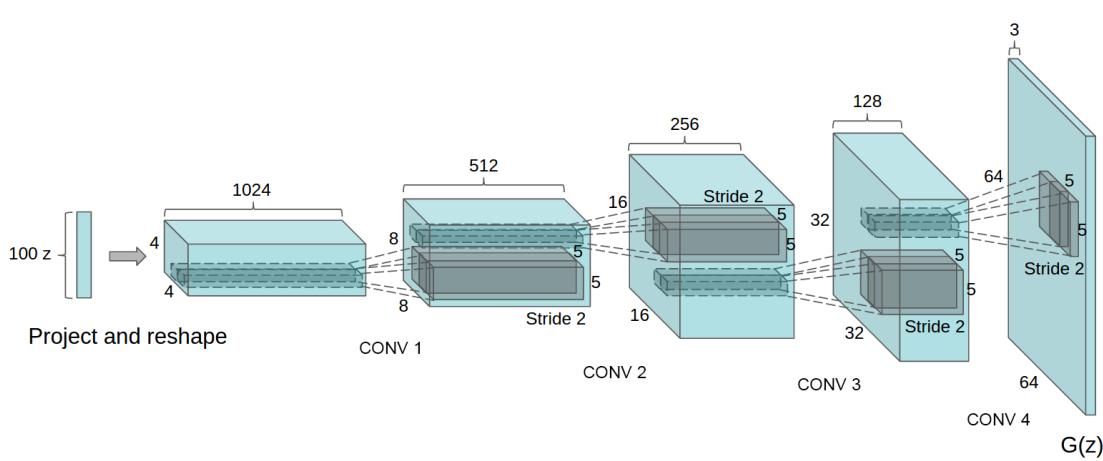

The DCGAN generator architecture. It takes a 100-dimensional noise vector and upsamples it through fractional-strided convolutions to produce a 64×64 RGB image, without using pooling or fully connected layers.

Figure 1: DCGAN generator used for LSUN scene modeling. A 100-dimensional latent vector is projected to a small convolutional representation, then progressively upsampled into a \(64 \times 64\) image.

2. Remove Fully Connected Hidden Layers

Fully connected layers at the top of CNNs are common in classification tasks, but the DCGAN designers found that removing them improved GAN training stability. Their architecture is almost entirely convolutional—both Generator and Discriminator directly connect their convolutional stacks to input and output layers.

3. Use Batch Normalization

Batch Normalization (BatchNorm) normalizes inputs to each layer so they have zero mean and unit variance. In DCGANs, BatchNorm:

  • Prevents mode collapse (where the Generator produces the same image repeatedly).
  • Improves gradient flow in deep networks.

The authors found a small but important exception: avoid BatchNorm in the Generator’s output layer and the Discriminator’s input layer, as it could cause instability.

4. Use ReLU in the Generator and LeakyReLU in the Discriminator

The activation functions were chosen carefully:

  • Generator: ReLU in all hidden layers, and Tanh in the output layer to bound pixel values between -1 and 1.
  • Discriminator: LeakyReLU for all layers to allow gradients to flow even for inactive neurons.

Seeing is Believing: DCGAN Results

With this stable architecture, DCGANs were trained on large-scale datasets and produced visually stunning results.

Generating Realistic Bedrooms

Training on the LSUN bedroom dataset (3 million+ images), the model generated coherent bedroom scenes after just one epoch:

Generated bedroom images after one epoch of training. Beds, windows, and walls are already recognizable.

Figure 2: Bedrooms generated after one training pass through the dataset. Already coherent, with identifiable structures.

After five epochs, the quality and variety improved dramatically:

Generated bedroom images after five epochs of training. The scenes are diverse and more realistic.

Figure 3: Bedrooms generated after five epochs. Lighting, furniture, and perspectives appear consistent, though some repeating textures remain.

Learning Features Without Labels

Beyond image quality, DCGANs showed that GANs learn useful visual features in an unsupervised way.

The authors trained a DCGAN on unlabeled ImageNet-1k, then took the Discriminator’s convolutional features and applied them to classification tasks.

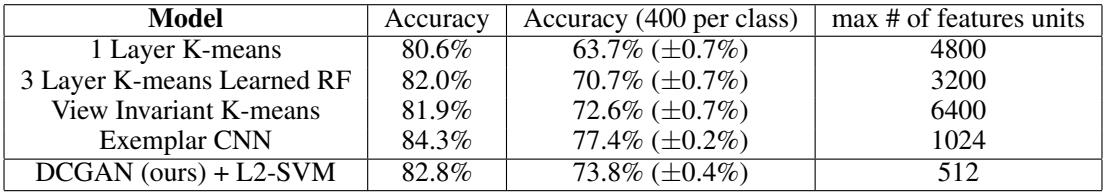

CIFAR-10 classification results comparing DCGAN features to other unsupervised methods.

Table 1: CIFAR-10 classification using DCGAN features vs. other unsupervised methods. DCGAN achieves 82.8% accuracy without being trained on CIFAR-10.

On the Street View House Numbers (SVHN) dataset, using just 1000 labeled examples, DCGAN features achieved state-of-the-art performance:

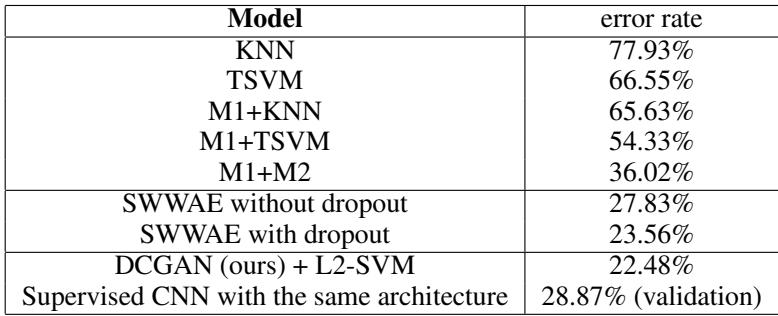

SVHN classification error rates. DCGAN features outperform prior methods at the 1000-label benchmark.

Table 2: SVHN classification with 1000 labels. DCGAN achieves the lowest error rate compared to baselines.

Exploring the Latent Space

The latent space (\( z \)) is the 100-dimensional vector the Generator transforms into an image. The authors performed a series of visual experiments to understand it.

Walking in the Latent Space

Interpolating between two random \( z \) vectors produced smooth, coherent transformations:

Smooth interpolations between bedrooms as latent vectors change.

Figure 4: Gradual changes such as a TV morphing into a window show the Generator has learned a continuous representation of “what makes a bedroom.”

Visualizing Discriminator Features

Using guided backpropagation, the authors revealed that Discriminator filters respond to specific objects:

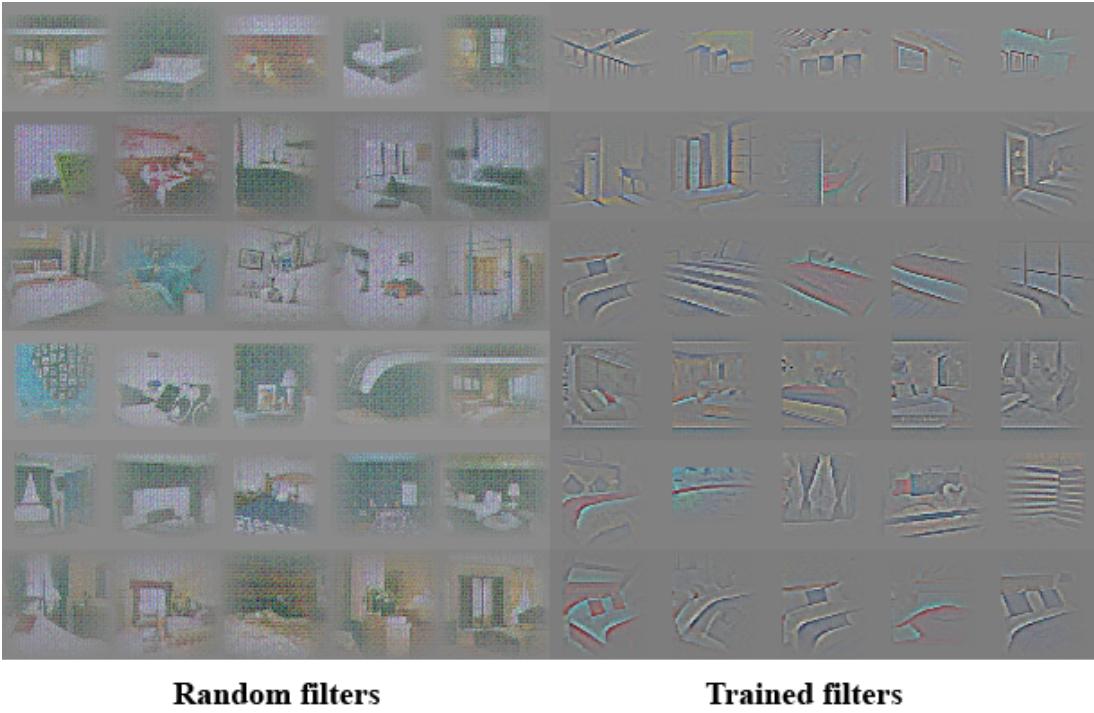

Filter visualizations showing activations on beds and windows, compared to random noise filters.

Figure 5: Trained features activate on specific objects like beds, while random filters show no such semantic structure.

Manipulating Generated Objects

Identifying and disabling “window” feature maps in the Generator caused it to produce bedrooms without windows:

Normal bedrooms (top) vs. window-filter dropped bedrooms (bottom).

Figure 6: Dropping “window” filters removes or replaces windows with similar objects like doors or mirrors.

Vector Arithmetic on Faces

Perhaps the most iconic result: latent space arithmetic. Inspired by word2vec, the authors showed high-level visual concepts could be combined linearly.

For example:

\[ \text{(Man with glasses)} - \text{(Man without glasses)} + \text{(Woman without glasses)} \approx \text{(Woman with glasses)} \]

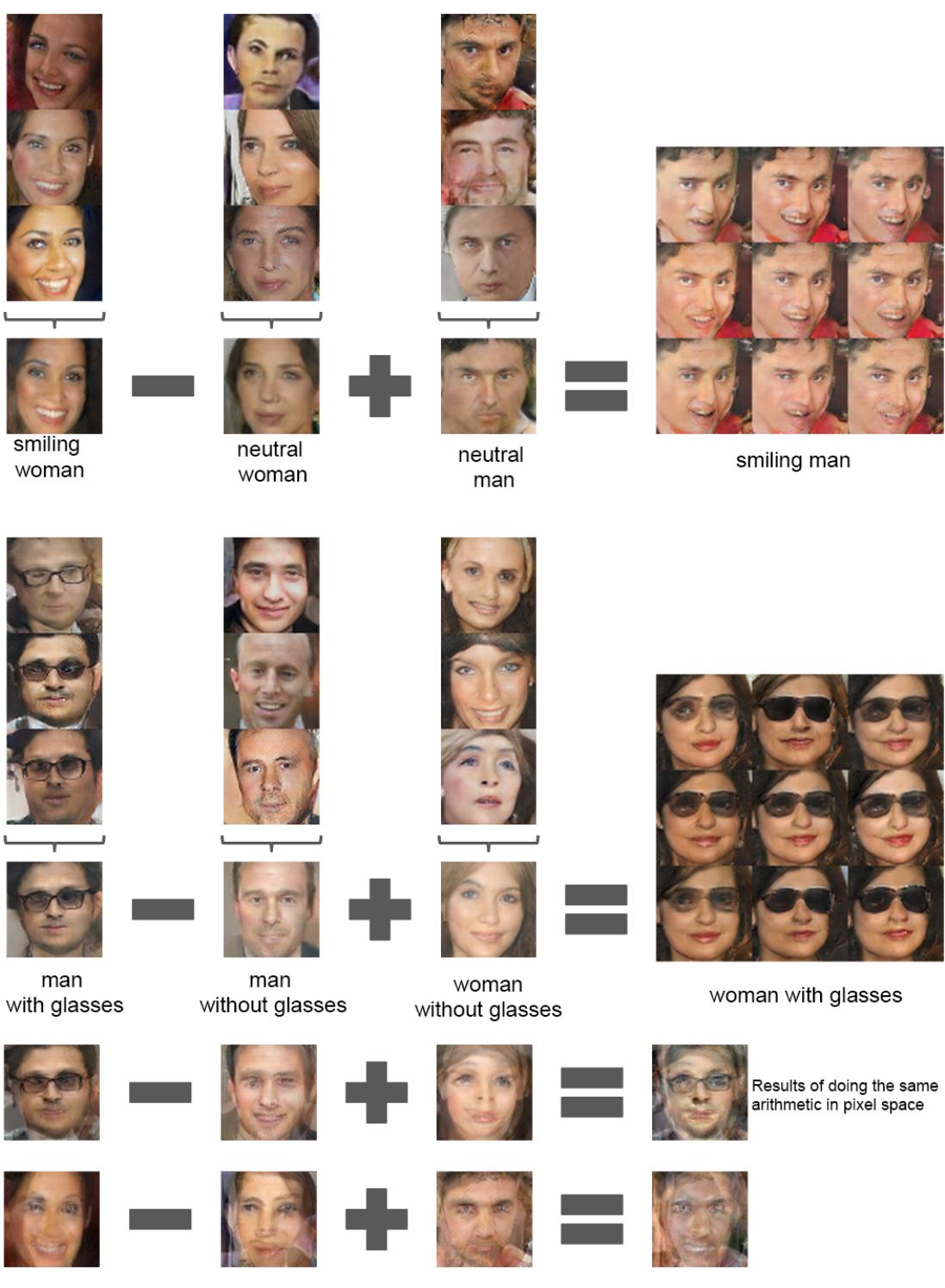

Vector arithmetic with face concepts like smiling, gender, and glasses.

Figure 7: Combining latent vectors for visual attributes produces semantically accurate outputs.

They extended this to attributes like face pose:

Changing face pose by adding a ’turn’ vector to the latent space.

Figure 8: Adding a “turn” vector rotates the generated faces reliably.

Conclusion: The Lasting Impact of DCGANs

The DCGAN paper was more than a stable GAN recipe—it was a foundational moment for generative AI. Key contributions:

  1. Stable Training: Strided convolutions, no fully connected layers, selective BatchNorm, and appropriate activations enabled reliable deep GAN training.
  2. Unsupervised Feature Learning: DCGANs learned rich, transferable visual representations rivaling other state-of-the-art unsupervised methods.
  3. Meaningful Latent Spaces: The generator’s latent space captured high-level concepts that could be manipulated and combined with simple arithmetic.

This blueprint sparked a wave of innovation. Today’s photorealistic face generators, AI art tools, and synthetic data pipelines trace their lineage back to DCGAN’s insights. The paper showed that by learning to create, a neural network also learns to understand—bringing us closer to unlocking the full potential of unsupervised learning.
