Designing a high-performing neural network is often described as a dark art. It requires deep expertise, intuition, and a whole lot of trial and error. What if we could automate this process? This is the promise of Neural Architecture Search (NAS), a field that aims to automatically discover the best network architecture for a given task.

The original NAS paper by Zoph & Le (2017) was a landmark achievement. It used reinforcement learning to discover state-of-the-art architectures for image classification and language modeling, surpassing designs created by human experts. But it came with a colossal price tag: the search process required hundreds of GPUs running for several days. For example, NASNet (Zoph et al., 2018) used 450 GPUs for 3–4 days. This level of computational resources is simply out of reach for most researchers, students, and companies.

The core bottleneck was that for every single architecture proposed by the system, it had to be trained from scratch to convergence just to get a single performance score. Then, all the learned weights were thrown away, and the process started over with a new architecture. It was incredibly wasteful.

This is where the paper Efficient Neural Architecture Search via Parameter Sharing (ENAS) comes in. The authors identified this wastefulness as the key problem and proposed a brilliantly simple yet powerful solution: what if all the candidate architectures (child models) shared the same set of weights?

This single idea leads to a staggering improvement in efficiency. ENAS can discover architectures of similar quality to the original NAS but does so over 1000× more efficiently in terms of GPU-hours. It can run overnight on a single GPU. This work didn’t just inch the field forward — it took a giant leap, making automatic model design accessible to almost everyone. In this article, we’ll dive deep into how it works.

Background: The Original NAS and Its Bottleneck

To appreciate ENAS’s innovation, we first need to understand the original NAS framework. The system has two main components:

  1. Controller: Typically a Recurrent Neural Network (RNN). Its job is to propose new neural network architectures by generating a sequence of decisions — e.g., “use a 3×3 convolution,” “connect to layer 2,” “use a ReLU activation,” and so on. This sequence of decisions defines a complete child network.
  2. Child Model: The neural network sampled by the Controller.

The loop works like this:

  1. Sample: The Controller RNN samples an architecture.
  2. Train & Evaluate: The sampled Child Model is built and trained from scratch until convergence. Its performance is measured on a validation set.
  3. Update: The validation performance is used as a reward signal to update the Controller’s parameters using a policy gradient method such as REINFORCE.

Over many iterations, the Controller learns to generate high-performing networks. But training every child model from scratch makes NAS prohibitively slow.

ENAS’s central contribution is to eliminate this costly step by sharing parameters among all architectures.

The Core Method of ENAS: One Graph to Rule Them All

The key observation: all possible architectures the Controller can sample can be represented as subgraphs within a single super-graph — a large Directed Acyclic Graph (DAG).

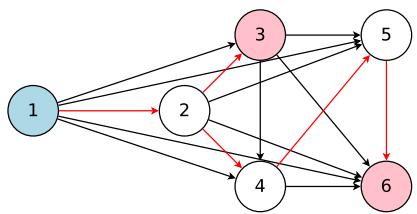

A large computational DAG representing the entire search space, with red edges forming a sampled architecture.

Figure 2. The entire search space as a DAG; red arrows denote one sampled model chosen by the Controller.

Designing an architecture now becomes a matter of activating certain nodes and edges in this pre-defined DAG. Each node represents a computation (e.g., a convolution or pooling operation) with its own weights. When the Controller samples an architecture, it simply picks a path through the super-graph. Every architecture draws from the same pool of shared weights, denoted by \(\omega\).

The ENAS Training Loop

ENAS learns two sets of parameters:

  • \(\omega\): Shared weights of the super-graph (used by all child models).
  • \(\theta\): Parameters of the Controller RNN.

Training alternates between two phases:

Phase 1: Train the Shared Weights \(\omega\)
Freeze the Controller’s policy (no update to \(\theta\)). Sample an architecture from the current policy and train it for one step on a batch of training data. Gradients update the shared weights \(\omega\):

\[ \nabla_{\omega} \ \mathbb{E}_{m \sim \pi(m;\theta)} \big[ \mathcal{L}(m; \omega) \big] \approx \frac{1}{M} \sum_{i=1}^M \nabla_{\omega} \mathcal{L}(m_i, \omega) \]

Here, \(\mathcal{L}(m; \omega)\) is the loss for model \(m\) with weights \(\omega\). The authors found \(M=1\) was sufficient — just sample one architecture, compute its gradient, update \(\omega\), and move on.

Phase 2: Train the Controller \(\theta\)
Freeze \(\omega\). The Controller samples architectures, and each one is evaluated on validation data to get a reward \(\mathcal{R}\). This reward is used to update \(\theta\) via REINFORCE, maximizing expected reward:

\[ \max_\theta \ \mathbb{E}_{m \sim \pi(m;\theta)}\big[ \mathcal{R}(m, \omega) \big] \]

Using validation data prevents the Controller from overfitting to the training set.

By alternating between these phases, ENAS grows both a better set of shared weights and a smarter Controller policy — vastly accelerating the search.

ENAS in Action: Designing Different Architectures

The ENAS framework is flexible; the paper shows it works for both RNN cell design (language modeling) and CNN design (image classification).

Designing Recurrent Cells

In the RNN cell search space, a DAG has \(N\) nodes. For each node, the Controller decides:

  1. Which previous node’s output to use.
  2. Which activation function to use (tanh, ReLU, sigmoid, or identity).

Here’s a 4-node example:

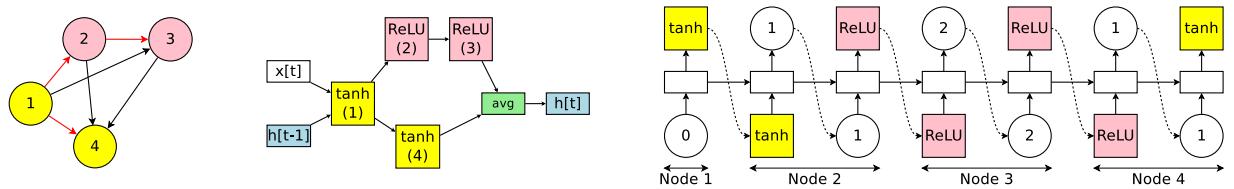

Designing a recurrent cell with four computational nodes, showing the DAG, operations, and Controller decisions.

Figure 1. An example recurrent cell: Left — DAG; Middle — cell diagram; Right — Controller outputs leading to this design.

Step-by-step:

  1. Node 1: Activation = tanh. Input = \(x_t\) and \(h_{t-1}\).
  2. Node 2: Connect to Node 1, activation = ReLU.
  3. Node 3: Connect to Node 2, activation = ReLU.
  4. Node 4: Connect to Node 1, activation = tanh.
  5. Output: Average all “loose ends” (nodes unused as inputs to other nodes) — here Nodes 3 and 4.

With \(N=12\), this search space contains roughly \(10^{15}\) possible cells.

Designing Convolutional Networks

1. Macro Search Space: Full Network Design

The Controller designs the entire CNN layer-by-layer. For each layer:

  1. Operation: Choose a computation — conv (3×3 or 5×5), depthwise-separable conv, max or avg pooling.
  2. Connections: Choose previous layers to feed in (defines skip connections).

Outputs from chosen layers are concatenated, then processed by the operation.

Controller sampling a CNN: Controller outputs (top), DAG (bottom left), and final network (bottom right).

Figure 3. Sampling a convolutional network: red arrows = active paths; dotted arrows = skip connections.

This space is huge — \(1.6 \times 10^{29}\) possible networks for \(L=12\) layers.

2. Micro Search Space: Reusable Cells

Inspired by NASNet, the Controller designs two cell types:

  • Normal Cell: Preserves spatial dimensions.
  • Reduction Cell: Downsamples spatial dimensions (stride 2).

These cells are stacked in a fixed pattern to form the network:

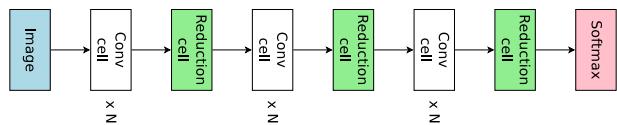

Normal Cells (Conv × N) and Reduction Cells stacked into the final network.

Figure 4. Network composition: blocks of Conv cells + Reduction cells.

Within each cell (a DAG with \(B\) nodes):

  1. Pick two previous nodes as inputs.
  2. Choose two operations (e.g., sep_conv_3x3, avg_pool_3x3) to apply and sum.

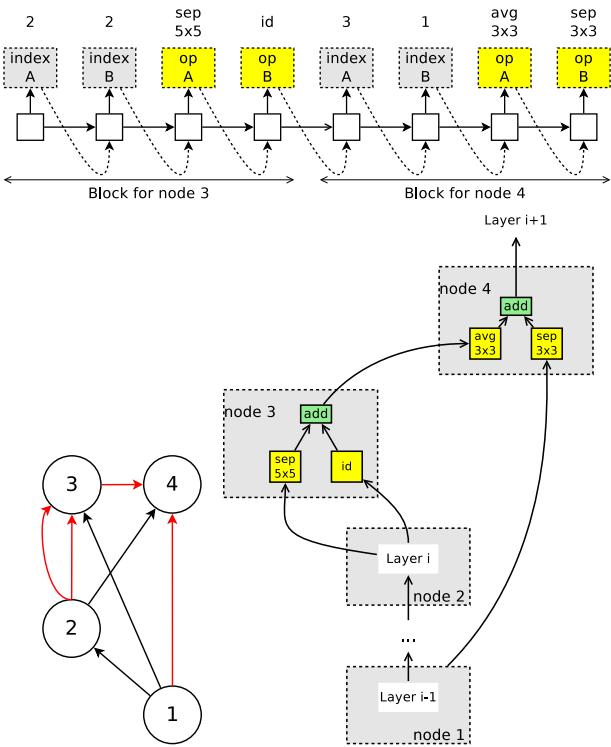

Controller designing a convolutional cell by choosing inputs and operations for nodes 3 and 4.

Figure 5. Example cell design: Top — Controller outputs; Bottom — corresponding cell DAG.

The micro search space is smaller but yields reusable motifs that scale well.

Experiments & Results: A 1000× Speedup in Practice

Penn Treebank (Language Modeling)

On this benchmark, ENAS discovered a novel RNN cell:

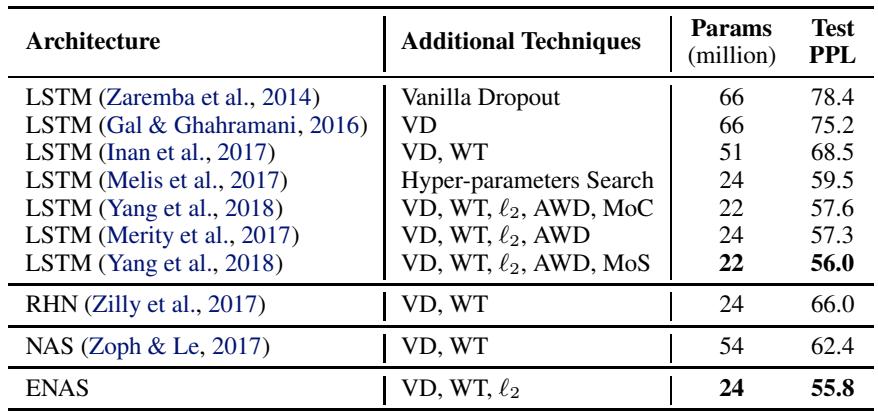

Test perplexity results on Penn Treebank for ENAS and other methods.

Table 1. ENAS achieves 55.8 perplexity without post-processing, outperforming NAS (62.4).

  • ENAS found the cell in ~10 hours on one GPU.
  • The cell (below) uses only tanh and ReLU, and averages six internal nodes — similar to “Mixture of Contexts” learned independently.

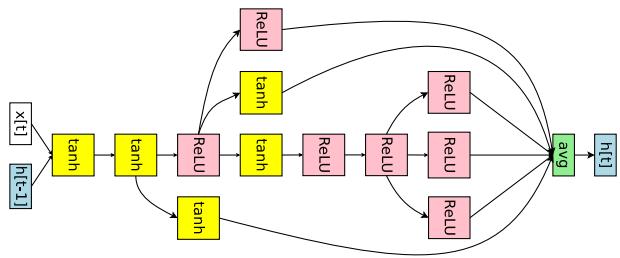

The RNN cell discovered by ENAS for Penn Treebank.

Figure 6. ENAS’s discovered RNN cell: tanh + ReLU operations and multiple skip connections.

CIFAR-10 (Image Classification)

ENAS was applied to both macro and micro search spaces:

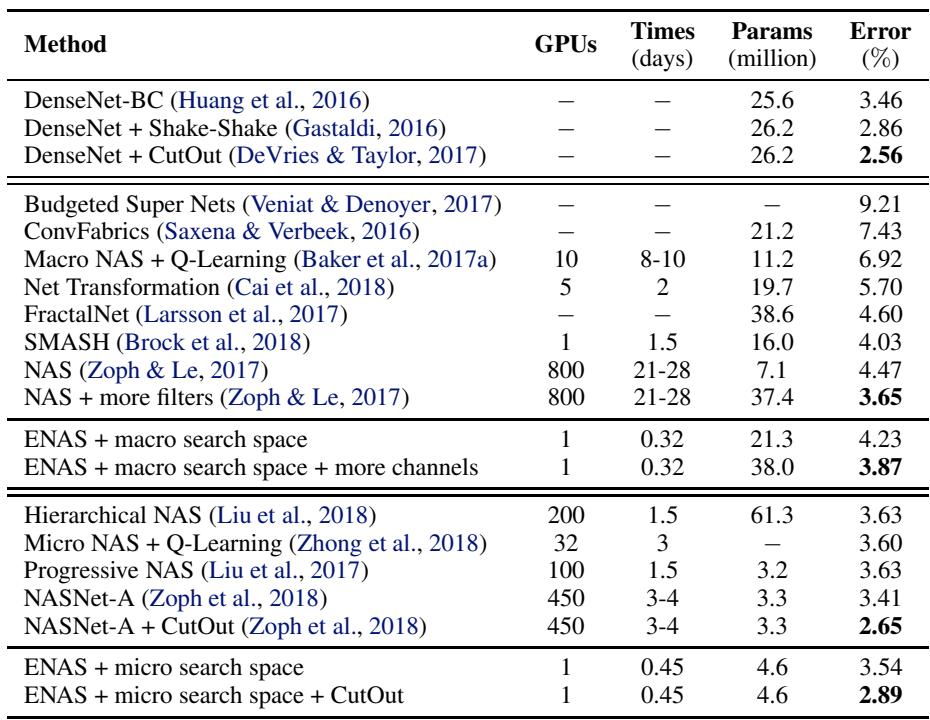

Classification error results on CIFAR-10 for ENAS and other baselines.

Table 2. ENAS matches NASNet-A’s accuracy with drastically fewer resources.

Macro Search:

  • ENAS’s network (below) achieved 4.23% error — comparable to NAS’s 4.47%.
  • Found in 7 hours on one GPU (vs. thousands of GPU-hours for NAS).

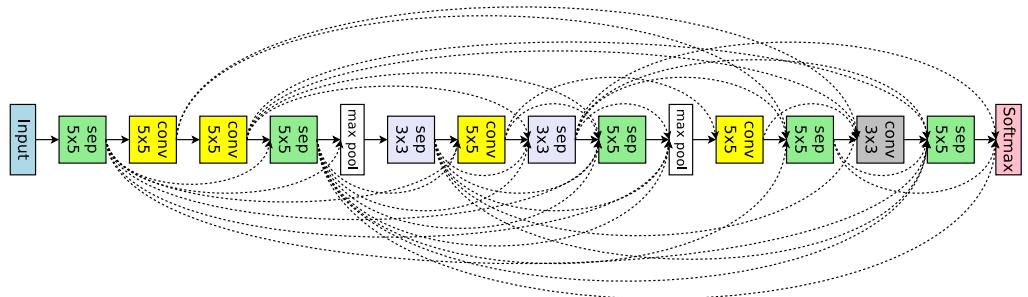

Network from macro search space with layered convolutions and skip connections.

Figure 7. ENAS’s discovered macro network.

Micro Search:

  • Normal + Reduction cells (below) yielded 3.54% error.
  • With CutOut augmentation: 2.89% — close to NASNet-A’s 2.65%.
  • Search time: 11.5 hours on one GPU.

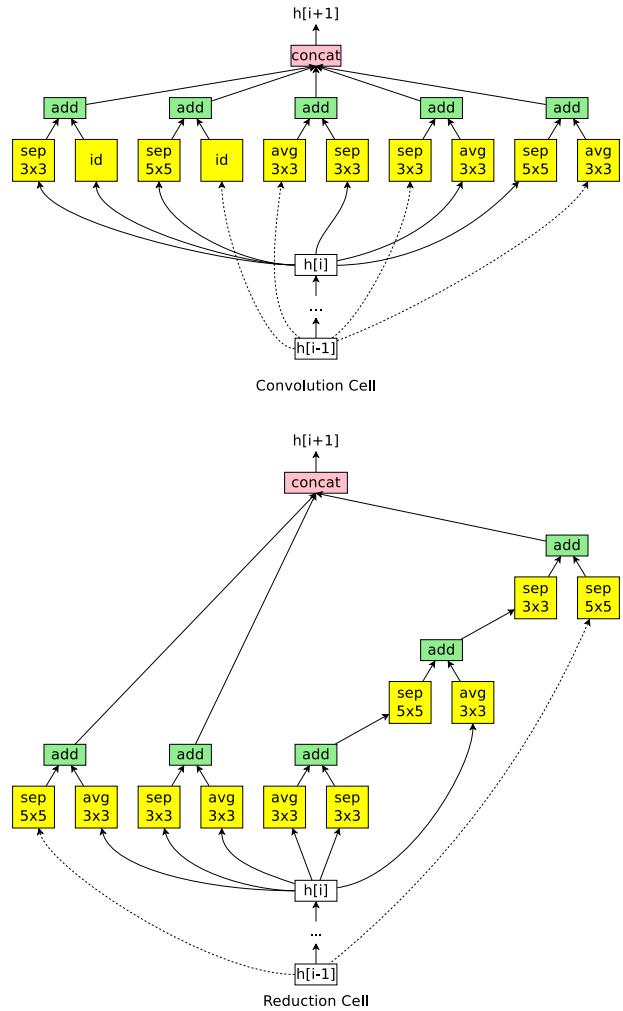

Normal and Reduction Cells discovered in micro search space.

Figure 8. ENAS’s discovered cells for micro search space.

Is the Controller Really Learning?

Two ablations answer this:

  1. Random Search: Randomly sampled architectures performed far worse than ENAS designs.
  2. No Controller Training: Only trained \(\omega\) with a fixed random Controller — performance dropped significantly.

Conclusion: The trained Controller policy is critical; it truly guides the search toward better architectures.

Conclusion & Implications

The Efficient Neural Architecture Search paper was a watershed moment for AutoML. By introducing parameter sharing, the authors cut NAS’s compute by over three orders of magnitude — from a “Google-scale” problem to something feasible for an individual researcher.

Key takeaways:

  • Problem: Original NAS was prohibitively expensive because each candidate was trained from scratch.
  • Solution: Frame search space as a single super-graph; all candidates are subgraphs sharing weights.
  • Method: Alternate between training shared weights (\(\omega\)) and Controller (\(\theta\)).
  • Result: State-of-the-art performance in language modeling and image classification with 1000× less compute.

ENAS democratized NAS, inspiring a wave of efficient architecture search techniques. It shifted the question from “Can we automate architecture design?” to “How can we do it most efficiently?” and remains a cornerstone in the history of AutoML.
