For decades, getting computers to see the world in 3D like humans do has been a central goal of computer vision. This capability—stereo vision—powers self-driving cars navigating complex streets, robots grasping objects with precision, and augmented reality systems blending virtual objects seamlessly into our surroundings. At its core, stereo vision solves a seemingly simple problem: given two images of the same scene taken from slightly different angles (like our two eyes), can we calculate the depth of everything in the scene?

The answer is a resounding yes—and in recent years, deep learning has revolutionized this task. Complex neural networks can now generate stunningly accurate depth maps. But this success comes at a cost. Designing these state-of-the-art networks is painstaking, relying on expert intuition, trial and error, and years of domain experience. The resulting models are often massive and computationally expensive.

This raises a tantalizing question: could we automate the design process itself? Could an AI learn to design a better AI? This is the promise of Neural Architecture Search (NAS), a field that has already achieved remarkable success in tasks like image classification.

However, applying NAS to resource-intensive tasks like stereo matching has long been considered infeasible. The search space is astronomically large, and stereo models are too memory-hungry to train over and over again during the search. This is exactly the challenge a team of researchers set out to solve. In their paper, Hierarchical Neural Architecture Search for Deep Stereo Matching, they introduce LEAStereo (Learning Effective Architecture Stereo)—a framework that not only makes NAS feasible for stereo matching, but uses it to produce a new state-of-the-art model that is smaller, faster, and more accurate than anything before it.

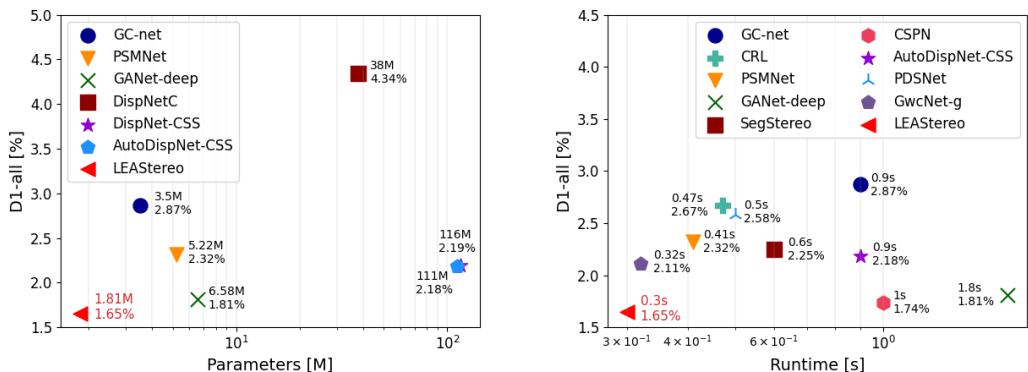

Two charts comparing LEAStereo to other stereo matching methods. The left chart shows LEAStereo has far fewer parameters for its high accuracy, and the right chart shows it has a much faster runtime.

Figure 1: LEAStereo sets a new state-of-the-art on the KITTI 2015 benchmark, achieving top-tier accuracy with a fraction of the parameters and significantly faster inference times compared to previous methods.

This article will break down how the authors achieved these results, exploring their fusion of human geometric knowledge with automated search to push the boundaries of 3D computer vision.


Background: The Building Blocks of Modern Stereo Vision

Before diving into LEAStereo’s innovations, let’s review two foundational ideas: how modern deep models tackle stereo matching, and what NAS actually does.

The “Gold Standard” Pipeline for Deep Stereo Matching

Modern deep stereo approaches generally fall into two camps:

  1. Direct regression: Large U-Net–style architectures predict a disparity (depth) value for each pixel directly from the input images. While conceptually straightforward, these models can struggle to generalize to unfamiliar environments.

  2. Volumetric methods: Inspired by classic stereo geometry, these methods form the current gold standard. They follow a structured multi-step pipeline:

    1. Feature Net: A 2D convolutional neural network processes the left and right images independently, extracting rich descriptors for each pixel.
    2. Feature Volume Construction: Features from the left image are concatenated with those from the right image, shifted according to every possible disparity level. This creates a 4D volume where each “slice” represents a depth hypothesis.
    3. Matching Net: A 3D CNN processes this 4D volume, analyzing matching costs across disparities and aggregating them into a 3D cost volume.
    4. Projection Layer: A non-learnable operation like soft-argmin determines the most likely disparity for each pixel, producing the final disparity map.

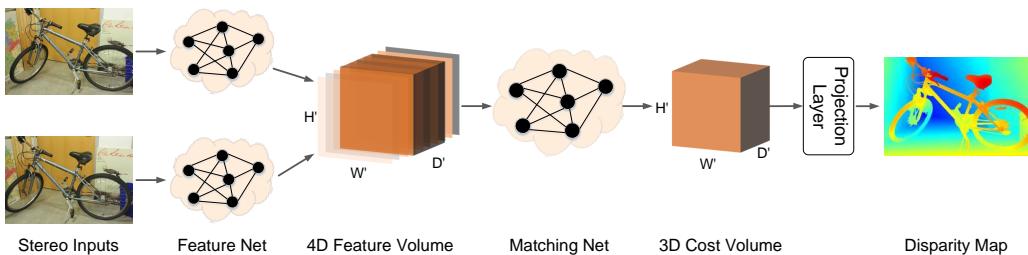

Diagram showing the pipeline of a volumetric stereo matching network, from stereo inputs to a final disparity map.

Figure 2: The standard pipeline for modern volumetric stereo networks. LEAStereo applies NAS to optimize the two learnable components: the Feature Net and the Matching Net.

Volumetric pipelines excel because they bake geometric constraints into the network design. The trade-off? The 4D feature volume is extremely memory-intensive, and the learnable Feature and Matching Nets can be deep and complex. Getting these sub-networks right is vital—and where most human design effort is spent.

Neural Architecture Search (NAS)

NAS automates architecture design. Instead of humans specifying all layers, filter sizes, and connections, a search algorithm explores possible configurations to find the best-performing network for the task.

Early NAS methods were costly, requiring thousands of GPU-hours. More efficient variants like DARTS (Differentiable Architecture Search) reformulated NAS as a learning problem. Rather than picking one operation for a connection, the search network learns a weighted combination of all possible ops. After training, the op with the highest learned weight gets chosen for the final architecture.

Even with efficiency gains, naively applying NAS to stereo matching is intractable: the models are too big and too memory-intensive for repeated training in the search loop.


The LEAStereo Method: Smart Search, Not Brute Force

LEAStereo’s core innovation is combining volumetric stereo pipelines with NAS. Rather than searching for a single monolithic network, the authors focus the search on the most critical components: the Feature Net and the Matching Net.

They design a hierarchical search space—allowing optimization at two levels: micro (individual building blocks or cells) and macro (overall network structure).

A cell is a reusable building block defined as a directed acyclic graph (DAG). Nodes represent feature maps, edges represent operations.

For LEAStereo, each cell has two input nodes (outputs of the two prior cells), three intermediate nodes, and one output node. The output of an intermediate node \(s^{(j)}\) is:

\[ \mathbf{s}^{(j)} = \sum_{i \rightsquigarrow j} o^{(i,j)} \left( \mathbf{s}^{(i)} \right) \]

Here, \(o^{(i,j)}\) represents an operation applied to an input node, with the operation chosen via softmax-weighted averaging over candidates:

\[ o^{(i,j)}(\mathbf{x}) = \sum_{r=1}^{\nu} \frac{\exp\left(\alpha_r^{(i,j)}\right)}{\sum_{s=1}^{\nu} \exp\left(\alpha_s^{(i,j)}\right)} \; o_r^{(i,j)}(\mathbf{x}) \]

At the end of the search, the highest-weight operation becomes the discrete choice.

Two crucial cell-level design decisions:

  1. Curated operation set:
    • Feature Net: 3×3 2D convolution or skip connection.
    • Matching Net: 3×3×3 3D convolution or skip connection.
      This minimal set avoids low-capacity architectures clogged with pooling/skips.
  2. Residual cell:
    Inspired by ResNets, the authors add a skip connection from the cell’s input to its output (see red dashed line in Fig. 3), allowing easy learning of identity mappings and focusing changes on residuals. This stabilizes training and improves accuracy.

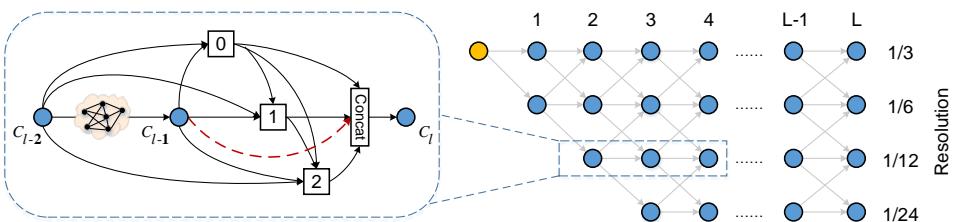

Diagram showing the two-level search space: a cell-level graph on the left and a network-level trellis on the right.

Figure 3: The hierarchical search space. Left: cell-level search with proposed residual connection (red line). Right: network-level “trellis” that defines multi-resolution data flow.

With cells defined, the next step is arranging them—this is the macro-level search. The network structure is modeled as a path through an L-layer trellis (right side of Figure 3). Each column is a layer; each row is a spatial resolution (e.g., 1/3, 1/6, 1/12, 1/24 of input size).

Search parameters \(\beta\) determine the optimal path—when to downsample to gain context, when to preserve resolution for detail. This embeds domain knowledge: instead of random interconnections, the network lives within a proven multi-scale volumetric pipeline. This drastically reduces the search space and makes full stereo architecture search computationally feasible.

Loss Function and Optimization

The network is trained end-to-end with smooth \(\ell_1\) loss:

\[ \mathcal{L} = \ell(\mathbf{d}_{\text{pred}} - \mathbf{d}_{\text{gt}}), \quad \ell(x) = \begin{cases} 0.5 x^{2}, & |x| < 1, \\ |x| - 0.5, & \text{otherwise.} \end{cases} \]

A bi-level optimization updates weights \(w\) and architecture parameters (\(\alpha, \beta\)) alternately on two disjoint training splits—preventing overfitting and encouraging robust design.


Experiments: A New Champion Emerges

The architecture search was run once on the large synthetic SceneFlow dataset. The resulting architecture was fine-tuned and evaluated on standard benchmarks without further search.

The Searched Architecture

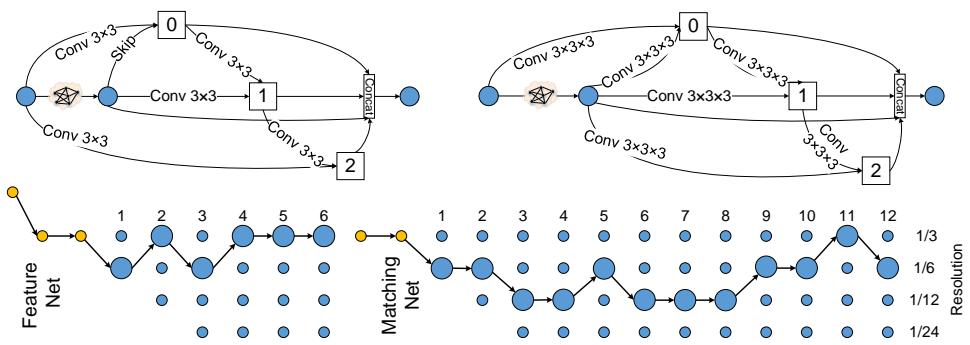

The final discovered architecture for the Feature Net and Matching Net, showing both the cell structure and the network-level path.

Figure 4: The final architecture found by LEAStereo’s search. Top: internal cell structures for Feature Net and Matching Net. Bottom: network-level paths through the multi-resolution trellis.


Benchmark Results

SceneFlow:
LEAStereo achieves EPE = 0.78 with just 1.81M parameters—better than both NAS-based AutoDispNet (37M params) and hand-crafted GANet-deep (6.58M params).

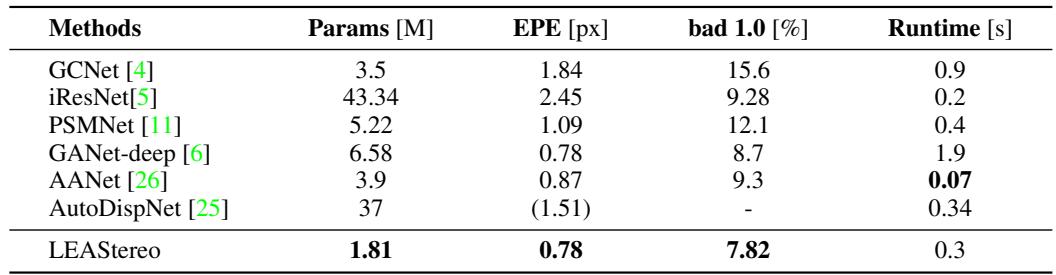

Table of results on the SceneFlow dataset. LEAStereo has the best EPE and bad 1.0 score with only 1.81M parameters.

Table 1: LEAStereo leads the SceneFlow benchmark while being far smaller and faster than competitors.


KITTI 2012 & 2015:
LEAStereo topped both leaderboards at submission time, outperforming larger architectures.

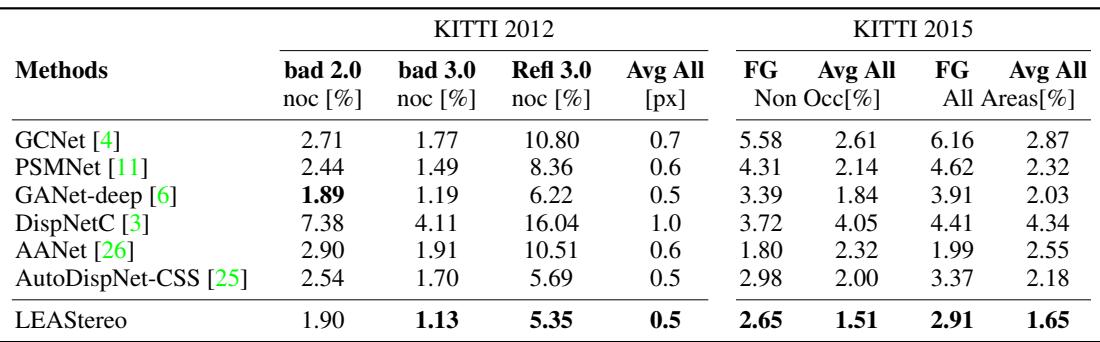

Table of results on the KITTI 2012 and 2015 benchmarks, showing LEAStereo as the top performer.

Table 2: LEAStereo’s accuracy surpasses human-designed models on KITTI benchmarks.

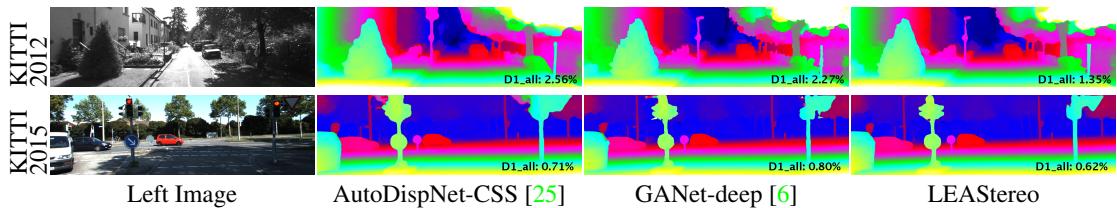

Qualitative comparison on KITTI, showing LEAStereo produces cleaner and more accurate disparity maps than AutoDispNet and GANet.

Figure 5: Visual results on KITTI datasets. LEAStereo yields cleaner, more precise disparity maps.


Middlebury 2014:
Thanks to its compactness, LEAStereo processed higher resolutions than many competitors, achieving state-of-the-art across several metrics.

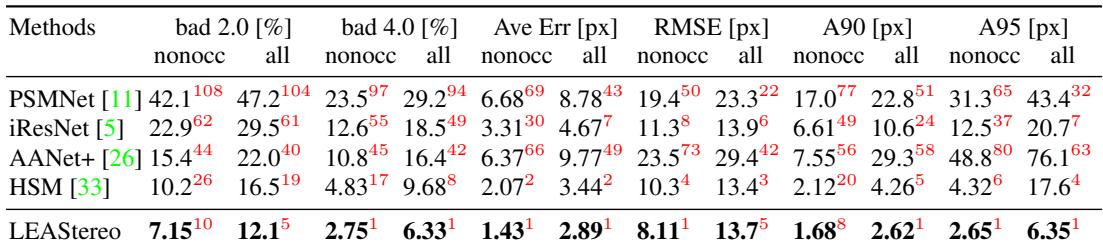

Table of results on the Middlebury 2014 benchmark, where LEAStereo ranks highly.

Table 3: LEAStereo excels at high-resolution disparity estimation on Middlebury.

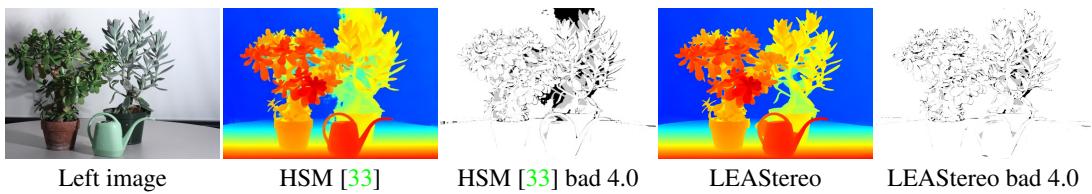

Qualitative comparison on Middlebury, showing LEAStereo’s error map has fewer errors than the HSM method.

Figure 6: Middlebury qualitative comparison. LEAStereo’s error map shows fewer large errors.


Why Did It Work? Ablation Insights

  • Joint search > separate search: Optimizing Feature and Matching Nets together produced more accurate, smaller models—thanks to co-adapted architectures.
  • Residual cell > direct cell: Adding input skip connections provided a 14% performance boost with marginal parameter increase.
  • Feature Net analysis: Using Feature Net outputs with a simple matcher already yielded strong disparity maps; adding Matching Net refined them further.

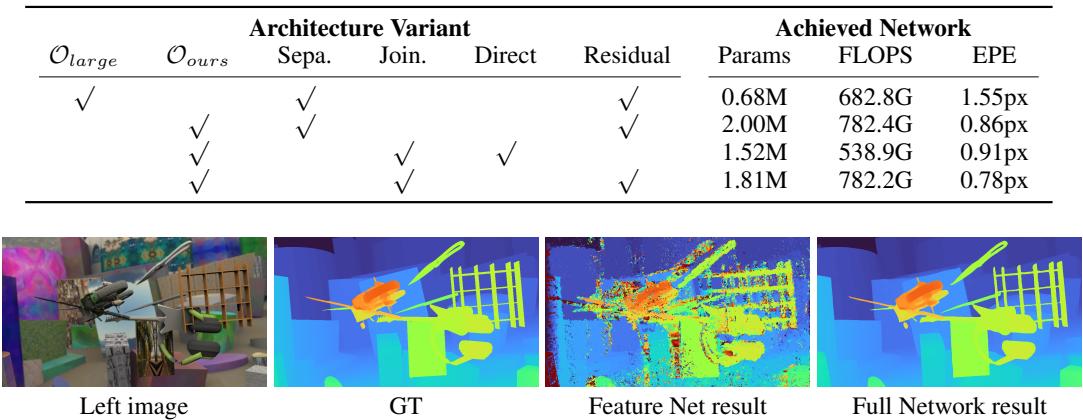

Four images showing the left input, ground truth, the result from just the Feature Net, and the result from the full network.

Figure 7: Feature Net alone (third image) produces a strong map; Matching Net (fourth) refines it significantly.


Head-to-Head: LEAStereo vs. AutoDispNet

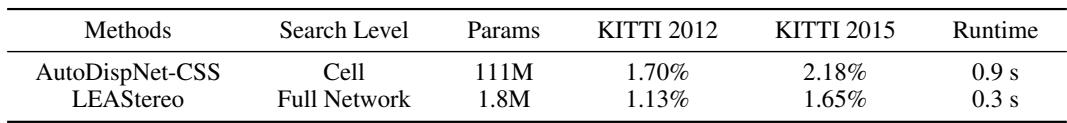

Table comparing LEAStereo and AutoDispNet. LEAStereo is vastly smaller, faster, and more accurate.

LEAStereo is >60× smaller, 3× faster, and more accurate. AutoDispNet searched only cell structures in a fixed U-Net–like backbone; LEAStereo searched the full architecture within a domain-specific, hierarchical space.


Conclusion and Takeaways

LEAStereo marks a milestone in stereo vision and NAS, showing that guided, domain-aware automation can outperform expert-crafted architectures in challenging, resource-heavy vision tasks.

Key lessons:

  1. Domain knowledge drives efficiency: Constraining NAS to a proven stereo pipeline made search tractable and effective.
  2. Hierarchical search matters: Optimizing at both cell and network levels yields architectures that balance granularity with global structure.
  3. Performance + efficiency are achievable: LEAStereo delivers state-of-the-art accuracy in a compact, fast model—ideal for real-world robotics and autonomous driving.

This approach paves the way for applying similar guided NAS frameworks to other dense matching problems, such as optical flow and multi-view stereo. The future of network design may well be a collaboration between human insight and machine optimization—each amplifying the other’s strengths.
