Recurrent Neural Networks (RNNs), Convolutional Neural Networks (CNNs), and Transformers have revolutionized the way we process sequential data such as text, audio, and time series. Each paradigm is powerful, but each comes with its own limitations:

  • RNNs are efficient at inference but train slowly on long sequences and suffer from vanishing gradients.
  • CNNs train in parallel and are fast, but they struggle beyond their fixed receptive field and have costly inference.
  • Transformers can capture global context but scale quadratically in memory and computation with sequence length.

What if we could unify the strengths of these approaches? Imagine a model with:

  • The parallelizable training speed of a CNN.
  • The fast, stateful inference of an RNN.
  • The continuous-time flexibility of a Neural Differential Equation (NDE).

That’s the ambitious target of a 2021 paper from researchers at Stanford University and the University at Buffalo introducing the Linear State-Space Layer (LSSL) — a deceptively simple yet powerful building block that combines all three perspectives. Let’s break down what makes LSSLs special, how they work, and why they achieve state-of-the-art results on sequences tens of thousands of steps long.

The Problem with Long Sequences

Whether predicting medical sensor data, classifying speech, or interpreting video, sequence models must capture dependencies across many time steps. The dominant approaches falter in different ways for long sequences:

  • RNNs: Models like LSTMs and GRUs process sequences step-by-step with a hidden state. While memory and inference are constant per step, training is slow and non-parallel, and gradients for long-term dependencies vanish.
  • CNNs: Temporal ConvNets apply filters in parallel, speeding up training. However, their fixed kernel size limits context, and inference requires re-processing large chunks of data.
  • NDEs: These model hidden states as continuous-time functions for irregular sampling and principled mathematical modeling. But numerical solving is expensive.

The ideal would combine parallel training, efficient recurrent inference, and continuous-time adaptability — without losing the ability to model long dependencies. LSSLs aim to be exactly that.

Background: State Spaces and Continuous-Time Memory

To understand LSSLs, we need two pieces of theory: linear state-space models and HiPPO continuous-time memorization.

State-Space Models: An Idea from Control Theory

Rather than mapping input directly to output, a state-space model passes through a hidden state vector \( x(t) \). Its dynamics are given by:

The core equations of a linear state-space model.

Continuous-time state-space representation. \(u(t)\) is the input, \(x(t)\) is the internal state, and \(y(t)\) is the output. Matrices A, B, C, D define system dynamics.

Here:

  • \( u(t) \): input at time \( t \)
  • \( x(t) \): hidden state summarizing history
  • \( y(t) \): output
  • A, B, C, D: parameters controlling state evolution, input influence, state-to-output mapping, and direct input-output path.

These models are continuous-time — perfect for irregular data, but they must be discretized to work in deep learning.

Discretization: From Continuous to Discrete

To run on conventional hardware and data, we choose a step size \( \Delta t \) and an update rule approximating the continuous dynamics. The paper uses the Generalized Bilinear Transform (GBT):

The generalized bilinear transform (GBT) update rule for discretizing a linear ODE.

GBT formula. Choosing \( \alpha = 1/2 \) yields the classic bilinear method for stable discretization.

With discrete update matrices \( \overline{A} \) and \( \overline{B} \), this becomes a linear recurrence:

The discretized state-space model.

Discrete-time recurrence. This is the computational core of LSSLs.

A and \( \Delta t \) determine what the model can remember and at what timescale.

HiPPO: Principled Long-Term Memory

Random A matrices won’t solve the vanishing gradient problem. The High-order Polynomial Projection Operator (HiPPO) framework builds state vectors \( x(t) \) whose entries approximate the input history \( u(s) \) via projection onto a polynomial basis.

This projection yields optimal low-dimensional summaries of the past, and — critically — the coefficient dynamics obey the same linear state-space form:

\[ \dot{x}(t) = A x(t) + B u(t) \]

Thus HiPPO provides theoretically sound A matrices with guaranteed memory properties.

The Linear State-Space Layer: Three Models in One

An LSSL maps an input sequence \( u \) to output \( y \) by simulating the discretized state-space model. This single formulation can be computed in three ways, each mirroring a major sequence model paradigm.

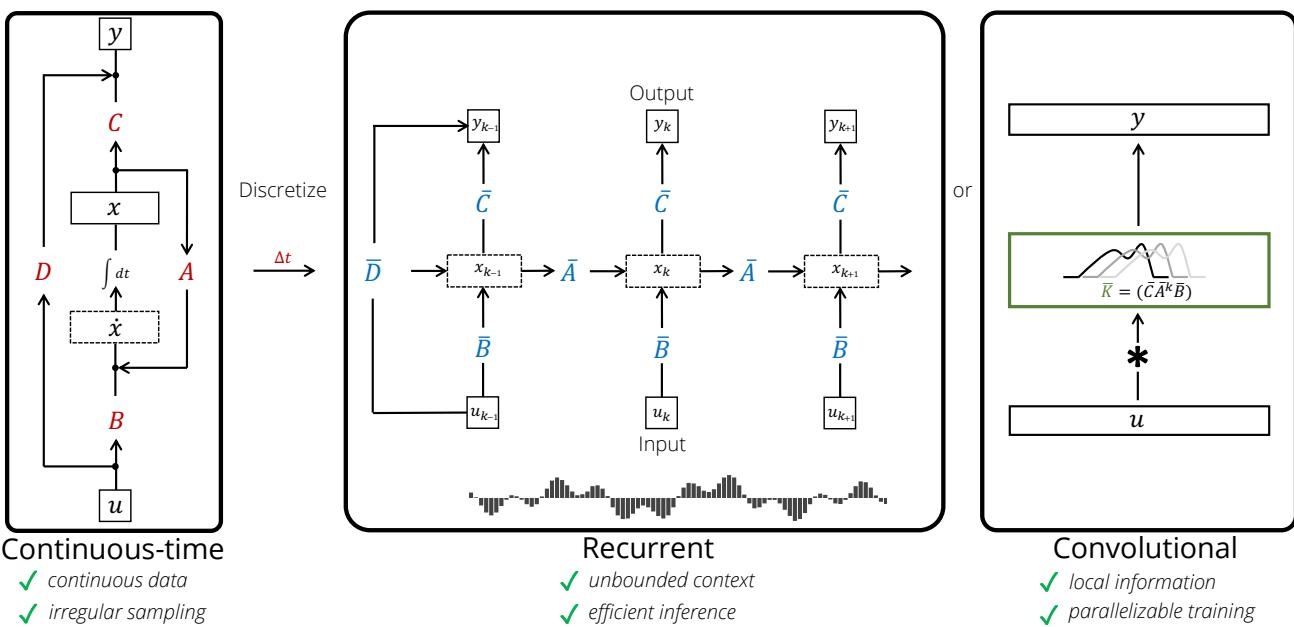

Three views of an LSSL.

Figure 1: LSSL as continuous-time, recurrent, and convolutional model.

  1. Continuous-Time View: Defined by an ODE, LSSLs adapt to irregular data or timescale shifts by adjusting \( \Delta t \). Train at 100Hz? Test at 200Hz? Just halve \( \Delta t \).

  2. Recurrent View: From Equation 4, LSSLs run like efficient RNNs: process inputs step-by-step, keep hidden state \( x_t \), need constant memory per step.

  3. Convolutional View: Unrolling from \( x_{-1} = 0 \) shows that \( y_k \) is a weighted sum of all past \( u_t \) — i.e., a convolution.

Unrolled recurrence for LSSL output.

Output as convolution. This lets us train in parallel.

The convolution kernel (filter) is given by:

The convolutional kernel of the LSSL.

Krylov function defines kernel. We can compute this with Fast Fourier Transforms (FFT) for parallel training.

Expressivity

Despite being linear in recurrence, LSSLs are surprisingly expressive:

  • Generalizing Convolutions: Any convolutional filter can be approximated by a suitable state-space model.
  • Generalizing RNNs: Gating mechanisms in popular RNNs correspond mathematically to learning \( \Delta t \) via backward Euler discretization. Deep stacks of simple LSSLs can approximate nonlinear ODEs, shifting nonlinearity from time steps to depth.

Making LSSLs Work: Long-Range Memory and Efficiency

Two main challenges:

  1. Memory: Without a principled A, repeated multiplication by \( \overline{A} \) leads to exploding/vanishing states.
    Solution: Constrain A using HiPPO-derived structured matrices (quasiseparable), proven optimal for memorization.

  2. Computation: Naively learning A and \( \Delta t \) is too slow; recurrent view requires matrix inversions, convolutional view needs \( \overline{A}^k \) for large \( k \).
    Solution: Same quasiseparable structure yields nearly-linear algorithms to compute kernels efficiently.

LSSLs in Action: State-of-the-Art Results

The researchers tested LSSLs across benchmarks — from standard datasets to extreme sequence lengths.

Image and Time Series Benchmarks

On pixel-by-pixel image classification, LSSL beats prior state-of-the-art, notably +10% on sequential CIFAR-10.

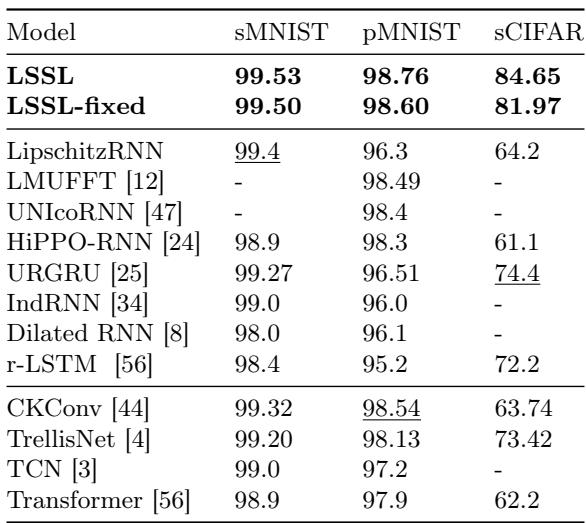

Table 1 results.

Table 1: LSSL performance on sMNIST, pMNIST, and sCIFAR.

In healthcare time-series regression (sequence length 4000), LSSL reduces RMSE by more than two-thirds.

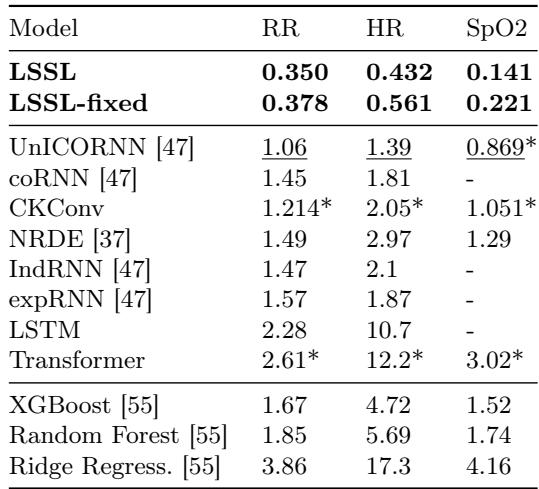

Healthcare RMSE results.

Table 2: BIDMC vital signs regression.

Extreme Sequences: Up to 38,000 Steps

  1. Sequential CelebA: Flatten \( 178 \times 218 \) pixel images into 38,800-step sequences. LSSL nearly matches a specialized ResNet-18 while using 10× fewer parameters.

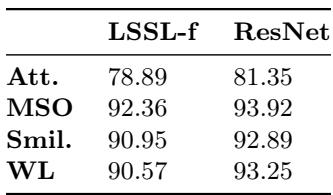

Table 3 CelebA results.

Table 3: Sequential CelebA classification.

  1. Raw Speech Commands: Work directly on 16,000-sample audio. LSSL outperforms existing models by over 20 points and even beats all baselines using MFCC features (100× shorter sequences).

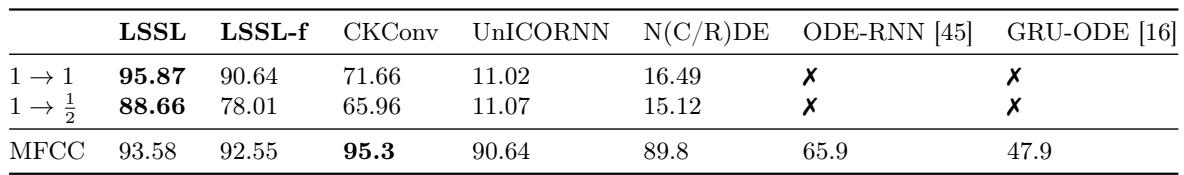

Table 4 Speech Commands results.

Table 4: Raw vs MFCC speech classification, timescale adaptation.

LSSL adapts gracefully to doubled sampling rate at test by changing \( \Delta t \). Many other models fail completely.

Hybrid Benefits

  • Fast Convergence: Strong inductive bias + convolutional parallelism means fewer epochs and lower wall-clock time to state-of-the-art.

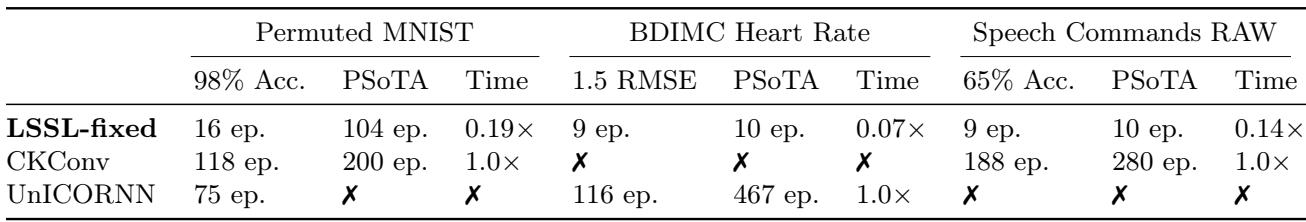

Training speed comparison.

Table 5: LSSL reaches SoTA faster in epochs and minutes.

  • Learned Memory & Timescale: Ablations show learning A and \( \Delta t \) boosts performance. Random A or fixed \( \Delta t \) degrades accuracy.

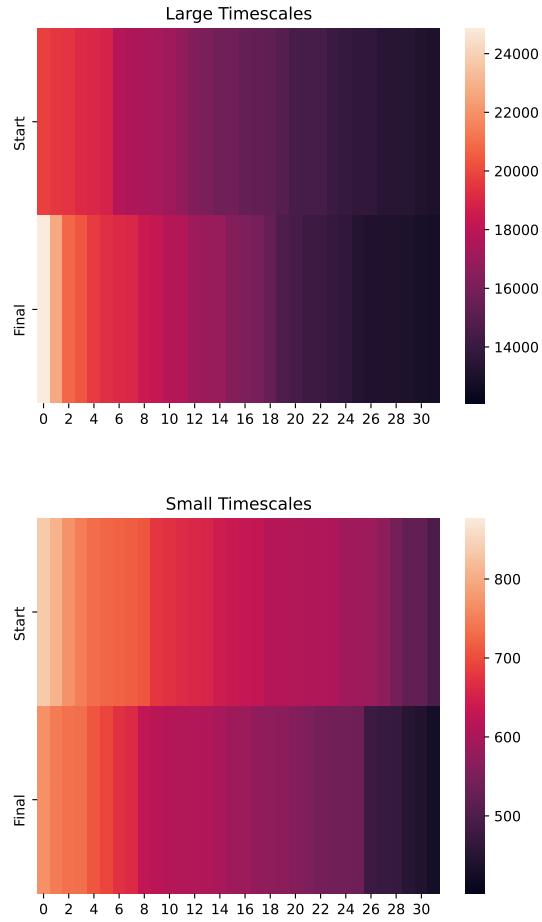

Timescale visualization.

Figure 2: Learned inverse timescales \(1/\Delta t\) spread to cover relevant ranges in Speech Commands.

Conclusion and Implications

The Linear State-Space Layer uniquely unifies the three major paradigms in sequence modeling:

  • Parallelizable Training of CNNs
  • Efficient Stateful Inference of RNNs
  • Continuous-Time Adaptability of NDEs
  • Principled Long-Range Memory via HiPPO

Its empirical success on extreme-length sequences, outperforming hand-crafted pipelines (like MFCC in speech), suggests promising future directions: models learning directly from raw, complex signals without domain-specific preprocessing.

While early fast algorithms faced stability issues and memory usage can be high, follow-up work addressed many limitations, inspiring the influential Structured State Space (S4) models.

Grounded in control theory and continuous-time mathematics, LSSL offers a principled answer to modeling very long sequences — bringing previously unreachable data within our grasp.
