Have you ever wondered how platforms like YouTube can automatically generate captions for videos? This task—known as video captioning—is a fascinating challenge at the intersection of computer vision and natural language processing. It requires a machine to not only see what’s happening in a video, but also to understand sequences of actions and describe them in clear, coherent, human-like language.

For years, the standard approach has resembled a factory production line:

  1. First, a pre-trained neural network extracts visual features from video frames.
  2. Then, a separate language model translates those features into sentences.

The problem? The visual model is often trained for a completely different job—like classifying static images—and its knowledge is “frozen.” It doesn’t adapt to the specific nuances of video captioning tasks. That disconnect can limit the richness and accuracy of generated captions.

The research paper “SWINBERT: End-to-End Transformers with Sparse Attention for Video Captioning” from Microsoft proposes a radical shift: instead of a clunky two-part system, use a single, unified model built entirely from Transformers that trains end-to-end, directly from raw video pixels to final words. This enables the model to develop deep, task-specific understanding of video content. In addition, SWINBERT introduces an elegant mechanism—the learnable sparse attention mask—to address redundancy in video sequences.

In this article, we’ll unpack the innovations behind SWINBERT, explore how it breaks from tradition to achieve state-of-the-art results, and examine why its ideas matter for the future of video understanding.

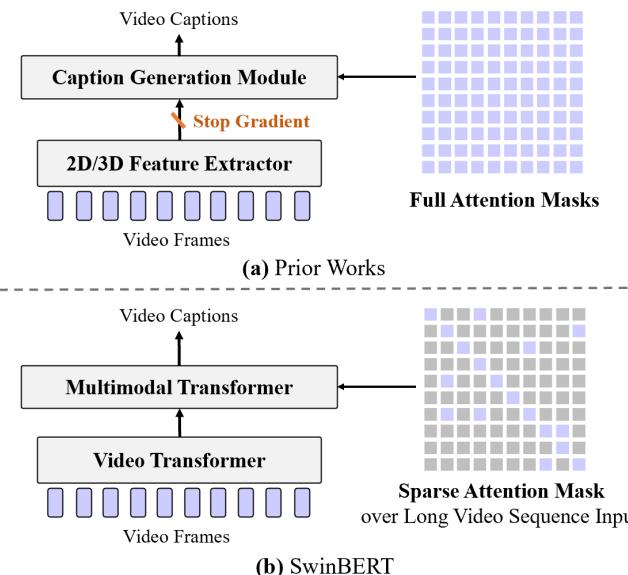

Comparison of the old, two-stage video captioning pipeline versus the new, end-to-end SWINBERT architecture. SWINBERT uses a single, fully Transformer-based model and a sparse attention mechanism.

Figure 1: Traditional approach (a) uses a frozen feature extractor, creating a disconnect. SWINBERT (b) is a unified, end-to-end Transformer that learns directly for the captioning task and uses a sparse attention mask to handle long sequences efficiently.

The Old Way: Frozen Features and Disconnected Learning

As shown in Figure 1(a), conventional video captioning involves:

  1. Video Feature Extractors: Powerful convolutional networks (e.g., ResNet, Inception) pre-trained on large image datasets or action recognition data. Multiple extractors might be used—one for 2D appearance (objects, scenes) and another for 3D motion (actions).
  2. Caption Generation Modules: Sequence models, often RNNs or Transformers, that take visual features as input and generate a caption.

The limitation lies in the “stop gradient” boundary between these modules. The visual features are fixed—optimized for some other task—and the captioning model must work with whatever features it’s given, without the ability to shape them to its needs.

This setup is computationally convenient, but suboptimal. The features that help classify “onion” in a static image might be quite different from what’s needed to describe “a chef finely chopping green onions” in motion.

SWINBERT: A Unified, End-to-End Transformer

Inspired by the success of Transformers in language (BERT, GPT) and vision (Vision Transformer, Swin Transformer), SWINBERT replaces the old pipeline with a pure Transformer design. The entire system—from pixels to prose—is optimized jointly for captioning.

Let’s walk through its architecture, illustrated in Figure 2.

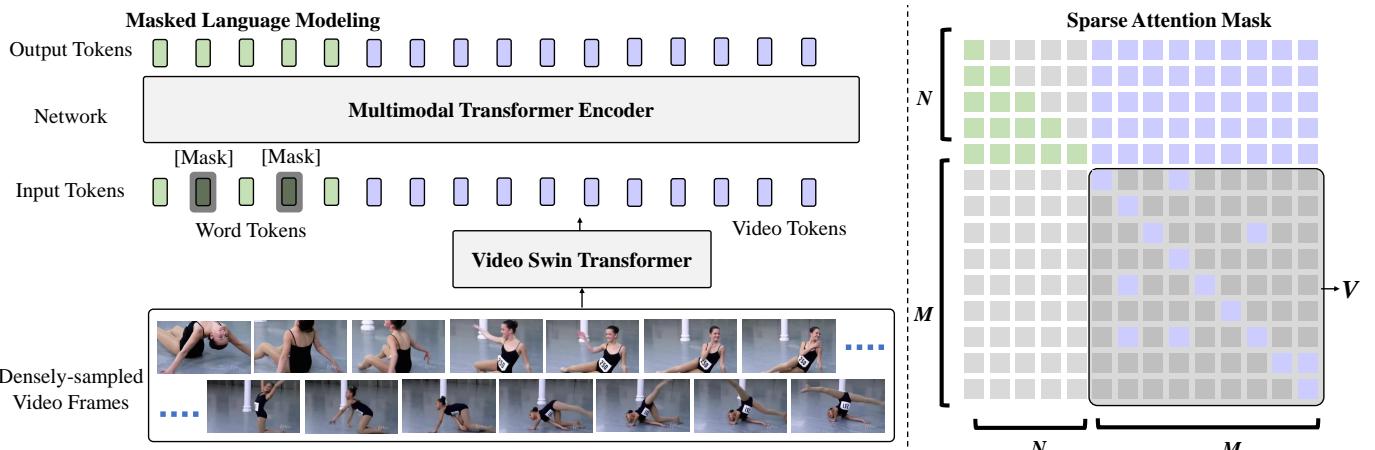

Overview of the SWINBERT framework. Video frames are fed into a Video Swin Transformer to produce video tokens. These are combined with word tokens and processed by a Multimodal Transformer Encoder, regularized by a learnable Sparse Attention Mask.

Figure 2: SWINBERT consists of a Video Swin Transformer to encode video and a Multimodal Transformer to fuse video and text. A learnable sparse attention mask regularizes attention between video tokens.

Step 1: Seeing with the Video Swin Transformer

The Video Swin Transformer (VidSwin) is the model’s visual encoder. Designed for spatio-temporal input, it processes sequences of raw frames as grids of 3D patches—capturing both spatial details and temporal dynamics.

VidSwin outputs video tokens: contextualized feature vectors, each representing a chunk of the video in space and time. Because SWINBERT trains end-to-end, VidSwin fine-tunes its representations based on what the captioning task requires—highlighting subtle hand motions if those improve caption quality, for example.

Step 2: Fusing Vision and Language

The Multimodal Transformer Encoder is the model’s reasoning hub. It takes video tokens from VidSwin plus the word tokens of the caption being generated, and applies self-attention across the entire set.

This enables cross-modal fusion: a word token like “dog” can attend to the specific video tokens containing the dog, while tokens of a wagging tail influence the choice of “happily.”

Training uses Masked Language Modeling (MLM): certain words in the caption are replaced with a [MASK] token, and the model must predict them using both the visual and textual context. This forces strong grounding of language in visual evidence.

Tackling Redundancy: The Learnable Sparse Attention Mask

Dense frame sampling boosts caption quality—but brings redundancy. Background elements may remain unchanged for hundreds of frames, yet standard Transformers incur quadratic cost in attending to them all.

SWINBERT introduces a learnable sparse attention mask to efficiently filter video token interactions. Instead of full attention among video tokens, a learnable matrix \(V\) governs connections. A sparsity regularization penalty encourages most entries to be zero:

The sparsity loss equation, penalizing absolute values in attention mask V to encourage sparsity.

This pushes the model to prioritize connections between tokens with richer, changing visual content—like moving objects—while minimizing attention to static background. The result: faster, more focused long-sequence modeling and better captions.

Results: SWINBERT in Action

Evaluated across five benchmarks—MSVD, YouCook2, MSRVTT, TVC, VATEX—SWINBERT delivered spectacular gains over prior state-of-the-art systems.

Table comparing SWINBERT’s performance (CIDEr score) against previous methods on five datasets, showing large improvements.

SWINBERT achieves significant gains, with standout boosts on YouCook2 (+55.4 CIDEr) and MSVD (+25.4 CIDEr). CIDEr measures similarity to ground-truth human captions.

Dense Frames Improve Captions

An ablation varying frame count from 2 to 64 shows clear trends:

Table showing CIDEr scores rising as number of frames increases.

Table 4a (excerpt): More frames yield consistently higher CIDEr scores, validating the benefit of dense sampling when paired with efficient modeling.

Sparse Attention Boosts Performance

Comparisons reveal the value of the sparsity constraint:

  1. Full Attention: baseline.
  2. Learnable Mask, No Sparsity Loss: random-like patterns.
  3. Full SWINBERT: learnable mask + sparsity loss.

Table showing SWINBERT with sparsity loss outperforms baselines.

Table 4b (excerpt): Sparsity loss improves CIDEr over full attention and unconstrained masks.

Hand-crafted masks (sliding spatial or temporal windows) lag behind the learned mask, underscoring SWINBERT’s adaptive advantage.

Visualization of Learned Attention

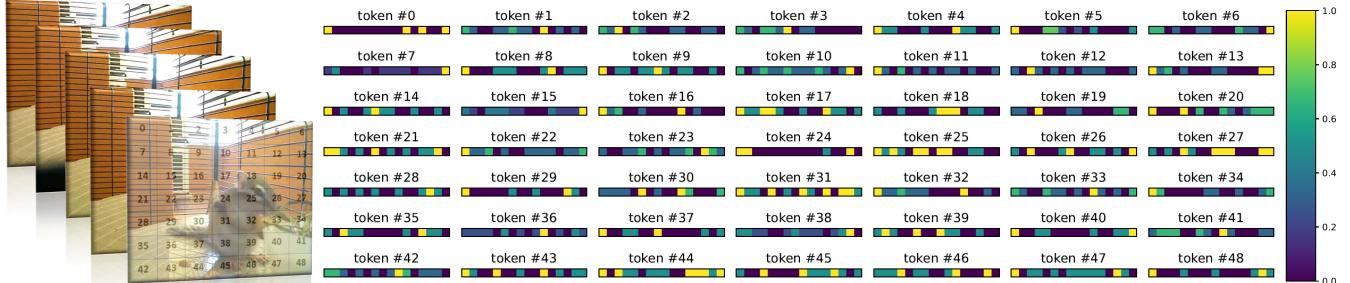

Visualization of learned sparse attention mask. Boundary tokens for background have sparse attention; action-centric tokens show dense attention.

Figure 3: Boundary-region tokens attend sparsely over time due to static backgrounds, while central tokens track dynamic action more intensively.

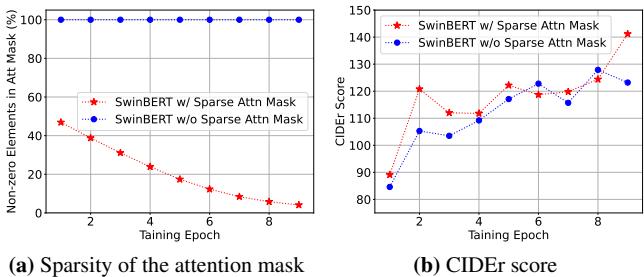

Training dynamics show non-zero mask entries dropping below 5%, while caption scores keep climbing:

Plots showing decreasing non-zero attention percentages alongside rising CIDEr scores.

Figure 4: Sparsity constraint prunes the attention mask effectively without harming—indeed improving—caption performance.

Qualitative Examples

Example video frames from different datasets with accurate captions by SWINBERT.

Figure 5: SWINBERT captures objects, actions, and interactions accurately—e.g., “season the meat,” “dog eating a watermelon.”

From cooking videos to sports to everyday scenes, SWINBERT’s captions are semantically rich and natural.

Conclusion: A Blueprint for Future Video-Language Models

SWINBERT marks a leap forward in video captioning:

  1. End-to-end learning—aligns visual representation learning directly with language generation needs.
  2. Dense frame utilization—provides richer temporal context for descriptive captions.
  3. Adaptive sparse attention—efficiently models long sequences, focusing on the most relevant visual details.

Its success not only sets new benchmarks but offers design principles likely to influence the next generation of video-and-language models. End-to-end architectures with adaptive attention can unlock deeper machine understanding of the dynamic, visual world—paving the way for more capable AI that can watch, comprehend, and describe.
