Machine translation is one of those problems that seems deceptively simple at first glance. Can’t we just swap words from one language for another? Anyone who has tried this, or used an early translation tool, knows the comical and often nonsensical results. The sentence “The cat sat on the mat” isn’t just a collection of words; it’s a structure with grammatical rules and a specific meaning. True translation requires understanding the entire thought before expressing it in another language.
For years, Statistical Machine Translation (SMT) systems were the state-of-the-art. They were statistical marvels, built on counting how often phrases in one language appeared alongside phrases in another across massive datasets. For example, an SMT system might learn that “the cat” frequently corresponds to “le chat” in French. But this approach has a fundamental limitation: it operates on surface-level statistics, not deeper semantic meaning. It can be brittle, especially with rare phrases or complex sentence structures.
In 2014, a groundbreaking paper titled “Learning Phrase Representations using RNN Encoder–Decoder for Statistical Machine Translation” proposed a radically different approach. Instead of just counting phrases, what if we could teach a neural network to understand a source phrase — to capture its meaning in a dense numerical vector — and then generate a translation from that understanding? This is the core idea behind the RNN Encoder–Decoder, a model that not only improved machine translation but laid the foundation for a whole new era of “sequence-to-sequence” models that now power everything from chatbots to text summarizers.
In this article, we’ll dive into this seminal paper: unpacking the architecture, understanding the clever mechanics of its new “gated” recurrent unit, and seeing how the authors proved their model truly learns the language of translation.
A Quick Refresher: SMT and RNNs
Before we dissect the main model, let’s cover two key concepts that set the stage: Statistical Machine Translation (SMT) and Recurrent Neural Networks (RNNs).
How SMT Works
At its heart, a phrase-based SMT system tries to find the most probable translation \(\mathbf{f}\) for a given source sentence \(\mathbf{e}\). This is modeled as a combination of different scores:
- The translation model scores how well phrases in \(\mathbf{f}\) translate to phrases in \(\mathbf{e}\).
- The language model scores how fluent \(\mathbf{f}\) is in the target language.
These scores are combined in a log-linear model:
\[ \log p(\mathbf{f} \mid \mathbf{e}) = \sum_{n=1}^{N} w_n f_n(\mathbf{f}, \mathbf{e}) + \log Z(\mathbf{e}) \]Each feature score \(f_n\) (e.g., “how often does ’the cat’ translate to ’le chat’?”) has a weight \(w_n\) tuned to produce the best possible translations on a development dataset. SMT’s strength comes from combining multiple features — and the paper’s key innovation was to add a powerful neural-network–based feature.
The Power of Sequences: Recurrent Neural Networks (RNNs)
RNNs are neural networks designed to handle sequential data, like sentences. Unlike feedforward networks, RNNs have “memory” in the form of a hidden state \(\mathbf{h}\), which is updated at each step:
\[ \mathbf{h}_{\langle t \rangle} = f(\mathbf{h}_{\langle t-1 \rangle}, x_t) \]This hidden state acts as a running summary of the sequence so far. With a softmax output layer, RNNs can predict the next word in a sequence, learning a probability distribution over word sequences:
\[ p(\mathbf{x}) = \prod_{t=1}^{T} p(x_t \mid x_{t-1}, \dots, x_1) \]This flexibility in processing and generating sequences is exactly what we need for translation.
The Core Method: The RNN Encoder–Decoder
The paper’s central contribution was the RNN Encoder–Decoder: a clean, elegant model for mapping one sequence to another. It consists of two RNNs:

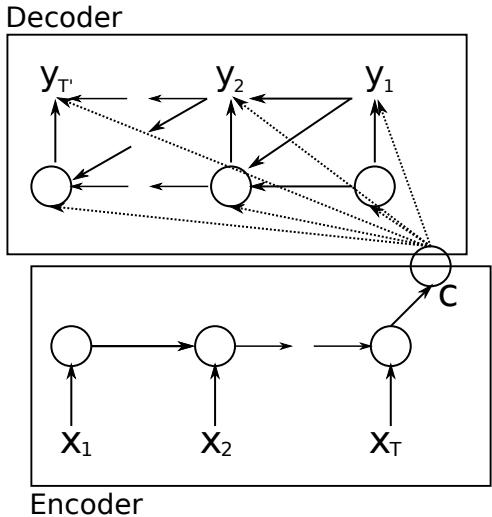

Figure 1: An illustration of the proposed RNN Encoder–Decoder.
The Idea:
- Encoder — Reads the input sentence token by token and compresses its meaning into a single, fixed-length context vector \( \mathbf{c} \) (often called a “thought vector”).
- Decoder — Takes \( \mathbf{c} \) and generates the output sentence one word at a time, starting from a start-of-sequence token.
The Encoder
The encoder RNN processes input \(\mathbf{x} = (x_1, \ldots, x_T)\). Each update depends on the token and previous state. When it reaches the end-of-sequence, its final hidden state becomes context vector \(\mathbf{c}\), a rich numerical summary. Training teaches the network to pack semantic and syntactic details into \(\mathbf{c}\).
The Decoder
The decoder is also an RNN but is trained to generate. Its hidden state at time \(t\) is:
\[ \mathbf{h}_{\langle t \rangle} = f(\mathbf{h}_{\langle t-1 \rangle}, y_{t-1}, \mathbf{c}) \]and the probability of the next word:
\[ P(y_t \mid y_{t-1}, \ldots, y_1, \mathbf{c}) = g(\mathbf{h}_{\langle t \rangle}, y_{t-1}, \mathbf{c}) \]Feeding \(\mathbf{c}\) at every step ensures the translation is guided by the entire source sentence’s meaning.
Joint Training
The encoder–decoder is trained end-to-end to maximize the conditional log-likelihood:
\[ \max_{\boldsymbol{\theta}} \frac{1}{N} \sum_{n=1}^{N} \log p_{\boldsymbol{\theta}}(\mathbf{y}_n \mid \mathbf{x}_n) \]Errors from the decoder propagate back through both networks, shaping the encoder to produce vectors that help the decoder translate better.
A Smarter Neuron: The Gated Recurrent Unit (GRU)
Simple RNNs struggle with long-range dependencies due to vanishing gradients. LSTMs solve this but are complex. The paper introduced a lighter alternative: the Gated Recurrent Unit (GRU).

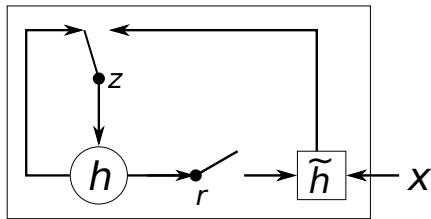

Figure 2: The GRU’s reset gate \(r\) and update gate \(z\) control how information flows.
The GRU has two gates:
- Reset Gate (\(r_j\)) — Controls how much past information to forget:
Used in computing a candidate state:
\[ \tilde{h}_{j}^{\langle t \rangle} = \phi \left( [\mathbf{W} \mathbf{x}]_{j} + [\mathbf{U} (\mathbf{r} \odot \mathbf{h}_{\langle t-1 \rangle})]_j \right) \]- Update Gate (\(z_j\)) — Controls how much past information to retain:
Final state:
\[ h_j^{\langle t \rangle} = z_j h_j^{\langle t-1 \rangle} + (1 - z_j) \tilde{h}_j^{\langle t \rangle} \]High \(z_j\) preserves history; low \(z_j\) adopts new input. This adaptability lets GRUs learn both short- and long-term dependencies.
The Experiment: Putting It to the Test
The authors evaluated the RNN Encoder–Decoder on English–French translation (WMT’14).
Approach
Instead of building a new system, they rescored phrase pairs within an existing SMT system:
- Take the phrase table from Moses.
- Feed each source phrase into the encoder; calculate the probability of the target phrase via the decoder.
- Add this probability as a new feature in the SMT’s log-linear model.
This preserved SMT’s coverage while adding neural model’s linguistic insight.
Results

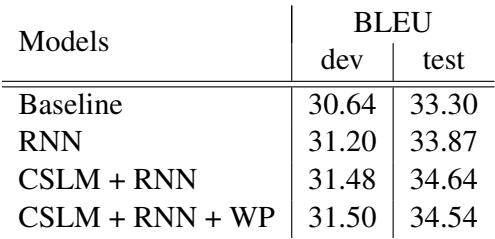

Table 1: BLEU scores for baseline and models with added features.
Adding RNN scores improved BLEU by ~0.6 over a strong baseline. Combining with a Continuous Space Language Model (CSLM) yielded the best scores — each captured different aspects (quality vs. fluency).
Qualitative Analysis: What Did the Model Learn?

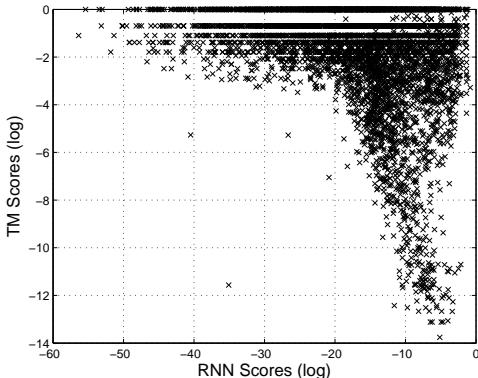

Figure 3: Comparing RNN and traditional TM scores; differences show RNN focuses on linguistic plausibility.
The traditional TM favors frequent phrases; the RNN, trained without frequency data, scores based on linguistic regularities.

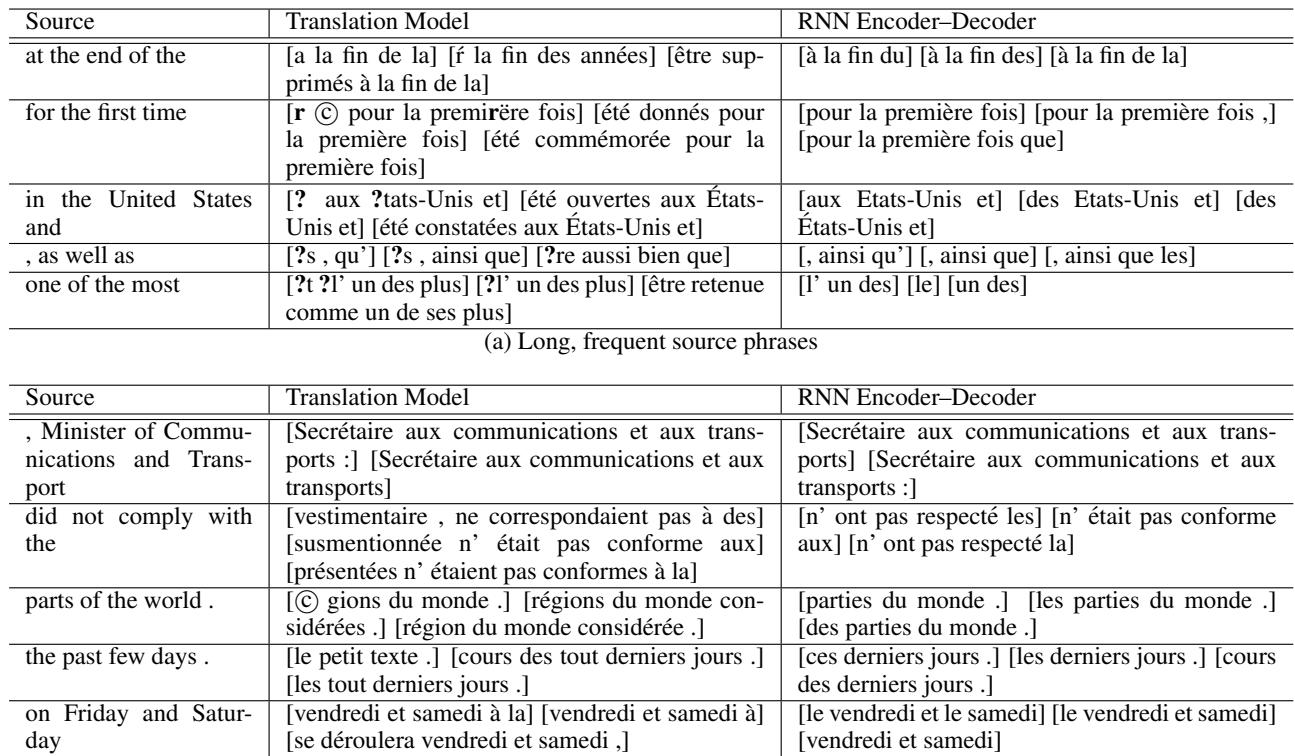

Table 2: RNN translations are cleaner and more literal compared to TM, which sometimes outputs nonsensical phrases.
The RNN’s top translations are more plausible (e.g., “ces derniers jours .” for “the past few days .” instead of TM’s “le petit texte .”).
The authors also tested generation:

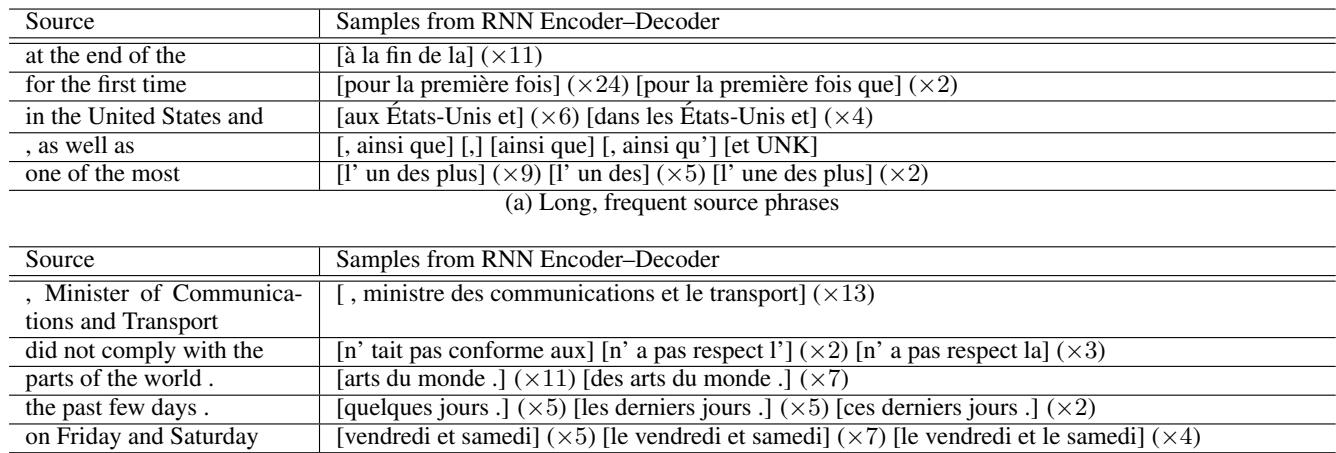

Table 3: RNN-generated translations are high-quality, sometimes not in the original phrase table.
From scratch, the RNN could produce fluent, accurate translations, hinting at replacing phrase tables entirely in the future.
Visualizing Meaning: Learned Representations
The model learns embeddings for words and phrases.

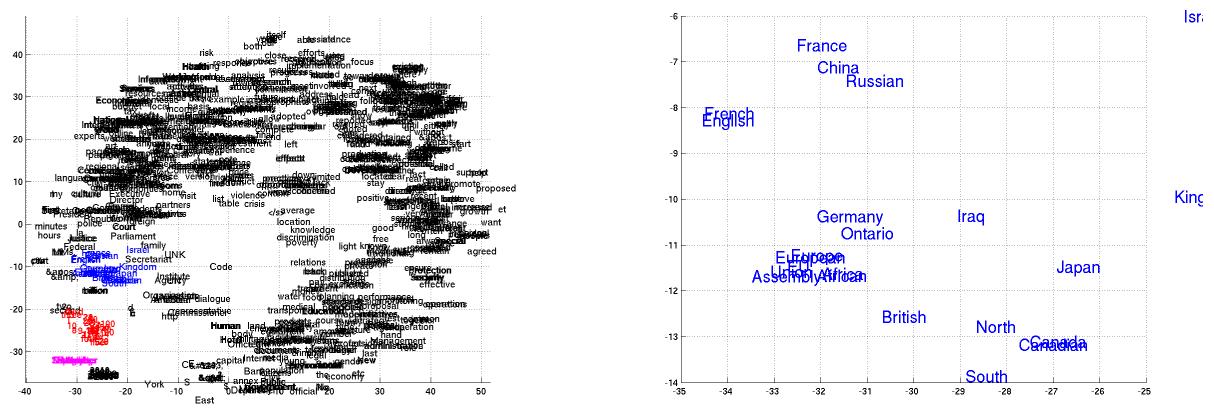

Figure 4: Word embeddings cluster semantically related terms.
Words cluster by meaning: countries, numbers, months.

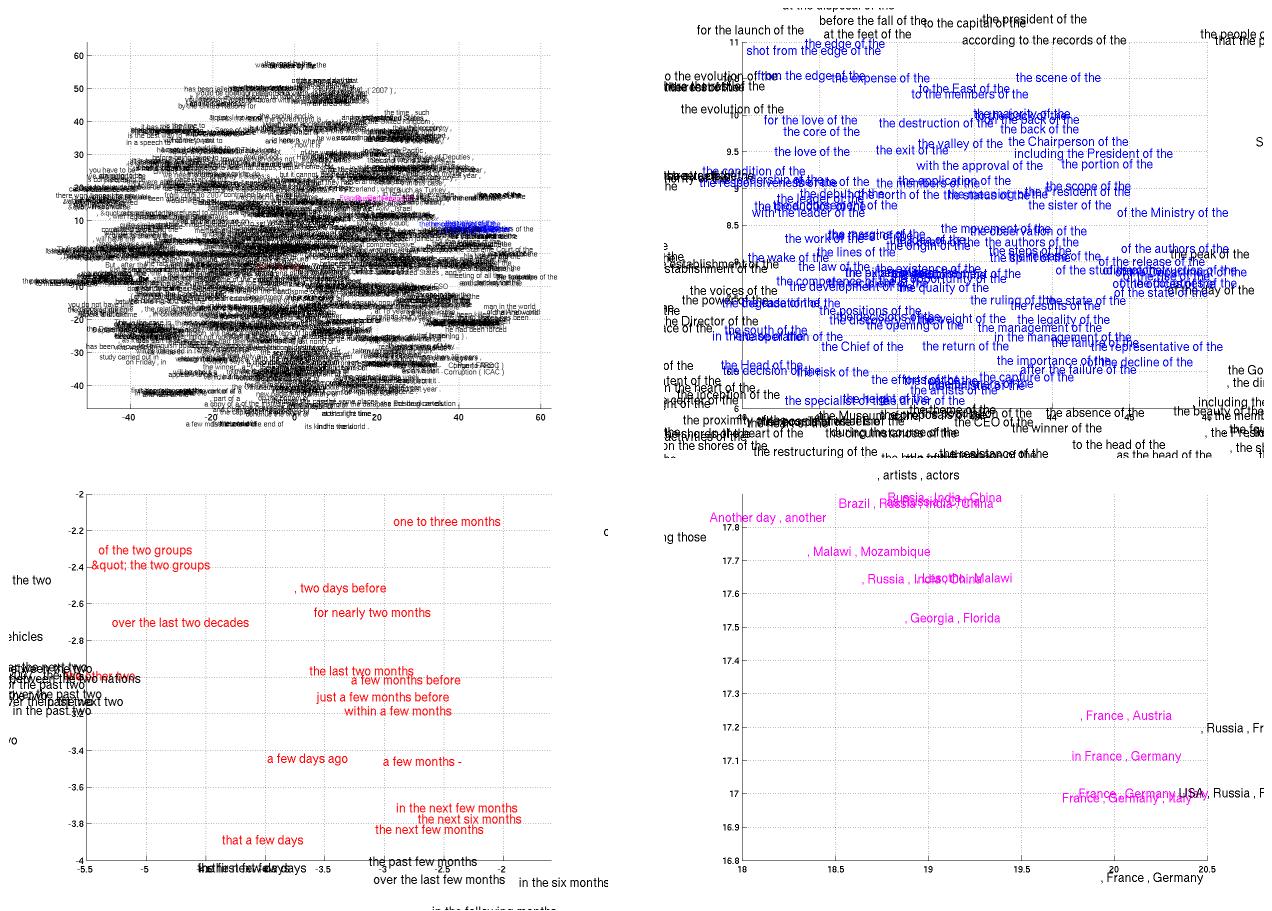

Figure 5: Phrase embeddings group by semantic themes (time durations, countries) and syntactic patterns.
Phrase embeddings capture both meaning and grammar. Clusters form naturally: time-related phrases together, geographic entities together, syntactically similar structures together.
Conclusion and Lasting Impact
The RNN Encoder–Decoder was more than an incremental improvement: it introduced a general framework for mapping variable-length input sequences to variable-length output sequences.
Key contributions:
- Encoder–Decoder Architecture — Enabled direct handling of variable-length sequences.
- Gated Recurrent Unit (GRU) — A simpler, effective alternative to LSTMs for long-range dependencies.
- Rich Representations — Learned structured semantic and syntactic embeddings for words and phrases.
This work was a turning point, moving MT from statistical phrase counting toward end-to-end deep learning. The seq2seq paradigm it introduced now underpins countless NLP applications. While newer models with attention and Transformers have surpassed it, the RNN Encoder–Decoder’s conceptual foundation remains pivotal.
It marked the moment machine translation began truly understanding before translating.
